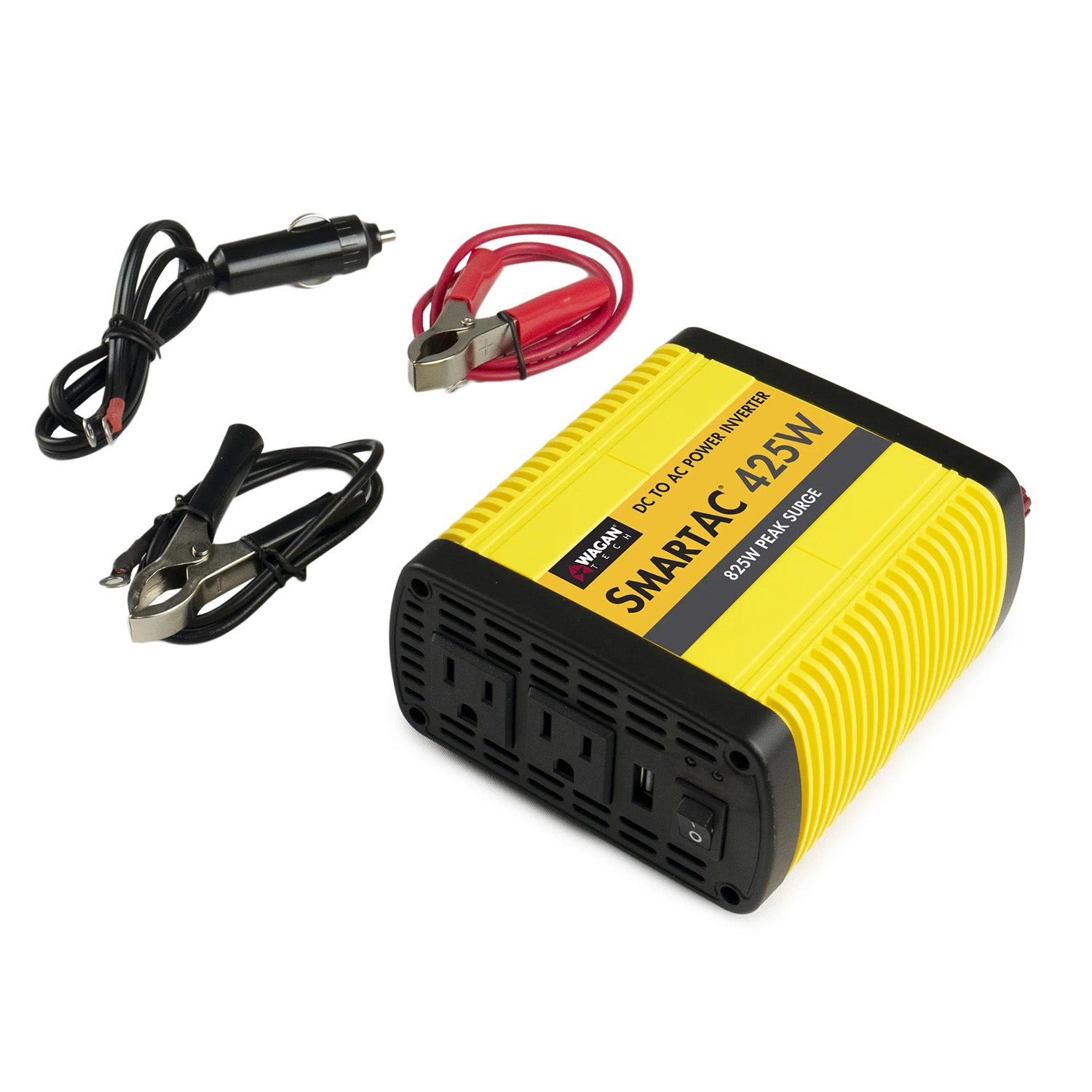

In your vehicle, boat, RV, camper, tail-gating, camping, or anywhere you need to turn DC (battery) power into AC (household) power is where the Smart AC 425W Power Inverter will shine! 400 continuous watts means that you can run your appliance without worry of the Smart AC 425W Power Inverter letting you down like lesser inverters. A small blender, TV, gaming system, dorm refrigerator, and other household electronics are all able to be powered!
Wagan Smart AC 425W 12V Power Inverter Features
- 425W TrueRated Power
- 825W Peak Surge
- 2 AC Outlets
- 2.1A USB Power Port
- Circuit Protections
- Temperature/Load Controlled Cooling Fan
- 12V Power Cable included
Front Component Details
On the front of the Smart AC 425W Power Inverter are two 120V AC outlets, a 2.1A USB Power Port, LED Indicator lights, and the Power Switch.
Rear Component Details
On the rear are the color-coded Positive Input Terminal, the Negative Input Terminal, and the Load/Temperature controlled cooling fan.
TrueRated Power
TrueRated Power is Wagan Tech’s coined term for truth in advertising and performance. TrueRated inverters are tested at full load (the number printed on the inverter) and will sustain that load continuously for 24 hours. For example, The Wagan Tech Pure Line 400 Watt Inverter will run for 24 hours straight with a 400 Watt load.
Wagan Smart AC 425W 12V Power Inverter Specifications
| TrueRated Power™ |
425W
|
| Surge Power |
825W
|
| AC Output |
120V |
| Frequency |
60Hz±0.5 |
| Socket type (NEMA5-15) |
U.S. standard 3-prong (2x) |
| USB Power Ports |
5V, 2.1A (1x) |
| Remote Port |
No
|
| Maximum Efficiency |
90% |
| Output Waveform |
Modified Sine Wave |
| Overload Protection |
Automatic shutdown |
| Auto Restart |
Yes
|
| Overvoltage Shutdown |
Yes |
| Overheating Protection |
Cooling fan with automatic shutdown |
| Cooling Fan |
Load/Temperature Controlled |
| Short circuit and reverse polarity protection |
Internal fuses (30A x2) |
| DC Cable 12V Plug |
2 feet, 18AWG (Included) |
| DC Cable Battery Clamps |
2 feet, 16AWG (Included) |
| DC Input Range |
11V to 15V |
| Low battery alarm |
10.5V ± 0.5V |
| Low battery automatic shutdown |
9.5V ± 0.5V |
| No load current draw |
0.3A |
| Harmonic Distortion (THD) |
- |
| NTG Bond |
Floating |
| True Ground |
Floating
|
| Remote Control Capable |
No |
| Conformal Coating PCB |
- |
| Net Weight |
1.6 lbs. |
| Dimensions L x W x H (in.) |
6.5 x 5.0 x 2.6 |
| Warranty |
1 year |
