In an age of increasing energy costs and growing environmental concerns, more people are looking for sustainable, independent ways to power their homes and devices.
Enter the world of off-grid solar systems – a solution that promises energy independence, reduced carbon footprint, and long-term cost savings.

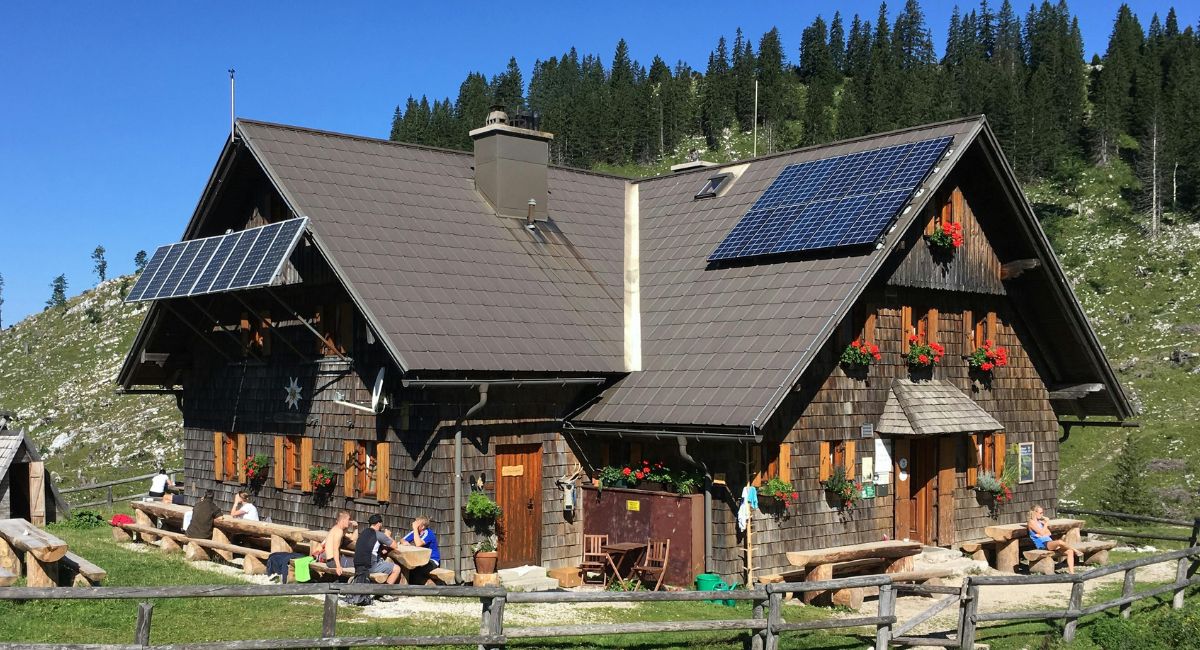

Whether you're dreaming of a self-sufficient cabin in the woods, planning to power your RV for a long road trip, or simply want to break free from the traditional power grid, building your own off-grid solar system can be an exciting and rewarding project.
However, the journey from concept to a fully functioning solar power system can seem daunting at first. With a myriad of components to consider, electrical concepts to grasp, and decisions to make, where does one begin?
This comprehensive guide is designed to demystify the process, walking you through every step of building an off-grid solar system. From understanding basic electrical principles to selecting components, designing your system, and maintaining it for years to come, we have it all.
So, let's get started on our adventure towards energy independence and sustainability!
An off-grid solar system is a stand-alone power generation setup that allows you to produce and use electricity independently of the public power grid. These systems use the sun's energy through solar panels, store it in batteries, and convert it into electrical power.
Unlike grid-tied systems, off-grid setups must be carefully sized to meet all of your energy needs, as there's no backup power source to rely on when solar production is low or energy consumption is high.
We will discuss these four components in greater details later in this article.
An off-grid solar system allows you to generate and store your own electricity, freeing you from reliance on the traditional power grid. This independence can be especially valuable in remote areas or regions with unreliable grid power.
Solar power is a clean, renewable energy source that produces no direct emissions. By using solar energy, you reduce your carbon footprint and dependence on fossil fuels.
While the investment may be significant, off-grid solar systems can lead to robust savings on electricity bills. Once the system pays for itself, you essentially have free electricity for years.
For those interested in a more self-reliant lifestyle, an off-grid solar system is a significant step towards enjoying energy freedom.
Off-grid systems can provide electricity during power grid failures or natural disasters. This resilience can be crucial for maintaining essential services and comfort during emergencies.
For those concerned about EMF exposure from the power grid, an off-grid system can significantly reduce this exposure in your living environment.
If energy security is a concern, then having your own power source provides a layer of protection against potential disruptions.
Building an off-grid solar system requires careful planning, a good understanding of your energy needs, and knowledge of electrical systems. This guide will walk you through the process, from understanding basic electrical concepts to designing and maintaining your own off-grid solar power system.
Understanding the fundamental physics of electricity, including the behavior of atoms, protons, electrons, and neutrons, provides a crucial foundation for building an off-grid solar system.
This knowledge helps explain how solar panels convert light into electricity at the atomic level, and how batteries store and release energy through chemical reactions involving electron transfer. It also illuminates the principles behind electrical current flow, voltage, and resistance, which are essential concepts for designing and troubleshooting solar power systems.
By grasping these basics, you can better comprehend how different components in your system interact, from the photovoltaic cells in solar panels to the inverters that convert DC to AC power.
This deeper understanding not only enhances your ability to design an efficient and effective off-grid system but also equips you to make informed decisions about equipment selection, system sizing, and maintenance.
Moreover, it provides valuable context for understanding safety precautions and the importance of proper grounding and insulation in your solar setup.
Electricity is the flow of tiny charged particles called electrons through a conductor. Imagine a highway filled with cars - electricity is like a stream of these cars moving along a specific path. Just as cars need a road to travel on, electrons need a conductor, like a wire, to flow through.
The Atom: Protons, Neutrons, and Electrons
Everything in the universe is made up of tiny building blocks called atoms. An atom is like a miniature solar system, with a central nucleus orbited by even smaller particles called electrons. The nucleus contains protons (positive charge) and neutrons (no charge), while electrons have a negative charge.
The Flow of Electrons
When two objects with different electrical charges are connected, electrons flow from the negatively charged object to the positively charged one. This flow of electrons is what we call an electric current. As the electrons flow, they transfer energy. The rate of electron flow is measured in amperes (amps).
Electrical Circuits
A circuit is a closed loop that allows electrons to flow continuously. It consists of a:
Volts (V): Electrical pressure or potential difference
Amperes (Amps) (A): Rate of electron flow (current)
Watts (W): Rate of electrical energy transfer or consumption
Ohm's Law describes the relationship between voltage, current, and resistance in an electrical circuit. It states the current flowing through a conductor is directly proportional to the voltage across it and inversely proportional to its resistance.
V = Voltage (in volts)
I = Current (in amperes, or amps)
R = Resistance (in ohms)
This means that if you know any two of these values, you can calculate the third. For example, increasing the voltage while keeping resistance constant will increase the current proportionally.
Ohm's Law allows us to understand how these three elements interact, which is critical when it comes time to size a solar power system.
Watts = Volts x Amps
Volts = Watts / Amps
Amps = Watts / Volts
Watt-Hours (Wh) = Watts x Time (hours)
Understanding these units helps in comparing electrical components, calculating power consumption, and estimating energy usage. We will cover this in more depth later in the article.
Direct Current (DC) flows consistently in one direction. In a DC circuit, electrons move from the negative terminal of a power source to the positive terminal. This one-directional flow contrasts with Alternating Current (AC), where the direction of electron flow periodically reverses.
DC is produced by sources such as batteries, solar cells, and fuel cells. It's commonly used in low-voltage applications like electronics, LED lighting, and computer systems. Many electronic devices require DC to function, even when powered by AC sources, necessitating the use of AC-to-DC converters.
DC has several advantages, including simpler circuit design for some applications and the ability to be easily stored in batteries. However, it's less efficient for long-distance power transmission compared to AC.
Alternating Current (AC) periodically reverses direction, contrasting with Direct Current (DC) which flows in only one direction. In AC, the flow of electric charge switches back and forth at regular intervals or cycles. The most common AC waveform is sinusoidal, though other waveforms like square or triangular can exist.
AC is widely used for power distribution due to several advantages. It can be easily transformed to different voltage levels, allowing for efficient long-distance power transmission. AC also enables the use of simple and robust electric motors.
The frequency of AC is measured in Hertz (Hz), representing the number of cycles per second. In most countries, the standard frequencies are 50 Hz or 60 Hz for household and industrial power systems.
The distinction between DC and AC affects how electricity is generated, transmitted, and used.
DC is ideal for low-voltage applications like batteries, solar panels, and electronics. It's easy to store but loses power over long distances. AC, however, can be efficiently transmitted over vast distances with minimal loss, making it perfect for power grids.
The choice between AC and DC impacts device compatibility, safety measures, and energy efficiency. Many household appliances use AC, while portable devices often require DC. Converting between the two types requires specific equipment. In industrial settings, understanding AC/DC differences is vital for selecting appropriate motors, power supplies, and control systems. It also influences electrical safety protocols and troubleshooting procedures.
As solar energy sources become more prevalent, grasping AC/DC concepts is increasingly important for integrating solar with battery storage systems.
Electrical safety is crucial because electricity, while immensely beneficial, can be deadly if mishandled. Improper use or faulty electrical systems can lead to electrocution, fires, and severe burns. Improper wiring, overloaded circuits, and other electrical hazards are common causes. Even low-voltage shocks can cause serious injuries or trigger cardiac issues. Proper safety measures protect not only individuals but also property from damage. Not to mention that proper electrical installations and maintenance often lead to more efficient energy use, reducing costs and environmental impact.
Essential Safety Practices
The first thing you must do is run a power audit. To run a power audit, you'll need to assess the energy consumption of everything you want to power with your off-grid system.
Here is how to run a power audit:
Determining your budget for an off-grid solar power system is a crucial step that requires careful consideration of several factors.
You will also want to allow for contingencies (10-20% of total cost). If the cost you come up with to purchase and install your system is more than your budget, then you may consider a phased implementation. It does not all have to be installed at once.
Solar panels come in three main types:
Monocrystalline panels, made from a single silicon crystal, offer the highest efficiency (typically 20-23%) and perform best in low light, but are the most expensive.
We always recommend monocrystalline panels. The savings gained from the other panel types is not worth the lack of efficiency.
Polycrystalline panels, made from multiple silicon fragments, have slightly lower efficiency (15-17%) and cost less, making them suitable for larger areas or for people on a budget.
Thin-film panels are the least efficient (10-12%) but are flexible, lightweight, and the cheapest option, performing well in high temperatures.
When choosing solar panels, you must consider watts, volts, and amps. Watts measure power output, with residential panels typically ranging from 250W to 400W. Volts measure electrical potential, with most residential panels being 12V, 24V, or 48V. Amps measure current flow and are calculated by dividing watts by volts. Other important factors include temperature coefficient, durability, warranty, size, weight, and manufacturer reputation.
Solar panels can be wired together in two ways:
Series wiring connects the positive terminal of one panel to the negative of the next, increasing voltage while maintaining current. This reduces power loss over long distances but can be affected if one panel fails.
Parallel wiring connects all positive terminals together and all negative terminals together, increasing current while maintaining voltage. This configuration is more resilient to partial shading or panel failure but requires larger wire gauges.
Many systems use a combination of series and parallel wiring to achieve the desired voltage and current, based on specific system requirements, inverter specifications, and installation constraints.
There are two types of solar charge controllers:
1. Pulse Width Modulation (PWM) Controller
A PWM solar charge controller works by rapidly switching the connection between the solar panels and the battery on and off, effectively reducing the average voltage from the panels to match the battery's needs. This pulsing action allows the controller to maintain the battery at a full charge while preventing overcharging, which could damage the battery.
PWM controllers are relatively simple and cost-effective, making them popular for smaller solar installations. However, they are less efficient than more advanced MPPT (Maximum Power Point Tracking) controllers
2. Maximum Power Point Tracking (MPPT) Controller
A MPPT solar charge controller works by continuously monitoring the voltage and current output of the solar panels and adjusting these parameters to extract the maximum possible power under varying environmental conditions.
MPPT controllers can handle higher voltage inputs from solar arrays and convert this to the lower voltage needed for battery charging, allowing for more flexible system designs. They are particularly useful in situations where panel voltage may fluctuate significantly, such as during partial shading or temperature changes. By ensuring that solar panels operate at their most efficient point, MPPT controllers can increase energy harvest by up to 30% compared to traditional charge controllers, making them a popular choice for both small off-grid systems and larger solar installations.
When choosing between PWM and MPPT, consider factors like system size, climate, budget, and the voltage specifications of your panels and batteries. For small systems in ideal conditions, PWM might be sufficient, while larger or more complex systems often benefit from the advanced capabilities of MPPT controllers. We always recommend MPPT controllers.
Deep cycle batteries come in several types, each with distinct characteristics. The most common are
For this discussion, we are only going to cover Lithium-ion batteries, as you should not consider anything else for your solar power system.
Lithium-ion batteries are notable for their high energy density, longer lifespan, and faster charging capabilities, although they come at a higher initial cost.
Power inverters convert DC electricity into AC electricity.
There are two main types:
Modified sine wave inverters offer a stepped waveform that more closely resembles AC power, providing a good balance between cost and performance for many common applications.
Pure sine wave inverters generate a smooth, consistent waveform nearly identical to grid power, making them ideal for powering sensitive equipment and appliances. They're the most expensive option but offer the highest quality power output. We only recommend pure sine wave inverters for off-grid solar systems.
When designing a solar power system, it's crucial to ensure all components are compatible and work together efficiently. Each component must be selected to work harmoniously with the others. For example, the inverter must be able to handle the maximum power output of the solar array, and batteries (if used) must have sufficient capacity and voltage to match the system requirements.
This is where your Power Audit is so crucial. To properly size a solar power system, you need to determine the energy needs of the installation. This involves:
Here's a simple formula:
Daily Energy Consumption (Wh) = Sum (Device Power (W) × Hours of Use per Day)
Here is a basic example to illustrate the process of sizing a solar power system for a small off-grid cabin.
| Device | Power (W) | Hours per Day | Energy (Wh per Day) |
| LED Lights (5) | 10 x 5 | 5 | 250 |
| Fridge | 200 | 24 | 3600 |
| Laptop | 65 | Up to 4 | 260 |
| Phone Charger | 5 | 2 | 10 |
| TV | 60 | 3 | 80 |
This example provides a basic overview of sizing a solar power system. Keep in mind that real-world scenarios often require more detailed calculations and considerations, such as:
Assume 20% system losses due to inverter efficiency, wire losses, etc. The adjusted daily energy requirement in this example = 4300 Wh × 1.2 = 5160 Wh/day
The peak sun hours per day varies by location, but a good short-hand estimate is five hour per day. Therefore:
Required solar panel capacity = 5160 Wh ÷ 5 hours = 1032 W
Rounding up, we'd choose a 1100 W solar panel system (ex: 4 × 275 W panels).
Sizing a power inverter with a capacity slightly higher than the total wattage of devices that might run simultaneously. In this case, a 1500W inverter would be suitable.
For 2 days of autonomy (power without sun):
Required battery capacity = (5160 Wh × 2 days) ÷ 0.5 (50% depth of discharge) = 20640 Wh
Assuming a 12V battery system:
Battery capacity in Ah = 20640 Wh ÷ 12V = 1720 Ah
This could be achieved with, for example, 8 × 215 Ah 12V batteries connected in parallel.
Choose a charge controller that can handle the maximum current from your solar panels. For a 12V system with 1100 W of panels:
Maximum current = 1100 W ÷ 12V = 91.7 A
A 100 A MPPT charge controller would be appropriate for this system.
Before installing a solar power system, it's crucial to assess your site's suitability. Here are five factors to consider:
Choosing the right mounting system is crucial for the efficiency and longevity of your solar array:
Each type has its pros and cons in terms of cost, ease of installation, and efficiency. Consider your specific needs and site conditions when choosing.
Here are 2 crucial steps to properly size your battery bank for your solar system:
Use this formula:
(Daily Energy Usage x Days of Autonomy) / (Battery Voltage x Depth of Discharge)
Choose Battery Configuration: Decide on series or parallel connections based on your system voltage and capacity needs. As with solar panels, connecting in series will increase voltage, while connecting in parallel will increase amperage.
Remember to factor in temperature effects and potential future energy needs when sizing your battery bank.
Solar power system monitoring and maintenance are crucial for ensuring the longevity and efficiency of your off-grid setup. A comprehensive approach to monitoring involves installing a system that tracks energy production, consumption, and battery state in real-time.
Consider using smart monitoring systems that can send alerts to your phone or email when issues arise. By tracking daily, monthly, and yearly performance, you can identify trends and potential problems early, allowing for proactive maintenance.
Panel maintenance is a key aspect of system care. Establish a regular cleaning schedule based on your local environment, using appropriate methods like soft brushes and non-abrasive cloths. Conduct visual inspections for physical damage and address any shading issues by trimming nearby vegetation. In snowy regions, have a plan for snow removal to maintain efficiency.
Battery maintenance varies depending on the type of batteries used. For flooded lead-acid batteries, regular checks of electrolyte levels and specific gravity measurements are essential. All battery types require clean and tight terminals, and it's important to monitor charge cycles and depth of discharge to optimize battery life. Consider implementing a battery management system, if one is not already included, for more advanced monitoring and protection.
Electrical connections require annual thorough inspections. Look for signs of wear, fraying, or rodent damage on cables, and check for corrosion on terminals. Ensure all connections are tight and secure, and consider using a thermal imaging camera to identify any hot spots that might indicate issues.
Inverters and charge controllers need proper ventilation and regular checks for unusual noises or error messages. Keep firmware updated and consider having a professional check internal components annually.
Documentation is a crucial but often overlooked aspect of system maintenance. Keep a detailed log of:
Consider using digital tools or apps for easier tracking and analysis of system data.
Lastly, always prioritize safety when working on your solar system, be aware of warranty terms, and consider annual professional inspections. Stay informed about new technologies in solar power, as upgrades to more efficient components might be cost-effective over time.
By following these guidelines, you can ensure that your off-grid solar power system remains efficient, reliable, and long-lasting, optimizing your return on investment in solar energy.
Here are some thing you should consider when navigating the regulatory landscape part of installing an off-grid solar power system:
1. Permits: Most jurisdictions require electrical and/or building permits for solar installations. Some areas may have specific permits for off-grid systems.
2. Inspections: Your system will likely need to pass electrical and possibly structural inspections. Be prepared to show that your system meets all local codes and standards.
3. Electrical Codes: In the US, systems must comply with the National Electrical Code (NEC), particularly Article 690 which deals with solar photovoltaic systems.
Other countries have their own electrical standards that must be followed.
4. Utility Notifications: Even for off-grid systems, some areas require you to notify the local utility company of your installation.
5. Insurance Considerations: Check with your insurance provider about coverage for your off-grid system.
Always consult with local authorities and possibly a solar professional to ensure your system meets all regulatory requirements.
While solar power is generally considered environmentally friendly, it's important to understand its full environmental impact.
By understanding these factors, you can make informed decisions to minimize the environmental impact of your off-grid solar system.
Even well-designed solar systems can experience issues. Here are some common problems and solutions.
Always consult your system documentation and consider professional help for complex issues or if you're unsure about performing electrical work.
The field of off-grid solar is rapidly evolving. Here are some trends to watch:
Improved Solar Cell Efficiency (Great Power Capacity)
Engineers are rapidly making better and more efficient solar panels. Special layered panels and a material called perovskite could help solar panels make more electricity from sunlight.
Advanced Battery Technologies (Longer Storage; Improved Safety)
Solid-state batteries may offer higher energy density and improved safety. Flow batteries could provide cost-effective long-duration storage for larger systems.
Smart Energy Management (AI; Smart Home Integration)
AI-driven systems will optimize energy production, storage, and consumption. Integration with smart home technologies for seamless energy management.
Improved Inverter Technology (Greater Efficiency and Grid Integration)
More efficient and reliable inverters with advanced grid-integration capabilities.
Modular and Plug-and-Play Systems
Easier to install and expand systems will make off-grid solar more accessible.
Integration With Other Renewable Power Sources (Wind; Hydro)
Hybrid systems combining solar with wind or micro-hydro for increased reliability.
As technology advances, off-grid solar systems will become more efficient, affordable, and easier to implement, making sustainable energy accessible to more people worldwide.
Ampere (Amp): Unit of electrical current.
Charge Controller: Device that regulates the charging of batteries from solar panels.
Depth of Discharge (DoD): Percentage of battery capacity that has been used.
Inverter: Device that converts DC power to AC power.
Kilowatt-hour (kWh): Unit of energy, equal to 1,000 watt-hours.
Maximum Power Point Tracking (MPPT): Technique used by charge controllers to maximize power output.
Photovoltaic (PV): Direct conversion of light into electricity.
State of Charge (SoC): The level of charge of a battery relative to its capacity.
Volt: Unit of electrical potential difference.
Watt: Unit of power, equal to one joule per second.
