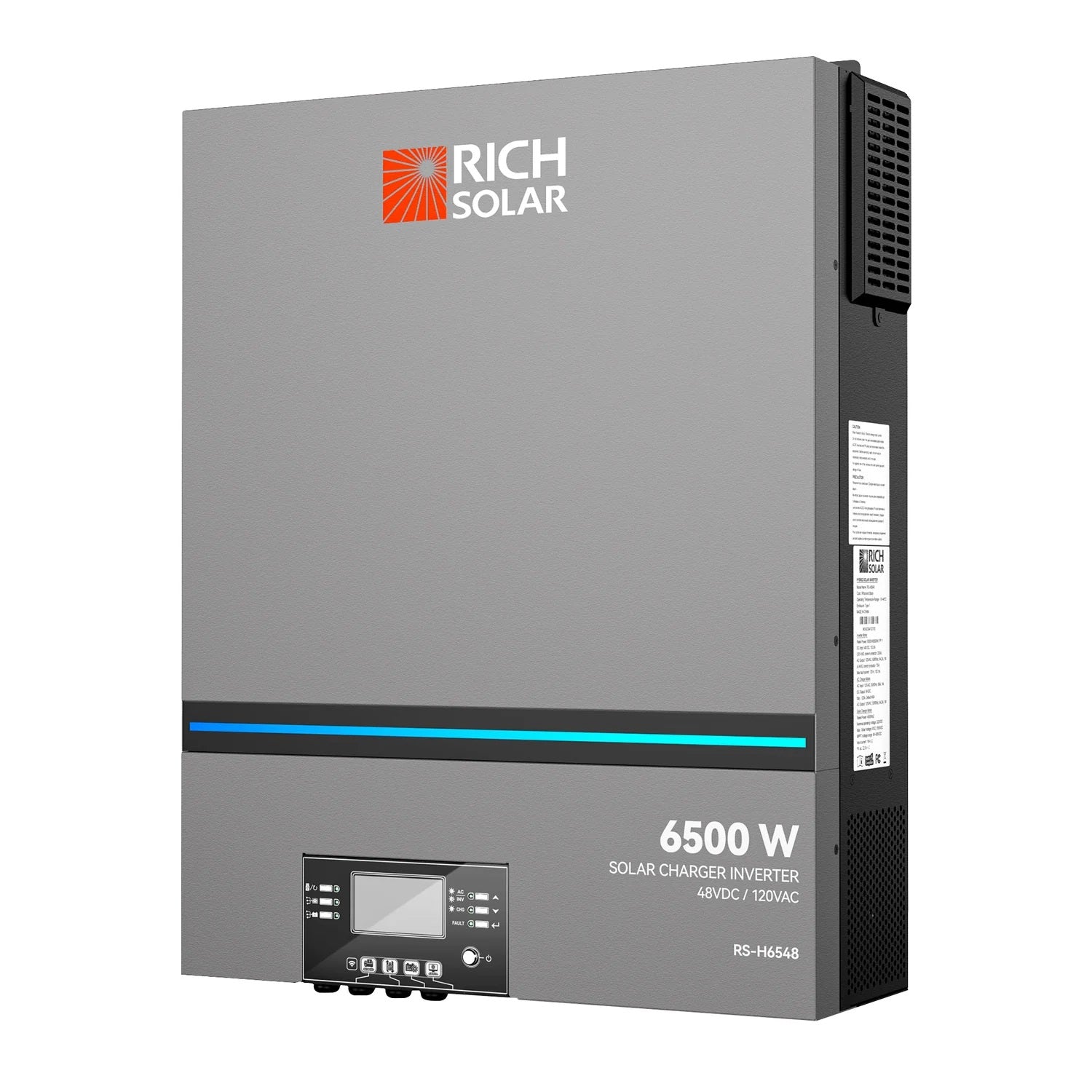

Rich Solar 6500 Watt (6.5kW) 48 Volt Off-Grid Hybrid Solar Inverter 550V PV Input

The Rich Solar 6500 Watt 48 Volt Off-Grid Hybrid Solar Inverter Is Designed Specifically For Off-Grid Applications And Can Power Your Entire Home

Considering an off-grid lifestyle or seeking self-reliance for your existing home? Look no further than the Rich Solar 6500W 48V Off-Grid Hybrid Solar Inverter. This feature-packed inverter is the heart of your solar energy system, seamlessly transforming captured solar power into clean, reliable electricity for your home.

Enjoy Freedom and Flexibility

• Unplug from the Grid: Achieve true energy independence by generating your own power with solar panels and storing excess energy in batteries (sold separately). Say goodbye to rising electricity costs and embrace sustainable living.
• Hybrid Power Source Compatibility: Enjoy the flexibility to connect to utility mains or a generator as a backup power source in case of emergencies or extended periods of low sunlight.
• Smart Grid Management: Prioritize solar power usage and battery charging during peak sun hours to maximize efficiency and cost savings. You can also configure the inverter to automatically switch to utility or generator power when needed.

Reliable Power for Your Home Appliances

• Pure Sine Wave Output: Ensure the safety and smooth operation of your sensitive electronics and appliances with a pure sine wave output that mimics the quality of grid-supplied power.
• 6500 Watt Continuous Power: Power a wide range of household appliances and devices, from refrigerators and lights to computers and power tools.
• Expandable Power System: For even greater power needs, this inverter can be paralleled with up to 5 additional units, reaching a maximum combined output of 39kW.

Intelligent Monitoring and Management

• Built-in Wi-Fi and Mobile App Monitoring: Keep an eye on your system's performance from anywhere using the convenient mobile app. Monitor real-time power generation, battery health, and system status for optimal energy management.
• Detachable LCD Control Panel: The intuitive LCD control panel provides easy access to system settings, operational data, and configuration options. You can also detach the panel for remote monitoring and control.
• Configurable Input Voltage Ranges: Protect your appliances and personal computers by adjusting the input voltage range to match their specific requirements.

Designed for Off-Grid Living

• High Efficiency: Experience peak efficiency of up to 93%, ensuring you get the most out of your solar energy production.
• Built-in MPPT Solar Charger: Maximize solar power harvesting with the integrated Maximum Power Point Tracking (MPPT) solar charger. This intelligent feature automatically adjusts to optimize power output from your solar panels under varying weather conditions.
• Cold Start Capability: Start up your system even in low-temperature environments, ensuring reliable performance year-round.

Safety and Peace of Mind

• Overload, Over-Temperature, and Short Circuit Protection: Built-in safeguards protect your inverter and connected equipment from electrical damage.
• Durable Construction: The robust design ensures long-lasting performance and reliable operation in various environments.
• UL Certification: Enjoy peace of mind knowing the inverter meets strict safety standards set by a recognized testing and certification organization.

Easy Installation and User-Friendly Operation

• Simple and Straightforward Setup: The inverter boasts a user-friendly design for a smooth installation process.
• Multiple Communication Ports: Connect the inverter to your battery management system (BMS) using various communication ports like RS485, CAN-BUS, and RS232 for seamless system integration.
• Configurable RGB LED Bar: Personalize the look of your inverter with the built-in RGB LED bar and choose a color that complements your setup.

Rich Solar 6.5kW Hybrid Solar Inverter Features

• Pure sine wave inverter
• Configurable color with the built-in RGB LED bar
• Built-in Wi-Fi for mobile monitoring (APP is required)
• Supports USB On-the-Go function
• Built-in anti-dusk kit
• Detachable LCD control module with multiple communication ports for BMS (RS485, CAN-BUS, RS232)
• Configurable input voltage ranges for home appliances and personal computers via LCD control panel
• Configurable AC/PV output usage timer and prioritization
• Configurable AC/Solar charger priority via LCD control panel
• Configurable battery charging current based on applications via LCD control panel
• Compatible to utility mains or generator power
• Auto restart while AC is recovering
• Overload / Over temperature / short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function

What's In The Box

• 1 x RICH SOLAR 6500 Watt (6.5kW) 48 Volt Off-Grid Hybrid Solar Inverter

25-Year Warranty

• Rich Solar provides a 25-year output warranty for this inverter.

Rich Solar 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter 550V PV Input Specifications

Model: RS-H6548S
Rated Output Power: 6500W
PARALLEL CAPABILITY: Yes, 6 units

INPUT

• Input Voltage: 120 VAC
• Efficiency: >95% (Rated R load, battery full charged)
• Frequency Range: 50Hz / 60Hz (Auto detection)

OUTPUT

• Rated Output Power: 6500W
• Output Voltage Waveform: Pure Sine Wave
• Output Voltage Regulation: 120VAC±5%
• Peak Efficiency: 91%
• Surge Capacity: 2* rated power for 5 seconds
• Nominal DC Input Voltage: 48VDC
• Cold Start Voltage: 46.0VDC

BATTERY

• Battery Voltage: 48 VDC
• Floating Charge Voltage: 54 VDC
• Overcharge Protection: 66 VDC

OPERATING ENVIRONMENT

• Operating Temperature Range: -10°C to 40°C
• Storage temperature: -15°C~ 60°C
• Humidity: 5% to 95% Relative Humidity (Non-condensing)

PHYSICAL

• Dimension (mm): 147.4 x 432.5 x 575.6 (620.6) (with extension box)
• Net Weight: 18.4kg/41lb

Manual

• Rich Solar

  6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter 550V PV Input

  Manual
