The ACOPower 300W Mono RV Solar System Is a Complete Off-Grid Power Package With Panels, 200Ah of Batteries and a 1500W Inverter

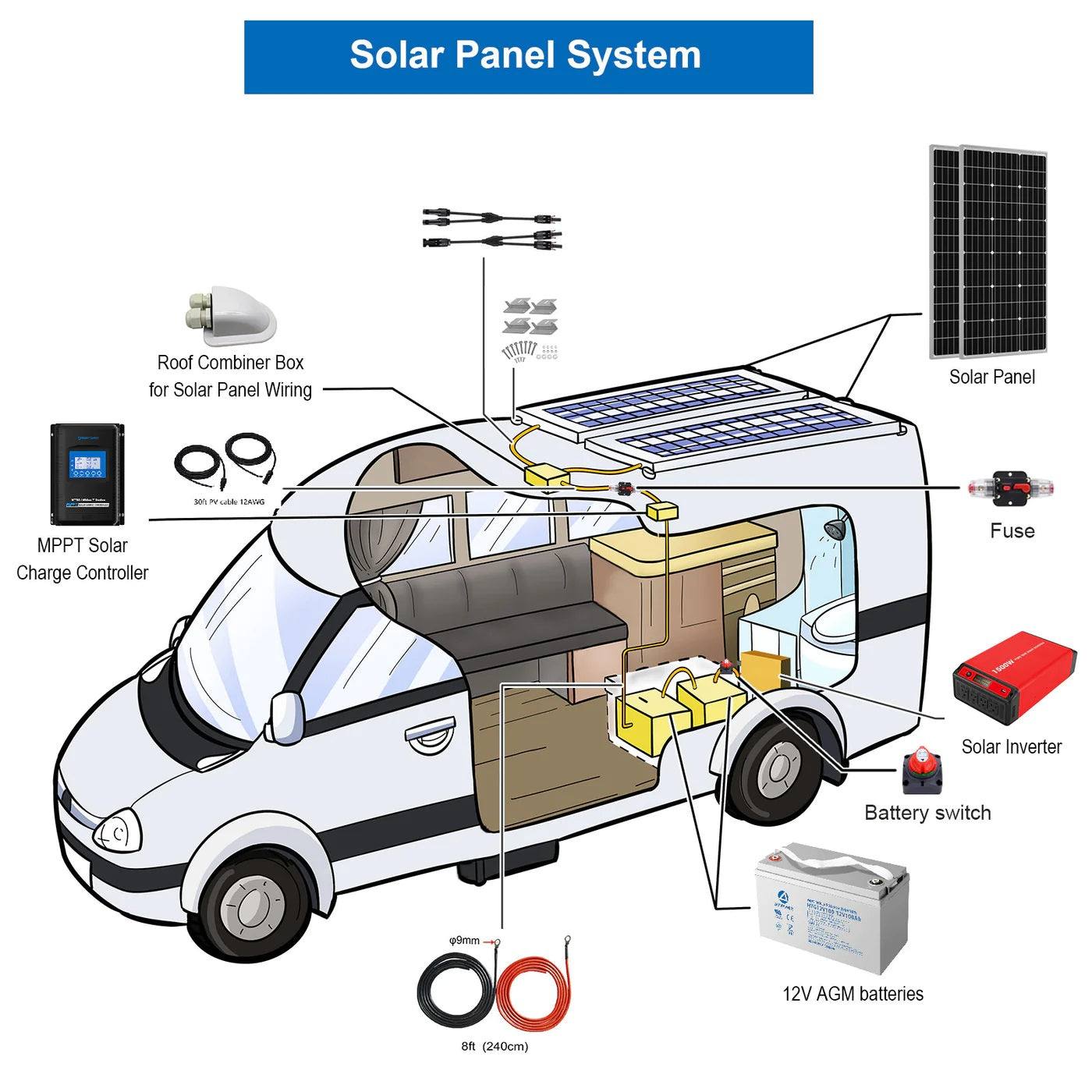

The ACOPower 300W Mono RV Solar System includes everything needed to generate, store and use solar power in an RV, boat, cabin or backup system. It combines three ACOPower 100W monocrystalline panels, a 30A MPPT charge controller, two 12V 100Ah GEL deep cycle batteries for 200Ah (2.4kWh) of storage at 12V, and a 1500 watt pure sine wave inverter that turns battery power into 120V AC household electricity.
ACOPower estimates the solar array will produce about 1,440 watt hours (120 amp hours) per day, depending on sunlight. The kit also includes the fuse, battery switch, mounting brackets, cables, branch connectors and roof entry housing, so the components arrive matched and ready to wire together.
ACOPower 300W Mono RV Solar System Features
Monocrystalline Solar Array
Three 100W panels give you 300W of solar. Each panel produces 17.48V and 5.71A at its maximum power point and comes with an aluminum Z-bracket mounting set for flat roof installation.

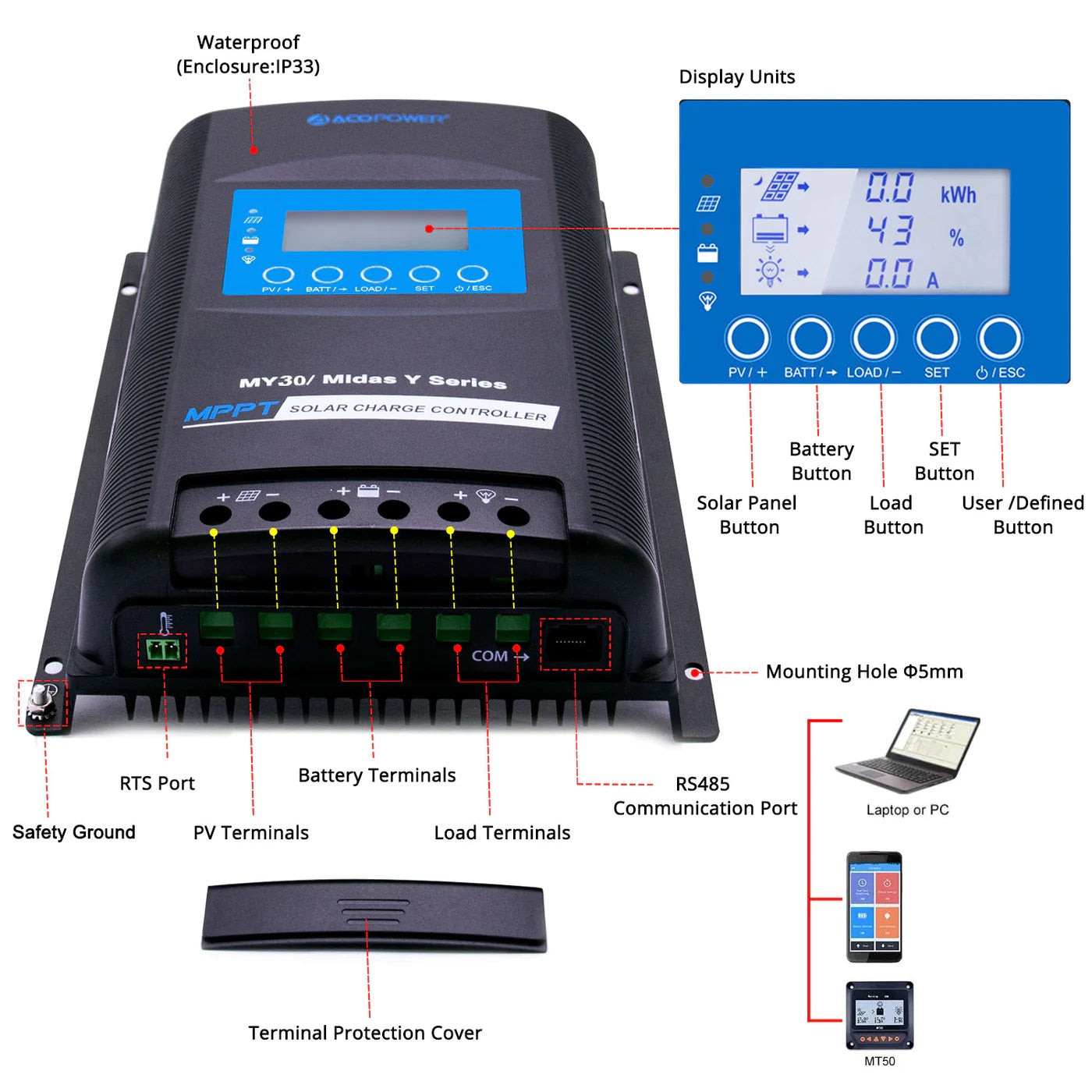

30A MPPT Charge Controller
The MPPT controller tracks the array's maximum power point to get more charge into the batteries than a PWM controller. It supports 12V/24V systems, accepts up to 100V of PV open circuit voltage, and is rated for 390W at 12V. It has profiles for sealed, gel and flooded lead-acid batteries, plus lithium and user settings.

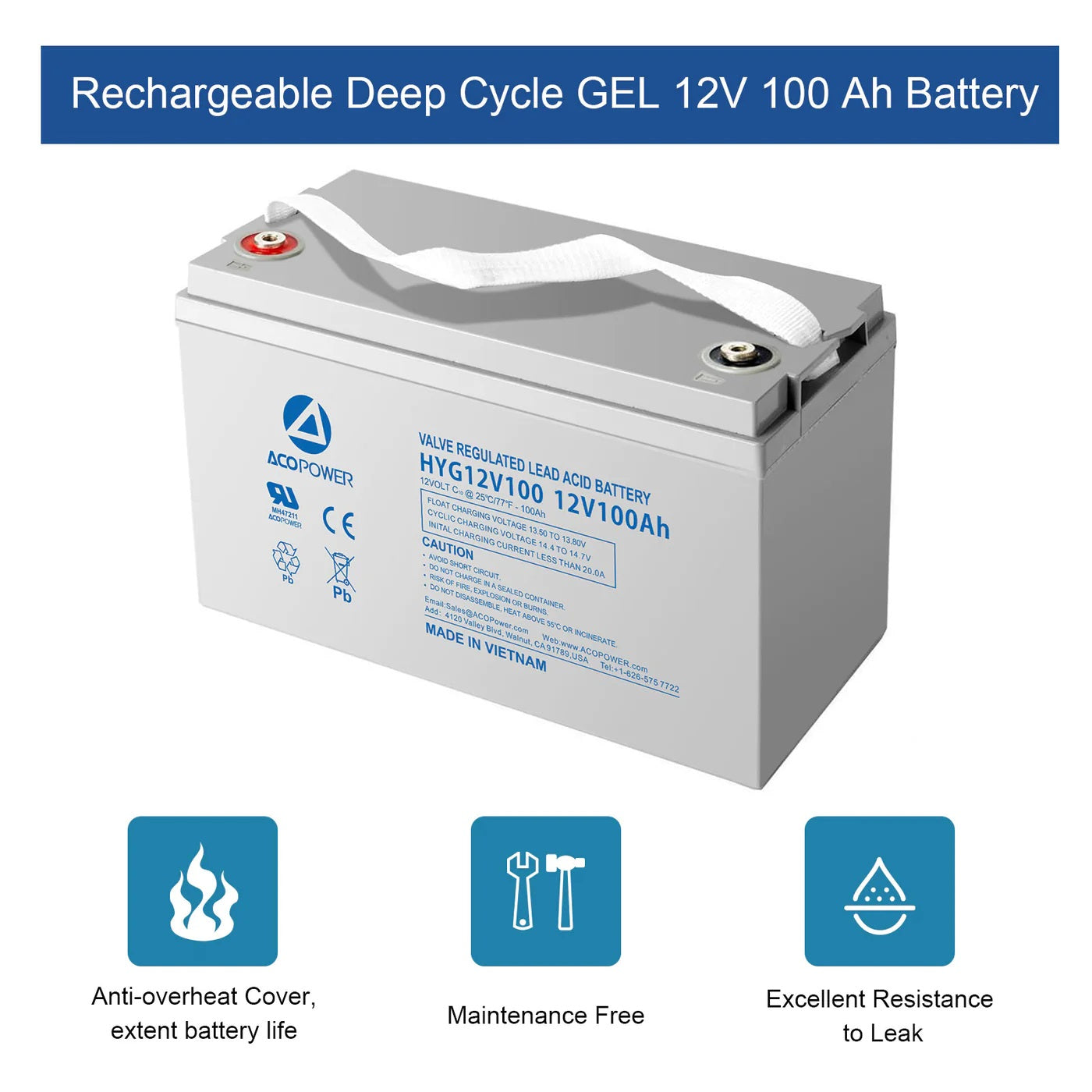

200Ah of Maintenance-Free GEL Storage
Both batteries are sealed and maintenance free, with no watering needed. They connect in parallel to form a 12V bank. Lead-acid batteries last longest when they are not discharged much below half their capacity, so plan on roughly 1.2kWh of everyday usable energy.

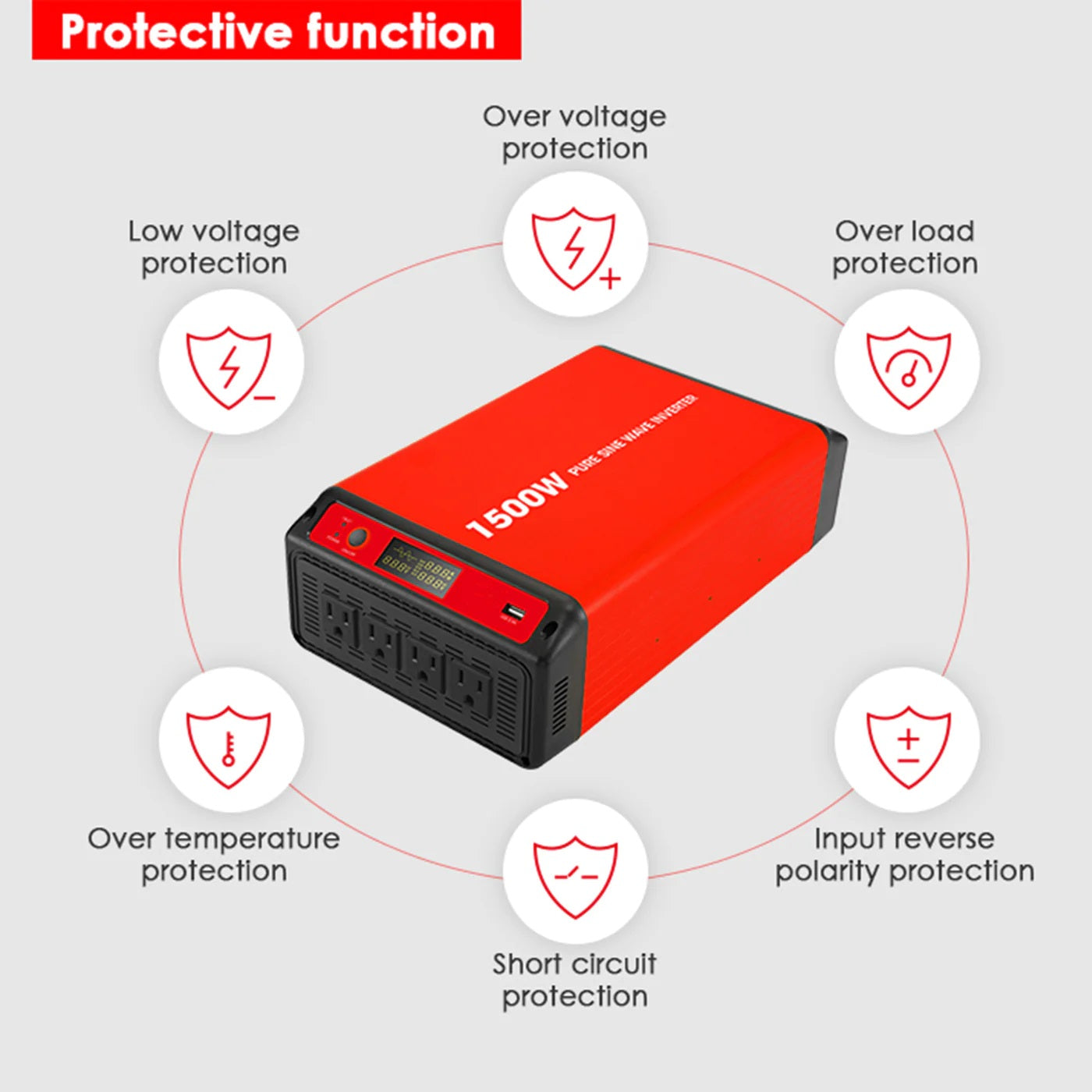

1500W Pure Sine Wave Inverter
The inverter converts 12V DC to 120V AC with 1500 watts continuous and 3000 watts of surge power for motor starts. Pure sine output is safe for electronics and appliances. Protection covers under-voltage, over-voltage, overload and output short circuit.
Safety and Installation Hardware

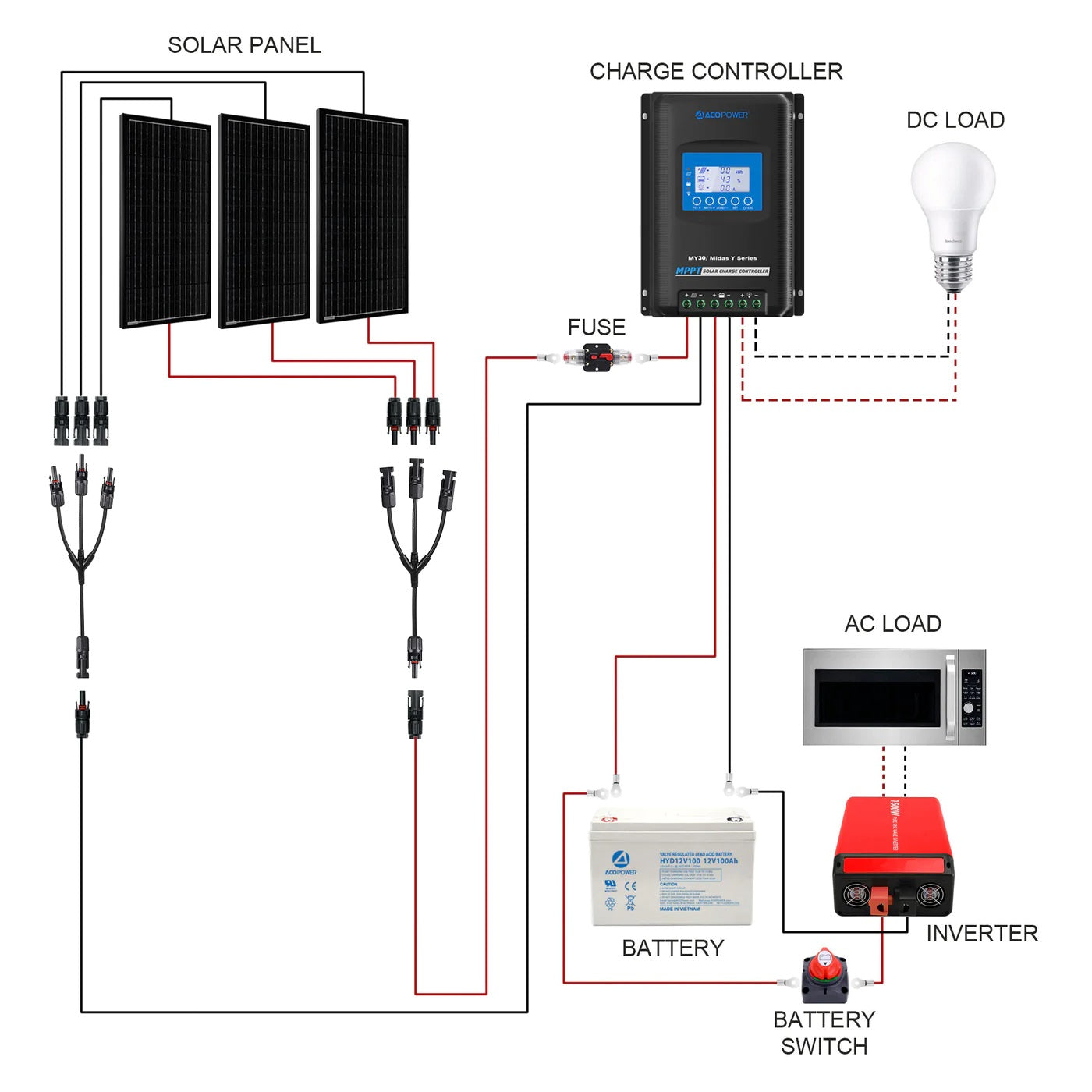

A 50A fuse and battery switch protect and isolate the system. The kit includes 1 pair of 30 ft 12 AWG PV cable, an 8 ft 8 AWG tray cable, 2 pairs 1 ft 4 AWG battery cables for linking batteries, 1 pair 1-to-3 branch solar connectors, and a cable entry housing to seal the roof penetration.
Real-World Applications
RVs and motorhomes. Boondock with lights, fans, a fridge, a TV and device charging, without a generator.
Off-grid cabins. Power a weekend cabin or hunting camp with no utility service.
Boats. Run onboard AC loads at anchor.
Home backup. Keep essential circuits running through outages.
How It Compares to Common Alternatives
Versus buying components separately. The system comes matched and sized together, with the cables, fuse and switch included, which saves time and avoids compatibility problems.
Versus panel and controller kits. ACOPower's Mono Solar RV Kits include panels and a controller only. This system adds batteries and an inverter for a complete setup.
Versus lithium systems. GEL batteries cost less up front and handle cold well, but weigh more and offer less usable capacity than LiFePO4. ACOPower's Flexible RV Solar System uses lithium batteries.
Is This RV Solar System the Right Fit
-
Roof space. Room for three panels of about 40 x 20 inches each.
-
Battery space and weight. Two batteries, each 12.99 x 6.73 x 8.43 in and 67.2 lbs (30.5 kg).
-
AC loads. Up to 1500W running at once, with 3000W of surge.
-
Installation. ACOPower recommends installation and wiring by a qualified person, following local electrical codes.
This may be a good fit if
- You want a complete solar power system in one order
- You need 120V AC power for appliances away from hookups
- You prefer maintenance-free sealed batteries
- Your daily use is under about 1.4kWh in good sun
Common Questions
What Can the Inverter Run?
Loads up to 1500W combined, such as a small microwave, a TV, laptops and lights. Check each appliance's wattage and starting surge.
How Long Will the Batteries Last?
That depends on your loads. A steady 100W load uses about 8Ah per hour at 12V, so 100Ah of everyday usable capacity would run it for roughly 12 hours before recharging.
Is the Inverter Pure Sine Wave?
Yes. ACOPower's specifications list a pure sine wave output.
Can I Expand the System Later?
You can add batteries in parallel. More panels may require a larger charge controller, since the 30A controller is sized for this array.

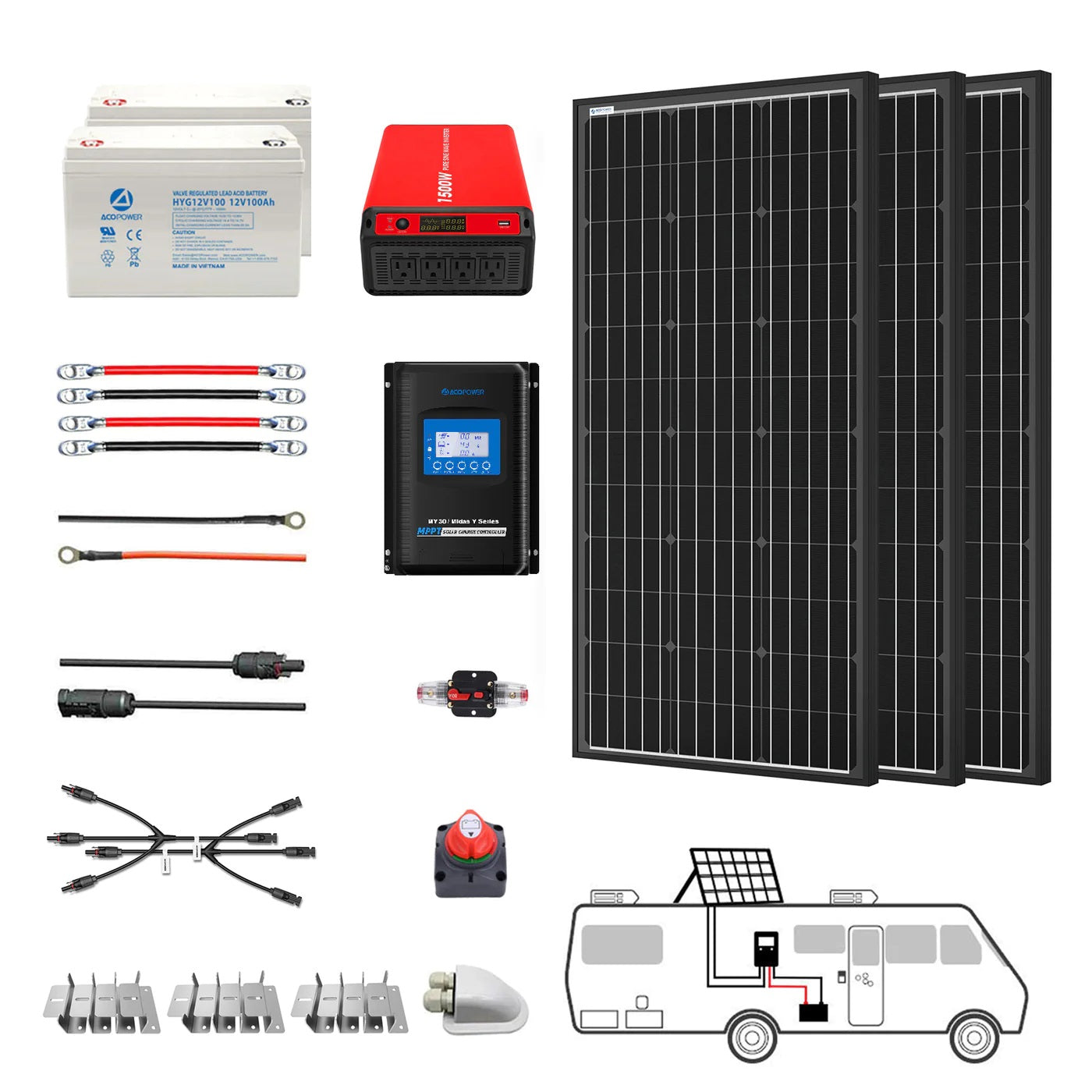

What's Included
- 3 x ACOPower 100W Monocrystalline Solar Panel
- 1 x 1500W Pure Sine Wave Inverter
- 2 x 12V 100Ah GEL deep cycle Battery
- 1 x 30A MPPT Charge Controller
- 1 x 50A Fuse
- 1 x Battery Switch
- 3 x Z-Bracket Mounting Sets
- 1 x Pair 30 ft 12 AWG PV Cable
- 2 pairs 1 ft 4 AWG battery cables
- 1 x Pair 8 ft 8 AWG Tray Cable
- 1 x Cable Entry Housing
- 1 pair 1-to-3 branch solar connectors
Everything You Need for Solar Power Off the Grid
The ACOPower 300W Mono RV Solar System brings panels, storage, charging and AC power together in one matched package. At Outbound Power, we help customers size complete solar systems for their loads and space. If you have questions, our team is happy to help.
ACOPower 300W Mono RV Solar System Specifications
|
| System Model |
HY-200AH1.5KW-300WMB |
| Solar Array |
300W (3 x 100W mono) |
| Battery Bank |
200Ah at 12V (2 x 12V 100Ah GEL deep cycle) |
| Inverter |
1500W pure sine wave |
| Charge Controller |
30A MPPT |
| Estimated Daily Solar |
About 1,440Wh (120Ah) |
| 100W Mono Solar Panel |
| Peak Power |
100W |
| Open Circuit Voltage (Voc) |
22V |
| Max Power Voltage (Vmp) |
17.48V |
| Short Circuit Current (Isc) |
6.14A |
| Max Power Current (Imp) |
5.71A |
| Dimensions |
40.2 x 20.1 x 1.4 in |
| Weight |
12.8 lbs |
| 1500W Inverter |
| Input |
12VDC |
| Output |
120VAC pure sine wave |
| Continuous Output |
1500W |
| Surge Power |
3000W |
| Protection |
Under-voltage, over-voltage, overload, short circuit |
| Dimensions |
12.94 x 7.52 x 3.86 in (plus 1.34 in terminals) |
| Weight |
7.79 lbs |
| 12V 100Ah GEL deep cycle Battery |
| Nominal Voltage |
12V |
| Rated Capacity (10 hr) |
100Ah |
| Dimensions |
12.99 x 6.73 x 8.43 in |
| Weight |
67.2 lbs (30.5 kg) |
| 30A MPPT Charge Controller |
| Rated Charge Current |
30A |
| System Voltage |
12V/24V |
| Max PV Open Circuit Voltage |
100V |
