ACOPower 800W Mono Black RV Solar System

ACOPOWER 800W Mono RV Solar System Overview

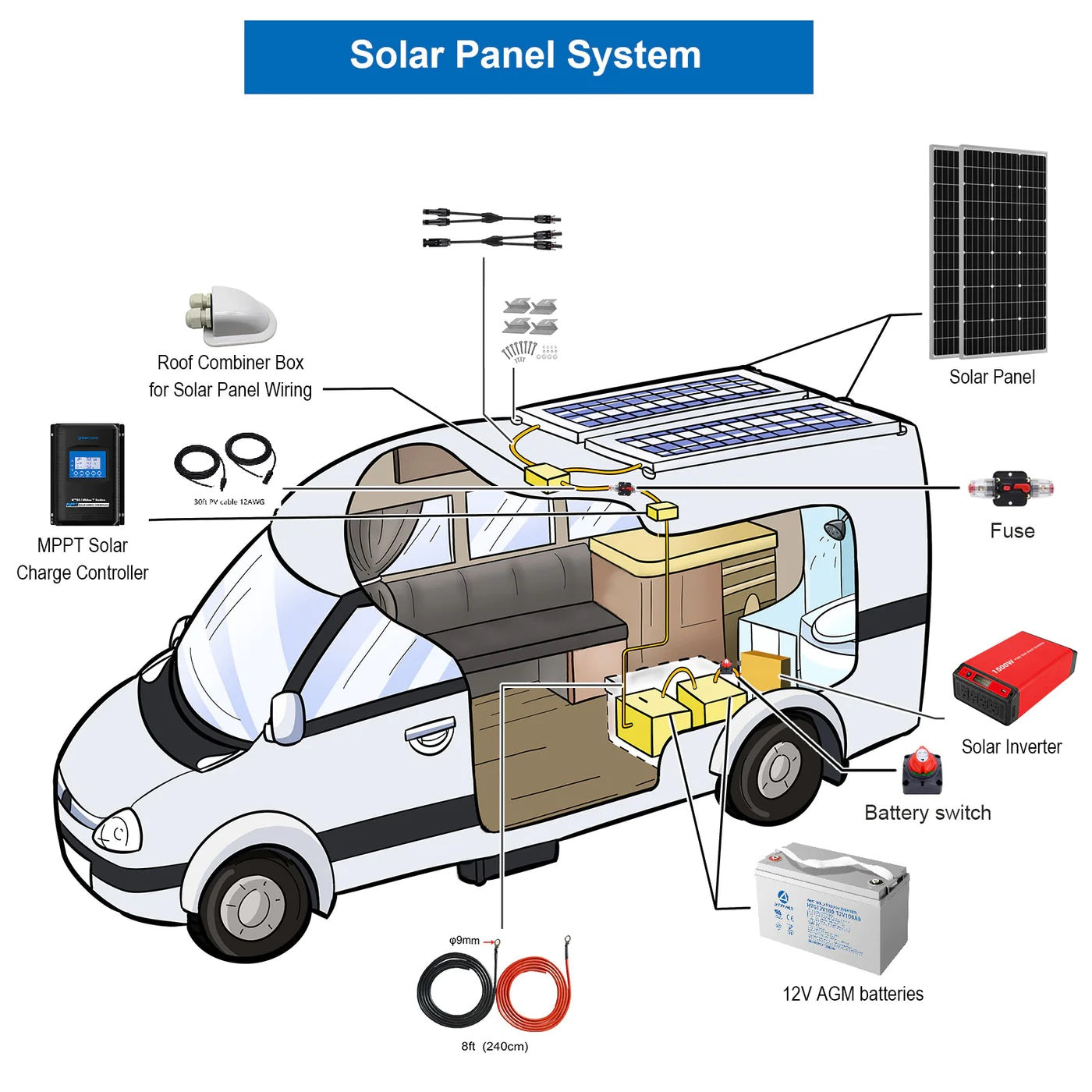

ACOPOWER 800 Watt Mono RV solar system comes with everything you need to start producing free, clean power from the sun! Perfect for RV's, boats, cabins and back-up power! ACOPOWER’s 800 Watt Solar Kit with Inverter includes EVERYTHING you need to get started: 8pcs 100 Watt Monocrystalline Solar Panels, 3000W 12VDC to 120AC Modified Sine Wave Power Inverter (inverter cables are included), 4pcs 200Ah Gel Deep Cycle Battery, 60-Amp MPPT Solar Charge Controller, a 50A fuse, a battery switch, all necessary Cables, all necessary solar mounting Z brackets; Product photos above show pictures of all the included items and additional technical information.

ACOPOWER 800W Mono RV Solar System Features

• Solar charging will provide about 3840 Watt Hours (Wh) or 320 Amp hours of charge per day (depends on sunlight availability)
• Perfect kit for having an off-grid 12 volt battery system. 3000 Watt Inverter provides plenty of AC power to run your household appliances and the battery bank will supply plenty of energy for moderate use；Designed for RVs, cabins, homes, boats, back-up and remote power use
• Bundle and save! Purchase all the components together and save time and money!
• Complete kit includes: 8pcs 100 Watt Monocrystalline Solar Panel, 4pcs 200Ah Gel(Maintenance Free) Deep Cycle Battery,3000W 3000 Watt DC to AC Power Inverter, 60-amp MPPT Solar Charge Controller (w/ LCD Display), a 50A fuse, a battery switch, all necessary Cables, all necessary solar mounting Z brackets;
• California, USA based company in 11+ years solar industry supplies technical support, customer service and warranty; Reliable & trustable local business.

Warranty

• Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty.
• Solar Charge Controllers: The controller itself comes with a 1-year warranty.
• Accessories: 1-year material warranty

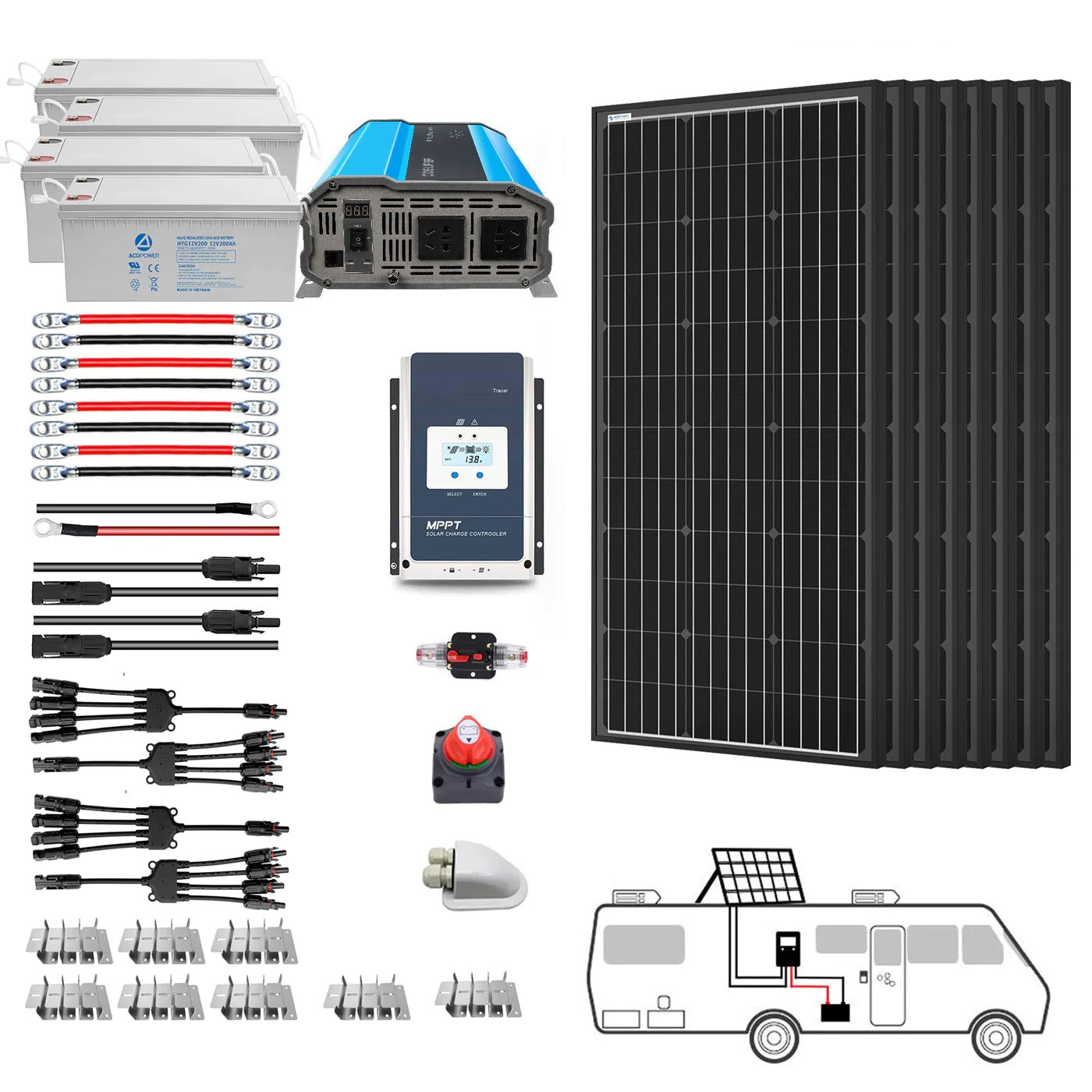

What's In The Box

• 8 x 100W Mono Solar Panel
• 1 x 3000W Inverter
• 4 x 200Ah Gel Battery
• 1 x 60A MPPT Charge Controller
• 1 x 50A Fuse
• 1 x Battery Switch
• 8 x Mounting Z Bracket
• 1 x 30ft 12AWG PV Cable
• 4 x 1Ft 2AWG Battery Cable
• 1 x 8FT 8AWG Tray Cable
• 1 x Cable Entry Housing
• 7 x y branch solar panel connectors

ACOPOWER 800W Mono RV Solar System Specifications

100W Monocrystalline Solar Panel

• Nominal for 12V battery charger
• Peak Power (Pmax):100W
• Peak Circuit Voltage(Voc):22V
• Max Power Voltage(Vmp):17.48V
• Short Circuit Current(Isc):6.14A
• Max Power Current(Imp):5.71A
• Weight:12.8 lb
• Dimension:40.2*20.1*1.4 Inch
• Application Class: Class A

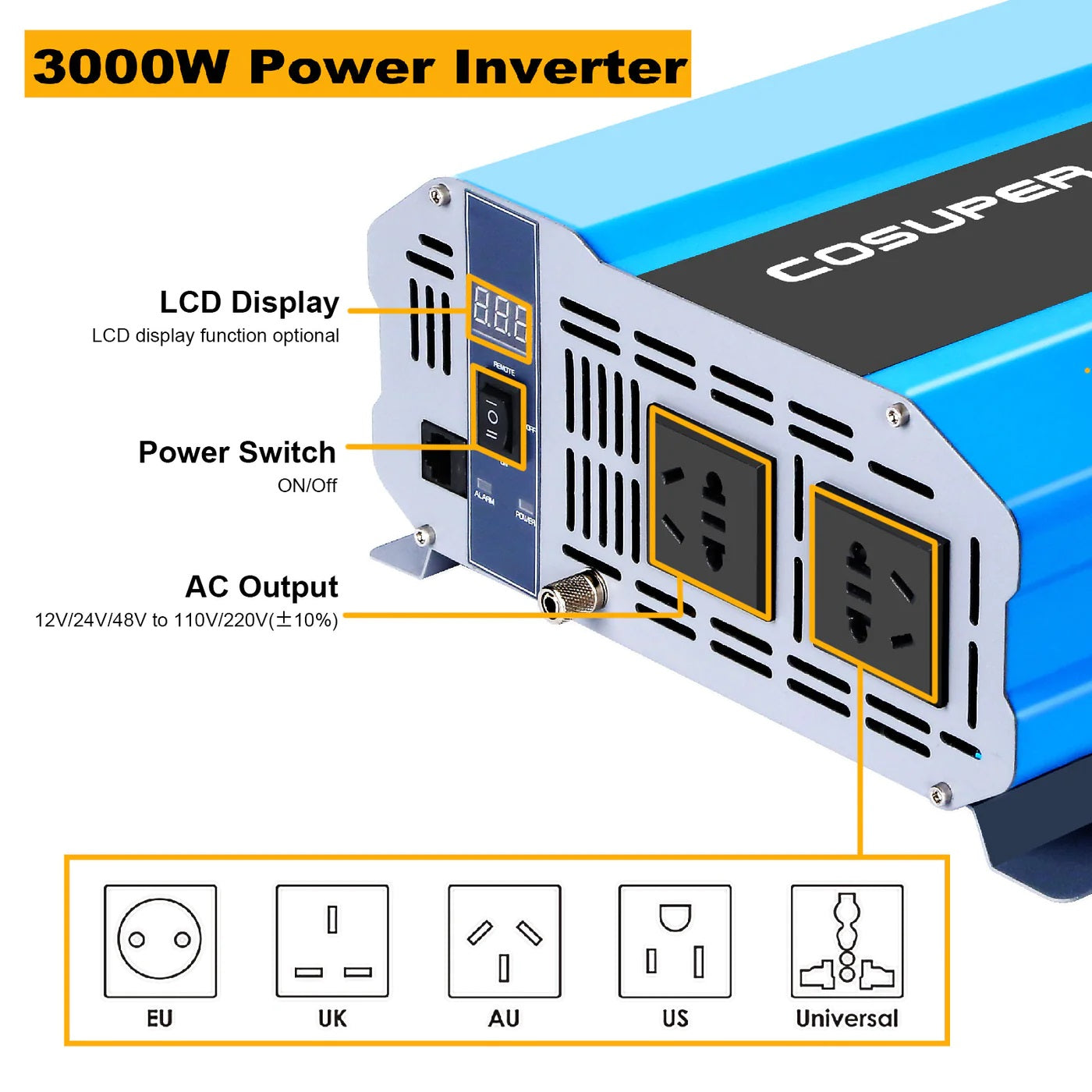

3000W Inverter 12VDC to 120VAC

• Continuous output: 3000W
• Surge Power: 6000W
• Wave Form: Pure Sine Wave
• Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection
• Weight: 12.1lb
• dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch

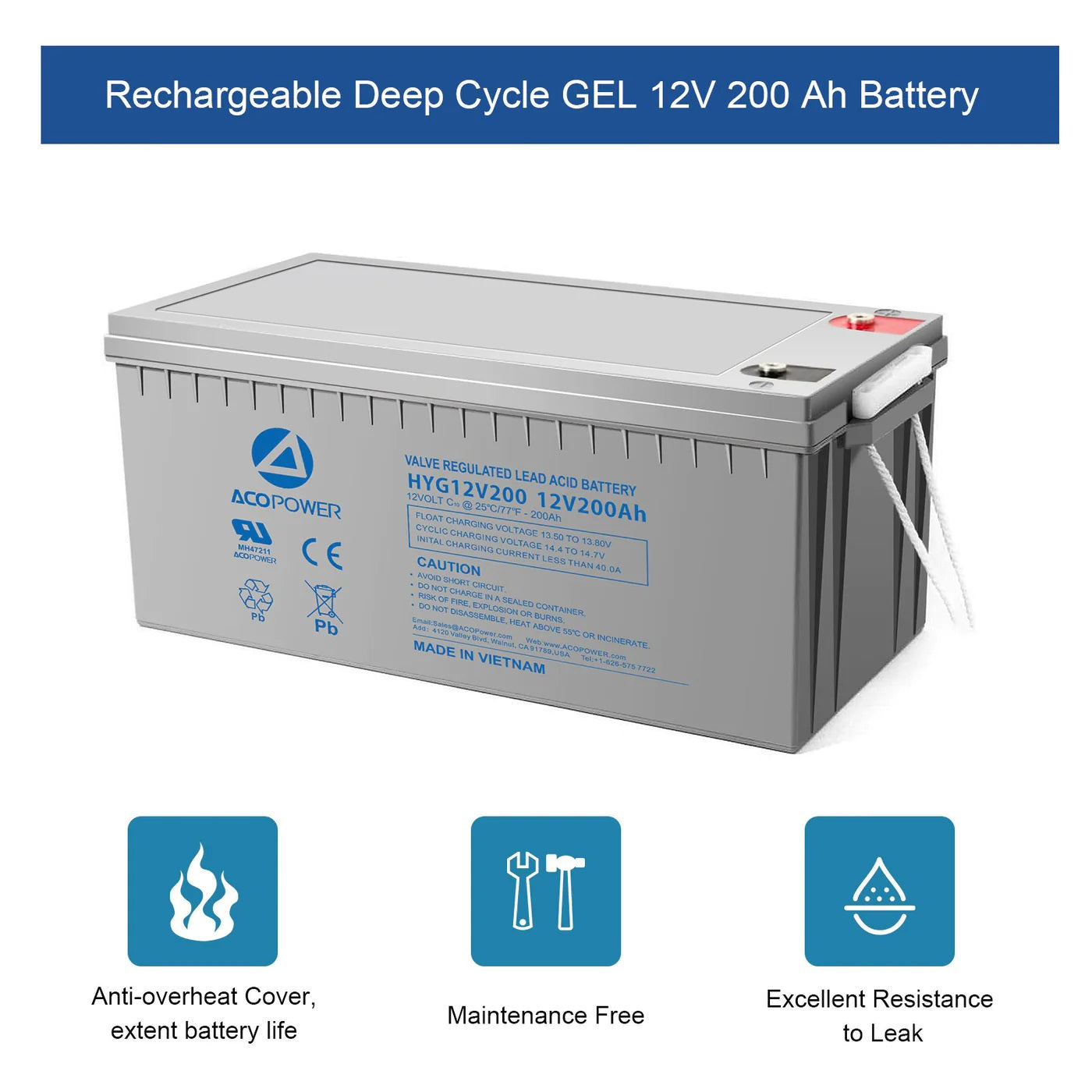

12V 200 Ah Rechargeable Deep Cycle GEL Battery

• Nominal Voltage: 12V
• Rated capacity (10 hour rate): 200Ah
• Dimension(inch):20.55x 9.37 (W) x 8.58 (H) inch; Total Height: 8.74inch
• Approx. Weight: 62.5kg(137.5lbs)±3%

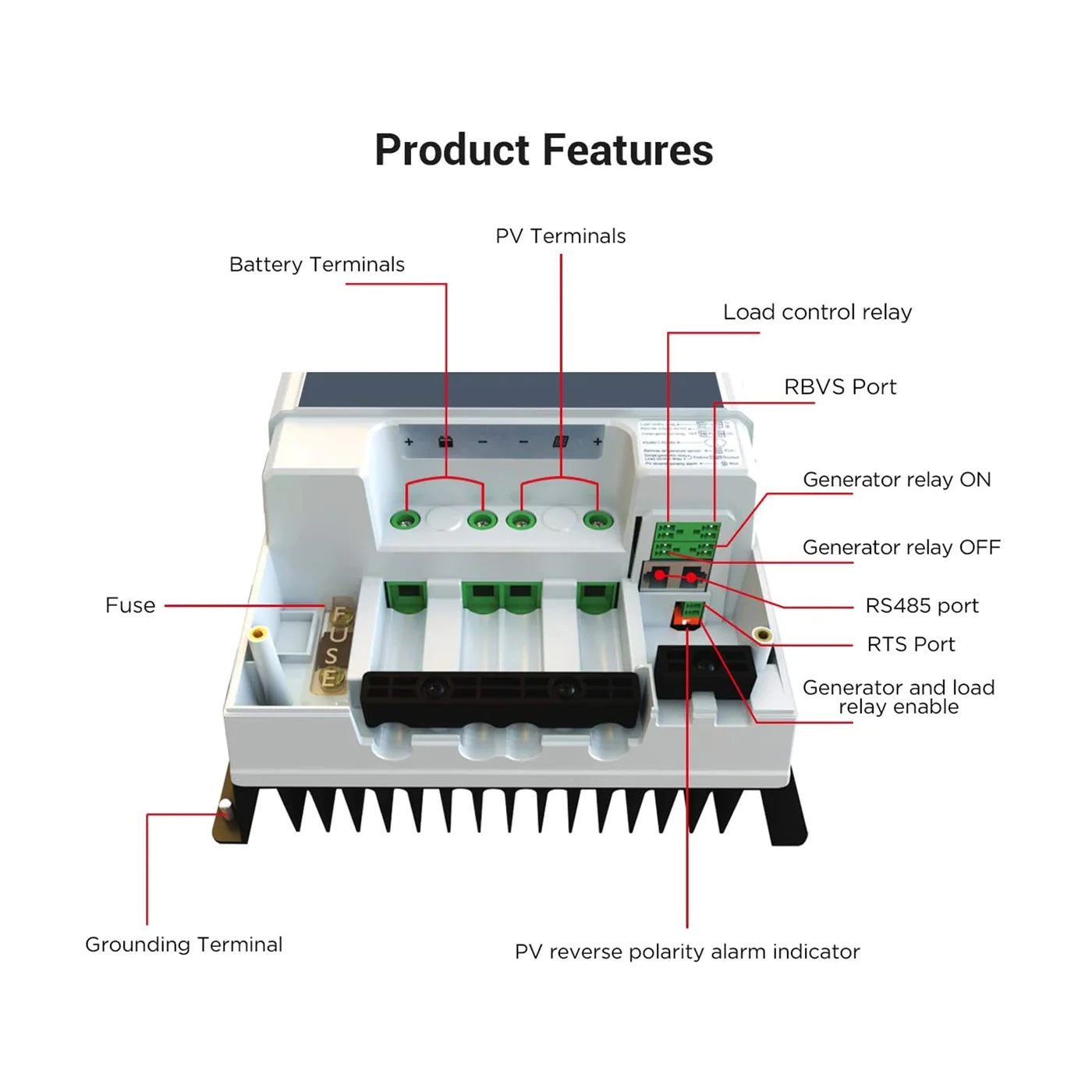

MPPT 60A Charge Controller

• Rated charge current: 60A
• Battery voltage range: 8V~68V
• Max.PV open circuit voltage: 150V
• Max.PV input power: 12V/750W,24V/1500W,36V/2250W,48V/3000W
• Common positive grounding design
• Compatible with Various Deep Cycle Battery options: Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries.

Manual

• ACOpower Rechargeable Deep Cycle Gel 12V 200 Ah Battery Manual
• ACopower Pure Sine Wave Inverter Manual
