Rich Solar 100W RV 12V Kit

The Rich Solar 100W RV 12V Kit Gives Your RV a Complete Starter Solar Setup, With Optional Battery and Inverter Add-Ons

The Rich Solar 100W RV 12V Kit is an RV-ready solar charging kit built around one MEGA 100 monocrystalline panel and a 20A MPPT charge controller. Rich Solar rates it at about 0.4kWh of energy per day with 4 peak sun hours, enough to keep an RV, camper, trailer or boat battery charged for lights, fans and small electronics.

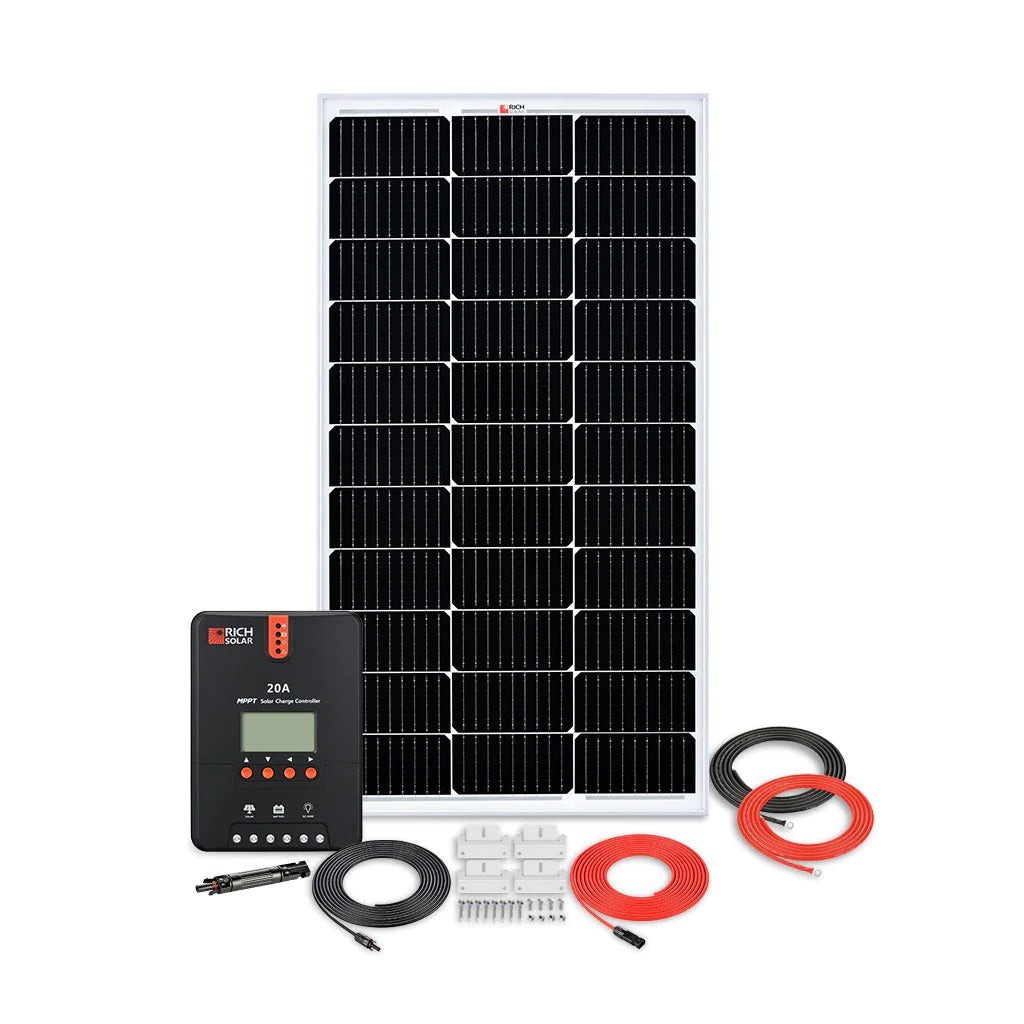

This listing offers four options. The Standard kit includes the panel, controller, Z brackets, a 10A inline fuse and the cables to connect them. You can add a 12V 100Ah LiFePO4 battery, a 1500W 12V pure sine wave inverter, or both, to build a more complete RV power system in one order.

Rich Solar 100W RV 12V Kit Features

MEGA 100 Monocrystalline Panel

The MEGA 100 is a 12V panel rated at 100W with a guaranteed positive power output of 0 to +5W. Tempered glass, an aluminum frame and an IP67 rating help it handle tough climates, and it performs well in low light on cloudy days, mornings and evenings.

20A MPPT Charge Controller

The RS-MPPT20 controller reaches up to 99% MPPT tracking efficiency and 98% peak conversion efficiency. It detects 12V or 24V systems automatically and charges sealed, gel, flooded and lithium batteries.

Display, Protection and Optional Bluetooth

An LCD screen and LED indicators show system information and error codes. The controller protects against reverse polarity, overcharging, over-discharging, overload, short circuits and reverse current, and its RS232 port connects to the BT-1 Bluetooth module, sold separately.

RV-Ready Installation Accessories

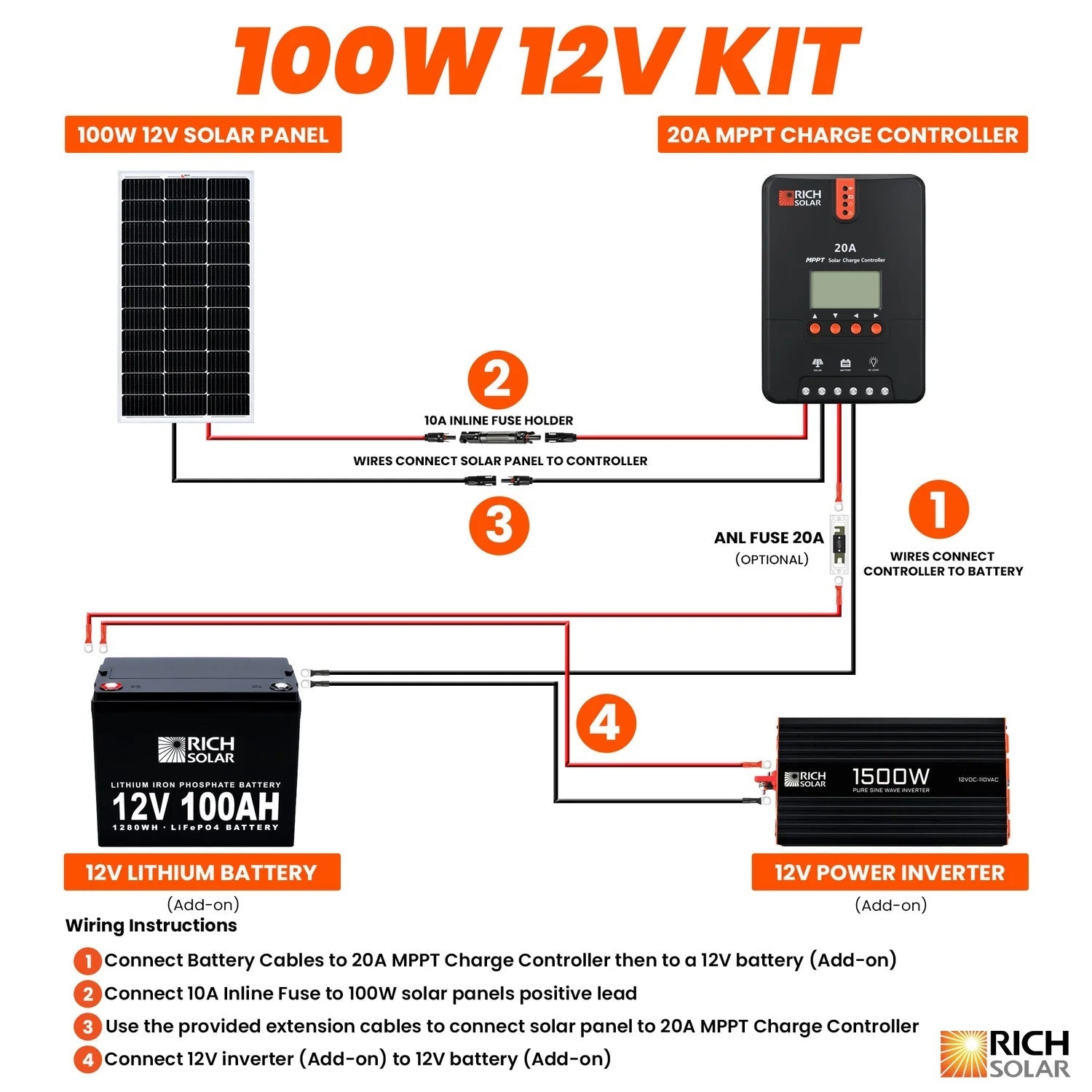

The kit includes a set of Z brackets for the roof, a 20 ft panel-to-controller cable pair, a 10 ft controller-to-battery cable pair and a 10A inline fuse, so the Standard kit has everything between the panel and your battery.

Optional Lithium Battery

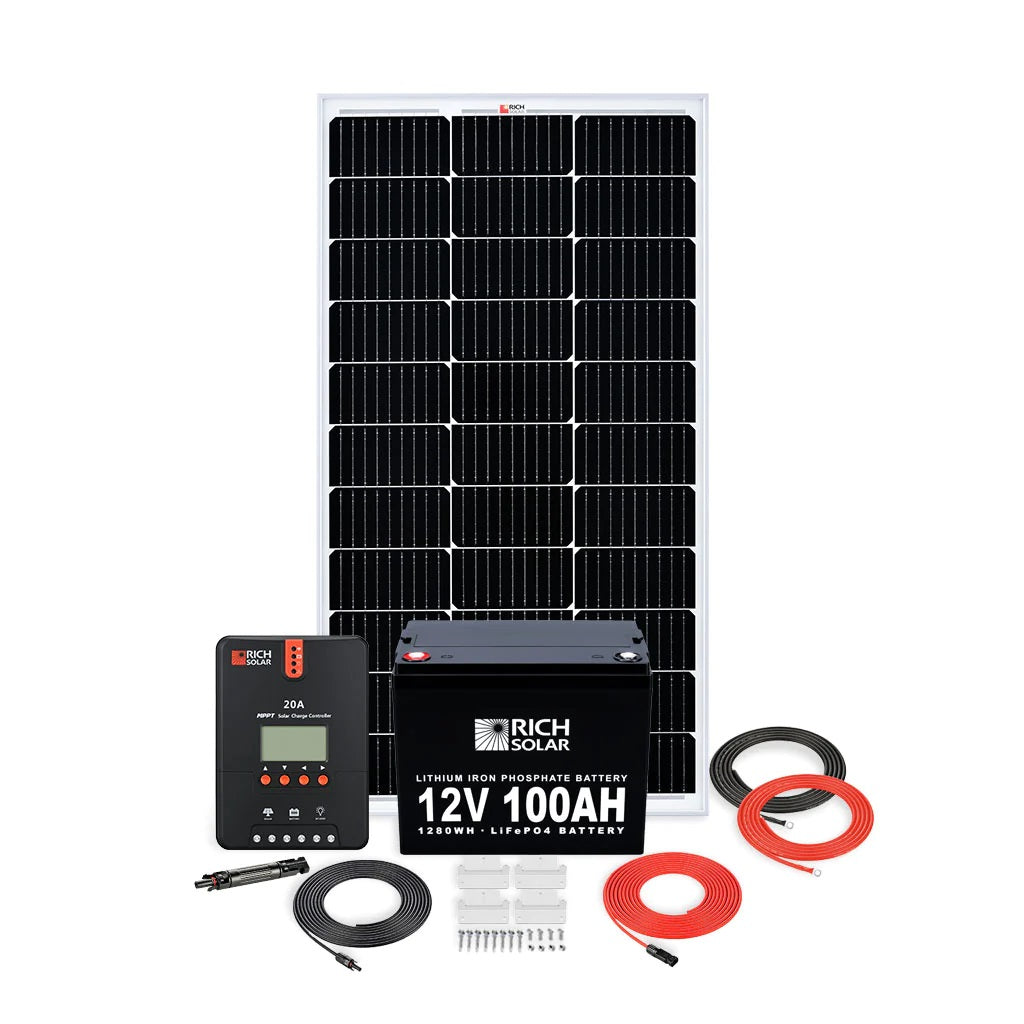

Add a 12V 100Ah LiFePO4 battery (RS-B12100) to store solar energy for use at night or on cloudy days.

Optional Pure Sine Wave Inverter

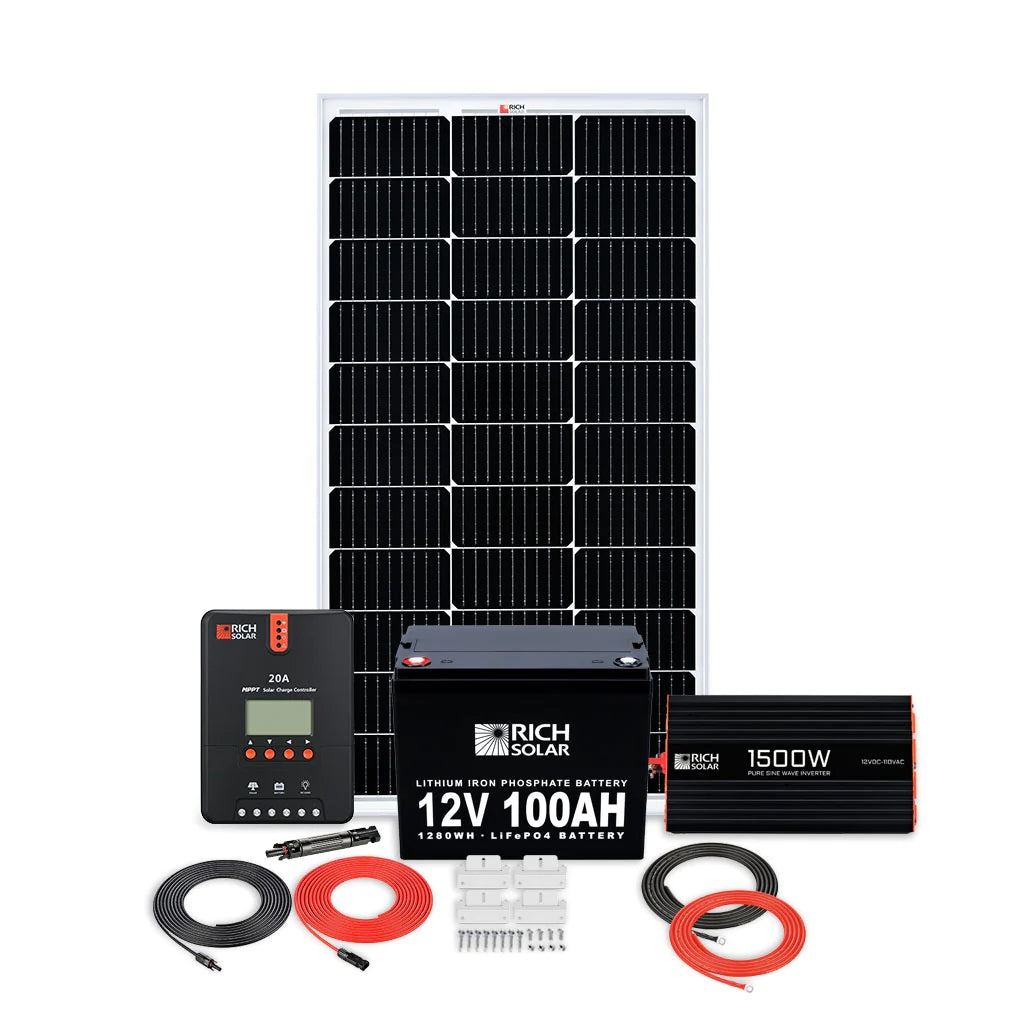

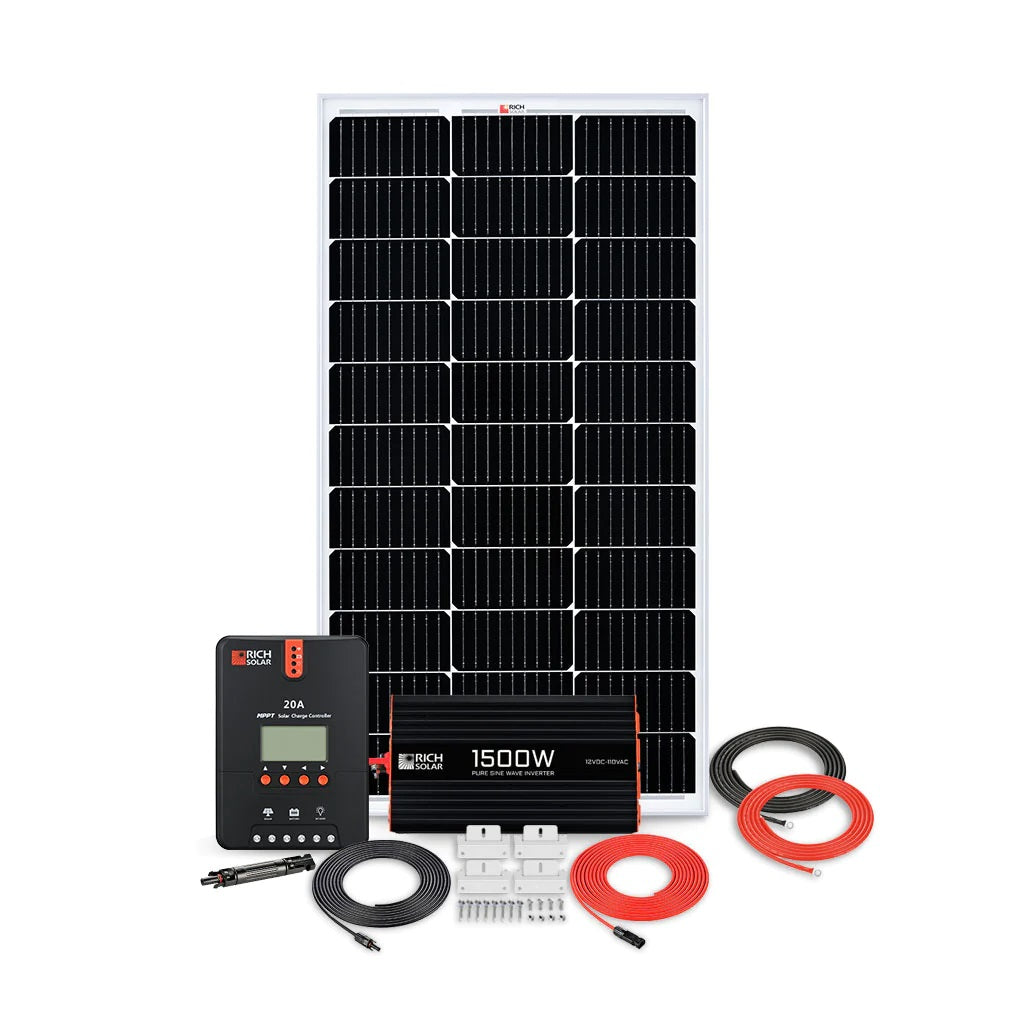

Add a 1500W 12V pure sine wave inverter (RS-V1500) to run 120V AC devices, such as a laptop, TV or small appliance, from your battery.

Real-World Applications

RVs and motorhomes. Keep the house battery topped up for lights, fans, the water pump and phone charging.

Campers and travel trailers. Add quiet solar charging for weekend trips without hookups.

Boats. Maintain a house or starting battery at the dock.

Small off-grid systems. Power a shed, hunting cabin or remote site with the battery and inverter options.

How It Compares to Common Alternatives

Standard kit versus the battery and inverter options. Choose the Standard kit if you already have a 12V battery. Add the battery option to store energy, the inverter option for AC power, or both for a complete small RV system.

Versus a 200W kit. A 200W kit roughly doubles daily harvest. The 100W kit suits light daily use and small roofs, and the 20A controller leaves room to add a panel later.

Versus a PWM kit. An MPPT controller converts excess panel voltage into charging current, typically harvesting more energy than a PWM controller, especially in cool weather.

Is This Kit the Right Fit

• Daily energy. Plan on about 0.4kWh per day with 4 peak sun hours. Actual output depends on location, season, tilt and shading.
• Battery. The Standard kit does not include a battery. The controller charges sealed, gel, flooded and lithium batteries.
• Roof space. The MEGA 100 measures 39.0 x 21.3 x 1.2 inches and weighs 13.2 pounds.
• AC loads. A 100W panel recharges a battery slowly, so plan inverter use around the energy the panel can replace each day.

This may be a good fit if

• You want a simple, complete starter solar kit for an RV or camper
• You run light loads like lights, fans and phone charging
• You want the option to add a lithium battery or inverter in the same order
• You have limited roof space

Common Questions

What Comes in the Standard Kit?

The panel, 20A MPPT controller, Z brackets, 10A inline fuse, a 20 ft solar cable pair and a 10 ft battery cable pair.

What Do the Add-On Options Include?

Each option adds to the Standard kit: a 12V 100Ah LiFePO4 battery, a 1500W 12V pure sine wave inverter, or both.

Can I Add Another Panel Later?

Yes, as long as the array stays within the controller's 100VDC maximum solar input voltage and 25A maximum PV short-circuit current.

Does the Controller Have Bluetooth?

Not built in. The RS232 port works with Rich Solar's BT-1 Bluetooth module, sold separately.

What's Included

• 1 x 100 Watt Monocrystalline Solar Panel (RS-M100) (All Options)
• 1 x 20A MPPT Solar Charge Controller (RS-MPPT20) (All Options)
• 1 x 20 ft 10 AWG Solar Cable (Red and Black), Panel to Controller (RS-20101) (All Options)
• 1 x 10 ft 10 AWG Battery Cable (Red and Black), Controller to Battery (RS-1010) (All Options)
• 1 x Mounting Z Brackets (RS-ZB4C) (All Options)
• 1 x 10A Inline Fuse Holder With Fuse (RS-SC10F) (All Options)
• 1 x 12V 100Ah LiFePO4 Battery (RS-B12100) (Battery Options)
• 1 x 1500W 12V Pure Sine Wave Inverter (RS-V1500) (Inverter Options)

Start Small and Build Your RV System

The Rich Solar 100W RV 12V Kit gives you a MEGA 100 panel, a 20A MPPT controller and the hardware for a clean RV install, with battery and inverter add-ons when you want more. At Outbound Power, we help customers choose the right kit option for their RV and how they camp. If you have questions, our team is happy to help.
