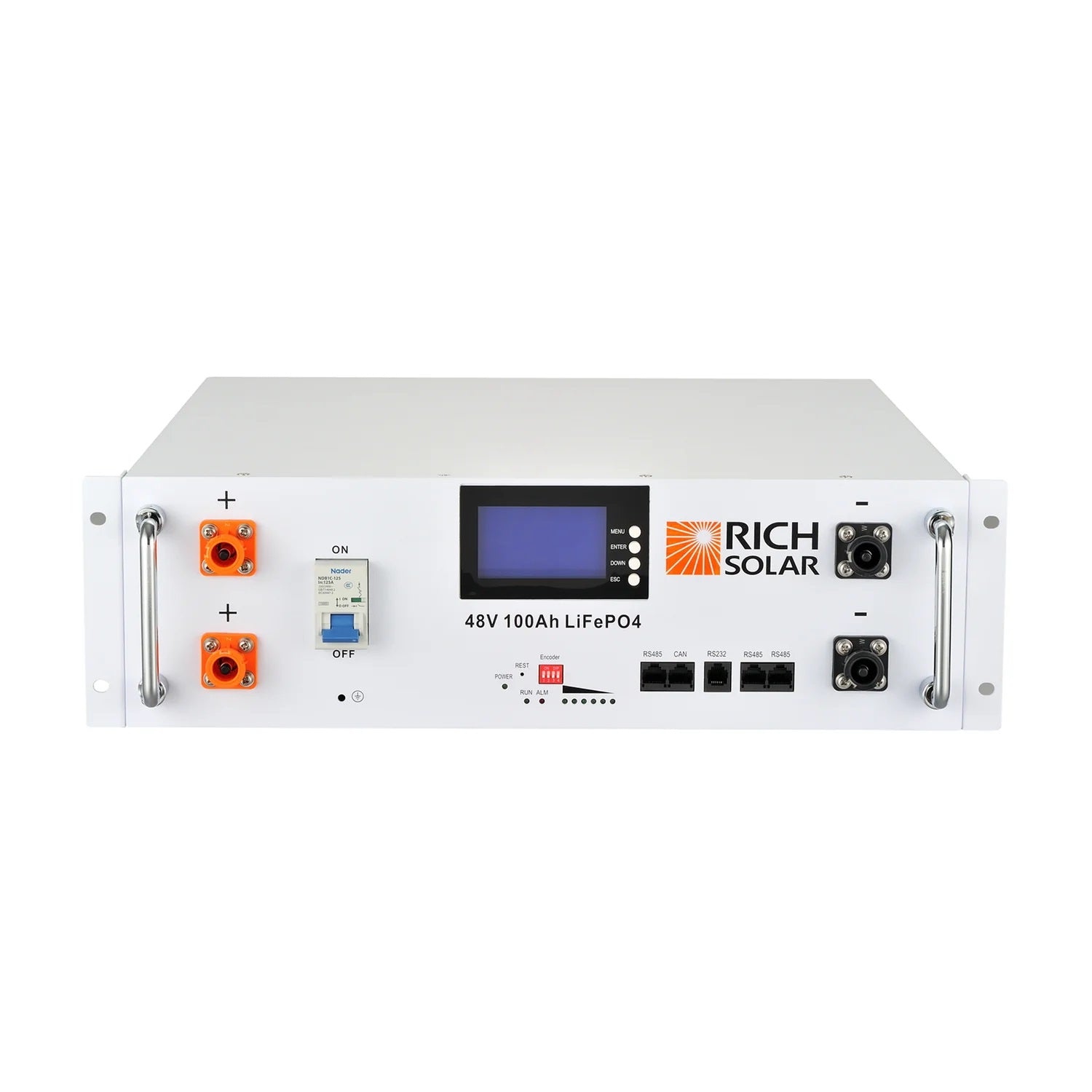

Rich Solar Alpha 5 Server Lithium Iron Phosphate Battery Front View

Rich Solar Alpha 5 Server 48V 100Ah Lithium Iron Phosphate Battery

by Rich Solar
$1,599.99

Notify me when available

Why Buy From Us?

✔ Authorized Rich Solar Dealer
✔ Fast & Free Shipping
✔ Free & Easy No-Risk Returns
✔ Financing Available
✔ Price Beat Guarantee
✔ Manufacturer Warranty Included

Condition: New

SKU: RS-B48100SR

Fast & Free Shipping

On all products

Friendly Expert Support

+1 (888) 976-5443

Easy No-Risk Returns

Free + no questions asked!

Financing Available

Buy now, pay later


Power Your Server With Unmatched Performance And Reliability: Introducing The Rich Solar Alpha 5 Server Lithium Iron Phosphate Battery

Finally, a server battery that can keep up with your demanding needs. The Rich Solar Alpha 5 is a revolutionary lithium iron phosphate (LiFePO4) battery designed specifically for server applications. With its exceptional performance, long lifespan, and robust safety features, the Alpha 5 is the perfect choice for businesses that require uninterruptible power for their critical IT infrastructure.


Rich Solar Alpha 5 Server Lithium Iron Phosphate Battery Features

  • Extremely high number of charge/discharge cycles
  • 20 Year lifespan with proper maintenance
  • Built-in smart battery management system
  • Wide operating temperature range
  • Unsurpassed high temperature performance
  • Green energy without metal contaminant
  • Low maintenance
  • High amp capacity
  • Stable output voltage
  • Little self-discharge
  • Lifetime customer support
  • Over charging or discharging protection.
  • Over current & short circuit protection.
  • High & low temperature disconnects
  • Charge Voltage: 52.5V
  • Max Charge Current: 100 A
  • Max Discharge Current: 100 A
  • Battery Dimensions: 19″L x 18 3/4″W x 5 1/4″H
  • Weight: 130 lb

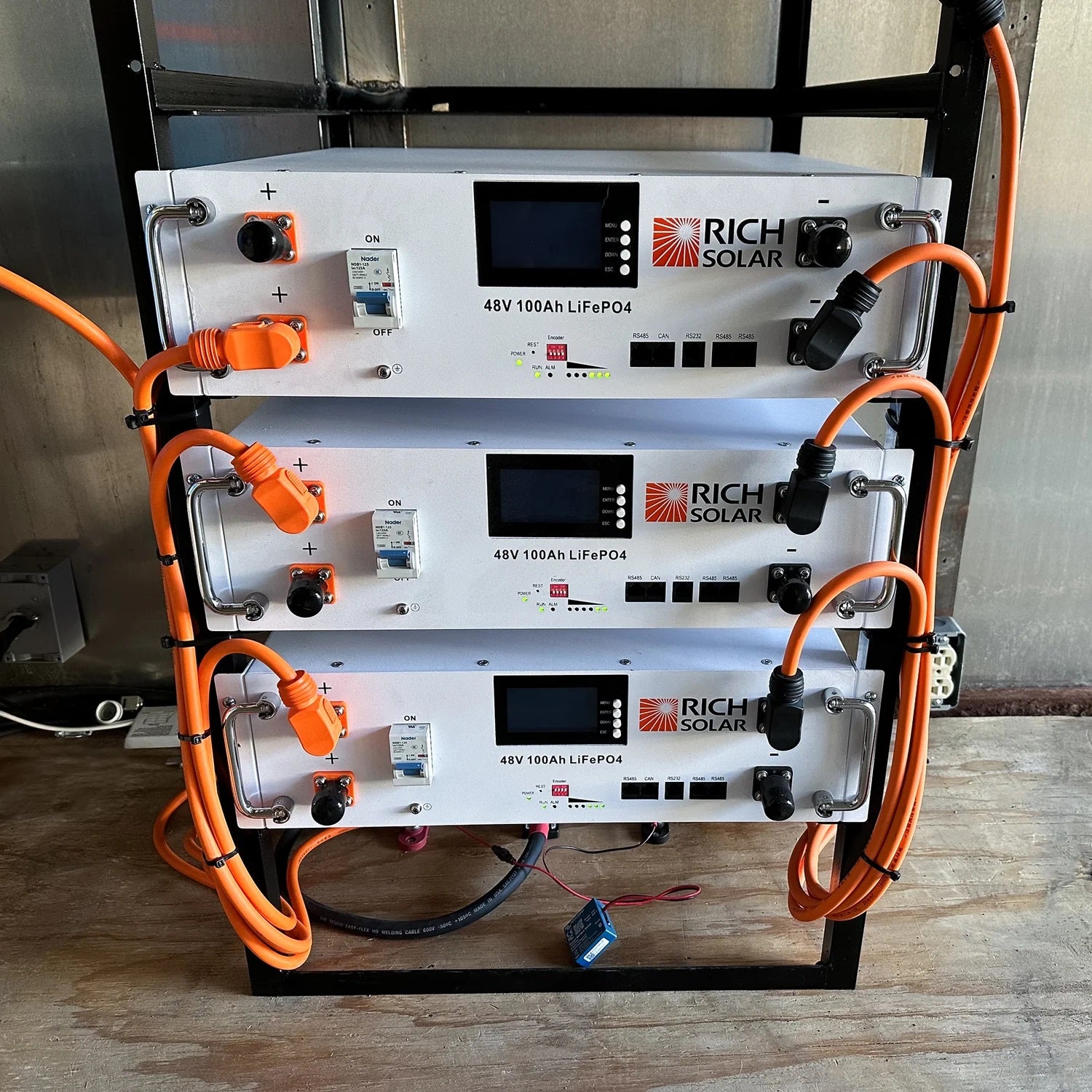

  • Connect in Parallel for Larger Capacity



BMS Safety Protection

  • Each cell is fused and if for some unlikely situation a cell fails, this design will isolate the cell stopping any other damage and allows the battery to function safely
  • Convenient removable carry handle
  • Lightweight
  • Short circuit protected
  • Physical damage to battery case will not cause fire
  • Excessive thermal exposure will not cause a fire
  • Able to withstand over-charge/over-discharge without damage to the battery
  • Sophisticated Battery Management System (BMS)



What's In The Box

  • 1 x Rich Solar 4.8kWh (48V 100Ah) lithium iron phosphate battery
  • 1 x 1 foot RS485 communication cable
  • 1 x Set of parallel cables per battery



10-Year Warranty

  • Rich Solar provides a 10-year Manufacturer Defect for this solar battery.



Rich Solar Alpha 5 Server Lithium Iron Phosphate Battery Specifications

Electrical Specifications

Nominal Voltage:
48V
Nominal Capacity(at .5C, 77°F): 100Ah
Minimum Capacity (at .5C, 77°F): 95Ah
Expected Cycle Life:  >7000 cycles w/1C charge and discharge rate, at 77°F, 80% DOD


Operating Specifications

Charge Method: Smart charger, constant current, constant voltage
Operating Voltage:  48 V
Capacity:  100 Ah
Energy: 5120 Watt Hours
Charge Voltage Range (Max 52.5):  52.0 -52.5V
Continuous Charge Current:  100A
Continuous Discharge Current:  100A
Over Voltage Shutdown: 52.5 +/-0.2V
Discharge Cut-off Voltage:  42V =/- 0.5V
Self Discharge (stored at 50% SOC):  < 3%/month
Waterproof:  IP65


Temperature Performance

Charge Temperature: 32° F to 140° F
Discharge Temperature:  -4° F to 140° F
Storage Temperature: -4° F to 140° F
BMS High Temperature Cut-off:

149°F
BMS Low Temperature Cut-off:

32°F


Physical Specifications

Battery Dimensions: 19″L x 18 3/4″W x 5 1/4″H
Weight:  130 lb
Group Size: 15

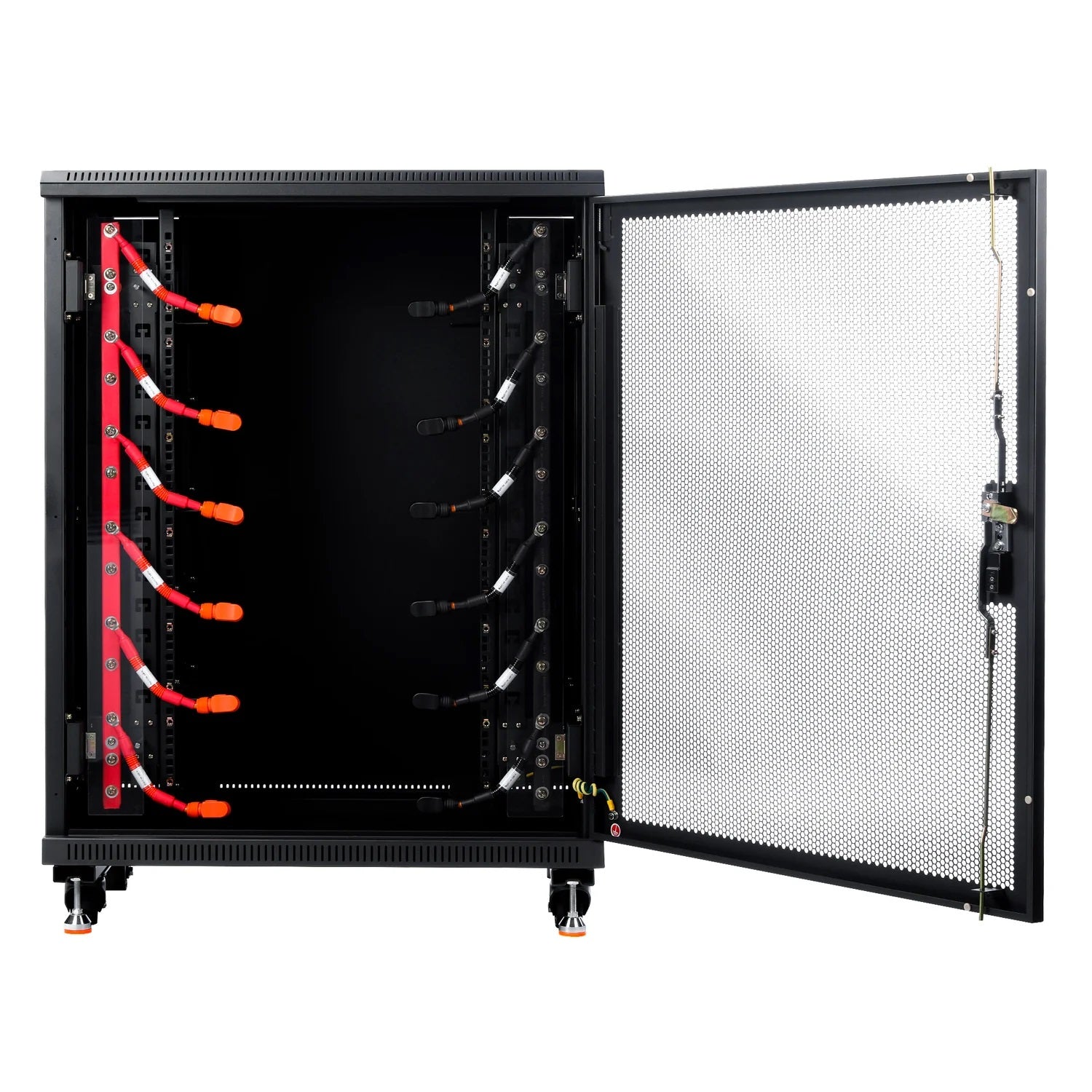

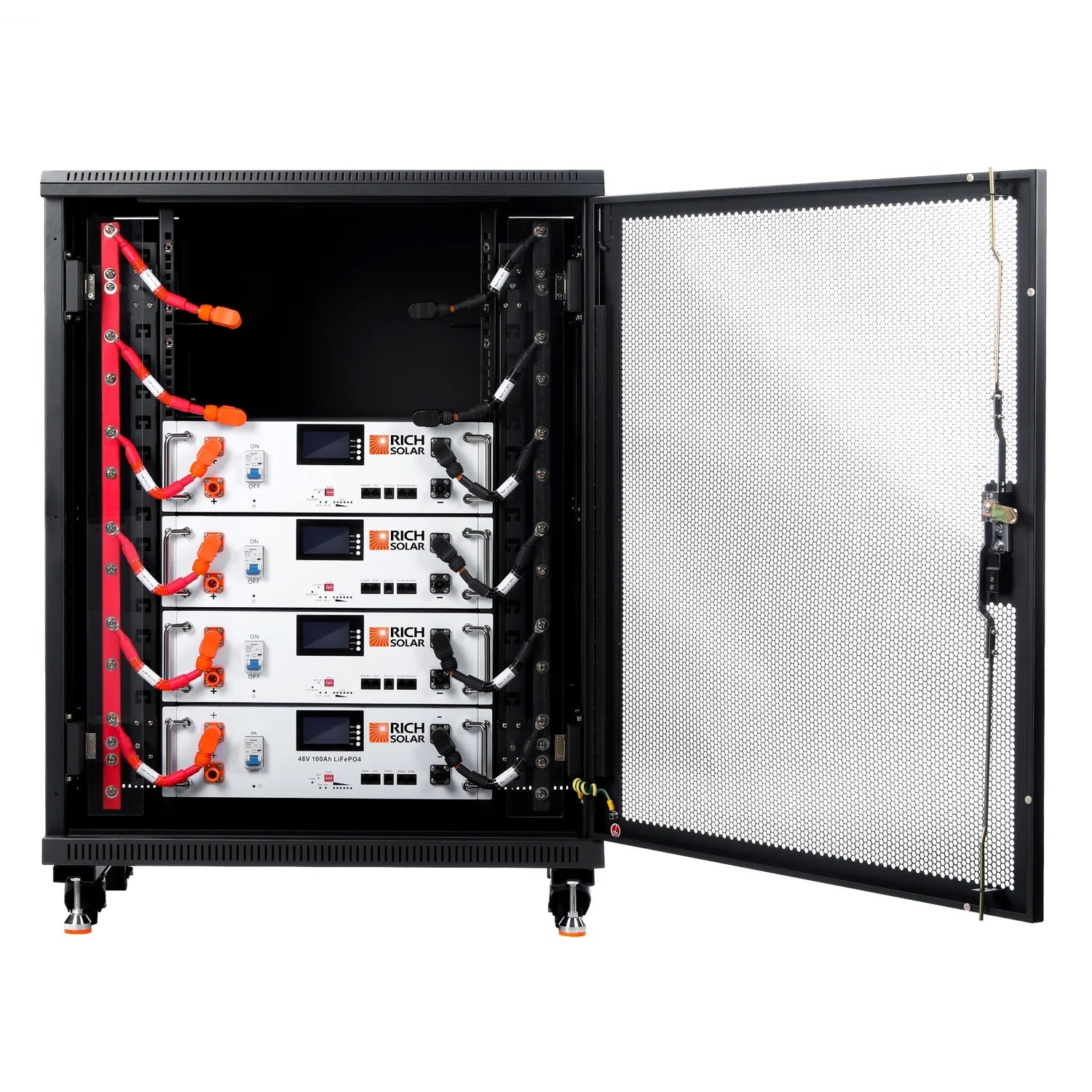

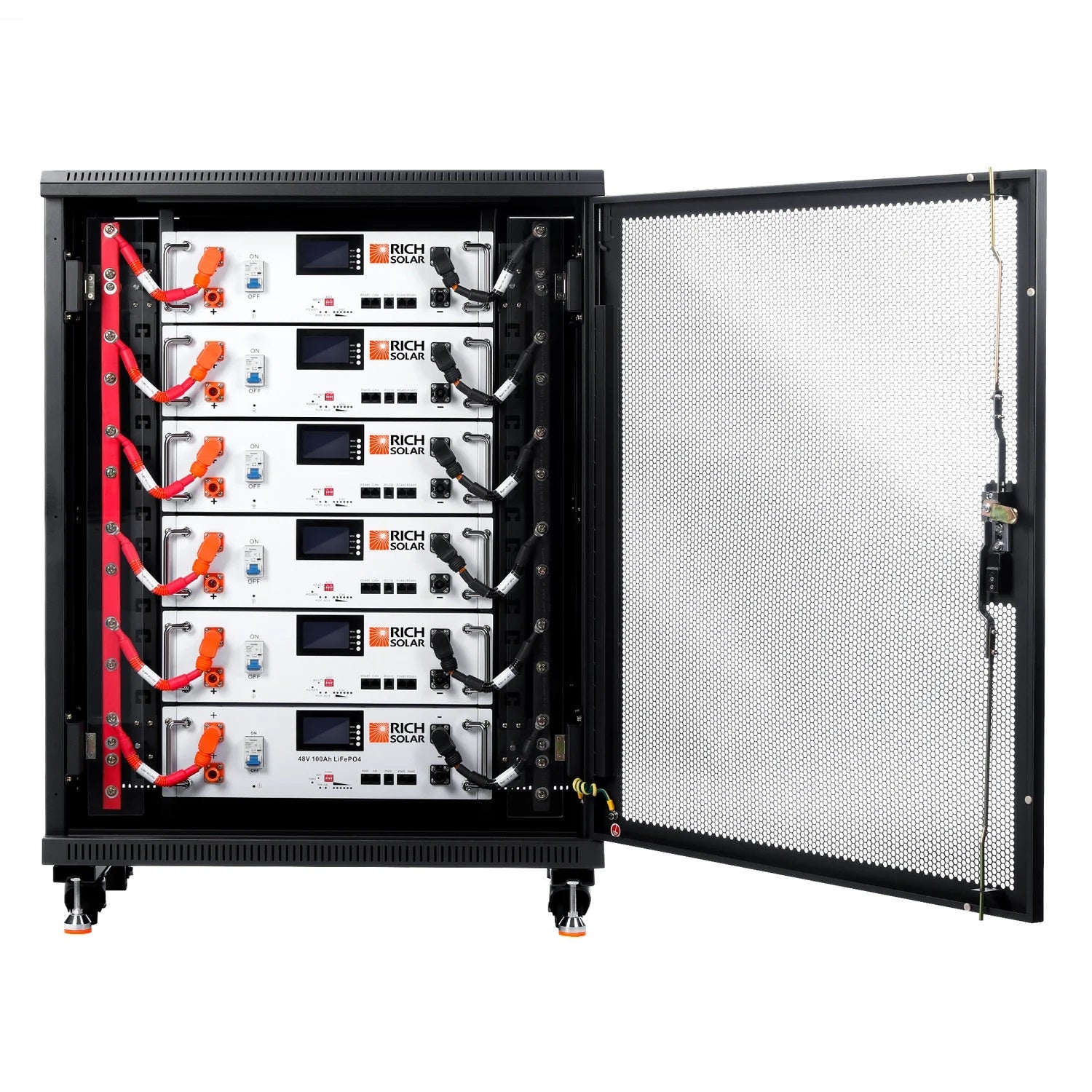

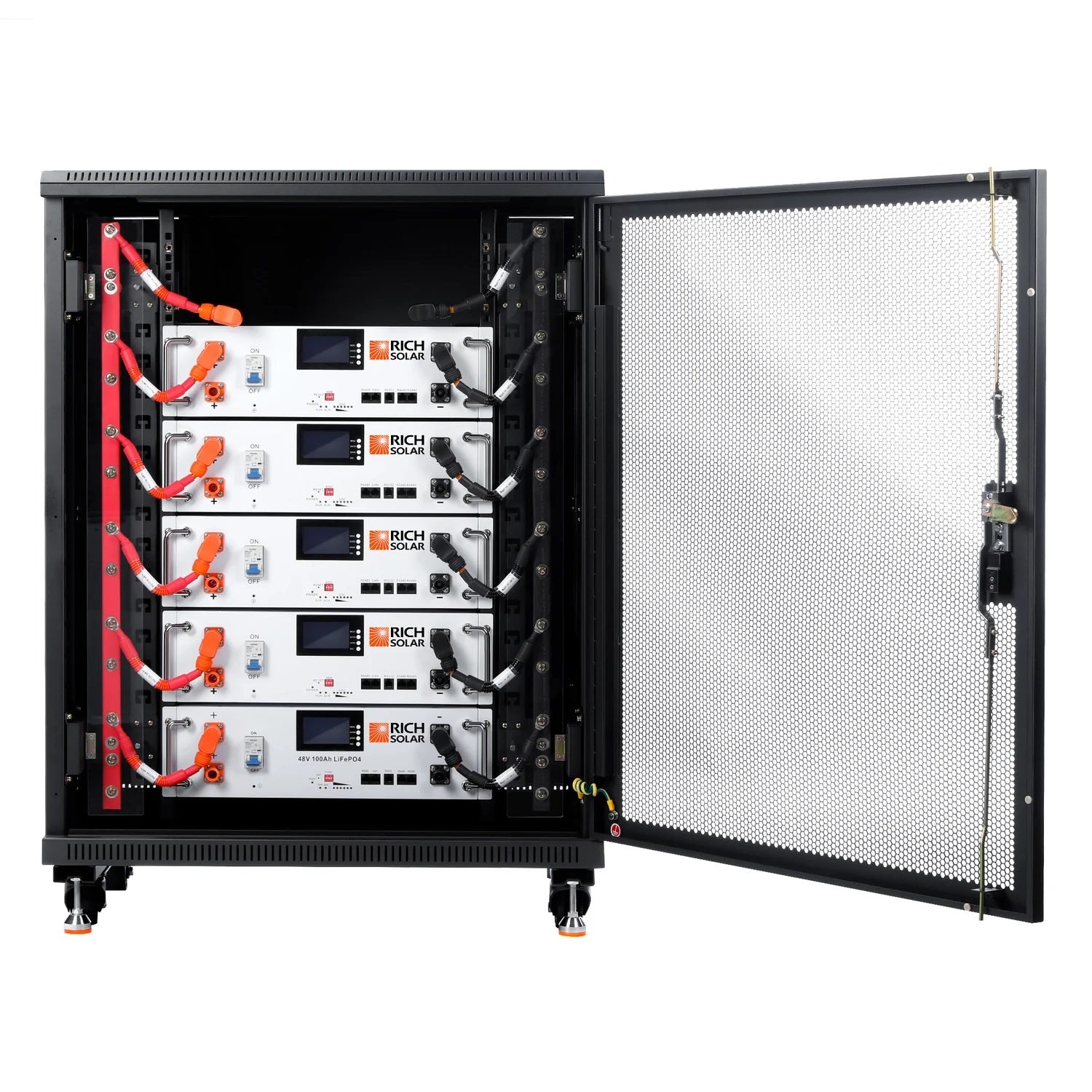

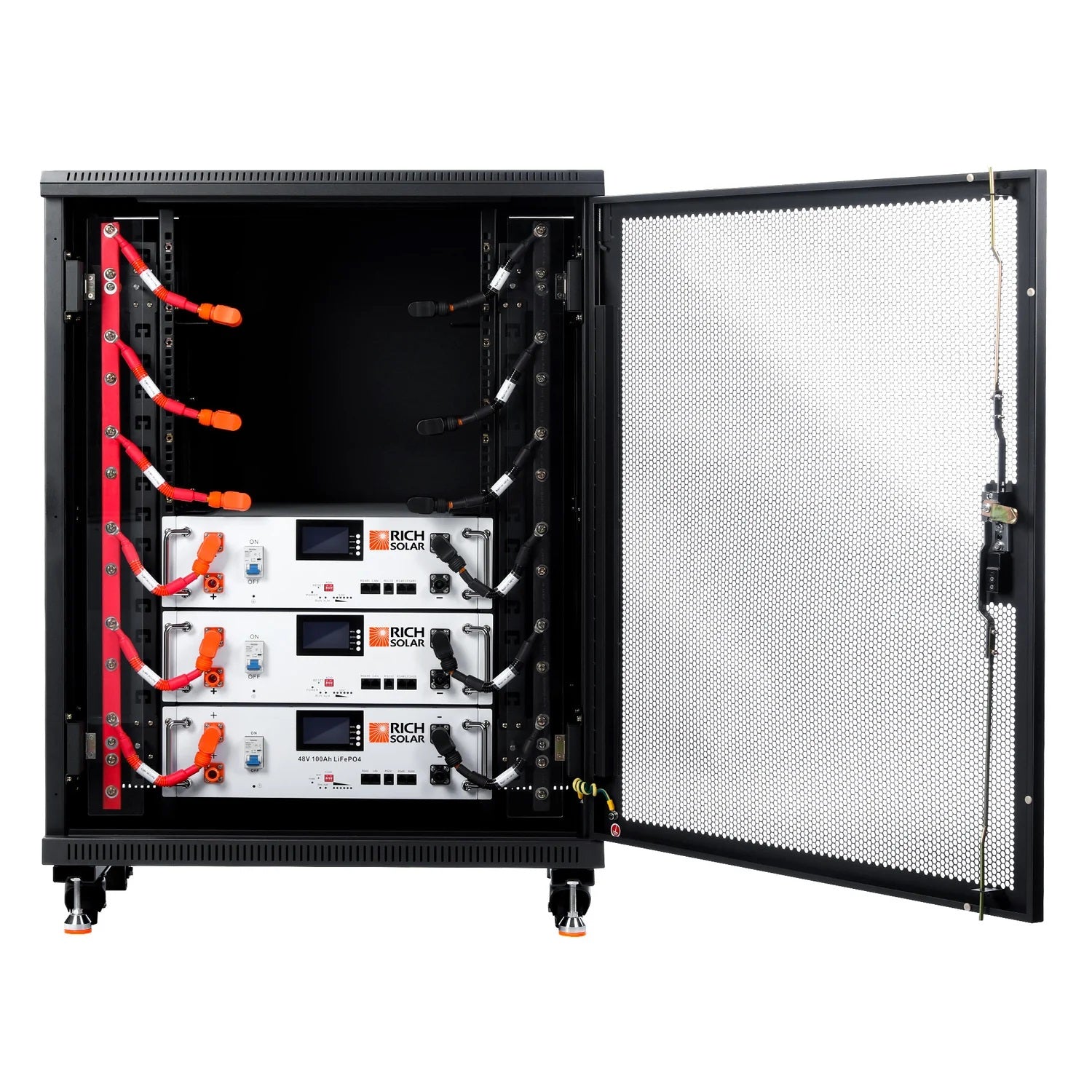

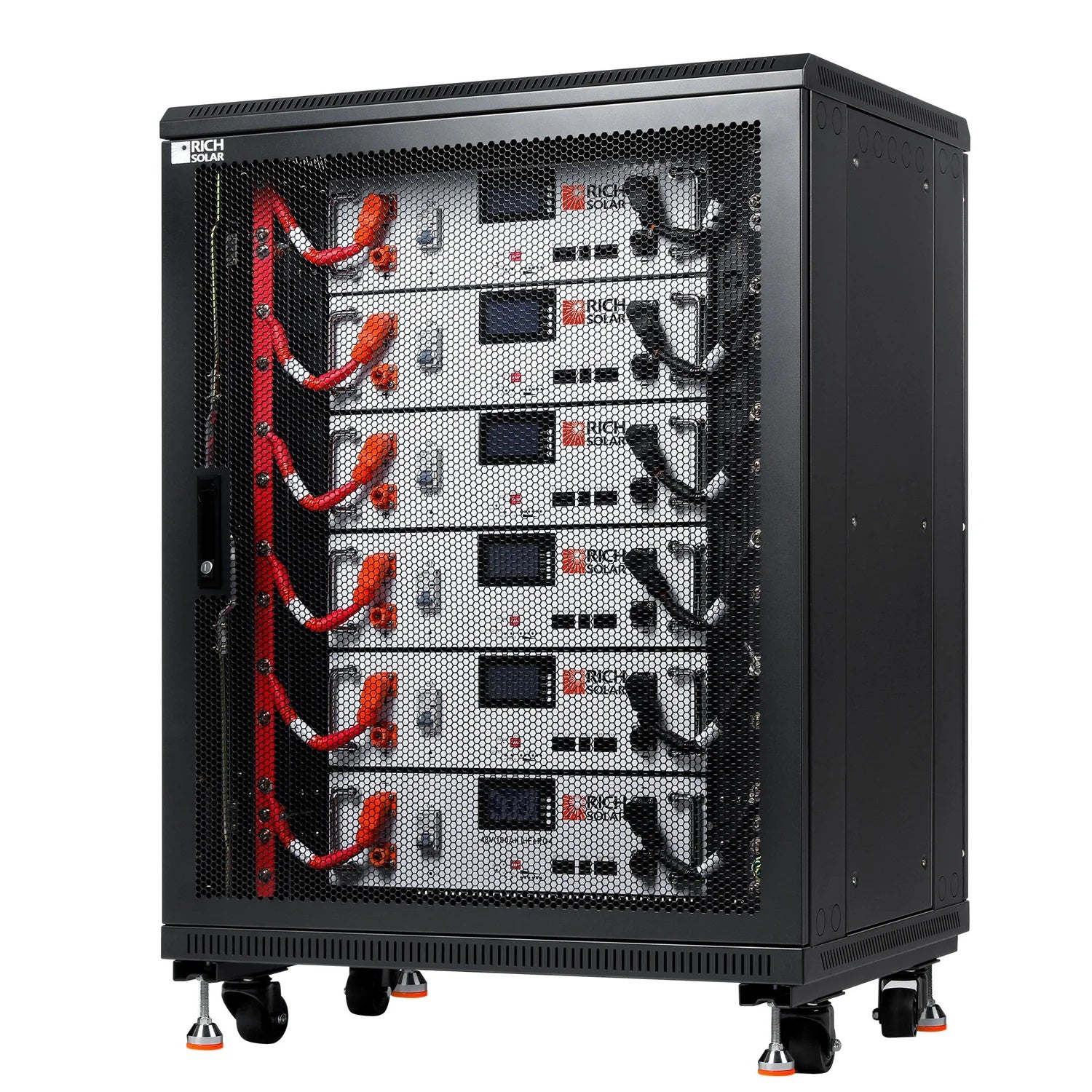

Battery Server Rack Specifications

Battery Server Rack Dimensions: 39″L x 32″W x 24″H
Weight: 159 lb
Thickness: Frame 1.5mm, top/bottom plate 1.2mm, column 2.0mm, mesh door plate 1.2mm, side plate (screw fixed) 1.0mm, L-shaped bracket 2.0mm;
Material: High-quality cold-rolled steel plate
Protection level: IP20
Packaging: Carton + wooden pallet




BMS Operation

Over Charge Protection

Over charge detection voltage: 3.9 +/- 0.05V
Over charge detection delay time:  0.96 – 1.4s
Over charge release voltage:  3.80 +/-0.05V
Maximum charge voltage: 3.65 +/-0.05V


Over Discharge Protection

Over discharge detection voltage:  2.0V +/- 0.05V
Over discharge detection delay time: 115-173ms
Over discharge release voltage:  2.3V +/- 0.10V
Over Current Protection Over current detection delay time: 9 +/- 2ms
Over current release condition: Cut load
Polarity Reverse Protection: Yes
Short Circuit Protection: Yes


Rich Solar Alpha 5 Server Lithium Iron Phosphate Battery Manual
