The Mango Power mSocket Pro Links Two Mango Power E Units for 240V Split-Phase Power and 6000W of Output
The Mango Power mSocket Pro is a four-outlet hub that connects two Mango Power E power stations for 240V split-phase output. Mango states it doubles the rated power, voltage and capacity of the linked stations, and that two Mango Power E units chained together output 6000W.
It is for Mango Power E owners who have, or plan to add, a second E and want 240V appliances or extra 30A outlets running from their stations. The mSocket Pro requires two Mango Power E units and works only with the Mango Power E.
Mango Power mSocket Pro Features
240V Split-Phase From Two Stations
Link two Mango Power E units with the E-Link cable, plug both into the mSocket Pro, and you get 240V split-phase output. The mSocket Pro is rated for 120V/240V output at up to 30A.
Two 240V and Two 120V Outlets
The front panel has two outlets labeled 240V/30A and two labeled 120V/30A. That puts both 240V and 120V connections in one place.
6000W of Combined Output
Mango states that two Mango Power E units working through the mSocket Pro output 6000W, with output power and voltage doubled compared with the stations on their own.
Plug-In Setup With the E-Link Cable Included
The mSocket Pro connects to the stations by its two attached cords, and the E-Link Communication Cable that links the two stations comes in the box. There is no home wiring involved.
Real-World Applications
240V Appliances at Home. Run home appliances that need 240V, with matching plugs, from two Mango Power E units during an outage or when you want to stay off the grid for a while.
Larger Two-Station Systems. Each Mango Power E can also carry its own Expansion Battery. With two E units and two Expansion Batteries, Mango's capacity figure reaches up to 14kWh.
Practical Comparison
mSocket Pro Versus a Single Mango Power E
A single Mango Power E does not provide 240V split-phase output. With a second E, the E-Link cable and the mSocket Pro, you get 240V split-phase output and Mango's 6000W combined output figure.
mSocket Pro Versus a Hardwired Backup Panel
A hardwired backup panel connects your stations to home circuits and needs a licensed electrician, local codes and permits. The mSocket Pro is a plug-in unit, so appliances plug straight into its outlets with no changes to your home wiring.
Buyer Guidance
What You Need
You need two Mango Power E units and appliances whose plugs match the mSocket Pro's outlets, so compare the outlets in the photos with your appliance plugs. You can also add an Expansion Battery to each E for more capacity.
Connecting the System
Disconnect the AC charging cable from both Mango Power E units while plugging them into the mSocket Pro. If you use Expansion Batteries, connect each one to its E with an E+ cable. Link the two E units with the E-Link cable, plug both into the mSocket Pro, turn everything on and tap AC ON/OFF on one of the E touch screens.
This May Be A Good Fit If
- You own or plan to own two Mango Power E units
- You want 240V split-phase output without home wiring
- You need 240V/30A and 120V/30A outlets
- You want up to 6000W from two linked stations
Common Questions
Does the mSocket Pro Work With One Mango Power E?
No. The mSocket Pro requires two Mango Power E units, linked with the E-Link cable, to produce 240V split-phase output.
Can I Charge the Stations While They Are Plugged In?
Mango's instructions say to disconnect the AC charging cable from both Mango Power E units while plugging them into the mSocket Pro.
What Warranty Does It Carry?
Mango covers the mSocket Pro for 12 months.

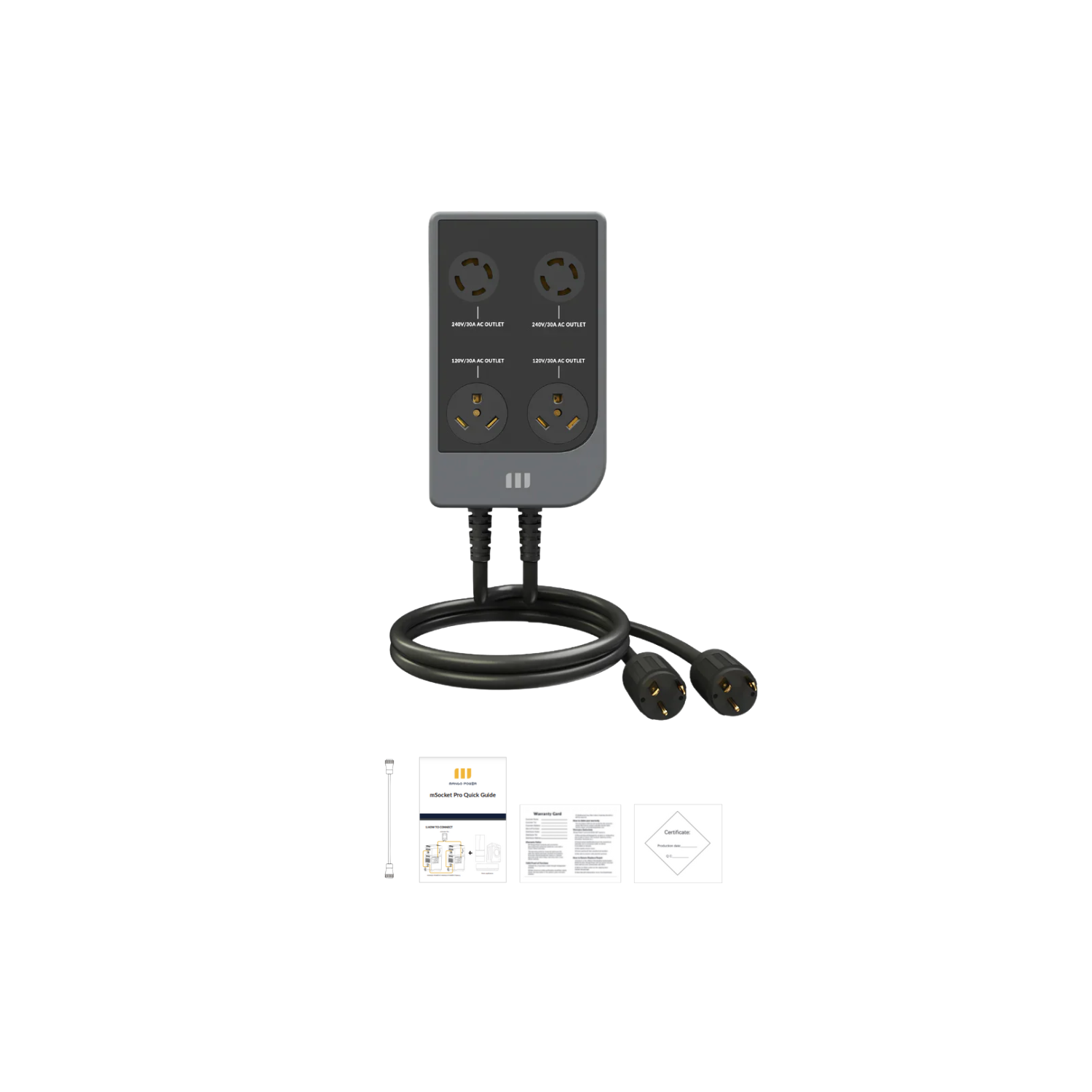

What's Included
- 1 x mSocket Pro
- 1 x E-Link Communication Cable
- 1 x Quick Guide
- 1 x Warranty Card
- 1 x QC Pass Certificate
Two Stations Working as One 240V System
The Mango Power mSocket Pro turns two Mango Power E units into a 240V split-phase system with four 30A outlets and 6000W of combined output. If you want help planning a two-station setup or matching appliance plugs to its outlets, the Outbound Power team is ready to help.
Mango Power mSocket Pro 240V Split-Phase Hub for Mango Power E Specifications
|
| Electrical |
| Output Voltage |
120V/240V |
| Output Current |
Max 30A |
| Combined Output (Two Mango Power E) |
6000W |
| 240V Outlets |
2 x 240V/30A AC outlet |
| 120V Outlets |
2 x 120V/30A AC outlet |
| Split-Phase Output |
240V split-phase with two Mango Power E units |
| Compatibility |
| Compatible Power Station |
Mango Power E only |
| Units Required |
2 x Mango Power E |
| Station Link |
E-Link Communication Cable (included) |
| Capacity With Two E + Two Expansion Batteries |
Up to 14kWh |
| Installation |
| Connection |
Plug-in, two attached cords to the Mango Power E units |
| Home Wiring |
None |
| Before Connecting |
Disconnect the AC charging cable from both Mango Power E units |
| Warranty |
| Warranty |
12 months |
