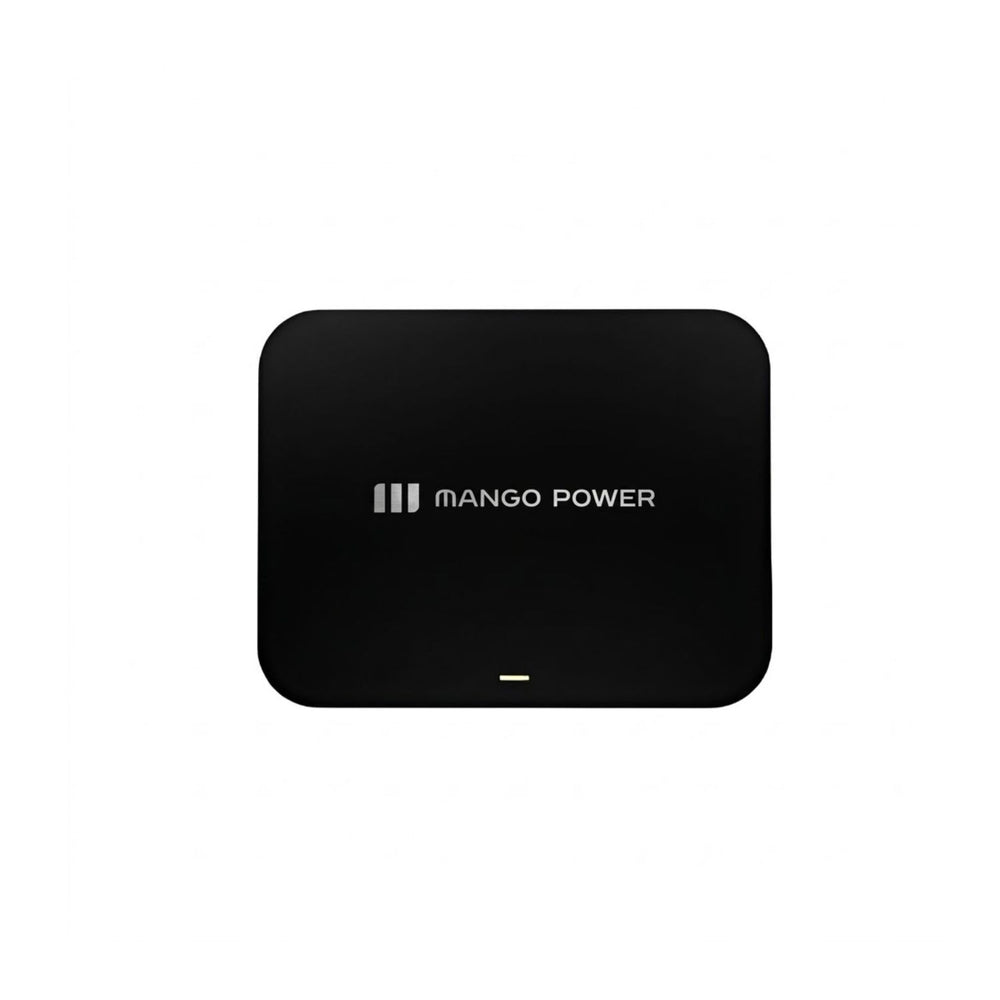

You've made a smart investment in the Mango Power S Series home energy storage system. Now it's time to give it the brain it deserves. The Mango Power Smart Gateway Lite is a compact, wall-mounted energy management device engineered exclusively for the Mango Power S Series and it's the missing link between a good home energy system and a great one.
Whether you're a homeowner building whole-home backup protection, a dedicated RVer who needs dependable power on the road, an off-grid enthusiast managing every watt with precision, or a mobile business operator keeping critical equipment running, the Smart Gateway Lite delivers the accuracy, speed, and smart connectivity that modern energy management demands. This isn't just a monitoring device it's your system's command center, quietly doing the heavy lifting so you can focus on everything else in your life.
This device monitors power at ±0.5% revenue-grade accuracy the same standard used by utility companies. You get real, trustworthy numbers, not rough estimates, so every energy decision you make is based on solid data.
In under 0.25 seconds, the Gateway Lite detects and blocks unwanted energy backflow. This keeps your system compliant with local grid rules and protects your equipment all without you lifting a single finger.
Built-in Wi-Fi links the device directly to the Mango Power App. Check your energy usage, system health, and performance data in real time whether you're at home, on the road, or miles away from your setup.
Choose plug-in for fast setup or hard-wired for a permanent connection. Either way, installation is straightforward and clean. No complex tools, no frustrating steps just a simple process that gets your system running faster.
Wiring mistakes during setup can silently ruin your data accuracy. The Gateway Lite automatically detects Current Transformer and phase errors, alerts you immediately, and helps ensure your entire system is configured correctly from day one.
This is not a generic add-on. Every feature is designed and calibrated for the S Series system. That tight compatibility means better performance, fewer errors, and a more reliable experience compared to using third-party monitoring devices.
When something seems off, you don't always need a technician on-site. The app connection lets you or a support team diagnose and resolve many common issues remotely saving you time, money, and unnecessary service visits.
Mango Power provides a 3-year warranty policy, ensuring the absence of defects in materials, workmanship, and performance during the warranty period.
Mango Power Smart Gateway Lite Specifications |
|
|---|---|
| AC Input Voltage Range | 100–240V (L-N) |
| Nominal AC Frequency | 60 Hz |
| Max. Operating Current | 200A |
| Time Measurement Accuracy | ≤ 0.25s/T |
| Voltage Accuracy | ±0.5% |
| Current Accuracy | ±0.5% (2–80A), ±1% (1–2A), ±2% (0–1A) |
| Power Accuracy | ±0.5% |
| Mains Frequency Accuracy | 45–65Hz, ±0.2% |
| Interface | Wi-Fi (2.4GHz) |
| Max. RF Power | < 20 dBm |
| Phase Sequence Error Detection | Supported |
| CT Direction Reverse Detection | Supported |
| Data Storage | Cloud-dependent (App History) |
| Insulation Resistance | > 100MΩ (terminals to casing) |
| Power Consumption | < 1W, < 10VA |
| Dimensions (W × H × D) | 125.6 × 97.6 × 28.6 mm |
| Weight | 0.2 kg |
| Operating Temperature | -25°C to 55°C (-13°F to 131°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | ≤ 95% (no condensation) |
| Ingress Protection | IP20 |
| Max. Altitude | ≤ 2,000 m (6,562 ft) |
| Powering Method | Hard Wired |
| Mounting Type | Wall-mount / Surface-mount |
| Warranty | 3 Years |
