Maximize Your Energy Independence With The SunGold Power 12kW 48VDC Complete Off-Grid Solar Kit
Are you ready to break free from the constraints of traditional power sources? The SunGold Power 12kW 48VDC Complete Off-Grid Solar Kit provides a sustainable and efficient energy solution that empowers homes and businesses to become energy independent. This complete solar kit is designed to harness the sun’s energy, transforming it into usable power that meets your electrical needs. With its robust features and high-performance capabilities, you can enjoy reliable energy without the worries of fluctuating electricity prices or power outages.
Imagine a world where you control your energy production and consumption, while also reducing your carbon footprint. This solar kit not only helps you save money in the long run but also contributes to a greener planet. Whether you live in a remote area, are preparing for emergencies, or want to reduce your reliance on the grid, this solar kit is your ultimate partner in achieving energy independence.
SunGold Power 12kW 48VDC Complete Off-Grid Solar Kit Features
The SunGold Power 12000W Kit Provides 12,000 Watts For Energy Needs
The SunGold Power 12000W kit delivers a robust 12,000 watts, efficiently catering to the energy requirements of larger homes and small businesses. This ample power capacity enables you to run essential appliances, lighting systems, and other technology with ease.
Operates At 48 Volts For Consistent Performance In Various Conditions
Operating at 48 volts, this solar kit guarantees optimal efficiency under various conditions. This voltage configuration ensures that your energy system performs consistently, providing reliable power to meet different energy demands for both residential and commercial applications.
Includes Lithium Batteries Storing 10 To 24 kWh For Reliable Power
Equipped with a lithium battery system capable of storing 10 to 24 kWh, the kit guarantees power availability around the clock. This extensive storage capacity ensures that you can utilize solar energy day or night, even during periods of low sunlight.
Features 5,400 Watts Of Durable Panels For Maximum Sunlight Capture
With 5,400 watts of high-performance solar panels, the kit maximizes sunlight capture for optimal energy production. Designed for durability, these panels withstand environmental challenges, ensuring long-lasting performance and continued energy generation throughout their lifespan.
Designed For Easy Setup So Anyone Can Start Using It
The SunGold Power 12000W kit is designed for easy installation, allowing users to set up the system without expert knowledge. The straightforward configuration process enables you to start generating renewable energy quickly and efficiently, removing barriers to solar adoption.
Provides Reliable Power During Outages, Ensuring Essential Devices Stay Functional
This off-grid solar system enhances your readiness for power outages and emergencies. With the SunGold kit, you can maintain energy supply during interruptions or natural disasters, ensuring your home remains functional and your essential devices stay powered.
SunGold Power 12kW 48VDC Complete Off-Grid Solar Kit Warranty
SunGold provides a limited warranty policy, ensuring the absence of defects in materials, workmanship, and performance during the warranty period.
What's Included
- 1 x 12000 Watt 48V DC 120V/240V Inverter
- 2 x 100A Mppt Solar Charge Controller
- 12 x 440 Watt Monocrystalline Solar Panels
- 4 x 200AH Lifepo4 Battery with Bluetooth
- 12 x Sets of Mounting Z-Brackets
- 2 x 50 Feet, Solar Extension Cables-Inverter PV input
- 2 Sets x Cable Between Battery and MPPT Controller
- 1 x 200A DC Breaker
- 2 x 25A PV Breaker
SunGold Power 12kW 48VDC Complete Off-Grid Solar Kit Specifications
| Max Continuous Output |
12000W |
| AC Output |
48V |
| Max Solar Input |
2 x 3500W |
| Total Watt of Panels |
5280W |
| Per Panel Watt |
440 Watt |
| Panel No. |
12 pcs |
| Total KWH of Batteries |
10.24KWH |
| Chemistry |
Lithium |
| Battery No. |
4 pcs |
| Battery Spec |
12V 200AH |
| Total Battery Capacity |
30.72Kwh |
| Maximum Battery Cut-off Charging Volatage |
57.6V |
| Battery Discharge Cut-Off Voltage |
43.2V |
| Battery Max Parallel Number |
32 |
| Maximum Poer Per Solar Panel |
415W |
| Solar Panel Quantity |
20 |
| Total Power of Solar Panels |
8,300W |
| Max-power Voltage Per Solar Panel |
31.6V |
| Max-power Current Per Solar Panel |
13.13A |
| Open-circuit Voltage Per Solar Panel |
37.50V |
| Maximum PV Open-circuit Voltage of MPPT Controller |
250V |
| Settable Charging Current Voltage of MPPT Controller |
0-100A |
| MPPT Controller PV Input Power |
12V-1320W,24V-2640W, 36V-3960W,48V-5280W |
| MPPT Controller Quantity |
2 |

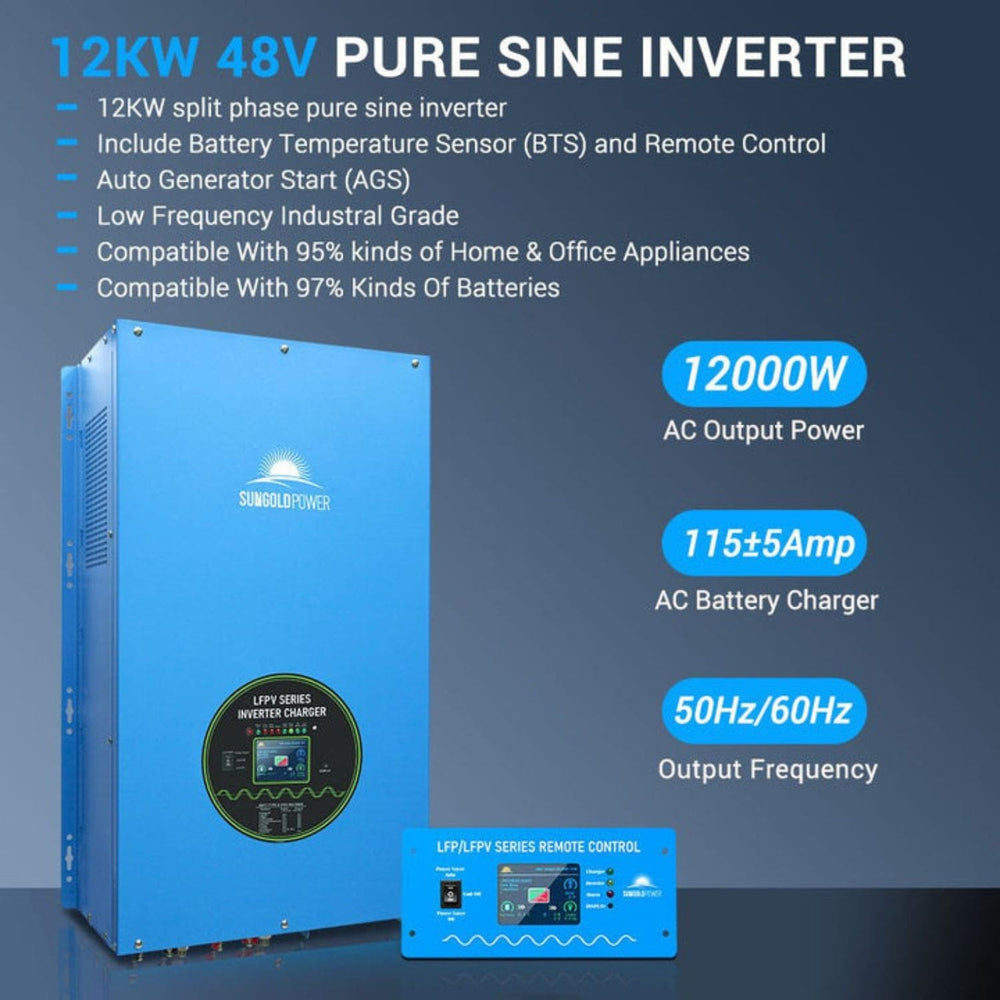

12000 Watt Inverter Specifications
|
| AC Output |
12000W |
| Output Waveform |
Pure Sine Wave |
| AC Output |
120V/240V |
| AC Input Voltage |
240V |
| Type |
Low Frequency Inverter |
| Support |
Generator |
| Surge Rating(20s) |
36.0KW |
| Dimension |
27.6 x 16.5 x 8 inch |
| Weight |
159.5 LB |
| Warranty |
3 Years |
LifePO4 Battery Specifications
|
| Nominal Voltage |
12.8V |
| Nominal Capacity |
200AH |
| Energy |
2560WH |
| Voltage window |
10.8-14.6V |
| MAX Continuous Charge Current |
150A |
| Peak Discharge Current |
245A |
| Cycle Life |
≥4000 |
| Main Charactor |
Self Heating / IP65 |
| Monitoring Function |
LCD/Bluetooth |
| Dimension |
19.7 X 9.4 X 9.1 inch |
| Weight |
48.5lbs |
| Warranty |
5 Years |

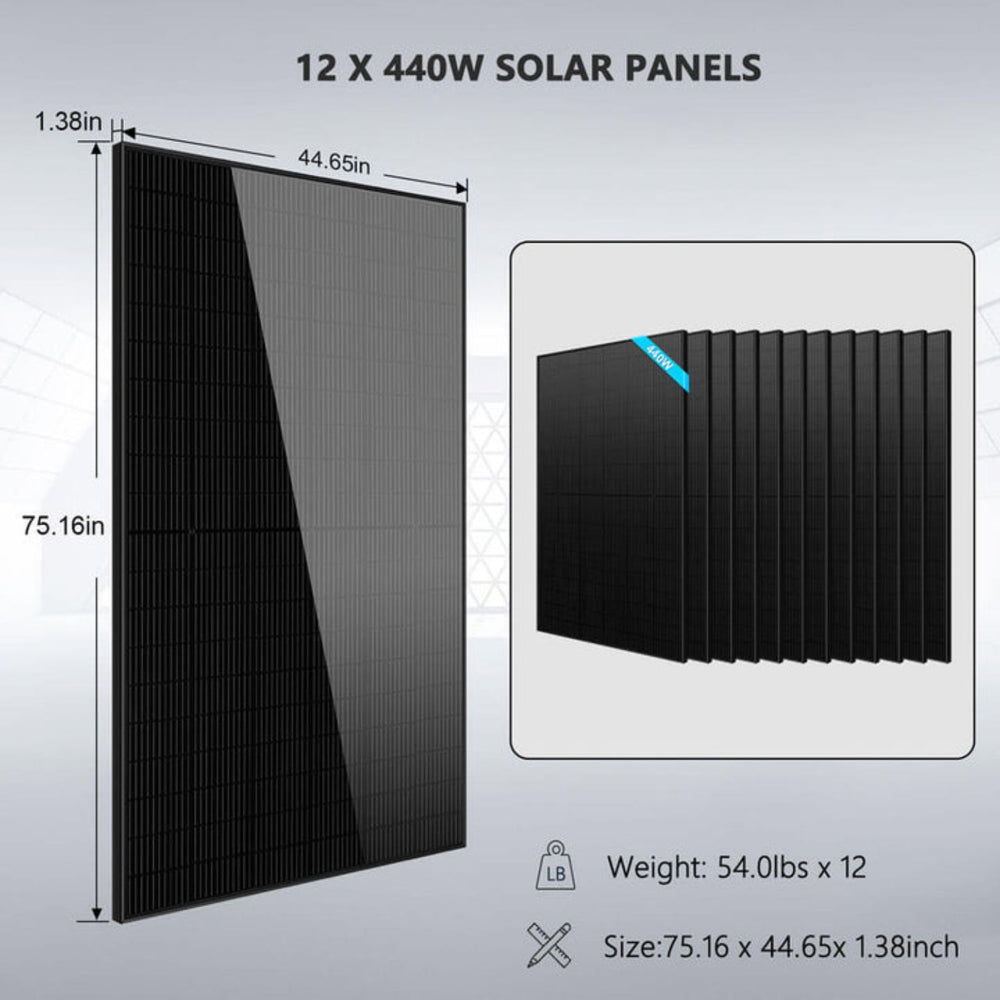

440 Watt Mono Solar Panel Specifications
|
| Peak Power |
440W |
| Solar Cell |
Monocrystalline |
| Product Tolerance |
±3% |
| Maximum Power Current (IMP) |
13.05 A |
| Maximum Power Voltage(VMP) |
33.72V |
| Short Circuit Current(ISC) |
13.73A |
| Open Circuit Voltage(VOC) |
39.79V |
| Product Dimension |
75.16 X 44.65 X 1.38inch |
| Product Weight |
54.0lbs |
| Warranty |
25 Years |
| Certificates |
UL61730, TUV, IEC, CEC, CE... |
100A MPPT Solar Controller Specifications
|
| System Voltage |
12V/24V/36V/48V Auto |
| Support |
Bluetooth and APP monitoring |
| Maximum PV Open-circuit Votage |
250V |
| Maximum PV Short-circuit Current |
70A |
| Rated Charging Current |
100A |
| Settable Charging Current |
0-100A |
| Power of Solar Panel |
12V-1320W,24V-2640W, 36V-3960W,48V-5280W |
| MPPT Tracing efficiency |
>99% |
| Product Dimension |
12.4 X 8.9 X 4.8 inch |
| Weight |
12.5lb |
| Warranty |
3 Years |
SunGold Power 12000W 48V Complete off Grid Solar Kit Manuals
