BLUETTI EP500 Solar Power Station | 5100Wh | 4800W | 1200W Solar Input

Experience Off-Grid Power Storage In A Portable Power Station With The BLUETTI EP500

The BLUETTI EP500 Solar Power Station provides reliable, eco-friendly energy for off-grid living, emergency backup, outdoor events, RV adventures, and construction sites. With high capacity and solar capability, it can power your essential devices, tools, and appliances, ensuring you stay connected and powered up anywhere, anytime.

BLUETTI EP500 Features

All-in-One Backup Power Station

The BLUETTI EP500 is shipped with a ground-breaking 5100Wh LiFePO4 battery pack and a 2000W rated pure sine wave AC inverter. This class-leading power station brings you the power to run your entire party, family camping trip, cabin workshops, or even your whole house for a day or two in the event of an unexpected outage. Up to 15 outlet sources allow you to power anything from laptops and air conditioners to your electric vehicles without breaking a sweat.

State-of-the-Art Battery Management System + LiFePO4 Chemistry

The advanced Battery Management System and LiFePO4 chemistry bring the EP500 incredible safety and durability. With the built-in dual-core microcomputer and Internet connection, the EP500’s firmware can be upgraded through your internet connection. There is no best, only better!

Seamless Backup Power

The EP500 will automatically become your home energy source for essential loads when the electrical grid goes down. Unlike gasoline generators, BLUETTI EP500 keeps your lights on and laptops charged without upkeep, fuel, carbon monoxide or annoying noise. Pair with up to 1200W MPPT solar input to rapidly recharge or to keep your appliances running without depleting the onboard battery. Remember when you had to worry about a power outage?

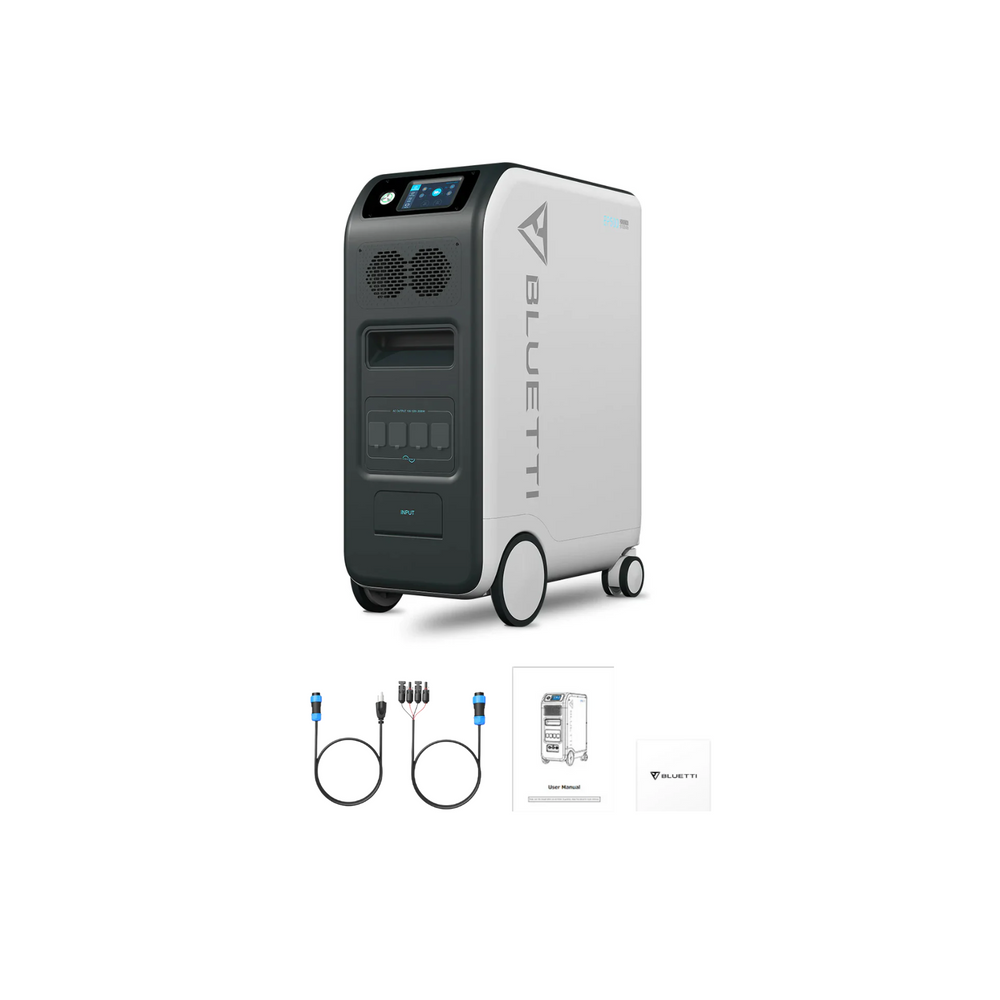

What's Included

• 1 x BLUETTI EP500 Solar Power Station
• 1 x AC Charging Cable
• 1 x PV Charging Cable
• 1 x User Manual
• 1 x Warranty Card

BLUETTI EP500 Specifications

Dimensions

• Dimensions: 500 x 300 x 760mm | 22.8 x 11.8 x 29.9 in

General Information

• AC Rated Power: 2000W
• 2000W<load<2500W,2min
• 2500W<load<3000W,10s
• 3000W<load<4800W,500ms

• Peak Power: 4800W

• Net Weight: ≈76kg (167lbs)
• Dimensions: 500*300*760mm (22.8*11.8*29.9in)
• Battery Capacity: 5100Wh
• Battery Cell Type: LiFePO4
• Rated Life Cycle: 3500+ Cycles to 80% Capacity
• Charge Temperature: 0°C ~ 40°C (32°F ~104°F)
• Storage Ambient Temperature: 0°C ~ 45°C (32°F ~113°F)
• Working Environment Humidity: 10-90%
• Certification: PSE, FCC, CE, UN38.3, msds, UL, SAA and ROHS
• Warranty: 60 Months

Input Specifications

• AC Input: 600W Max, 100-264VAC
• PV Input or T500 Input: 1200W Max, 55-145VDC, 20A

Output Specfications

• USB-C: 1*100W
• AC: 220-240VAC*3, 100-120VAC*4
• USB-A: 2*Quick Charging, 36W Total, 2*5VDC, 3A Total
• Cigarette Lighter: 1*12VDC, 10A
• RV (Aviation Port): 1*12VDC, 30A
• DC 5521: 2*12VDC, 10A Total
• Wireless Charging Pad: 2*5/7.5/10/15W

BLUETTI EP500 Solar Power Station Manual

Frequently-Asked Questions

Why is there a limitation on the power of the equipment loaded by the US version of EP500 or EP500Pro in the mobile UPS mode?

If your home's socket features 120V/15A, the equipment carried by EP500 or EP500Pro cannot exceed 1800W.

If your home socket features 120V/25A, then EP500 load equipment can be no more than 2000W, and EP500Pro can be 3000W for safety.

Can I change the working mode of EP500 or EP500Pro to work as a mobile UPS after the EP500 connected to the home grid?

Yes, you can. Turn off EP500 or EP500Pro first, and then unplug the cable on it, remind to set the Max. Grid Current to 15A.

What is the UPS switching time?

• No delay for online UPS.;
• 20ms from standby UPS.

How much is the loss of AC and DC?

• AC_ON & DC_OFF: less than 20W,
• AC-ON & DC_ON: less than 25W

After the stated 6000 battery cycles, how much capacity is left in EP500 and EP500 Pro?

EP500 and EP500 Pro can maintain above 50% capacity after 6000 cycles.

What's the frequency?

60Hz.

What should I do if the solar panels on the roof of my house exceed the open circuit voltage requirement?

You can reduce the open-circuit voltage by ordering a BLUETTI PV Voltage Drop Modular. Doesn't require changing the original installation and connection method of solar panels in your house. Through this modular, the open-circuit voltage of roof panels can be matched with the input specs of EP500/EP500Pro

Can I use third party solar panels?

Yes, you can. However, it must meet:

1) Open Circuit Voltage(OCV):

• EP500: 55-145V/Max.20A, Max.1200W.
• EP500Pro: dual MPPT, each is 35-150V/Max.12A,1200W Max. (2400W Max. For dual connection).

2) Suitable MC4 connector.

3) We recommend that the solar panels to be connected should be of the same brand.

Are there any restrictions on the use of the 100W USB-C port?

The charging power will work at only 60W at most instead of 30W if the USB-C cable does not have 5A MFI certification.

After the DC port of 12V30A is opened, can the other DC ports be used?

No, for the 30A large-current, the other ports besides 12V/30A RV ports won`t work. In addition, you must cover the rubber plug when the DC is turned on and the 12V/30A port is idle , otherwise it may cause a short circuit if the cable falls in.

Note on the output power of the Split Phase Bonding Function.

1) There is only one AC port marked 4000W/220-240 (or 6000W/220-240) on the Split Phase Fusion Boxes that can power the High-voltage devices. Other 6 AC ports cannot load more than 2000W on EP500 (3000W on EP500Pro).

2) Under Split Phase Bonding mode, the total load power of all AC ports (on the machine and Split Phase Fusion Boxes) can not exceed 4000W for EP500 (6000W for EP500Pro).

If one of the EP500 (or EP500Pro) is out of power, does the Split Phase Bonding Function continue to work?

If any one of the two EP500(or EP500Pro) runs out of power, the high-voltage output ports on the Split Phase Fusion Boxes will stop outputting power. The machine which still has the power needs to be set to ”Single Phase” mode manually.

Does the Split Phase Bonding Function apply to one EP500 and one EP500 Pro?

No. Only applicable to units of the same model and specifications. For example, two EP500 or two EP500Pro are recommended. Besides, the Split Phase Fusion Boxes also are different.
