Rich Solar MEGA 100W 12V Flexible Solar Panel With Flexible Design So That You Can Generate Reliable Power Anywhere
The Rich Solar MEGA 100W 12V Flexible Solar Panel is built for people who need dependable solar power without the limitations of traditional rigid panels. Whether you're upgrading an RV, outfitting a camper van, installing solar on a boat, creating a home backup system, or powering an off-grid cabin, this lightweight and ultra-thin solar panel makes clean energy easier to install in places where standard panels simply cannot fit.
Designed with advanced 10-busbar monocrystalline solar cells, this flexible solar panel delivers up to 22.8% conversion efficiency, helping you capture more energy from available sunlight throughout the day. Its ability to bend up to 360 degrees allows it to conform to curved roofs and uneven surfaces, making it an outstanding solution for vehicles and structures where traditional framed panels are impractical.
Unlike bulky rigid solar panels that often require heavy mounting hardware, the Rich Solar MEGA 100W 12V Flexible Solar Panel weighs only 4.8 pounds and measures just 0.1 inch thick. The result is an installation that saves space, reduces weight, and maintains the sleek appearance of your RV, trailer, van, or marine vessel. Whether you're preparing for emergency backup power at home or heading into remote locations far from the electrical grid, this panel provides reliable energy production while standing up to demanding outdoor conditions.
Rich Solar MEGA 100W 12V Flexible Solar Panel Features
Ultra-Thin Flexible Design So That Curved Surfaces Become Easy To Power

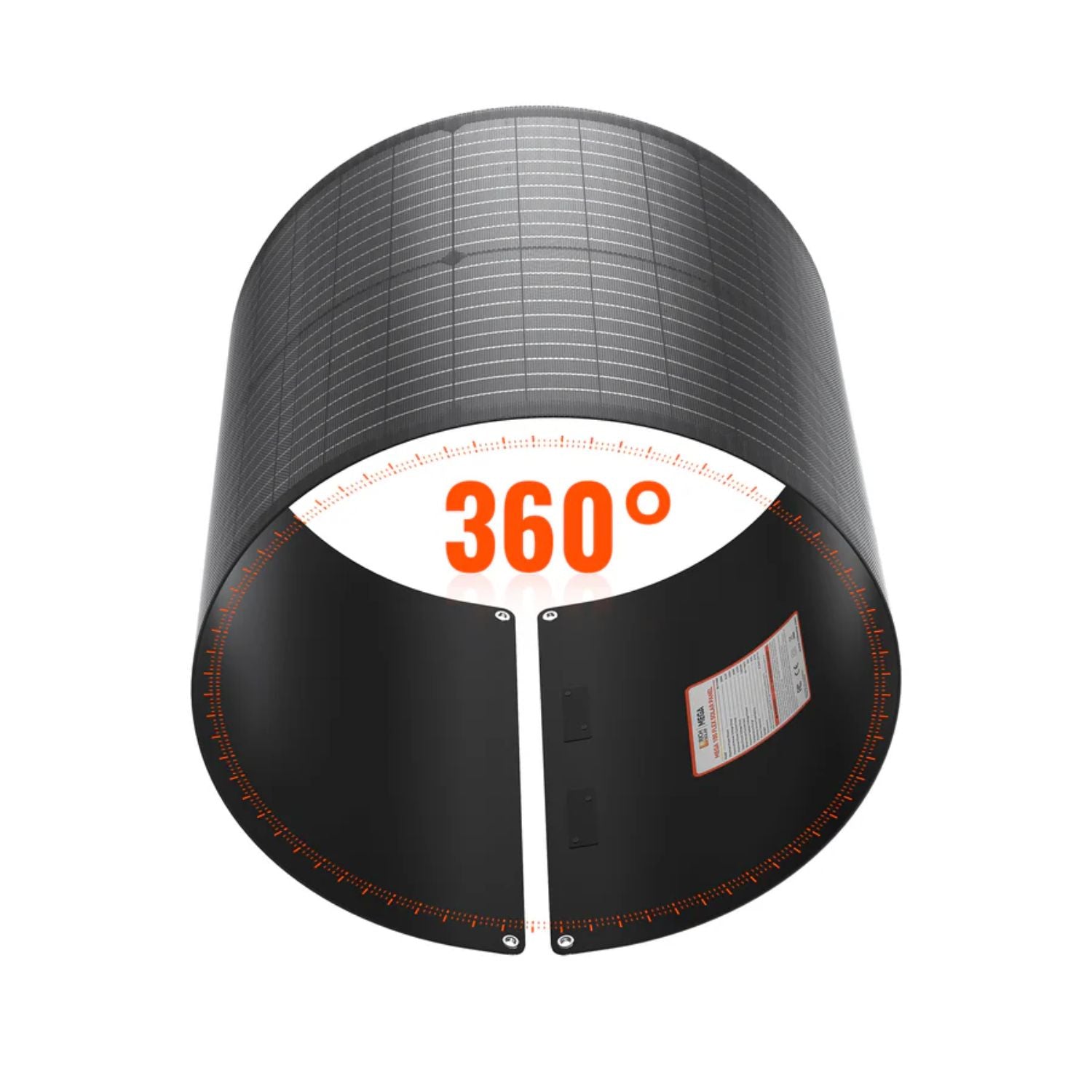

The ultra-thin 0.1-inch profile bends up to 360 degrees, allowing installation on curved roofs, boat decks, trailers, vans, and other surfaces where conventional framed panels would not fit properly. This flexibility expands your solar installation options while maintaining a clean appearance.
High-Efficiency Monocrystalline Cells For More Energy Throughout The Day
Premium 10-busbar monocrystalline cells convert up to 22.8% of available sunlight into usable electricity. Higher efficiency means greater energy production in the same footprint, helping recharge batteries faster and maximize limited roof space.
Lightweight Construction So That Installation Is Simple
At only 4.8 pounds, this panel is dramatically lighter than many rigid alternatives. Less weight reduces stress on vehicle roofs and makes transportation, positioning, and installation much easier for DIY users and professional installers alike.
Excellent Low-Light Performance For Reliable Daily Charging
Changing weather doesn't always mean your solar charging has to stop. Advanced cell technology continues generating useful energy during cloudy conditions, dawn, dusk, and partial sunlight, helping maintain battery charging over longer periods each day.
Durable Construction So That Your Investment Lasts Longer
Rich Solar uses non-destructive cell cutting technology along with premium manufacturing processes that reduce micro-cracks and improve resistance against potential induced degradation (PID). These design improvements help extend long-term panel performance.
Built For Harsh Outdoor Conditions So That You Can Travel With Confidence
Rated to withstand 5400 Pa snow loads and 2400 Pa wind loads, this solar panel is ready for changing climates and demanding outdoor environments. Whether you're parked in mountain conditions or traveling through windy regions, it is designed to keep working.
Quick Installation For Faster Solar Upgrades
Pre-drilled mounting holes, adhesive-compatible backing, MC4 connectors, and pre-attached 3-foot cables simplify installation. The IP68 waterproof junction box and IP67 waterproof connectors provide dependable protection against moisture and outdoor exposure.
What's In The Box
- 1 x Rich Solar MEGA 100W 12V Flexible Solar Panel
- 2 x Panel Leads (Pair): 12 AWG, 3 ft each
- 1 x IP68-rated waterproof junction box
- 1 x IP67-rated waterproof solar connectors
Rich Solar MEGA 100W 12V Flexible Solar Panel Warranty
Rich Solar provides a 1-year output warranty for this solar panel.
Rich Solar MEGA 100W 12V Flexible Solar Panel Specifications
|
| Maximum Power (Pmax) |
100W |
| Maximum Power Voltage (Vmp) |
17.1V |
| Maximum Power Current (Imp) |
5.85A |
| Open Circuit Voltage (Voc) |
20.4V |
| Short Circuit Current (Isc) |
6.13A |
| Maximum System Voltage (Vmax) |
1500V DC |
| Maximum Series Fuse Rating |
15A |
| Operating Temperature Range |
-40°F to 185°F |
| Weight |
4.8 lb |
| Dimensions |

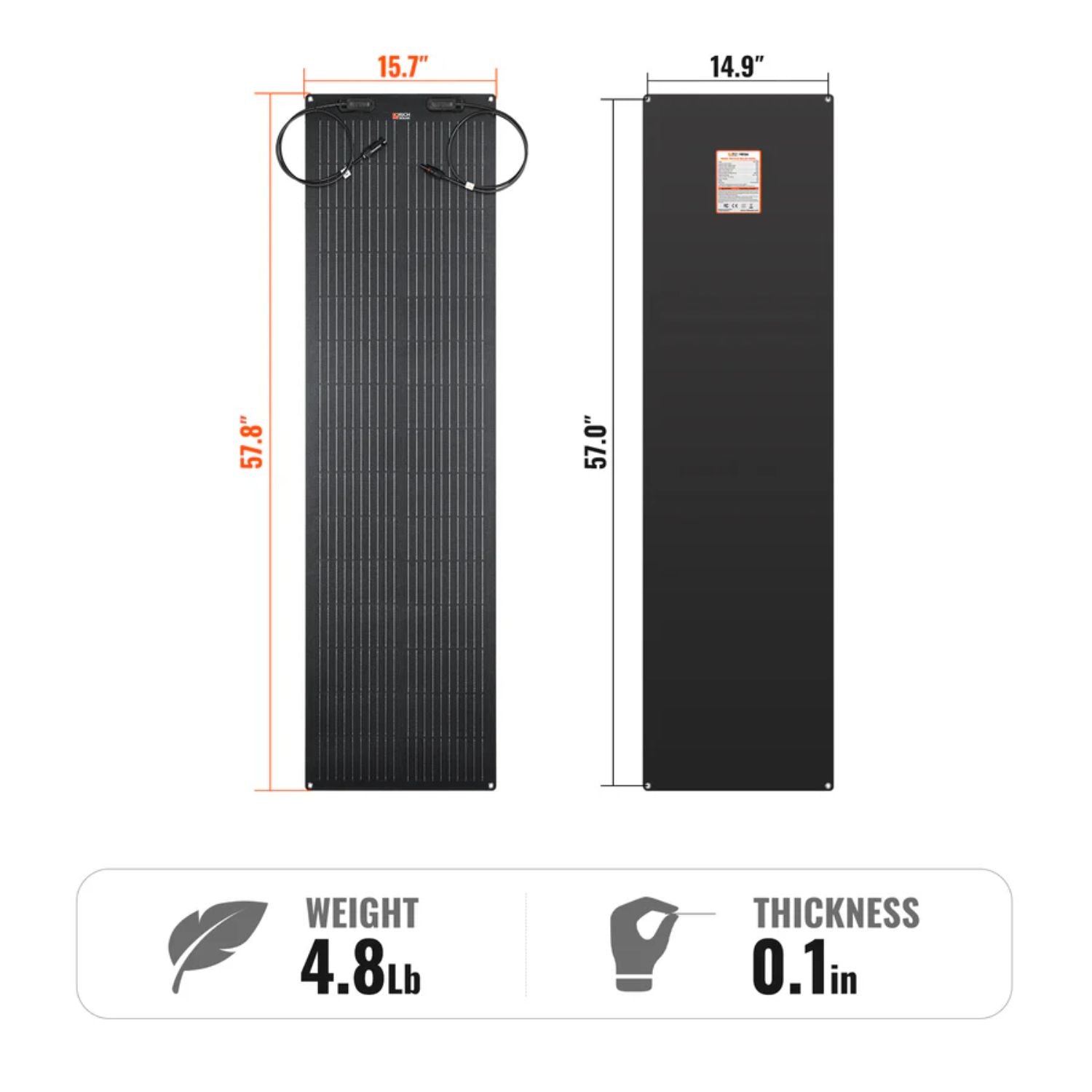

57.8 × 15.7 × 0.1 in |
| Material & Workmanship Warranty |
1 Year |
Rich Solar MEGA 100W 12V Flexible Solar Panel Manual
Rich Solar MEGA 100W 12V Flexible Solar Panel Installation
- Pre-drilled mounting holes and adhesive backing for flexible installation.
- MC4 connectors with 3 ft pre-attached cables for quick and easy installation
