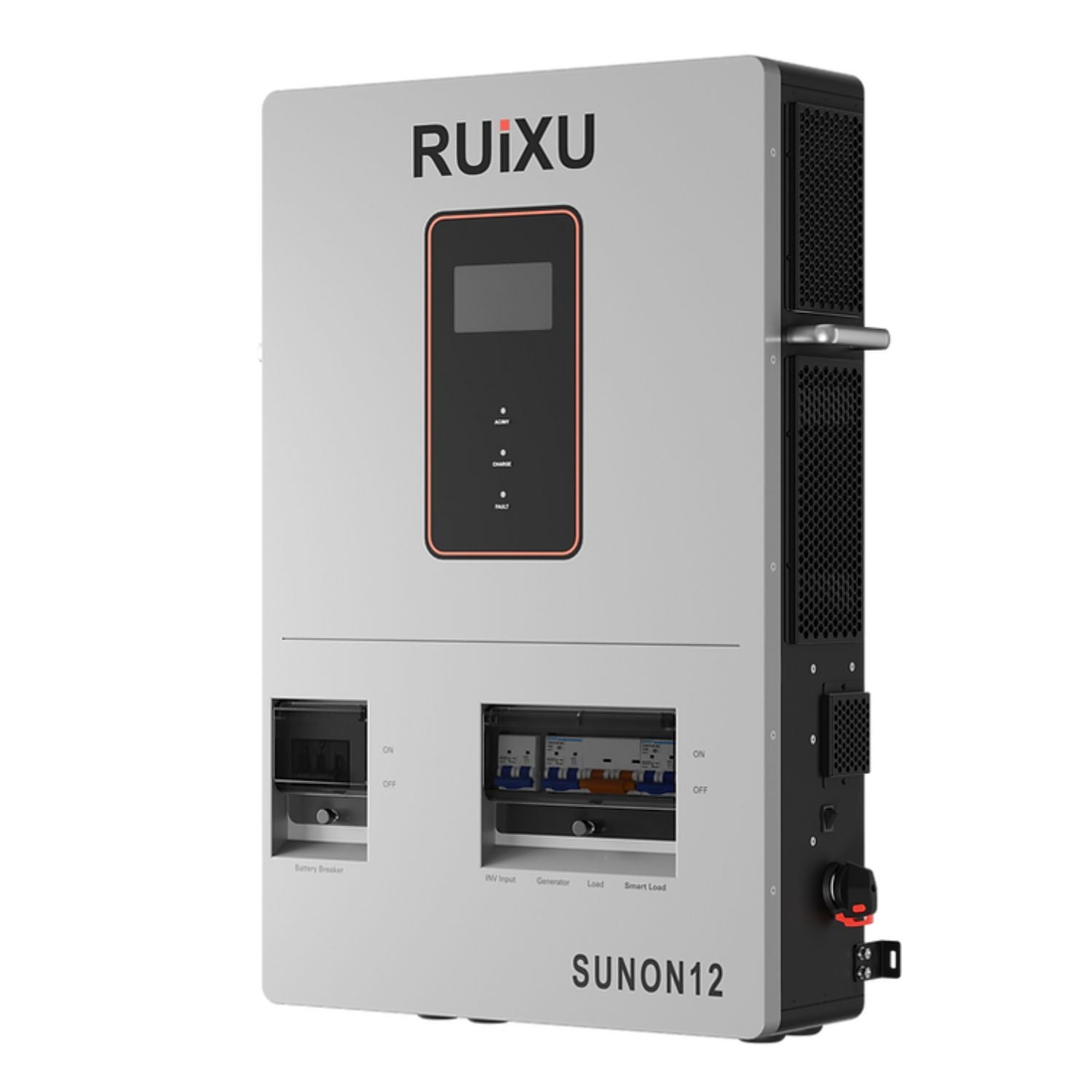

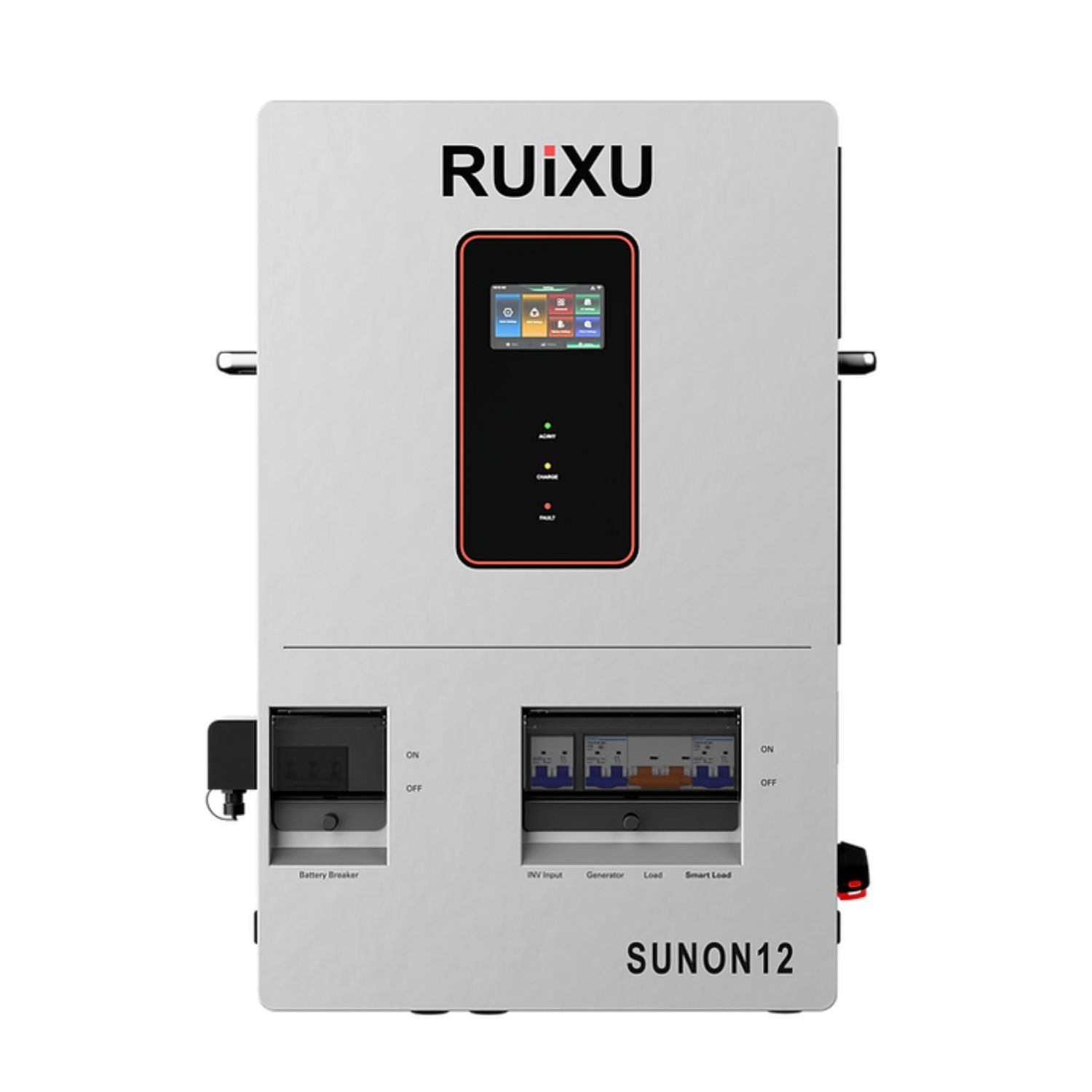

The RUiXU SUNON12 12kW Off-Grid Inverter Provides Serious Off-Grid Power, Built for Whole-Home Confidence
The RUiXU SUNON12 gives you the power, flexibility, and control to build a stronger off-grid or backup power system around your energy needs. With 12,000W of rated output, 120V/240V single/split-phase power, and up to 24,000W of solar input, this all-in-one inverter is designed to help run demanding home, cabin, shop, or small commercial loads with greater confidence.
Pair it with a compatible 48V battery system and take advantage of powerful hybrid charging from solar, grid, or generator input. The SUNON12 supports up to 250A of solar charging and up to 160A from grid or generator, giving your system more ways to stay charged when conditions change.
Dual MPPT technology helps maximize solar harvest from your array, while intelligent time-sharing charge and discharge settings allow you to better control when energy is stored and when it is used. For larger systems, the SUNON12 can be stacked in parallel with up to 6 units, expanding total output capacity up to 72kW.
Whether you are building an off-grid energy system, adding serious backup power, or designing a scalable solar storage setup, the RUiXU SUNON12 delivers the core power management features you need in one compact, high-capacity inverter.
RUiXU SUNON12 12kW Off-Grid Inverter Features
Two MPPT Inputs Work Together to Capture More Solar Power
Dual MPPT technology runs at 99% efficiency, independently optimizing panels on different roof angles or locations. You harvest more solar energy every day, which means faster battery charging and lower reliance on grid or generator power.
Charge From Solar and the Grid at the Same Time
The SUB hybrid charging mode pulls up to 250A from both solar and grid sources simultaneously. Even on cloudy days, your batteries stay full and your home keeps running without interruption or manual switching between sources.
Schedule Exactly When Your System Charges and Discharges
The time-sharing function lets you charge batteries during cheap off-peak hours and draw from them during expensive peak hours. This one feature can noticeably reduce your monthly electricity bill with zero extra effort after setup.
Stack Up to Six Units and Scale to 72kW
One SUNON12 starts at 12kW. Add up to five more units for a total of 72kW. This makes it easy to grow your system over time without replacing hardware or starting your installation over from scratch.
Smart Load Output Keeps Your Most Important Appliances Running
The 63A smart output automatically sheds non-critical loads when battery reserves get low. Refrigerators, medical equipment, and lighting stay on while pool pumps and workshop tools power down first, protecting what matters most.
Works With Almost Any Generator You Already Own
A dedicated generator input supports both 120V and 240V operation, covering nearly every portable or standby generator on the market. It is your reliable backup for long cloudy stretches, heavy loads, or unexpected high-demand situations.
Monitor Your Entire System From Your Phone, Anywhere
The included WiFi dongle connects to the RUiXU app for real-time visibility into battery levels, solar input, and load usage. Whether you are at work or across the country, you always know exactly what your system is doing.
RUiXU SUNON12 12kW Off-Grid Inverter Warranty
RUiXU provides a limited warranty policy, ensuring the absence of defects in materials, workmanship, and performance during the warranty period.
What's Included
RUiXU SUNON12 12kW Off-Grid Inverter
- 1 x 200CM CAT6 Communication Cable Connect With Battery
- 1 x WiFi Dongle
- 1 x Operation Manual

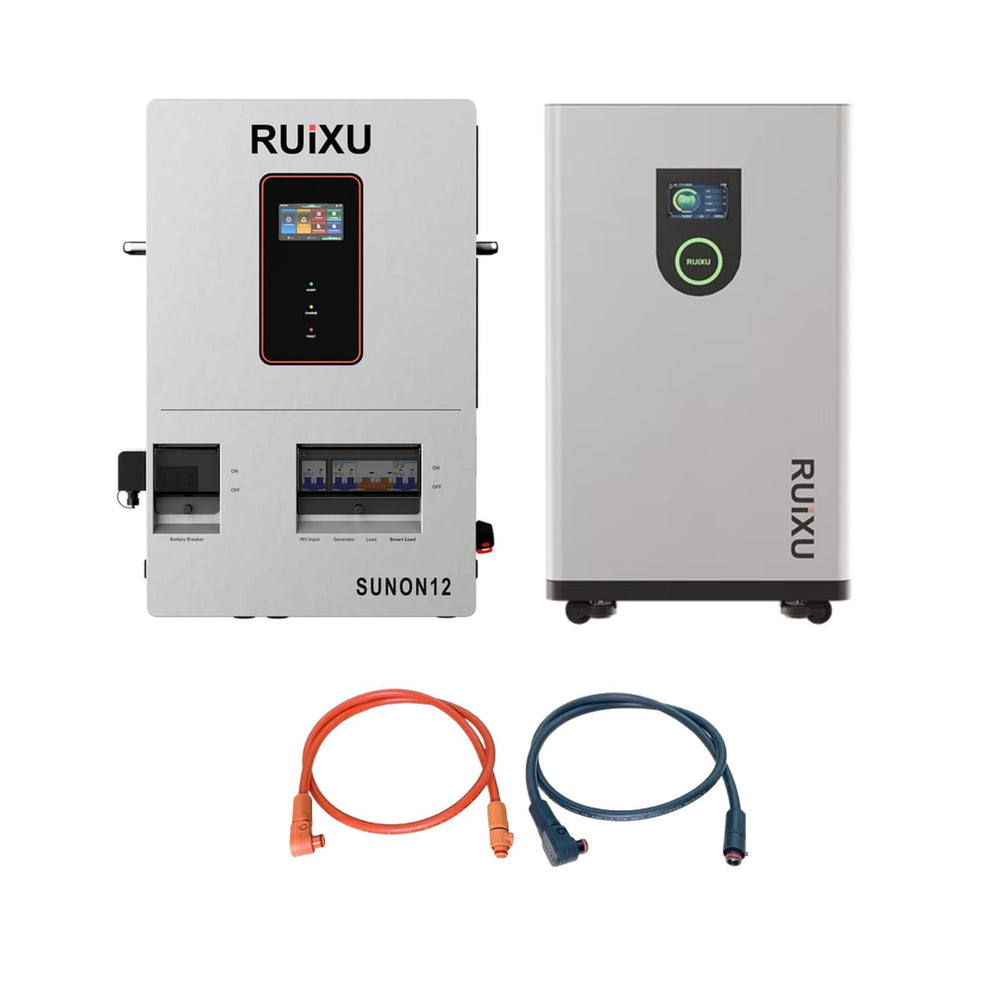

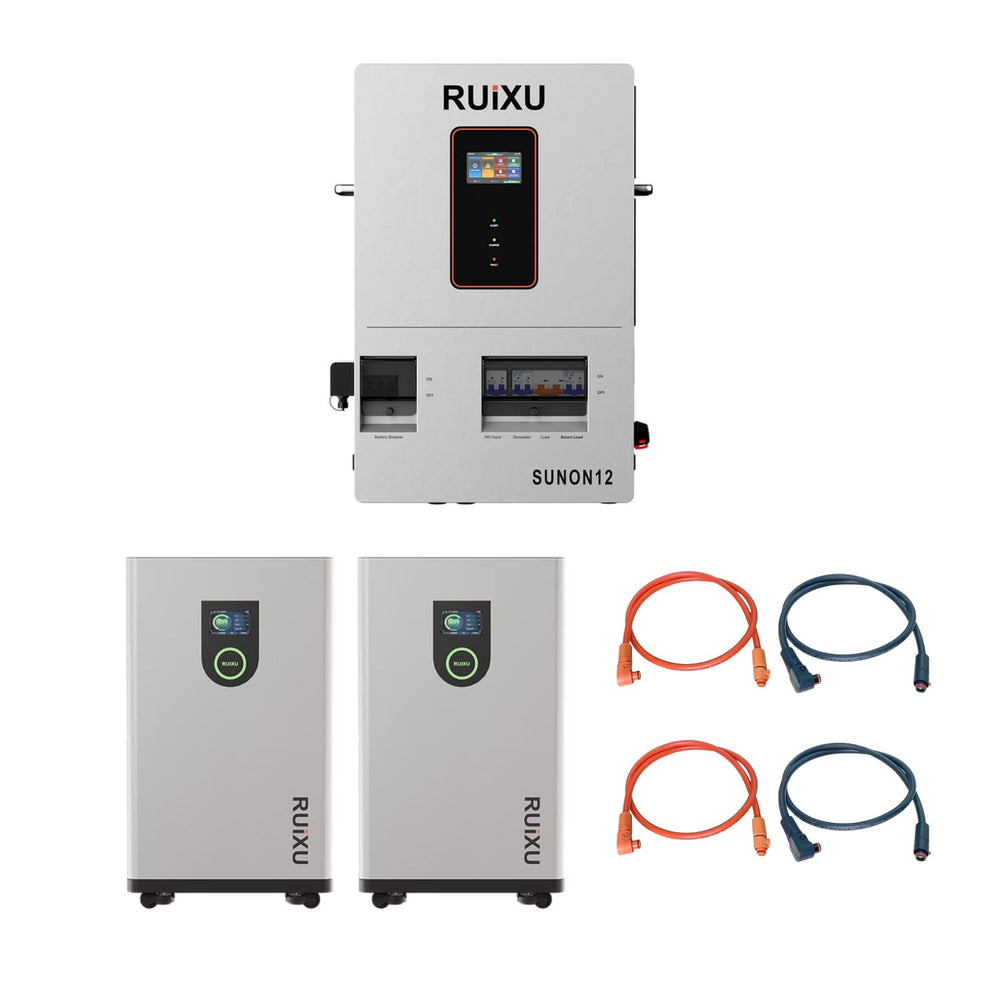

RUiXU Lithi2-16 16kWh Battery System
- 1 x RJ45/CAT5e Patch Cable
- 1 x Ground Cable
- 1 x Set Of Parallel 1/0 AWG OP140 or PP140 cable

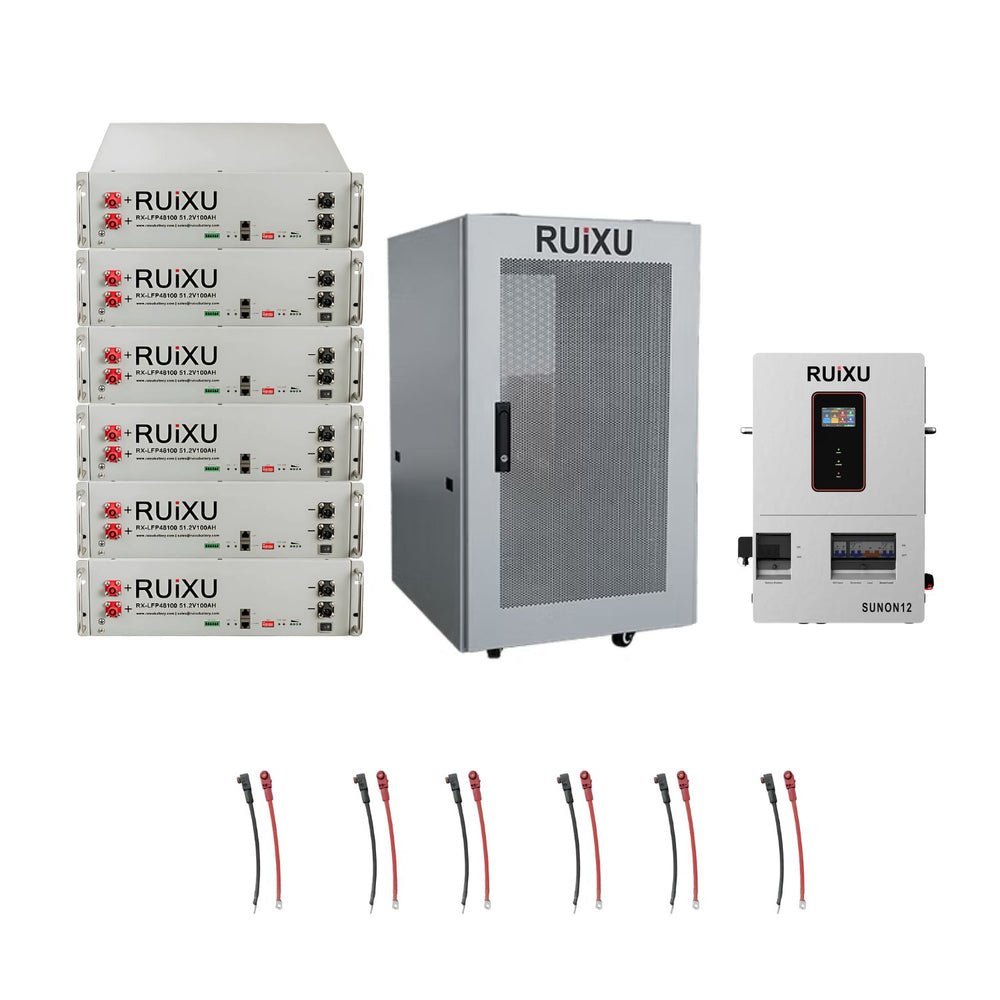

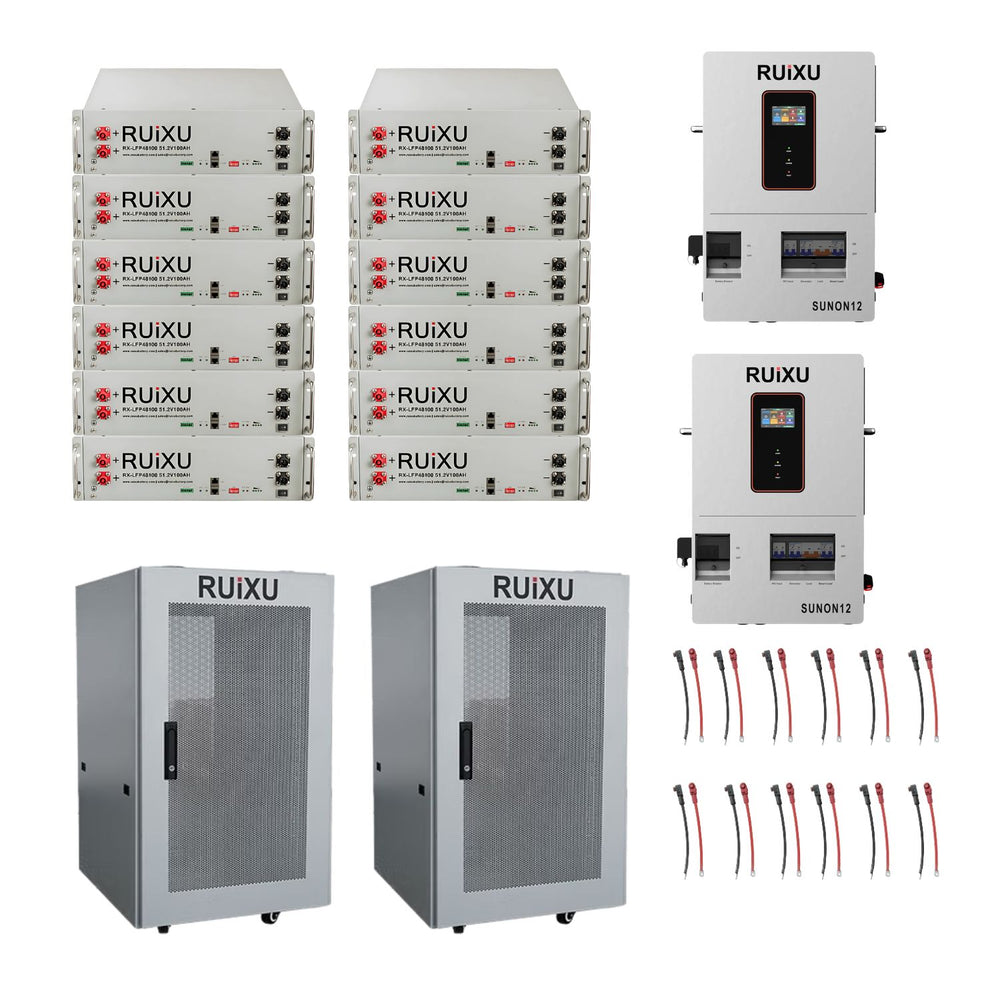

RUiXU RX-LFP48100 51.2V Server Rack Battery
- 1 x RJ45/CAT5e Patch Cable
- 1 x Ground Cable
- 1 x Set of Parallel 4AWG Cables Per Battery
- 1 x RUiXU 6-Slot Server Rack Battery Cabinet Per 6 Batteries
RUiXU SUNON12 12kW Off-Grid Inverter Specifications |
|
|---|---|
| Model | SUNON12 |
| Max Output Power | 18,000VA |
| Rated Output Power | 12,000W |
| Rated Output Voltage | 120/240Vac (Single-Phase / Split-Phase) |
| Load Capacity of Motors | 6 HP |
| Rated Frequency | 50/60Hz |
| Output Waveform | Pure Sine Wave |
| Bypass Overload Current | 125A |
| Smart Load Overload Current | 63A |
| Switching Time (Bypass and Inverter) | 10ms (Typical) |
Battery Specifications |
|
| Battery Type | Lithium-Ion Battery / Lead-Acid Battery / User-Defined Battery |
| Rated Battery Voltage | 48V |
| Battery Voltage Range | 40–60Vdc |
| Max Solar Charging Current | 250A |
| Max Grid/Generator Charging Current | 160A |
| Max Mixed Charge Current | 250A |
Solar Input Specifications |
|
| Number of MPPTs | 2 |
| Max Input Power | 12,000W + 12,000W |
| Max Input Current | 32A / 32A |
| Max Open Circuit Voltage | 500Vdc |
| MPPT Voltage Range | 90–450Vdc |
| Generator Input | |
| Rated Input Voltage | 120Vac (L1/N, L2/N) / 240Vac (L1/L2) |
| Input Voltage Range | (85Vac–140Vac) ±2% |
| Input Frequency Range | 50/60Hz |
| Overload Current | 63A |
Grid Input Specifications |
|
| Rated Input Voltage | 120Vac (L1/N, L2/N) / 240Vac (L1/L2) |
| Input Voltage Range | (85Vac–140Vac) ±2% |
| Input Frequency Range | 50/60Hz |
| Efficiency | |
| MPPT Tracking Efficiency | 99.9% |
| Max Efficiency | 91% |
General Specifications |
|
| Parallel Capacity | 1–6 Units |

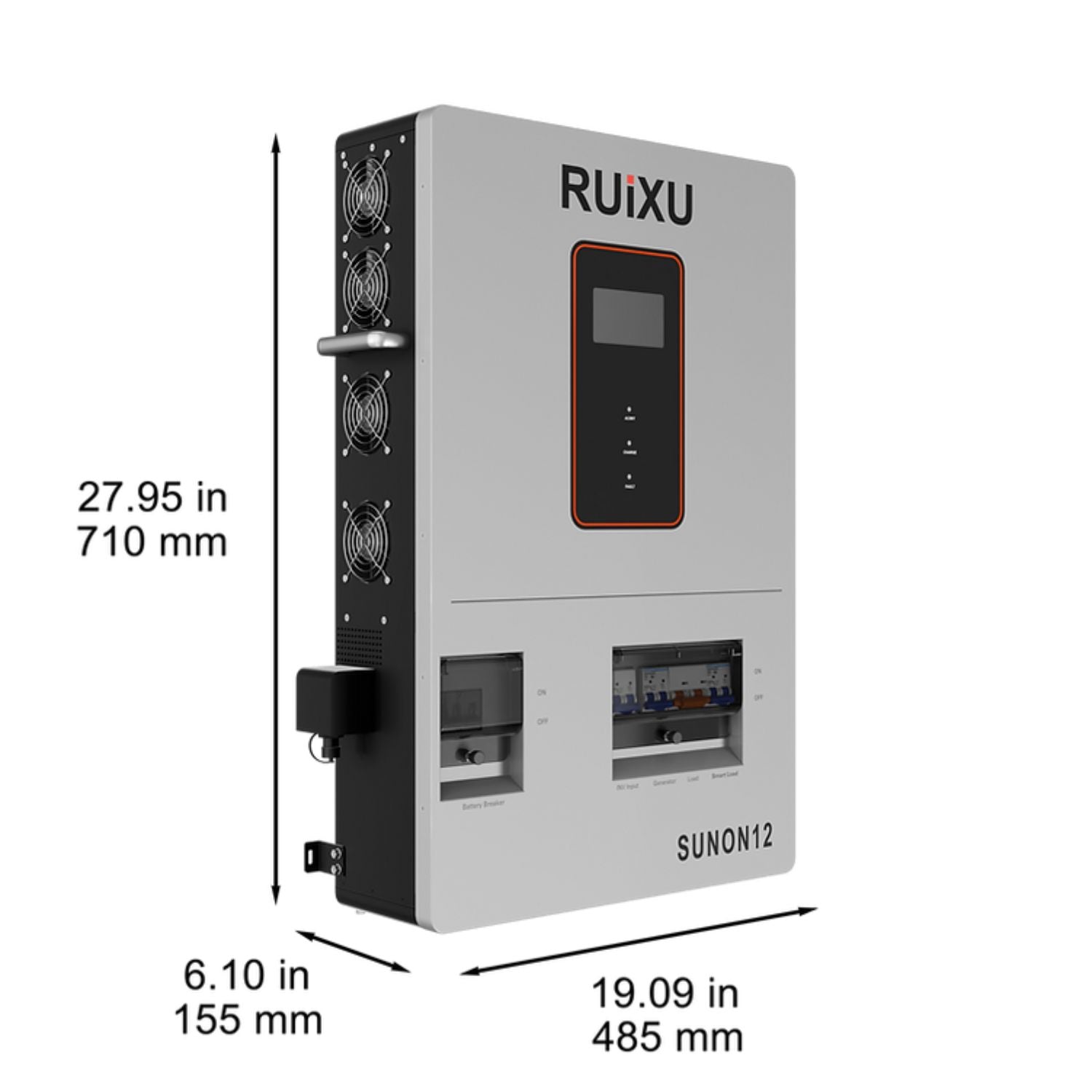

| Dimensions | 27.95 × 19.09 × 6.10 in (710 × 485 × 155 mm) |
| Weight | 84.88 lbs (38.5 kg) |
| Noise Level | <60 dB |
| Cooling Method | Intelligent Fan |
| Protection Degree | IP20 (Indoor Use Only) |
| Operating Temperature | -10°C to 55°C (Derates Above 45°C) |
| Warranty | 5 Years |
| Communication | RS485 / CAN / USB / Dry Contact |
| Optional External Module | Wi-Fi |
| Integrated Circuit Breakers | Inverter Input / Generator / Load / Smart Load / Battery / PV |
| Certifications | FCC Part 15 Class B, UL1741 |
