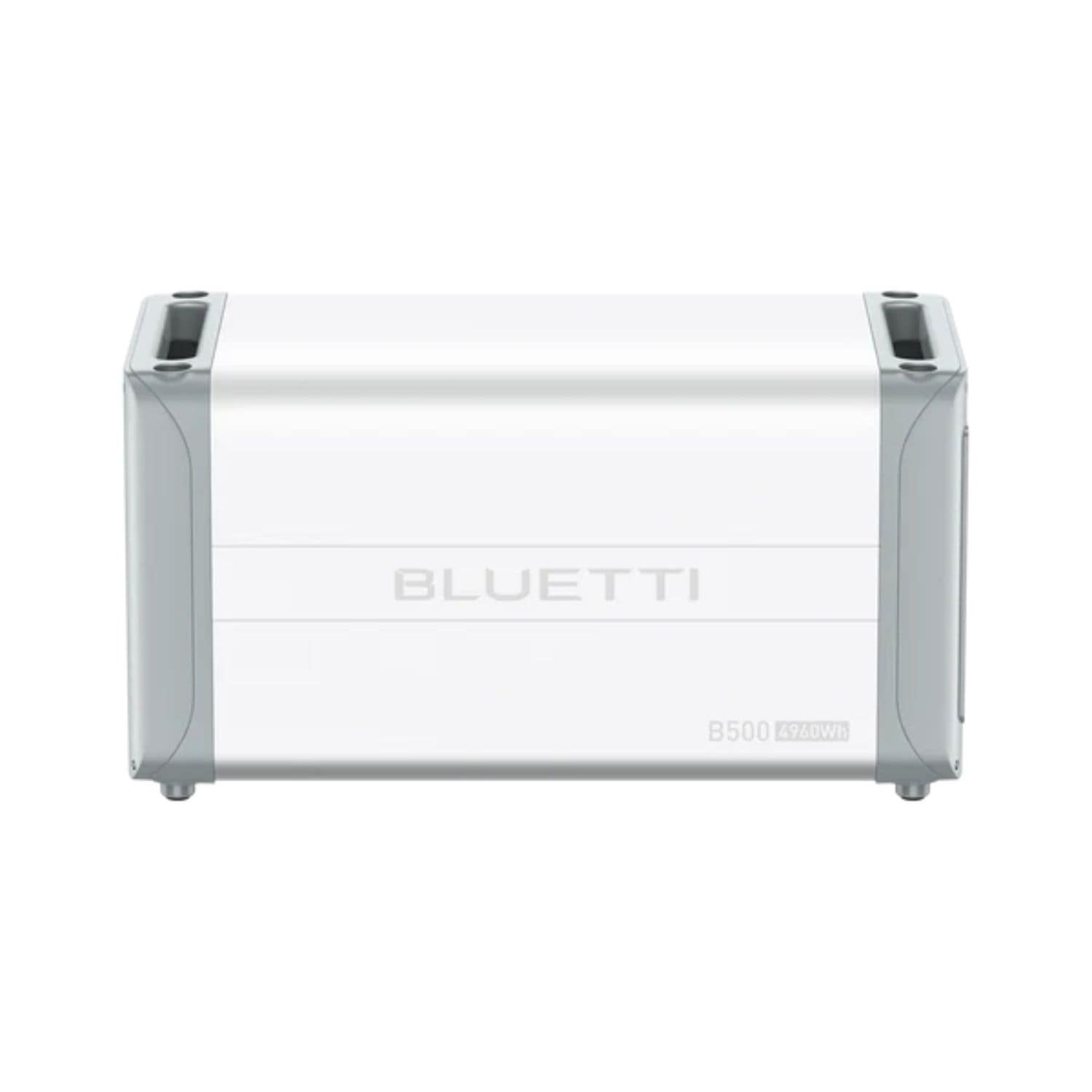

The BLUETTI B500 Expansion Battery is the battery pack for the BLUETTI EP800 and EP900 energy storage systems. Each B500 stores 4,960Wh, and BLUETTI estimates each battery adds about one day of home backup at typical essential-load use. Connect two to four B500 packs per system for 9,920Wh to 19,840Wh of storage.
The B500 is built for permanent home installation, indoors or outdoors. It carries a NEMA 4X and IP65 rating, runs nearly silently at under 25 dB, heats itself in cold weather and is backed by a 10-year warranty.
Each B500 adds 4,960Wh of usable capacity at 90% depth of discharge, so you can size your system to your essential loads and add batteries as your needs grow.
Lithium iron phosphate cells offer long life, thermal stability and safe operation for daily cycling and backup use.
A built-in self-heating feature keeps the system starting and running in chilly conditions. With the inverter connected to the grid, the B500 can charge down to -4°F.
NEMA 4X and IP65 protection against water and dust lets you mount the B500 on a floor or wall, inside or outside your home.
At under 25 dB, the B500 can be installed near living areas without noticeable noise.
The B500 is certified to UL1973 and UL9540A, along with CB, CE, FCC, ICES, PSE, RCM, UKCA and UN38.3.
Whole-home or essential-load backup. Extend how long your EP800 or EP900 can power your home during outages.
Solar self-consumption. Store more solar energy to use at night and reduce grid purchases.
Time-of-use savings. Store low-cost energy and use it during peak-rate hours.
Versus portable expansion batteries. The B500 is designed for fixed EP800 and EP900 systems, with outdoor-rated enclosures and permanent mounting.
Versus generators. Stored battery power switches on automatically and silently, with no fuel or maintenance.
This may be a good fit if
Up to four per EP800 or EP900, for a maximum of 19,840Wh.
Yes. When the grid fails, the system powers your backup loads without interruption, and grid loads resume automatically when power returns.
Yes. With an EP800 or EP900, it supports pass-through charging.
A sub panel for essential loads makes troubleshooting and maintenance easier. Its manual switch lets you move loads to the grid side if the storage system ever needs service.
Add up the daily energy use of the loads you want to back up. BLUETTI estimates one B500 covers about one day at typical essential-load use, and our team can help you size a system around your appliances and outage needs.
The BLUETTI B500 gives your EP800 or EP900 more stored energy for longer outages and greater energy independence. At Outbound Power, we can help you size your battery bank for your home. If you have questions, our team is happy to help.
BLUETTI B500 Expansion Battery Specifications |
|
|---|---|
| Model | BLUETTI B500 |
| Compatibility | BLUETTI EP800 and EP900 (2 to 4 B500 per system) |
| Battery | |
| Chemistry | LiFePO4 (LFP) |
| Rated Capacity | 4,960Wh |
| Depth of Discharge | 90% |
| General | |
| Dimensions (L x W x H) | 25.0 x 12.8 x 13.3 in (636 x 325 x 338 mm) |
| Net Weight | 127.87 lbs (58 kg) |
| Protection Grade | NEMA 4X / IP65 |
| Noise | Under 25 dB |
| Charging Temperature | 32°F to 104°F; -4°F to 104°F with inverter connected to the grid |
| Discharging Temperature | -4°F to 104°F |
| Working Humidity | 5% to 95% |
| Working Altitude | Up to 6,561 ft (2,000 m) |
| Installation | Floor or wall mounted; indoor or outdoor |
| Certifications | CB, CE, FCC, ICES, IP65, PSE, RCM, UKCA, UL1973, UL9540A, UN38.3 |
| Warranty | 10 Years |
