Transform Your Energy Experience With The SunGold Power 10KW Hybrid Inverter 48V
Introducing the SunGold Power 10KW 48V Split Phase Hybrid Inverter, the ultimate solution for reliable, efficient, and versatile energy management in your home or business. Designed to seamlessly integrate with your solar power system, this inverter empowers you to harness renewable energy, reduce your reliance on the grid, and maximize your energy savings. Whether you're aiming for a sustainable lifestyle or operating a commercial setup, the SunGold Power 10KW Hybrid Inverter provides the performance and flexibility you need to take control of your power needs.
This innovative hybrid inverter is a powerhouse engineered for optimal energy flow and maximum reliability. With its advanced features, it guarantees your system operates smoothly and efficiently, making it an ideal choice for residential, commercial, or off-grid applications. The inverter’s design focuses on delivering clean, stable power while offering extensive customization options to suit your specific energy setup.
SunGold Power 10KW Hybrid Inverter 48V Split Phase Grid Feedback Batteryless Features

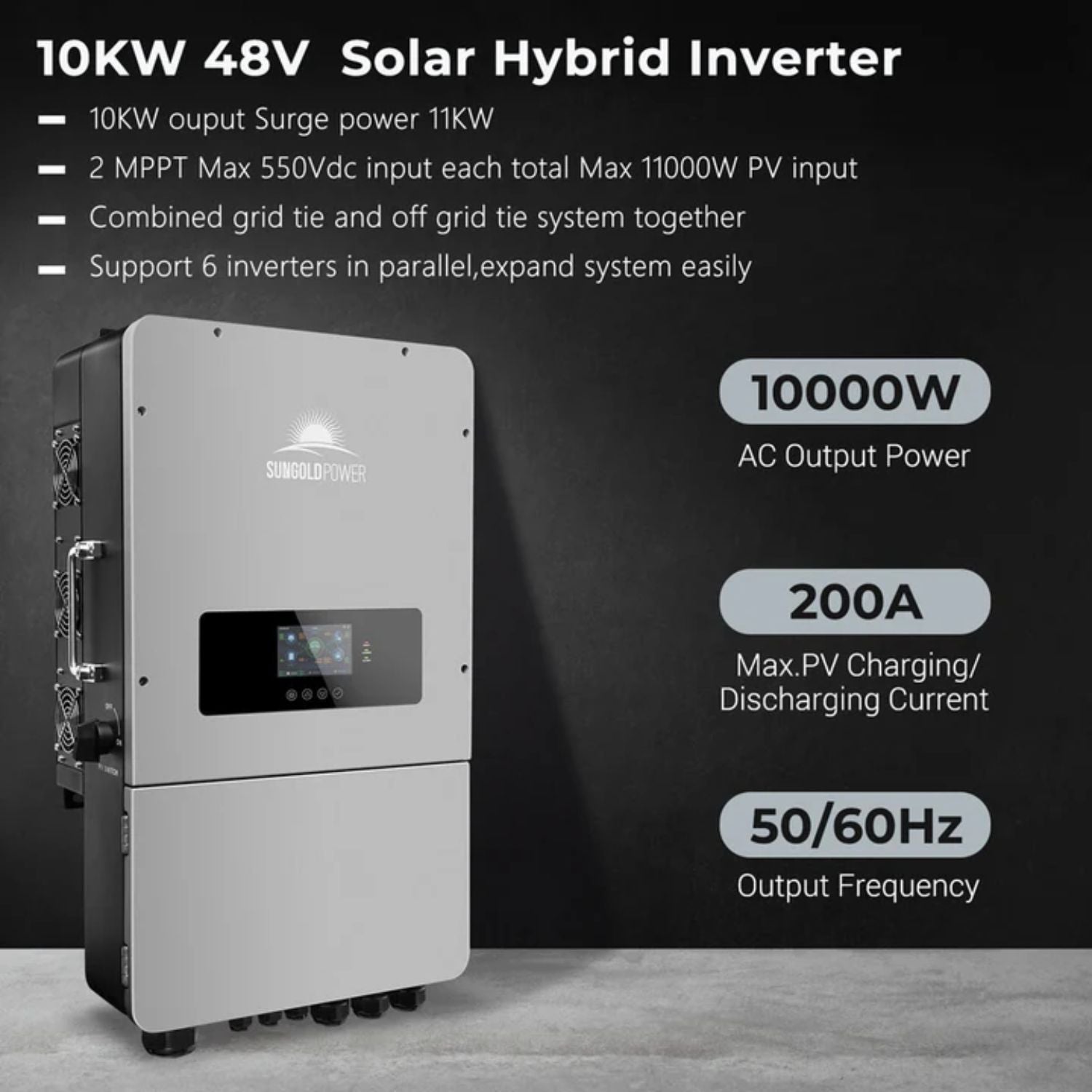

Powerful 10KW Hybrid Inverter For Reliable Energy Supply
This inverter provides a strong 10KW pure sine wave, ensuring stable power. It efficiently converts 48V DC from solar panels and batteries into clean AC power. Perfect for homes and businesses needing reliable energy and seamless switching between sources.
Dual MPPT Inputs Maximize Solar Harvesting Effortlessly
Built with two MPPT controllers, this inverter supports up to 11,000W of solar input. It captures maximum sunlight, even in shaded or cloudy conditions, ensuring your solar system generates as much energy as possible and saves more money on electricity bills.

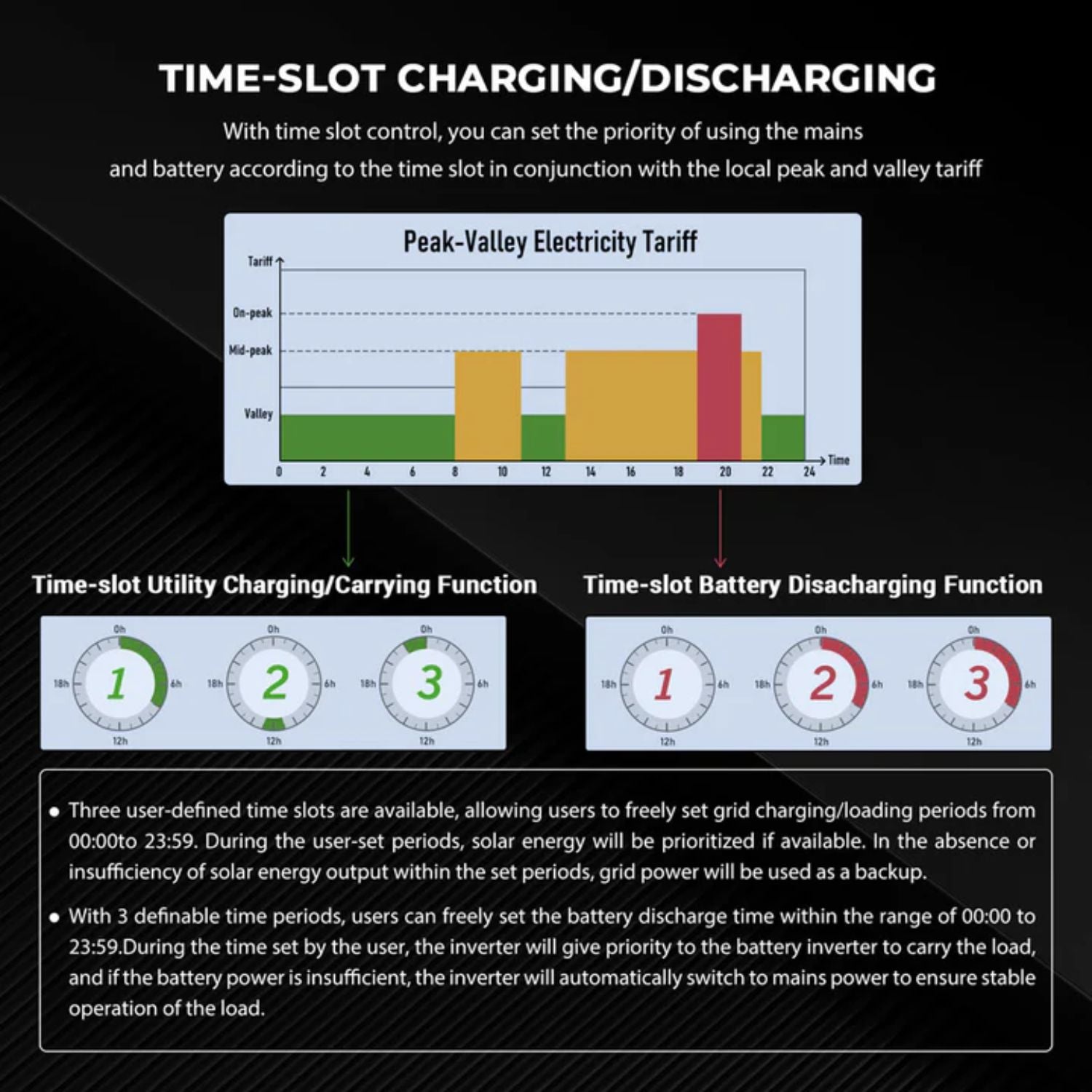

Flexible Charging Modes To Save Energy Costs
Four different charging modes allow you to choose how your system uses solar and grid power. Switch between solar-only, grid-first, or a mix. This flexibility helps reduce energy costs and increases your system’s efficiency according to your needs.
Supports Battery-Free Or Battery-Connected Setups
Connect without batteries or add lead acid or lithium batteries. The inverter automatically activates batteries when needed, providing continuous power. It supports battery management and communication for efficient operation, saving space and cost while maintaining reliable energy supply.

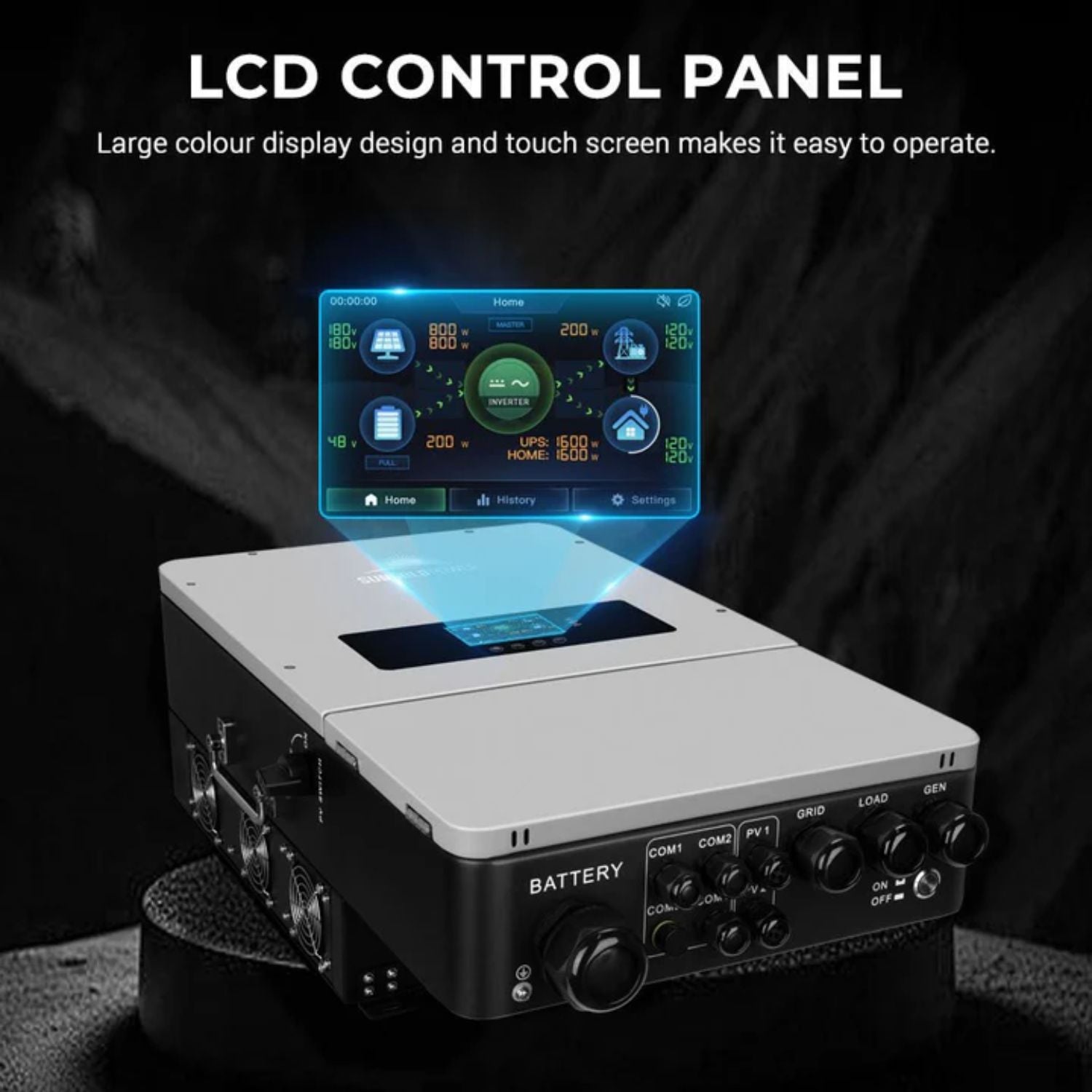

Large Touch Screen For Easy System Control
The big LCD screen shows all system data clearly and easily. It helps you monitor energy production, consumption, and system health. Simple controls make it easy to set up and troubleshoot, saving you time and ensuring your system runs smoothly.
Built To Withstand Outdoor Conditions And Expand Easily

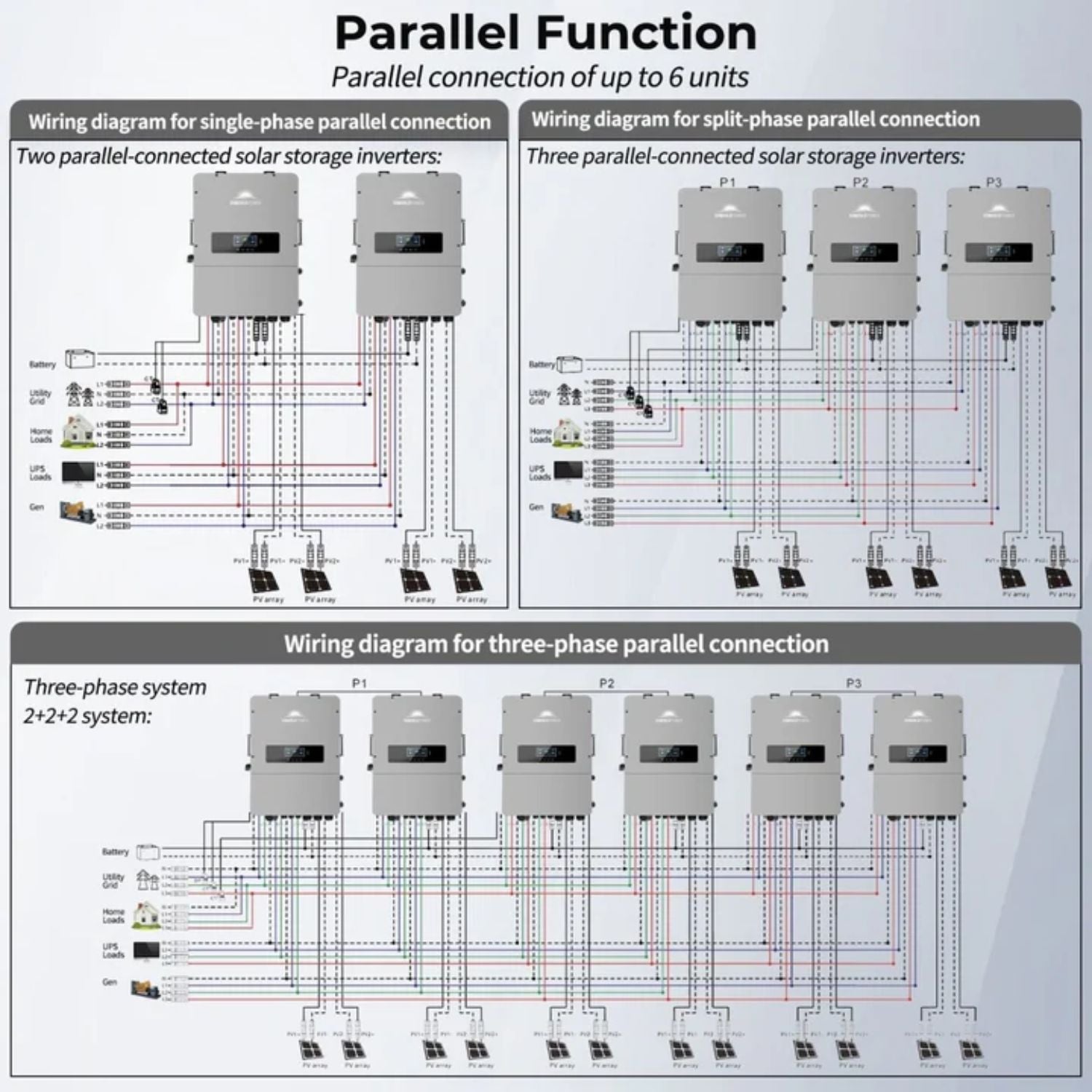

With IP65 protection, this inverter is perfect for outdoor use. Support for six parallel units lets you increase power capacity as needed. Its sturdy design ensures long-lasting performance, reliable operation, and peace of mind in all weather conditions.
SunGold Power 10KW Hybrid Inverter 48V Split Phase Grid Feedback Batteryless Warranty
SunGold provides a limited warranty policy, ensuring the absence of defects in materials, workmanship, and performance during the warranty period.

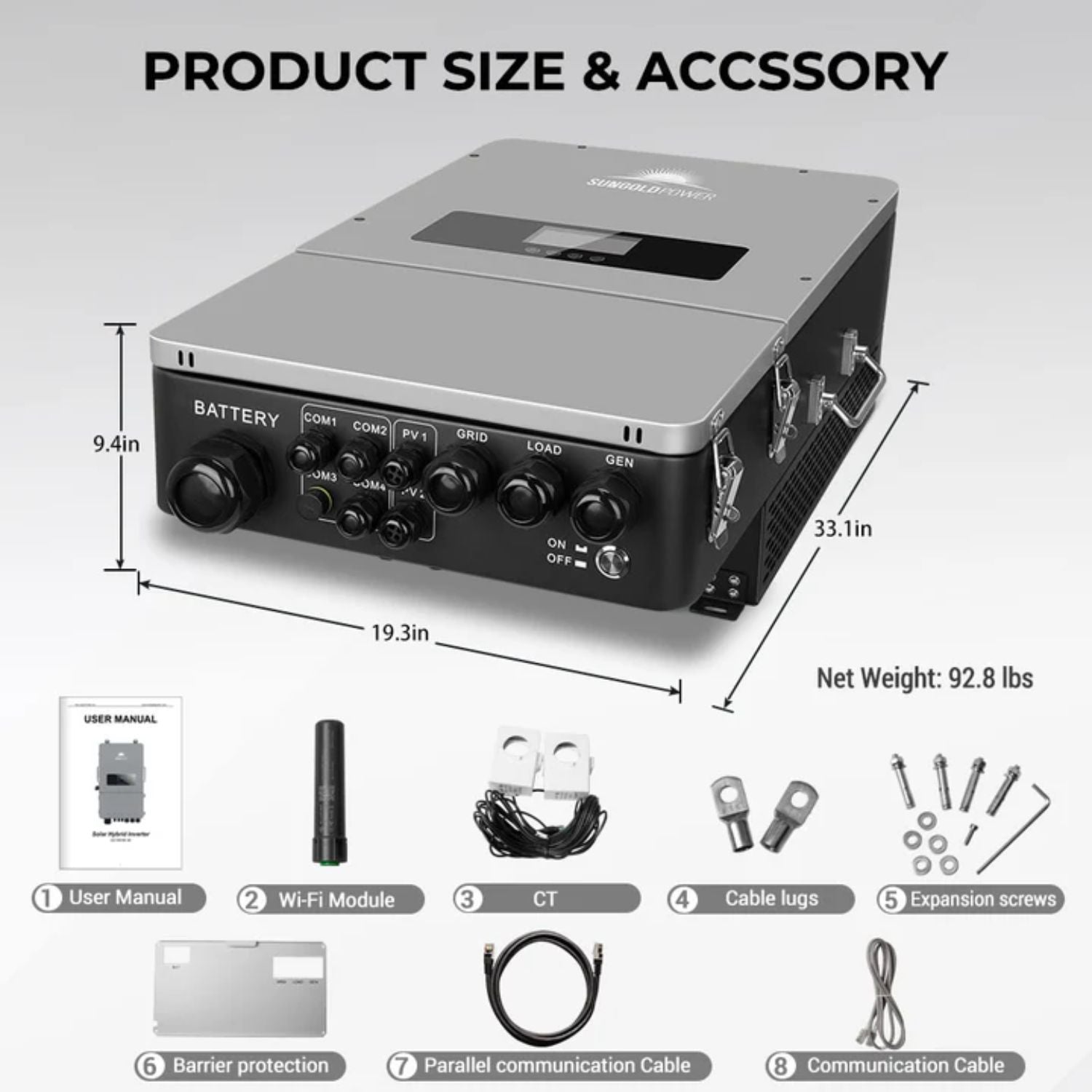

What's Included
- 1 x SunGold Power 10KW Hybrid Inverter
- 1 x Wi-fi Module
- 1 x CT
- 1 x Cable Lugs
- 1 x Expansion Screw
- 1 x Barrier Protection
- 1 x Parallel Communication Cable
- 1 x Communication Cable
- 1 x User Manual
SunGold Power 10KW 48V Split Phase Specifications
Output Specifications
|
|
| Model |
SG10KHB-48 |
| Rated Output Power |
10,000W |
| Max. Peak Power |
2 times rated power |
| Rated Output Voltage |
120/240Vac(Split-phase) 120/208V(Three-phase) |
| Output voltage error |
@240V 41.7A/@208V 48.1A |
| Load Capacity of Motors |
6HP |
| Rated AC Frequency |
50/60Hz |
| Waveform |
Pure Sine Wave |
| Parallel capacity |
6 |
Battery Specifications
|
|
| Battery Type |
Li-ion / Lead-Acid / User Defined |
| Rated Battery Voltage |
48Vdc |
| Voltage Range |
40-60Vdc |
| Max. PV Charging Current |
200A |
| Max. Grid Charging Current |
120A |
| Max. Generator Charging Current |
60A |
| Max. Hybrid Charging Current |
200A |
PV Input Specifications
|
|
| Num. of MPP Trackers |
2 |
| Max.PV array power |
5500W/5500W |
| Max.input current |
25A+25A |
| Max. Voltage of Open Circuit |
550Vdc+550Vdc |
| MPPT Voltage Range |
125-450Vdc/125-450Vdc |
Mains / General Input
|
|
| Input Voltage Range |
90-140V (Single phase) |
| Frequency Range |
50/60Hz |
| Bypass Overload Current |
63A |
Grid /Generator Input
|
|
| Input Voltage Range |
90-140Vac |
| Frequency Range |
50/60Hz |
| Bypass phase current |
63A |
|
|
General Specifications
|
|
| Dimensions |
17.7*25.6*5.1inch |
| Weight |
53.5lb |
| Protection Degree |
IP20, Indoor Only |
| Operating Temperature Range |
14~131°F, 113°F derated (-10~55°C,45°C derated) |
| Noise |
|
Efficiency
|
|
| MPPT Tracking Efficiency |
99.9% |
| Max Efficiency |
97.5% |
| CEC Efficiency |
96.5% |
Basic Data
|
|
| Dimensions |
33.1*19.3*9.4 inch |
| Weight |
92.8lbs |
| Protection Degree |
IP65 |
| Operating Temperature Range |
-13°F-140°F,> 113°F derated (-25~60'C,>45°C derated) |
| Noise |
<60dB |
| Cooling Method |
Heat sink + intelligent fan cooling |
Communication
|
|
| Communication port |
RS485/CAN/USB/Dry contact |
| External Modules (Optional) |
Wi-Fi/GPRS |
