Bring Energy Independence And Efficiency To Your Off-Grid Application With The SunGold Power 13kW 48VDC Solar Kit
Are you ready to transform your energy usage while taking a step towards sustainability? The SunGold Power 13kW 48VDC Solar Kit is a complete off-grid power solution designed for those who are passionate about energy independence and committed to reducing their carbon footprint.
SunGold Power 13kW 48VDC Off-Grid Solar Kit Features
Designed to Last, These Solar Panels Withstand Harsh Weather Conditions
The kit includes 14 x 415-watt solar panels made from high-quality materials for long-lasting performance. These panels are designed to withstand harsh weather conditions, providing peace of mind and consistent energy output.
Converts Solar Energy to Usable Power for Your Home and Devices
The integrated inverter efficiently converts DC power from the solar panels into usable AC power for your home or business, maintaining a steady energy flow to all your appliances.
Stores Energy for Use at Night and During Cloudy Days
Equipped with LiFePO4 20.48kWh lithium batteries, the system ensures secure energy storage, offering extended power supply even during cloudy days or nighttime.
Set Up Quickly and Connects Smoothly to Your Existing System
The SunGold Power solar kit is engineered for straightforward installation. With comprehensive instructions and support, you’ll be generating solar power in no time. Its modular design allows for seamless integration into your existing setup.
Expand Your Power Needs with Additional Panels and Batteries Anytime
Future-proof your energy setup with a system that can grow as your needs change. The SunGold Power 13000W kit is scalable, allowing for additional panels or capacity to match increasing power demands.
Protects Against Electrical Issues for Safe and Dependable Power Use
Designed with safety in mind, the system incorporates multiple safeguards to protect against overcharging, short circuits, and other electrical mishaps. You can trust this solar kit to deliver power safely and reliably.
Supports a Sustainable Future While Reducing Your Carbon Footprint
Invest in a greener future with the SunGold Power 13000W 48VDC SGR-13K25S Off-Grid Solar Kit. By switching to solar, you’re not just saving money—you’re playing a crucial role in reducing reliance on fossil fuels and lowering greenhouse gas emissions.
SunGold Power 13kW 48VDC Off-Grid Solar Kit Warranty
SunGold provides a limited warranty policy, ensuring the absence of defects in materials, workmanship, and performance during the warranty period.

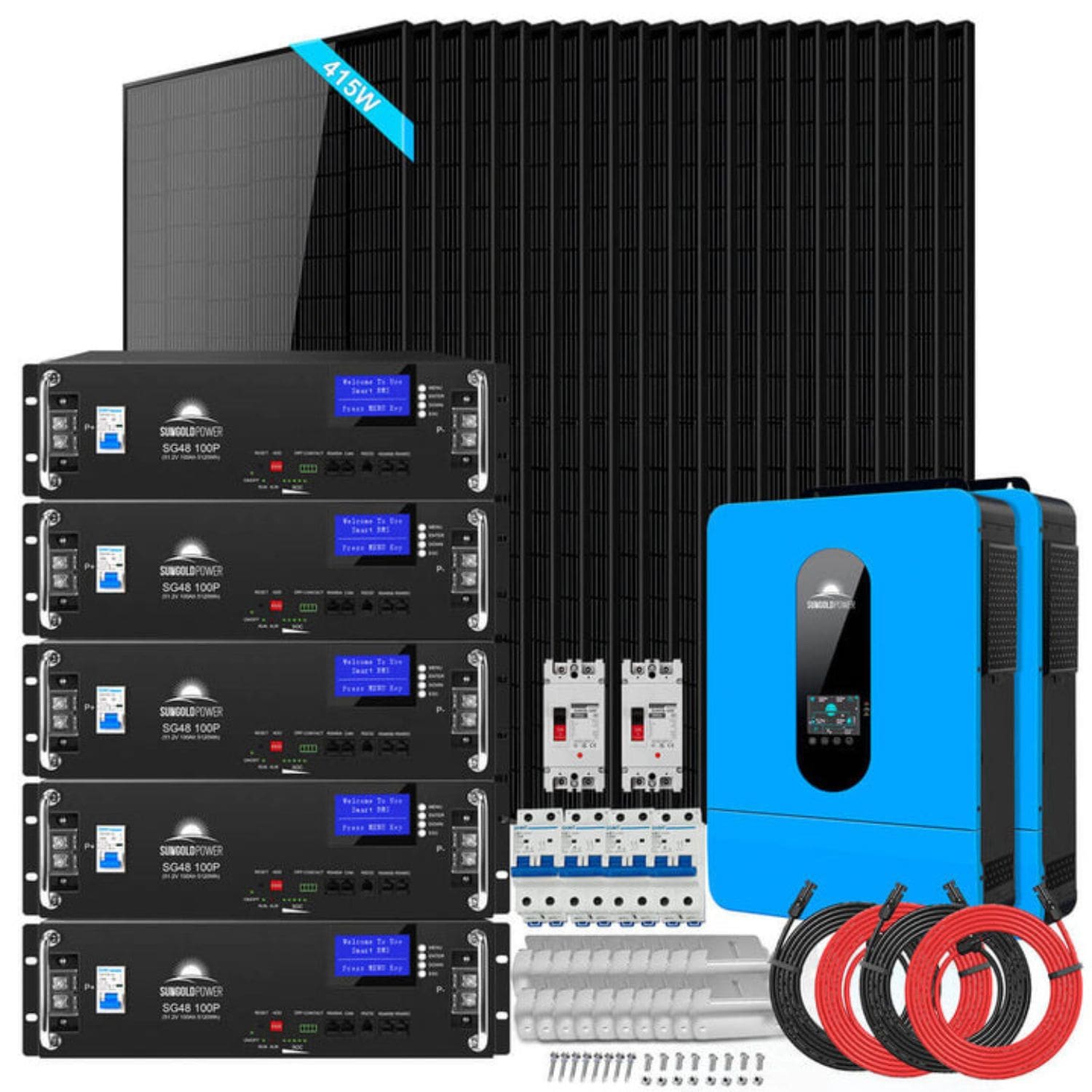

What's Included
- 2 x 6500 Watt 48V DC 120V/240Vdc AC Output Inverter
- 20 x 415 Watt Monocrystalline Solar Panels
- 5 x 100AH 51.2V Lifepo4 Batteries
- 2 Sets x 50 Feet, Solar Extension Cables-Inverter PV Input
- 20 Sets of Mounting Z-Brackets
- 2 x 200A DC Breaker
- 2 x 25A PV Breaker
SunGold Power 13kW 48VDC Off-Grid Solar Kit Specifications
| Kit Model |
SGR-13K25S |
| Inverter Rated Output Power |
13kW |
| Inverter AC Output |
120V Single Phase/240v Split Phase |
| Inverter Max Parallel Number |
6 |
| Inverter Max. PV Input Power |
11.000W x 2 |
| Inverter MPPT Voltage Range |
150-450VDC |
| Battery Nominal Voltage |
51.2V |
| Battery Nominal Capacity |
100AH x 5 |
| Battery Quantity |
5 |
| Total Battery Capacity |
25.6kWh |
| Maximum Battery Cut-off Charging Voltage |
57.6V |
| Battery Disharge Cut-Off voltage |
43.2V |
| Battery Max Parallel Number |
32 |
| Maximum Power Per Solar Panel |
415w |
| Solar Panel Quantity |
20 |
| Total Power of Solar Panels |
8,300w |
| Max-power Voltage Per Solar Panel |
31.6V |
| Max-power Current Per Solar Panel |
13.13A |
| Open-circuit Voltage Per Solar Panel |
37.50V |

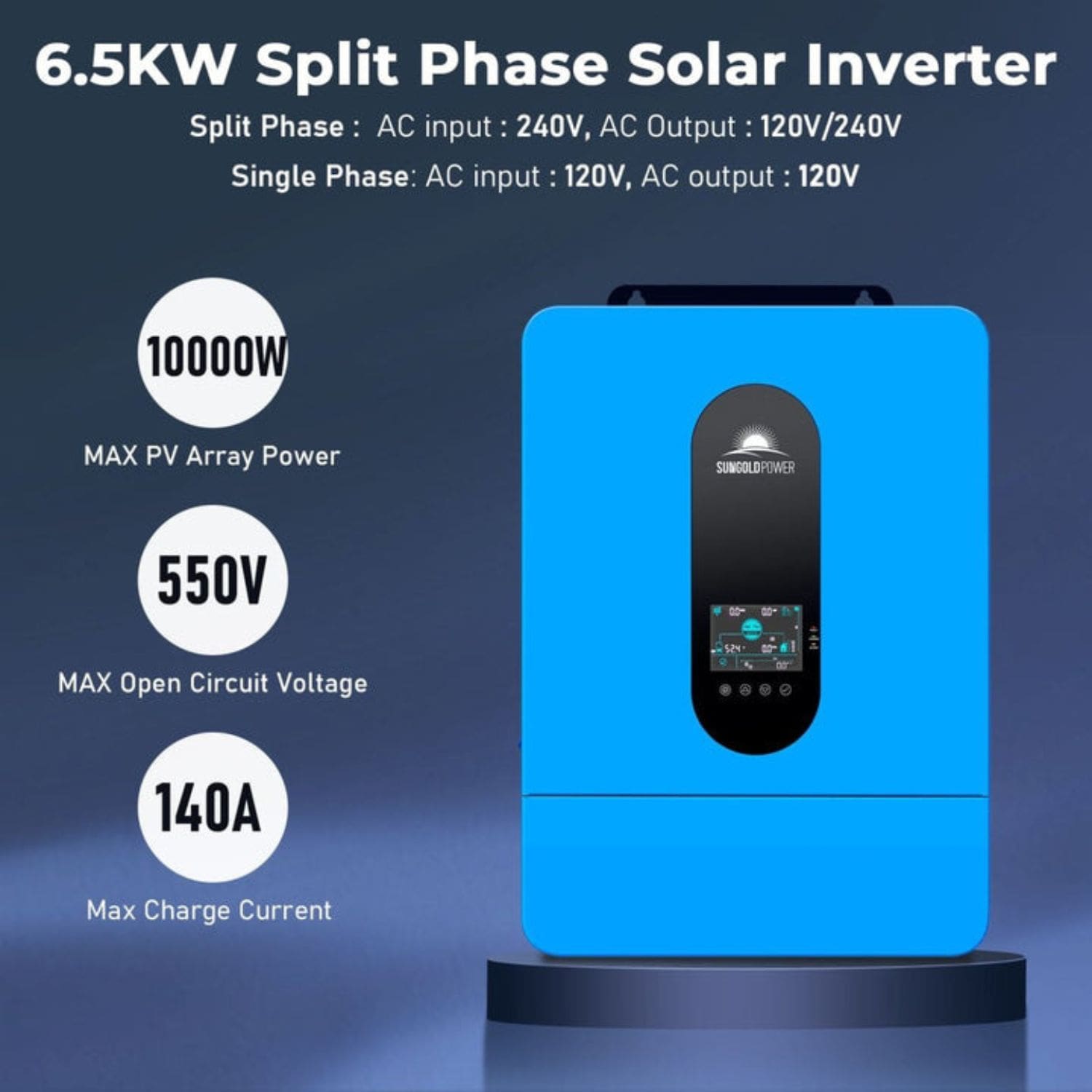

6500 Watt Inverter Specifications
|
| AC Output |
6.5W with Parallel Functions |
| Output Waveform |
Pure Sine Wave |
| AC Output |
120V/240V (split phase/single phase) |
| Parallel Function |
Up to 6 units Parallel |
| Efficiency |
93% |
| Max Charging Current |
140A |
| Maximum PV Array Power |
5000W+5000W |
| Dimension |
23.0 x 16.2 x 5.3 inch |
| Weight |
42 LB |
| Warranty |
3 Years |

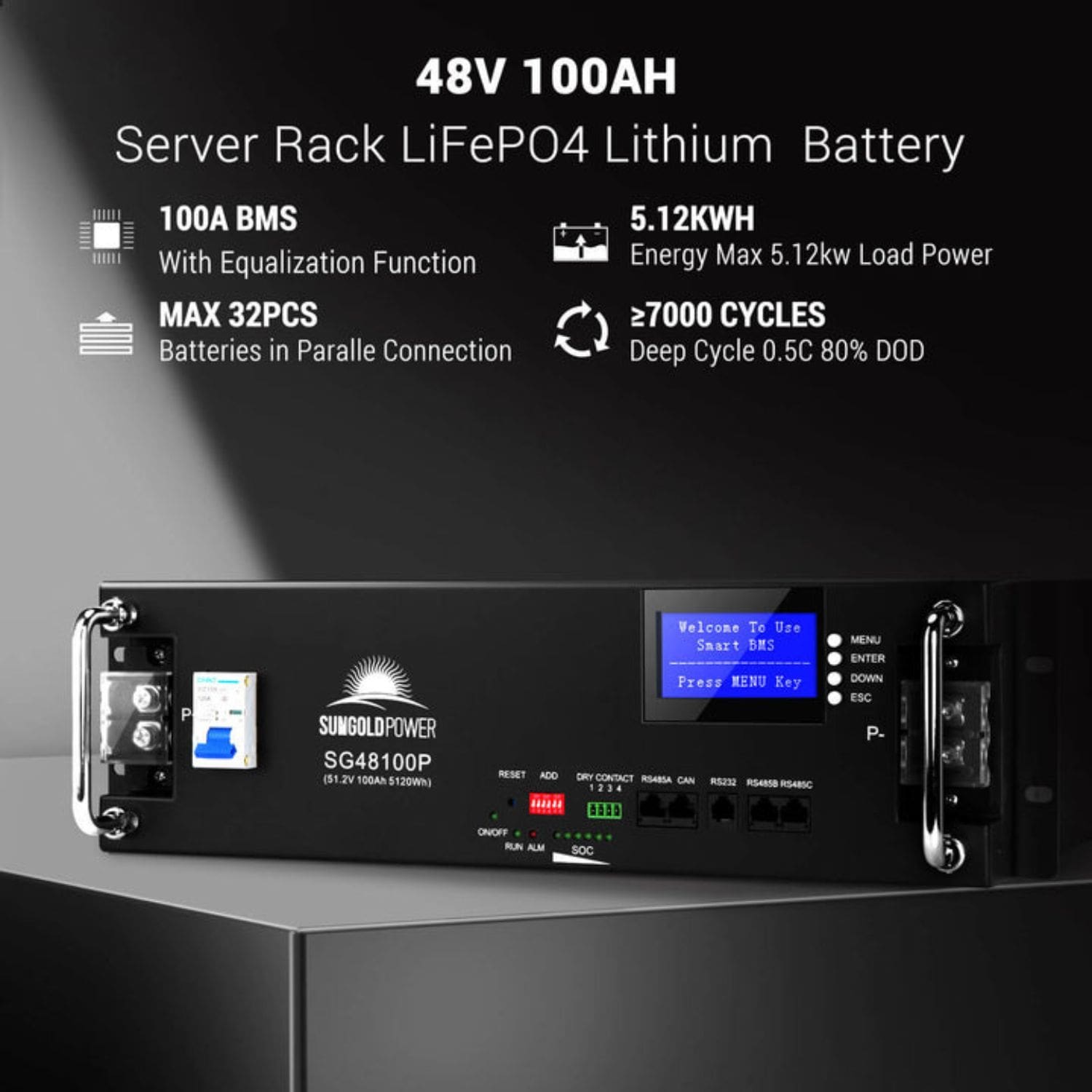

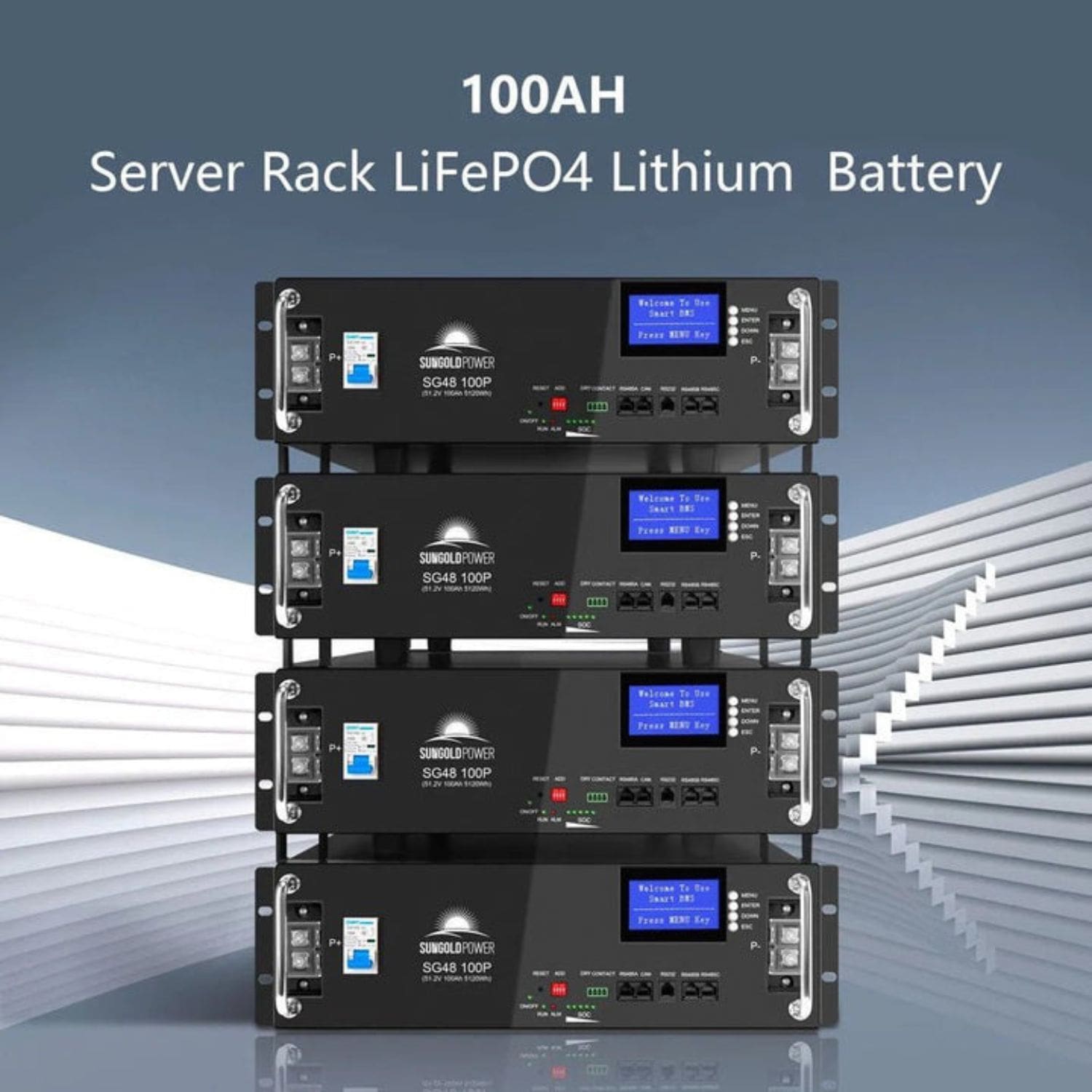

SG48100P LifePO4 Battery Specifications
|
| Nominal Voltage |
51.2V |
| Nominal Capacity |
100AH |
| Energy |
5.12KWH |
| Charge cut-off current |
5A |
| MAX Continuous Charge Current |
100A |
| Discharge cut-off voltage |
43.2V |
| Cycle Life |
>7000 |
| Communication Protocol |
RS232/RS485/CAN Support Multiple Protocols |
| Storage Temperature |
14~+113°F |
| Dimension |
19.3 X 18.9 X 5.5 inch |
| Weight |
93lbs |
| Warranty |
10 Years |

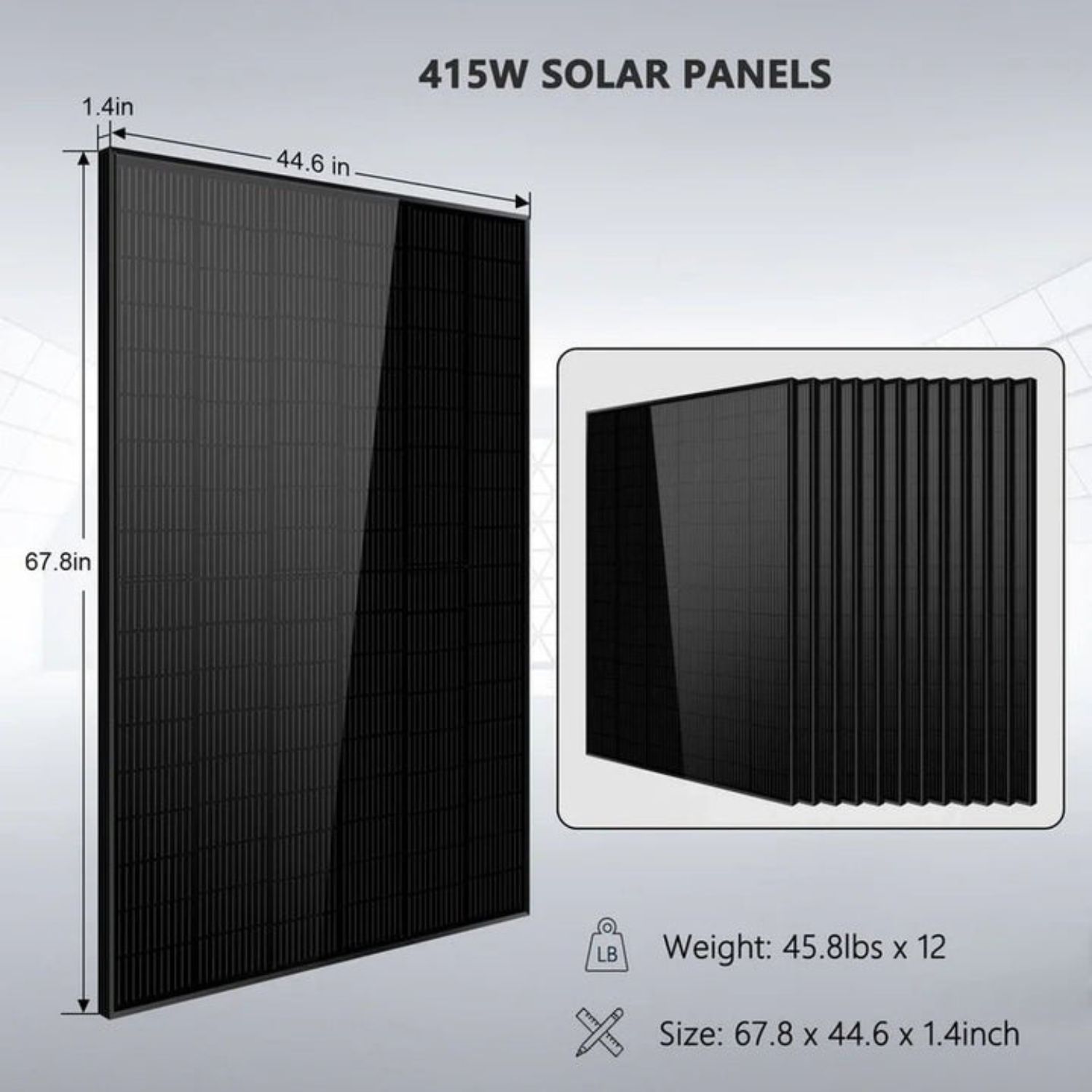

415 Watt Mono Solar Panel Specifications
|
| Peak Power |
415W |
| Solar Cell |
Monocrystalline |
| Product Tolerance |
±3% |
| Maximum Power Current (IMP) |
13.13 A |
| Maximum Power Voltage(VMP) |
31.61V |
| Short Circuit Current(ISC) |
13.79A |
| Open Circuit Voltage(VOC) |
38.82V |
| Product Dimension |
67.8 X 44.6 X 1.4inch |
| Product Weight |
45.1lbs |
| Warranty |
25 Years |
| Certificates |
UL61730, TUV, IEC, CEC, CE... |
