AIMS Power 12kW 48VDC Off-Grid Solar Kit | 3960W Solar

Powerful all-in-one solar kit for all of your off-grid or back up power needs. Whether you’re supplying power to a business office or whole house, this solar kit includes all necessary products and bundled for your convenience.

This 3840 watts of solar and the 12,000 watt, 100 amp/50 amp output low-frequency inverter charger 48VDC split phase 110/120/220/230/240 VAC along with 600 amps of battery power at 48VDC will keep you up and running.

The pure sine inverter has a built in smart charger, automatic transfer switch and can recharge the batteries when city or generator power is available. If grid power is lost, your solar system will automatically kick in.

The 48VDC is more efficient, generates less heat allowing you to use smaller cables and fuses. The mono crystalline panels are covered in tempered glass to protect from hazardous weather and the PV wiring is protected against UV, water, ozone, fluids, oil, salt and general weathering.

Each system comes with a wiring diagram upon purchase.

All shipping costs are included in the sales price.

AIMS Power 12,000 Watt 48VDC Off-Grid Solar Kit Features

• Easy to connect and use
• Everything you need for a off-grid or backup solar system
• Automatically switches from grid power to solar power or can be used in all off grid applications
• Works with devices up to 12,000 watts/ 100 AC amps at 120VAC or 50 amps at 240 VAC
• Ideal for large appliances, tools, pumps, compressors, AC units, freezer, refrigerators, heaters and electronics
• Ideal for large homes or businesses that need 120 and 240 VAC power

*The solar panel array will recharge a 50% depleted 600 amp battery bank < 5 hours with full sunlight.*

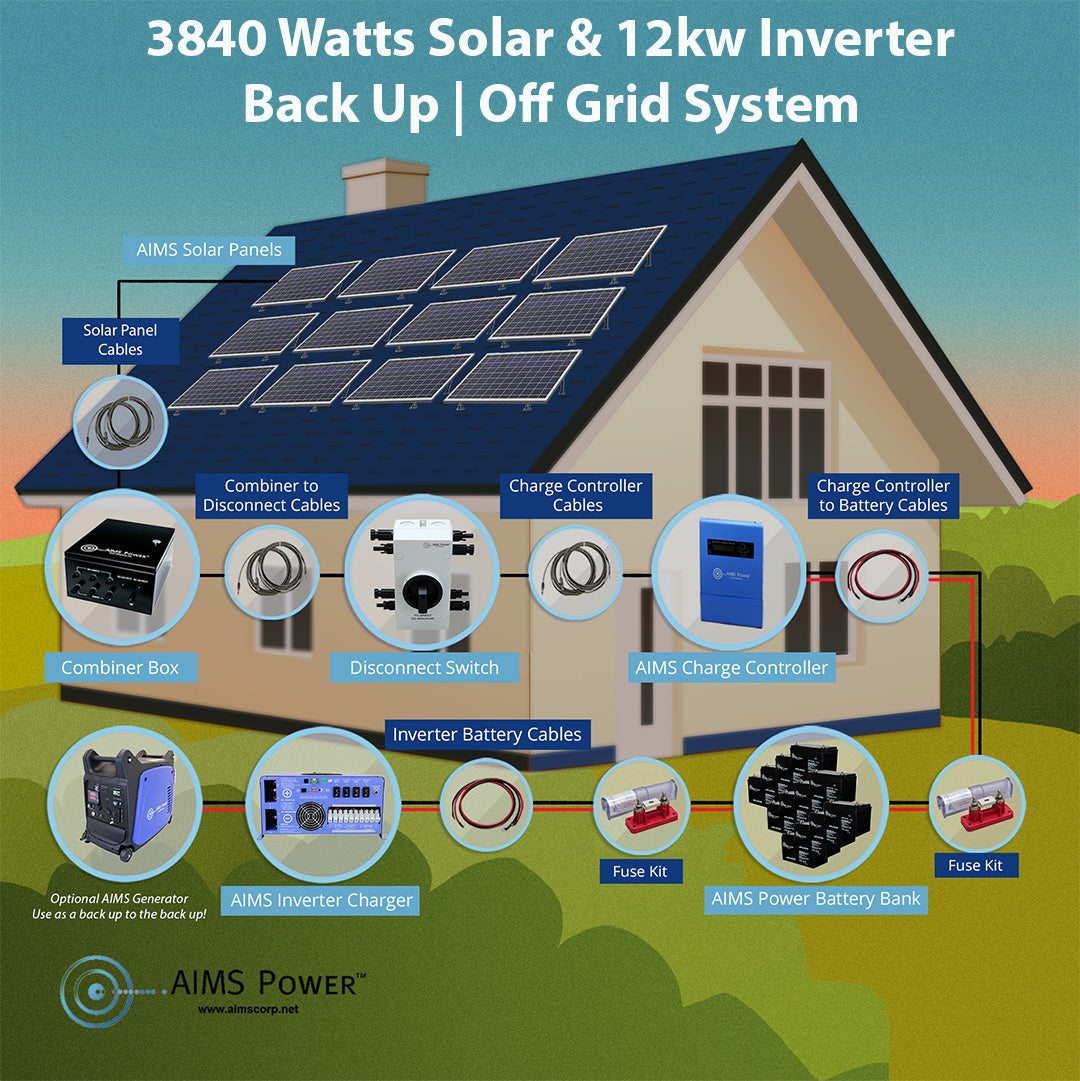

What's In The Box

• 1 x 12,000 watt pure sine inverter charger 120/240vac Listed to UL 1741 and CSA certified (Model # PICOGLF120W48V240VS)
• 12 x 330-watt solar panels @210 SQ FT (Model # PV330MONO)
• 12 x 200 ah AGM deep cycle battery maintenance free sealed lead acid (Model # AGM12V200A)
• 1 x Combiner Box 6 String – Pre-wired (Model # COM6IN120A)
• 1 x Quick Disconnect Switch (Model # DC1600V32A2IO)
• 1 x 80 amp MPPT solar charge controller (Model # SCC80AMPPT)
• 1 x Battery temperature sensor (Model # PICGLFBATS)

• 1 x PV female & male extension cables for solar array to combiner box and disconnect to solar charge controller (Model # PVEXT20FT10AWG)
• 1 x 100 foot PV wire for solar panel (male) from combiner box to disconnect (Model # PVM100FT10AWG)
• 1 x 100 foot PV wire for solar panel (female) from combiner box to disconnect (Model # PVF100FT10AWG)
• 1 x 8 ft. set charge controller to battery cables (Model # CBL08FT6AWGC)
• 1 x 8 ft. set of 1/0AWG cable battery bank to inverter (Model # CBL08FT1/0AWG)
• 2 x 2 ft. 1/0 AWG cable (battery cables) (Model # CBL02FT1/0AWG)
• 10 x 1 ft. jumper for fuse kit and battery jumpers (Model # CBL01FT1/0AWGRED)
• 1 x 500 amp inline fuse kit for battery to inverter (Model # ANL500KIT)
• 1 x 100 amp inline fuse kit for charge controller to battery (Model # ANL100KIT)
• 2 x 15 ft. PV extension wires male and female to connect solar panels in parallel (Model # PVEXT15FT10AWG)
