AIMS Power 12V 50Ah Lithium Iron Phosphate Battery | Bluetooth Monitoring

AIMS Power 12V 50A Lithium Iron Phosphate Battery Overview

AIMS Power introduces its new battery product line of LiFePO4/LFP batteries. The LiFePO4 batteries maintain constant output voltage, providing more efficient power. This allows the cell to deliver virtually full power until it is fully discharged without harming the battery, and it can greatly simplify or even eliminate the need for voltage regulation circuitry. The battery has a much longer cycle life capacity, and is easier to maintain compared to other battery technologies. The LiFePO4 technology has better thermal and chemical stability, which improves battery safety and packed with power in a small and lightweight footprint.

Easily uses the same space as your existing 12V battery and replaces lead acid, AGM or Gel battery applications in RVs, boats, commercial vehicles, off grid back up power and much more. Not intended to replace starting batteries. Backed by an IEC rating that specifies requirements and tests for the safe operation of secondary lithium cells and batteries used in industrial applications including stationary applications.

** Google and Apple app is AIMSBATB.

AIMS Power 12V 50A Lithium Iron Phosphate Battery Features

• Extremely high number of charge/discharge cycles
• > 10 Year lifespan with proper maintenance
• Bluetooth monitoring software
• 10 year warranty
• Wide operating temperature range
• Unsurpassed high temperature performance
• Green energy without metal contaminant
• Low maintenance
• High amp capacity
• Stable output voltage
• Little self-discharge
• BMS safety protection. Each cell is fused and if for some unlikely situation a cell fails, this design will isolate the cell stopping any other damage and allows the battery to function safely
• Lightweight
• 50, 100 & 200 Ah models available
• Short circuit protected
• Physical damage to battery case will not cause fire
• Excessive thermal exposure will not cause a fire
• Able to withstand over-charge/over-discharge without damage to the battery
• Sophisticated Battery Management System (BMS)

AIMS Power 12V 50A Lithium Iron Phosphate Battery Specifications

Electrical Specifications LFP12V100B

• Nominal Voltage 12.8V
• Nominal Capacity (at .5C, 77°F) 50Ah
• Minimum Capacity (at .5C, 77°F) 47.5Ah

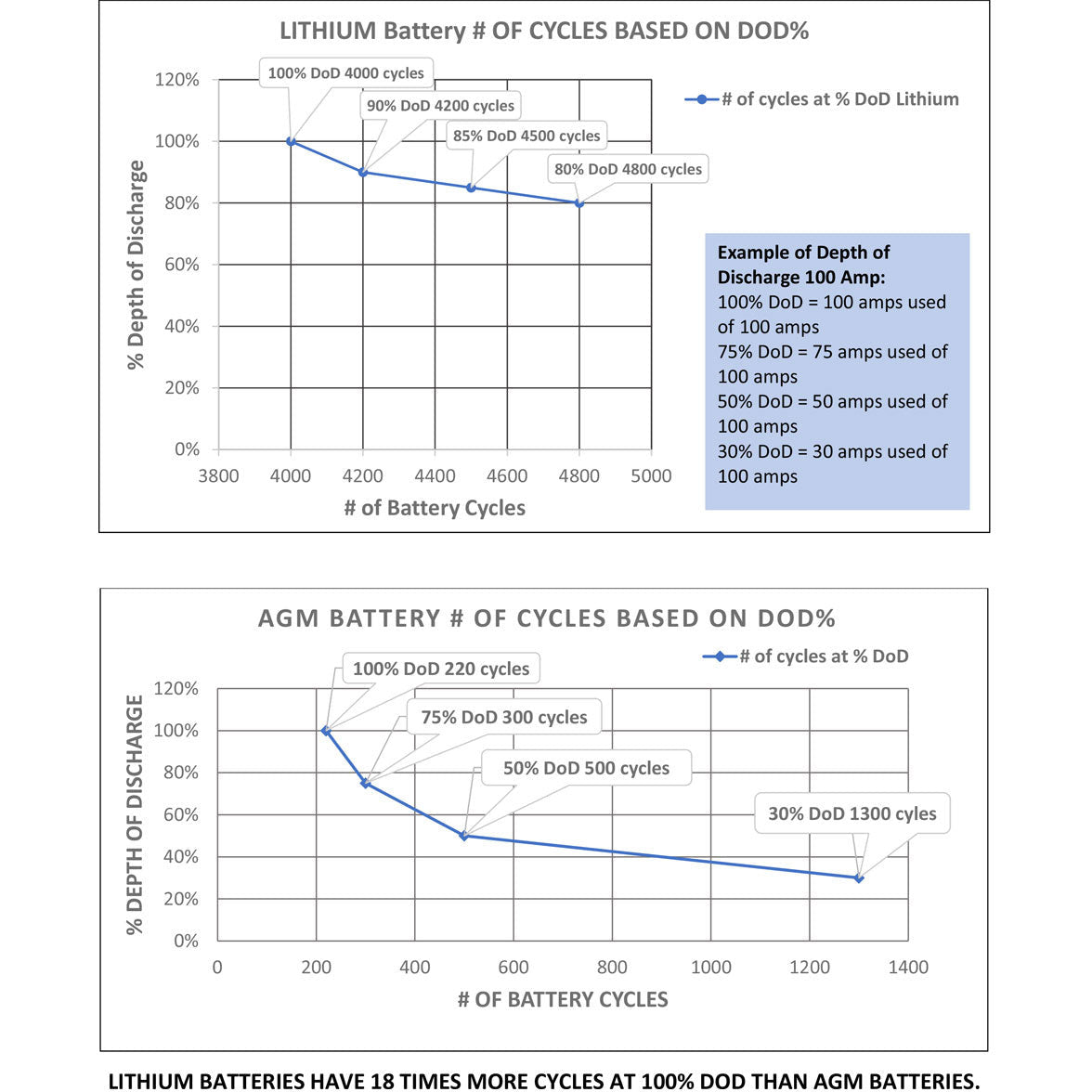

• Expected Cycle Life >4000 cycles w/1C charge and discharge rate, at 77°F, 80% DOD

Operating Specifications

• Charge Method Smart charger, constant current, constant voltage
• Charge Voltage Range (Max 14.6V) 14.4 -14.6V
• Continuous Charge Current 50A Max
• Charge Temperature 32° F to 113° F
• Continuous Discharge Current 50A Max
• Peak Instant Discharge Current (10 secs) 100A
• Over Voltage Shutdown 15.2 +/-.5V
• Discharge Cut-off Voltage 8V =/- .5V
• Discharge Temperature -4° F to 149° F (battery will not shut off below -4° F)
• Storage Temperature -4° F to 113° F
• Self Discharge (stored at 50% SOC) < 3%/month
• Watt hours 600 watt hours

Physical Specifications

• Battery Dimensions: 9″L x 5.5″W x 9″H with terminals
• Unit Weight: 15.5 lbs.
• Shipped Weight: 16.5 lbs.
• Group Size: 1250
• Battery post size: 5/16" M8 1.3" long

BMS Operation

• Over Charge Protection:
• Over charge detection voltage: 3.8 +/- .05V
• Over charge detection delay time: .96 – 1.4s
• Over charge release voltage: 3.60 +/-.05V
• Maximum charge voltage: 3.65 +/-.05V
• Over Discharge Protection:
• Over discharge detection voltage: 2.0V +/- .05V
• Over discharge detection delay time: .96-1.4s
• Over discharge release voltage: 2.3V +/- .10V
• Over Current Protection:
• Over current detection delay time: 9 +/- 2ms
• Over current release condition: Cut load
• Polarity Reverse Protection Yes
• Short Circuit Protection: Yes
• UPC: 840271005805
• Warranty: 10 Yr Manufacturer Defect

AIMS Power 12V 50A Lithium Iron Phosphate Battery Manual

• Download the Manual
