AIMS Power 2.5kW 24VDC Off-Grid Solar Kit | 480W Solar

AIMS Power introduces the new all-in-one solar kit for all of your off grid power needs. Whether you’re supplying power to appliances in an RV or  a small cabin/mobile business, this solar kit includes all necessary products required and bundled for your convenience. This 480 watt solar kit is most effective when used to power medium size devices.

The 2500 watt 24 VDC inverter runs more efficiently and able to use more solar panels with the 30 amp charger at 24VDC.  This inverter is ideal for medium size non-sensitive electronics such as pumps, small motors, tools, freezers, refrigerators and heaters (not meant for microwaves). The panels are covered in tempered glass to protect from hazardous weather. The PV wiring is protected against UV, water, ozone, fluids, oil, salt and general weathering. Each system comes with a wiring diagram upon purchase. This kit can be expanded up to 6 – 120 watt panels total.

All shipping costs are included in the sales price.

AIMS Power 2500 Watt 24VDC Off-Grid Solar Kit Features

• Easy to connect and use
• Works with medium size devices up to 2500 watts/ 20.8 AC amps
• Ideal for medium size appliances, tools, pumps or small compressors (not recommend for microwaves or anything with a circuit board)
• Expandable – up to 720 watts of solar and endless amount of batteries
• Total panel dimensions are 16ft x 2ft which fits perfect on top of a RV, bus or work truck

*The solar panel will recharge a 50% depleted 200 amp battery in 5 hours with full sunlight.*

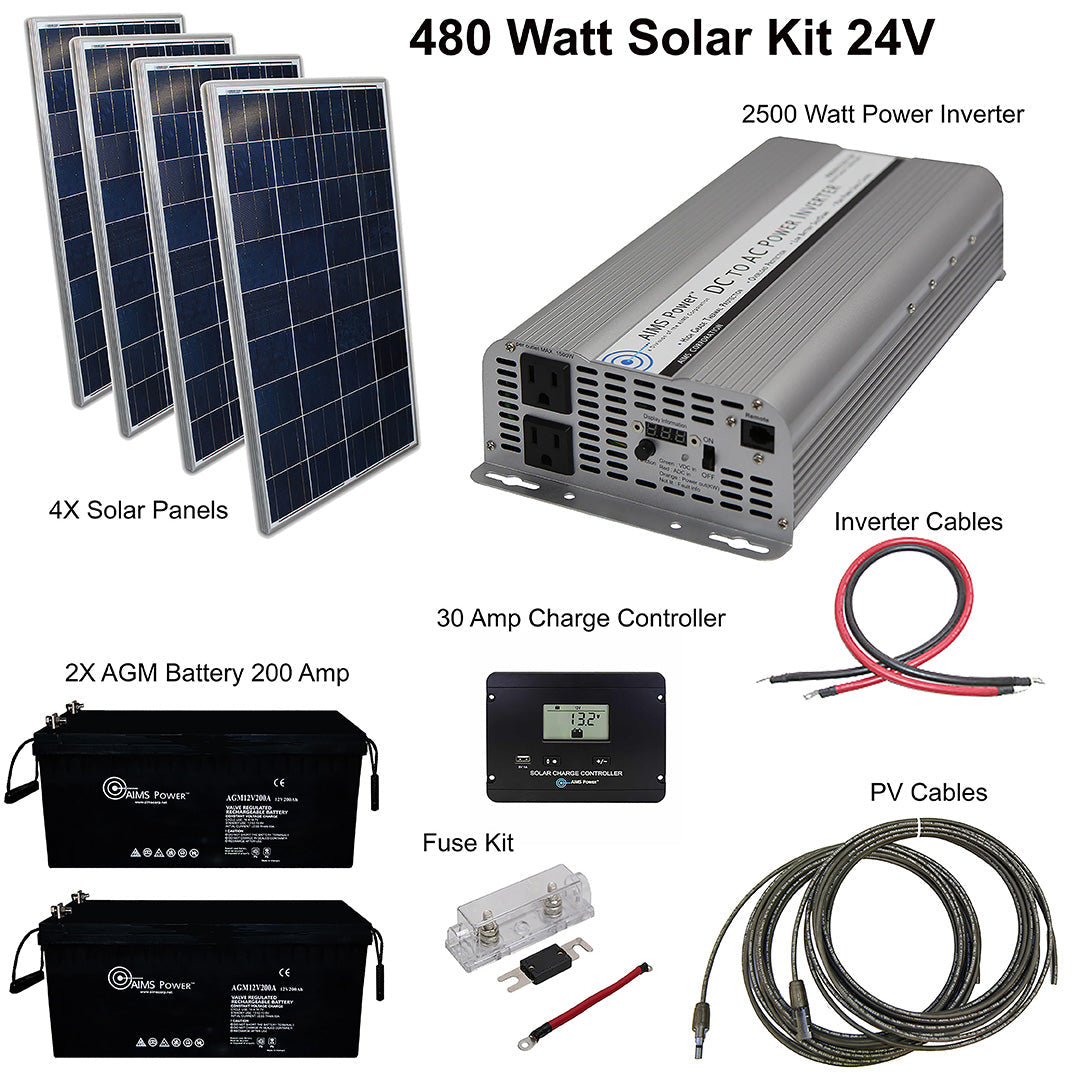

What's In The Box

• 1 x 2500-watt modified sine inverter - 24 volts
• 4 x 120-watt monocrystalline solar panels
• 2 x 200 ah AGM deep cycle battery
• 1 x 30 amp PWM solar charge controller
• 1 x 100 foot PV wire for Solar Panel to Charge Controller (female to spade end)

• 1 x 100 foot PV wire for Solar Panel to Charge Controller (male to spade end )
• 1 x Solar inline fuse 15 amp – PV-F15
• 1 x 6 ft. set charge controller to battery wires
• 1 x 8 f.t set of 4 AWG cable battery bank to inverter
• 2 x 1 ft. jumper for fuse kit and batteries
• 1 x 150 amp inline fuse
• 1 x MC4 Branch 2F to M
• 1 x MC4 Branch 2M to F
