AIMS Power 6kW 48VDC Off-Grid Solar Kit | 3960W Solar

This powerful, all-in-one solar kit provides up to 50 amps of power @120V AC. Whether you’re supplying power to a business office or an entire house, this solar kit includes all necessary products and bundled for your convenience.

With 3840 watts of solar paired with a 6000-watt low frequency inverter charger and 800 amp battery bank at 48VDC, this kit will keep you running. It is ideal for large devices such as appliances, fans, pumps, compressors, electronics up to 50 amps,120V & 6000 watts.

The pure sine inverter has a built in charger and can recharge the batteries when city or generator power is available. Using 48VDC is more efficient and generates less heat allowing you to use smaller cables and fuses. The efficient mono crystalline panels are covered in tempered glass to protect from hazardous weather and the PV wiring is protected against UV, water, ozone, fluids, oil, salt and general weathering.

Each system comes with a wiring diagram upon purchase.

All shipping costs are included in the sales price.

AIMS Power 6000W 48VDC Off-Grid Solar Kit Features

• Easy to connect and use
• Everything you need for an off-grid or backup solar system
• Works with medium size devices up to 6000 watts/ 50 AC amps 120VAC
• Ideal for medium size appliances, tools, pumps, compressors and electronics
• Automatically switches from grid power to solar power or can be used for all off grid applications

*The solar panel array will recharge a 50% depleted 800 amp battery bank in <5 hours with full sunlight.*

AIMS Power 6000W 48VDC Off-Grid Solar Kit Specifications

Output Specifications

• Continuous output power: 6000 Watt
• Surge rating: 18,000 Watt (20 seconds)
• Output waveform: pure sine/same as input (bypass mode)
• Output voltage: 100-110-120 VAC
• Nominal efficiency: >88% (peak)
• Line mode efficiency: >95%
• Output frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
• Typical transfer time: 10ms (Max)
• THD: < 10% DC

Input Specifications

• Nominal input voltage: 48 VDC
• Minimum start voltage: 44 VDC
• Low battery alarm: 42 Vdc-44  VDC
• Low battery trip: 40 VDC-42VDC
• High voltage alarm: 64 VDC
• Low battery voltage restart: 42 VDC
• Idle consumption: 1.67 amps DC
• Power saver mode idle consumption: <.83 amps DC

Charger Specifications

• Output voltage: depends on battery type
• Charger rate: 60A
• Selectable charge setting based on battery type
• Adjustable charge current off-20%-100%
• Four stage smart charger

Transfer Switch Specifications

• 40 amp automatic transfer switch
• 10 ms (max)

Dimensions

• Unit weight: 80 lbs.
• Unit size: L x W x H: 27.88x 8.74 x 7.10 inches
• Shipping weight: 89 lbs.
• Shipping size: L x W x H: 30.5 x 14.25 x 13.75 inches

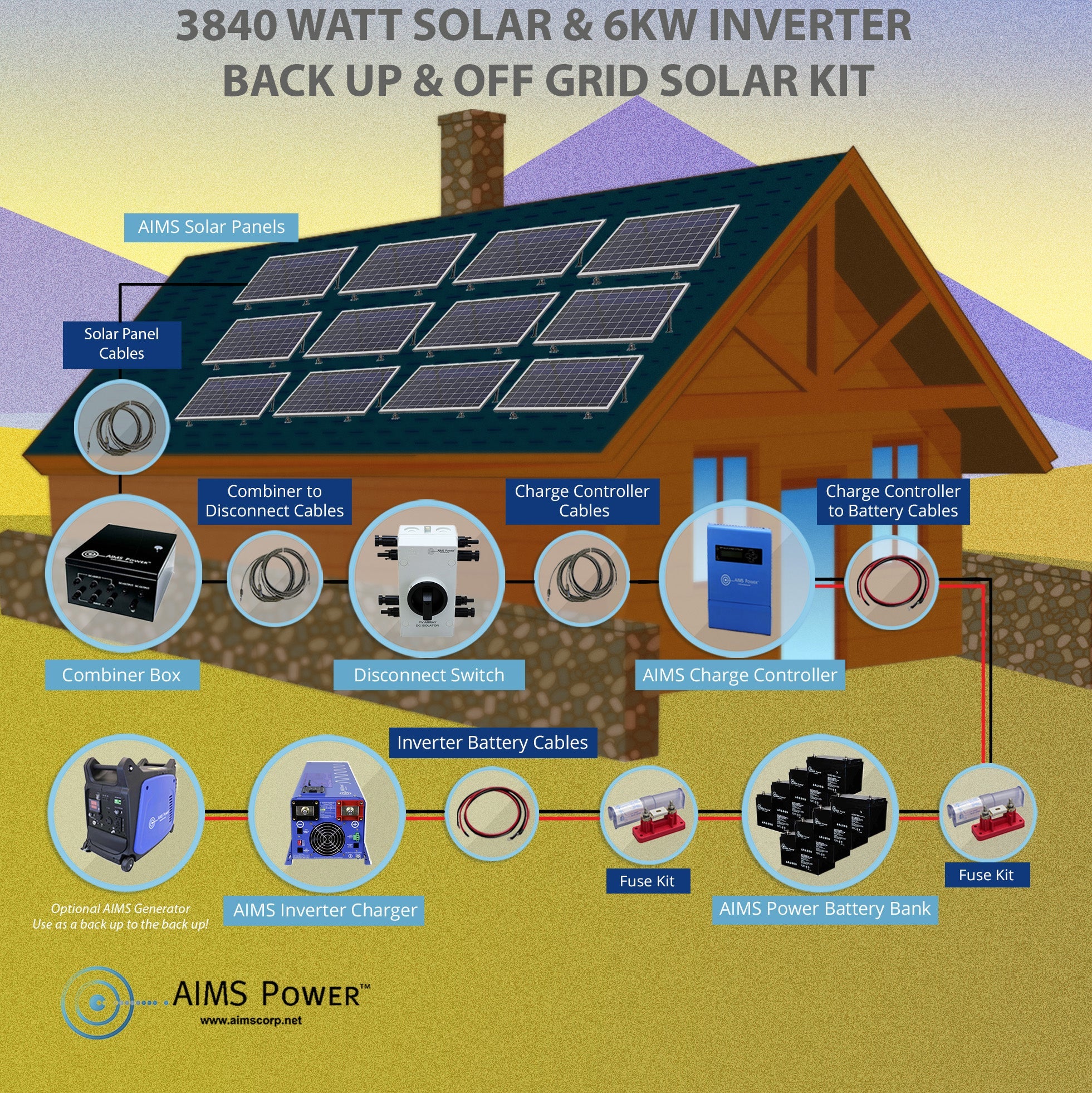

What's In The Box

• 1 x 6000 watt pure sine inverter charger (50 amps) – 48 Volt / 120 vAC (Model # PICOGLF60W48V120V)
• 12 x 330-watt solar panels monocrystalline @ 210 Sq. Ft. (Model # PV330MONO)
• 8 x 200 amp hours deep cycle AGM sealed lead acid batteries (Model # AGM12V200A)
• 1 x Pre-Wire Combiner Box 6 String (Model # COM6IN120AO)
• 1 x 80 Amp MPPT solar charge controller (Model # SCC80AMPPT)
• 1 x Quick Disconnect Switch (Model # DC1600V32A2IO)
• 1 x Battery temperature sensor (Model # PICGLFBATS)
• 1 x PV female & male extension cables for solar array to combiner box and disconnect to solar charge controller (Model # PVEXT20FT10AWG)
• 1 x 100 foot PV wire for solar panel (male) from combiner box to disconnect (Model # PVM100FT10AWG)
• 1 x 100 foot PV wire for solar panel (female) from combiner box to disconnect (Model # PVF100FT10AWG)
• 1 x 8 ft. set charge controller to battery cables (Model # CBL08FT6AWGC)
• 1 x 8 ft. set of 4 AWG cable battery bank to inverter (Model # CBL08FT4AWG)
• 2 x 2 ft. 4 AWG cable (battery cables) (Model # CBL08FT4AWG)
• 7 x 1 ft. jumper for fuse kit and battery jumpers (Model # CBL01FT4AWGRED)
• 1 x 150 amp inline fuse kit for battery to inverter (Model # ANL150KIT)
• 1 x 100 amp inline fuse kit for charge controller to battery (Model # ANL100KIT)
• 2 x 15 ft. PV extension wires male and female to connect solar panels in parallel (Model # PVEXT15FT10AWG)
