AIMS Power 8kW 48VDC Off-Grid Solar Kit | 3960W Solar

This powerful all-in-one solar kit for all of your off-grid or back up power needs. Whether you’re supplying power to a business office or whole house, this solar kit includes all necessary products and bundled for your convenience.

This kit contains 3840 watts of solar, and 8,000 watt 100/50amp output low-frequency inverter charger 48VDC split phase 110/120/220/230/240 VAC along with 600 amps of battery power at 48VDC. It can power large devices such as appliances, fans, pumps, compressors, electronics up to 66 amps. Perfect for locations that  have access to a generator or shore power if available to recharge batteries. Solar panels keep a charge on the batteries using sunlight and will recharge the batteries at 50% depletion in <5 hours in full sun.

The pure sine inverter has a built in smart charger, automatic transfer switch and can recharge the batteries when city or generator power is available.  If grid power is lost, your solar system will automatically kick in.

The 48VDC is more efficient, generates less heat allowing you to use smaller cables and fuses. The mono crystalline panels are covered in tempered glass to protect from hazardous weather and the PV wiring is protected against UV, water, ozone, fluids, oil, salt and general weathering.

Each system comes with a wiring diagram upon purchase.

All shipping costs are included in the sales price.

AIMS Power 48VDC 8000 Watt Off-Grid Solar Kit Features

• 3960 Watt Solar Power
• 8000 Watt inverter charger provides 120 & 240 Vac power ETL/CSA listed
• 48Vdc. 600 amps of battery power and 80 amp charger controller
• Total weight: 1,000 lbs.

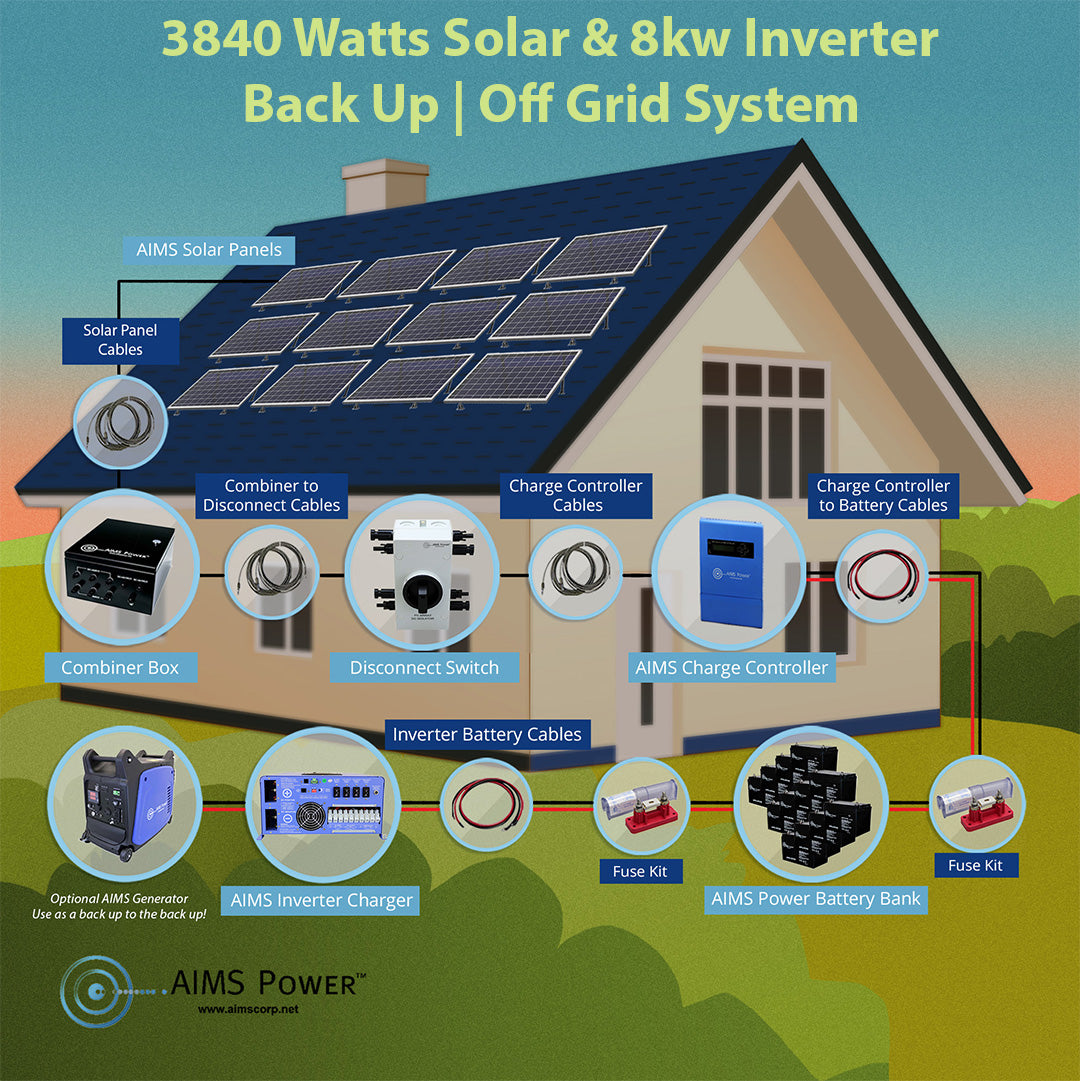

What's In The Box

• 1 x 8,000-watt pure sine inverter charger 120/240vac ETL and CSA certified
• 12 x 330-watt mono solar panel @210 SQ FT
• 1 x Combiner Box 6 String– Pre-wired
• 1 x 80 amp MPPT solar charge controller
• 1 x Quick Disconnect Switch
• 12 x 200 ah AGM deep cycle batteries
• 1 x Battery temperature sensor
• 1 x PV female & male extension cables for solar array to combiner box and disconnect to solar charge controller
• 1 x 100 foot PV wire for solar panel (male) from combiner box to disconnect
• 1 x 100 foot PV wire for solar panel (female) from combiner box to disconnect
• 1 x 8 ft. set charge controller to battery cables
• 1 x 8 ft. set of 4 AWG cable battery bank to inverter
• 2 x 2 ft. 4 AWG cable (battery cables)
• 7 x 1 ft. jumper for fuse kit and battery jumpers
• 1 x 300 amp inline fuse kit for battery to inverter
• 1 x 100 amp inline fuse kit for charge controller to battery
• 2 x 15 ft. PV extension wires male and female to connect solar panels in parallel
