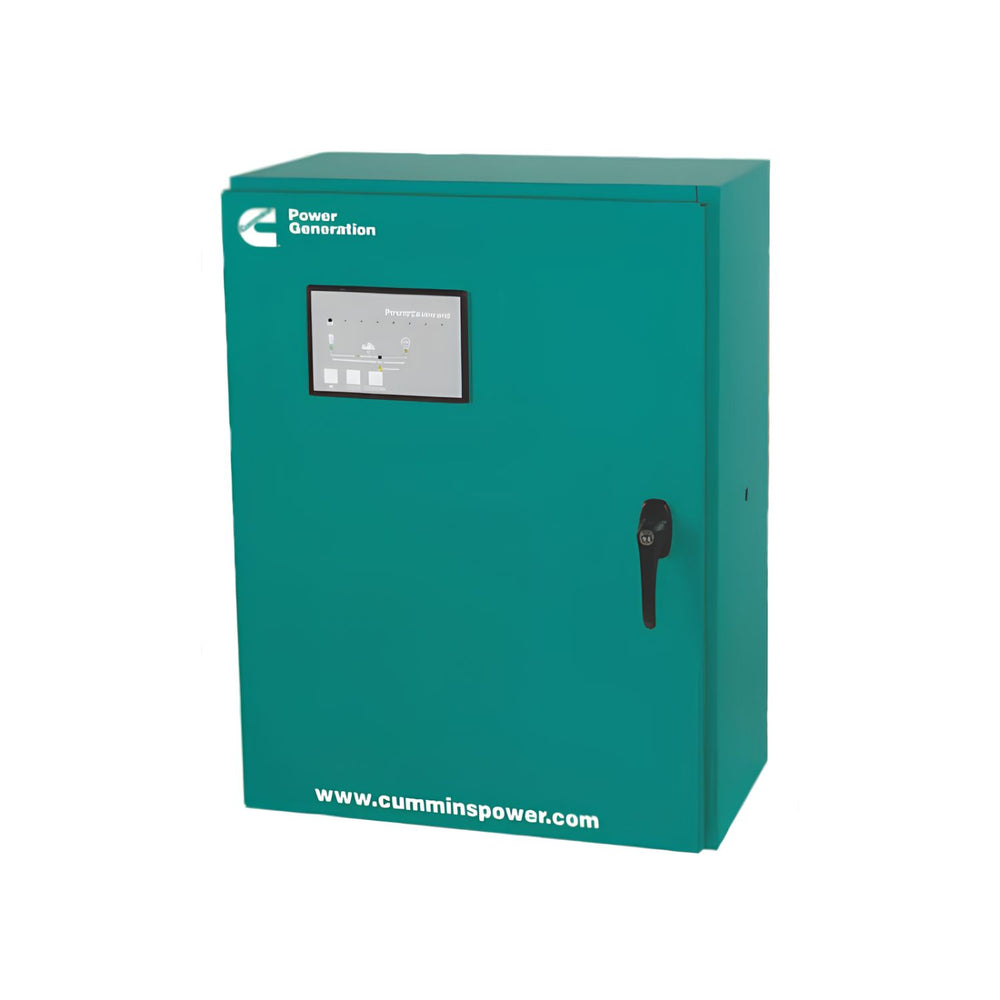

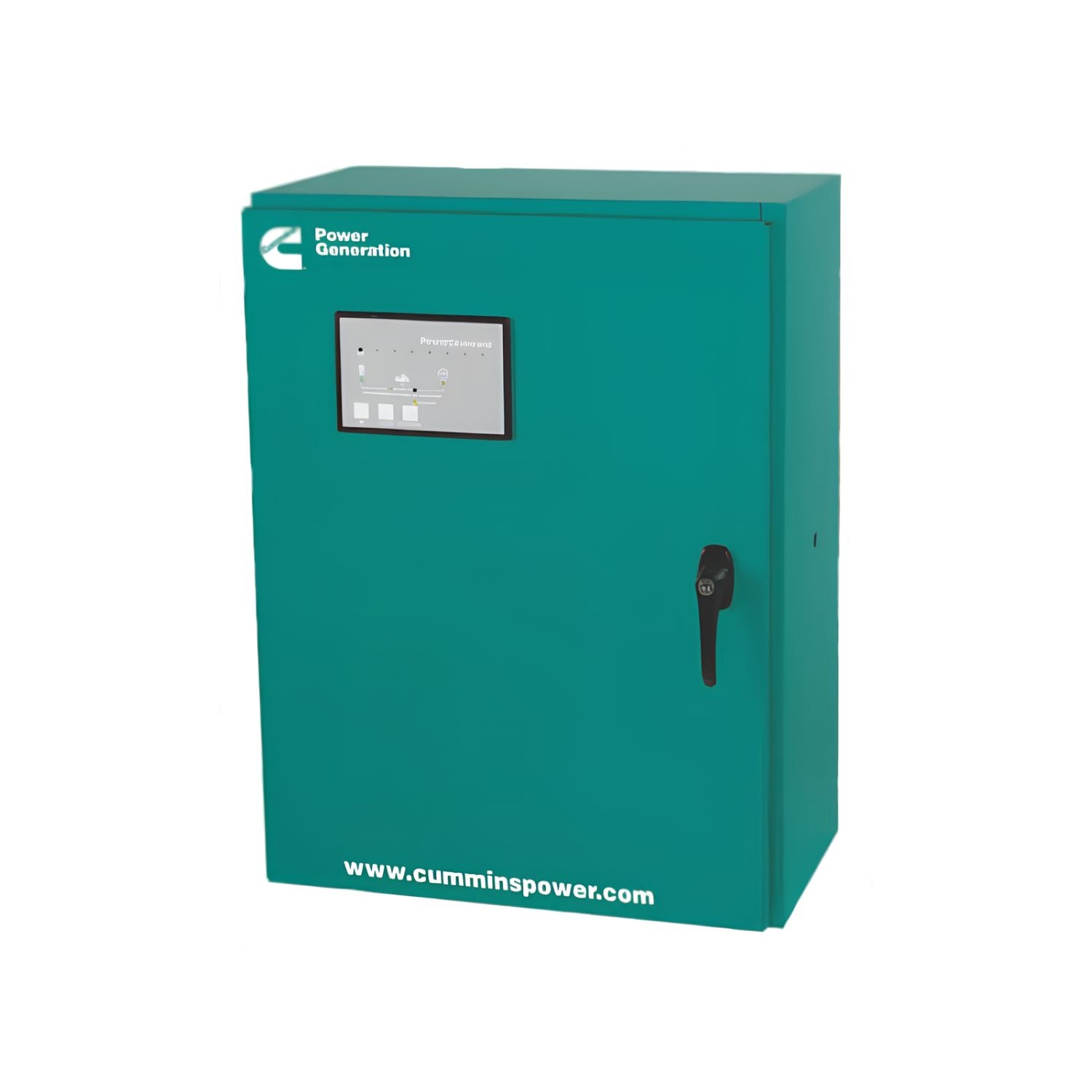

Power interruptions can happen without warning, but your backup power system should always respond when it matters most. The Cummins OTEC600 Automatic Outdoor Transfer Switch 600A 240V Single-Phase NEMA 3R is engineered to automatically transfer electrical loads between utility power and a standby generator, helping ensure your home, commercial property, agricultural facility, or critical operation stays powered during outages.
Designed with a rugged NEMA 3R outdoor enclosure, this transfer switch is built for dependable outdoor installation while protecting internal components from rain and harsh weather conditions. With a 600A capacity, 240V single-phase operation, 3-pole configuration, and the intelligent Cummins PowerCommand 40 controller, it provides advanced monitoring, automatic source sensing, configurable exercise scheduling, and dependable open-transition switching.
Whether you're protecting a large residential property, supporting an RV resort, operating an off-grid facility, or managing a mobile worksite, this genuine Cummins transfer switch delivers the confidence that your backup power system is always prepared. Unlike manually operated transfer switches that require someone to be present during an outage, the Cummins OTEC600 automatically detects utility power loss and transfers connected loads to your standby generator. When utility service returns, it safely transfers power back, reducing downtime and eliminating unnecessary manual intervention.
The Cummins PowerCommand 40 controller continuously monitors incoming utility power. When an outage occurs, it automatically starts the generator and transfers electrical loads, helping keep essential systems operating with minimal interruption.
Built for demanding applications, the 600-amp rating makes this transfer switch ideal for large homes, commercial buildings, agricultural operations, industrial facilities, and other high-capacity electrical installations requiring dependable backup power.
The durable NEMA 3R enclosure protects internal electrical components from rain and outdoor environmental conditions, making it well suited for exterior installations where reliable protection is required.
Open-transition operation disconnects one power source before connecting another, preventing overlap between utility and generator power while delivering safe, reliable transfer performance.
The integrated LCD display provides operators with clear system information, transfer status, operating conditions, alarms, and programmable settings, making system management straightforward and efficient.
Routine generator exercise is essential for dependable performance. The programmable exercise scheduler helps keep your standby generator properly maintained and ready for future outages without unnecessary manual scheduling.
As an authentic Cummins product identified by manufacturer part number A075F146, this transfer switch is designed to meet the demanding reliability standards expected from one of the industry's most trusted backup power manufacturers.
Cummins provides a limited warranty policy, ensuring the absence of defects in materials, workmanship, and performance during the warranty period.
Cummins OTEC600 Automatic Outdoor Transfer Switch | 600A 240V Single-Phase | NEMA 3R Specifications |
|
|---|---|
| Product Name | Cummins OTEC600 Automatic Outdoor Transfer Switch |
| Manufacturer Part Number | A075F146 |
| Manufacturer | Cummins |
| Model | OTEC600 |
| Product Type | Automatic Transfer Switch |
| Transfer Operation | Open Transition Automatic Transfer |
| Current Rating | 600A |
| Voltage | 240V |
| Phase | Single-Phase |
| Poles | 3-Pole |
| Enclosure | NEMA 3R Outdoor |
| Controller | Cummins PowerCommand 40 |
| Display | LCD Display |
| Exerciser | Configurable Exercise Schedule |
| Service Entrance Rated | No |
| Family Ratings | 40A–1200A |
| Maximum Voltage Family Rating | Up to 600VAC |
| Frequency | 50/60Hz |
| Certification | UL 1008 Listed Family |
