Mango Power Union Overview
The Mango Power Union is a revolutionary new product that combines the power of a home backup battery with the portability of a portable power station. With a massive 6.9 kWh capacity, the Mango Power Union is the world's first integrated home and portable battery, allowing it to provide backup power for your home during a power outage, or to power your devices and appliances on the go.
The Mango Power Union is true energy independence. It has a 4000W AC output, enough to run your most important appliances and heavy equipment. Up to ten Mango Power Union units may be stacked to create a true power hub.
The Mango Power Union Consists of Two Seamlessly Integrated Power Solutions
The Power Home
The Power Home serves as the home battery base. It reduces your reliance on the grid. Its 6.9kWh battery and 4kW output are more than sufficient for energy consumption for a normal family in the event of a power outage.
The Power Move
The Power Move is the detachable portable power unit. It is designed to provide you with reliable portable power for camping, tailgating, and off-grid events, with a 2.3kWh battery and supports 2kW AC output. It can handle surges up to 4kW from power tools, refrigerators or air conditioners, so it will power anything anywhere. It includes 18 output ports including AC, USB-C, USB-A, wireless charging and car power output so you can meet all of your various needs.
The dedicated mUnion Connection combines the Power Home home battery and the Power Move portable power station into a single sleek, stunning package that swirls with ambient light and redefines aesthetics for an independent energy device.
Mango Power Union Features
The Mango Power Union is packed with features that make it the perfect choice for both home backup and portable power needs. Some of these features include:
Seamless Home Backup Power Supply
The Mango Power Union detects power outages when the grid goes down and automatically repowers your home within 10 milliseconds. This means that you'll never have to worry about losing power during a storm or other emergency. Connect easily to your power grid with Mango Power mPanel. Both the Power Home and the Power Move have Grid AC input ports on the backside of the device. The Mango Power Union supports a maximum 3300W input. Connect the AC input ports to home sockets using the included charging cables.
Connect With Solar
Both the Power Home and the Power Move have PV input ports on the backside of the device. The Mango Power Union supports 60V-150V solar panels. You can connect it to a roof solar system or to portable solar panels.
Built-In Backup Gateway For Control At Your Fingertips
The Mango Power Union comes with a built-in backup gateway for Wi-Fi and Bluetooth connection. This allows you to control the Mango Power Union from anywhere in your home, and it also allows you to receive updates and notifications about the status of your battery, all using the Mango Power App (iOS & Android).
mPower Boost Mode
mPower Boost Mode lets you switch output to 240V so you can run power-hungry devices when you need to. This is perfect for running appliances like refrigerators, air conditioners, and furnaces during a power outage.
Portable Design
The Mango Power Union is designed to be portable, so you can take it with you wherever you go. It has a built-in handle and wheels, and it weighs just 100 pounds.
Impressively Long Battery life
The Mango Power Union has a long battery life, so you can be confident that it will have the power you need when you need it. The battery can be fully charged in just 6 hours, and it can provide backup power for up to 12 hours on a single charge.
3-Year Warranty
The Mango Power Union comes with a robust 3-year warranty for ease of mind. It covers defects in materials and workmanship.

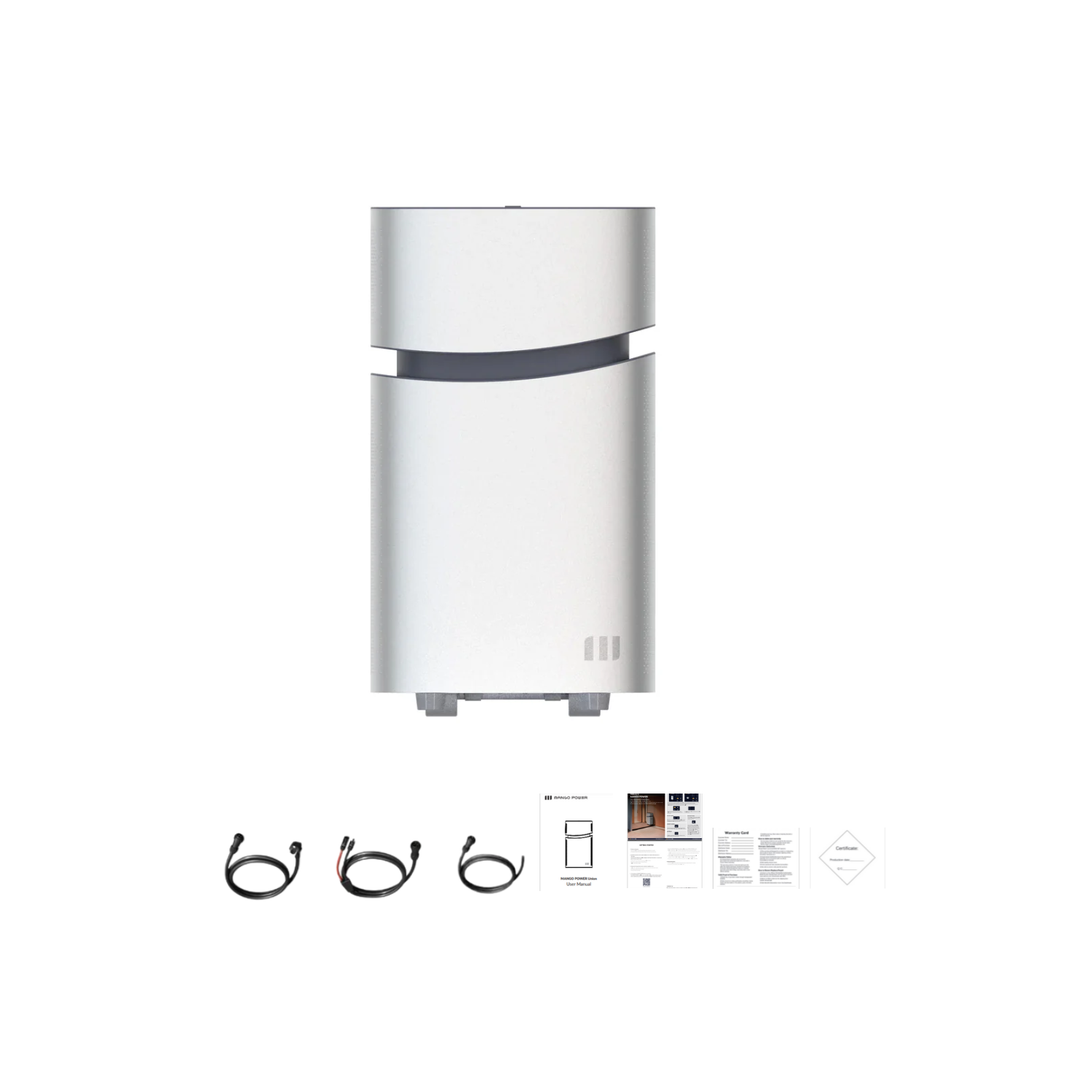

What's In The Box
1 x Mango Power Union
1 x AC Charging Cable
1 x Solar Charging Cable
1 x 40A Home Backup Cable
1 x User Manual
1 Warranty Card
1 x QC PASS Certificate
Mango Power Union (Power Home + Power Move) Specifications
General Specifications
Net Weight
173.94 Ibs | 78.9 kg
Dimensions
17.6 x 13.6 x 31.7 inches | 446 x 346 x 805 mm
Working Temperature Charging
0°C~55°C (32°F~131 °F)
Working Temperature Discharging
-30°C~60°C (-22 °F~140 °F)
Warranty
3 years
Certifications
Meets US and International Safety and EMI Standards
Smart Charge
Yes
mBoost Mode
Yes
Running Noise
<45dB
Battery Specifications
Battery Capacity
6.9kWh
Cell Chemistry
EV class LFP Battery Cell
Life Span
Capacity Retention >80% after 3500 cycles (@25℃, +0.5C/-0.5C)
Battery Management Systems
Over Voltage Protection, Overload Protection, Over Temperature Protection, Short Circuit Protection, Low Temperature Protection, Low Voltage Protection, Overcurrent Protection, DC/DC Converter Optimizer
Input Specifications
Charging Methods
AC Wall Outlet, Solar Panel, Generator, EV Charger
AC Charging Max
Max 3300W
MPPT Number
2
Max. DC Input Power for Single MPPT
Max 2000W
MPPT Input Voltage Range
60V~150V
Generator
Support
EV AC Charging Spot
Adapter needed
Inverter Specifications
Rated AC Output Power
4000W
Surge Power
6600W/100ms
Maximum Power Point Trackers
2x, Support Both Roof and Portable Solar Panels
Inverter Efficiency
Up to 95%
New Inverter Tech
GaN/SiC 3rd generation semiconductor
24/7 Seamless Home Backup
Yes
Backup Essential Circuits Connection
4kW/40A
Scalability
Up to 3 devices 21kWh /12kW Extension
Output Specifications
Output Port Quantity
19
AC Output Ports
4x20A+1x30A+1x40A(backup) / 4000W
USB-A (6x)
QC 3.0 27W
USB-C (1x)
PD 65W
USB-C (1x)
PD 100W
Wireless Charging Pad (2x)
15W
Car Power Output
12V/10A
DC5521 Output (2x)
12V/5A
Smart Control Specifications
Connection
Bluetooth and Wi-Fi
App Remote Control
Yes
OTA Upgrade
Yes
Customized Mode
Backup Power Mode / Economical Mode / Time-based Control Mode
Smart Measurement
Yes
Smart Energy and Carbon Footprint Report
Yes
Smart Notifications
Yes
Touch Screen Specifications
Screen Size
4.3 Inches
Touch Screen
Yes
Resolution Ratio
480 x 800
Screen Pigment
16.7M colors
Smart Self-Check System
Yes
9-Chips Security System
Yes
Mango Power Move Specifications
General Specifications
Net Weight
63.63 Ibs | 28.86 kg
Dimensions
17.6 x 13.6 x 13.1 inches | 446 x 346 x 333 mm
Working Temperature Charging
0°C~55°C (32°F~131 °F)
Working Temperature Discharging
-30°C~60°C (-22 °F~140 °F)
Warranty
3 years
Certifications
Meets US and International Safety and EMI Standards
Smart Charge
Yes
mBoost Mode
Yes
Running Noise
<45dB
Battery Specifications
Battery Capacity
2.3kWh
Cell Chemistry
EV class LFP Battery Cell
Life Span
Capacity Retention >80% after 3500 cycles (@25℃, +0.5C/-0.5C)
Battery Management Systems
Over Voltage Protection, Overload Protection, Over Temperature Protection, Short Circuit Protection, Low Temperature Protection, Low Voltage Protection, Overcurrent Protection, DC/DC Converter Optimizer
Input Specifications
Charging Methods
AC Wall Outlet, Solar Panel, Generator, EV Charger
AC Charging Max
Max 1300W
MPPT Number
1
Max. DC Input Power for Single MPPT
Max 2000W
MPPT Input Voltage Range
60V~150V
Generator
Support
EV AC Charging Spot
Adapter needed
Inverter Specifications
Rated AC Output Power
2000W
Surge Power
3300W/100ms
Maximum Power Point Trackers
2x, Support Both Roof and Portable Solar Panels
Inverter Efficiency
Up to 95%
New Inverter Tech
GaN/SiC 3rd generation semiconductor
24/7 Seamless Home Backup
Yes
Output Specifications
Output Port Quantity
18
AC Output Ports
4x20A+1x30A / 2000W
USB-A (6x)
QC 3.0 27W
USB-C (1x)
PD 65W
USB-C (1x)
PD 100W
Wireless Charging Pad (2x)
15W
Car Power Output
12V/10A
DC5521 Output (2x)
12V/5A
Smart Control Specifications
Connection
Bluetooth and Wi-Fi
App Remote Control
Yes
OTA Upgrade
Yes
Customized Mode
Backup Power Mode / Economical Mode / Time-based Control Mode
Smart Measurement
Yes
Smart Energy and Carbon Footprint Report
Yes
Smart Notifications
Yes
Touch Screen Specifications
Screen Size
4.3 Inches
Touch Screen
Yes
Resolution Ratio
480 x 800
Screen Pigment
16.7M colors
Smart Self-Check System
Yes
Frequently-Asked Questions
What is the Mango Power Union?
The Mango Power Union is the world’s first 2-in-1 detachable home power station with a supercharged 6,900Wh capacity (4,350W output) battery. It can tackle surges up to 6600W from power tools, refrigerators, air conditioners, and other home appliances. The Mango battery efficiency is 95%, with 7000 full charge cycles. Meanwhile, its one-of-a-kind 2,300Wh/2,350W detachable section can be taken outside. So you can bring reliable power anywhere you go.
What’s the capacity for Mango Power Union?
The Mango Power Union has a robust 6,900Wh/4,350W capacity, expandable up to 69,000Wh/43,500W (with 10 units). With the Mango Power Union, you're covered in any situation. It meets the industry gold standard.
Mango Power Move battery capacity?
The smaller module, Mango Power Move, comes packed with an impressive 2,350W output power and 2,300Wh capacity, designed to be carried around wherever you need power.
How long does it take to charge the Mango Power Union?
The Mango Power Union can be recharged from 0 to 80% within 1.5 hours, and it will be fully recharged in 2.5 hours. With 95% transfer efficiency, Mango Power helps reduce your energy bill and carbon footprint while keeping you prepared for power outages.
Can I use the Mango Power Union on my RV? Will it power my RV?
The Mango Power Union is suitable for RV use. It is equipped with a 120V/30A plug (3300W output) that plugs into most RVs. It is also safe for use on the road and has received certification for being safe to use and transport according to US, EU, and Japan standards.
Can two Mango Power Union units be used in parallel?
Yes. You can connect up to 10 devices in parallel*. The output increases proportionately with the number of units. Have the flexibility you want when planning your home electrical system. With more MP Union units, customize your own power hub to backup your home as needed.
*To connect 3 Mango Power Union units in parallel, you will need 1 mPanel Smart. For the full 40kW, you will need 10 Mango Power Union units and 4 mPanel Smart units to connect them in parallel.
What is the warranty of the Mango Power Union?
The Mango Power Union is covered under a 3-year warranty; all accessories sold during crowdfunding are covered under a 1-year warranty. Please email service@mangopower.com if you have any inquiries.
