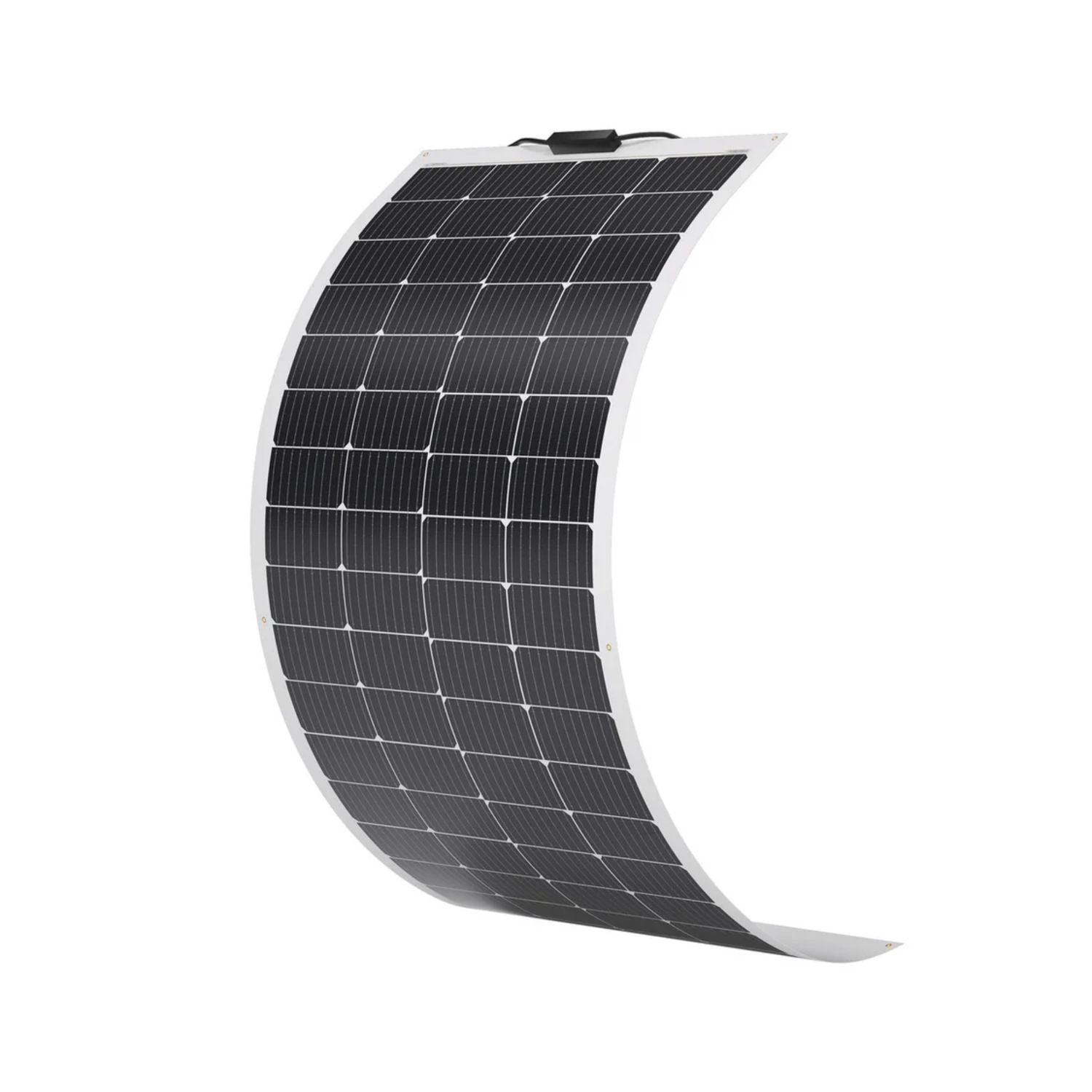

The Renogy 200W 12V Flexible Solar Panel Puts Serious Solar Output on Curved Roofs at Just 10.8 Pounds
The Renogy 200W 12V Monocrystalline Flexible Solar Panel delivers up to about 1,000 watt-hours per day with 5 to 6 hours of direct sun, which is enough to keep a 12V fridge, lights, fans and electronics running in an RV, van or boat. It flexes up to 240 degrees, weighs only 10.8 lbs and is about 0.1 inches thin, so it can cover a large section of a curved roof without the weight of rigid glass panels.

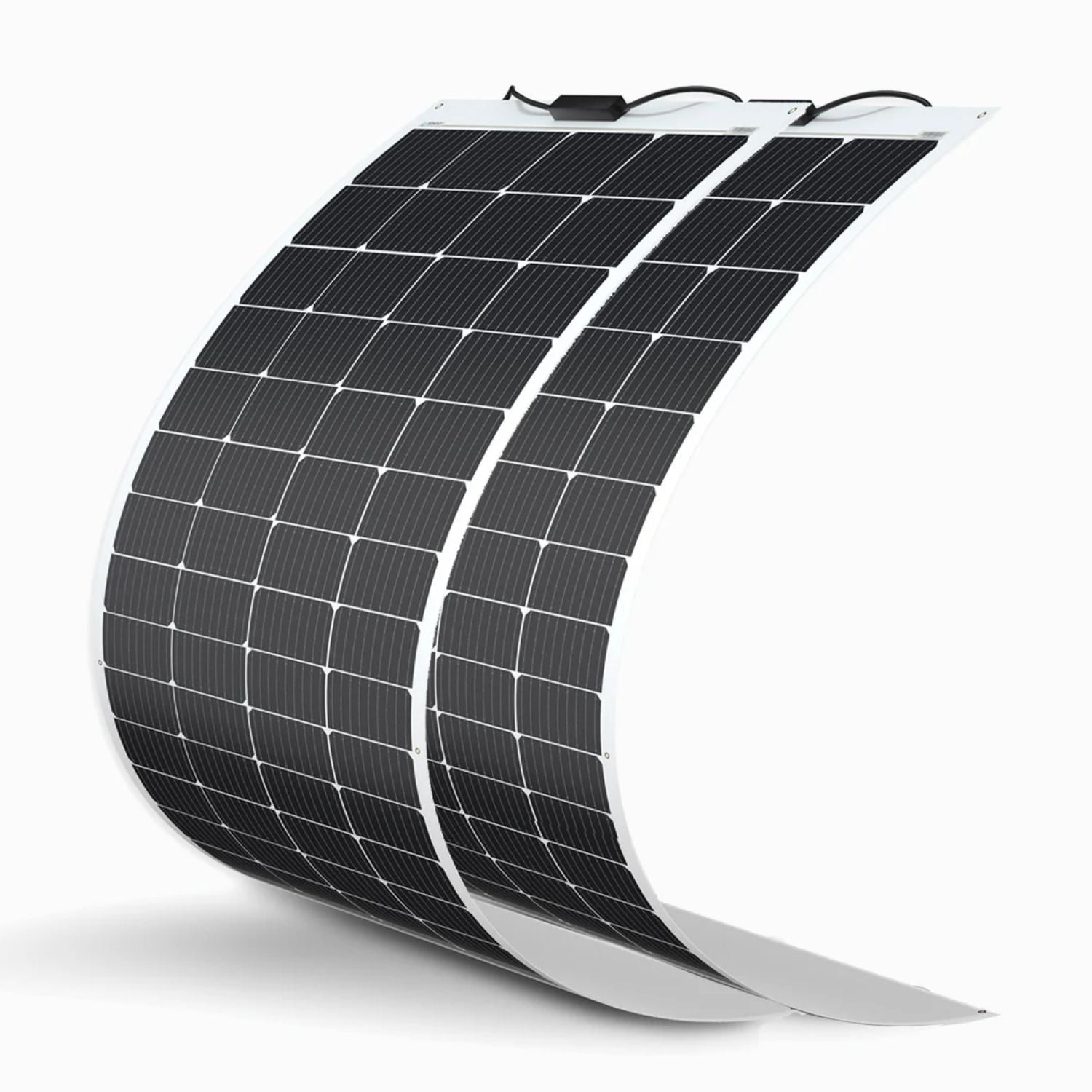

A durable ETFE surface, 9 busbar half-cut monocrystalline cells and bypass diodes improve light transmission, efficiency and shade tolerance. The junction box is rated IP68 and the connectors IP67. Choose a single panel or a 2 or 4 pack for larger systems.
Renogy 200W Flexible Solar Panel Features

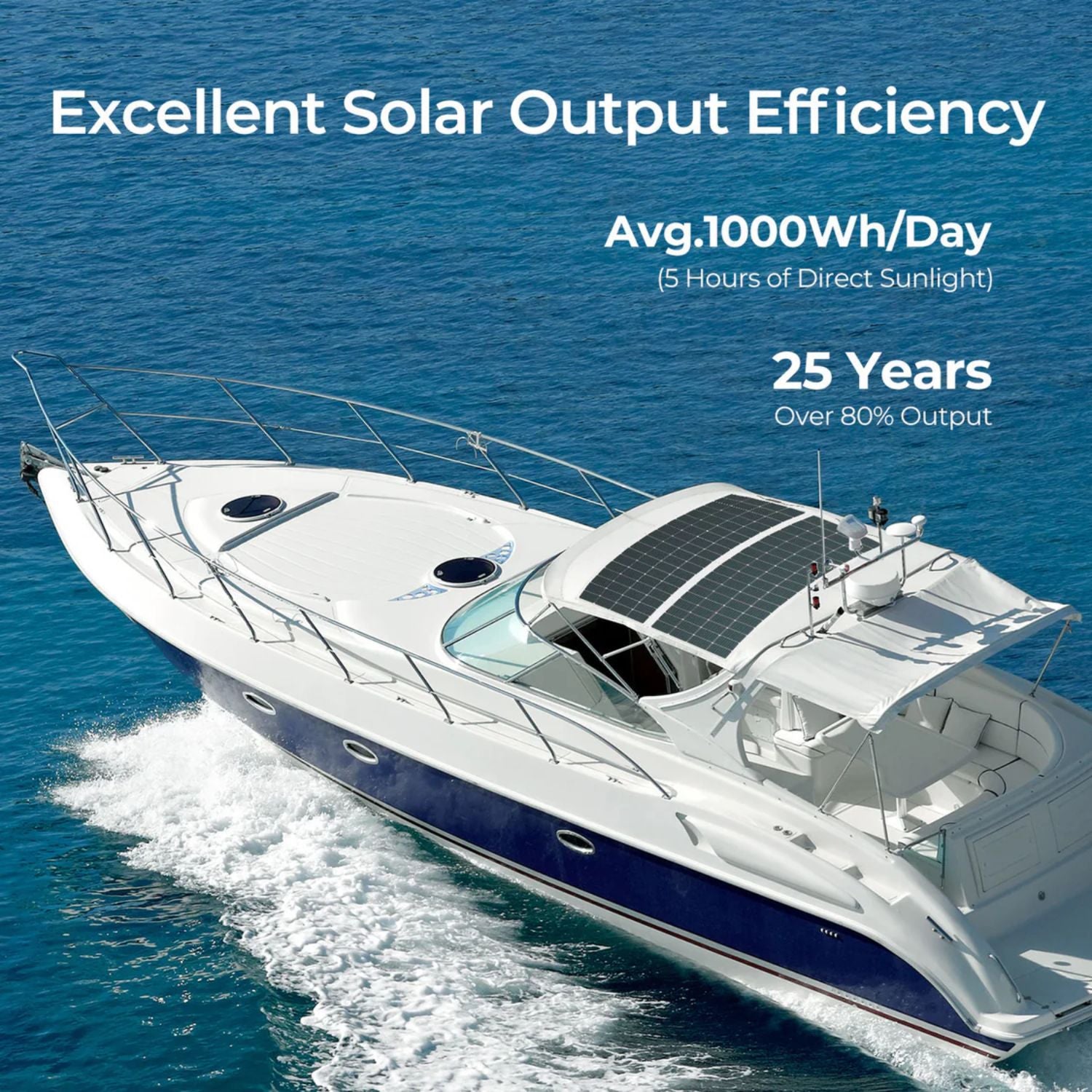

About 1,000Wh per Day
With 5 to 6 hours of direct sunlight, one panel produces around 1kWh per day, a meaningful contribution to RV, van and marine battery banks.

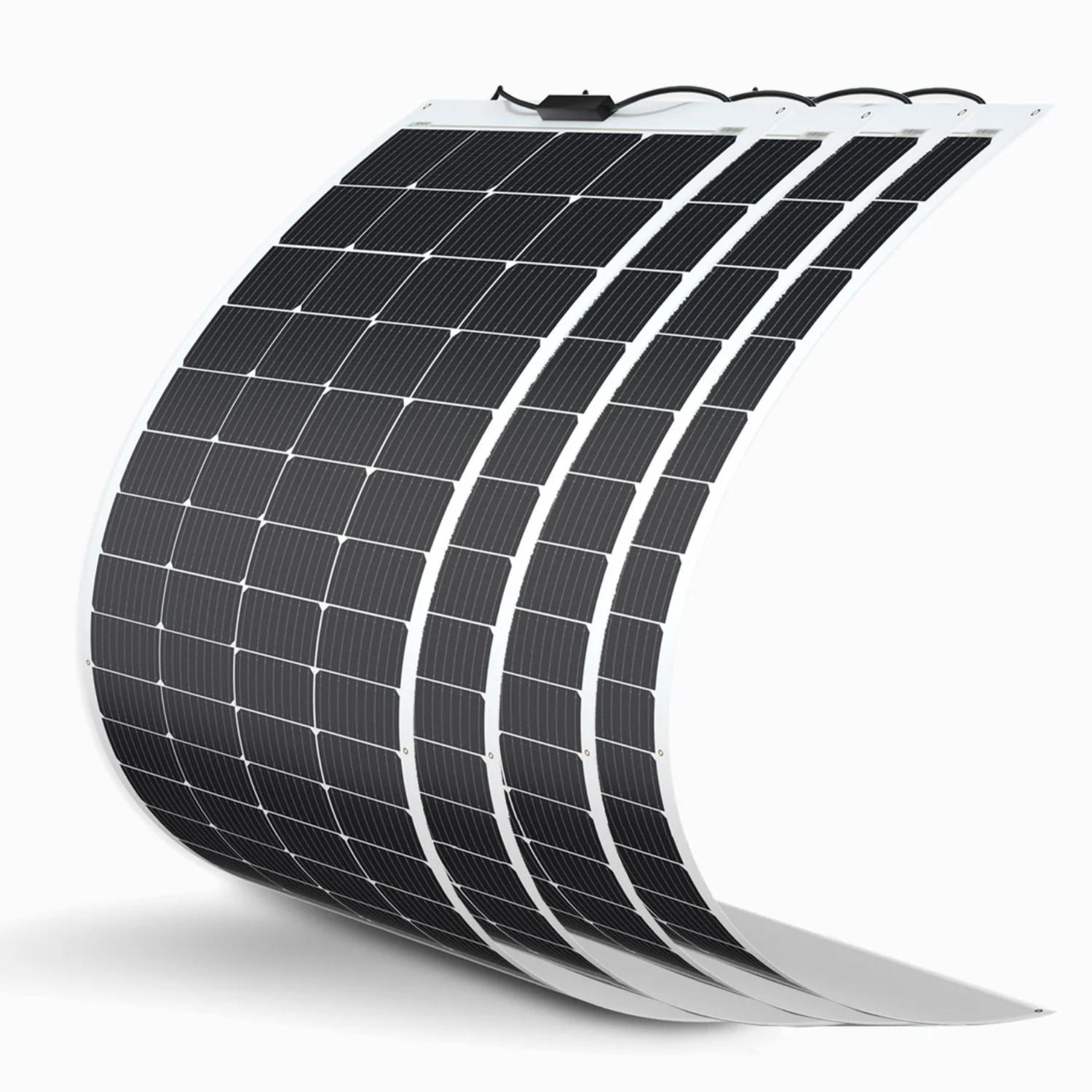

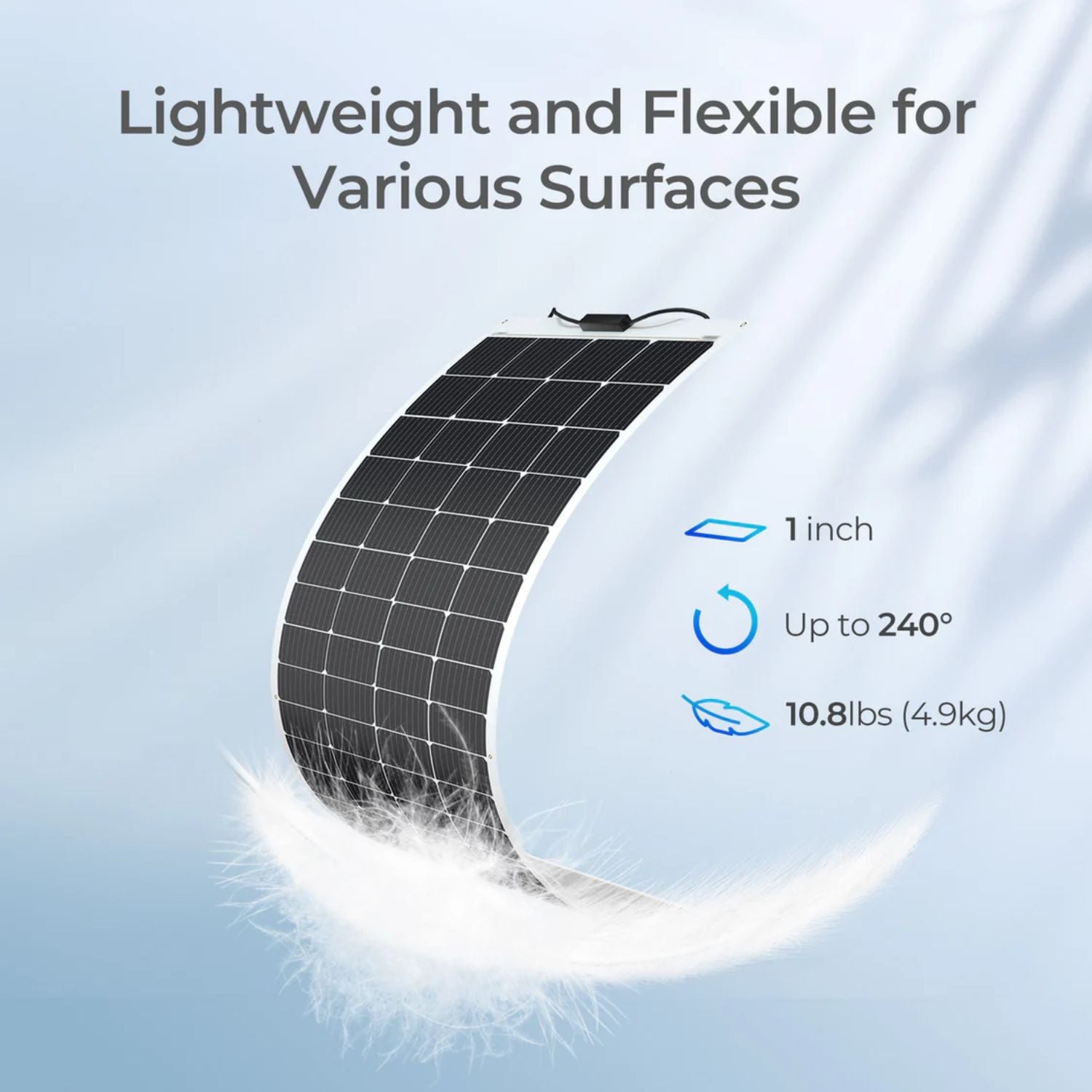

Flexes up to 240 Degrees
The panel conforms to curved roofs, hulls and canopies without a rigid frame or rack.

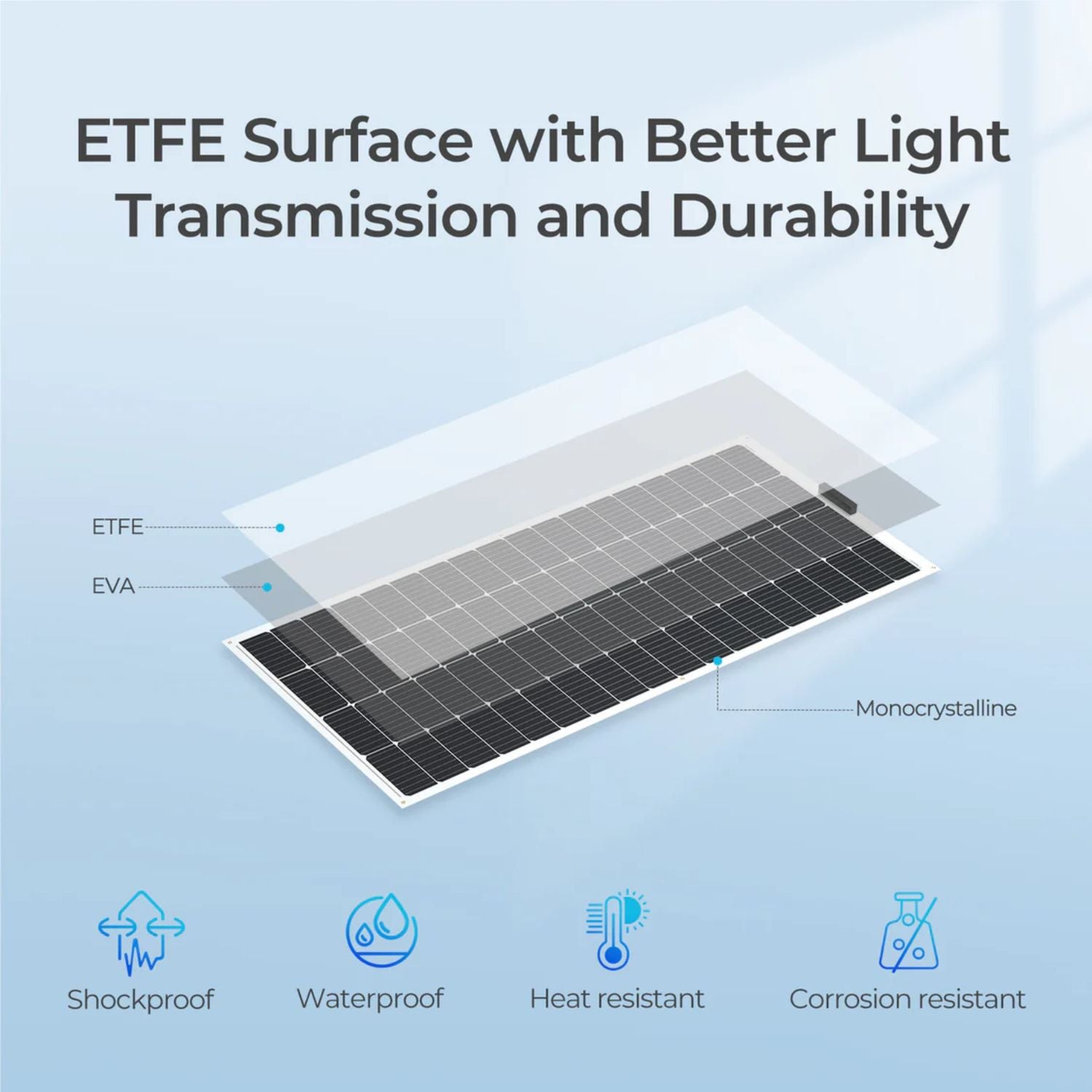

ETFE Surface and 9BB Cells
An ETFE top layer offers high light transmittance and better durability than PET, and 9 busbar cells improve conversion efficiency.

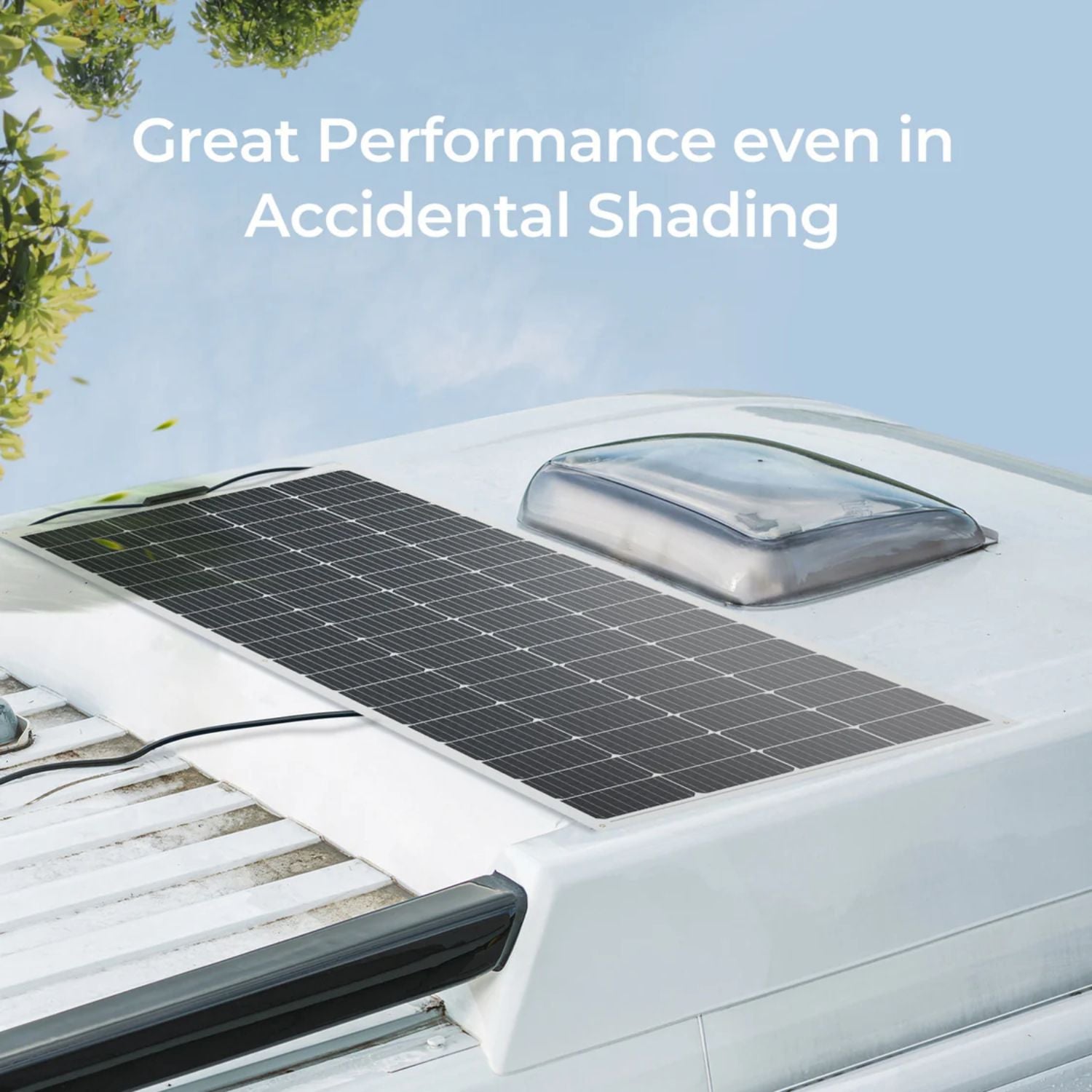

Shade and Hot Spot Resistance
Half-cut cell technology and bypass diodes help the panel keep producing when part of it is shaded and reduce the risk of hot spots.

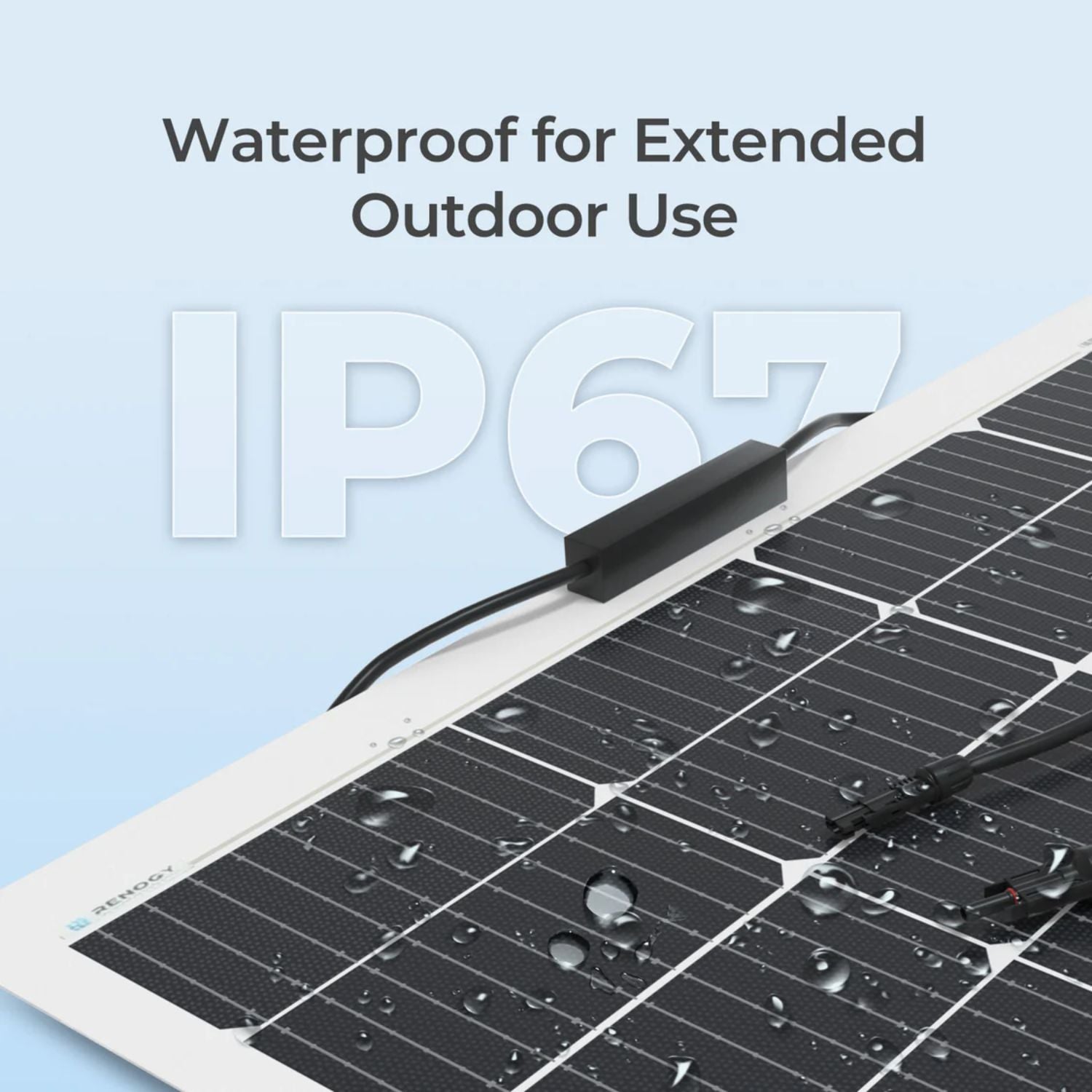

Sealed Electrical Components
An IP68 junction box and IP67 solar connectors keep out water and dust. The 12 AWG output cables are 2.3 feet long.
Output Warranty
Renogy warrants the panel to maintain more than 90% output for 5 years, along with a 5-year materials and workmanship warranty.
Real-World Applications
RVs and travel trailers. Cover curved fiberglass or aluminum roofs with high-output solar.
Camper vans. A pair of 200W panels can cover much of a van roof and keep a lithium bank charged.
Boats. Add substantial charging to a bimini, hardtop or cabin roof.
Overland trucks and trailers. Power a fridge, compressor and lights on extended trips.
How It Compares to Common Alternatives
Versus a rigid 200W panel. Rigid panels weigh several times more and need flat mounting with brackets, but they generally last longer and run cooler. The flexible panel is better for curves and weight-sensitive roofs.
Versus two 100W flexible panels. Two smaller panels can fit oddly shaped spaces, while one 200W panel means fewer connections and a simpler install.
Mixing with rigid panels. Flexible and rigid panels can be combined as long as their electrical specs match, such as wiring panels with the same voltage in parallel.
Is This Panel the Right Fit
-
Charge controller. Each panel produces about 10A at 20V. Use an MPPT controller sized for your total array.
-

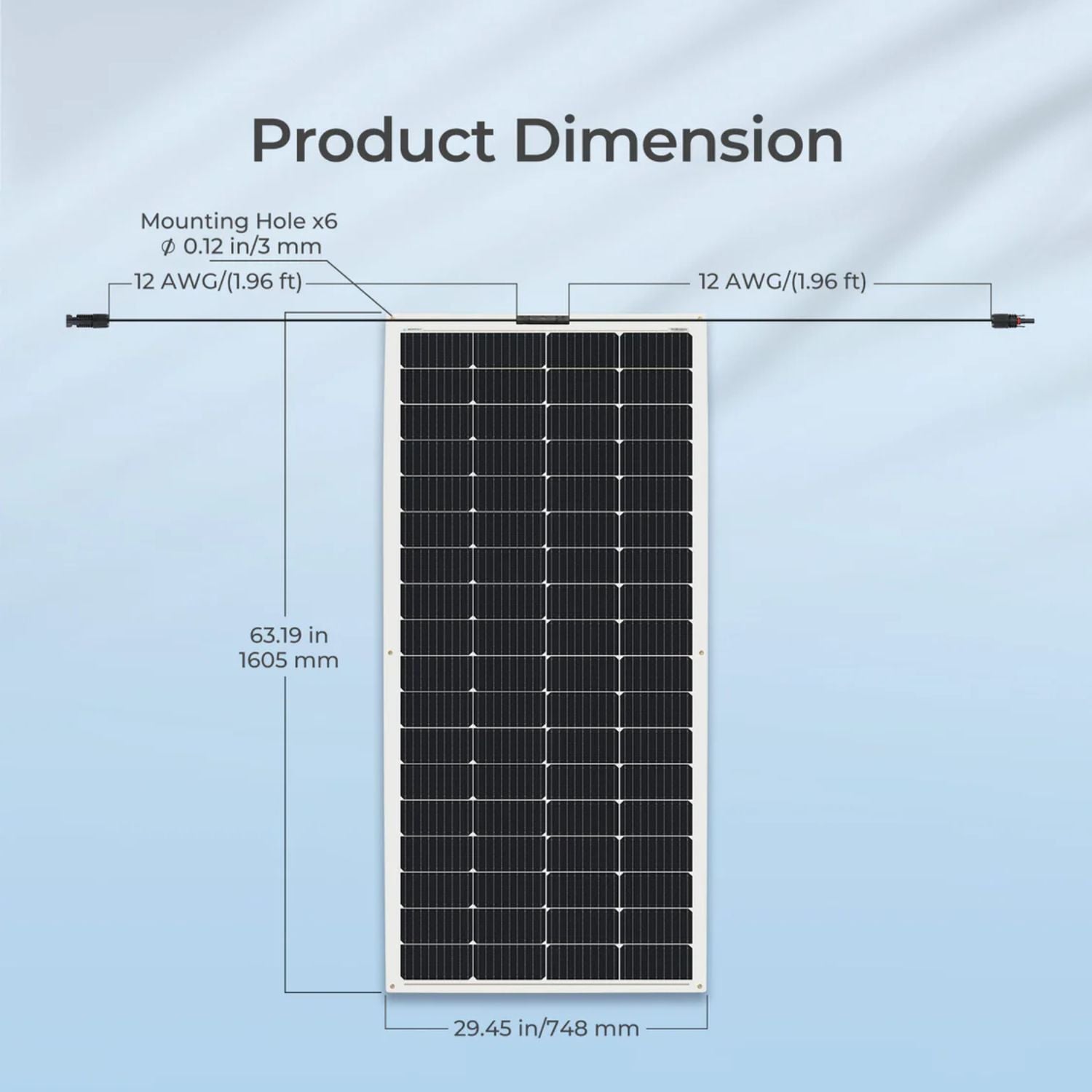

Roof space. The panel measures 63.2 x 29.4 inches. Measure your roof before ordering multiple panels.
-
Mounting. Bond with a structural adhesive on vehicles and boats, and leave airflow where possible.
-
Foot traffic. Do not walk on the panel.
This may be a good fit if
- You need high solar output on a curved or weight-limited roof
- You run a 12V fridge, lights and electronics off-grid
- You want a low-profile install with minimal drag
- You plan a multi-panel flexible array
Common Questions
How Is a Flexible Panel Different From a Rigid Panel?
Both generate electricity from sunlight. Flexible panels are thin, light and bendable, while rigid panels are encased in glass with a metal frame, making them heavier but more durable.
Will It Produce Power on Cloudy Days?
Yes, but output will be much lower than in direct sun.
Can I Walk on It?
No. Concentrated pressure can crack the cells.
How Do I Clean It?
Use a microfiber cloth with water or a mild glass cleaner to remove dirt and residue.
What's Included
- 1, 2 or 4 x Renogy 200W 12V Flexible Monocrystalline Solar Panel (based on option selected), each with 2.3 ft output cables
High-Output Flexible Solar for Life on the Road
The Renogy 200W 12V Flexible Solar Panel brings about 1kWh of daily solar charging to RVs, vans and boats without the weight of rigid panels. At Outbound Power, we help customers plan solar arrays and match them with controllers and batteries. If you have questions, our team is happy to help.
Renogy Flexible 200W Solar Panel Specifications
|
| Model |
RSP200DB-72 |
| Cell Type |
Monocrystalline, half-cut, 9BB (6.5 x 3.3 in) |
| Number of Cells |
72 (18 x 4) |
| Maximum Power at STC |
200W |
| Module Efficiency |
16.7% |
| Optimum Operating Voltage (Vmp) |
20.1V |
| Optimum Operating Current (Imp) |
10.02A |
| Open Circuit Voltage (Voc) |
23.9V |
| Short Circuit Current (Isc) |
10.74A |
| Maximum System Voltage |
600VDC |
| Maximum Series Fuse Rating |
15A |
| Surface |
ETFE |
| Flex Range |
Up to 240 degrees |
| Junction Box |
IP68 |
| Solar Connectors |
IP67 |
| Output Cables |
12 AWG, 2.3 ft |

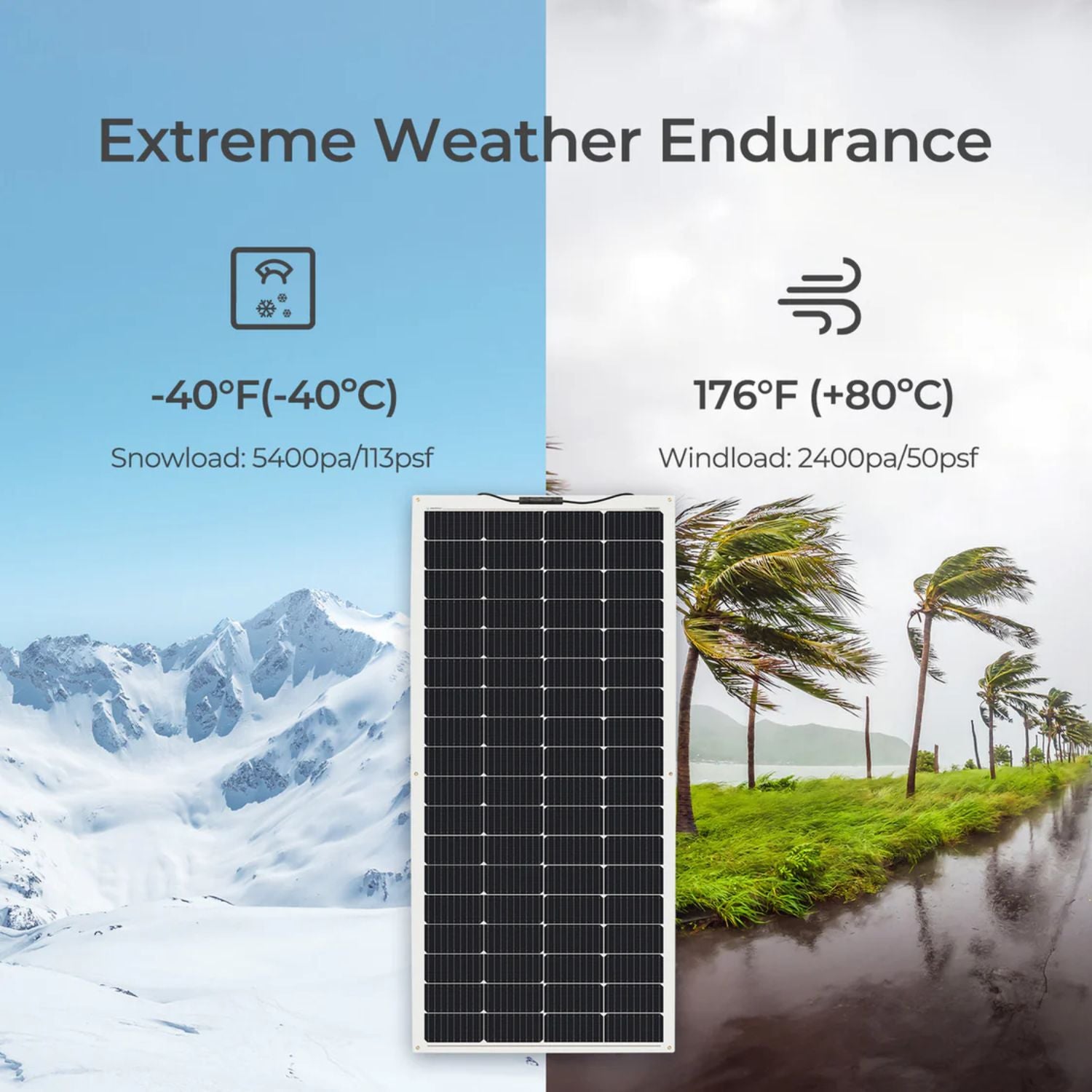

| Operating Temperature |
-40°F to 176°F (-40°C to 80°C) |
| Dimensions |
63.2 x 29.4 x 0.1 in (1605 x 748 x 3 mm) |
| Weight |
10.8 lbs (4.9 kg) |
| Certifications |
CE, ISO9001 |
| Warranty |
5-year materials and workmanship; 90% output at 5 years |
