The Renogy 12V 200Ah Pro Smart Lithium Battery Powers Your Off-Grid Adventures with Reliability
The Renogy 12V 200Ah Pro Smart Lithium Battery redefines power solutions for vanlife, off-grid homeowners, and overland travelers. Engineered with advanced LiFePO4 technology, this battery offers exceptional reliability, safety, and convenience for all your energy needs. Its self-heating function, Bluetooth connectivity, and rugged design ensure you stay powered in any environment, from icy winters to scorching summers. Whether you're on the road, water, or remote land, this battery delivers consistent, clean energy to keep your devices running and your adventures uninterrupted.
With the Renogy 12V 200Ah Pro, youâll experience unmatched efficiency and reliability. Designed for demanding environments, it withstands vibrations, water splashes, and extreme temperatures. This battery provides a robust energy supply for campervans, marine vessels, and remote cabins, empowering you to enjoy modern comforts off the grid without worry.
Renogy 12V 200Ah Pro Smart Lithium Battery Features
Advanced Safety Technology to Shield Against Electrical and Thermal Hazards
Equipped with automotive-grade Battery Management System (BMS), this battery ensures comprehensive protection with over 60 safety features, shielding against electrical and thermal hazards.

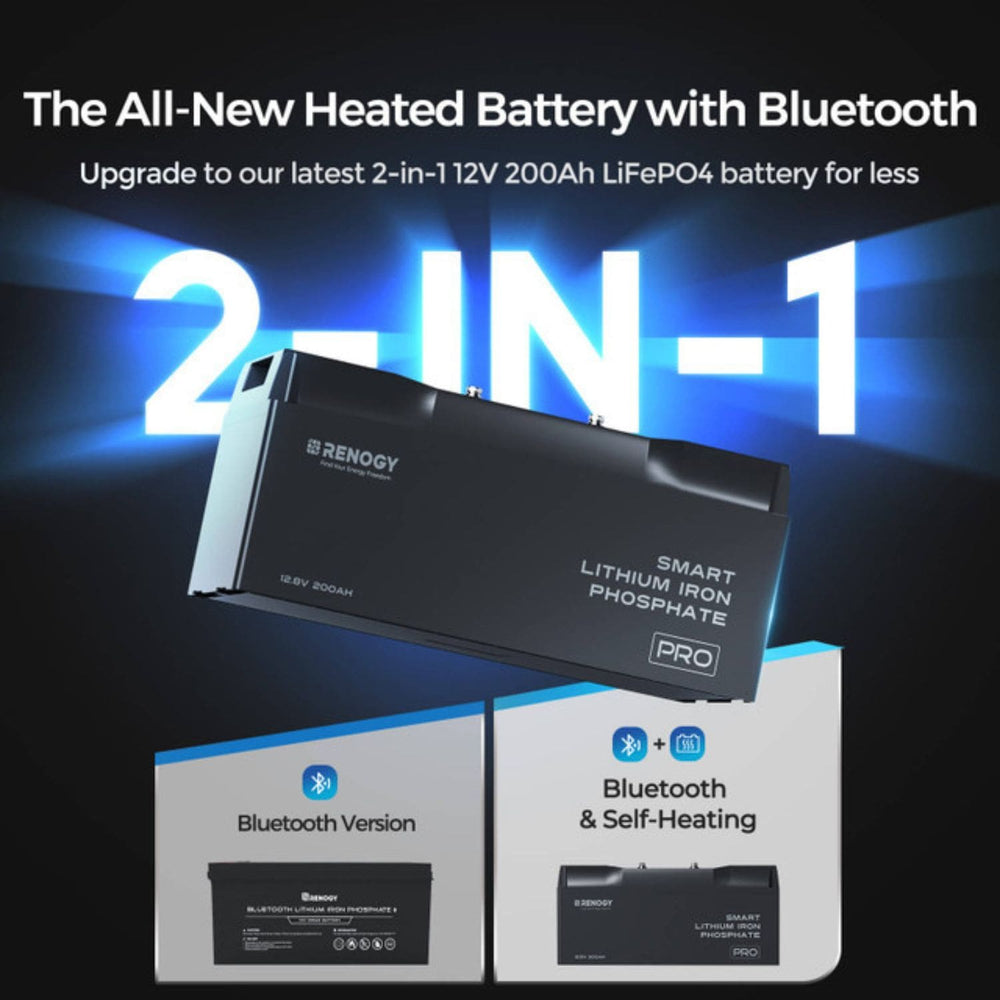

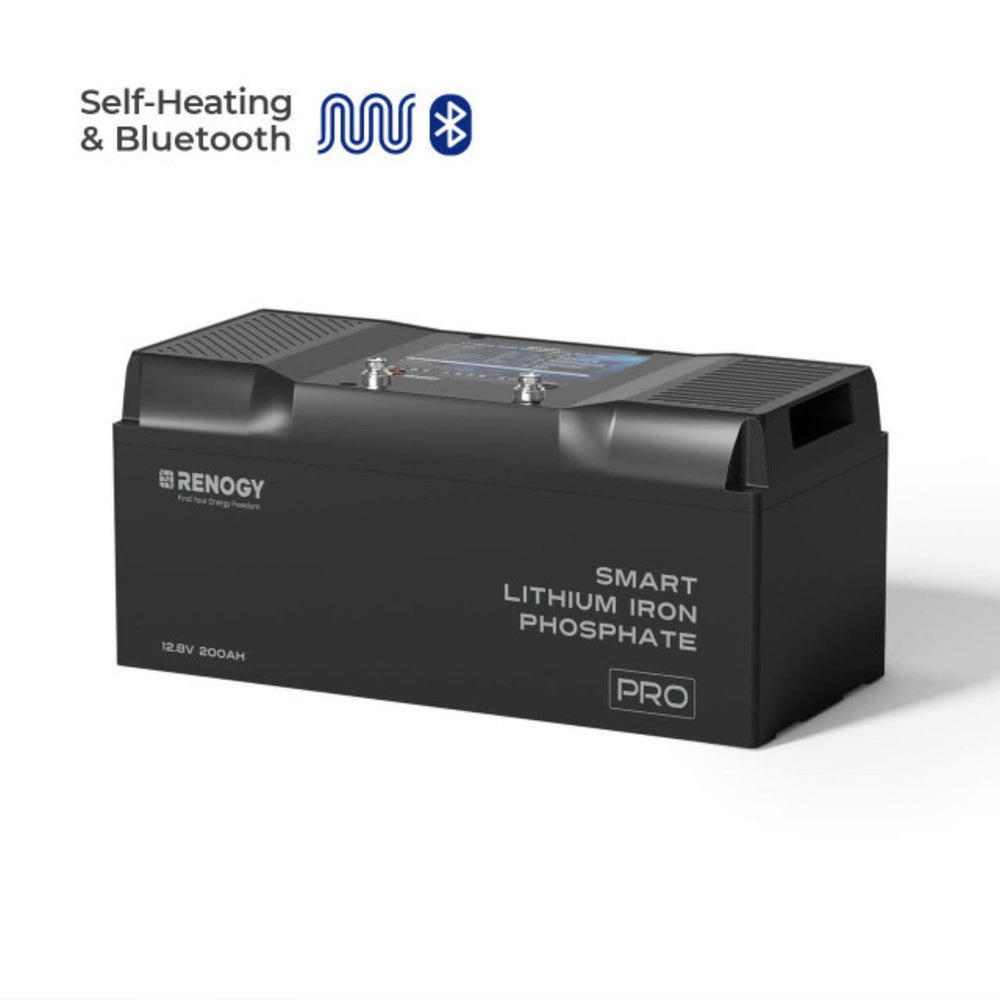

Self-Heating for Frigid Winter Use
Charge worry-free in sub-zero conditions with the self-heating function, which activates at charging currents over 6A. Perfect for powering freezers, heaters, and essentials in cold climates.
Bluetooth Connectivity So You Can Track Your Battery's Status From Your Smarthphone
Monitor and control your battery performance through the DC Home app. Track charge levels, update firmware, and optimize efficiency from your smartphone.
Superior Durability For Use in Harsh Environments

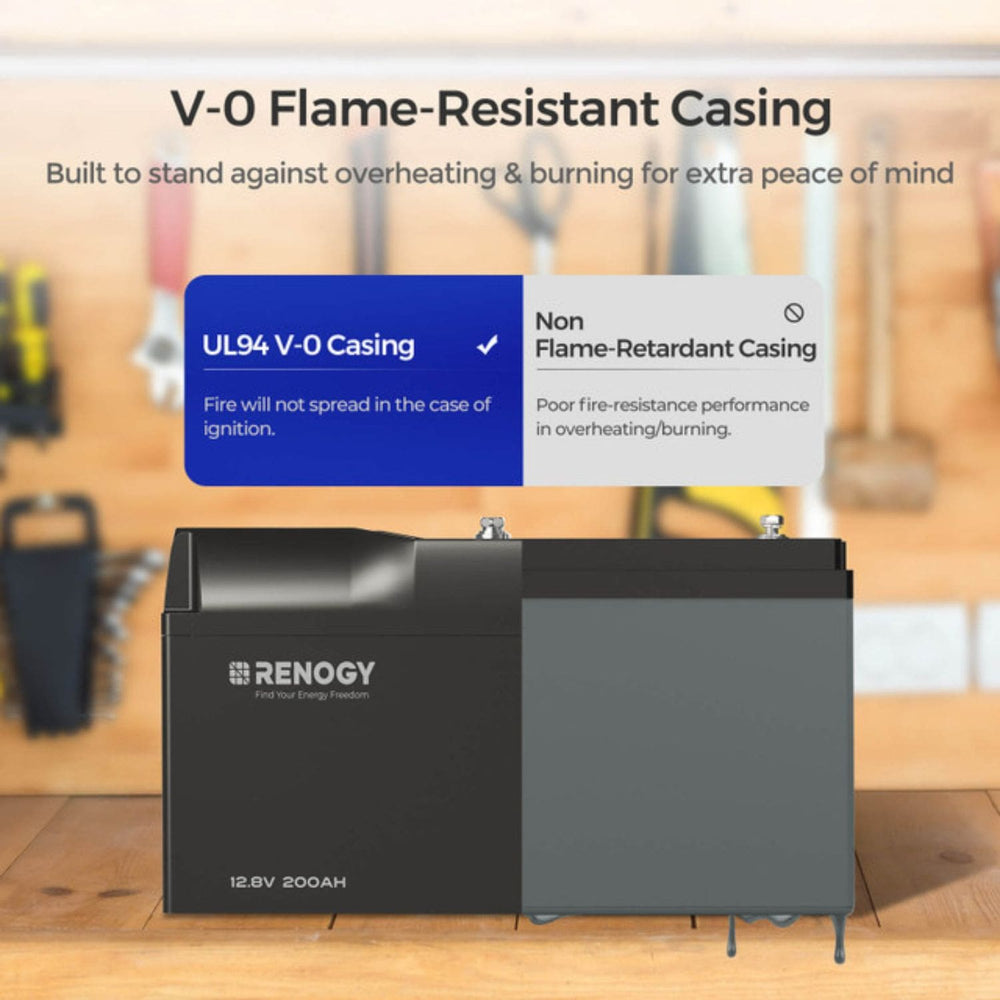

Certified IP67 for waterproof, dustproof, and corrosion resistance. Its fire-retardant casing enhances safety by limiting vertical fire spread to under 10 seconds, ensuring reliable performance in harsh environments.
Connect Up To 8 Batteries in Parallel For More Robust Power Potential
Expand your power system effortlessly. Connect up to 8 batteries in parallel to build a high-capacity energy solution for extensive off-grid needs.
Renogy 12V 200Ah Pro Smart Lithium Battery Warranty
Renogy provides 7 - year warranty policy, ensuring the absence of defects in materials, workmanship, and performance during the warranty period.
What's Included
- 1 x Renogy Pro Smart 12V 200Ah Lithium Iron Phosphate Battery
- 2 x Terminal Bolts (M8 x 1.25 x 12 mm)
- 2 x Long Terminal Bolts (M8 x 1.25 x 16 mm)
- 1 x User Manual
Renogy 12V 200Ah Pro Smart Lithium Battery Specifications
| Battery Type |
Lithium Iron Phosphate |
| Voltage |
12.8V |
| Rated Capacity |
200Ah (0.5C, 25â) |
| Charge Voltage |
10V to 14.8V |
| Maximum Charge Current |
200A |
| Maximum Discharge Current |
200A |
| Cycle Life |
(0.5C, 25â): 5000 Cycles (80% DOD, 80% EOL) |
| Peak Discharge Current |
270A@30s |
| Charge Temperature Range |
-4°F~131°F | -20°C~55°C |
| Discharge Temperature Range |
-4°F~140°F | -20°C~60°C |
| Storage Temperature Range |
-13°F to 149°F | -25°C to 65°C |
| Operation Relative Humidity |
10% to 95% |
| Connection Method |
Parallel (Up to 8) |
| Communication Protocol |
Bluetooth |
| Terminal Bolt Size |
Terminal Bolt: M8 x 1.25 x 12 mm Long Terminal Bolt: M8 x 1.25 x 16 mm |
| Recommended Terminal Torque |
70.8 inch¡lbs / 8 N¡m |
| Housing Material |
PC/ABS |
| Protection Rating |
IP67 |
| Flame Retardancy |
UL94 V-0 |
| Dimensions |
18.4 x 8.4 x 8.2 in | 467 x 212 x 208 mm |
| Weight |
50.7 lb | 23 kg) |
Accessories
|
|
| Terminal Bolts (2) |
2 x M8 x 1.25 x 12 mm |
| Long Terminal Bolts (2) |
2 x M8 x 1.25 x 16 mm |
| Material and Workmanship Warranty |
7 Years |
| Certifications |
UL, MSDS, UN38.3, FCC, CE, PSE, and UKCA:Â Yes |
Frequently-Asked Questions
What is the cycle life of this batteryďź
Cycle Life (0.5C, 25â): 5000 Cycles (80% DOD, 80% EOL)
What is the grade and type of cell inside this battery?
The internal cells of this battery are prismatic cells, which are EV-grade battery cells (Class A).
What is the IP protection rating of this battery?
IP67
What are the advantages of this battery?
- 60+ EV-grade BMS Protection
- Active Backup Protection
- V-0 Flame-Resistant Casing
- IP67 Protection Rating
- EV-grade Cells (Class A)
- Communication via Bluetooth
- Self-heating with Overheat Protection
What does the double active safety system mean?
The Double Active Safety Design built into this 12V 200Ah Pro LiFePO4 Battery consists of 60+ Battery Management System (BMS) protection and active backup protection. They combine to prevent hazards incurred by electrical and other types of abuse before inviting great dangers to you and your system's safety.
What is the active backup protection?
For the first time, Renogy introduces Active Backup Protection into the safety design of the deep-cycle LiFePO4 battery to act fast in response to potential risks. And the newly integrated self-control fuses contribute to that efficiency. Unlike conventional fuses which take longer time to work, the Active Backup Protection can be provided instantly against overvoltage and overheating even if other key hardware components break.
To ensure the battery cycle life, what is the recommended depth of discharge (DOD)
Do not exceed 80%.
What are the installation requirements for the batteryďź
- The battery installation environment must be clean, cool, and well-ventilated. Keep the battery away from oil and dirt. The accumulation of these substances can cause current leakage, resulting in self-discharge and a possible short circuit.
- Safe operation requires environment temperatures between -4â-140â (-20â-60â). The recommended operating environment temperature range is 59°F (15°C) to 86°F (30°C).
- At the same time, the battery can be installed on its side or vertically. It should not be stacked or placed upside down.
How can the battery be connected?
The battery can only be connected in parallel (up to 8).
Can the battery communicate with the DC Home APP/Renogy ONE M1/Renogy One Core?
The battery has built-in Bluetooth, so the battery can communicate with DC Home APP/ Renogy ONE M1/ Renogy ONE Core.
Can I use this battery with other brands of batteries in parallel?
No, these batteries connected in parallel need to be the same brand, same type, same voltage, and same capacity.
Before connecting the batteries in parallel, are there any principles to follow to make the battery pack charge and discharge balanced?
- The initial state of the batteries should be the same. It is generally recommended to fully charge the batteries separately. Put the batteries aside for half an hour until the difference in the open circuit voltage between the batteries is less than 0.1V. Then you can connect batteries in parallel. After 24 hours, you can connect the battery packs to the system.
- The time interval between the old and new batteries in parallel should not exceed six months.
- It is recommended that the wiring cables between parallel batteries are wired according to the content of the battery product manual.
Does the battery automatically enter the shelf mode when it is not used for a long time?
No, the battery will not enter the Shelf Mode when it is not used for a long time.
What is the self-discharge rate of this battery?
The self-discharge rate of this battery is less than 3% per month.
I accidentally over-discharged the battery, resulting in the battery under-voltage protection. What kind of charger should I use to charge the battery?
Remove all the wiring cables on the battery in time.
Use the charger that matches the battery and has a lithium activation function to activate and charge the battery for more than 24 hours at the ambient temperature of above 41°F (below 131°F), and when the terminal voltage of the battery is restored to above 12.4V, then the battery will be charged normally.
What kind of charger should I choose to charge this battery?
match 12V LFP batteryďź
match charger charging parameters with the battery charging parameters;
the charge current is less than the maximum continuous charging current of 100A for the battery
he charger with reverse polarity, overcurrent, overvoltage, and overtemperature protection functions
Does the battery have a self-heating function? If so, what are the working conditions of the battery's self-heating function?
Yes, the battery has the self-heating function
The working conditions of the battery's self-heating function are shown belowďź
The normal operation of the self-heating function requires a stable charge current greater than 6A for each battery in the parallel battery bank. The self-heating function will start operating automatically once the battery and the battery temperature drops below 41°F (5°C) and stop operating automatically once the battery temperature rises above 50°F (10°C). The temperature rise rate is approximately 46.4°F (8°C) per hour when running at full power of 85W (6A).
We suggest a battery charger whose continuous output voltage is above 14V to ensure smooth operation for the battery to heat up. Renogy 12V 20A AC-DC LFP Battery Charger is recommended.
How do I store the battery?
Please follow the tips below to ensure that the battery emerges from storage in good conditionďź
Charge the battery to 30%-50%.;
Disconnect the battery from the system;
Do not expose the battery to direct sunlight, moisture, or precipitation;
Store the battery in a well-ventilated, dry, clean area with temperatures between -13â-149â(-25â-65â);
Handle the battery carefully to avoid sharp impacts or extreme pressure on the battery housing;
Charge the battery at least once every 3~6 months to prevent it from overdischarge;
Fully charge the battery when it is taken out of storage.
