The Renogy Starter RV Kit N-Type 400W 12V Solar Kit Offers A Reliable Power Solution For Adventurous Lifestyles
The Renogy Starter RV Kit N-Type 400W 12V Solar Kit is the ultimate solution for those seeking reliable and sustainable energy on the go. Whether you’re a weekend RVer, a full-time road warrior, or simply someone who loves to explore off-grid living, this solar kit provides the energy independence you crave. Its highly efficient solar panels generate clean energy from sunlight to power your devices and appliances, so you can enjoy the great outdoors without the worries of running out of battery.
When it comes to real-world applications, the Renogy Starter RV Kit N-Type 400W 12V Solar Kit shines. For homeowners looking for a reliable backup power solution, this solar kit provides the necessary energy during outages, keeping your appliances functional. If you’re an RVer or an off-grid adventurer, this kit allows for camping without the need for a noisy gas generator – giving you the peaceful outdoor experience you desire. Moreover, mobile businesses can benefit from consistent power supplies, ensuring operations run smoothly wherever they are.
Renogy Starter RV Kit N-Type 400W 12V Solar Kit Features
Efficient Solar Power So That You Maximize Energy Generation
Experience the power of high solar efficiency with N-type solar cells boasting a remarkable 25% cell conversion efficiency. The kit features bypass diodes that minimize power loss caused by shading, ensuring that you get optimal performance even in low-light conditions.
Reliable Quality for Long-Lasting Performance
Constructed using EL tested solar modules, the Renogy Starter RV Kit ensures that hot-spot heating is prevented, extending its lifecycle. The corrosion-resistant aluminum frame is built for long-term outdoor use, making it suitable for various environments and conditions.
Smart Charging for All Battery Types
Charging your batteries is a breeze with the Renogy Adventurer 30A PWM Charge Controller. It features a sophisticated 4-stage battery charging process compatible with Sealed, Gel, Flooded, and Lithium battery types. This ensures a rapid, efficient, and safe battery charging experience.
Safe Operation So That You Can Enjoy Peace of Mind
Safety is a priority, and the Renogy Adventurer is equipped with multiple electronic protections, including safeguards against reverse current, overcharging, short circuits, and overloads. This comprehensive set of protections ensures that your batteries and solar power system remain secure and functional. The pre-drilled holes on the back frame allow for fast and secure mounting of the solar panels, facilitating a hassle-free installation process.
Expandable System for Future Growth
One of the greatest features of the Renogy Starter RV Kit is its expandability. The Renogy Adventurer 30A Charge Controller can power up to a maximum of 400W, allowing you to expand your system as your energy needs grow. The option to add more solar panels using the Renogy 100W Expansion Kit makes it easy to enhance your setup without complexity.

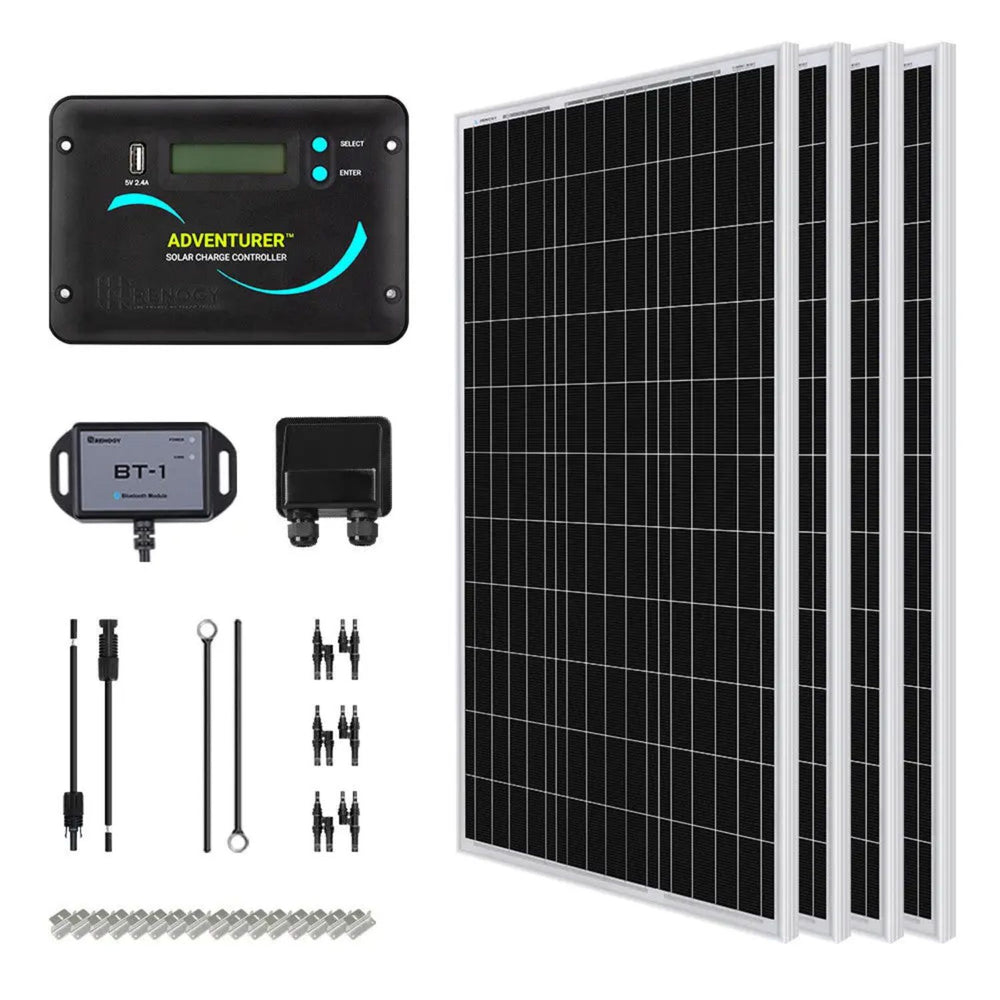

What's Included
- 4 x 100W N-Type Solar Panels
- 1 x Renogy Adventurer-30A PWM Charge Controller
- 1 x Renogy Cable Entry Housing
- 1 x Renogy 30ft 10AWG Solar Adaptor Kit
- 1 x Renogy 16ft 10AWG Tray Cables
- 3 x Renogy Solar Y Branch Connectors
- 4 x Mounting Z Brackets

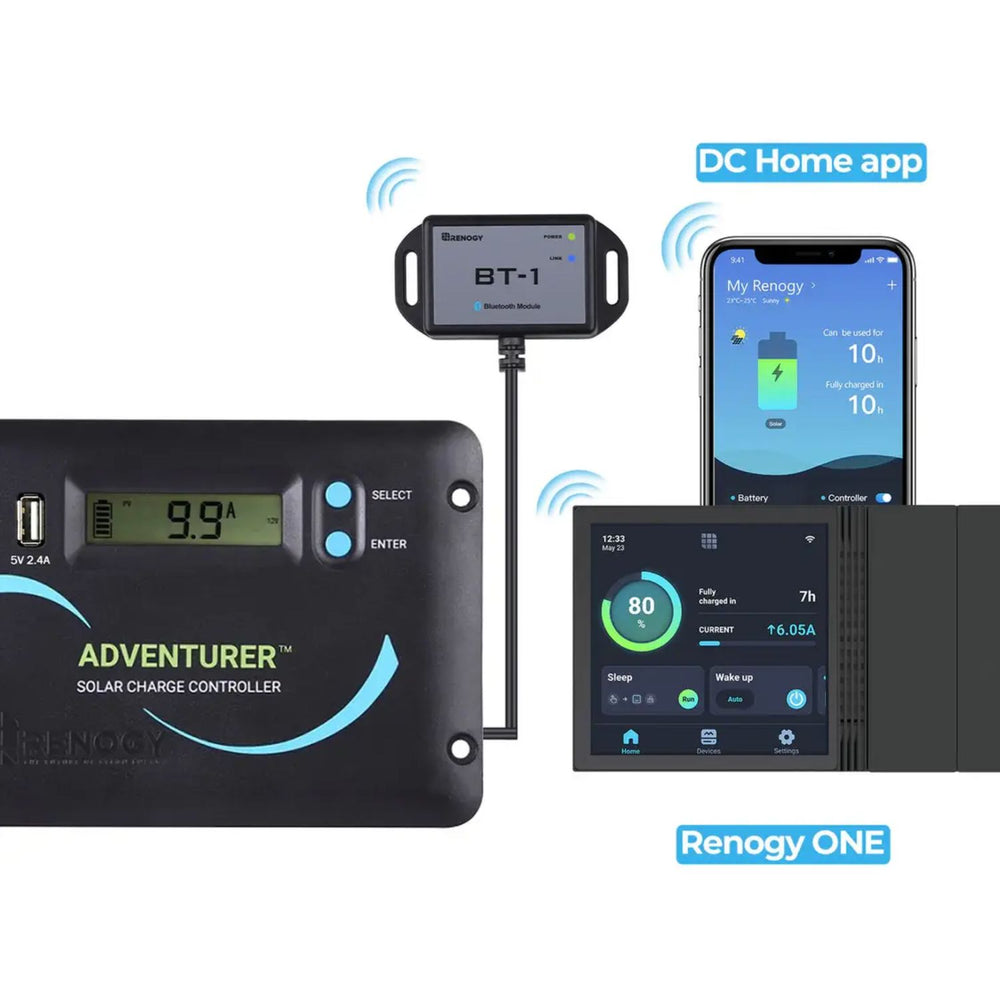

- 1 x Renogy BT-1 Bluetooth Module
Renogy Starter RV Kit N-Type 400W 12V Solar Kit Specifications
|
RENOGY 100W 16BB SOLAR PANEL
|
|
| Maximum Power |
100W |
| Maximum System Voltage |
600V DC (UL) |
| Open Circuit Voltage |
22.79V |
| Optimum Operating Voltage |
19.97V |
| Short-Circuit Current (Isc) |
5.31A |
| Operating Temperature |
-40°F194°F / -40℃90℃ |
| Dimensions |
865x578x30mm / 34.1x22.8x1.2in |
| Weight |
5.9kg / 13.0lbs |
RENOGY ADVENTURER - 30A PWM NEGATIVE-GROUND CHARGE CONTROLLER WITH LCD DISPLAY
|
|
| Nominal Voltage |
12V/24V Auto Recognition |
| Rated Charging Current |
30A |
| Battery Type(s) |
Sealed (AGM), Gel, Flooded, and Lithium |
| Max. PV Input Power |
400W at 12VDC |
| Max. PV Input Voltage |
50 VDC |
| Operating Temperature |
-13°F to 131°F |
| Overall Dimension |
6.56 x 4.50 x 1.90 in |
| Weight |
0.6 lb / 272g |
RENOGY 16FT 10AWG TRAY CABLES (A PAIR)
|
|
| Length |
16ft |
| AWG |
10 |
| Rating Voltage |
600V |
| Temperature |
-40°F to +185°F |
RENOGY 30FT 10AWG SOLAR ADAPTOR KIT (A PAIR)
|
|
| Length |
30ft |
| AWG |
10 |
| Rating Voltage |
600/1000V |
| Temperature |
-40°F to +185°F |
RENOGY BT-1 BLUETOOTH MODULE
|
|
| Standby Power Consumption |
0.04W |
| Communication Range |
≤15m |
| Dimensions |
2.6 x 2.01 x 0.61 in |
| Max. PV Input Power |
400W (12V) |
RENOGY SOLAR Y BRANCH CONNECTORS
|
|
| Withstanding Voltage |
1000V DC(TUV), 600V(UL) |
| Protection Degree |
IP67, mated |
| Wiring Size Range |
10, 12, 14 AWG |
| Temperature |
-40°F to +194°F |
RENOGY CABLE ENTRY HOUSING
|
|
| Material |
UV-resistant ABS Plastic |
| Weight (each component) |
7.9 oz. |
| Recommended Adhesive |
Sikaflex 252 or alike |
| Dimensions (L x W x H) |
4.7 x 3.9 x 2.0 in |
| Cable Gland Diameter Range |
6mm – 12mm |
MOUNTING Z BRACKETS (SET)
|
|
| Included Components |
Eight Long Cap Bolts and Four Short Bolts, Four Spring Washers, Four Washers, Four Z Shape Solar Panel Brackets, Four Nuts |
WARRANTY INFORMATION
|
|
| Panels |
10-year material and workmanship warranty |
| Accessories |
1-year material and workmanship warranty |
