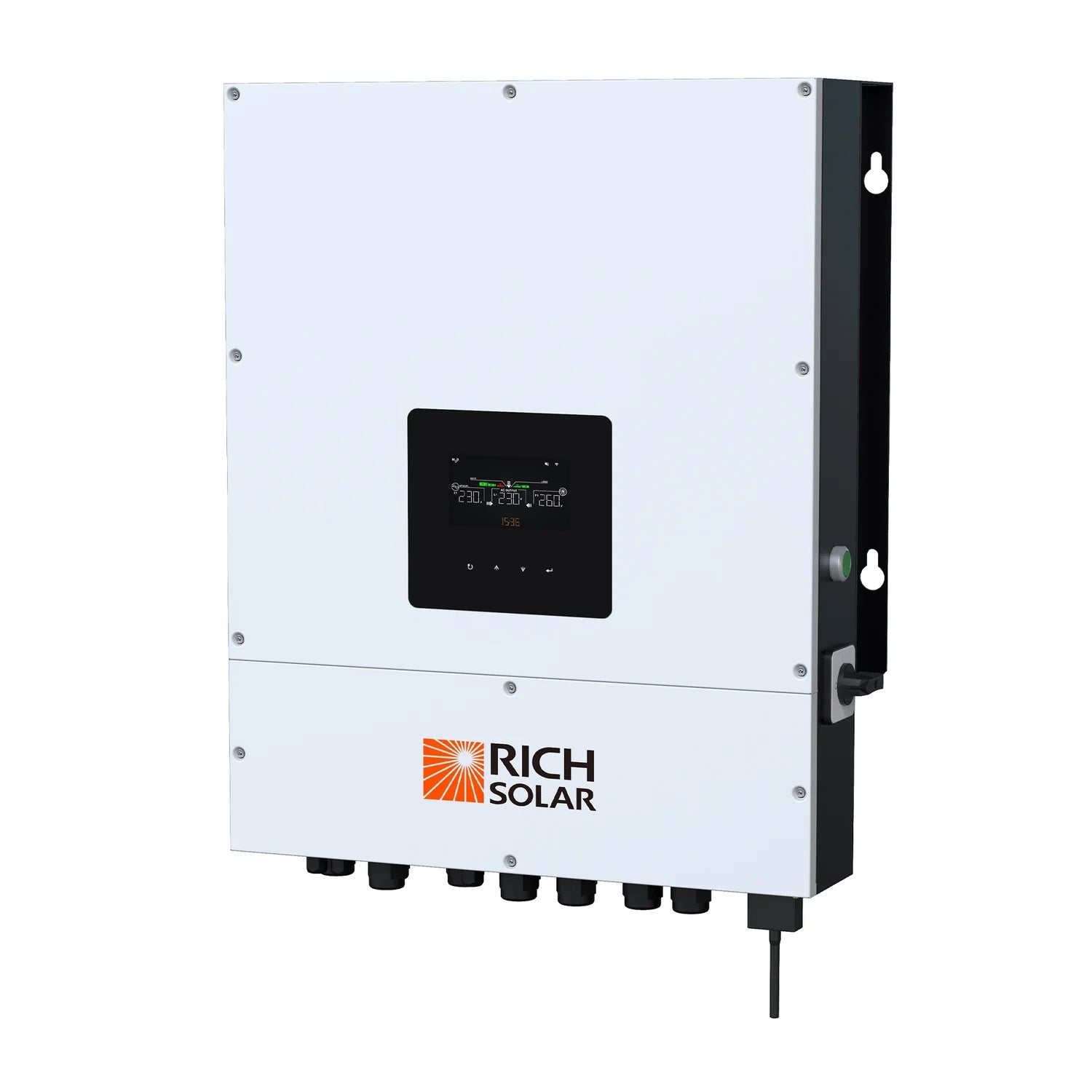

Rich Solar NOVA 8K PV Hybrid Inverter

Take Control Of Your Energy Future With The Rich Solar NOVA 8K PV Hybrid Inverter

Transform your home into a solar powerhouse with the Rich Solar NOVA 8K PV Hybrid Inverter. This feature-packed inverter seamlessly integrates solar energy generation, battery storage, and utility grid backup for unparalleled control and resilience.

The NOVA 8K boasts a maximum PV input power of 12,000 watts, allowing you to connect a substantial solar array to capture the sun's energy and convert it into usable electricity. This translates to significant savings on your electricity bills and a reduced carbon footprint.

The inverter doesn't stop at generating solar power. It also functions as a central hub for your battery storage system. By intelligently managing your battery bank (sold separately), the NOVA 8K ensures excess solar energy is stored for nighttime use or periods of low sunlight. This eliminates dependence on the grid and empowers you with true energy independence.

Rich Solar NOVA 8K PV Hybrid Inverter Features

• IP65 waterproof and dustproof makes the inverter available for various working conditions.
• Configurable color with the built-in RGB LED bar
• Built-in Wi-Fi for mobile monitoring (APP is required)
• Built-in alternative port for generator and emergent load.
• Optional external CT sensor to guarantee 100% self-consumption.
• Programmable supply priority for PV, Battery or Grid.
• Built-in communication port for BMS (RS485).
• User-adjustable charging current and voltage.
• Parallel operation up to 6 units

What's In The Box

• 1 x Rich Solar NOVA 8K PV Hybrid Inverter

25-Year Warranty

• Rich Solar provides a 25-year output warranty for this inverter.

Rich Solar NOVA 8K PV Hybrid Inverter Specifications

• Maximum PV Input Power: 12000W
• Rated Output Power: 6000VA/6000W
• PARALLEL CAPABILITY: Yes, 6 units


INPUT SPECIFICATIONS

• Maximum DC Voltage: 600VDC
• Start-up Voltage/initial Feeding Voltage: 120VDC/160VDC
• MPPT Voltage Range: 120VDC-550VDC
• Frequency Range: 50Hz / 60Hz (Auto detection)

OUTPUT SPECIFICATIONS

• Output Voltage Waveform: Pure Sine Wave
• Nominal Output Voltage: 120VAC(P-N)/208VAC(P-P)/240VAC(P-P)
• Output Voltage Range: 105.5-132VAC per phase
• Nominal Output Current: 25A per phase

BATTERY SPECIFICATIONS

• Battery Voltage: 40-62 VDC
• Maximum Charging Current: 120A
• Efficient(DC to AC): 91%

OPERATING ENVIRONMENT

• Operating Temperature Range: -25°C to 60°C(>45°C derating)

PHYSICAL SPECIFICATIONS

• Dimension (mm): 215.5 x 515 x 700 (with extension box)
• Net Weight : 41kg/90.4lb

Rich Solar NOVA 8K PV Hybrid Inverter Manual

• Rich Solar NOVA 8K PV Hybrid Inverter Manual
