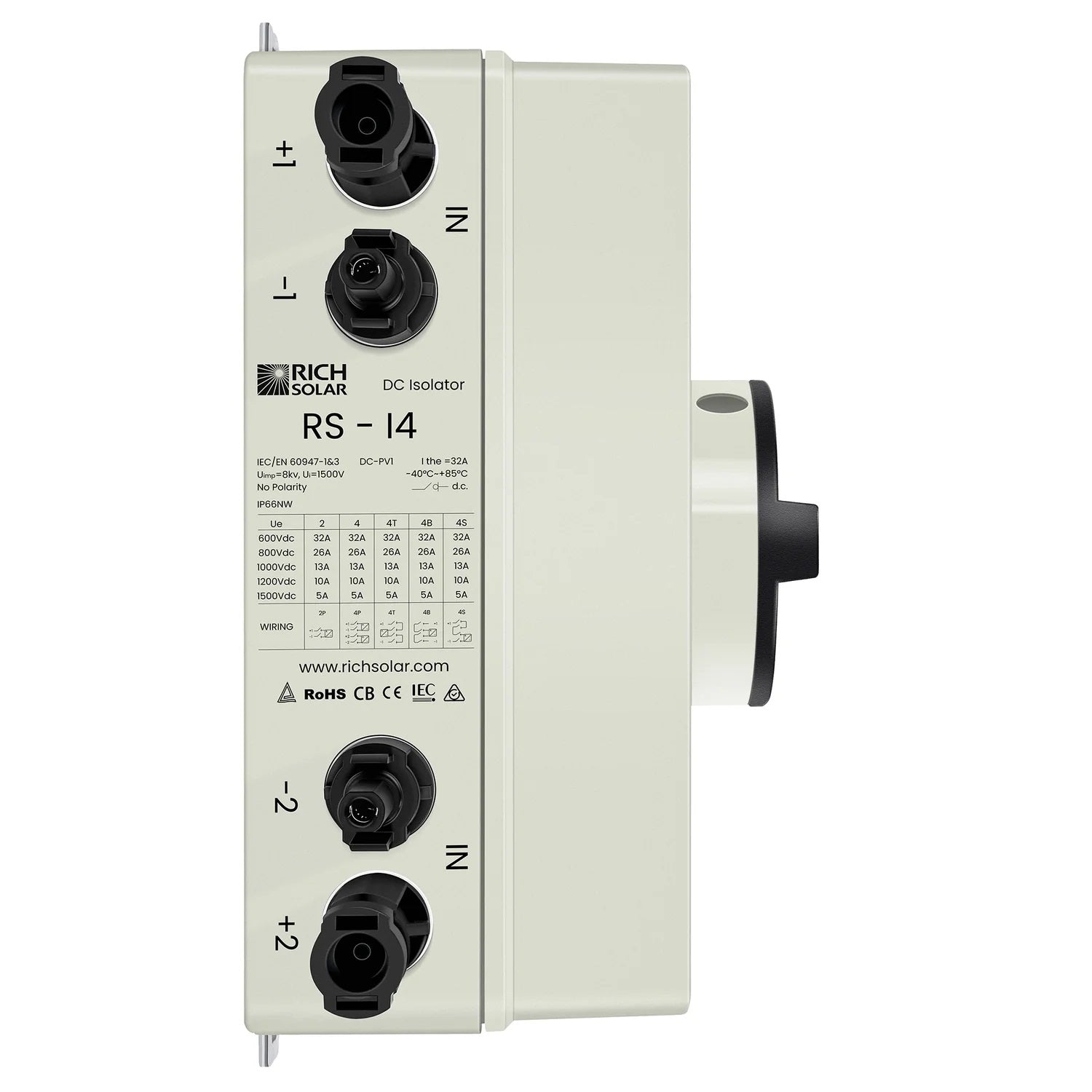

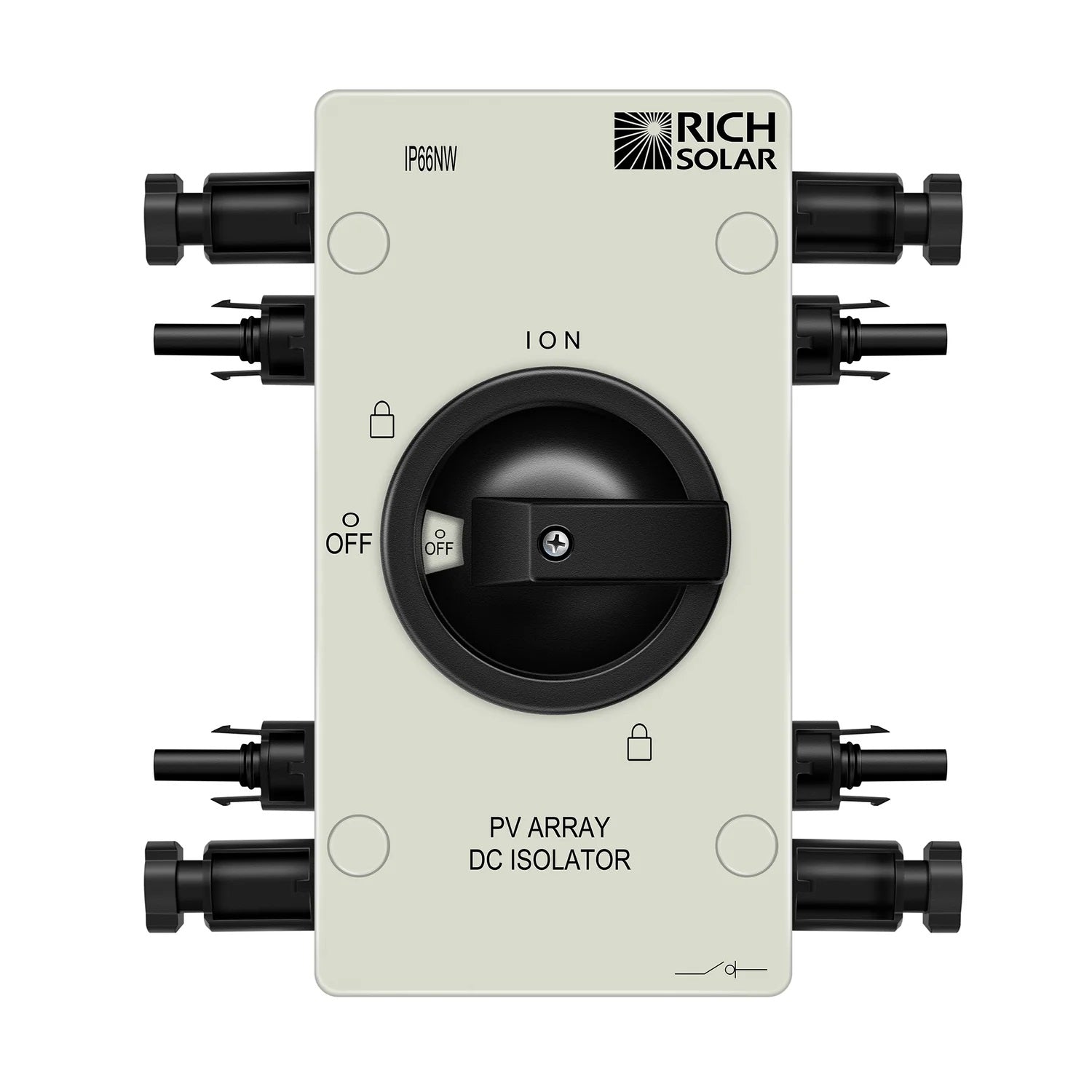

Rich Solar Solar PV DC Quick Disconnect Switch 1500V 55 Amps

The Rich Solar Solar PV DC Quick Disconnect Switch 1500V 55 Amps

Rich Solar's Solar Quick Disconnect Switch gives your solar system a convenient, extra safety and flexibility when maintenance is required on your system. This quick disconnect switch is also ideal for applications such as cabins or vacation homes that don’t require delivery of constant solar power. Simply disconnect your solar array and reconnect when needed. This switch is 1500V with 1 – 55 Amp circuit compatible with small and large off-grid or grid tied solar systems.

Rich Solar Solar PV DC Quick Disconnect Switch 1500V 5 Amps Features

• Quickly disconnect DC power from your solar array to the charge controller, batteries and/or inverter.
• Outdoor rated
• Off and on grid applications
• Isolated SAFE-LOCK with three rotational positions reducing the risk of tampering
• Single pull double throw 2IO
• Ensures the disconnection of load circuits and suppression of the arc in under 5 mil secs.
• Lock out option
• Max amperage - 55 amp
• Output and input connections are built for easy set up and installation

What's In The Box

• 1 x Rich Solar Solar PV DC Quick Disconnect Switch

Rich Solar Solar PV DC Quick Disconnect Switch 1500V 55 Amps Specifications

• 1 - 55 amp circuit
• Up to 1500 volts @ 55 amps
• 2 pole and 1 string
• TUV, SAA, CE, IP certified & ROHS compliant
• Outdoor rated
• Non-corrosive
• Waterproof
• Arc time <2ms
• -40 degrees C to 70 degrees C
• 10 year warranty Dimensions:
• 4"H x 9 3/8"W x 3 1/4" D
