When dependable energy matters most, the SunGoldPower 22.8kW Hybrid Solar Kit with 51.2kWh LiFePO4 Battery gives homeowners, RV owners, off-grid explorers, and mobile businesses a powerful way to take control of their electricity needs. Designed as a complete 48V hybrid energy solution, this advanced solar kit combines high-capacity inverter performance, long-lasting lithium battery storage, and flexible operating modes to provide reliable power where and when you need it.
Whether you are preparing your home for unexpected outages, building an independent off-grid setup, powering a remote property, or creating a dependable mobile workspace, this hybrid solar system delivers the energy capacity needed for modern power demands. With up to 22.8kW of inverter capacity and 51.2kWh of LiFePO4 battery storage, it provides a strong foundation for backup power, energy independence, and long-term savings.

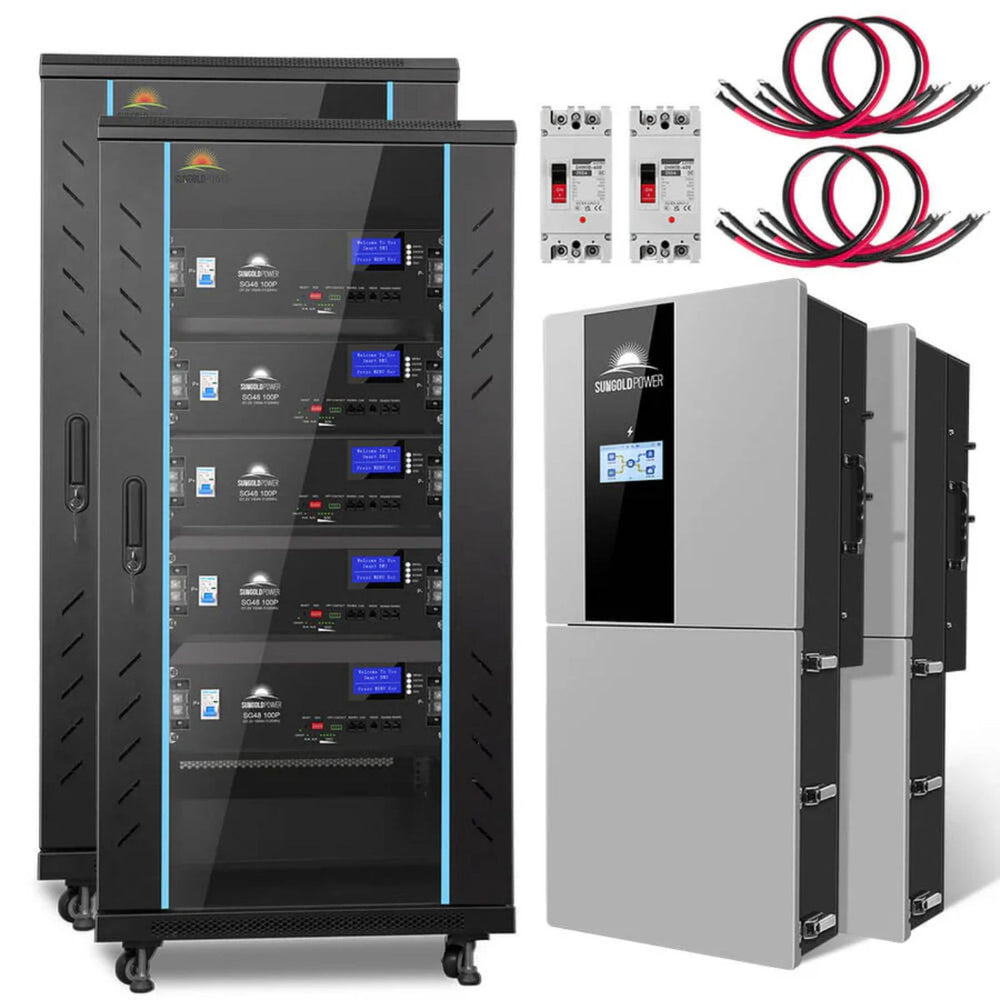

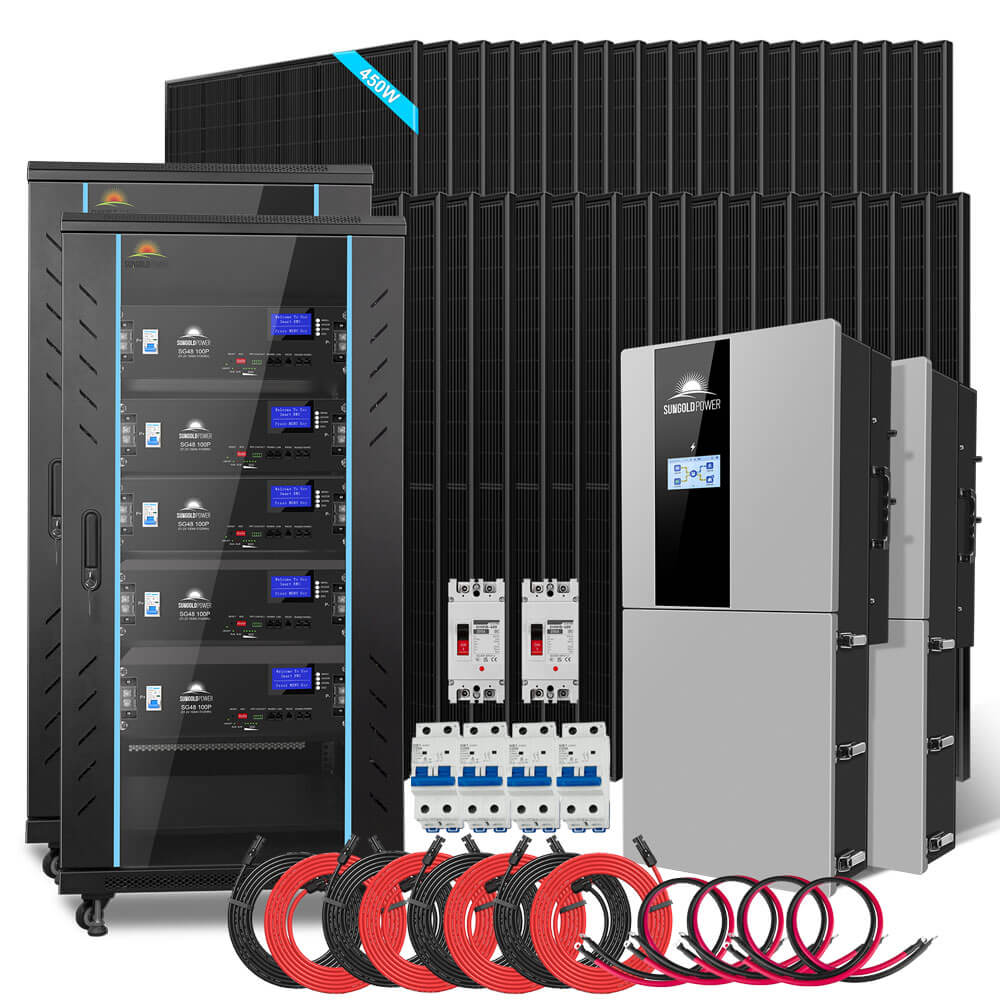

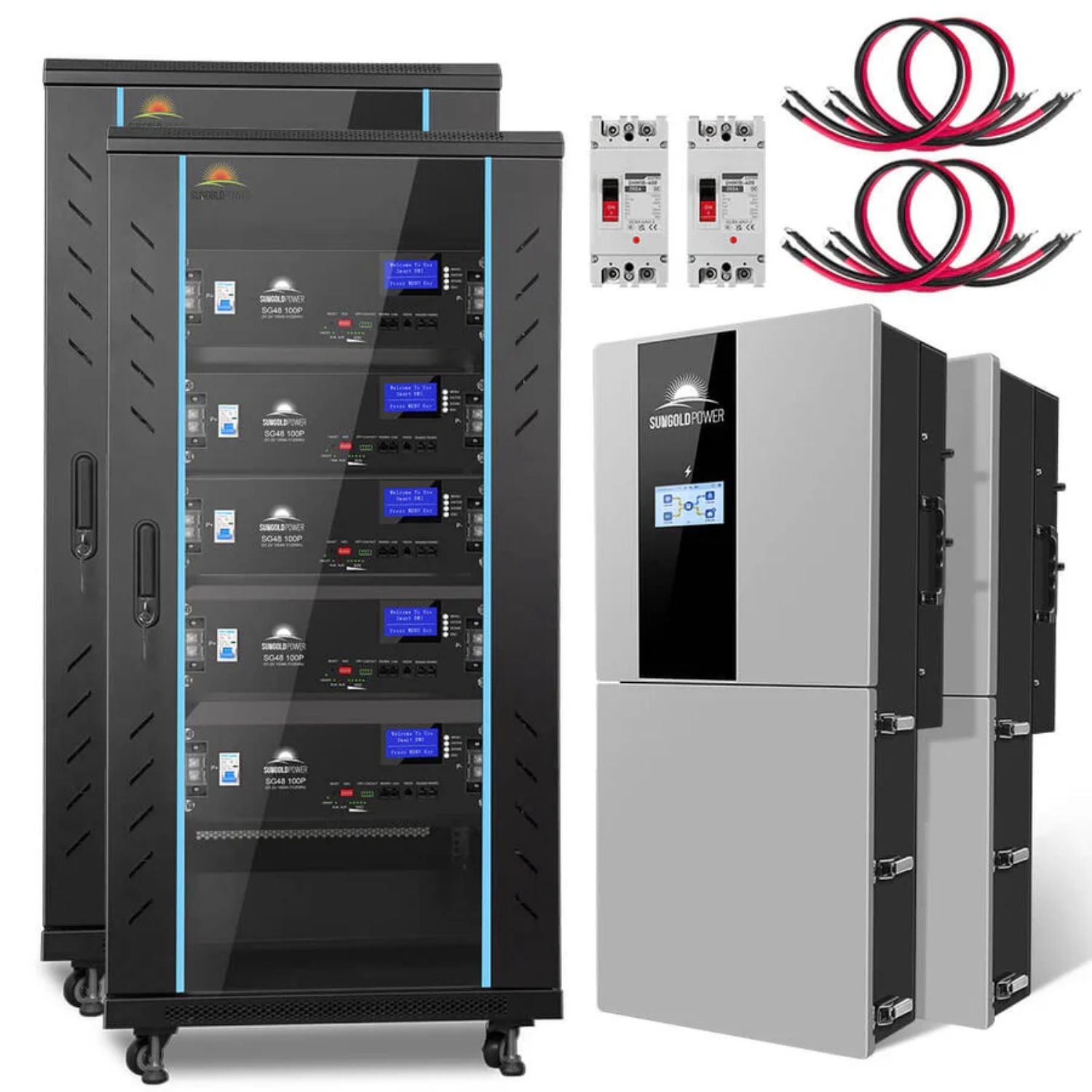

Unlike traditional generators that require fuel, create noise, and need regular maintenance, the SunGoldPower hybrid solar kit uses clean solar energy and advanced battery technology to create a quieter, smarter, and more sustainable power solution. It is built for customers who want confidence knowing their essential appliances, tools, and equipment can keep running even when the grid does not. Available in two configurations, you can choose the complete SGH-11N5E package with 36 × 450W bifacial N-type monocrystalline solar panels or select the SGH-11N5E-s version without solar panels if you already have panels or want to source your own solar array.
The dual 11.4kW hybrid inverter design provides a combined 22.8kW inverter capacity, giving you the ability to run multiple high-demand appliances, equipment, and essential systems at the same time. This makes the system suitable for larger homes, workshops, farms, cabins, and commercial applications.
The included lithium battery system provides 51.2kWh of energy storage using reliable LiFePO4 battery technology. Each battery module delivers 5.12kWh of capacity with a 51.2V 100Ah design, creating a strong energy reserve for extended backup periods.
Energy needs can change over time, and this system is designed with future flexibility in mind. Up to 63 battery modules can be connected in parallel depending on system design requirements, allowing qualified installations to expand storage capacity as power demands increase.

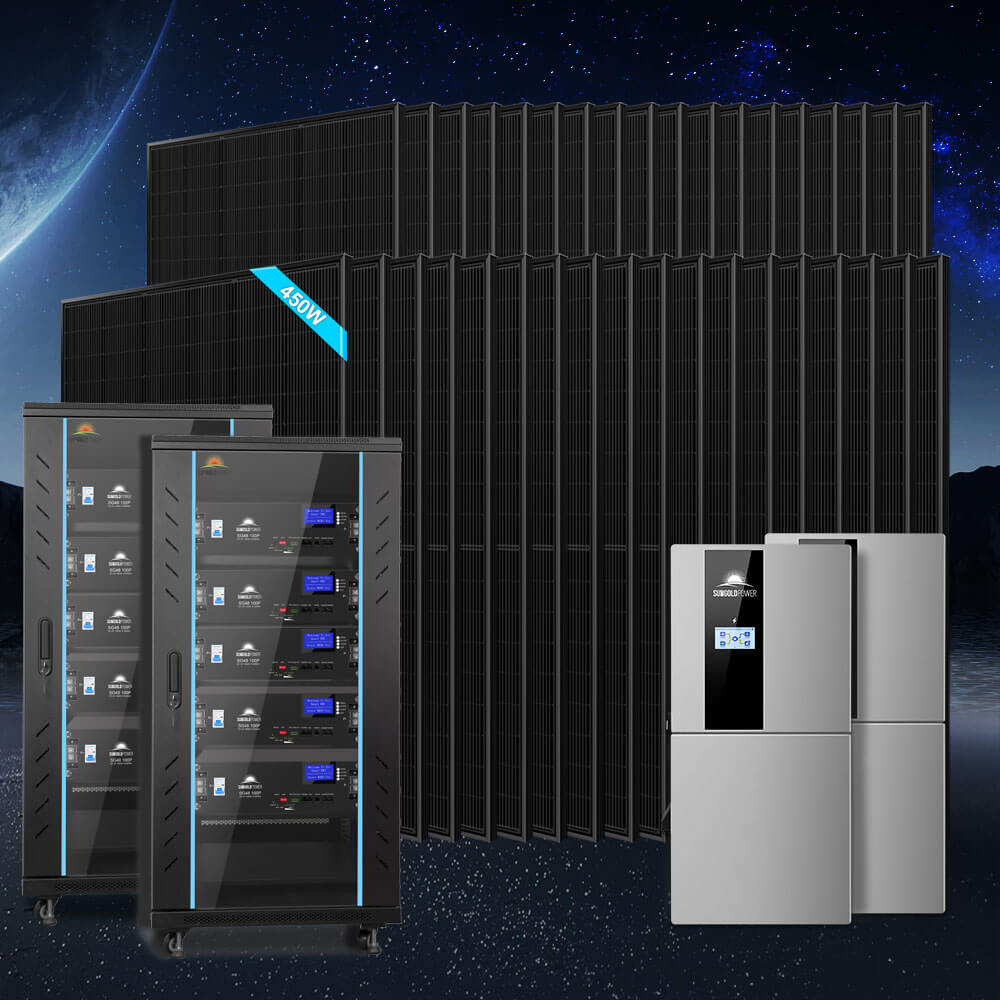

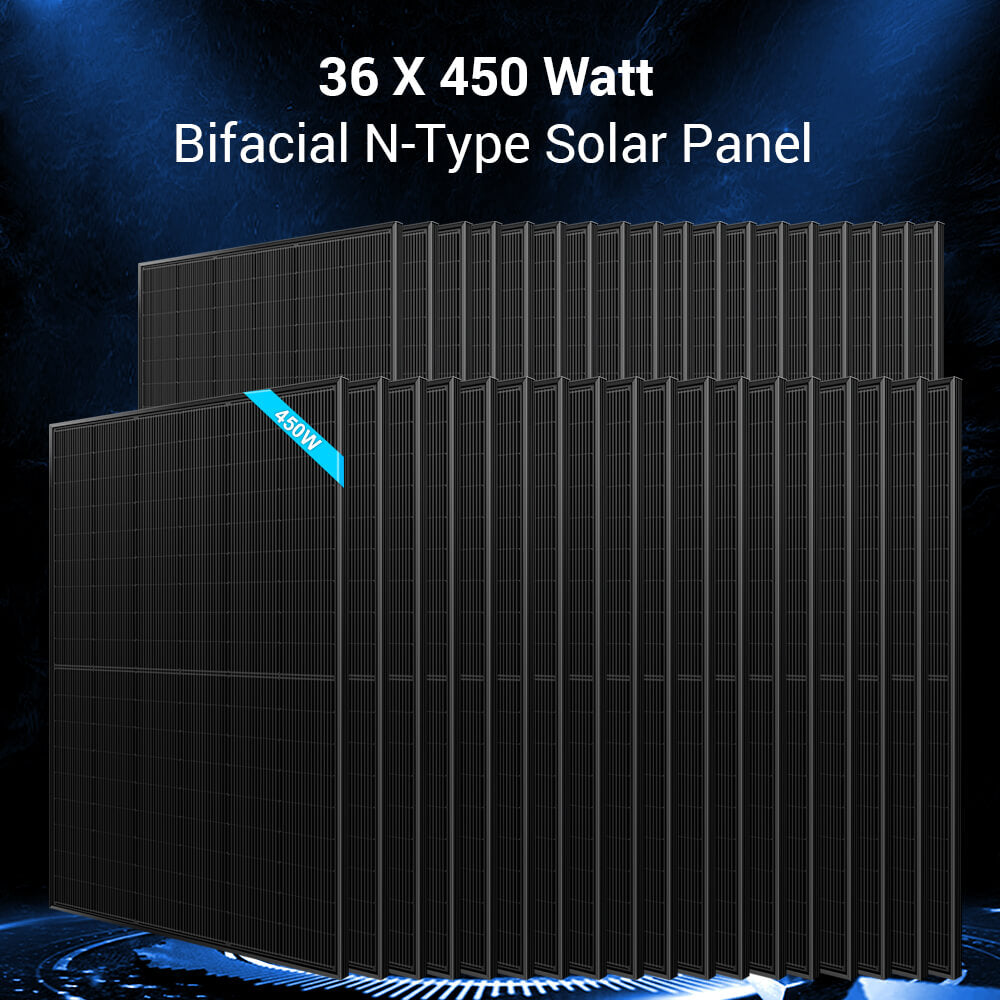

The SGH-11N5E version includes a powerful 16.2kW solar array featuring 36 × 450W bifacial N-type monocrystalline solar panels. These advanced panels are designed to capture sunlight from multiple angles, helping maximize energy production throughout the day.
The SunGoldPower 22.8kW Hybrid Solar Kit with 51.2kWh LiFePO4 Battery supports grid-tied, hybrid battery backup, and off-grid operation modes. This allows you to customize how your energy system works based on your location, power goals, and available energy sources.
The battery modules include RS232, RS485, and CAN communication capabilities to support efficient system monitoring and communication between components. These features help maintain proper operation and allow installers to create a coordinated energy system.
SunGoldPower 22.8kW Hybrid Solar Kit with 51.2kWh LiFePO4 Battery Specifications |
|
|---|---|
| Inverter Capacity | 22.8kW total (2 × 11.4kW inverters) |
| Battery Storage | 51.2kWh |
| Battery Architecture | 51.2V LiFePO₄ |
| AC Configuration | 120/240V split phase; compatible models support 120/208V 2/3 phase |
| Operating Modes | Grid-tied, hybrid battery backup, or off-grid |
| Solar Array Included (Panel Variant) | 16.2kW |
| Battery Module Capacity | 5.12kWh per module (51.2V, 100Ah) |
| Maximum Continuous Charge Current | 100A per battery module |
| Maximum Continuous Discharge Current | 100A per battery module |
| Cycle Life | 7,000+ cycles at 80% depth of discharge |
| Parallel Battery Connection | Up to 63 battery modules (based on system design requirements) |
| Communication Ports | RS232, RS485, and CAN |
SunGoldPower provides a limited warranty policy, ensuring the absence of defects in materials, workmanship, and performance during the warranty period.
Installation note: This high-voltage electrical system should be designed, permitted, and installed by qualified professionals. Verify local electrical codes, utility interconnection requirements, system sizing, and component compatibility before installation.
