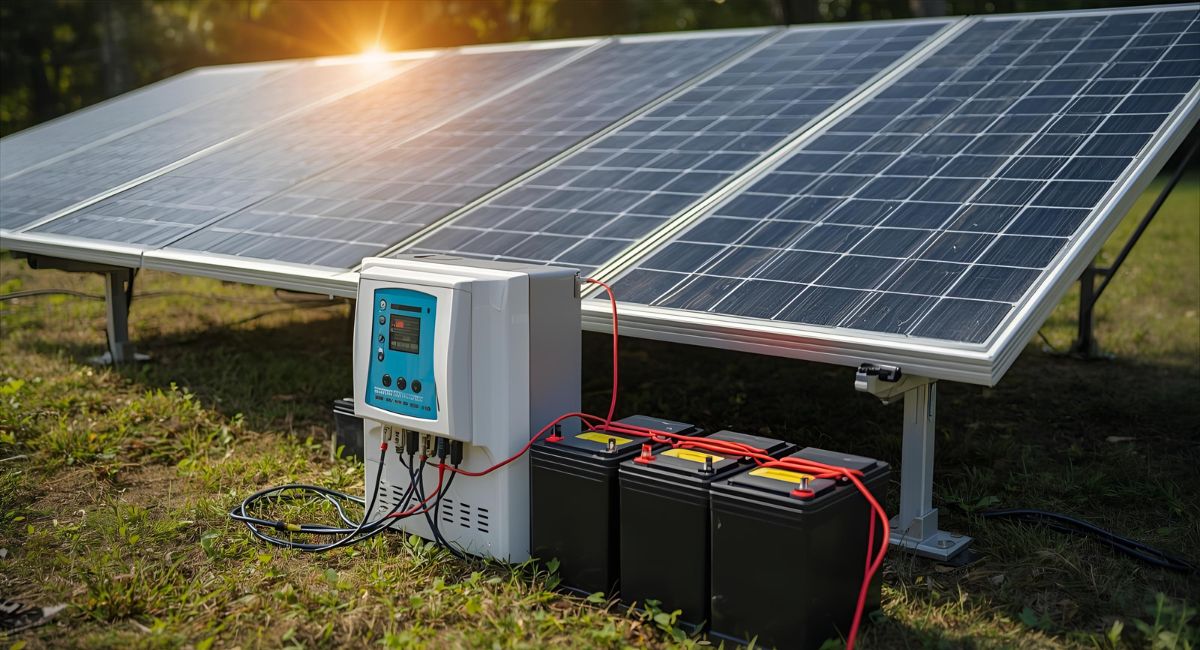

How to Size a Solar Charge Controller for a Solar Power System

Designing a solar power system is an exciting process. You imagine your panels soaking up sunlight, your batteries storing clean energy, and your appliances running smoothly without relying on the grid. But between the solar panels and the batteries, there’s a small yet critical device that often gets less attention than it deserves: the solar charge controller.

If the solar panels are the muscles of your system and the batteries are the heart, the charge controller is the brain. It decides how much energy can flow at any given time, protects your batteries from damage, and ensures your system works efficiently in the long run. And just like the brain, if the charge controller isn’t functioning properly — or if it’s not the right size — then everything else suffers.

This article will walk you through what a solar charge controller does, why sizing it correctly is so important, and exactly how to calculate the right size for your system.

We’ll go step by step, with real-world examples, common mistakes to avoid, and tips for choosing between PWM and MPPT controllers — the two most common types. By the end, you’ll have a clear understanding of how to choose the right controller for your solar power system, whether it’s for an RV, an off-grid cabin, or a whole home backup solution.

What Exactly is a Solar Charge Controller?

At its core, a solar charge controller is a voltage and current regulator. Solar panels produce varying amounts of electricity depending on sunlight conditions, temperature, and shading. Left unchecked, those fluctuations could overcharge your batteries, shorten their lifespan, or even cause dangerous overheating. The charge controller prevents that by moderating the flow of energy.

Most modern controllers do more than just switch energy on and off. They actively manage charging in phases: bulk charging, absorption charging, and float charging. Some also provide reverse current protection at night and digital monitoring through displays or mobile apps.

There are two main types of controllers: PWM (Pulse Width Modulation) and MPPT (Maximum Power Point Tracking). PWM controllers are simpler and less expensive, but less efficient and limited to smaller systems. MPPT controllers are more advanced, allowing higher panel voltages and greater efficiency, making them the standard choice for medium to large systems.

Why Proper Solar Charge Controller Sizing Matters

Correctly sizing your solar charge controller ensures that:

• Your batteries are protected from overcharging.
• Your system operates with maximum efficiency.
• Your components enjoy a longer lifespan.
• You have room to expand your system in the future.

An undersized controller risks overheating and failure, while an oversized one may be unnecessarily costly. The right size strikes the balance between safety, efficiency, and cost-effectiveness.

The Formula for Sizing a Charge Controller

The process boils down to a simple calculation:

Controller Amps = (Total Solar Panel Watts ÷ Battery Bank Voltage) × 1.25

The 1.25 factor adds a 25% safety margin for real-world conditions such as cold-weather voltage spikes and panel efficiency variations. Always round up to the next available controller size.

Solar Charge Controller Sizing Table

Example Solar Charge Controller Calculations

Example 1: Small RV Solar Power System

• Solar panels: 200W
• Battery bank: 12V
• 200 ÷ 12 = 16.6A
• With margin: 20.8A
• Recommended controller size: 30A

Example 2: Off-Grid Cabin Solar Power System

• Solar panels: 800W
• Battery bank: 24V
• 800 ÷ 24 = 33.3A
• With margin: 41.6A
• Recommended controller: 45A–60A

Example 3: Whole Home Solar Power System

• Solar panels: 2000W
• Battery bank: 48V
• 2000 ÷ 48 = 41.6A
• With margin: 52A
• Recommended controller: 60A MPPT

Voltage Matching

Don’t overlook voltage. Every controller has a maximum PV input voltage (Voc). If your solar panel array’s Voc exceeds that limit, the controller can fail permanently. Always calculate Voc for panels in series and compare it to the controller’s max PV input.

5 Common Mistakes When Sizing a Solar Charger Controller

1. One of the most frequent mistakes people make when choosing a solar charge controller is selecting one without leaving any safety margin.

On paper, a controller rated exactly for your calculated current may look sufficient, but in real-world conditions, solar panels can output more power than their rated wattage — especially on bright, cool days. Without at least a 25–30% buffer, the controller may overheat, shut down, or wear out prematurely.

2. Another oversight is ignoring maximum input voltage ratings.

Every charge controller has a limit for the solar array’s open-circuit voltage (Voc). If your panels wired in series exceed that rating, the controller can fail instantly, often without warranty coverage. This mistake is common when people add extra panels without recalculating the Voc, or when they forget that cold temperatures can cause Voc to spike higher than expected.

3. Planning for today without considering tomorrow is also a misstep.

Many solar owners underestimate their future needs and buy a controller sized only for their current panel count. Later, when they add more panels, the controller can’t handle the additional current, forcing them to buy a new one. Choosing a slightly larger controller at the outset often costs less than upgrading later.

4. Another error is using PWM controllers for large systems.

While PWM models are affordable and fine for small arrays, they waste efficiency in bigger setups because they cannot step down higher voltages. This often leads to needing more panels to achieve the same usable output, which can erase any cost savings from using PWM in the first place.

5. Finally, many first-time solar users are tempted by no-name or off-brand controllers that promise big specs at bargain prices.

Unfortunately, these cheap controllers often lack the proper safety features, accurate ratings, or certifications to handle long-term use. A controller failure can mean not just replacing the device, but also risking damage to expensive batteries and panels. Sticking with reputable brands is worth it for the reliability and protection alone.

PWM vs MPPT

When comparing PWM and MPPT controllers, the key differences come down to cost, efficiency, and scalability.

PWM controllers are the simpler option. They are affordable, durable, and effective for small systems where the solar panel voltage closely matches the battery voltage—such as a 12V panel charging a 12V battery. For RVs, boats, or budget-friendly backyard projects, PWM can be the right fit because of its low price point and straightforward operation.

MPPT controllers, on the other hand, are more advanced.

They use smart electronics to continuously track the optimal voltage and current combination from the solar panels, then step the voltage down to the battery’s level while increasing the current. This allows them to capture up to 20–30% more usable energy than PWM, especially when panel voltage is much higher than battery voltage. MPPT controllers also allow you to wire panels in series for higher array voltages, which means lower wire losses and easier scalability. For medium to large systems—such as off-grid cabins, whole-home backup setups, or mobile work applications—MPPT controllers are almost always the better investment.

Final Tips For Sizing a Solar Charge Controller

1. Stick with trusted brands for reliability.
2. Always check both amp and voltage ratings.
3. Oversize slightly to allow for future growth.
4. Use built-in monitoring to track performance.
5. Unless your budget is tight and you are building a small system, stick with MPPT controllers.

Sizing a solar charge controller doesn’t have to be difficult. By calculating your system’s current requirements, adding a safety margin, and ensuring voltage compatibility, you can choose the right controller with confidence.

Whether you’re powering a small RV setup or a full off-grid home, the right controller protects your batteries, improves efficiency, and keeps your system running reliably for years to come.
