EcoFlow Alternator Charger

by EcoFlow
|
SKU: EFAlternatorCharger500W-N
Original Price $349.00
Current Price $199.00

Early Black Friday Price Drop Guarantee

  • Buy now, and if our price drops by Black Friday, we'll refund the difference.
  • Found it lower elsewhere? We'll beat it.

We Beat Any Price

Found the same price or less? Just ask & we'll beat it.

Select a Size

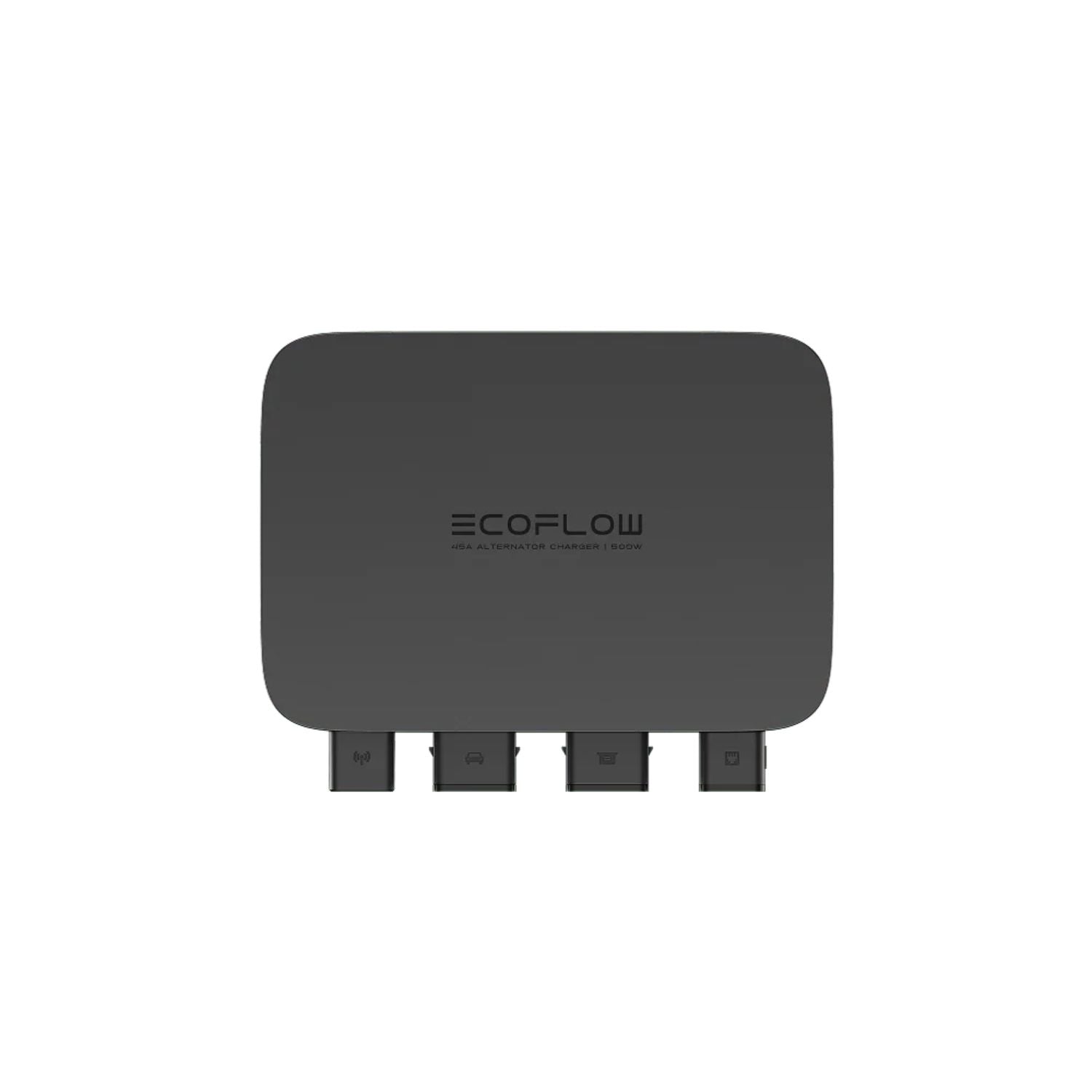

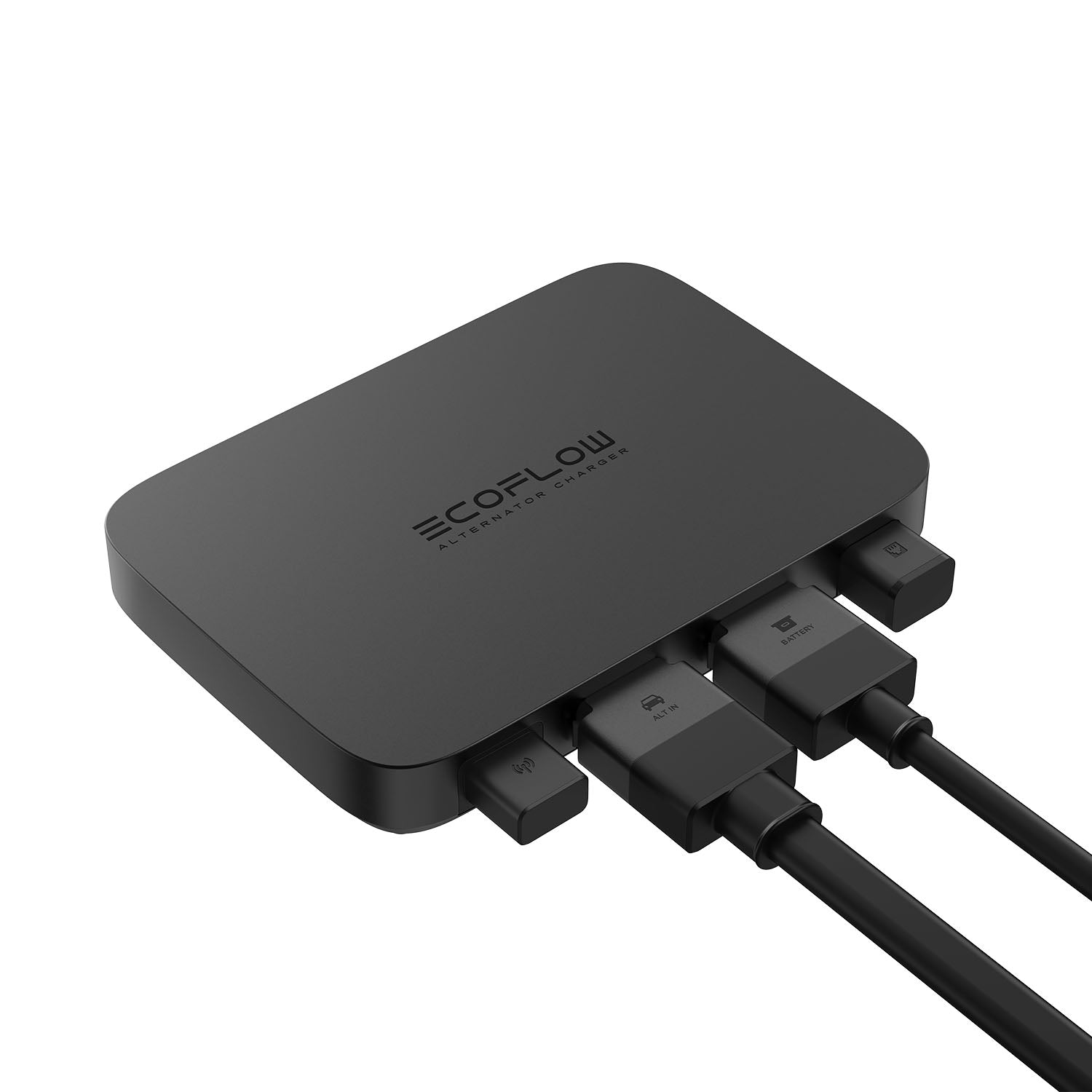

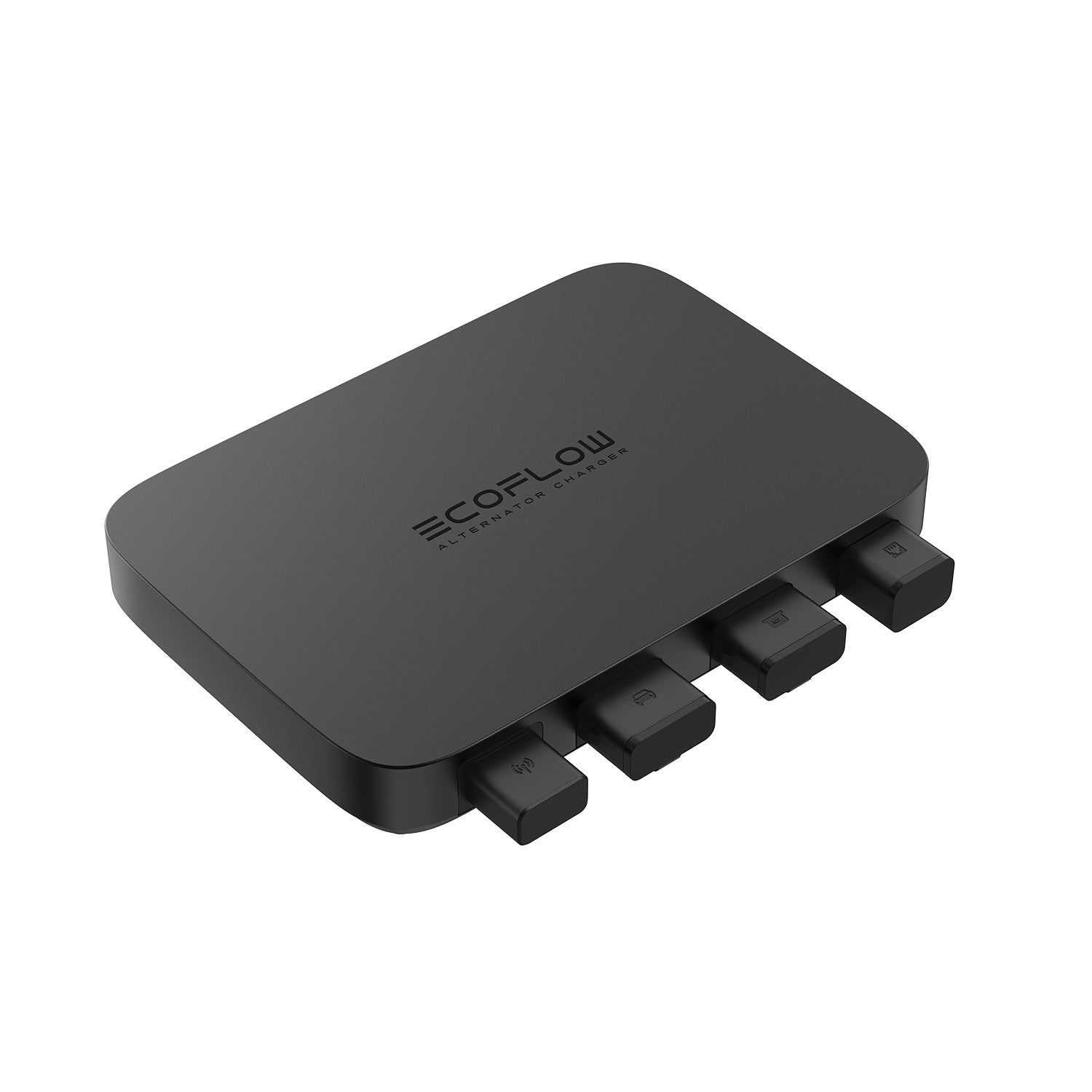

EcoFlow Alternator Charger in dark gray, angled front view with its cable ports along the bottom

The EcoFlow Alternator Charger Turns Your Drive Time Into Charging Time for Your Power Station

The EcoFlow Alternator Charger wires to your vehicle's 12V or 24V starter battery or RV house battery. While you drive, it uses the alternator's redundant power to charge your portable power station. This page offers it in 500W and 800W versions.

It suits SUV, pickup and RV owners who want to arrive at camp with a charged power station.

EcoFlow 800W Alternator Charger Powering A Power Station With A Wave 2 In An RV


EcoFlow Alternator Charger Features

500W or 800W Charge Mode

Charge Mode delivers up to 500W or 800W, depending on the version. EcoFlow rates the 800W model at 1.3 hours and the 500W model at 2.1 hours to add 1kWh. Actual output depends on the vehicle's motion and model, and for the 500W model, your power station's XT60 solar input rating.

Three Modes With an XT150 Output Cable

The 800W model includes a 1m XT150 Output Cable for the extra battery port of an EcoFlow power station or extra battery. It adds Battery Maintenance Mode (100W default maximum) and Reverse Charge Mode, which charges your vehicle battery from the power station. The 500W model's included XT60 Output Cable supports Charge Mode only, and its XT150 cable is sold separately.

Protection for Your Vehicle Battery

In Charge Mode, the charger stops if your vehicle battery's voltage drops below the start voltage. A 125A fuse protects the input, and the charger has reverse polarity, overcurrent, short circuit, overvoltage and undervoltage protection.

App Control by Bluetooth or Wi-Fi

In the EcoFlow app, check the charger's status, adjust output power, set the start voltage and switch modes. EcoFlow recommends not changing modes while driving.

Flexible Mounting

Both versions measure 9.5 x 7.6 x 1.4 in (242 x 194 x 35 mm). Mount the charger to the vehicle body or frame with the included self-tapping screws, or to a board with the included M6 bolts.

Wiring Diagram For the EcoFlow 800W Alternator Charger In A Car


Real-World Applications

RV travel. Wire it to your RV house battery to charge the power station between campsites.

Road trips and camping. Charge from your SUV or pickup so the power station is ready when you stop.

Battery care. With the XT150 cable, Battery Maintenance Mode keeps a starter battery charged over an extended period, and Reverse Charge Mode can activate a depleted vehicle battery.

Wiring Diagram For The EcoFlow 800W Alternator Charger In A Motorhome


How It Compares to Common Alternatives

Versus a car outlet charging cable. EcoFlow says the 500W model charges 5 times faster, and the 800W model 8 times faster, than traditional in-vehicle auxiliary power outlets.

Versus the other option on this page. The 800W model includes the XT150 cable for all three modes. The 500W model plugs into an XT60 solar input, including on third-party power stations.

EcoFlow App Monitoring An EcoFlow Power Station Recharging In A Car With The 800W Alternator Charger


Is This Alternator Charger the Right Fit

  • Vehicle battery. Undamaged and rechargeable, 12V or 24V nominal.
  • Power station port. The 500W model needs an XT60 solar input, rated above 48V if your vehicle battery is 24V. The 800W model needs an XT150 extra battery port.
  • DELTA Pro. A DELTA Pro to Smart Generator Adapter is required to connect it to a DELTA Pro.
  • Installation. EcoFlow recommends professional wiring. The output cable is 1m long, so place the charger near the power station.
  • Third-party power stations. The 500W model works in Charge Mode only.

This may be a good fit if

  • You drive an SUV, pickup or RV with a 12V or 24V battery
  • You want to charge while you drive
  • You want to maintain or recharge your vehicle battery

Common Questions

Will It Drain My Vehicle Battery?

It stops if the battery voltage falls below the start voltage set in the app. Turn the charger off when the vehicle is parked for a long time.

How Is It Wired?

The Fuse Cable joins the battery's positive terminal to the 5m Input Cable, whose negative terminal grounds to the chassis or the RV house battery's negative terminal. Wire it before you start the vehicle.

Can I Also Charge From the Car Outlet?

No. Don't use the cigarette lighter socket and the Alternator Charger to charge the power station at the same time.


What's Included

  • 1 x EcoFlow 500W or 800W Alternator Charger (depending on the option you choose)

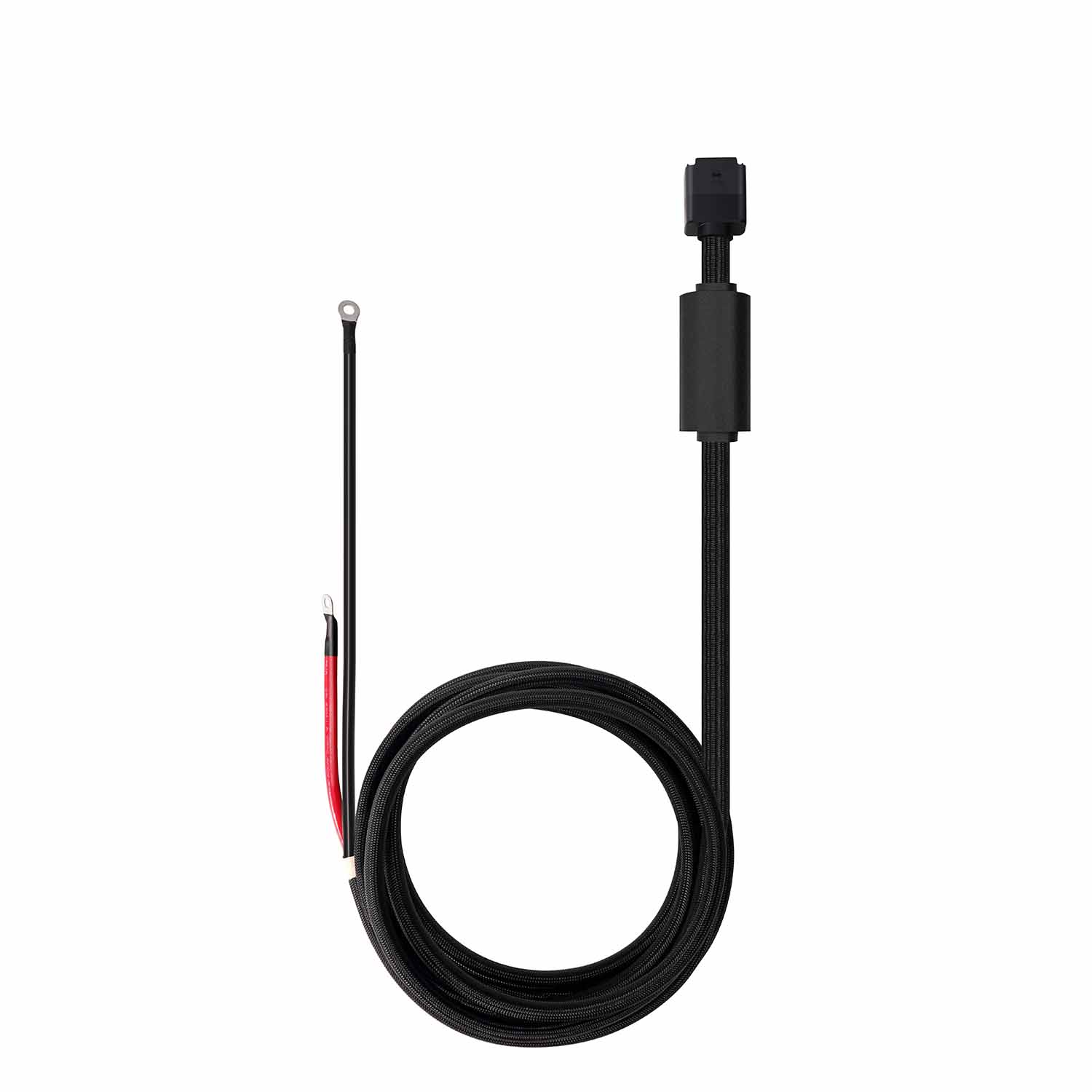

  • 1 x Input Cable (5m)

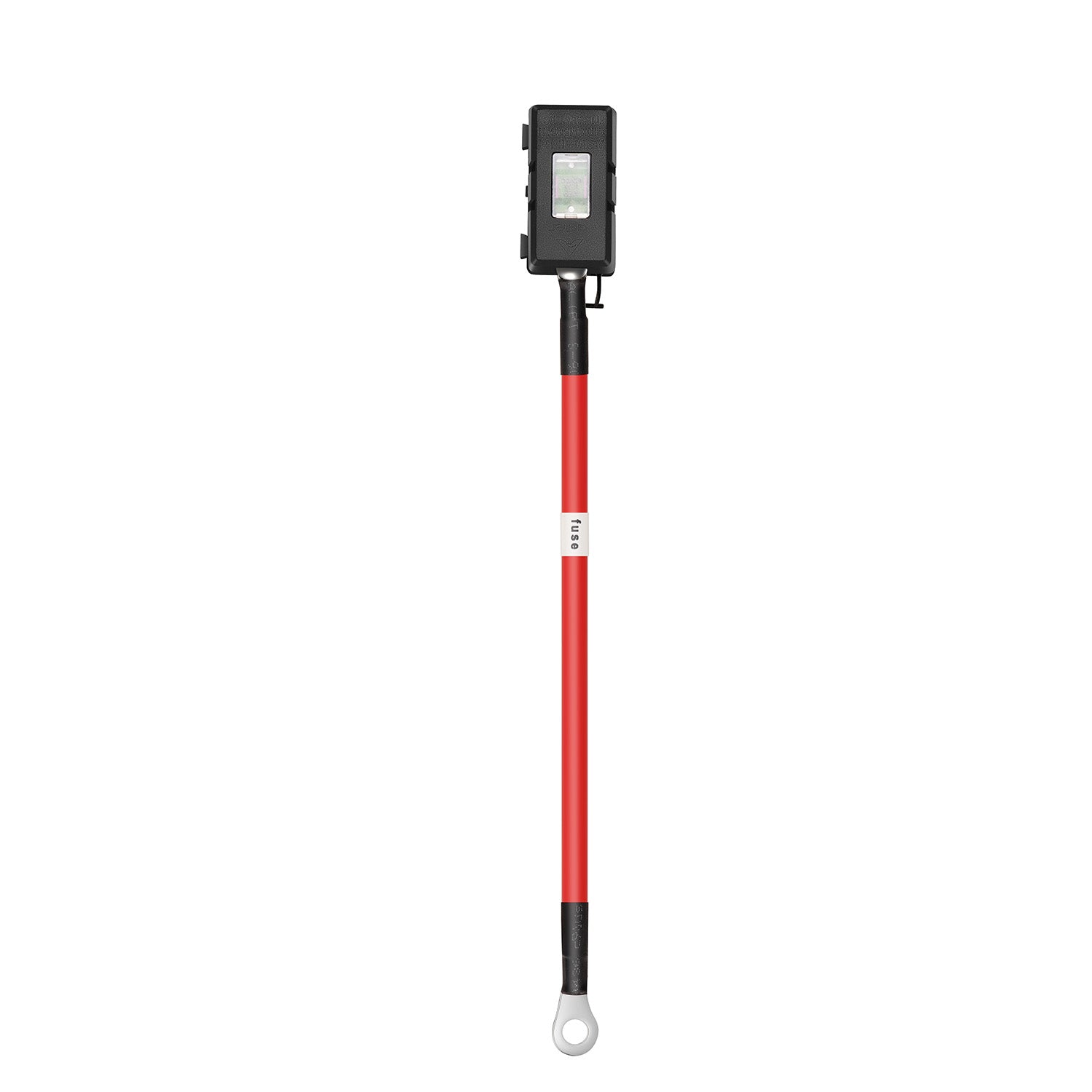

  • 1 x Fuse Cable
  • 1 x XT60 Output Cable (1m) with the 500W option

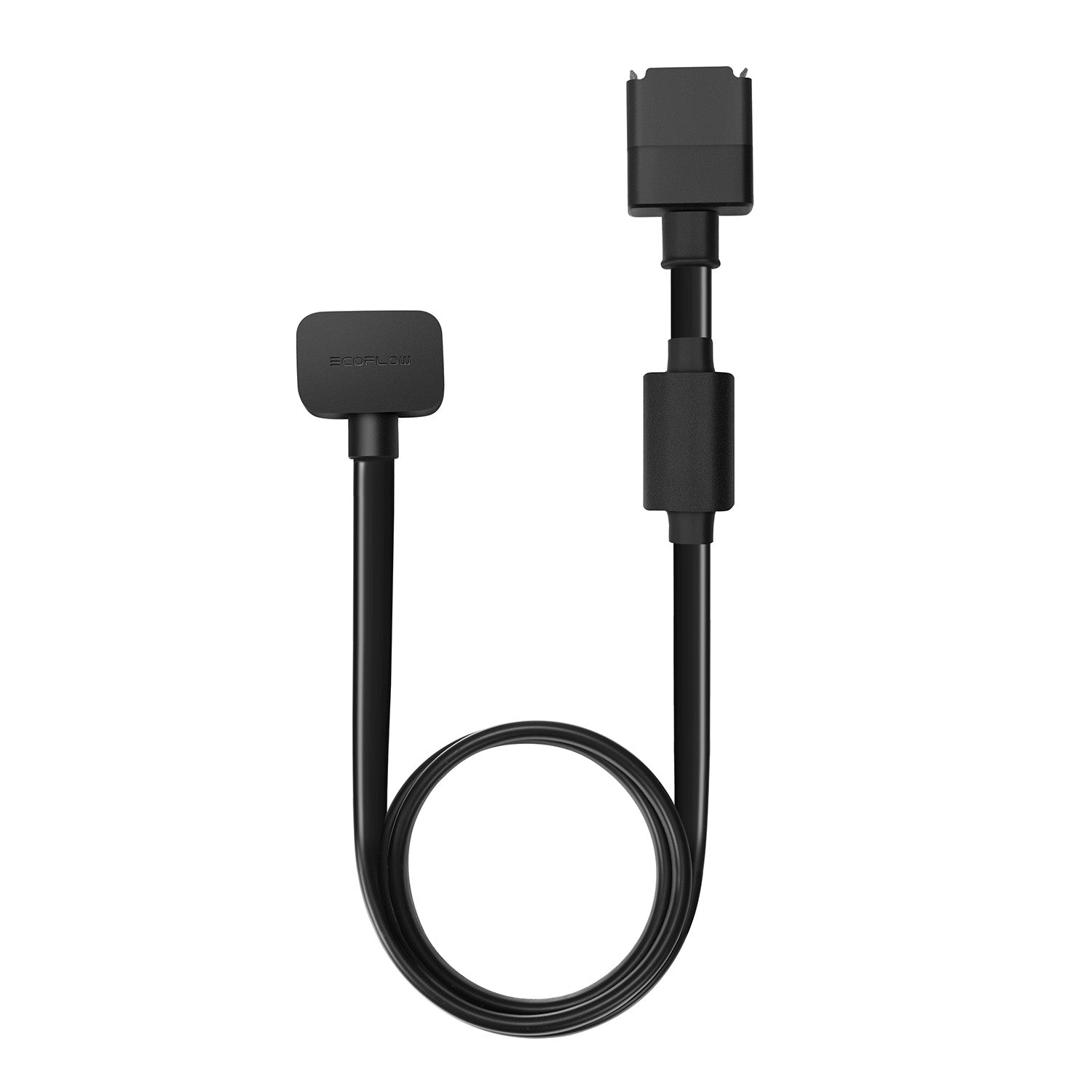

  • 1 x XT150 Output Cable (1m) with the 800W option

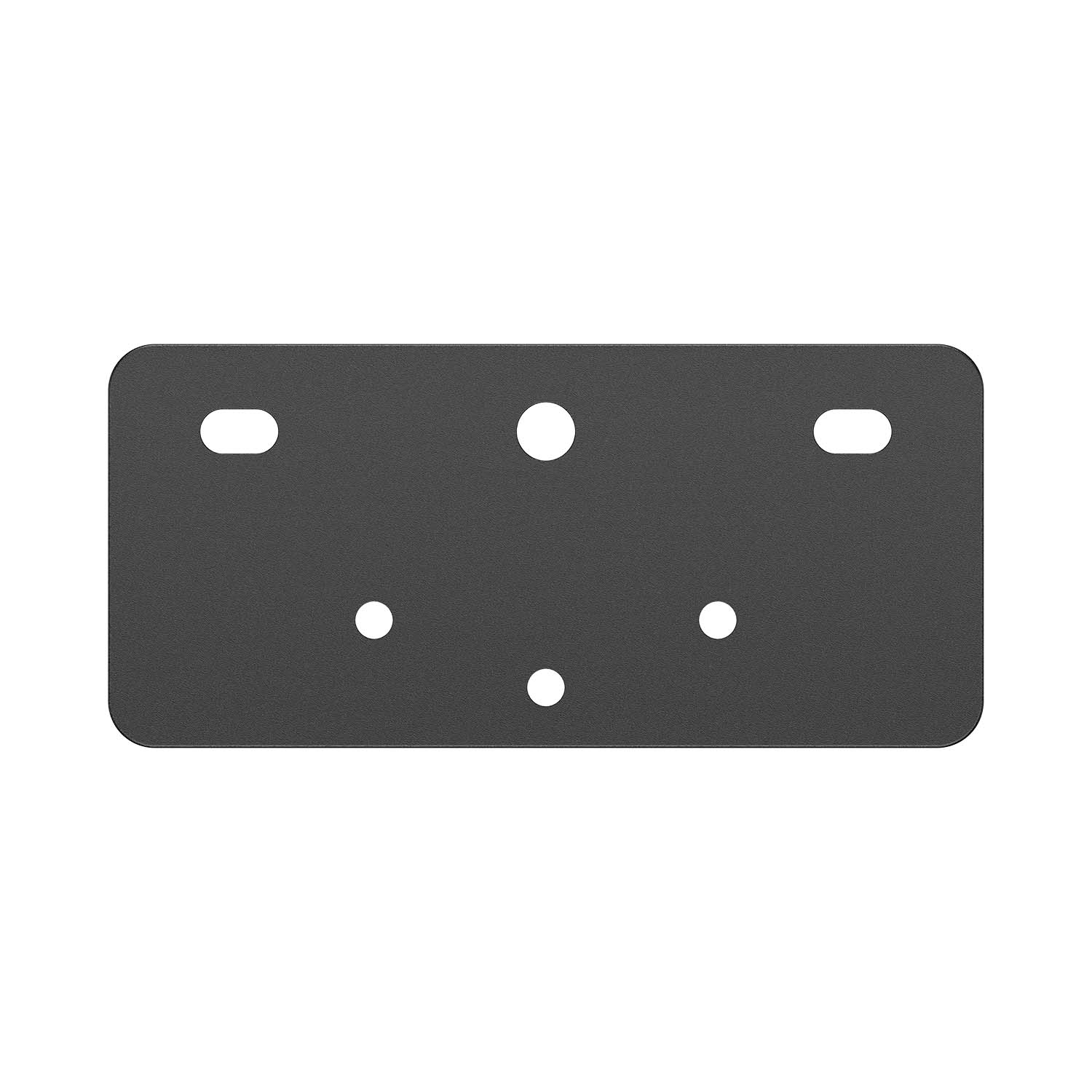

  • 1 x Installation Board

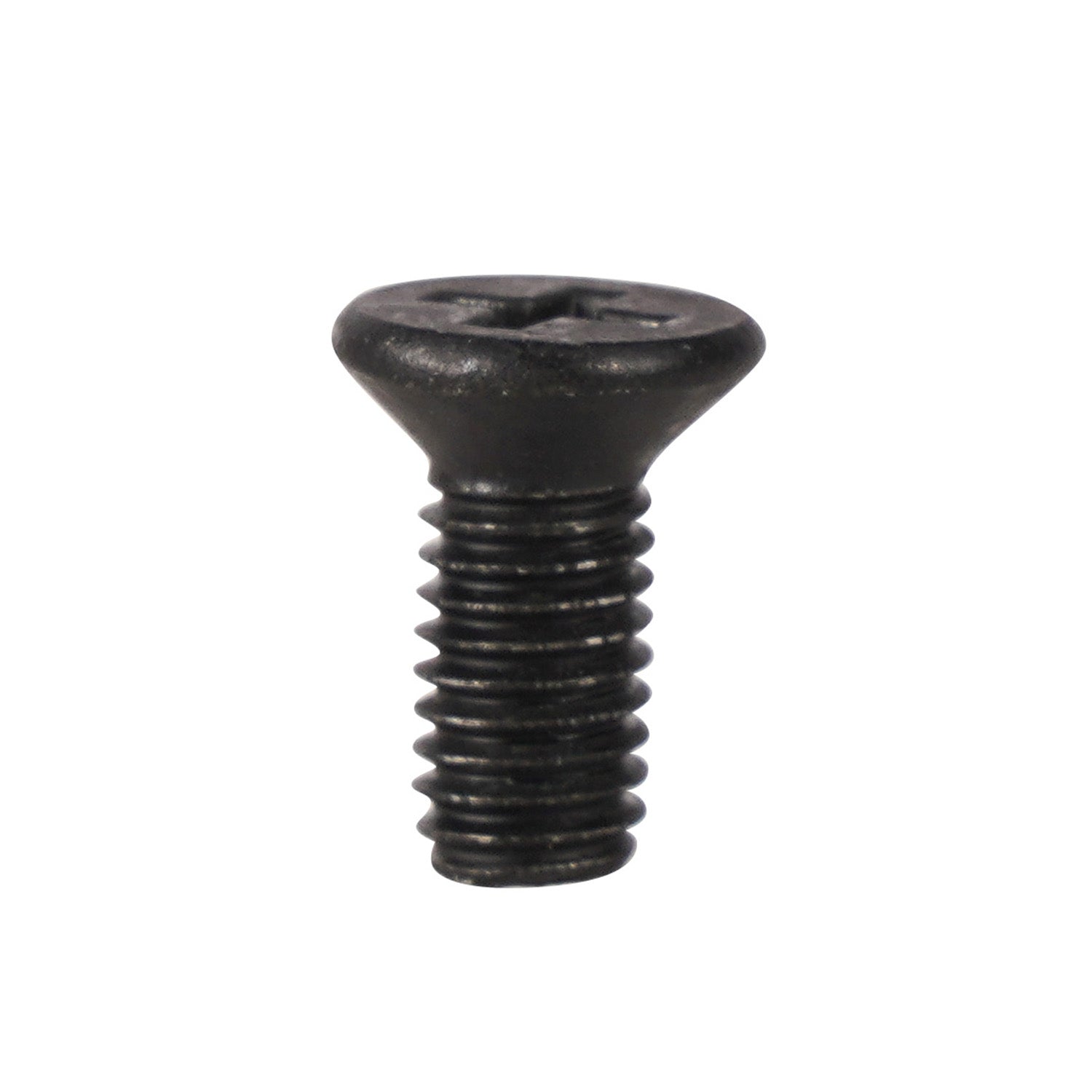

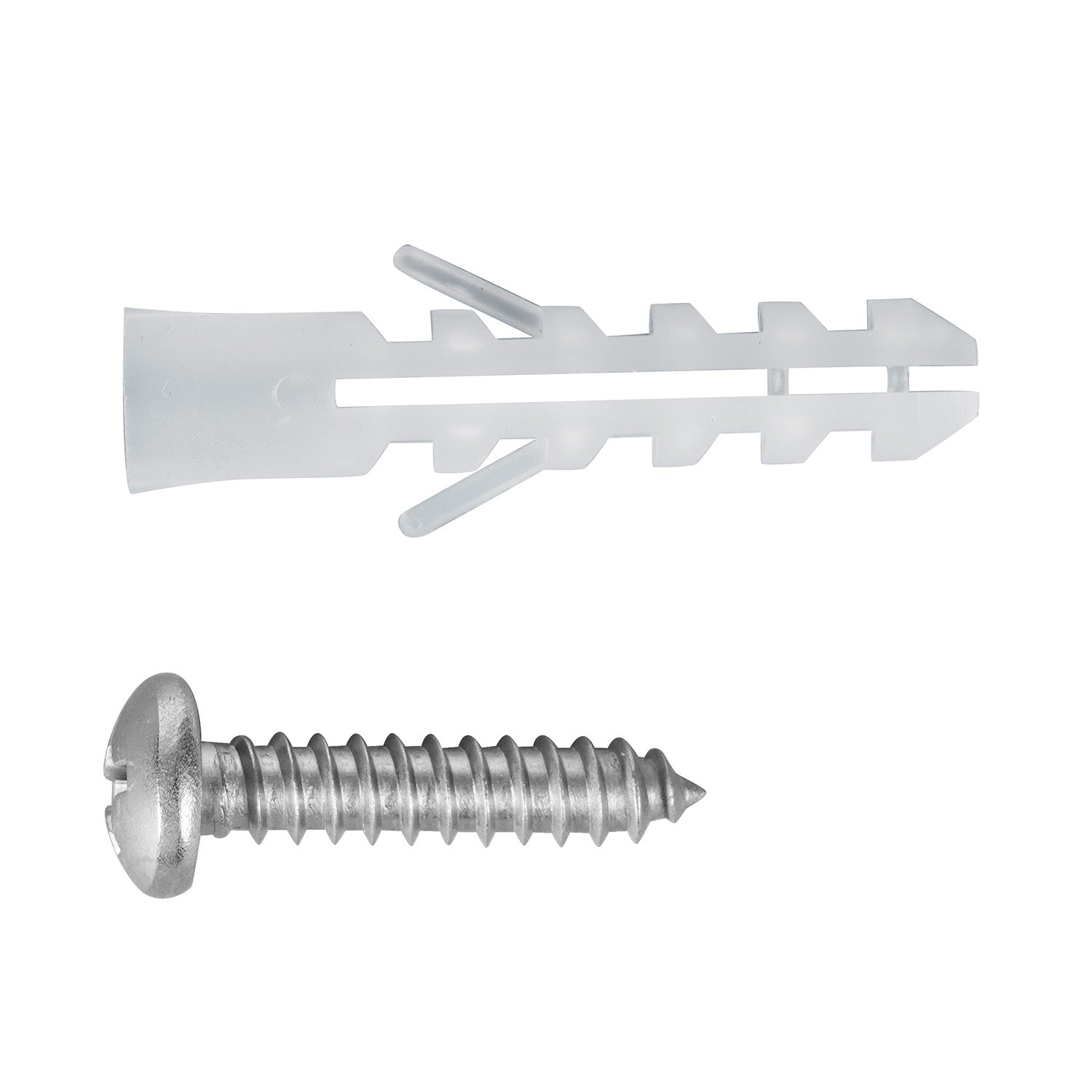

  • 3 x M5 Screw
  • 2 x ST5.5 Screw

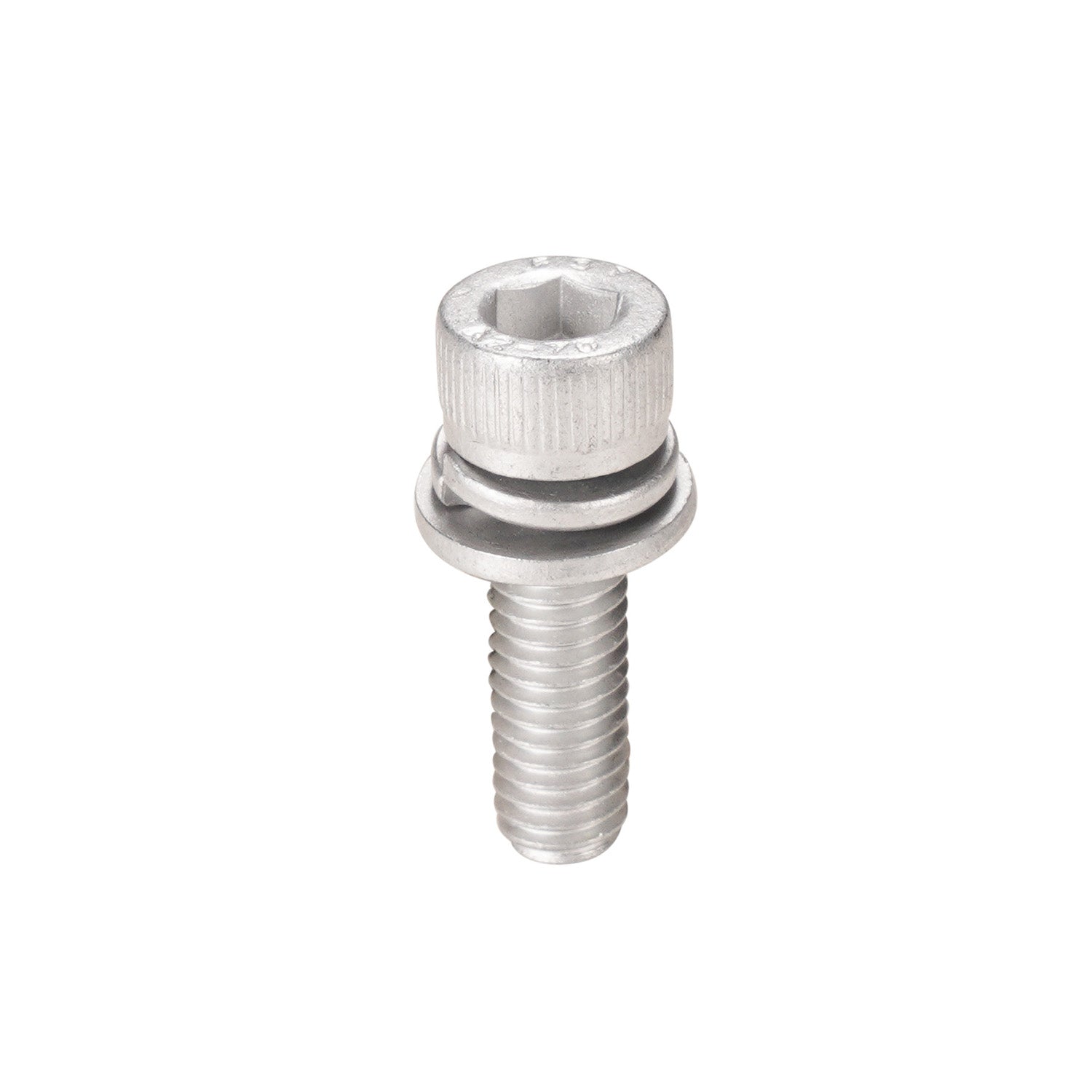

  • 2 x M6 Bolt

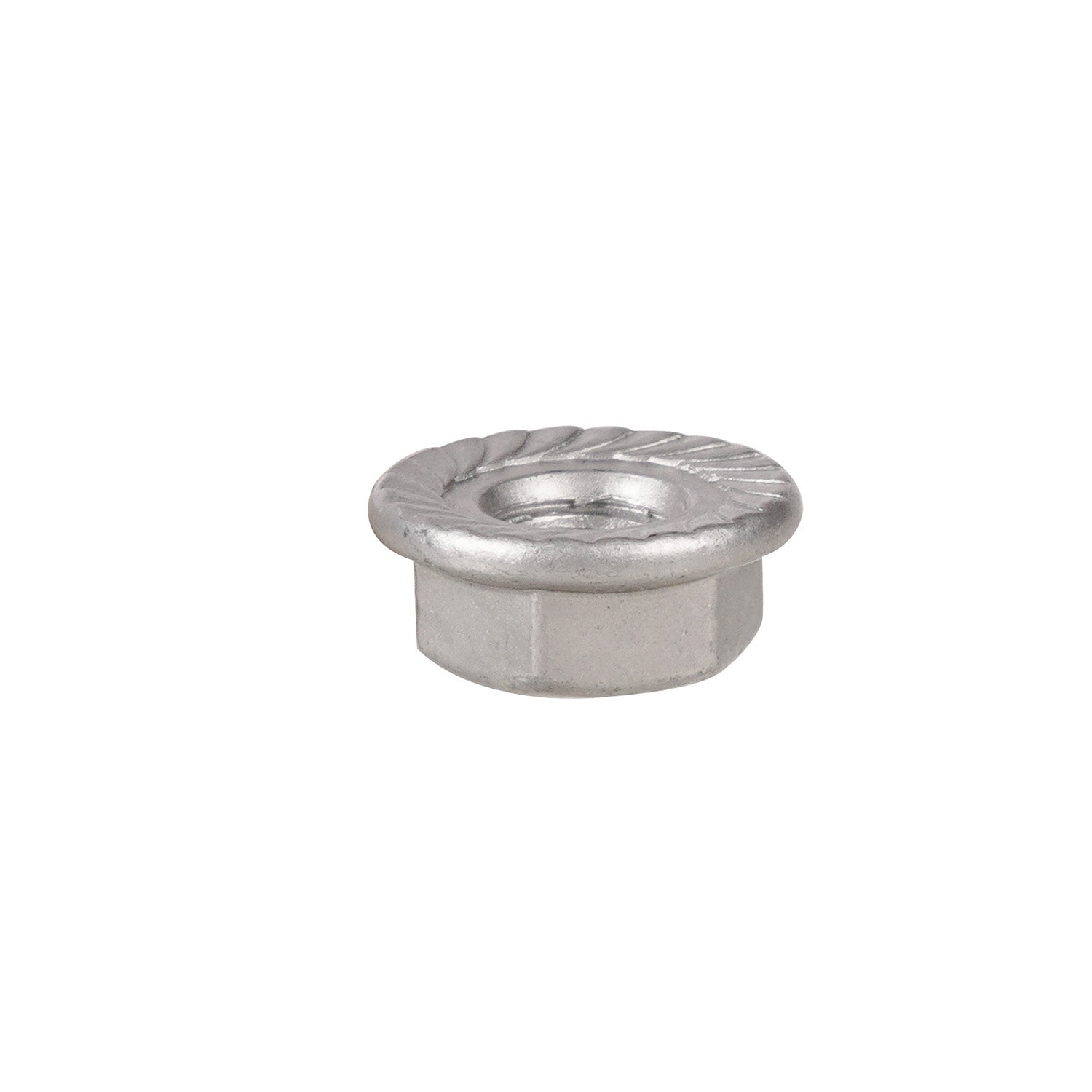

  • 2 x M6 Nut
  • 1 x Cable Puller
  • 1 x Product Documents and Warranty Card

Keep Your Power Station Charged on Every Drive

The EcoFlow Alternator Charger charges your power station at up to 500W or 800W while you drive. If you have questions about which version fits your vehicle and power station, the Outbound Power team is happy to help.


EcoFlow Alternator Charger Specifications

Options on This Page
500W Alternator Charger SKU EFAlternatorCharger500W-N
800W Alternator Charger SKU EFAlternatorCharger
Vehicle Battery
Battery Nominal Voltage 12V or 24V
Battery Condition Undamaged and rechargeable
Connects To Starter battery or RV house battery
Input Cable Length 5m
Fuse Rating 125A
Input and Fuse Cable (500W) 8 AWG
Input and Fuse Cable (800W) 6 AWG
500W Charger
Model EF-MS-H02-1
Charge Mode Input 12V/24V (11V-31V), 45A max
Charge Mode Output 40V-60V, 500W max
Charge Mode Output at 24V 24V, 360W max
Reverse Charge Input 40V-60V, 13.2A max
Reverse Charge Output 13.8V/27.6V, 500W max
Battery Maintenance Input 40V-60V, 3A max
Battery Maintenance Output 13.8V/27.6V, 100W max
Included Output Cable XT60, 1m (to XT60 solar input)
Modes With XT60 Cable Charge Mode only
Optional Cable XT150 Output Cable (sold separately)
Net Weight Approx. 1.6 kg (3.53 lb)
800W Charger
Model EF-FC-301-1
Charge Mode Input 12V/24V (11V-31V), 76A max
Charge Mode Output 40V-60V, 800W max
Reverse Charge Input 40V-60V, 21A max
Reverse Charge Output 13.8V/27.6V, 800W max
Battery Maintenance Input 40V-60V, 3A max
Battery Maintenance Output 13.8V/27.6V, 100W max
Included Output Cable XT150, 1m (to extra battery port)
Net Weight Approx. 2.3 kg
Charge Time (EcoFlow Rating)
500W Model 1kWh in 2.1 hours
800W Model 1kWh in 1.3 hours
Condition Varies with vehicle model and motion
Size and Environment
Dimensions (Both Models) 9.5 x 7.6 x 1.4 in (242 x 194 x 35 mm)
Operating Temperature -4°F to 140°F (-20°C to 60°C)
Storage Temperature -22°F to 158°F (-30°C to 70°C)
Operating Humidity 95% or less
Protection
Polarity Protection Reverse polarity
Current Protection Overcurrent, short circuit
Voltage Protection Overvoltage, undervoltage
Overload Protection Integral
Battery Protection Stops below set start voltage
Connectivity
Wireless Wi-Fi and Bluetooth
App EcoFlow app

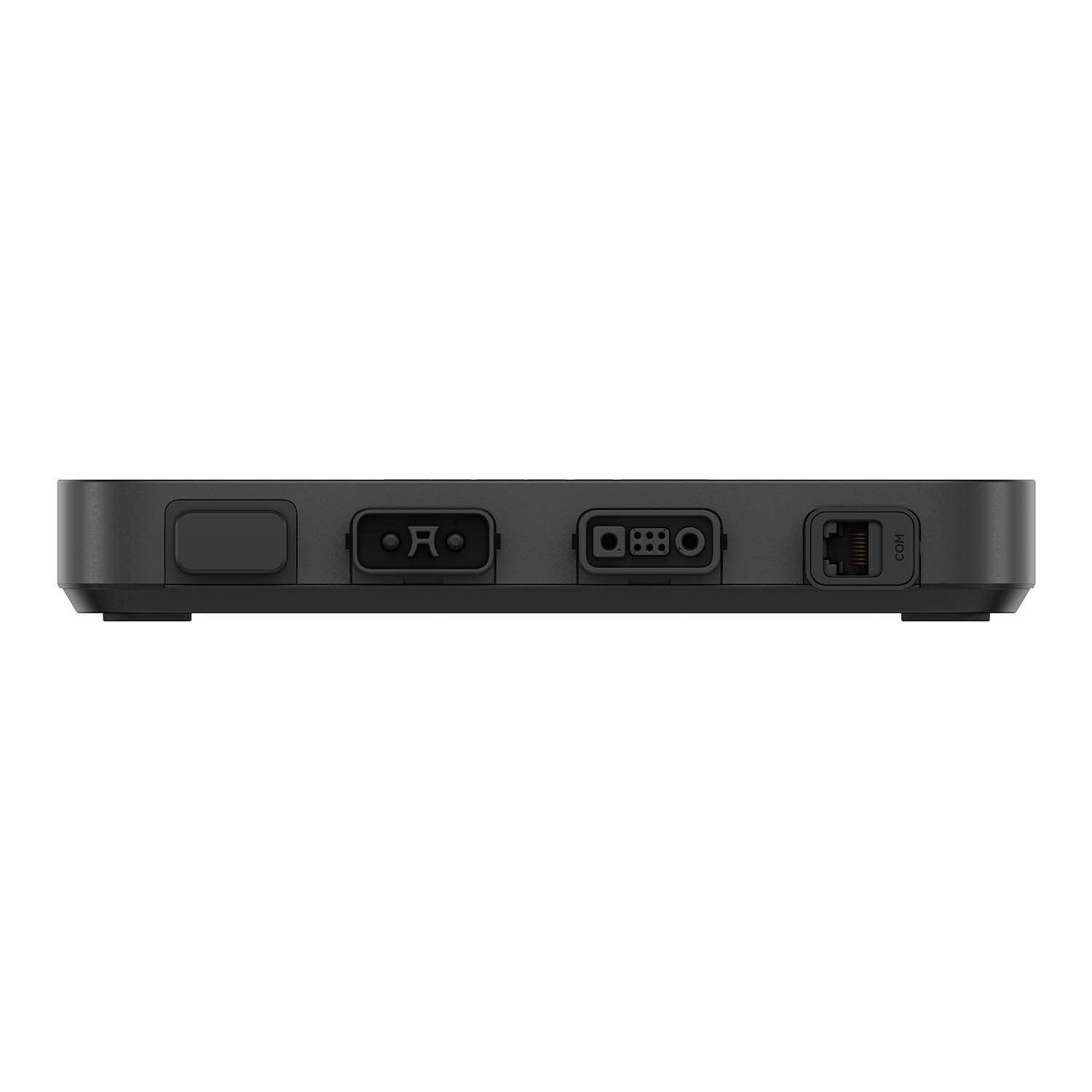

COM Port RJ45 (preset port)

EcoFlow 800W Alternator Charger Manual

EcoFlow 800W Alternator Charger Manual for the EcoFlow Alternator Charger
