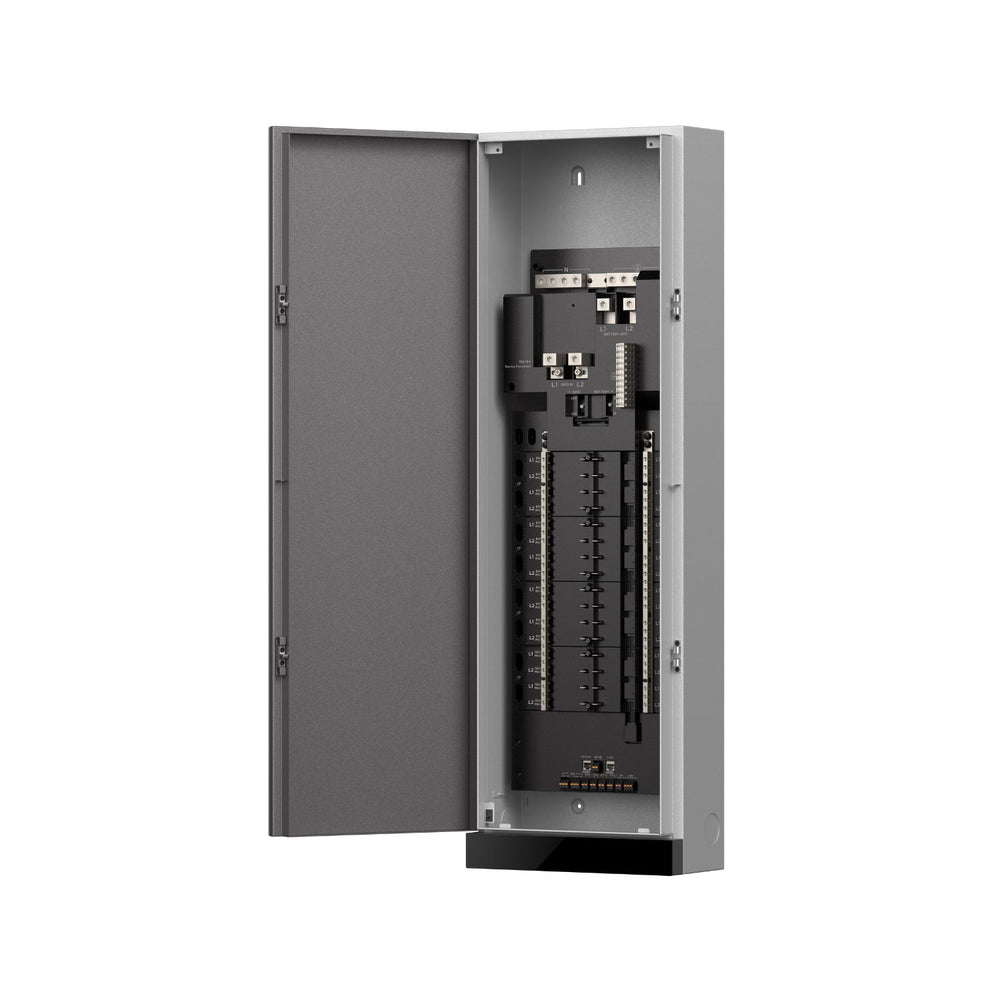

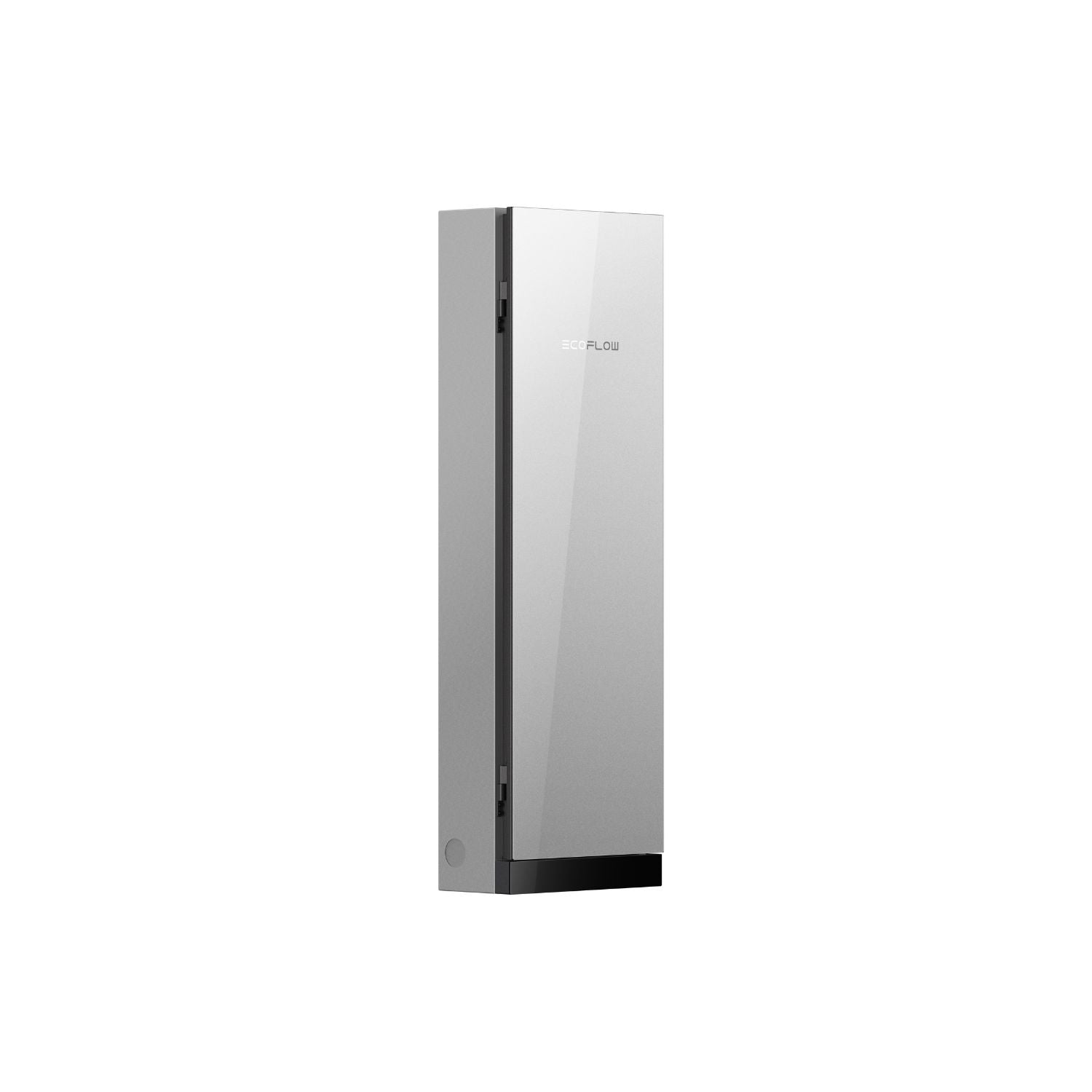

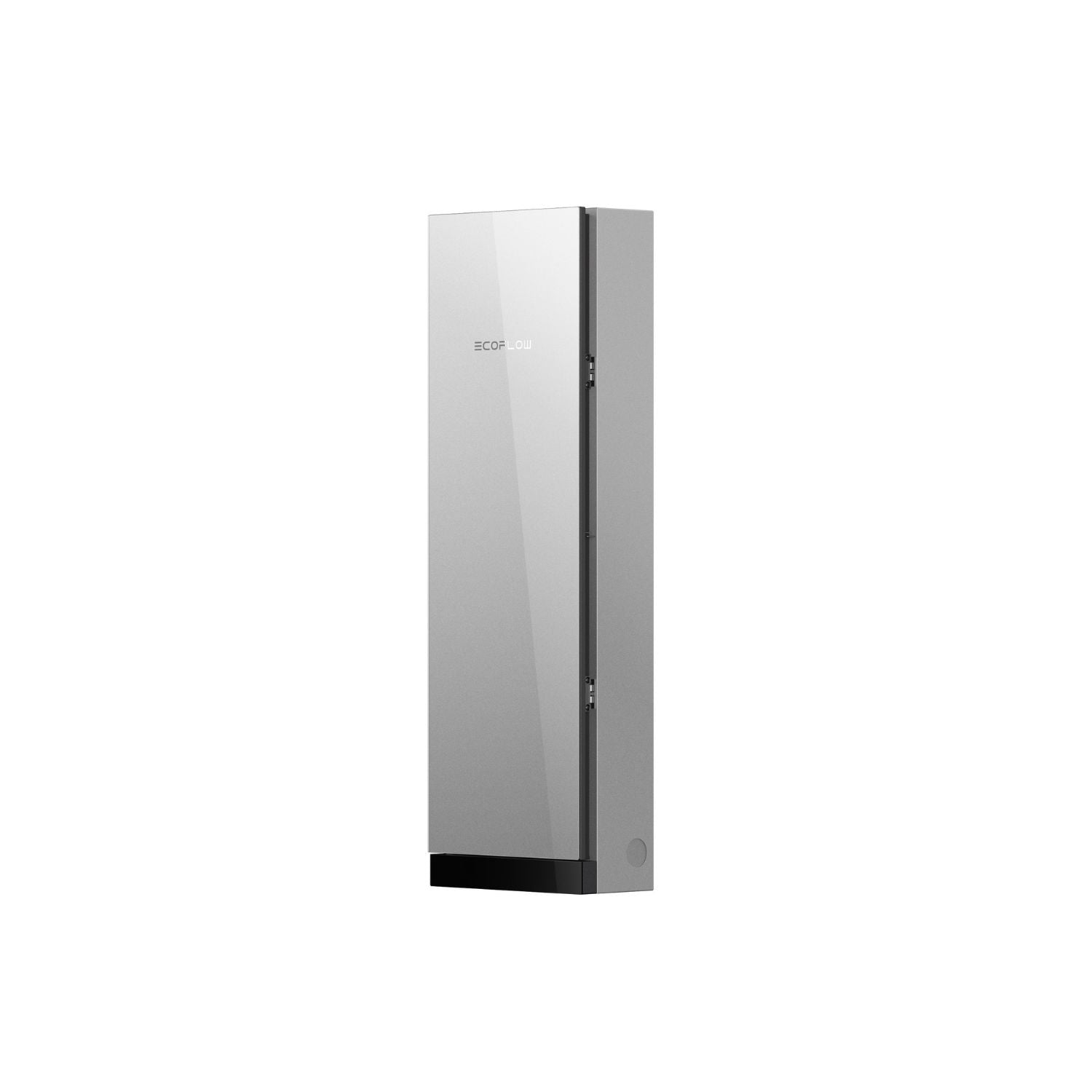

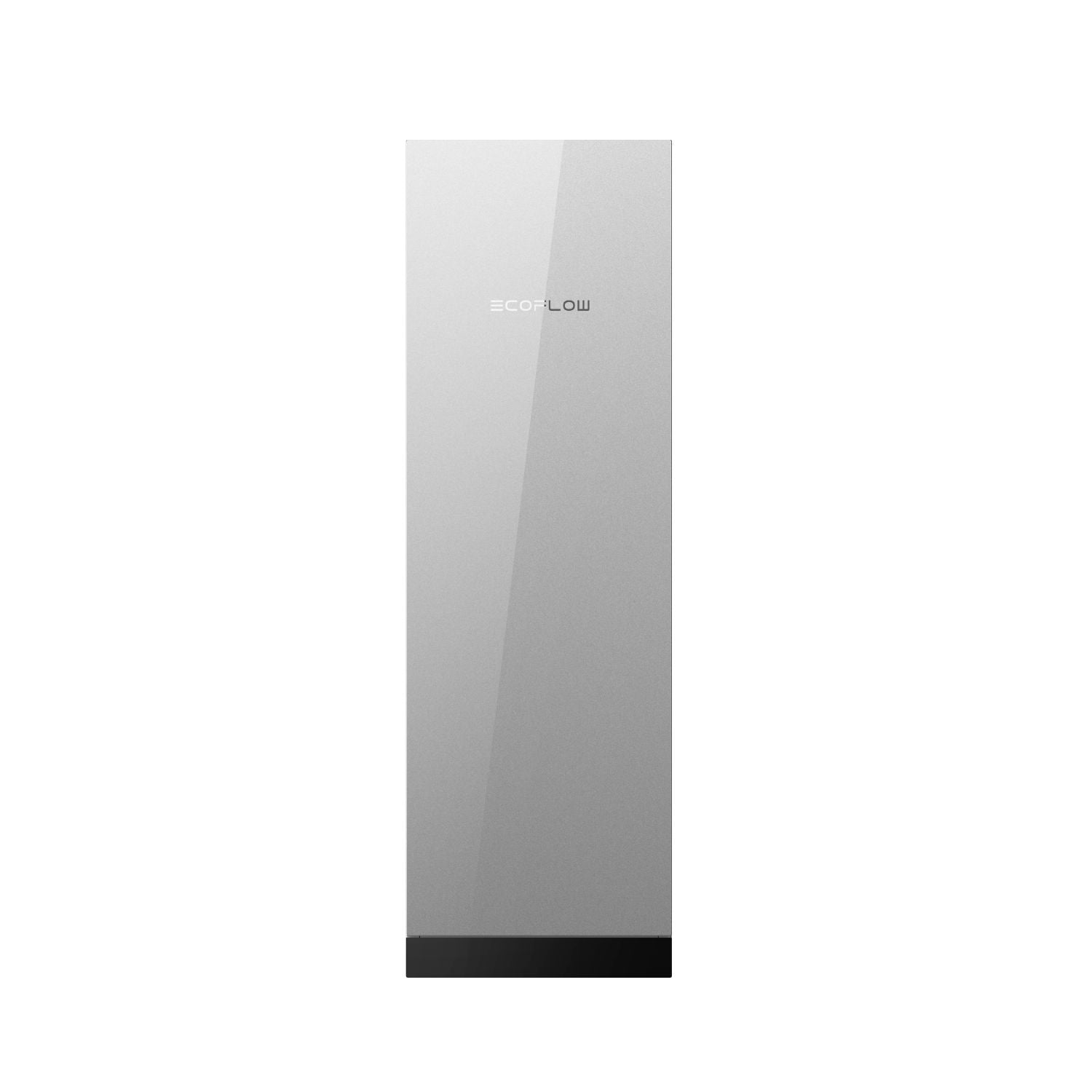

The EcoFlow Smart Home Panel 3 is a smart electrical panel with 32 independently controlled circuits. It can serve as your main panel or as a subpanel, and its included Smart Inlet Box connects up to three DELTA Pro Ultra or DELTA Pro Ultra X units, plus a generator. With EPS mode on, it switches your home to battery power within 20ms during an outage.
It suits homeowners building a DELTA Pro Ultra X backup system who want circuit-by-circuit control, time-of-use savings and a generator input. EcoFlow says whole-home power is available only when the panel is paired with the DELTA Pro Ultra X, and the panel requires a professional installation.

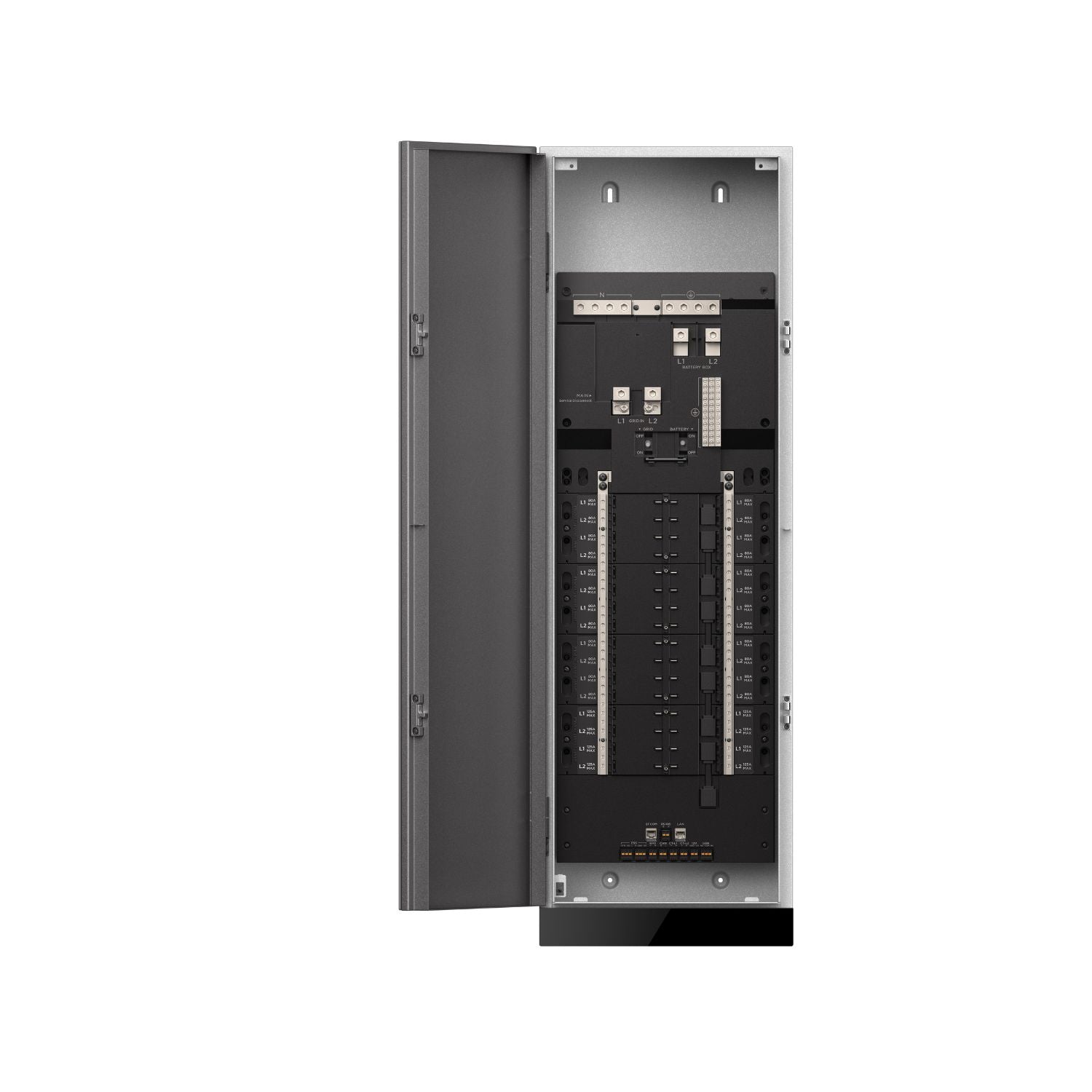

The panel has 32 load branch circuits: eight rated up to 90A continuous (125A breaker) and twenty-four rated up to 60A continuous (80A breaker). From the EcoFlow app you can switch, schedule and monitor each circuit in real time, which helps you find the loads that use the most energy.
The panel accepts 120/240V split-phase service with a 200A busbar, up to 160A continuous on the grid lugs and a 200A maximum overcurrent device. It can take utility power directly as your main panel, or work as a subpanel once the installer removes the neutral-ground bond.
With EPS (Emergency Power Supply) mode on, the system switches to battery power within 20ms when the grid fails. With EPS mode off, the switch takes about 5 seconds. EcoFlow bases the switchover time on lab testing and says it varies with wiring, load type and installation.
The included Smart Inlet Box has three 5P8 power ports, an emergency stop button and status lights, and it can sit up to 98 ft (30 m) from the panel. Up to three DELTA Pro Ultra or DELTA Pro Ultra X units, including mixed models, plug into it. Their own AC outlets are disabled while connected.
Connect a 240V split-phase generator to the leftmost "5P8 PORT/GEN IN" port. The panel can power your home and charge your batteries from the generator at the same time, after a self-check of about 25 seconds. You set the generator's rated output, from 3kW to 12kW, in the app.
Sort circuits into Must Have, Nice to Have and Non-Priority so essentials get battery power first. Storm Guard charges your batteries to 100% when severe weather is forecast within 24 hours. TOU, Scheduled Tasks and Self-Powered modes manage charging and discharging above a backup reserve level you set (50% by default).

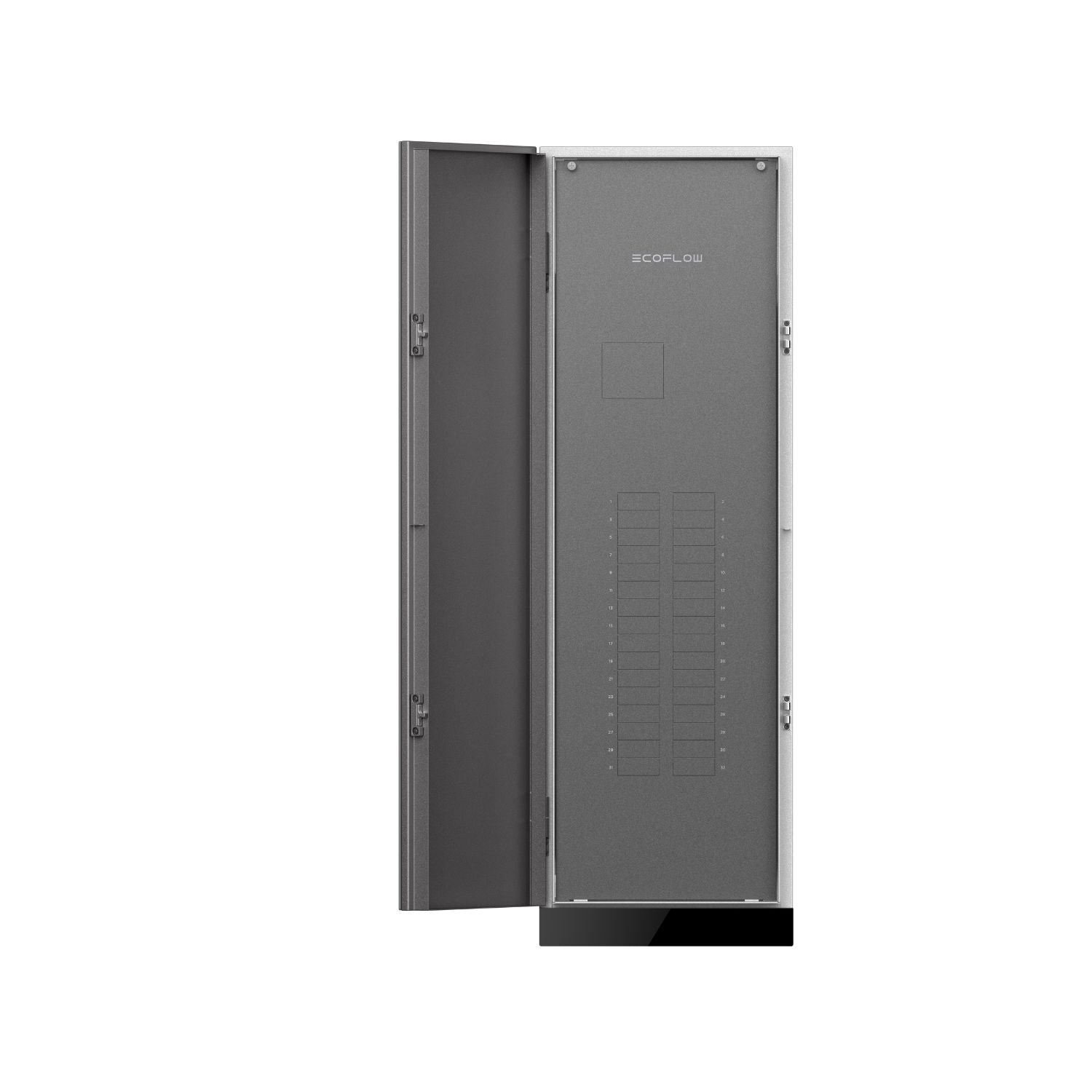

The panel has a NEMA 3R rainproof enclosure for indoor or outdoor mounting and operates from -22°F to 122°F. The Smart Inlet Box has a NEMA 1 enclosure and installs indoors. Removing the deadfront cover automatically de-energizes all branch circuits for safety.
Whole-home backup with a DELTA Pro Ultra X. Pair the panel with one to three DELTA Pro Ultra X units to back up your home's circuits, with priorities deciding what runs first.
Rooftop solar homes. With a current transformer, the panel tracks your rooftop solar output in real time and sends surplus solar to your DELTA Pro Ultra X. EcoFlow notes that integration varies with your solar inverter, wiring and installer setup.
Time-of-use rate plans. TOU mode builds a daily strategy from solar output, household use and electricity prices, storing energy when it costs less and supplying the home when it costs more.
Generator backup. Use a split-phase generator to keep the house running and the batteries charging through a long outage.
Versus a traditional breaker panel. A standard panel has no automatic switchover to backup power, can't measure usage by circuit and is controlled only at the breakers. The Smart Home Panel 3 adds all three.
Versus a manual transfer switch. A manual switch needs someone at home to change over in an outage. The Smart Home Panel 3 switches automatically and lets you manage circuits from the app.
This may be a good fit if
Yes. It can serve as a main panel for direct utility input or as a subpanel. EcoFlow lists it as suitable for use as service equipment, except in Canada.
A 240V split-phase generator. EcoFlow says it tested the panel with mainstream portable and standby generators rated up to 12kW, and results vary by model and wiring.
EcoFlow lists an Eaton CSR main breaker from 100A to 200A, plus plug-in branch breakers from Eaton, Square D, Siemens and ABB (GE) families, including AFCI and GFCI types. Your installer will match breakers to EcoFlow's compatibility list.
EcoFlow lists a 10-year warranty for the Smart Home Panel 3.
The EcoFlow Smart Home Panel 3 brings 32 smart circuits, automatic switchover, generator input and time-of-use savings to your DELTA Pro Ultra X or DELTA Pro Ultra system. If you have questions about compatibility or planning your installation, the Outbound Power team is happy to help.
EcoFlow Smart Home Panel 3 Specifications |
|
|---|---|
| Electrical | |
| Model | EF-SHP-32 |
| Rated Input Voltage | 120/240V split phase |
| Rated Input Voltage (3-Phase) | 208Y/120V, 3W (from 3-phase 4W) |
| Rated Frequency | 60Hz |
| Grid Connection | L1/L2/N/GND |
| Max Continuous (Grid Lugs) | 160A |
| Max OCPD (Grid) | 200A |
| Max Continuous (Battery Lugs) | 150A |
| Busbar Rating | 200A |
| Max Short-Circuit Current | 22kA rms |
| Circuits and Connections | |
| Load Branch Circuits | 32 (8 x 90A, 24 x 60A) |
| 90A Branch Rating | 90A max continuous (125A OCPD) |
| 60A Branch Rating | 60A max continuous (80A OCPD) |
| Switchover Time (EPS On) | Within 20ms |
| Switchover Time (EPS Off) | About 5 seconds |
| Smart Inlet Box Ports | 3 x 5P8 (leftmost for generator input) |
| Communication | Bluetooth, WLAN, Ethernet, CAN, RS485 |
| Compatibility | |
| Power Stations | Up to 3 units |
| Compatible Models | DELTA Pro Ultra or DELTA Pro Ultra X |
| Mixed Models | Allowed |
| Generator | 240V split phase, 3-12kW |
| Rooftop Solar | Tracking with current transformers |
| Rooftop Solar Ports | CT-L1, CT-L2 |
| Main Breaker (Not Included) | Eaton CSR, 100-200A |
| Branch Breakers (Not Included) | Plug-in, up to 125A, AFCI/GFCI supported |
| Installation | |
| Use | Main panel or subpanel |
| Mounting | Surface or semi-flush |
| Panel Enclosure | NEMA 3R, rainproof (indoor or outdoor) |
| Smart Inlet Box Enclosure | NEMA 1 (indoor) |
| Max Inlet Box-Panel Distance | 98 ft (30 m) |
| Installer | Qualified electrical personnel only |
| Certifications | UL 67, UL 869A, UL 916, UL 1741 |
| Environment | |
| Operating Temperature | -22°F to 122°F (-30°C to 50°C) |
| Storage Temperature | -22°F to 122°F (-30°C to 50°C) |
| Operating Humidity | Up to 100% RH, condensing |
| Max Operating Altitude | 9,842 ft (3,000 m) |
| Size and Weight | |
| Dimensions | 45.28 x 14.37 x 7.40 in (1150 x 365 x 188 mm) |
| Net Weight | 88.8 lb (40.3 kg) |
| Warranty | |
| Warranty | 10 years |
