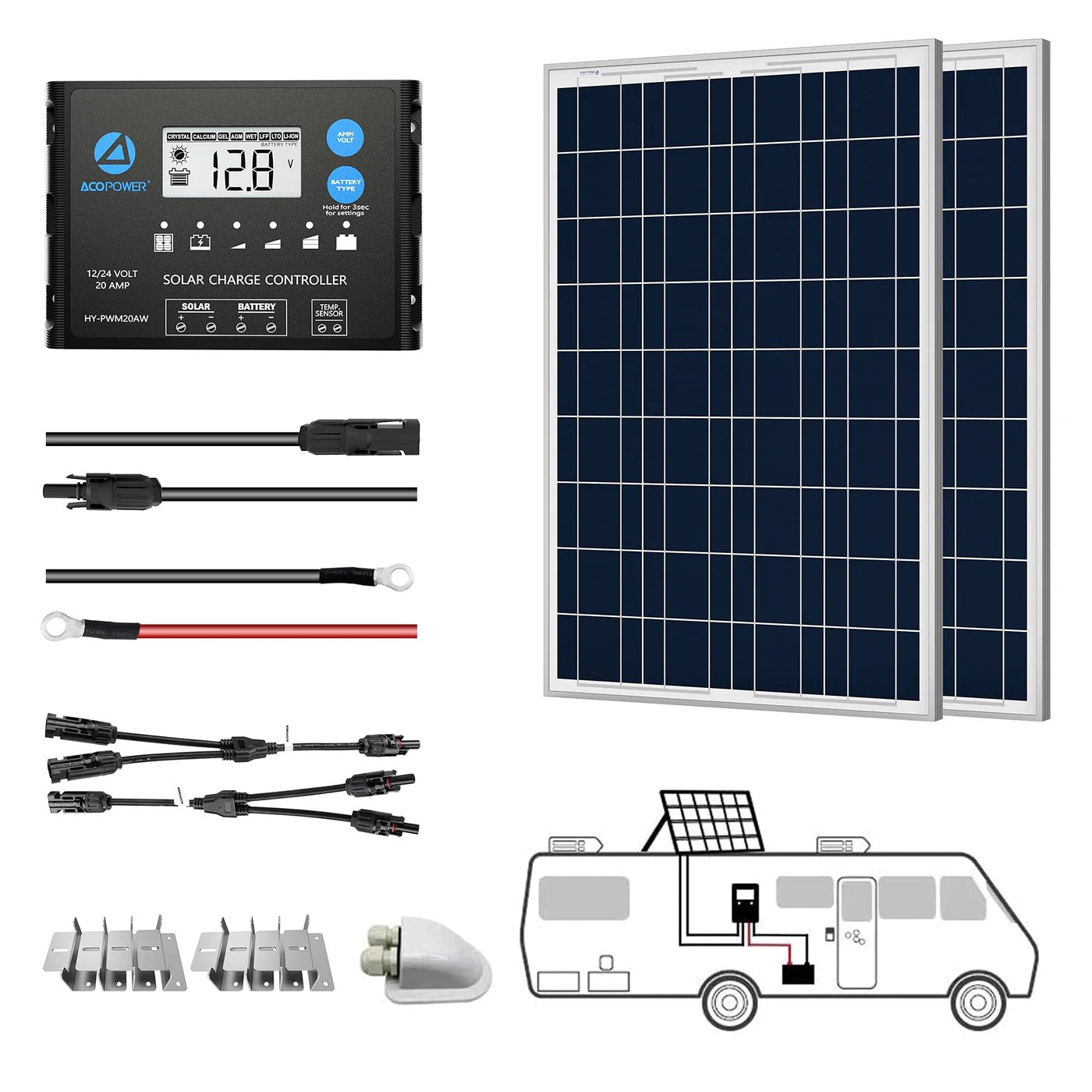

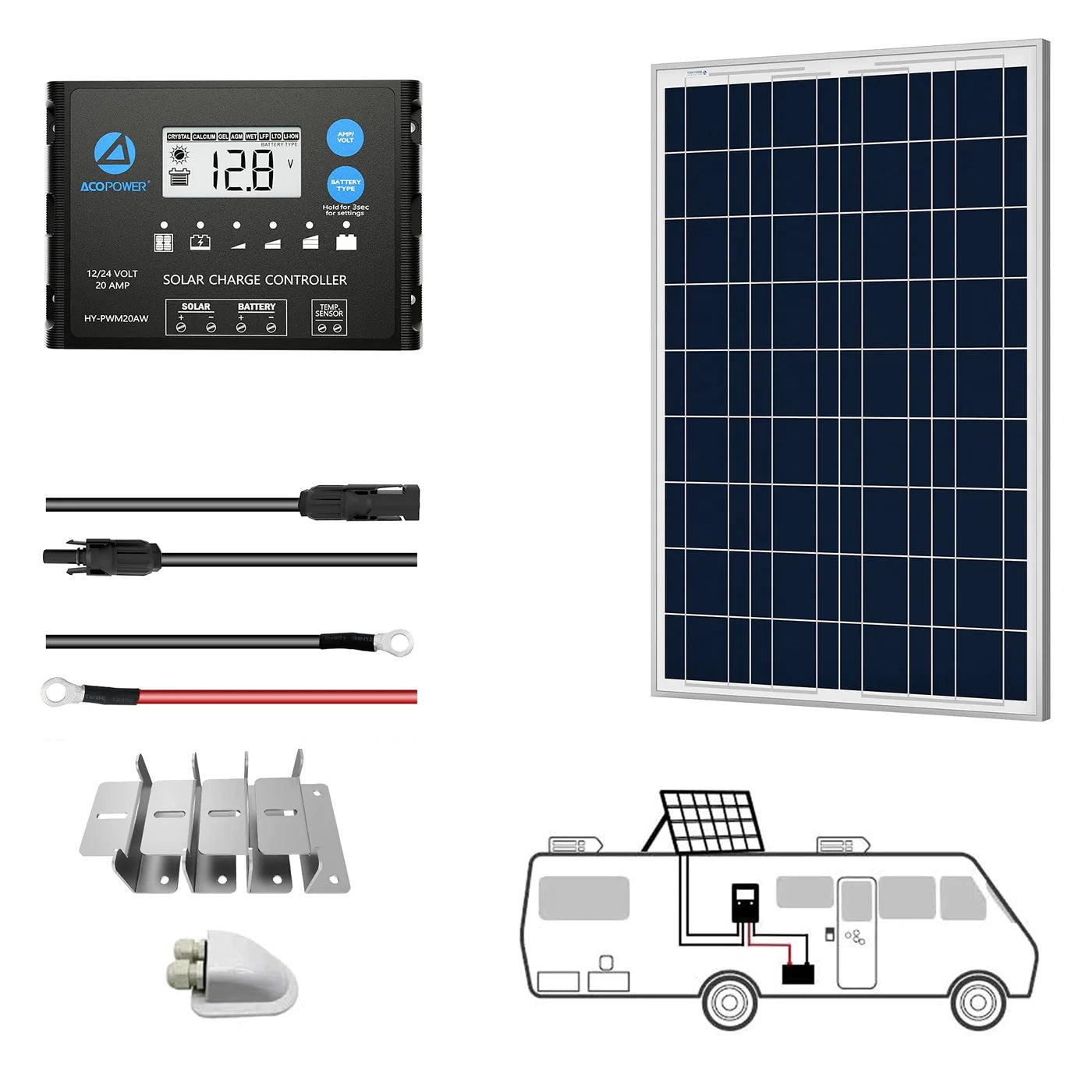

ACOPOWER 12V Polycrystalline Solar RV Kits + MPPT / PWM Charge Controller - 100W PWM20A

ACOPower 12V Polycrystalline Solar RV Kits

by ACOPower
|
SKU: HY-SPKP-100W20A
$169.90

We Beat Any Price

Found it online for less? Contact us and we'll beat it.

1-888-976-5443

sales@outboundpower.com

Instant Live Chat
Select a Solar Kit
Authorized ACOPower Dealer

Authorized ACOPower Dealer

Easy 30-Day Returns

Easy 30-Day Returns

Friendly Expert Support

Friendly Expert Support

Power Up Your RV Adventures with ACOPower's 12V Polycrystalline Solar Kit

Embrace the freedom of off-grid living and slash energy costs with the ACOPower 12V Polycrystalline Solar RV Kit! This comprehensive package empowers you to harness the sun's natural power, providing reliable electricity for your RV adventures. Whether you're traversing scenic landscapes or seeking serene boondocking experiences, this kit offers the clean, sustainable energy solution you crave.


ACOPOWER 12V Polycrystalline Solar RV Kits + MPPT / PWM Charge Controller Features

High solar cell efficiency

Charge controllers efficiency reaches 80-90%, enable the solar panel to operate at its maximum power point, or more precisely, the optimum voltage and current for maximum power output.

Ultra-fast tracking speed

Manages the charging process of your RV's batteries in three distinct stages: bulk charging, absorption charging, and float charging, ensuring that your batteries are charged optimally, maximizing their lifespan and performance while preventing overcharging.

Reliable & Safe

Electronic protections: reverse current, overcharging, short-circuit and reversed polarity. Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for 25 years.

Smart APP Control

Remote monitoring and Bluetooth control, a programmable interface with a multi-function LCD for displaying system information, and accurate recognition and tracking capabilities.


Warranty & Support

  • Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty.
  • Solar Charge Controllers: The controller itself comes with a 1-year warranty.
  • Accessories: 1-year material warranty

ACOPOWER 12V Polycrystalline Solar RV Kits + MPPT / PWM Charge Controller Specifications

ACOPOWER 100 WATTS POLY SOLAR PANEL

  • Maximum Power at STC (Pmax): 100W
  • Maximum Operating Voltage (Vmp): 17.48V
  • Maximum Operating Current (Imp): 5.72A

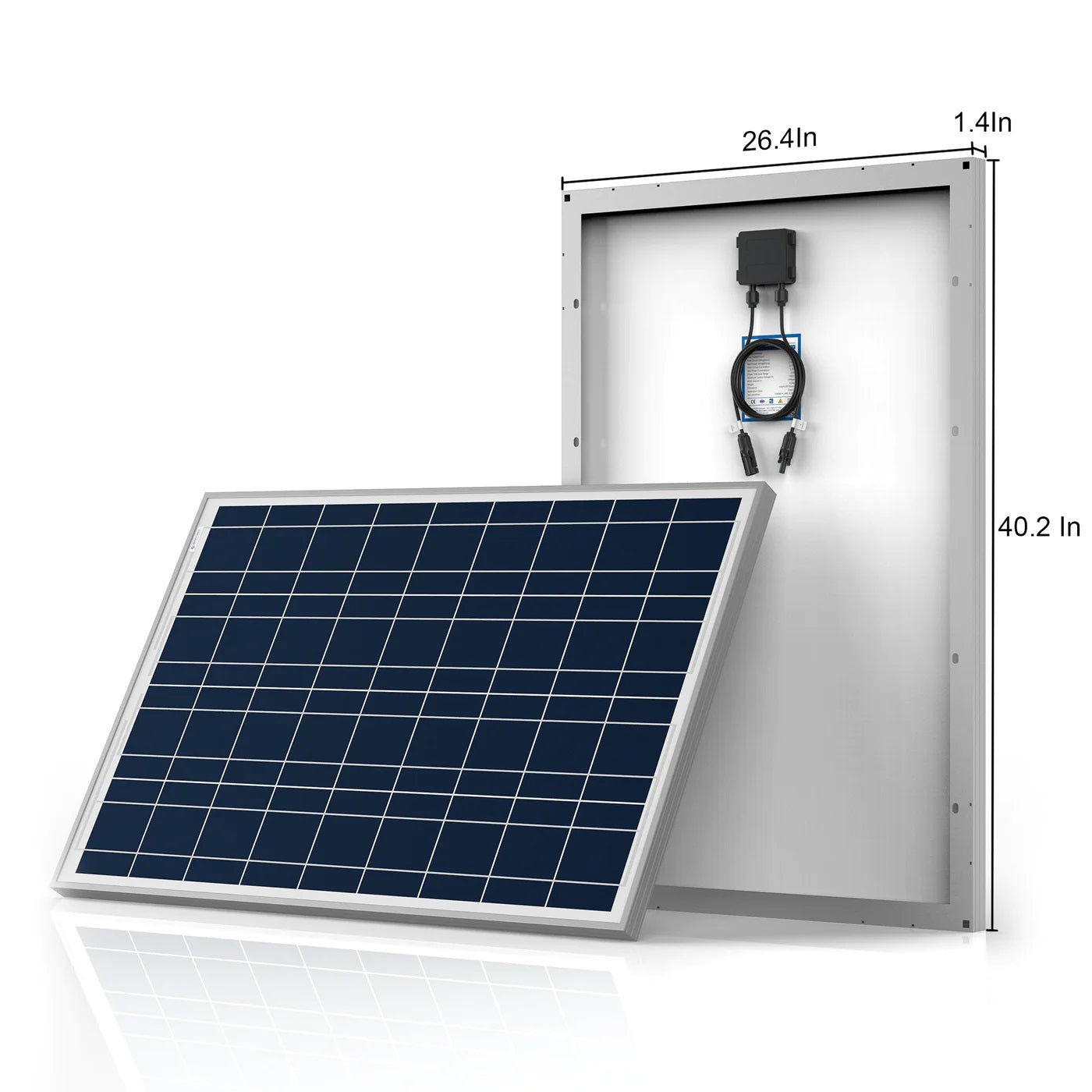

  • Dimension: 1020x670x35mm / 40.2x26.4x1.4 in
  • Open-Circuit Voltage (Voc): 22V
  • Short-Circuit Current (Isc): 6.21A
  • Operating Temperature: -40ºC to 85ºC
  • Weight: 9.5kg / 20.6 lbs

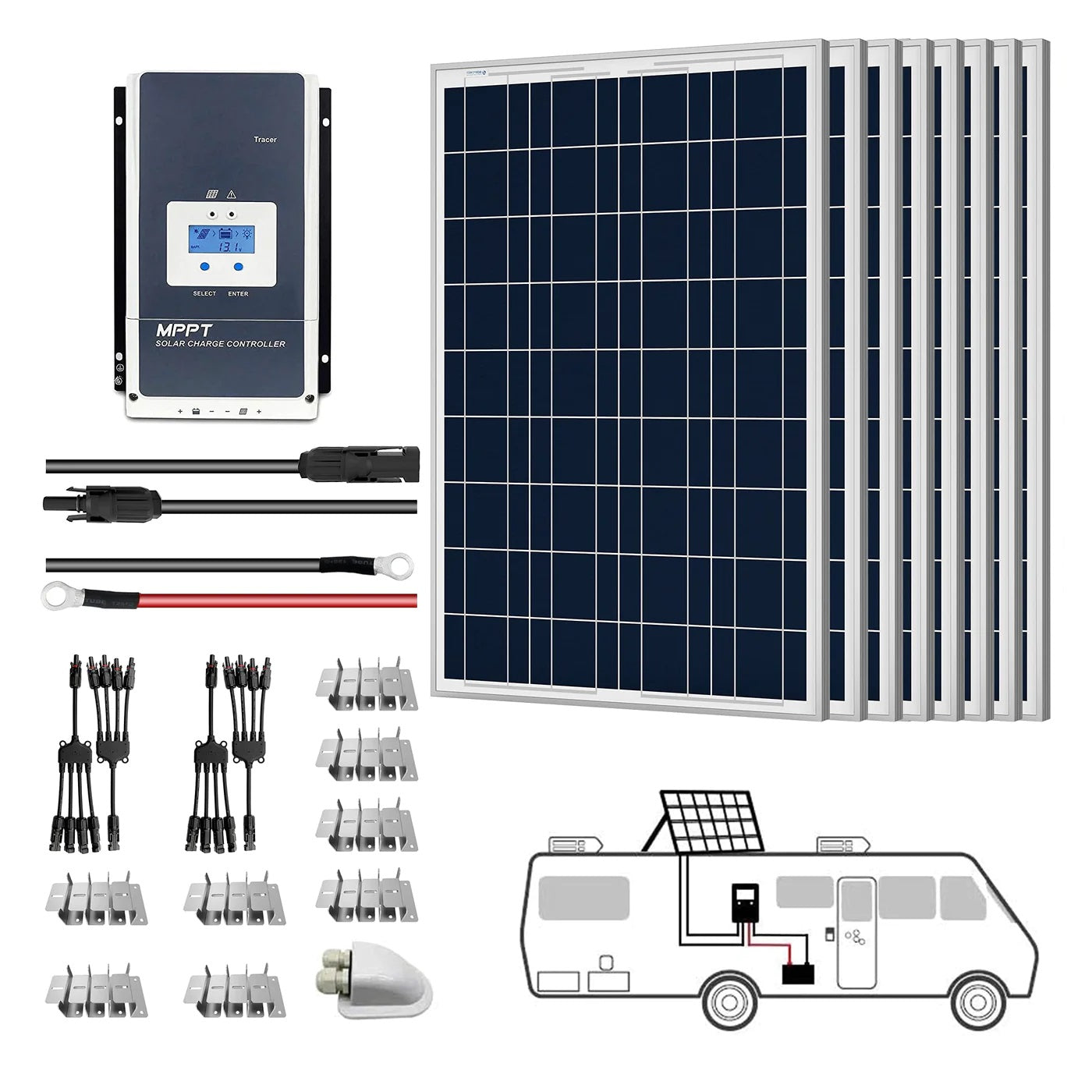

ACOPOWER 60A MPPT CHARGE CONTROLLER

  • Nominal system voltage: 12v/24v/36v/48v DC Auto
  • Battery input voltage range: 8V～68V
  • Max.PV input power: 750W/12V, 1500W/24V, 2250W/36V, 3000W/48V
  • Charging Power and Current Limitation Function
  • Grounding: Common negative
  • Power Terminals: 6AWG(16mm2)
  • Dimensions: 340×232×105.2mm
  • Rated charge current: 60A
  • Max.PV open circuit voltage: 150V/138V
  • MPP voltage range: V(BAT)+2V～108V
  • Battery type: Sealed(Default)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
  • Communication: RS485 (RJ45 interface)
  • Enclosure: IP20
  • Weight: 3.5kg

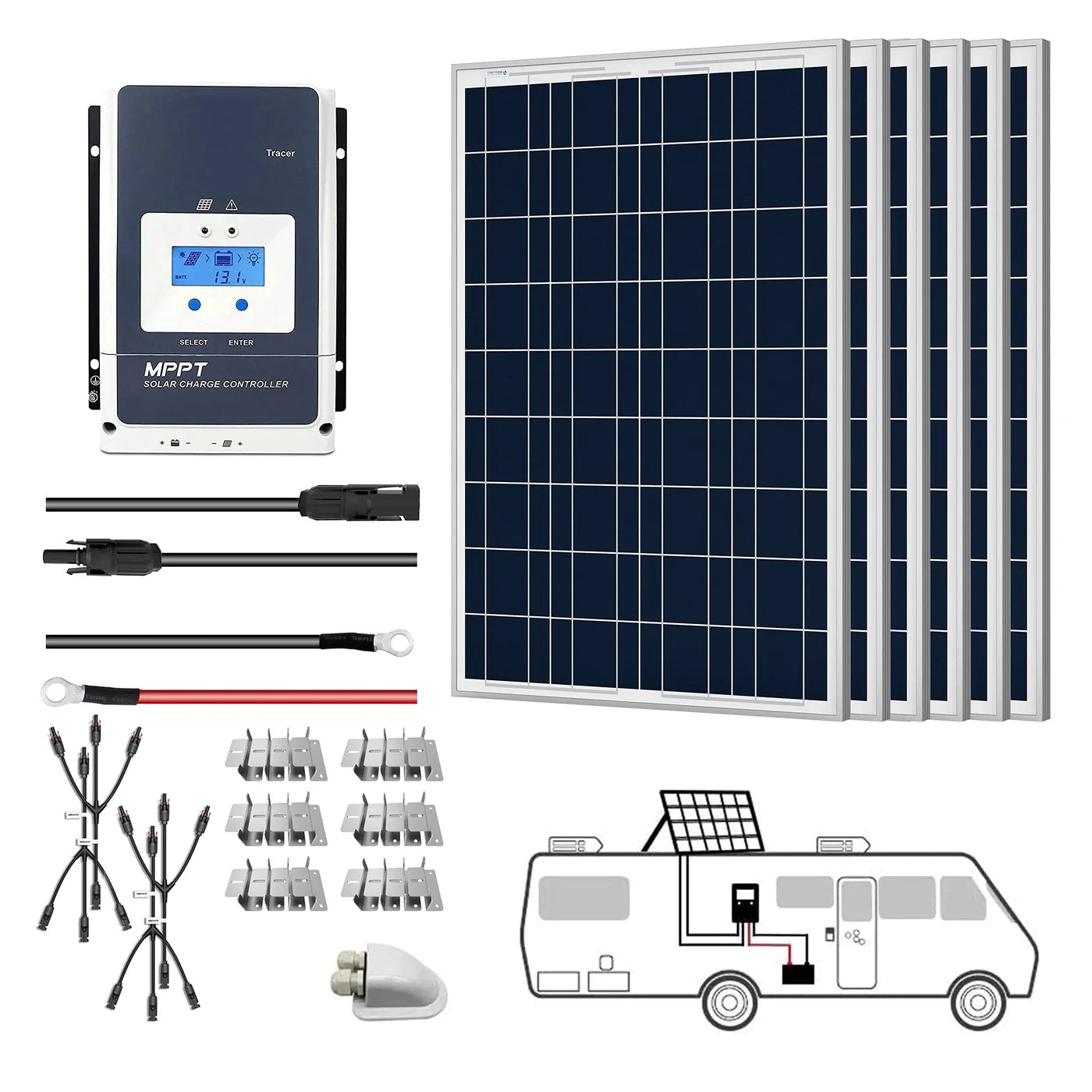

ACOPOWER 50A MPPT SOLAR CHARGE CONTROLLER

    • Nominal System Voltage: 12v/24v/36v/48v DC Auto
    • Rated Charge Current: 50A
    • Max. PV Open Circuit Voltage: 150V/138V
    • MPP Voltage Range: V(BAT)+2V～108V
    • Working temperature: -25℃～+50℃
    • RS485 Interface: RS485(RJ45)
    • Dimension: 261*216*119mm
    • Grounding: Common negative Design
    • Battery Input Voltage Range: 8V～68V
    • Rated charge Power: 625W/12V 1250W/24V 1875W/36V 2500W/48V
    • Battery type: Sealed(Default)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
    • Storage temperature: -20℃～+70℃
    • Enclosure: IP33
    • Terminals: 16mm2/6AWG

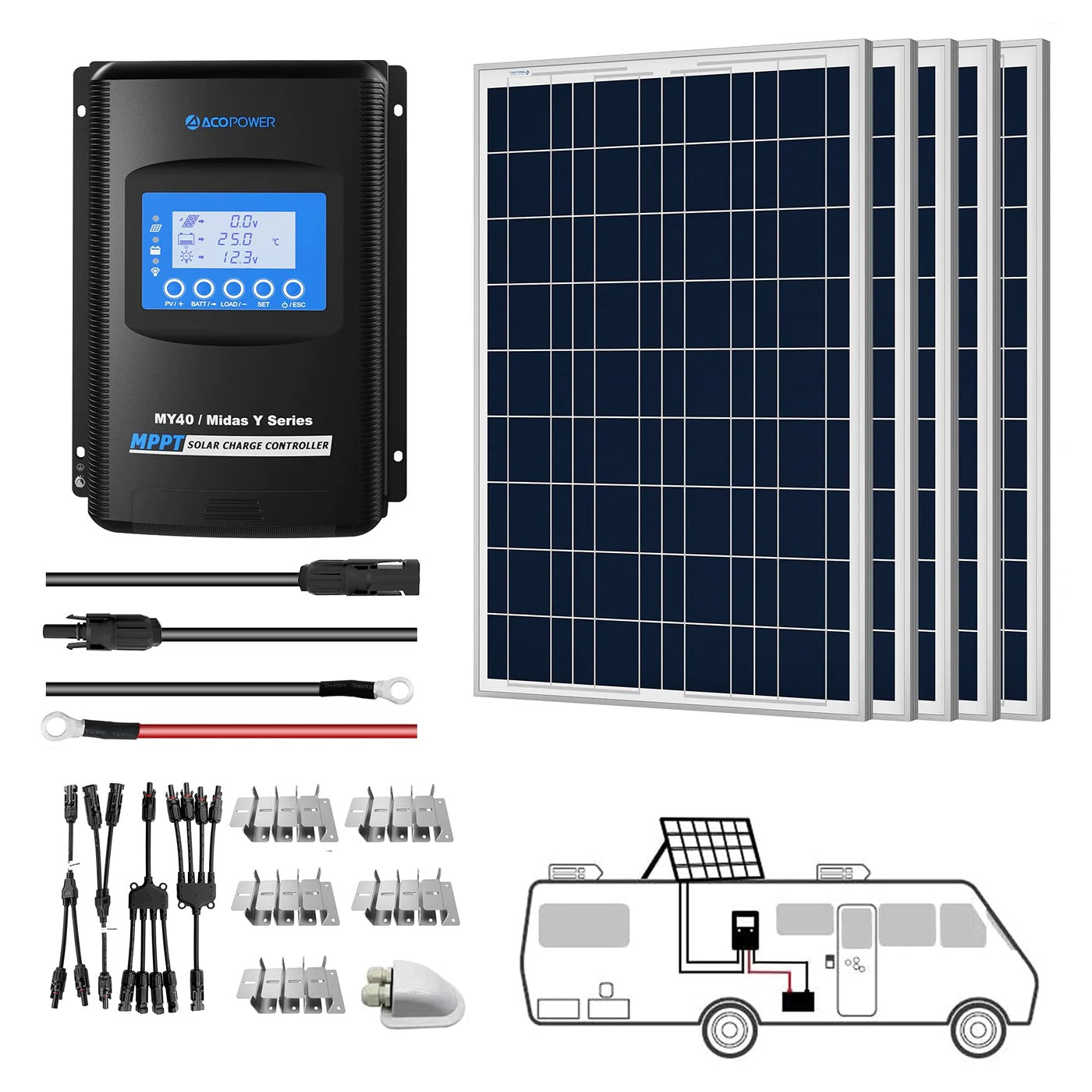

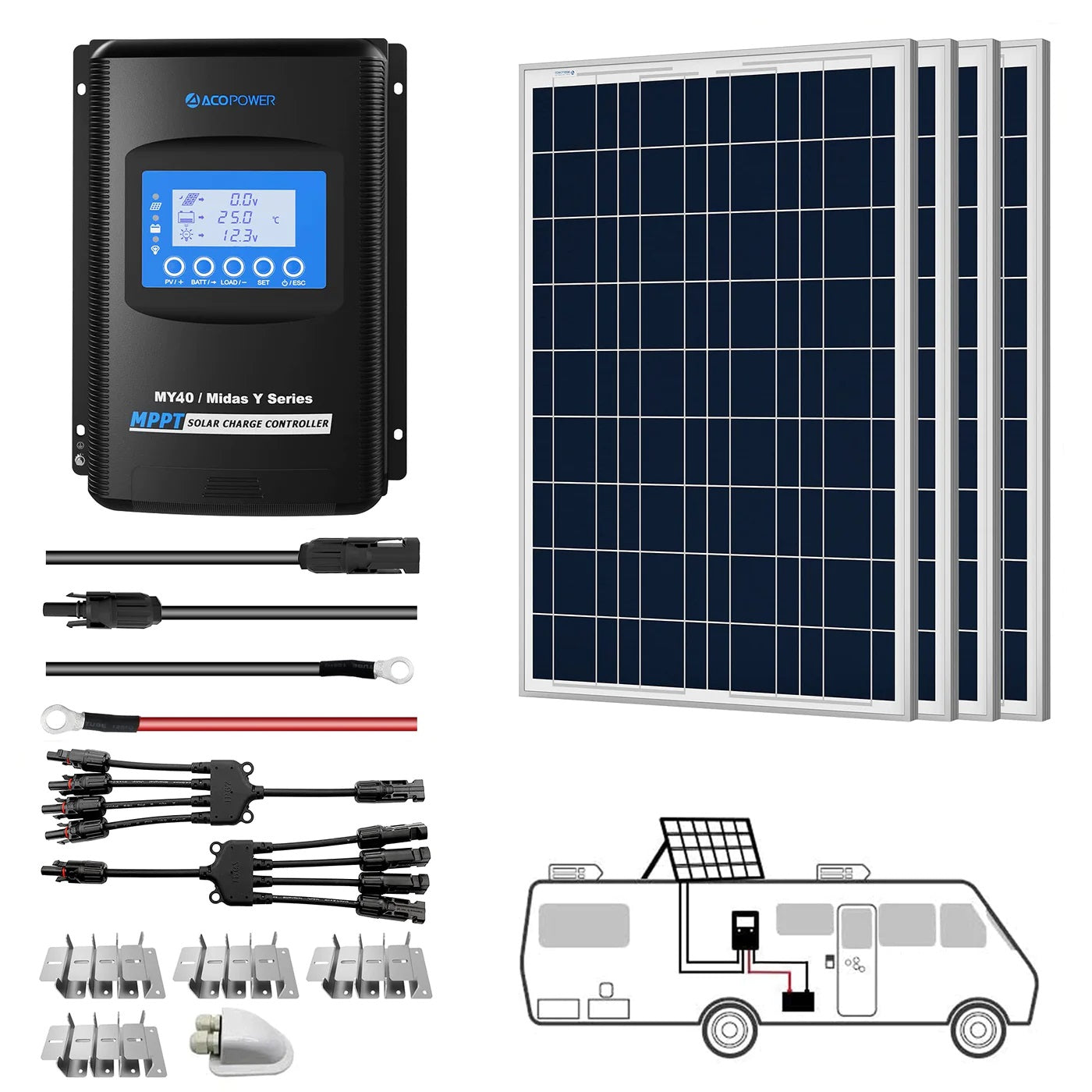

    ACOPOWER MIDAS 40A MPPT SOLAR CHARGE CONTROLLER

      • Nominal System Voltage: 12/24VDC Auto
      • Rated Charge Current: 40A
      • Max. PV Open Circuit Voltage: 100V (1) 92V (2)
      • MPPT Voltage Range: (Battery Voltage+2V) ~72V
      • Working temperature: -25℃～+50℃
      • Terminals: Up to 6 AWG
      • Dimension: 10x7.28x2.67 in / 255×185×67.8mm
      • Grounding: Common negative
      • Battery Input Voltage Range: 8V～32V
      • Rated charge Power: 520W/12V 1040W/24V
      • RS485 Interface: 5VDC/200mA(RJ45)
      • Storage temperature: -20℃～+70℃
      • Enclosure: IP33
      • Weight: 3.75lbs / 1.7kg

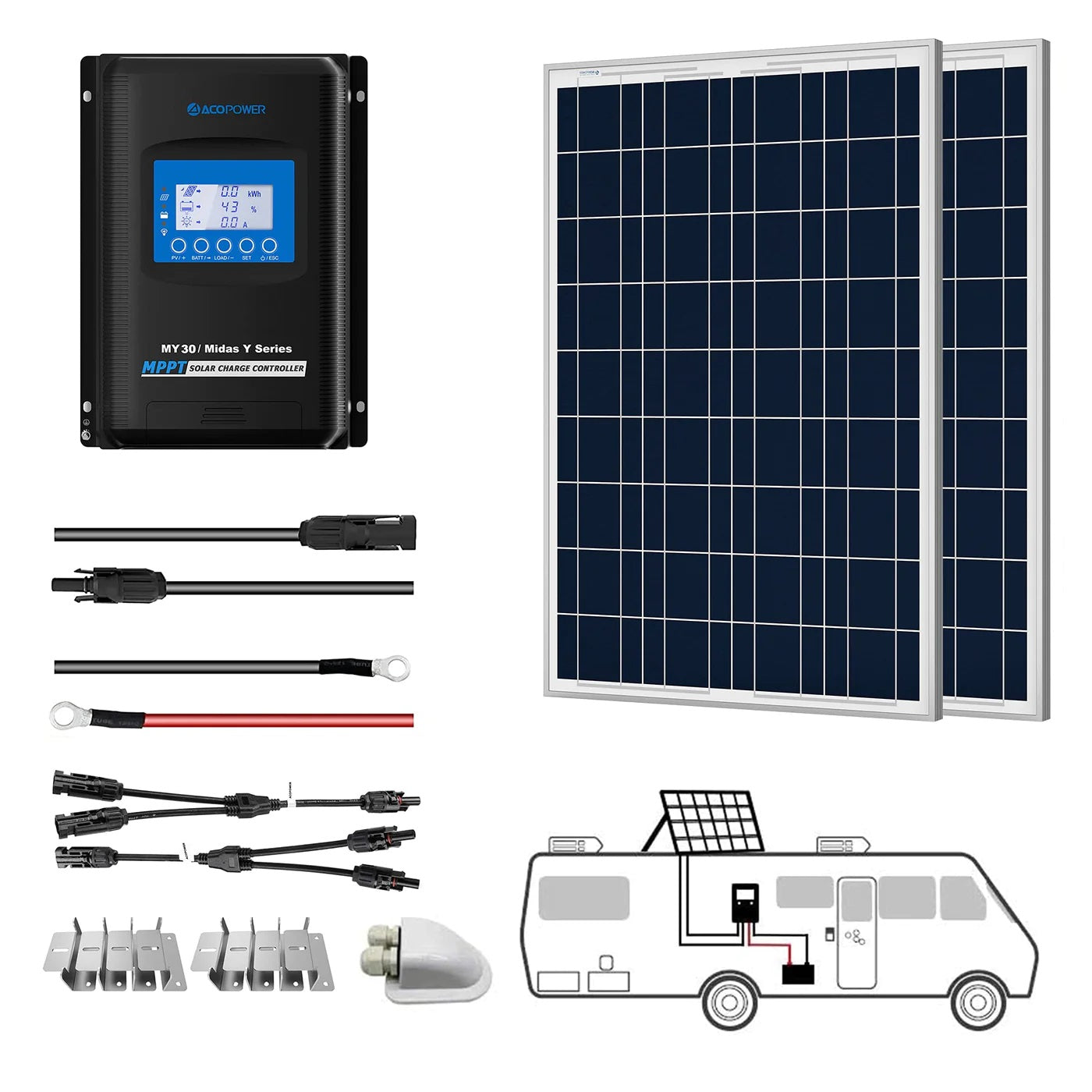

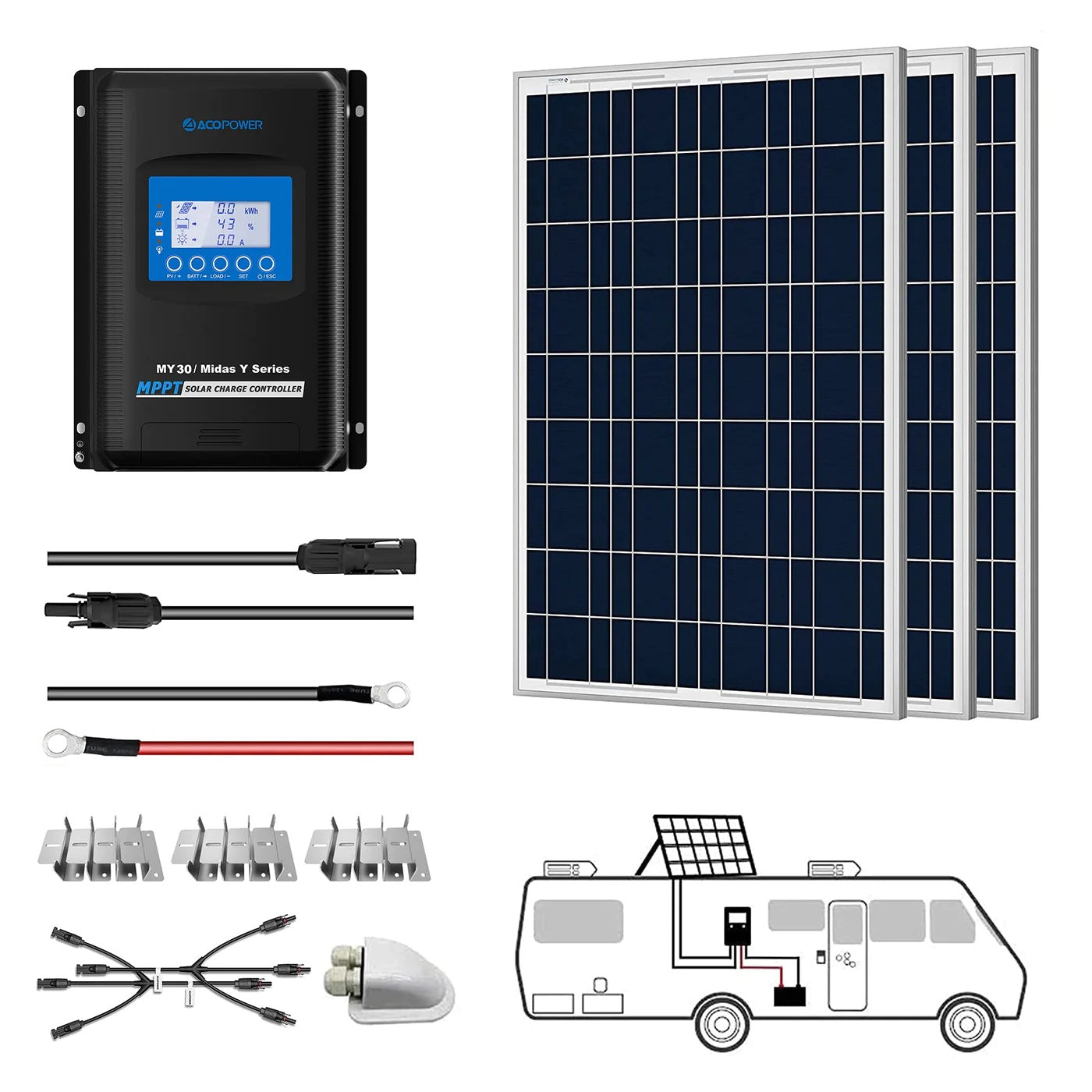

      ACOPOWER 30A MPPT SOLAR CHARGE CONTROLLER

        • Nominal system voltage: 12/24VDC Auto
        • Battery input voltage range: 8V～32V
        • Max.PV input power: 12V/390W, 24V/780W
        • Working environment temperature: -25℃～+50℃
        • Grounding: Common negative
        • Power Terminals: 6AWG(16mm2)
        • Dimensions: 228x164x55mm
        • Rated charge current: 30A
        • Max.PV open circuit voltage: 100VDC
        • MPP voltage range: V(BAT+2V)～72V
        • Storage temperature range: -35℃～+80℃
        • Communication: RS485
        • Enclosure: IP30
        • Weight: 1.2kg

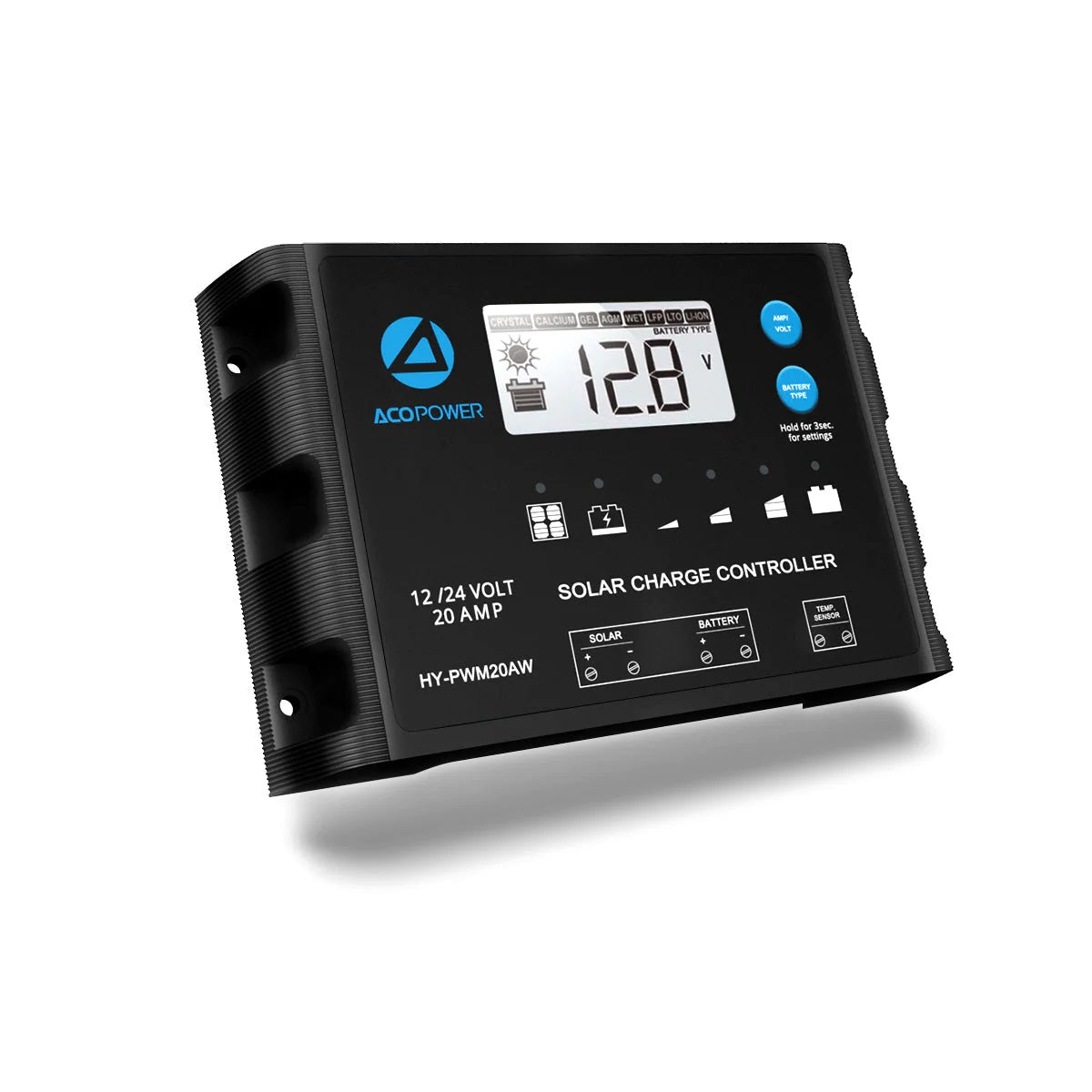

        ACOPOWER 20A PWM CHARGE CONTROLLER

          • Nominal Voltage: 12V/24V DC
          • Rated Charge Current: 20A
          • Battery Start Charging Voltage: 3V
          • Operating Temperature: -40°F to 140°F
          • Terminals: Up to 10 AWG
          • Dimensions: 5.59x 3.7x 1.06 inches
          • Grounding: Common Negative
          • Max. PV Input Voltage: 50V
          • Temperature Compensation Coefficient: -24mV/°C
          • Storage Temperature: -40°F to 185°F
          • Enclosure: IP65
          • Weight: 1.1 lbs
