AIMS Power 6V 225Ah AGM Deep-Cycle Heavy Duty Battery

AIMS Power 6V 225Ah AGM Deep-Cycle Heavy Duty Battery Overview

This AIMS Power 6 volt AGM battery is a heavy duty, deep cycle battery ideal for back-up power, golf carts and stored power applications. Affordable without compromising quality, this battery will provide power for years.

This heavy duty rechargeable battery is made of AGM lead lead dioxide technology. The extra thick lead plates in this battery allow for a deeper discharge with less harm to the battery and provides 20% more charge/discharge cycles compared to other AGM batteries. This AGM battery has less instant energy, but greater long-term energy delivery. The dilute sulfuric acid electrolyte is absorbed by separators and plates, thus immobilized. Should the battery be accidentally overcharged producing hydrogen and oxygen, special one-way valves allow the gases to escape, avoiding excessive pressure build-up. Otherwise, the battery is completely sealed and is, therefore, maintenance-free, leak-proof and usable in any position. Perfect for applications requiring large amounts of power and provides longer run time.

Starting batteries, such as car batteries should not be used for deep cycle applications because of the thinner plates in these batteries. They are more prone to warping and pitting when discharged.

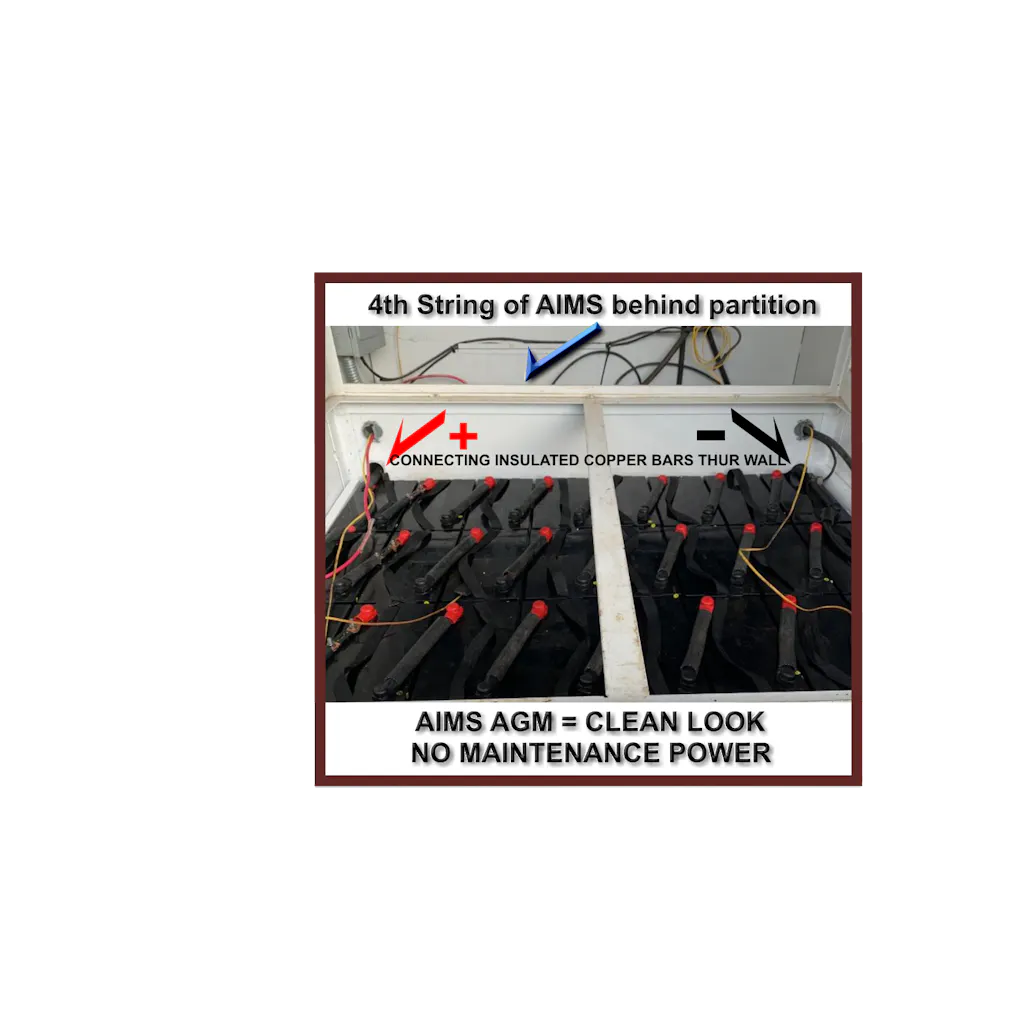

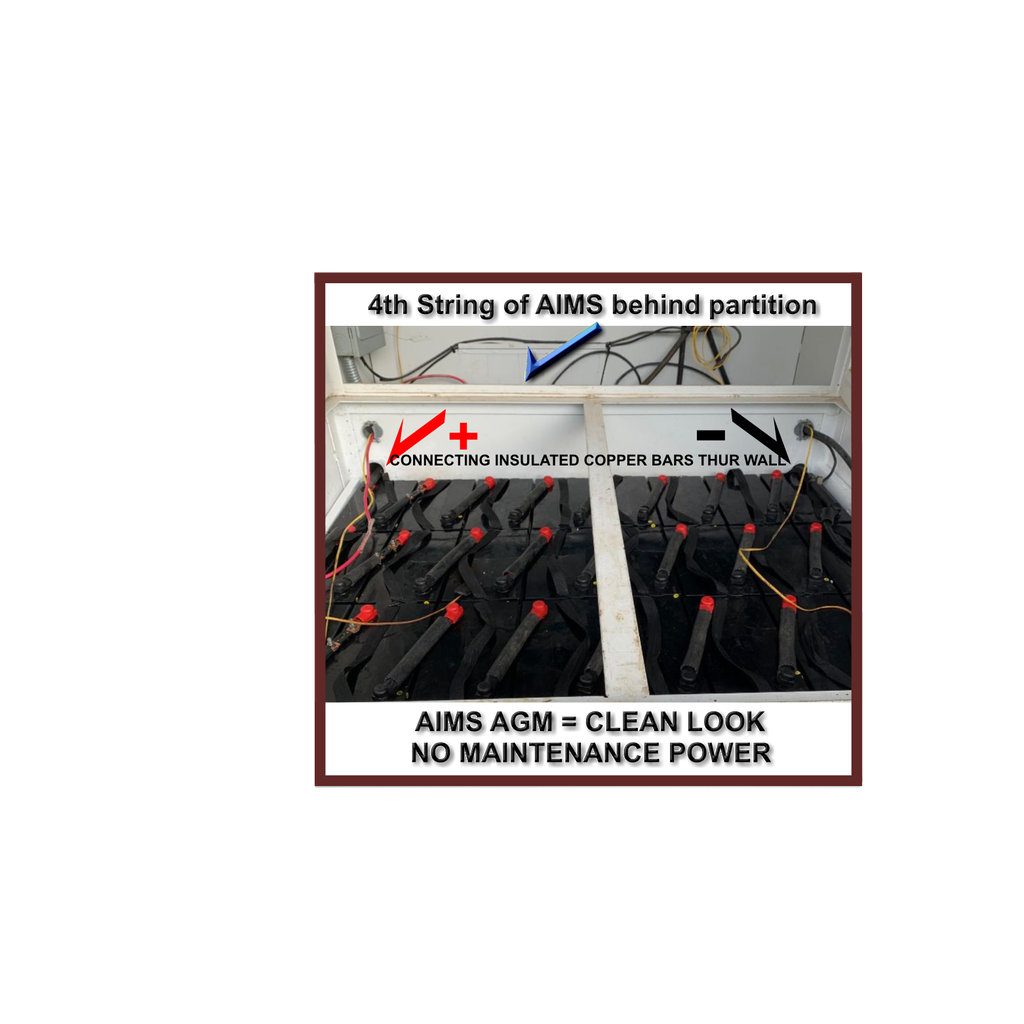

You can connect these batteries in series or parallel depending on DC voltage needed. Most common 12, 24, 36 and 48 volt configurations.

AIMS Power 6V 225A AGM Deep-Cycle Heavy Duty Battery Features

Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding. Not restricted for air transport complies with IATA/ICAO Special Provision A67. UL-recognized component.

• Absorbent Glass Mat (AGM) technology
• Heavy duty compared to other AGM batteries - 20% more cycles
• Can be mounted in any orientation
• Computer designed lead, calcium tin alloy grid for high power density
• AGM is ideal for back up and stored power applications
• Convenient removeable carry handle
• Long service life float or cyclic applications
• Maintenance-free operation
• Low self discharge
• Copper terminals
• Not restricted for air transport - complies with IATA/ICAO Special Provision A67
• UL recognized component

5-Year Warranty

• This battery comes with a 5-year warranty from manufacturer defects

AIMS Power 6V 225A AGM Deep-Cycle Heavy Duty Battery Specifications

• Nominal voltage: 6V
• Number of cell: 3
• Design life: 10 years with proper maintenance
• Nominal capacity: 77oF(25oC)
• 220 hour rate: (22.5A 5.4V) 230Ah
• 5 hour rate: (40A 5.25V) 196Ah
• 1 hour rate: (153A 4.8V) 147Ah
• Internal resistance: Fully charged battery: 77oF(25oC) 3.2mOhms
• Self-discharge: 3% of capacity declined per month at 20oC (average)
• Operating temperature range
• Discharge -20~60oC
• Charge -10~60oC
• Storage -20~60oC
• Maximum discharge current: 77oF(25oC) 1000A(5s)
• Short circuit current: 3800A
• Charge methods: Constant Voltage Charge 77oF(25oC)
• Cycle Use: 2.4 - 2.45 V per
• Maximum charging current: 67.5A
• Temperature compensation: -15mV/oC
• Standby use: 2.2 - 2.3 V per
• Dimensions: 12.6L x 6.93W x 8.86H
• Weight: 71 lbs.
• Warranty: 5 year warranty from manufacturer defects

AIMS Power 6V 225A AGM Deep-Cycle Heavy Duty Battery Manual

• Download the Manual
