Maximize Your Energy Independence With The Renogy 100W 12V Solar Starter Kit
Designed for newcomers to solar energy, the Renogy 100 Watt 12 Volt Solar Starter Kit provides a perfect entry point into off-grid power solutions. Whether you are camping in the wilderness, preparing for power outages, or simply looking to reduce your carbon footprint, this high-quality solar starter kit equips you with everything you need for sustainable energy generation.
Renogy 100 Watt 12 Volt Solar Starter Kit Features
Solar panel designed for better sunlight capture and efficiency
The 100-watt polycrystalline solar panel delivers remarkable energy production, ensuring maximum output even in challenging weather conditions. Its robust design guarantees long-lasting performance and energy consistency.
Advanced charge controller optimizing solar power with maximum power tracking
Equipped with both 20A and 40A Maximum Power Point Tracking (MPPT) charge controllers, this kit maximizes solar energy conversion. MPPT technology intelligently monitors the solar array's output, optimizing performance to harness the most energy possible.
Easy installation that anyone can do by themselves
With an intuitive design and thorough instruction manual, setting up this solar kit is quick and hassle-free. You can easily assemble and start utilizing solar power without needing extensive technical knowledge or expertise.
Power solutions offering energy for many different situations
This kit is perfect for a variety of applications, whether you’re at home, on the road in an RV, or enjoying the great outdoors. Power essential devices like lights, fans, and small appliances with ease.
Well-made structure built to withstand damage and time
Built to endure the elements, the solar panels feature corrosion-resistant aluminum frames and advanced glass technology. This ensures maximum durability and longevity, providing you with a reliable energy source for years to come.
Renogy 100 Watt 12 Volt Solar Starter Kit Warranty
Renogy provides a 5-year warranty policy, ensuring the absence of defects in materials, workmanship, and performance during the warranty period.

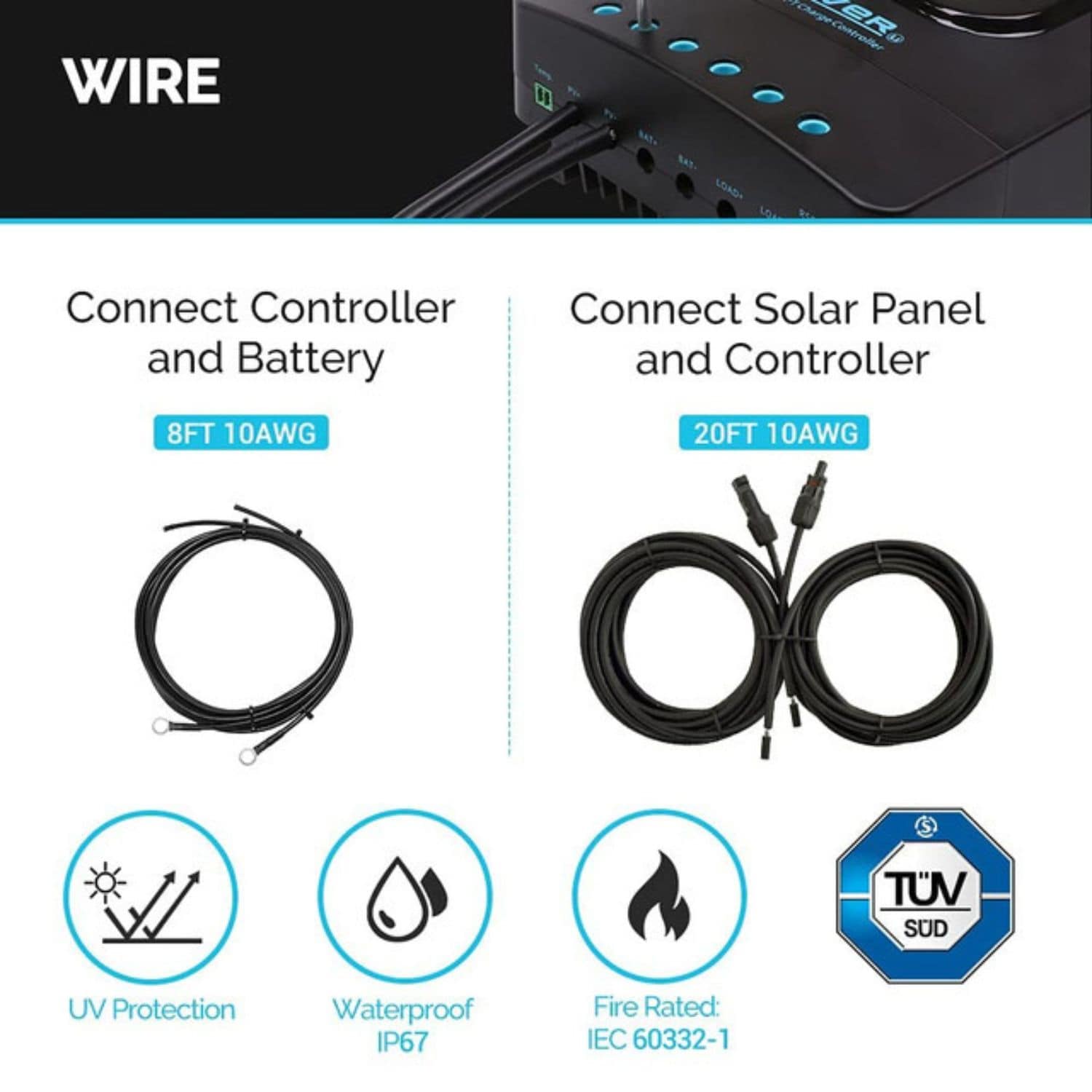

What's Included
- 1 x 100W Monocrystalline Solar Panel
- 1 x Rover 20A MPPT Charge Controller
- 1 x Mounting Z Brackets
- 1 x Renogy 20ft 10AWG MC4 Adaptor Kit (A pair)
- 1 x 8ft 10AWG Tray Cables for Option 1-Rover20
Renogy 100 Watt 12 Volt Solar Starter Kit Specifications
RENOGY 100W MONOCRYSTALLINE SOLAR PANEL (G3 Version)
|
Maximum Power |
100W |
Maximum System Voltage |
600V DC (UL) |
Optimum Operating Voltage (Vmp) |
20.4V |
Open-Circuit Voltage (Voc) |
24.3V |
Optimum Operating Current (Imp) |
4.91A |
Short-Circuit Current (Isc) |
5.21A |
Dimensions |
41.8x20.9x1.4in | 1062 x 530 x 35 mm |
Weight |
14.1lbs | 6.4 kg |
RENOGY ROVER 20A MPPT CHARGE CONTROLLER
|
Nominal system voltage |
12V/24V Auto Recognition |
Rated Battery Current |
20A |
Rated Load Current |
20A |
Max. PV Input Short Current |
25A |
Max. Battery Voltage |
32V |
Max Solar Input Voltage |
100 VDC |
RENOGY 8FT 8AWG (A PAIR)
|
Length |
8ft |
AWG |
8 Or 10 |
Rating Voltage |
600/1000V |
Temperature |
-40°F to +185°F |
RENOGY 20FT 10AWG MC4 ADAPTOR KIT (A PAIR)
|
Length |
20ft |
AWG |
10 |
Rating Voltage |
600/1000V |
Temperature |
-40°F to +185°F |
MOUNTING Z BRACKETS (SET)
|
Eight Long Cap Bolts and Four Short Bolts |
Four Spring Washers and Four Washers |
Four Z Shape Solar Panel Brackets |
Four Nuts |
WARRANTY INFORMATION
|
Panels |
25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty |
Accessories |
1-year material and workmanship warranty |
Renogy 100 Watt 12 Volt Solar Starter Kit Manual
