Rich Solar 4000W 48V 120VAC Cabin Kit

Achieve Energy Independence With The Rich Solar 4000W 48V 120VAC Cabin Kit

Take control of your energy needs and escape the limitations of the grid with the Rich Solar 4000W 48V 120VAC Cabin Kit. This comprehensive solar power system is designed to provide reliable, sustainable electricity for your tiny home, RV, cabin, or off-grid dwelling.

Rich Solar 4000W 48V 120VAC Cabin Kit Features

Harness the Power of the Sun

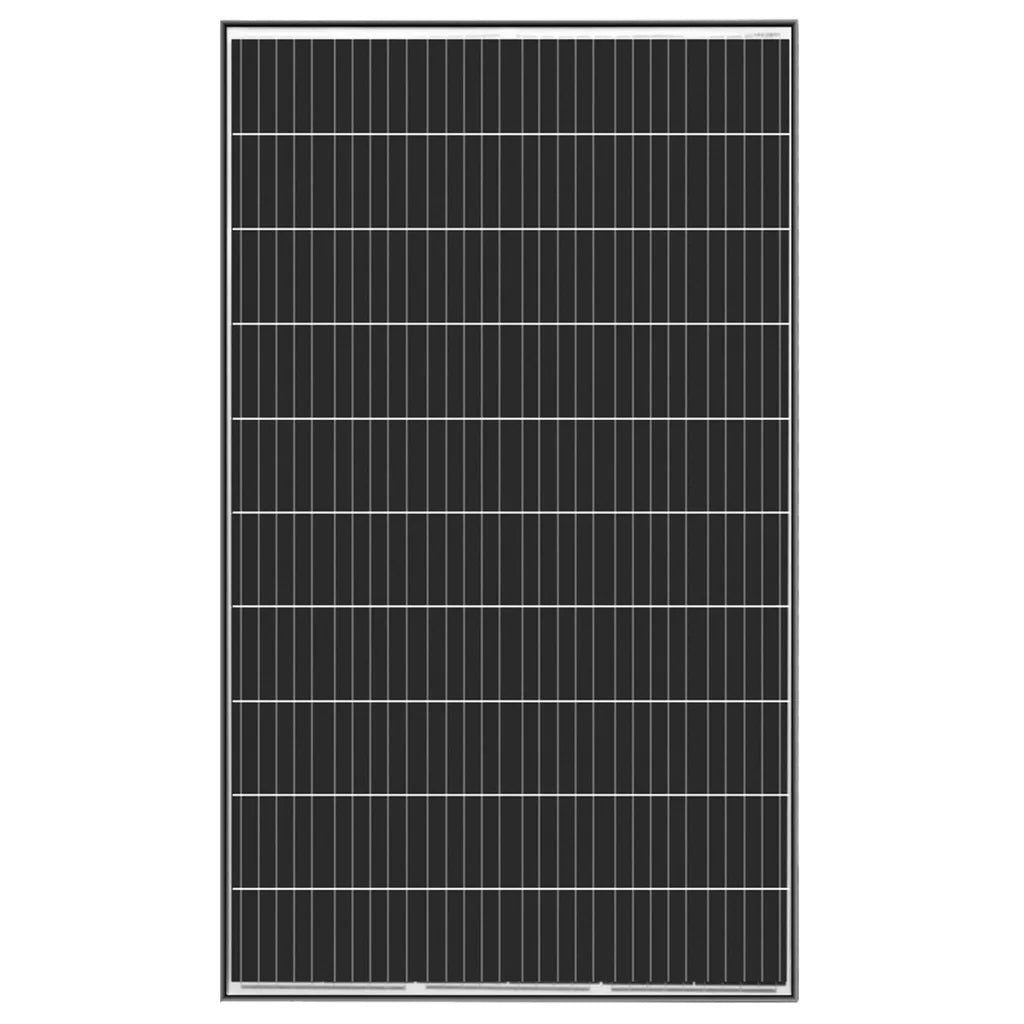

The Rich Solar 4000W 48V 120VAC Cabin Kit features 12 high-quality, 335-watt monocrystalline solar panels. These panels are known for their exceptional efficiency in converting sunlight into clean, usable electricity. Even on cloudy days, you'll be generating enough power to meet your basic needs.

Store Energy for Day and Night Use

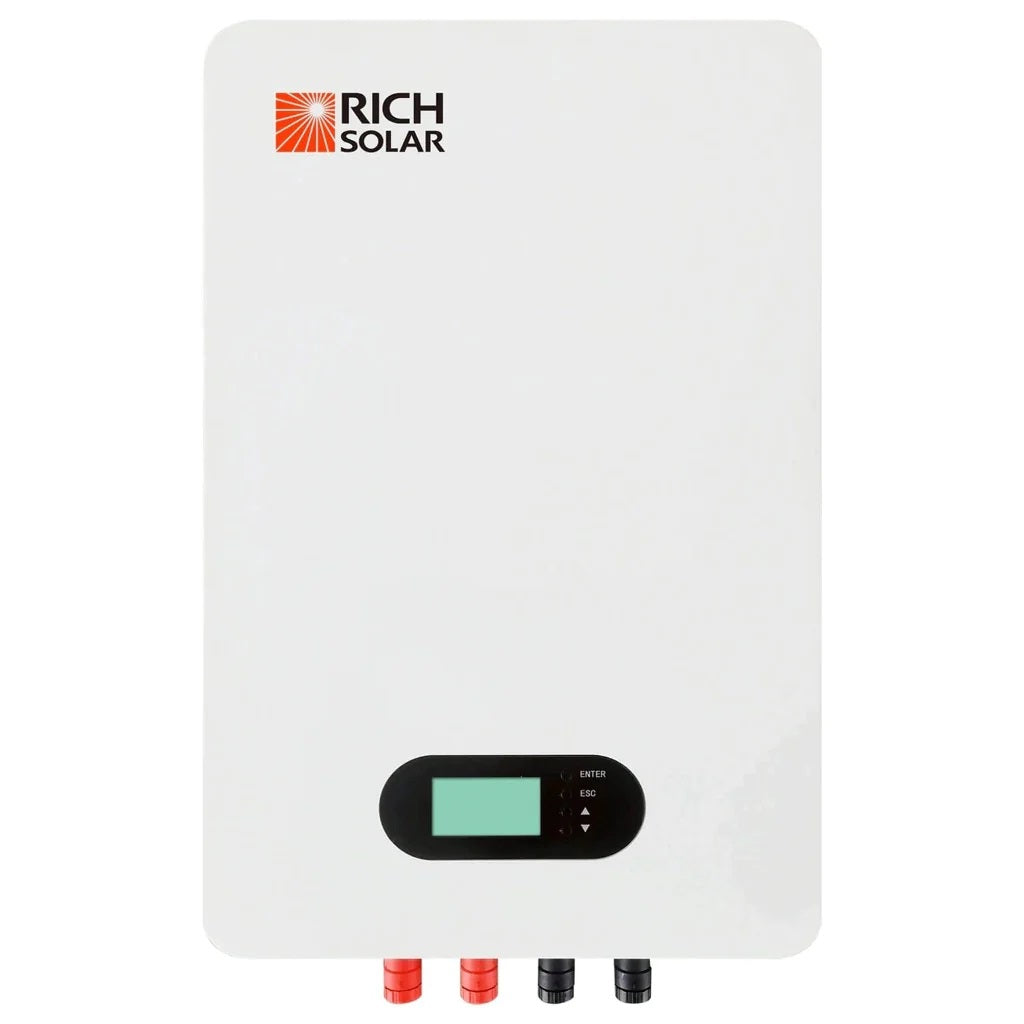

The kit includes a robust 48-volt battery bank with a total capacity of approximately 40 kWh. This ensures you'll have ample energy storage to power your appliances and lights throughout the day and night.

Effortless Power Conversion

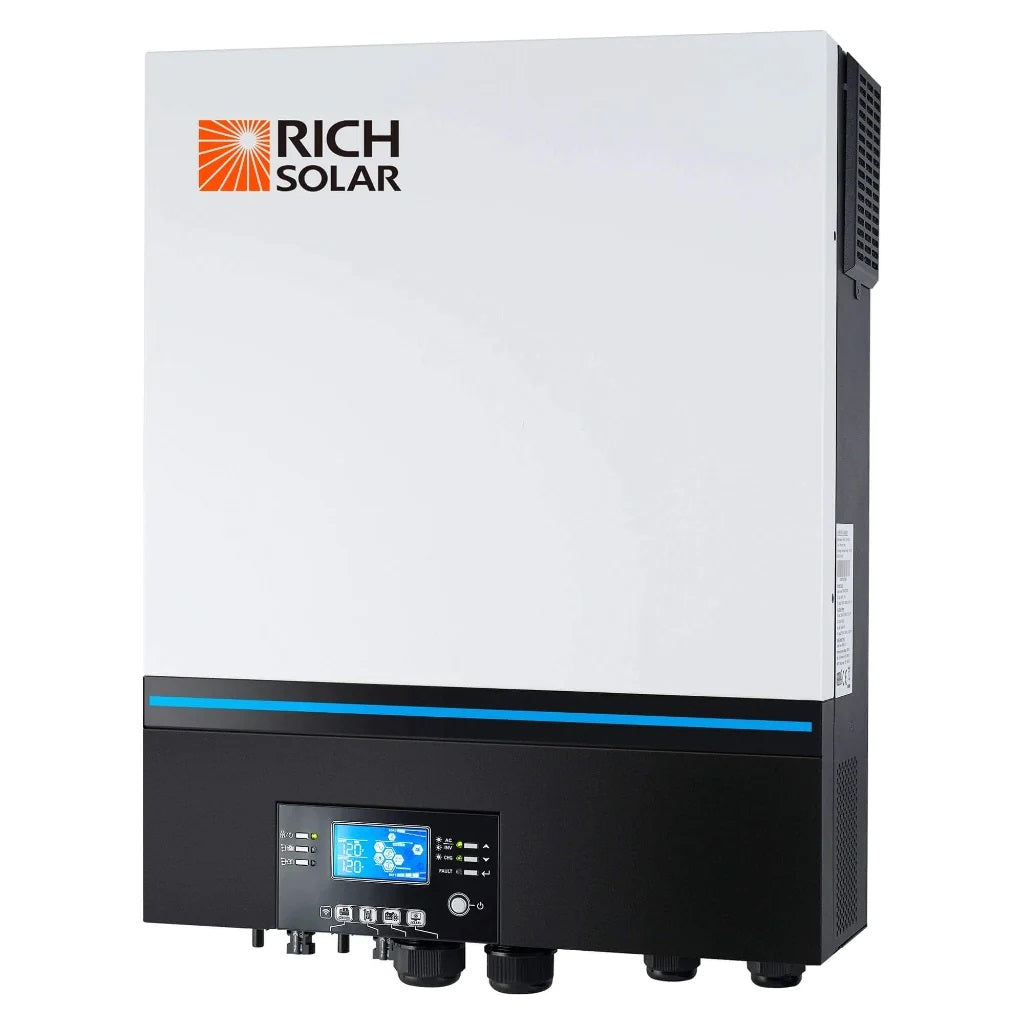

At the heart of the system lies a powerful 6500-watt 48V off-grid hybrid inverter. This inverter efficiently transforms the direct current (DC) electricity generated by your solar panels into usable alternating current (AC) electricity that can power your household appliances and devices.

Built to Withstand the Elements

The Rich Solar 4000W 48V 120VAC Cabin Kit is built with durability in mind. The solar panels are constructed with weatherproof frames and tempered glass, ensuring they can withstand harsh weather conditions. Additionally, the included components are built to last, providing you with a long-term solar energy solution.

Peace of Mind with Safety Features

This solar cabin kit prioritizes safety. Here are some key safety features:

• PV DC Quick Disconnect Switch: Allows for the safe isolation of the solar array during maintenance or emergencies.
• 150A 48V Battery Breaker: Protects your battery bank from potential overcurrent situations.
• 12 Terminal Ground Kit: Ensures proper grounding for all system components, minimizing the risk of electrical hazards.
• 20 Amp Single-Pole Circuit Breakers: Provide individual circuit protection for your appliances, preventing potential damage from overloads.

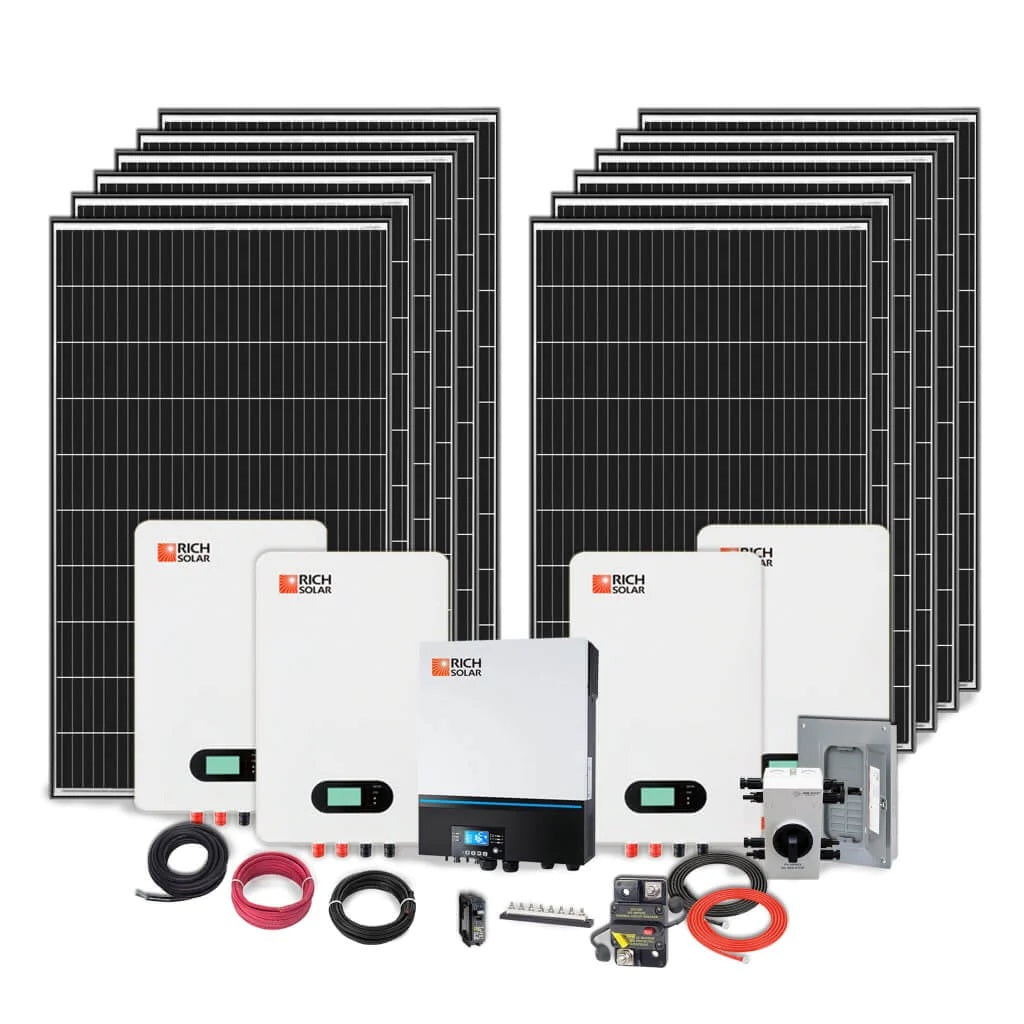

What's In The Box

• 1 x 6500W 48V Off-Grid Hybrid Inverter (RS-H6548)
• 12 x MEGA 335W Solar Panel (RS-M335)
• 4 x 4.8KW 48V Lithium Battery Alpha 5 (RS-B48100)
• 6 x 10AWG 25FT Extension Cable (RS-325102)
• 2 x Y Branch Parallel Adapters (RS-Y2)

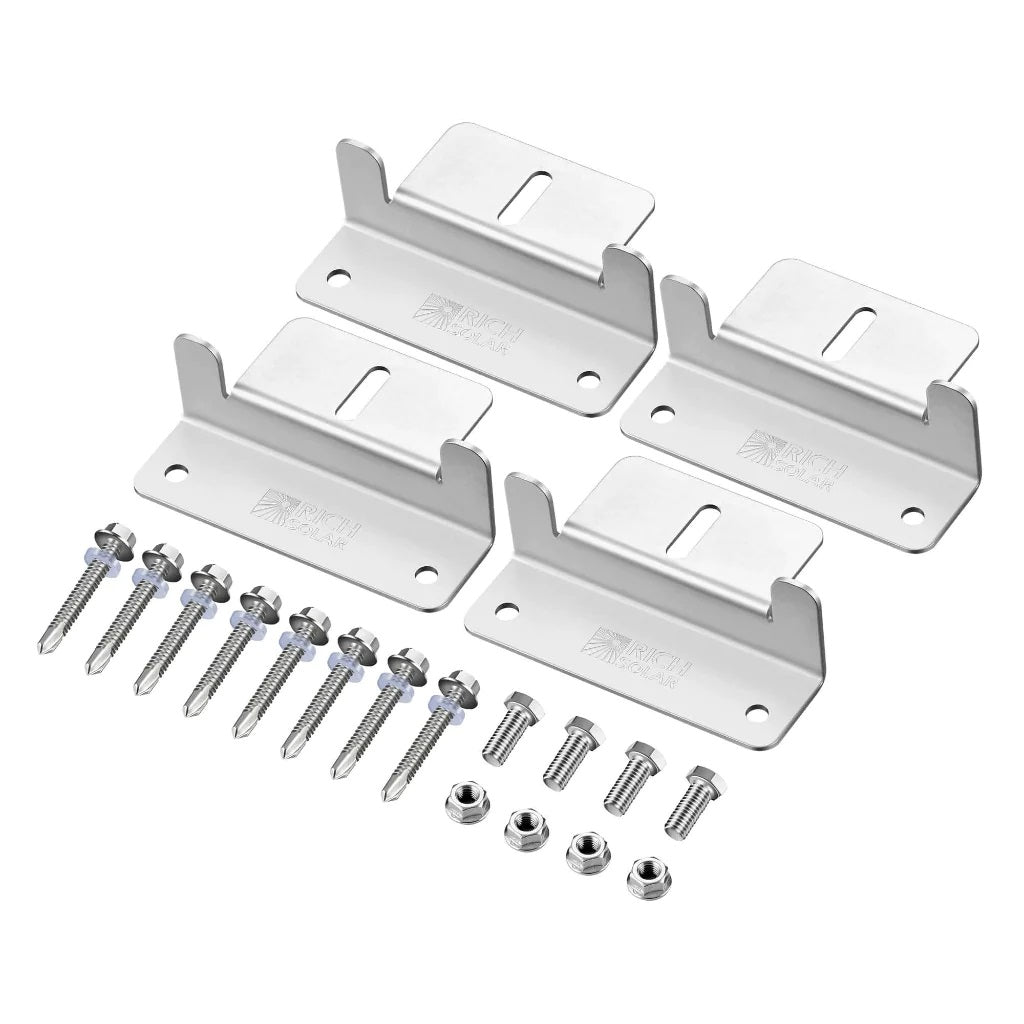

• 24 x Z-Brackets (RS-ZB4C)
• 1 x PV DC Quick Disconnect Switch
• 1 x 150A 48V Battery Breaker
• 2 x 8 Stud Bus Bar
• 1 x 2/0 Gauge 2 Foot Battery Cable, Positive
• 1 x 2/0 Gauge 3 Foot Battery Cable, Positive
• 1 x 2/0 Gauge 5 Foot Battery Cable, Negative
• 4 x 2 Gauge 5 Foot Battery Cable Positive
• 4 x 2 Gauge 5 Foot Battery Cable Negative
• 1 x 125 Amp 8-Space 16-Circuit Combiner Box
• 1 x 12 Terminal Ground Kit
• 8 x 20 Amp Single-Pole Circuit Breaker
• 1 x 6/3 SOOW Outdoor Durable Cable

25-Year Warranty

• Rich Solar provides a 25-year output warranty for this solar panel.

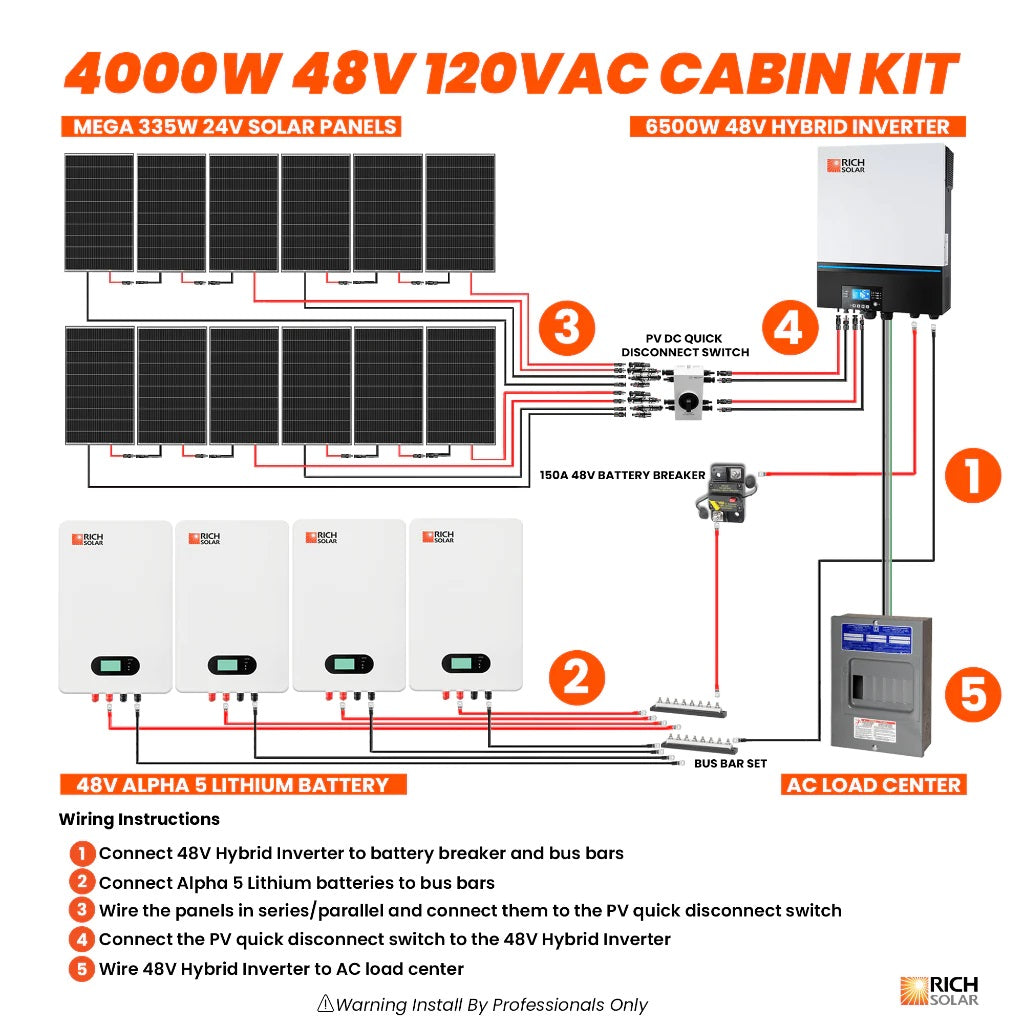

Rich Solar 4000W 48V 120VAC Cabin Kit Installation

Installation is a breeze with Rich Solar's pre-assembled wiring harness that doesn’t require crimping tools. Since all of Rich Solar's products are compatible with each other, making expansions, upgrades or additions simple and easy…just plug in and go!
