Experience Energy Independence With The SunGold Power 13kW 48VDC Off-Grid Solar Kit
Are you ready to embrace a sustainable lifestyle free from the limitations of traditional energy sources? The SunGold Power 13kW 48VDC Off-Grid Solar Kit offers a powerful solution for homeowners and those seeking to reduce their reliance on the conventional power grid. This expertly designed solar kit empowers you to enjoy electricity even in remote locations, without stress or compromise.
With an expansive capacity of 13kW and a robust 48VDC configuration, this SunGold Power Off-Grid Solar Kit is engineered to provide you with high-efficiency solar energy that meets all your power needs. This kit fuses advanced solar technology with user-friendly features, allowing you to generate, store, and utilize solar energy effortlessly. Imagine the freedom of being able to power your home, RV, or remote cabin without ever worrying about power outages or electricity bills again.
SunGold Power 13kW 48VDC Off-Grid Solar Kit Features
This Kit Has A 48kWh LiFePO4 Battery For Long-Lasting Power
This kit comes with a LiFePO4 battery with a capacity of 48kWh, allowing for significant energy storage. This ensures you have ample backup power for nightly use or during cloudy days, maintaining energy continuity when you need it most.
Includes 14 High-Efficiency 415-Watt Panels For Maximum Energy Capture
Equipped with 14 high-efficiency 415-watt solar panels, this kit provides a total output of 5,810 watts per hour under optimal conditions. This extensive array maximizes solar energy capture, ensuring that your energy needs are consistently met throughout the day.
Supports Both 120V And 240V Output For Various Appliances
The included inverter supports 120V and 240V output, suitable for a variety of appliances and devices. Its high conversion efficiency ensures minimal power loss during AC conversion, allowing you to use electricity safely and effectively without compromising on performance.
Includes All Necessary Hardware And Guides For Easy Setup
This solar kit includes all necessary mounting hardware and components, accompanied by clear installation guidelines. This makes the setup process straightforward and user-friendly, ensuring even those with minimal technical knowledge can successfully install their solar power system.
Offers Instant Data On Power Usage And Battery Status
The advanced monitoring system provides real-time data on battery status, power usage, and solar generation. This feature enables you to effectively manage your energy consumption and gauge how much power your system is generating at any given moment.
Built With High-Quality Materials For Long-Lasting Performance
All components are built with top-quality materials for superior durability against harsh weather conditions. The robust design ensures that your solar kit can withstand the elements, providing reliable long-term performance and longevity for your off-grid energy needs.
SunGold Power 13kW 48VDC Off-Grid Solar Kit Warranty
SunGold provides a limited warranty policy, ensuring the absence of defects in materials, workmanship, and performance during the warranty period.

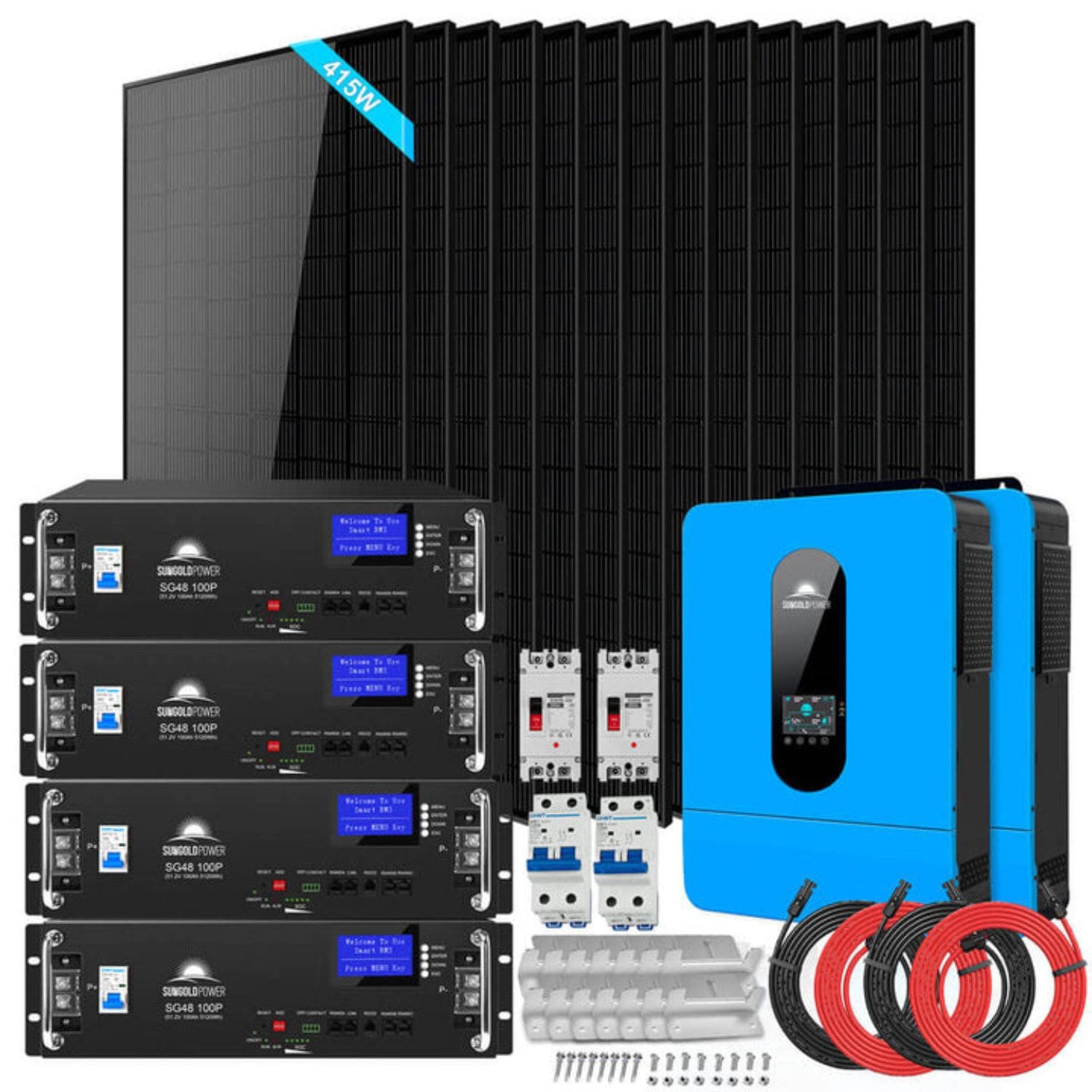

What's Included
- 2 x 6500 Watt 48V DC 120V/240Vdc AC Output Inverter
- 14 x 415 Watt Monocrystalline Solar Panels

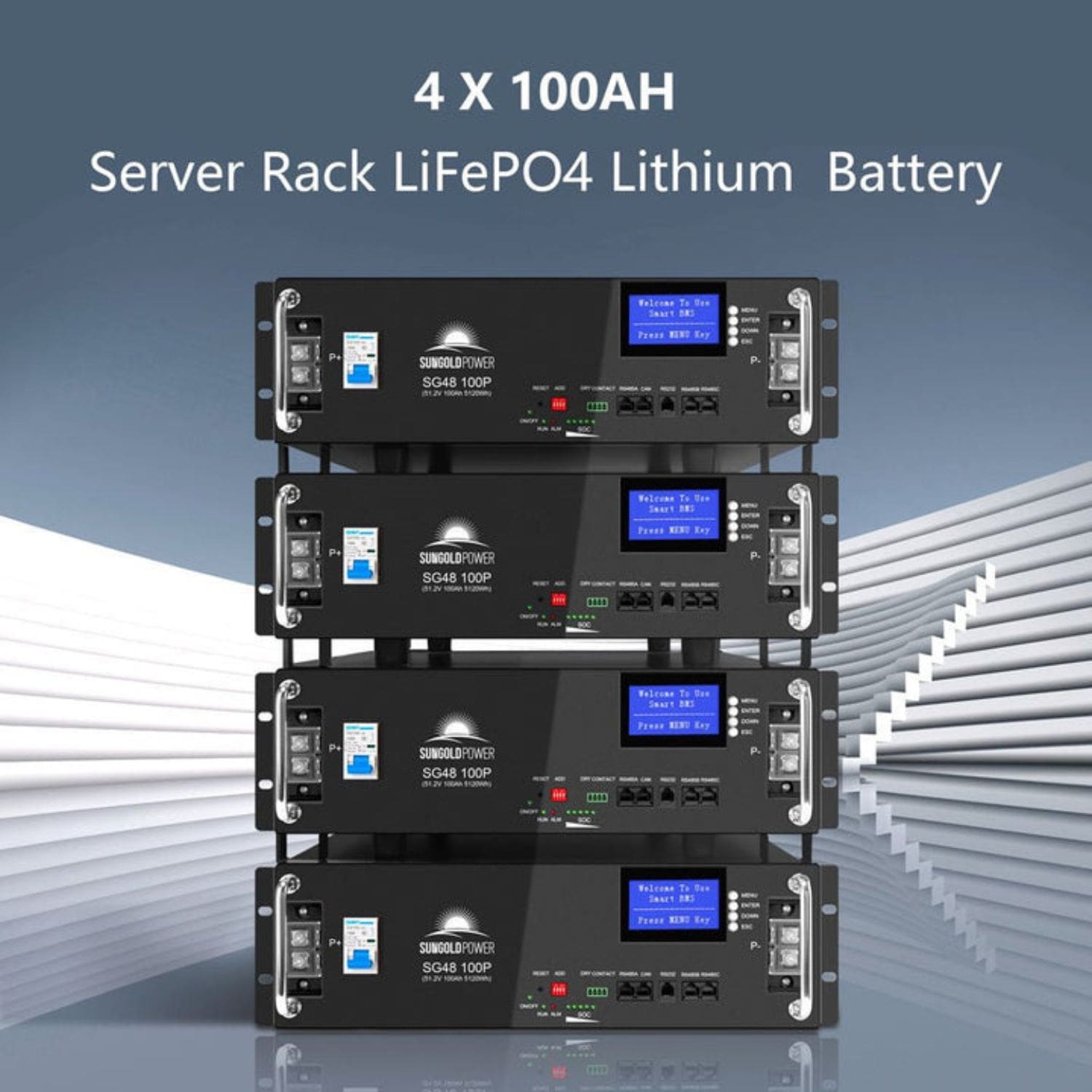

- 4 x 100AH 51.2V Lifepo4 Battery
- 2 x 50 Feet Sets Solar Extension Cables-Inverter PV input
- 14 Sets of Mounting Z-Brackets
- 2 x 200A DC Breaker
- 2 x 25A PV Breaker
SunGold Power 13kW 48VDC Off-Grid Solar Kit Specifications
| Max Continuous Output |
13,000W |
| Inverter Rated Output Power |
13kW |
| Inverter AC Output |
120V Single Phase/240v Split Phase |
| Inverter Max Parallel Number |
6 |
| Inverter Max. PV Input Power |
11.000W x 2 |
| Inverter MPPT Voltage Range |
150-450VDC |
| Battery Nominal Voltage |
51.2V |
| Battery Nominal Capacity |
100AH x 5 |
| Battery Quantity |
4 |
| Total Battery Capacity |
20.48KWH |
| Maximum Battery Cut-off Charging Voltage |
57.6V |
| Battery Disharge Cut-Off voltage |
43.2V |
| Battery Max Parallel Number |
32 |
| Maximum Power Per Solar Panel |
415w |
| Solar Panel Quantity |
14 |
| Total Power of Solar Panels |
5,810w |
| Max-power Voltage Per Solar Panel |
31.6V |
| Max-power Current Per Solar Panel |
13.13A |
| Open-circuit Voltage Per Solar Panel |
37.50V |

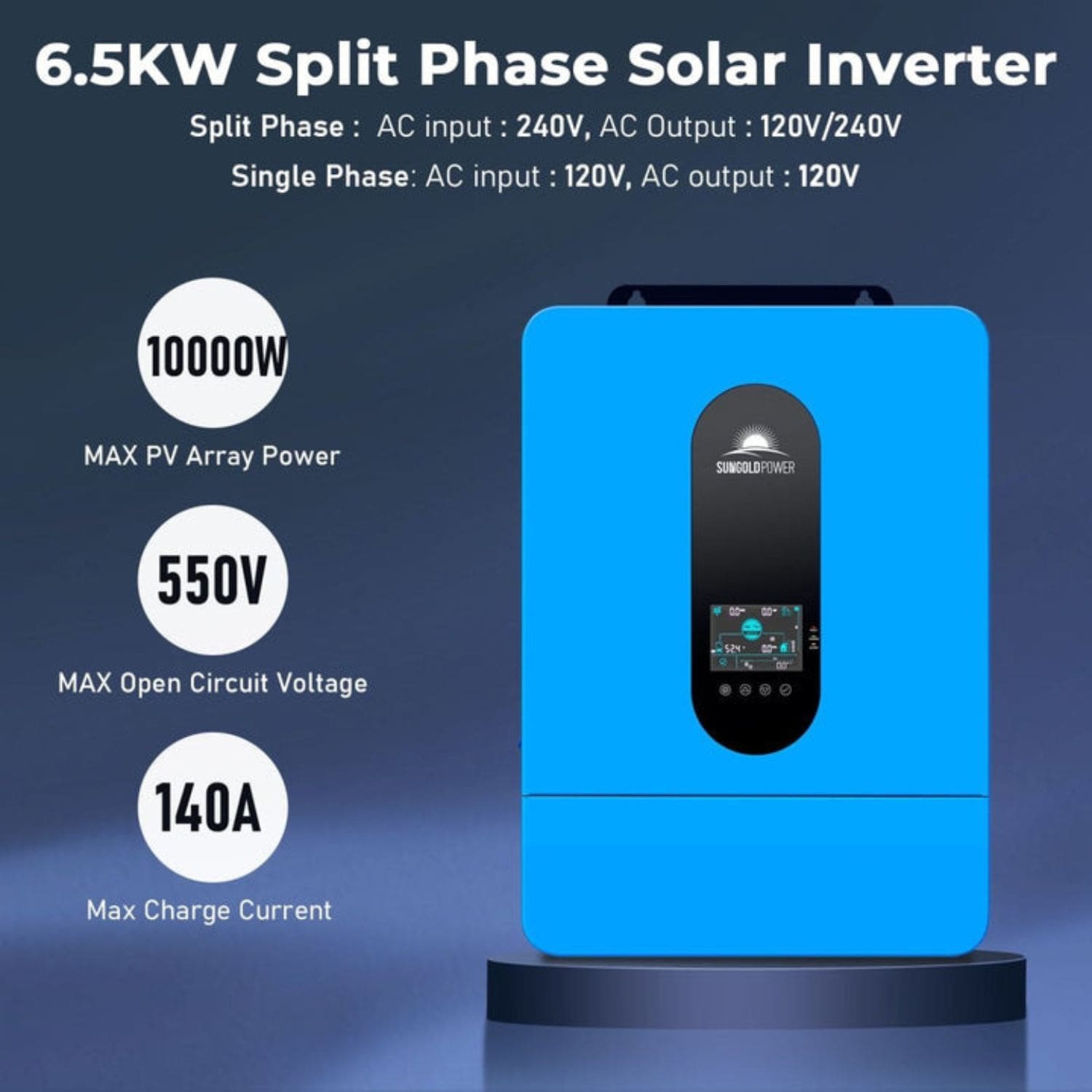

6500 Watt Inverter Specifications
|
| AC Output |
6.5W with Parallel Functions |
| Output Waveform |
Pure Sine Wave |
| AC Output |
120V/240V (split phase/single phase) |
| Parallel Function |
Up to 6 units Parallel |
| Efficiency |
93% |
| Max Charging Current |
140A |
| Maximum PV Array Power |
5000W+5000W |
| Dimension |
23.0 x 16.2 x 5.3 inch |
| Weight |
42 LB |
| Warranty |
3 Years |

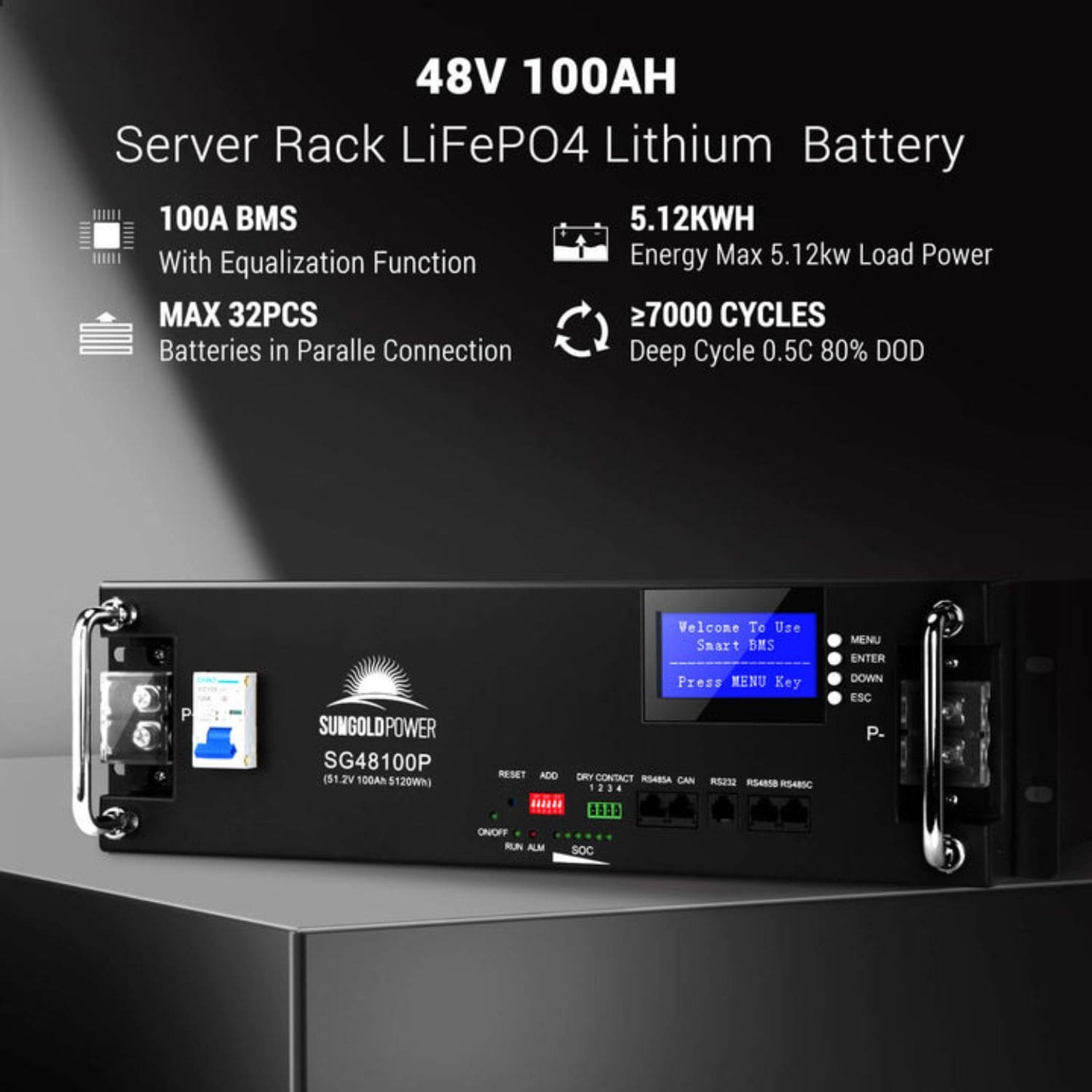

SG48100P LifePO4 Battery Specifications
|
| Nominal Voltage |
51.2V |
| Nominal Capacity |
100AH |
| Energy |
5.12KWH |
| Charge cut-off current |
5A |
| MAX Continuous Charge Current |
100A |
| Discharge cut-off voltage |
43.2V |
| Cycle Life |
>7000 |
| Communication Protocol |
RS232/RS485/CAN Support Multiple Protocols |
| Storage Temperature |
14~+113°F |
| Dimension |
19.3 X 18.9 X 5.5 inch |
| Weight |
93lbs |
| Warranty |
10 Years |
415 Watt Mono Solar Panel Specifications
|
| Peak Power |
415W |
| Solar Cell |
Monocrystalline |
| Product Tolerance |
±3% |
| Maximum Power Current (IMP) |
13.13 A |
| Maximum Power Voltage(VMP) |
31.61V |
| Short Circuit Current(ISC) |
13.79A |
| Open Circuit Voltage(VOC) |
38.82V |
| Product Dimension |
67.8 X 44.6 X 1.4inch |
| Product Weight |
45.1lbs |
| Warranty |
25 Years |
| Certificates |
UL61730, TUV, IEC, CEC, CE... |
SunGold Power 13kW 48VDC Off-Grid Solar Kit Manuals
