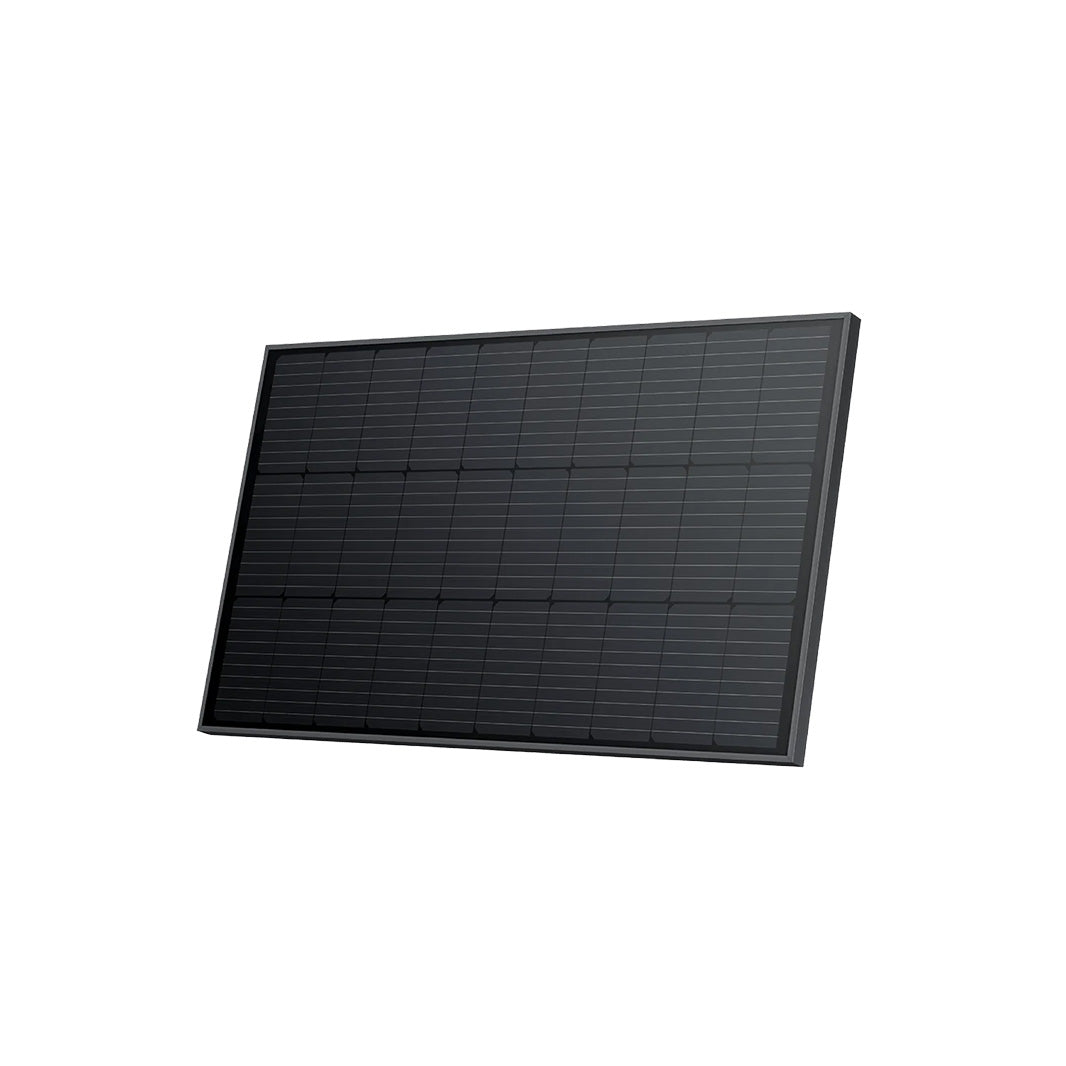

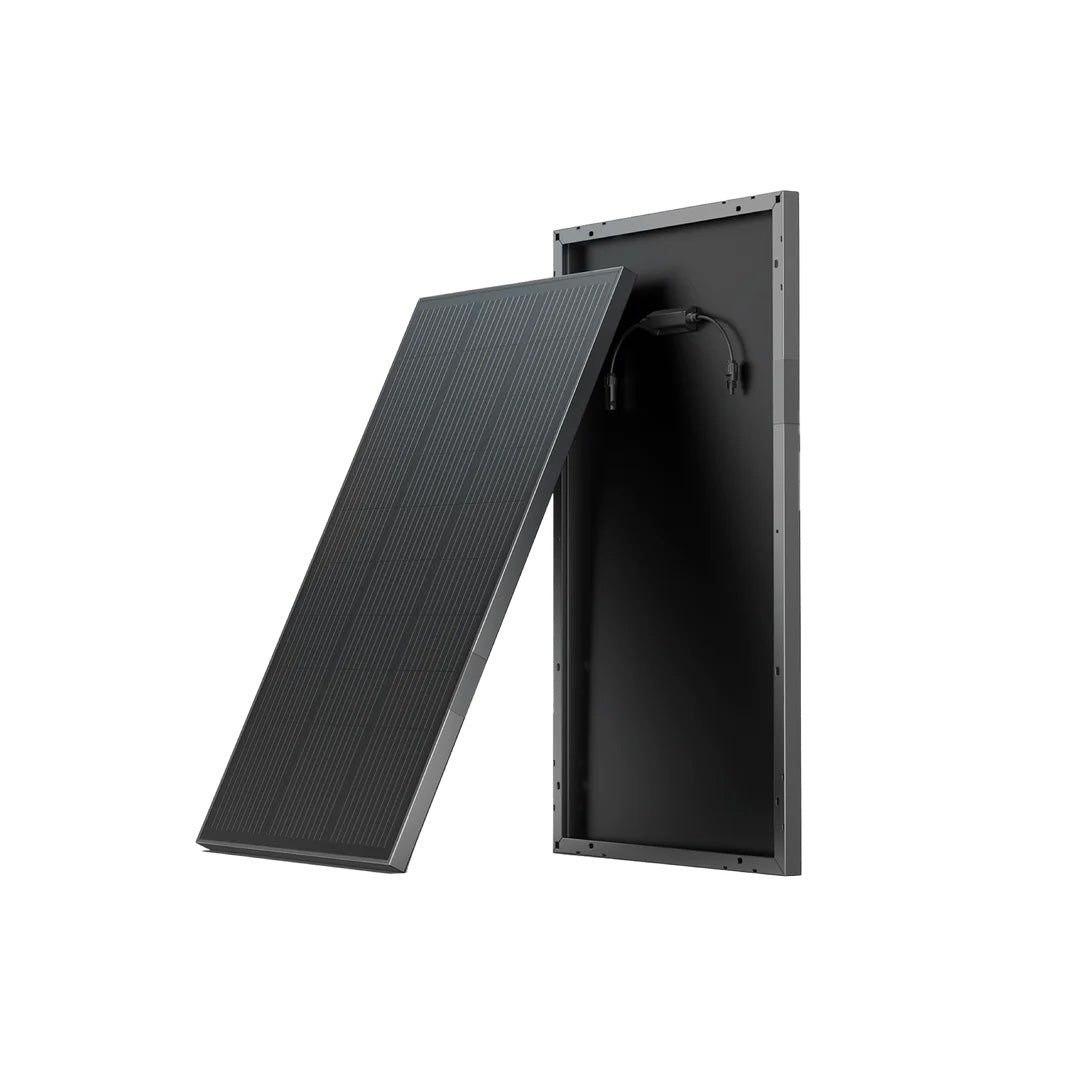

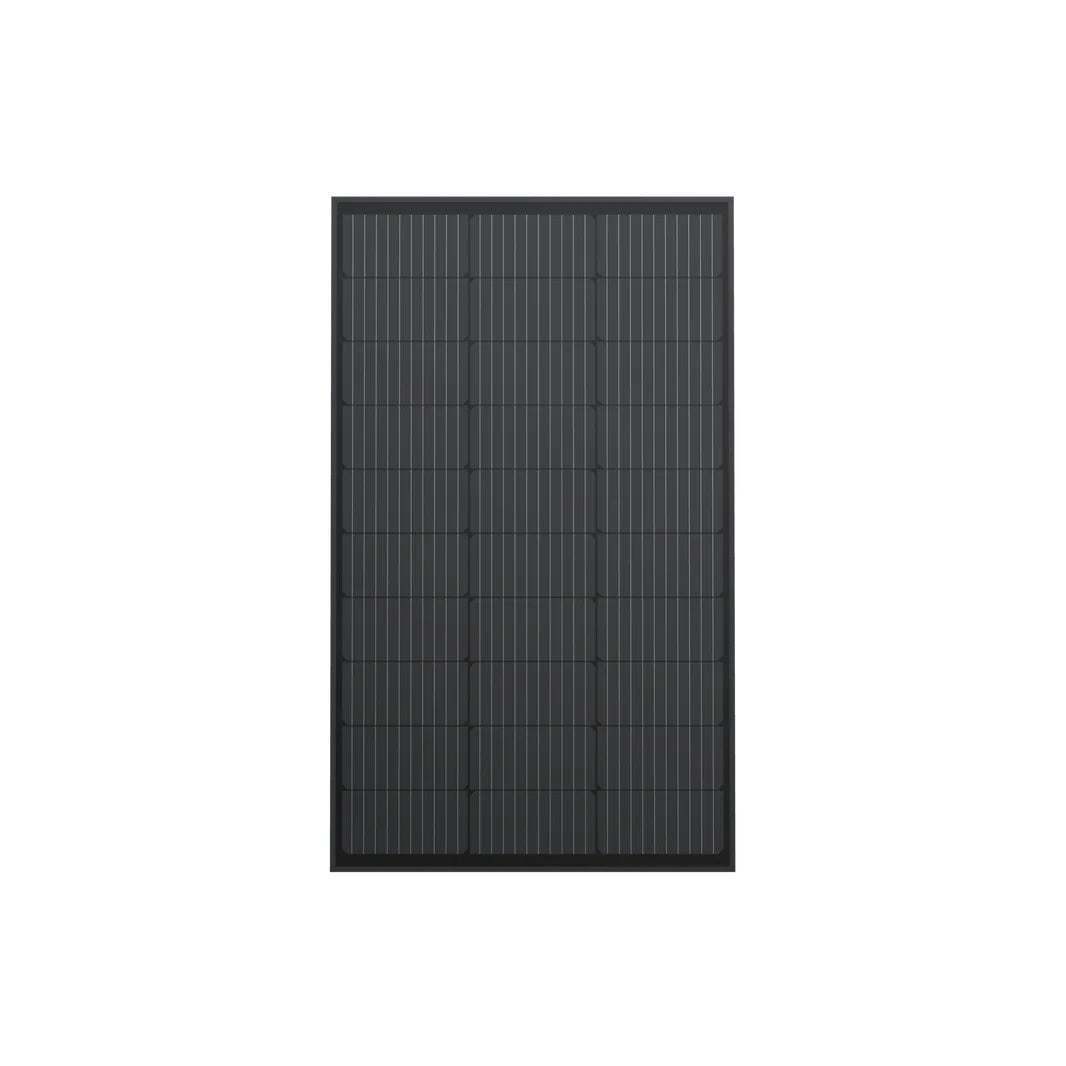

The EcoFlow 100W Rigid Solar Panel 2-Pack Puts Two Weatherproof Panels on Your Van, RV or Off-Grid Build
The EcoFlow 100W Rigid Solar Panel comes in a pack of two. Each panel is rated at 100W and uses 23% efficient monocrystalline cells under tempered glass, in an anti-corrosive aluminum frame with mounting holes already in place.
It suits van builders, RV owners and off-grid projects that want fixed solar for an EcoFlow Power Kits setup, an EcoFlow portable power station or an existing solar system.
EcoFlow 100W Rigid Solar Panel Features
23% Efficient Monocrystalline Cells
EcoFlow rates the panel's conversion at 23%. Each panel is rated at 100W (±5W) under standard test conditions, with a 20.3V open circuit voltage and a 6.3A short circuit current.
Tempered Glass and an Aluminum Frame
The cells are coated with protective lamination and tempered glass, and the frame is anti-corrosive aluminum. The all-black design keeps the panels low-key on a roof.
IP68 Weatherproof Rating
EcoFlow lab-tested the panel to IP68 under IEC 60529, at a maximum water depth of 1 meter for up to 72 hours. It is built to handle dirt and low-pressure water jets outdoors. Keep the drain hole at the bottom of the frame clear.
Twelve Mounting Holes in the Frame
The frame has 12 mounting holes measuring 11 x 7 mm (0.4 x 0.3 in). The most common method uses the four symmetrical holes near the center of the frame, and the holes at the center of each long edge are for grounding.
Bypass Diodes in the Junction Box
Each panel has a permanently connected junction box with 2.5 mm² wires and built-in bypass diodes. Its solar connector lets you link it to EcoFlow equipment or a third-party solar system.
Real-World Applications
Van builds. The pre-drilled frame is ready to mount on a van roof.
RV roofs. Expect about 5%-15% less output when a flat roof mount can't hold the panel at the sun's angle.
Off-grid builds. Mount the panels on a fixed outdoor structure facing south in the Northern Hemisphere.
Power Kits and power stations. Add the panels to an EcoFlow Power Kits setup or charge an EcoFlow portable power station.
How It Compares to Common Alternatives
Versus a flexible panel. A flexible panel bends to fit a curved roof and weighs less. This rigid panel needs a flat mount, but it has tempered glass, an aluminum frame and bolt-on mounting holes.
Versus a folding portable panel. A portable panel sets up on the ground each time you stop. These panels stay mounted, so there's nothing to unpack.
Is This Solar Panel the Right Fit
Size and weight. Each panel weighs about 13.7 lbs (6.2 kg) and measures 38.6 x 23.1 x 1.2 in.
Installation. EcoFlow says solar PV systems must only be installed by qualified personnel. Mounting hardware is purchased separately.
Frame and spacing. Don't drill or modify the frame, which voids the warranty. Leave a gap under the panels for airflow and at least 0.5 in (12.7 mm) between panels.
No charging cable. The box holds the panels, user manual and warranty card, with no cable to a power station.
This may be a good fit if
You want permanent solar on a van, RV or off-grid build
You have a flat surface for two framed panels
You plan a professional installation
You run an EcoFlow Power Kits setup or power station
Common Questions
How Much Power Will Each Panel Produce?
On a clear day with sunlight at 90°, EcoFlow says each panel usually generates 70W–80W. Summer heat near 140°F (60°C) can cut nominal power by 10%–15%, and haze, clouds, rain and shade reduce it further.
Can I Wire the Two Panels Together?
Yes. Parallel wiring increases current, and how many panels you can connect depends on your controller and energy storage. EcoFlow says series wiring is possible but not recommended.
What Do I Need to Mount Them?
A bolt kit sold separately, or EcoFlow's Rigid Solar Panel Mounting Feet, which fit the 100W and 400W rigid panels and include M6 screws, washers and flange nuts. You supply the tools.
What Warranty Does It Have?
EcoFlow lists up to a 5-year warranty. Damage caused by human force isn't covered, and removing the labels voids the warranty.
What's Included
2 x EcoFlow 100W Rigid Solar Panel
1 x User Manual and Warranty Card
Fixed Solar Built for the Long Haul
The EcoFlow 100W Rigid Solar Panel 2-Pack gives you two framed, tempered glass panels with 23% efficient cells and an IP68 rating. If you have questions about mounting or wiring them to your system, the Outbound Power team is happy to help.
EcoFlow 100W Rigid Solar Panel Videos
EcoFlow 100W Rigid Solar Panel Specifications
General
Model Series
EF-SG-M100
Panels in This Pack
2
Electrical (Per Panel)
Rated Power
100W (±5W)
Rated Power Test Conditions
1000W/m², AM1.5, 25°C
Open Circuit Voltage
20.3V
Short Circuit Current
6.3A
Max Operating Voltage
17.1V
Max Operating Current
5.9A
Conversion Rate
23%
Max System Voltage
600 VDC (UL)
Max Fuse Current
15A
Temp. Coefficient (Power)
-0.39%/°C
Temp. Coefficient (Voc)
-0.33%/°C
Temp. Coefficient (Isc)
0.06%/°C
Cells and Construction
Cell Type
Monocrystalline silicon
Front
Tempered glass and lamination
Frame
Anti-corrosive aluminum
Color
All black
Bypass Diodes
Integrated in the junction box
Mounting Holes
12 (11 x 7 mm, 0.4 x 0.3 in)
Grounding Holes
Center of each long edge
Size and Weight (Per Panel)
Dimensions
38.6 x 23.1 x 1.2 in (98 x 58.6 x 3 cm)
Weight
About 13.7 lbs (6.2 kg)
Connectors and Cables
Junction Box Wires
2.5 mm² (0.004 in²)
Charging Cable
Not included
Durability
IP Rating
IP68
IP68 Test
IEC 60529, 1 m water depth, up to 72 hours
Operating Temperature
-4°F to 185°F (-20°C to 85°C)
Warranty
Warranty
Up to 5 years
