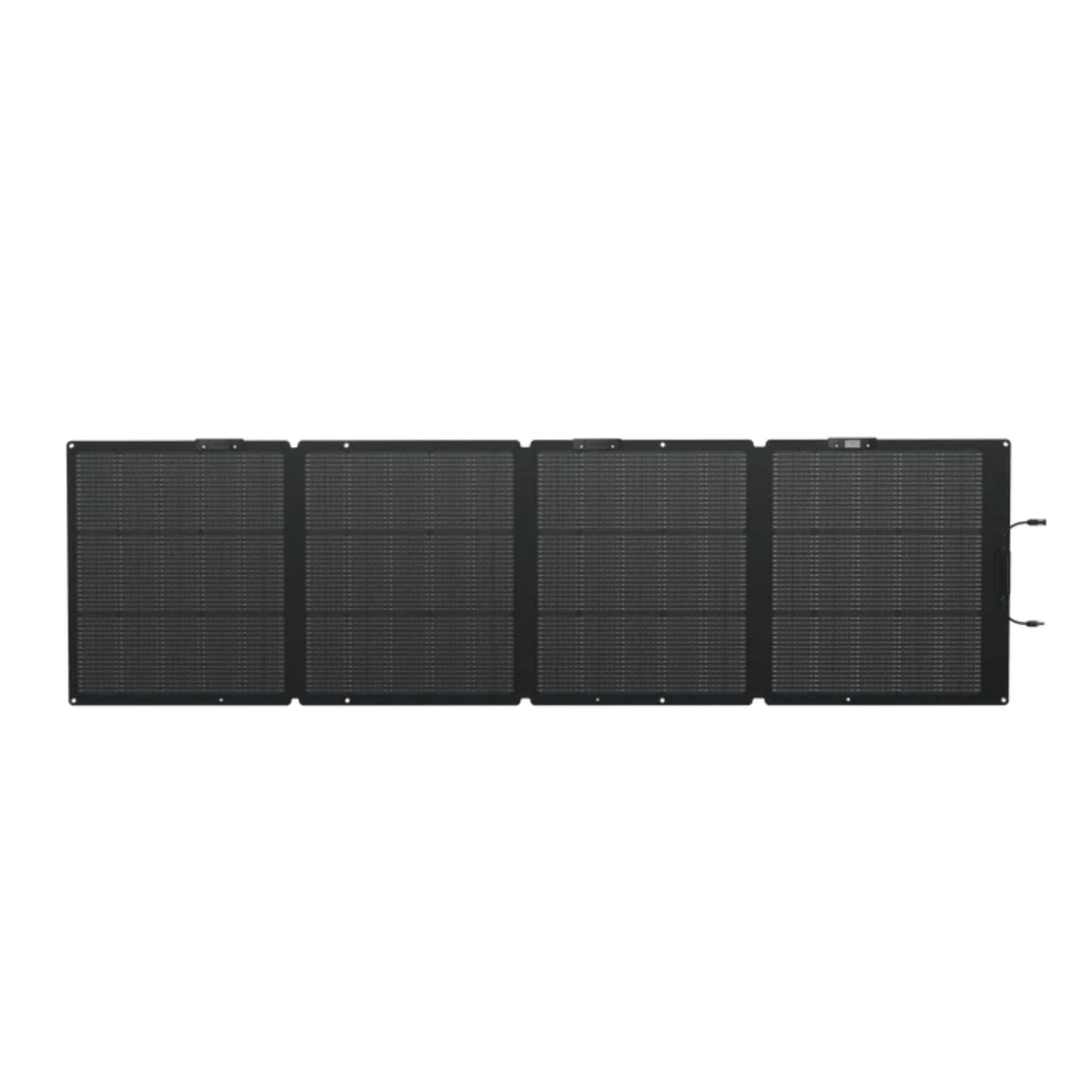

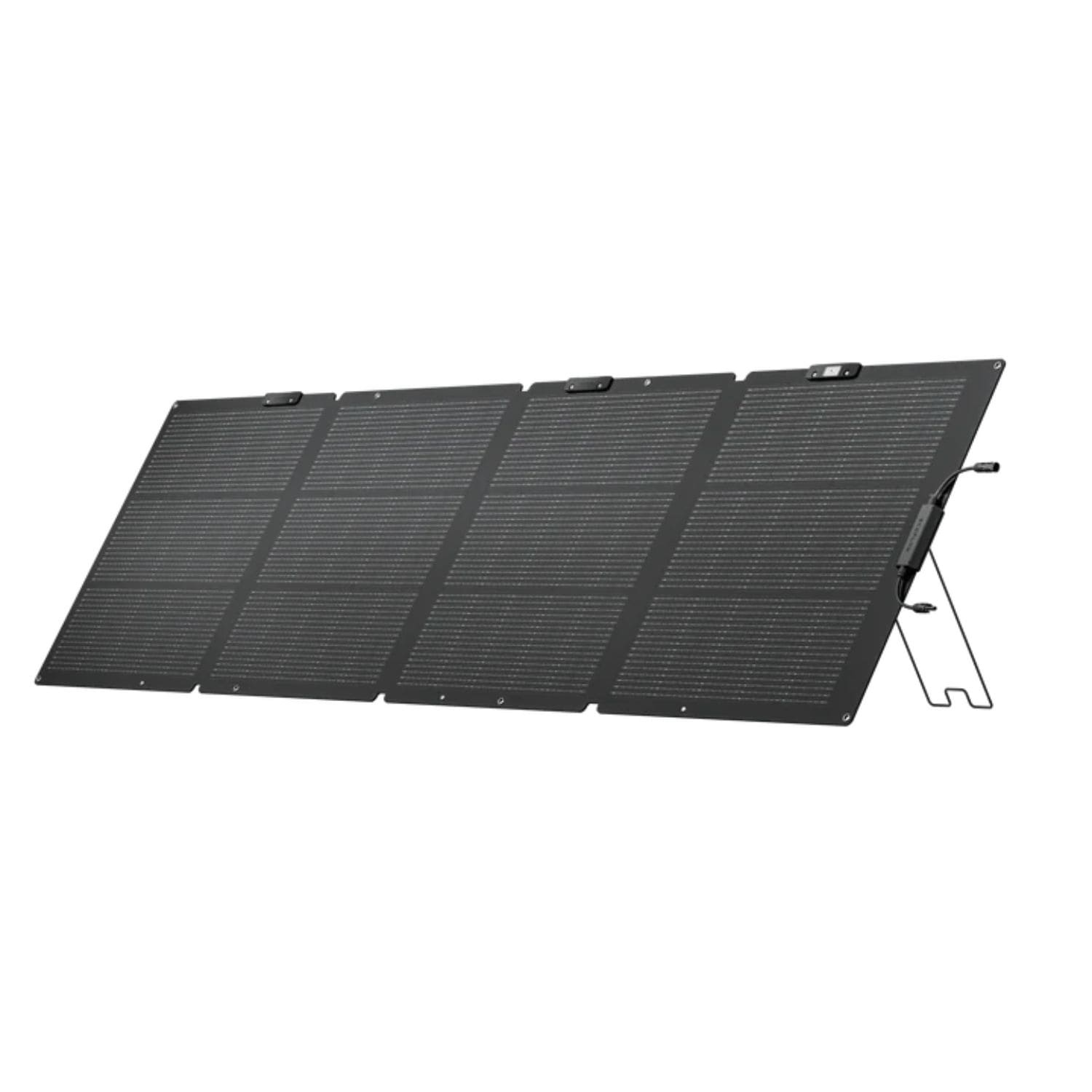

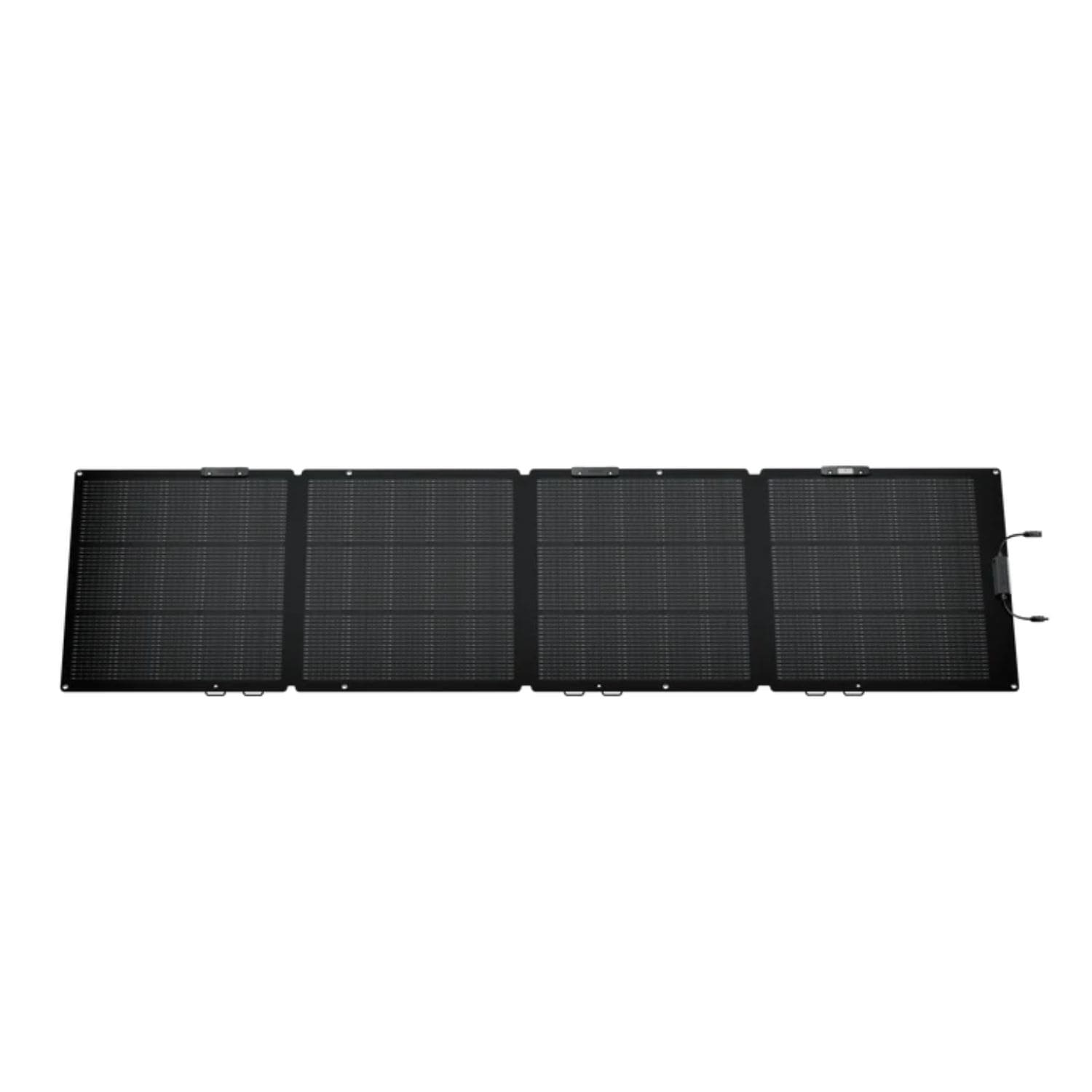

The EcoFlow NextGen 220W Portable Solar Panel Captures Sunlight on Both Sides With 25% Efficient Cells
The EcoFlow NextGen 220W Portable Solar Panel is a bifacial folding panel. Its front side is rated at 220W and its rear side at 175W for light reflected from the surroundings, with 25% efficient TOPCon monocrystalline cells. It weighs about 15.4 lbs (7 kg) and comes with a 2.5 m solar to XT60i charging cable.
It suits campers, RV and van travelers, and homeowners who want to charge an EcoFlow portable power station from the sun. You can also connect it to an EcoFlow smart device to power that device directly.
EcoFlow NextGen 220W Portable Solar Panel Features

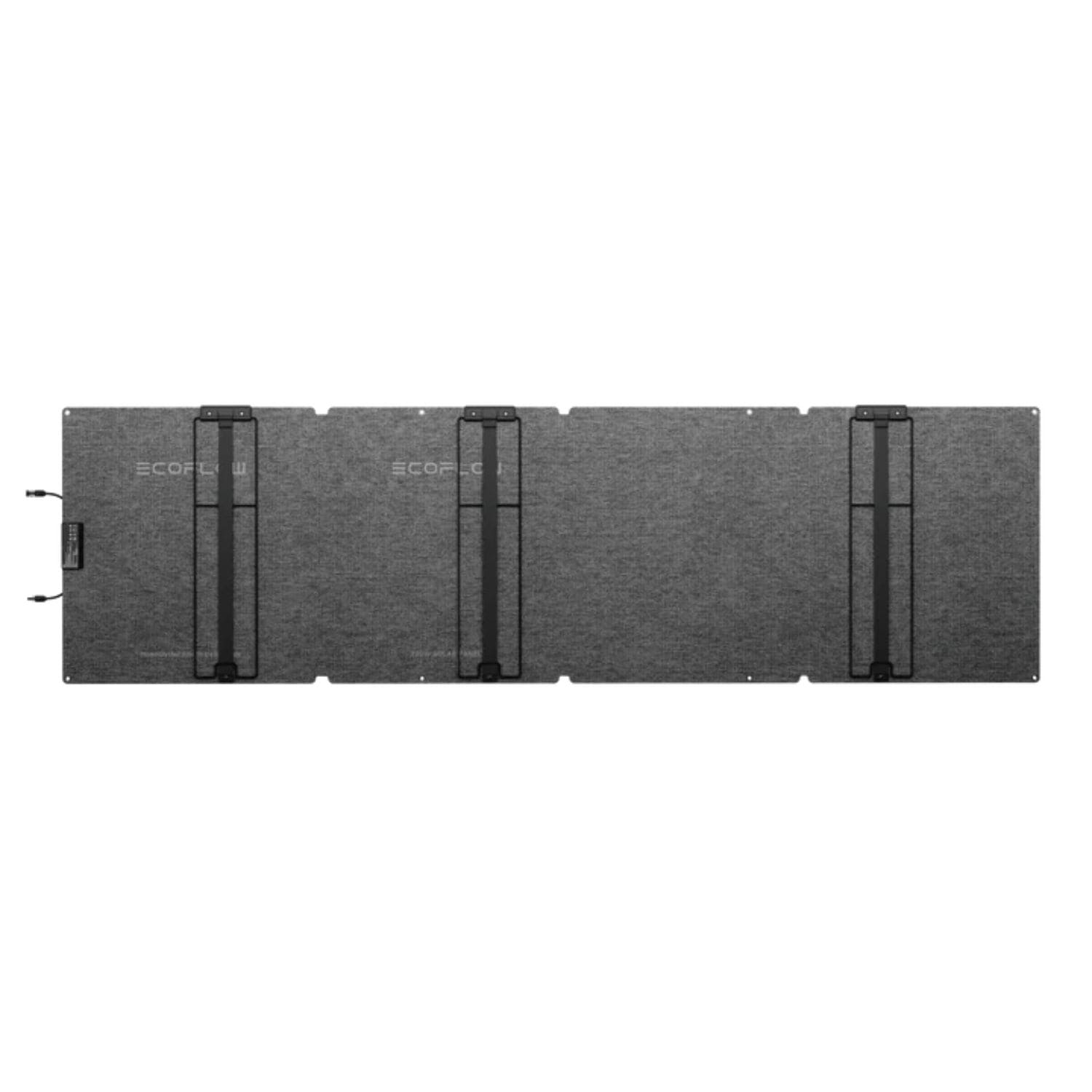

Two-in-One Bifacial Design
EcoFlow says the bifacial design collects up to 25% more energy. The rear side gathers light reflected from the surroundings, and smooth, light-colored surfaces such as sand reflect more of it.
25% Efficient TOPCon Cells
The TOPCon monocrystalline cells are rated at 25% efficiency, with a 21.5V open circuit voltage and a 12.4A front side short circuit current.

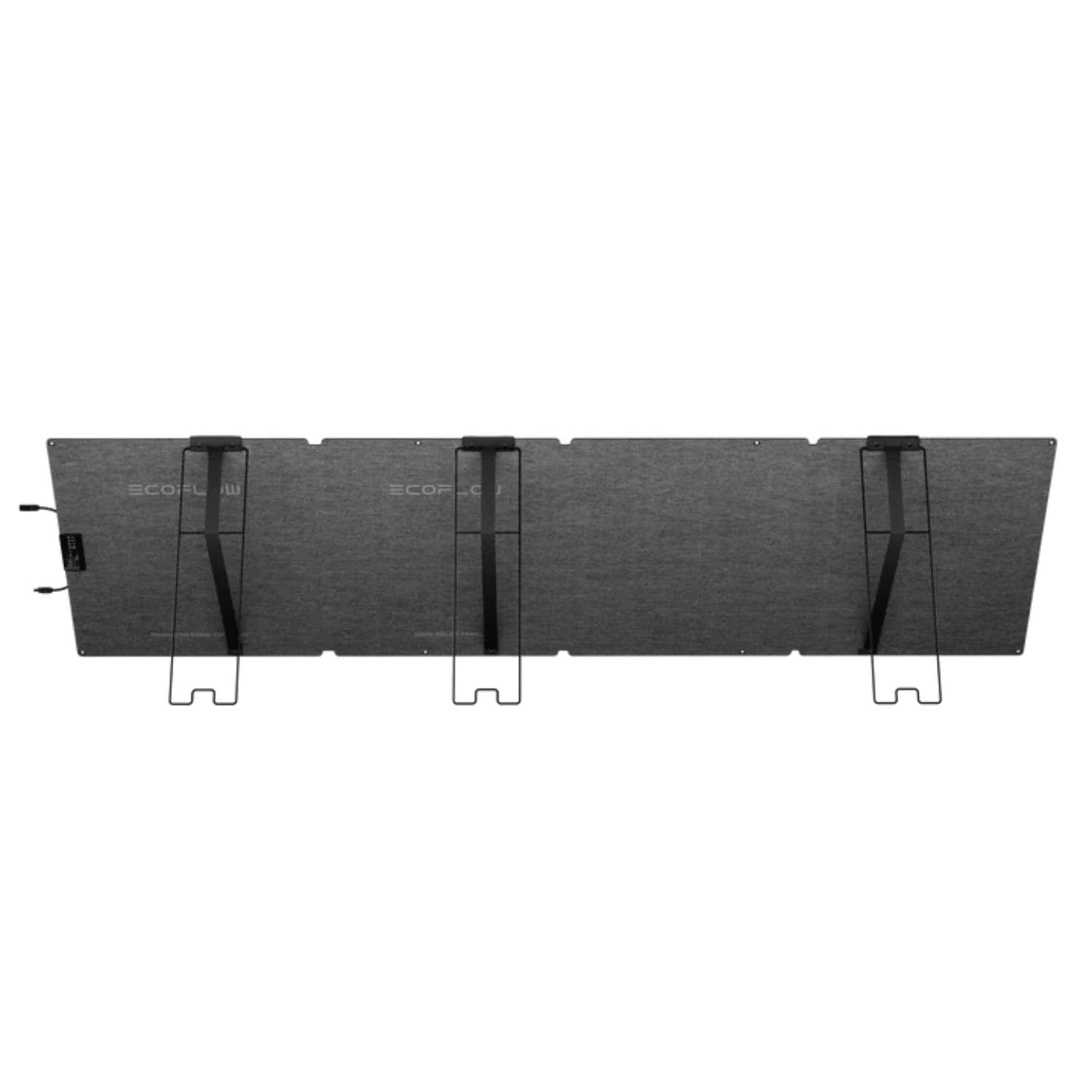

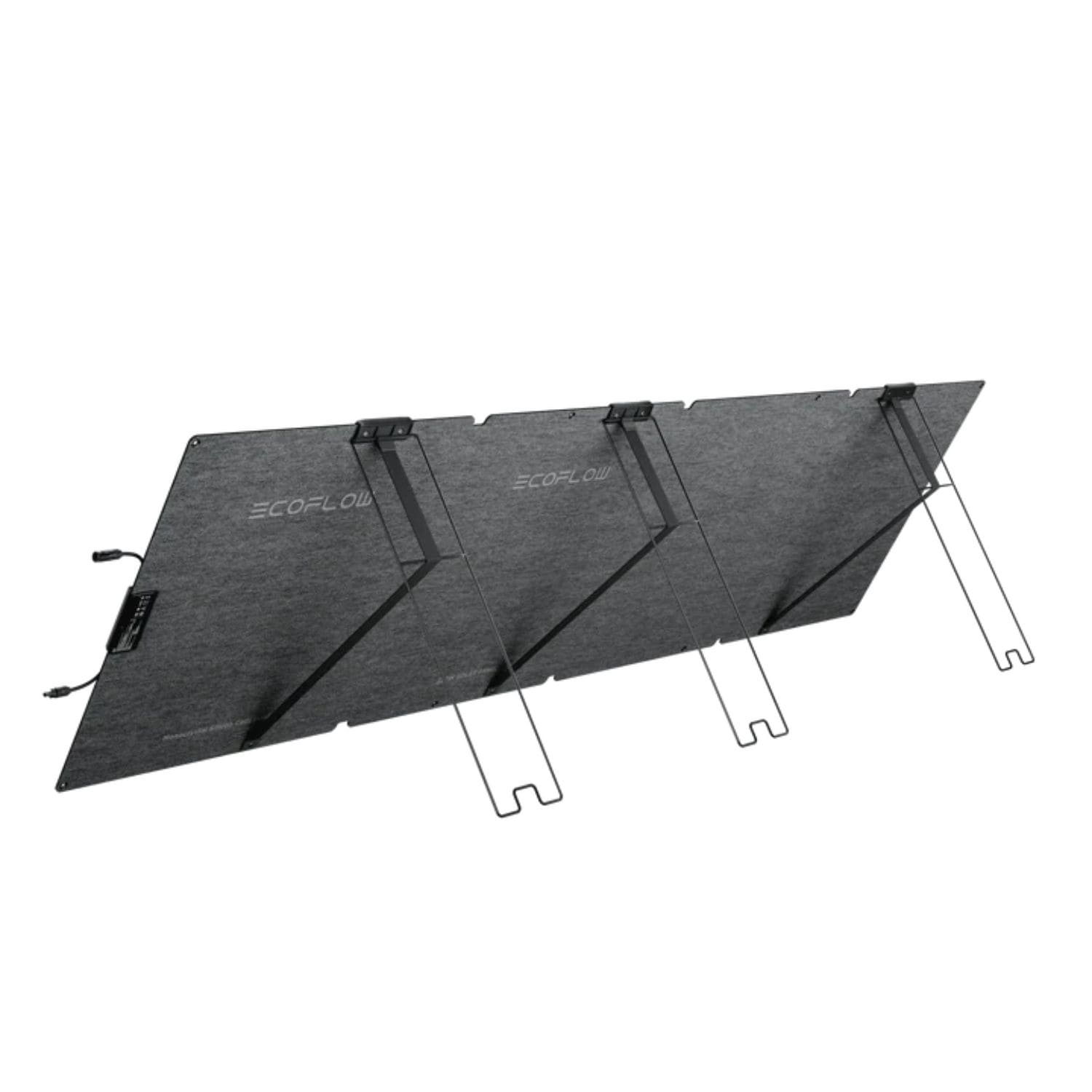

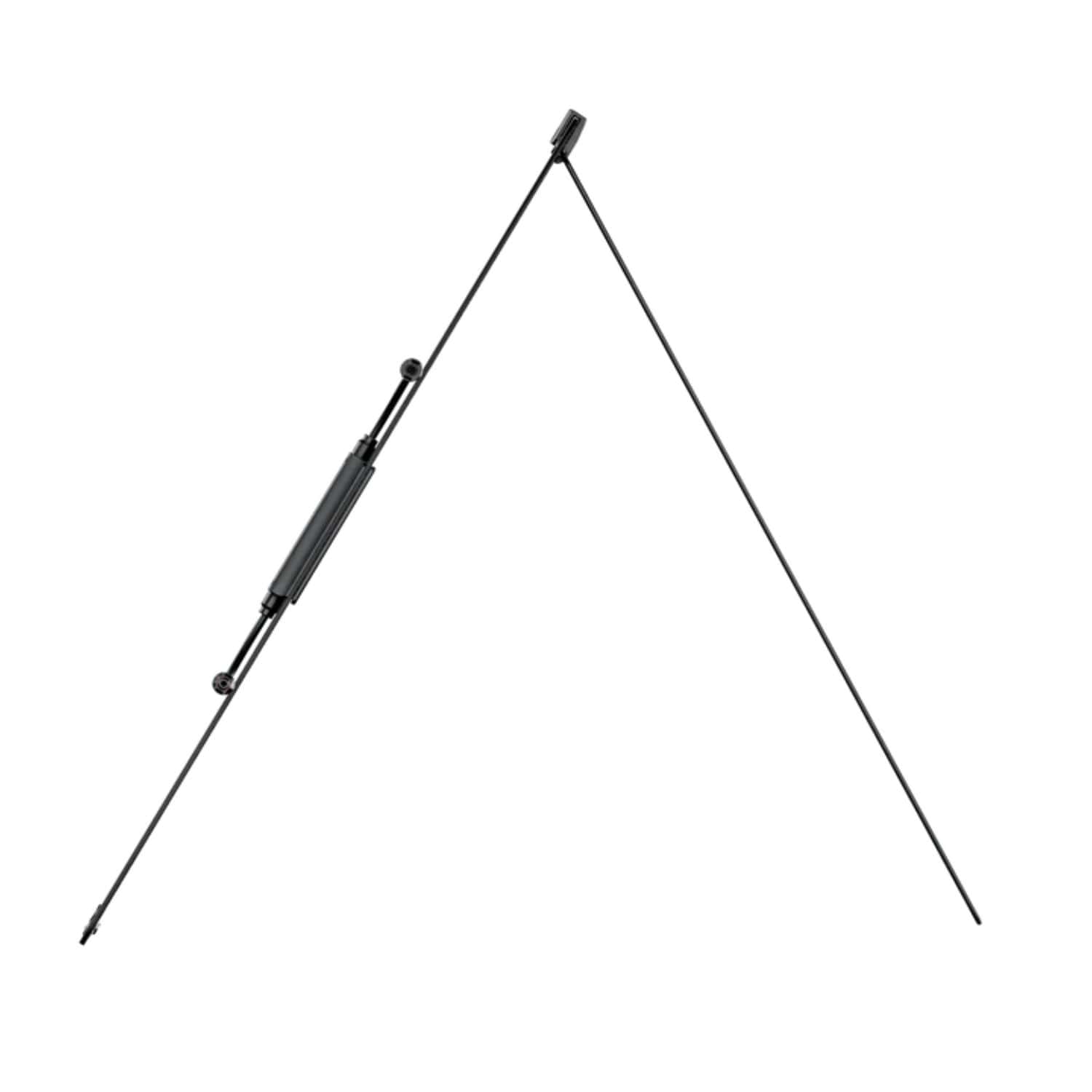

Adjustable Bracket and Solar Angle Guide
A 30-60° adjustable bracket with elastic straps sets the tilt. On the integrated solar angle guide, a shadow point in the center means the sun is at 90° to the panel, which gives the highest output.
Tempered Glass and ETFE Coating
The panel pairs tempered glass with an ETFE coating that EcoFlow describes as built to last. It carries an IP68 rating against water and dust.

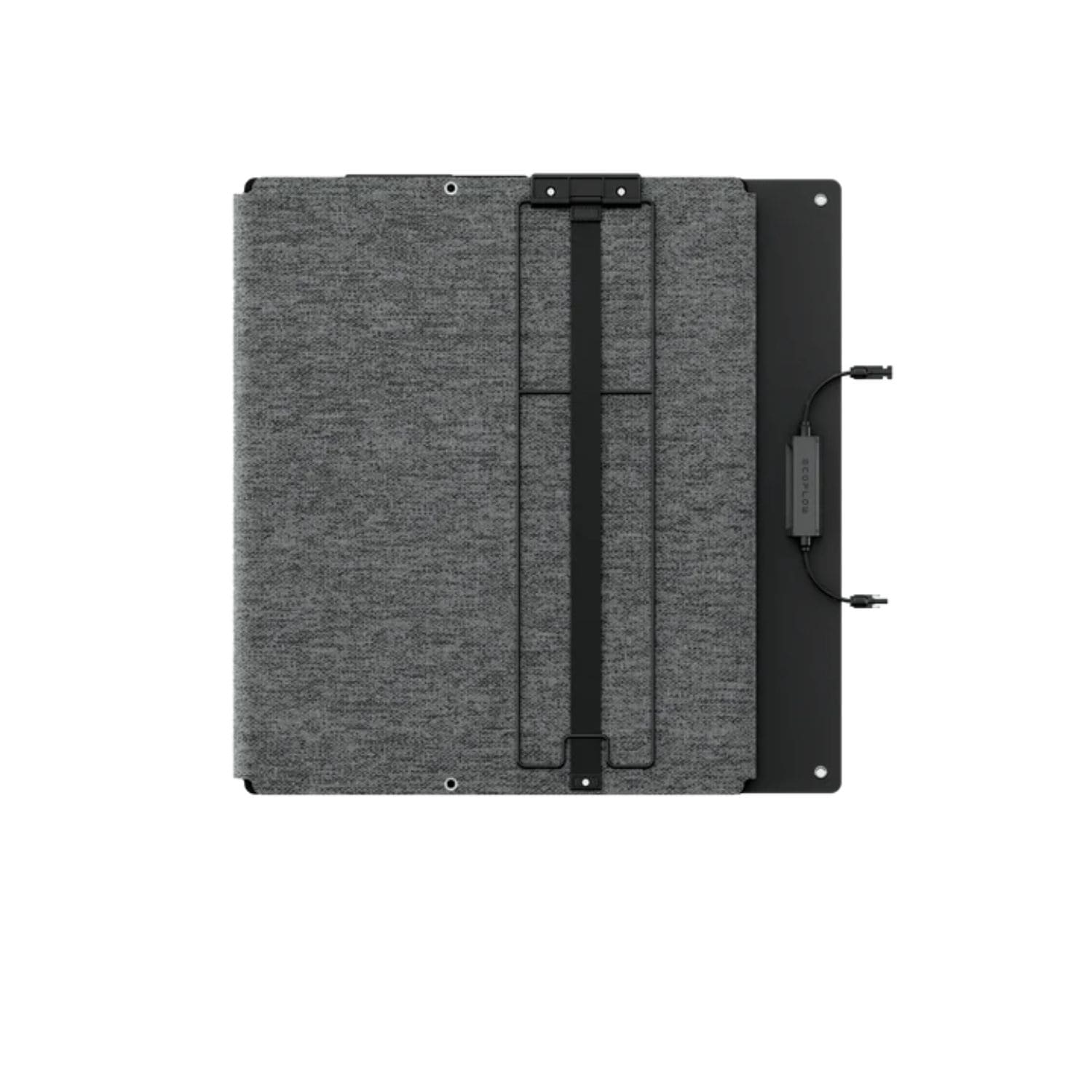

Folds Into Its Storage Case
The panel folds from 84.8 in long to 24.2 x 23.2 x 1.3 in and packs into the included storage case. Six preset holes with an 8 mm internal diameter let you secure it with zip ties or hooks.
Real-World Applications
Beach and desert camping. Set the panel up on sand, where the light-colored surface reflects more light onto the rear side.
RV and van travel. Zip-tie or hook the panel in place through its preset holes at a campsite.
Home outages. Recharge a portable power station when the grid is down and the sun is out.
Larger solar arrays. Wire several panels in series, the method EcoFlow generally recommends for a portable power station.
How It Compares to Common Alternatives
Versus the earlier EcoFlow 220W bifacial panel. The earlier version had a 155W rear side, a 23% conversion rate and a kickstand case. The NextGen raises the rear side to 175W and efficiency to 25%, and adds an adjustable bracket with an angle guide.
Versus a single-sided panel. A single-sided panel collects only direct sunlight on its front. This panel also uses reflected light on its rear side, and the gain depends on the surface underneath.
Is This Solar Panel the Right Fit
Input limits. The 21.5V open circuit voltage and 12.4A short circuit current must fall within your device's solar input range.
Keep connectors dry. Don't let the junction box or wire connectors contact liquids, and don't soak the panel.
Weak light. The panel barely generates power on rainy days or under indoor lighting.
Handle with care. Don't knock, squeeze or bend it, and don't place heavy objects on it.
This may be a good fit if
You charge an EcoFlow portable power station
You often camp on sand or other light ground
You want a 15.4 lb panel that folds into a case
You want an angle guide to aim the panel
Common Questions
Will It Work With My EcoFlow Power Station?
It depends on the panel's electrical parameters and the power station's solar input range. The included cable plugs into an XT60 solar input. For other port types, follow the device's user manual.
Should I Wire Panels in Series or Parallel?
Series wiring keeps the total current low and is generally recommended for a portable power station, but one shaded panel lowers the whole string's output. Parallel wiring needs a parallel connection cable and thicker cables.
How Do I Clean It?
Disconnect the panel and let it cool to room temperature. Wipe it with a soft cloth dampened in clean water, and avoid the connectors.
What If It Gets Wet?
Check the connectors right away. If water got in, dry them with a cloth and the panel will work normally.
What's Included
1 x EcoFlow NextGen 220W Portable Solar Panel
1 x Storage Case
1 x Solar to XT60i Charging Cable (2.5 m)
1 x Quick Start Guide
1 x Safety Instructions
1 x Warranty Card
Bifacial Solar That Travels With You
The EcoFlow NextGen 220W Portable Solar Panel pairs a 220W front side and a 175W rear side with 25% efficient cells and an angle guide. If you have questions about pairing it with your power station, the Outbound Power team is happy to help.
EcoFlow NextGen 220W Portable Solar Panel Videos
EcoFlow NextGen 220W Portable Solar Panel Specifications
General
Model
EF-Fold-G220-04
Electrical
Rated Power (Front Side)
220W (±5W)
Rated Power (Rear Side)
175W (±5W)
Rated Power Test Conditions
1000W/m², AM1.5, 25°C (77°F)
Open Circuit Voltage
21.5V
Short Circuit Current
12.4A front, 9.9A rear
Optimal Operating Voltage
18.4V
Optimal Operating Current
11.9A front, 9.5A rear
Efficiency
25%
Bifaciality Coefficient
80% ±5%
Temp. Coefficient (Power)
-(0.30±0.02)%/°C
Temp. Coefficient (Voc)
-(0.25±0.03)%/°C
Temp. Coefficient (Isc)
+(0.045±0.015)%/°C
Cells and Construction
Cell Type
TOPCon monocrystalline silicon
Surface
Tempered glass, ETFE coating
Angle Bracket
30-60° adjustable, elastic straps
Angle Guide
Integrated solar angle guide
Preset Holes
6 (8 mm internal diameter)
Size and Weight
Unfolded Dimensions
24.2 x 84.8 x 1.0 in (615 x 2155 x 25 mm)
Folded Dimensions
24.2 x 23.2 x 1.3 in (615 x 590 x 32 mm)
Weight
About 15.4 lbs (7 kg)
Connectors and Cables
Connector Type
PV connectors adapted to MC4
Panel Output Cable
1.5 m
Included Charging Cable
Solar to XT60i, 2.5 m
Durability
IP Rating
IP68 (water and dust)
Recommended Ambient Temp.
-4°F to 185°F (-20°C to 85°C)
EcoFlow NextGen 220W Solar Panel Manual
Common Customer Questions
Get answers to the most frequently-asked questions customers ask before placing an order.
Is Outbound Power an Authorized Dealer?
Yes! Outbound Power is an Authorized Dealer for every single brand and product on our store.
How long will it take for my order to arrive?
Shipping times vary depending on your location and the product or products ordered.
Order Processing Time Most products are processed within 1-3 business days. If there is a delay in processing your order, we will alert you with as much information as possible about what to expect.
After order processing is complete, you will receive tracking information to monitor your order while it is in transit.
Order Shipping Time Following processing, it may take between 3 and 8 days to arrive, depending on your location.
Please refer to the product page for your item and reference the estimated delivery time frame for more details.
Additionally, you can see the estimated delivery time frame during checkout and receive a tracking number once your order ships.
What are your shipping rates? Do you offer free shipping?
Everything on our store ships for free. Really!
What is Outbound Power's return policy?
Most items may be returned within 30 days of delivery. Please refer to our Returns & Exchanges policy to determine what items are eligible. Returns are not accepted beyond 30 days following delivery.
Are Outbound Power products used/old/refurbished?
Everything sold on our website is brand-new.
Do you price match?
No — we price BEAT! Please refer to our Price Beat Promise for full details.

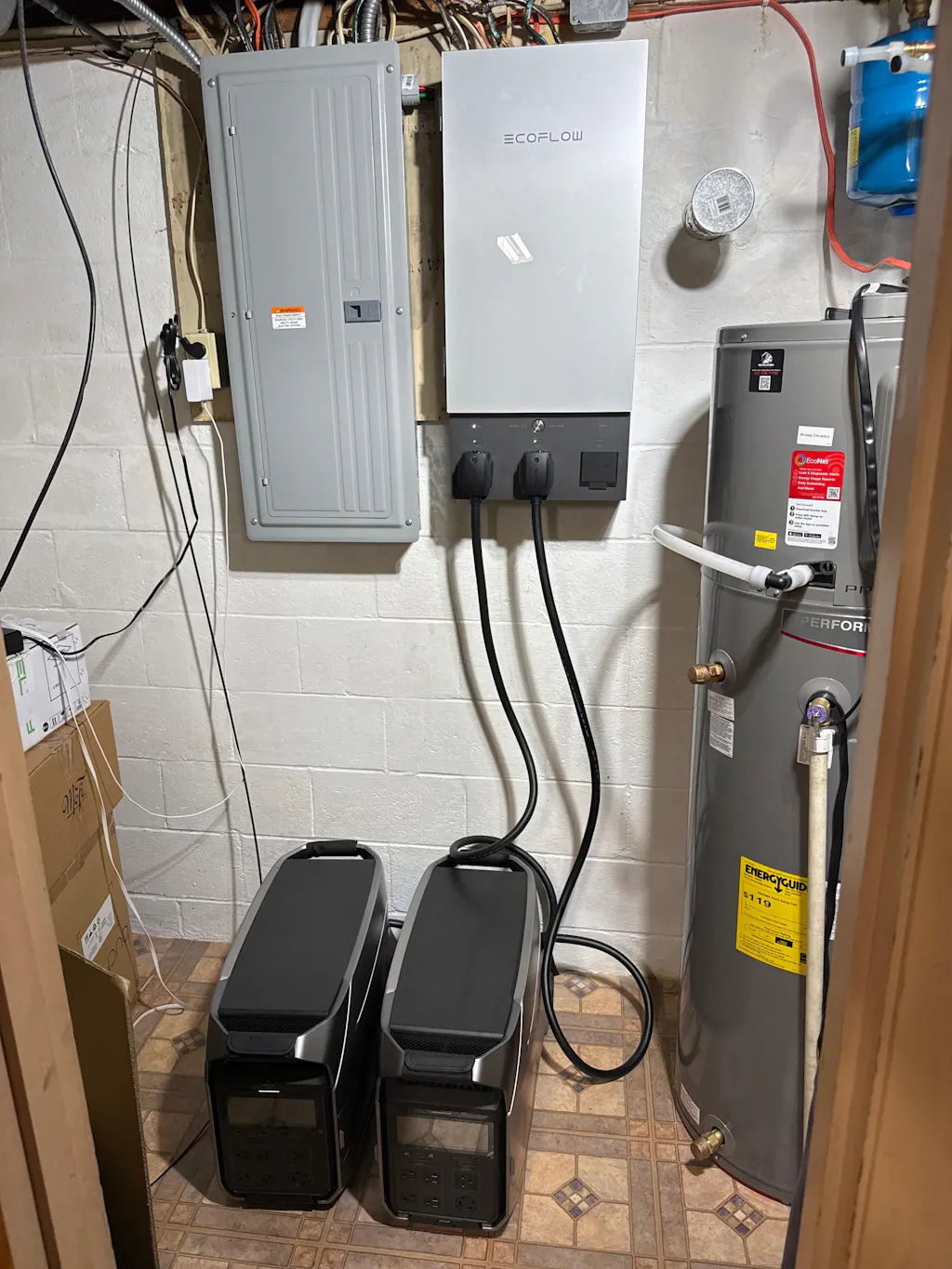

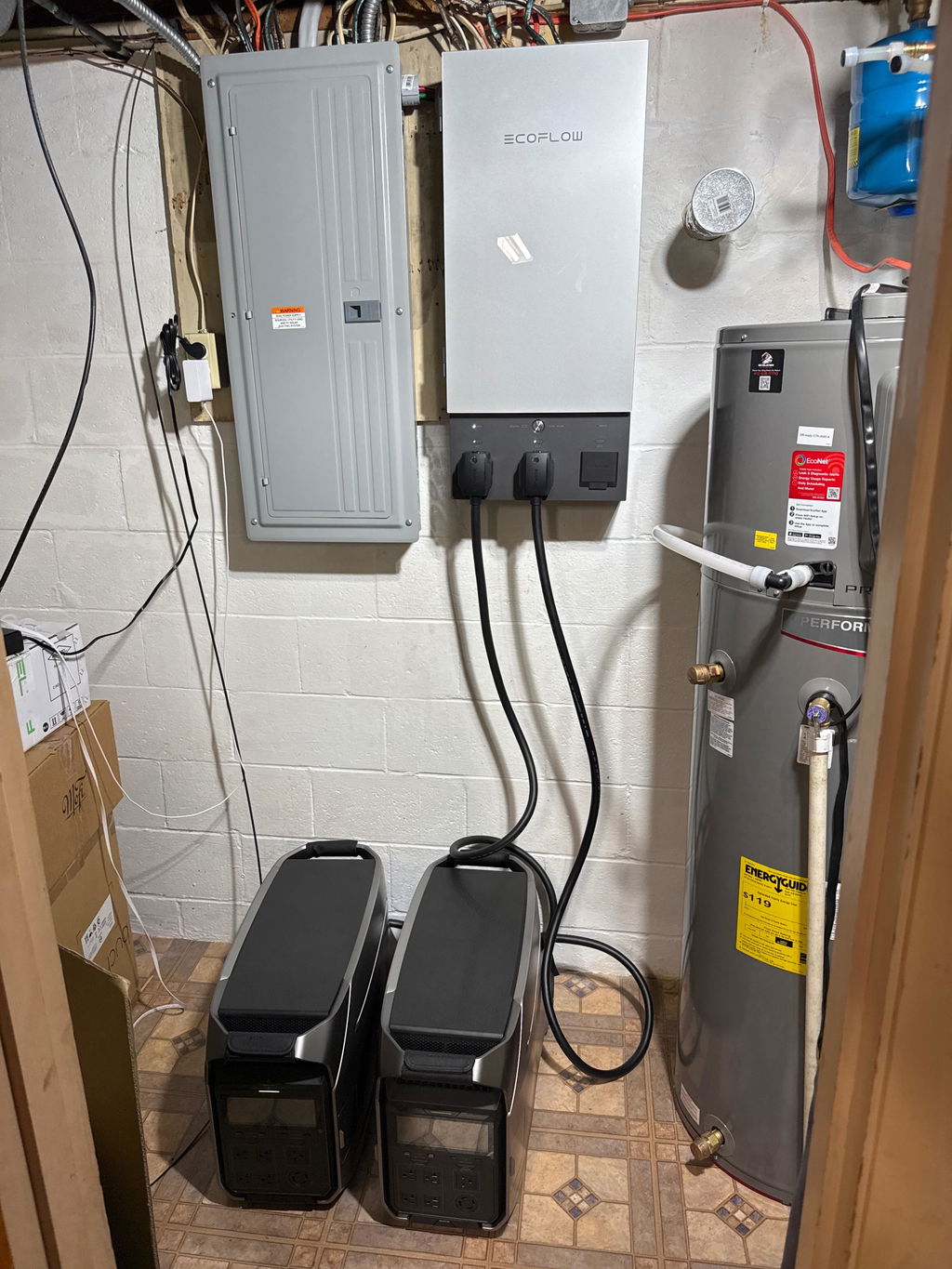

Just finished up my install of my Ecoflow backup system. This started out with me just looking for a quiet generator for my travel trailer. But one thing led to another and down the rabbit hole I went! Initially I got my first Ecoflow Pro 3 used but brand new in the box. Ended up buying another unit and a Panel 2 from a guy who does business with Outbound Power. Since then I’ve purchased a Ecoflow dual fuel 4000 watt generator and 2 Ecoflow portable solar panels directly from Outbound Power. Got a fantastic price! Bill was super helpful and beat another deal I found online. Shipping was fast and easy. Would definitely purchase from them again!
