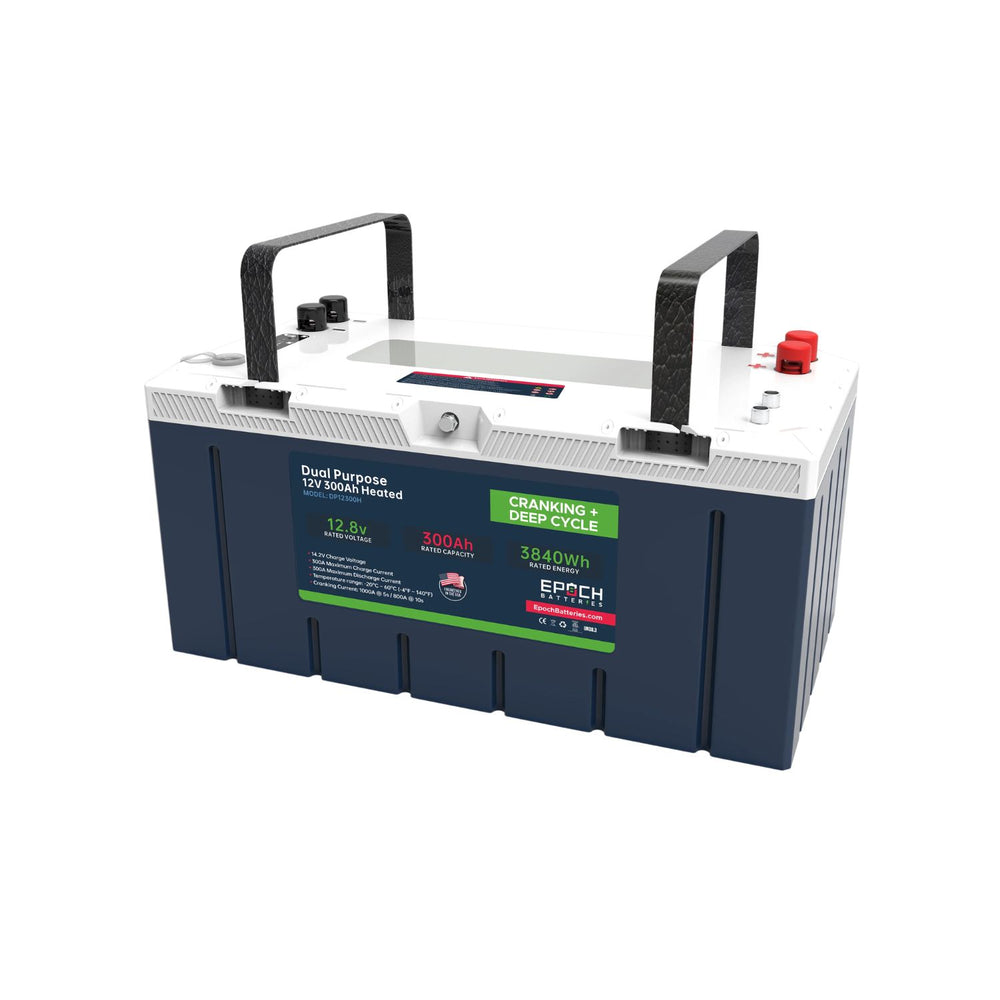

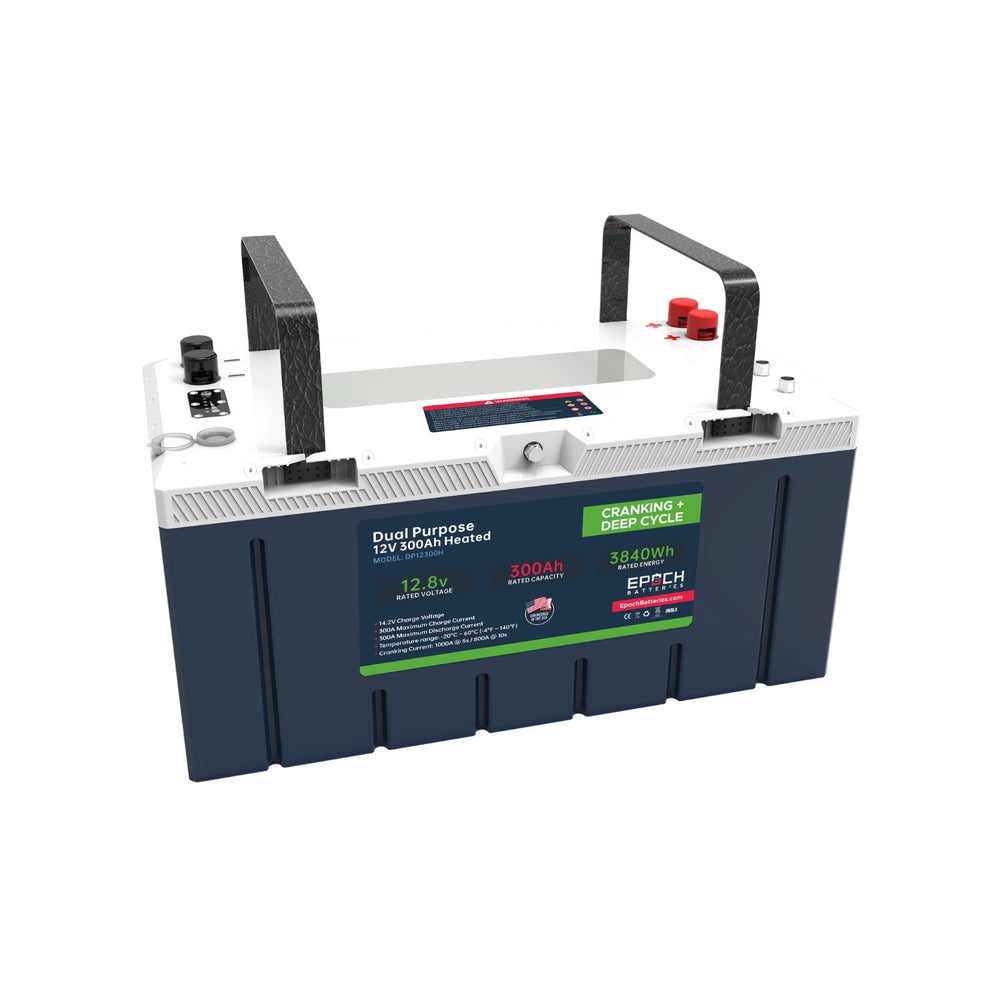

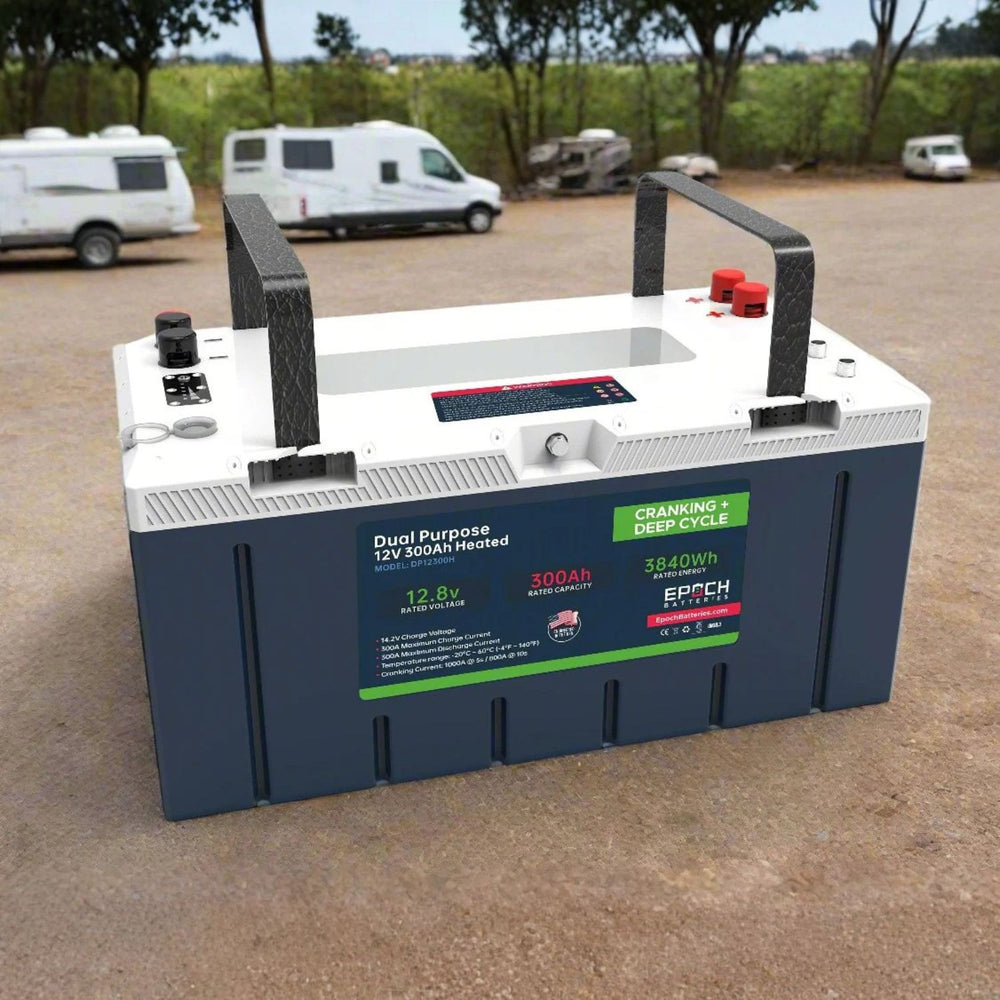

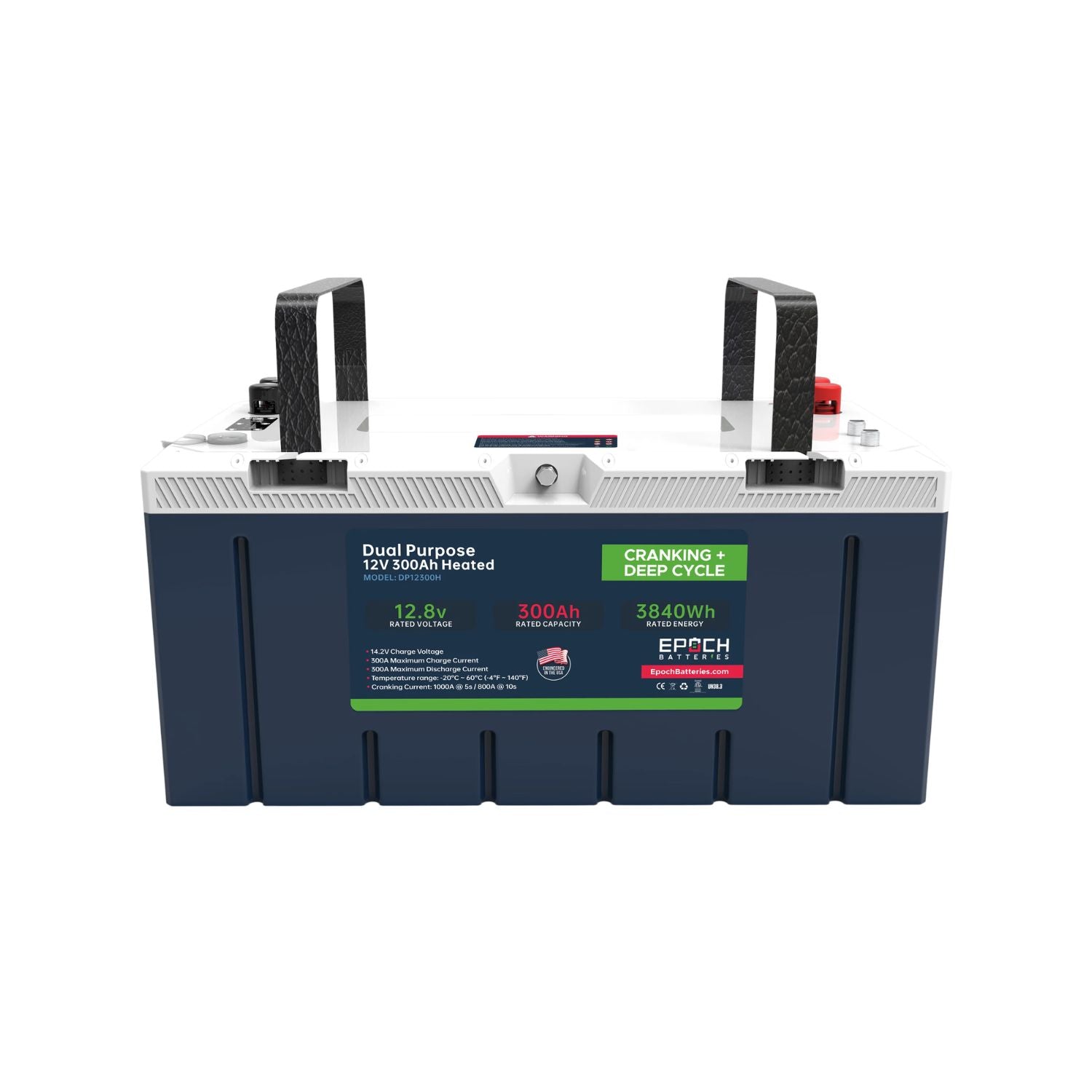

The Epoch Batteries 12V 300Ah (3.84kWh) Deep Cycle LiFePO4 Lithium Cranking Battery (Dual Purpose) Starts Your Engine and Runs Your House Loads From One Group 8D Case
The Epoch DP12300H is a Pro Series lithium iron phosphate battery rated at 12.8V nominal and 300Ah, for 3.84kWh (3,840Wh) of stored energy in a BCI Group 8D case. It delivers 1,000A for 5 seconds and 800A for 10 seconds for engine cranking and 300A continuous for house loads, with self-heating, Bluetooth monitoring in the Epoch Pro app, CAN Link ports and an IP67 enclosure.
It's made for boats and RVs that need both cranking power and deep-cycle runtime: marine engine starting plus house power for electronics, pumps, refrigeration and inverters, and RV, overland, solar and off-grid 12V systems. In compatible systems, it can replace separate lead-acid starting and house batteries.
Epoch Batteries 12V 300Ah (3.84kWh) Deep Cycle LiFePO4 Lithium Cranking Battery (Dual Purpose) Features
Cranking Power Rated by Peak Current
It supplies 1,000A for up to 5 seconds and 800A for up to 10 seconds for engine cranking and short start-up surges, tested above 60% state of charge at 25°C. Epoch rates it by peak current and duration, not CCA, so check the engine maker's battery requirements. Epoch cites compatibility with Mercury 250 hp outboards and other leading brands when the engine's battery requirements, alternator, wiring and charging profile are matched.
300A Continuous Charge and Discharge
The BMS allows 300A continuous discharge and 300A continuous charge, with 150A recommended for daily use. At 12.8V, 300A is about 3,840W of inverter DC input, which covers 3,000W-class inverter systems; usable AC output is lower. Frequent peak discharges shorten battery life, so save the peak rating for engine starts.
Self-Heating for Cold-Weather Charging
An internal heating film runs only while a charger is connected. In cold weather it warms the battery to 10°C (50°F) and then switches to charging, so the battery charges from -20°C to 55°C (-4°F to 131°F). Leave the charger connected and allow up to 60 minutes. Discharge is rated from -20°C to 60°C (-4°F to 140°F).
Bluetooth Monitoring in the Epoch Pro App
The free Epoch Pro app for iOS and Android shows state of charge, voltage, current, temperature and status alerts, sets up multi-battery networks and installs firmware updates over the air.
CAN Link Ports for Networking
Link in and Link out ports let batteries share data over CAN bus and connect the bank to an inverter, display, MPPT or other device that needs battery data. Networking is optional, since each battery protects itself. For Victron systems or NMEA 2000 networks, Epoch offers the Pro Series communications box, sold separately.
IP67 Sealed Case
The sealed case is dust-tight and protected against temporary immersion to 1 m for 30 minutes, with heat-sink fins and a pressure-relief valve. It is not rated for water jets or pressure washing and must not be left submerged, so mount it where standing water can't collect, never in a bilge.
6,000+ Cycles and an 11-Year Limited Warranty
Epoch rates it for 6,000+ cycles (0.2C, 80% depth of discharge, to 80% of initial capacity, 25°C), with no watering or acid service. The smart BMS guards against overcharge, over-discharge, over-current, short circuit and high or low temperature, and the battery carries UL 1973 certification. It's backed by an 11-year limited warranty with free replacement in Years 1–3, then 40% off MSRP on a replacement battery in Years 4–11.
Real-World Applications
Dual-purpose boats. Start a compatible outboard, then run electronics, sonar, radar, audio, livewell and bilge pumps, refrigeration and lighting within the 300A limit. Keep enough charge in reserve to start the engine.
RV, van and overland house power. Run a 3,000W-class inverter system within 300A continuous, with every charging source programmed for LiFePO4.
Solar, off-grid and backup. Epoch's planning estimates use 80% of nominal energy (about 3,072Wh) for DC loads at 25°C on a new, fully charged battery: about 30.7 hours at 100W, 6.1 hours at 500W, 3.1 hours at 1,000W and 1.5 hours at 2,000W.
Larger banks. Build up to 16 in parallel at 12V for 4,800Ah and 61.44kWh. With batteries in series, up to 4 strings may be paralleled, to a 4S4P maximum of 51.2V, 1,200Ah and 61.44kWh.
How It Compares to Common Alternatives
Versus separate starting and house batteries. One battery covers both jobs in compatible systems. The main fuse, battery switch and cables must then suit the engine's starting current as well as house loads, and Epoch advises keeping a backup plan for critical starting offshore or in remote locations.
Versus a Group 8D lead-acid or AGM battery. It weighs 81 lb and needs no watering or acid service. Lead-acid equalization, desulfation and repair modes must not be used, the alternator path must be lithium-compatible, and you should compare its peak-current rating with the engine maker's requirement rather than a CCA number.
Versus a deep-cycle-only lithium battery. Standard deep-cycle lithium batteries are not designed for the surge demand of a starter motor. This one is rated for both cranking and deep-cycle use.
Is This Dual-Purpose Battery the Right Fit
-
Engine compatibility. Check the engine maker's battery requirements, including minimum CCA, reserve capacity, charging voltage, alternator output and lithium compatibility. Charge the battery fully before the first starting test.
-
Alternator charging. Some alternators aren't designed to charge lithium directly. Use a DC-to-DC charger, lithium-ready regulator or alternator protection device where needed, and confirm the alternator's temperature, duty cycle and output limits, since the battery accepts up to 300A.
-
Charger settings. 14.2V bulk/absorption recommended (14.2–14.6V range), 13.8V float recommended (13.4–13.8V range) or float off where allowed, equalization and temperature compensation disabled, up to 150A recommended and 300A maximum from all sources. 15.4V is a listed maximum, not a charger target.
-
Banks. Use only DP12300H batteries. If any two differ by more than 0.5V, fully charge each one separately and rest it for 1 hour before connecting.
-
Fit and installation. 19.7 x 10.5 x 9.75 in (500 x 267 x 248 mm) and 81 lb (36.7 kg). Mount it face up, never on its side or upside down, secured with its bracket (M6 stainless screws recommended). Torque the M8 terminals to 8–10 Nm (71–89 in-lb) and fit a DC-rated fuse or breaker close to the positive terminal.
This may be a good fit if
- You want one battery for starting and house loads
- Your engine's battery requirements match its ratings
- You need to charge in freezing weather
- You want app monitoring and CAN networking
Common Questions
Does It Ship Ready to Use?
It ships with the power switch off. Turn it on (the BMS self-check takes up to 10 seconds), fully charge it with a LiFePO4 charger before first use, then confirm its status in the Epoch Pro app.
How Should I Store It?
Charge it to about 50% or higher, disconnect loads and chargers, switch it off and store it dry at 0 to 35°C (32 to 95°F). Check it at least every 3 months, since a battery left uncharged for more than 3 months is excluded from warranty coverage.
Do I Need to Register the Warranty?
Register within 90 days of purchase for full coverage. If you don't, the warranty period starts from the battery's manufacturing date.
What's Included
- 1 x Epoch 12V 300Ah Pro Series Dual Purpose LiFePO4 Battery (DP12300H)
One 12V Battery for Starting and House Power
The Epoch Batteries 12V 300Ah (3.84kWh) Deep Cycle LiFePO4 Lithium Cranking Battery (Dual Purpose) combines 1,000A cranking, 3.84kWh of deep-cycle energy, self-heating and Bluetooth monitoring in one Group 8D case. If you have questions about engine compatibility, alternator charging or building a bank, the Outbound Power team is happy to help.
Epoch DP12300H Specifications
|
| Electrical |
| Model |
DP12300H |
| Series |
Pro Series |
| Battery type |
Dual-purpose cranking and deep-cycle |
| Chemistry |
LiFePO4 (lithium iron phosphate) |
| Cell configuration |
4S3P |
| Nominal voltage |
12.8V |
| Nominal capacity |
300Ah |
| Stored energy |
3,840Wh (3.84kWh) |
| Runtime planning energy |
About 3,072Wh (80% of nominal) |
| Operating voltage range |
10.0–15.4V |
| Maximum charge input |
15.4V listed maximum (not a charger target) |
| End of discharge |
11.0–11.6V |
| Internal resistance |
<30 mΩ (1 kHz AC) |
| Self-discharge |
≤3% per month (sleep or off) |
| Cycle life |
6,000+ cycles |
| Cycle life conditions |
0.2C, 80% DoD, to 80% of initial capacity, 25°C |
| Charge and Discharge |
| Maximum continuous discharge |
300A |
| Recommended daily discharge |
150A |
| Cranking peak |
1,000A for up to 5 s |
| Cranking peak, longer |
800A for up to 10 s |
| Peak rating test conditions |
Above 60% state of charge, 25°C |
| Continuous power at 12.8V |
About 3,840W DC input (usable AC output is lower) |
| Maximum continuous charge |
300A, all charging sources combined |
| Recommended charge current |
Up to 150A (0.5C) |
| Series connection |
Up to 4 (up to 48V system class) |
| Parallel connection |
Up to 16 at 12V |
| Maximum 12V parallel bank |
4,800Ah / 61.44kWh |
| Series-parallel limit |
Up to 4 strings with batteries in series (4S4P) |
| 4S4P bank |
51.2V nominal, 1,200Ah, 61.44kWh |
| Bank matching |
Voltages within 0.5V before connecting |
| Recommended Charge Settings |
| Charger type |
12V LiFePO4 profile |
| Bulk / absorption voltage |
14.2V recommended (14.2–14.6V range) |
| Float voltage |
13.8V recommended (13.4–13.8V range); off preferred |
| Absorption time |
No separate value |
| Equalization |
Disabled |
| Temperature compensation |
0 mV/°C (disabled) |
| Charge current, one battery |
Up to 150A recommended |
| Charge current, banks |
Up to 50% of bank capacity |
| Alternator charging |
DC-to-DC charger or lithium-ready regulation |
| Compatible charger |
Epoch 12V 50A Lithium Battery Charger |
| Temperature |
| Charge (with internal heating) |
−20 to 55°C (−4 to 131°F) |
| Self-heating |
Internal heating film, charger connected |
| Heating target |
Warms the battery to 10°C (50°F) before charging |
| Heating time |
Allow up to 60 min |
| Discharge |
−20 to 60°C (−4 to 140°F) |
| Storage (recommended) |
0 to 35°C (32 to 95°F) |
| BMS and Protection |
| Smart BMS |
Built in |
| Voltage and current protection |
Overcharge, over-discharge, over-current |
| Short circuit |
Cutoff at 1,200A within 500 µs |
| Temperature protection |
High- and low-temperature disconnects |
| Cell balancing |
Passive balancing near full charge |
| External protection |
DC-rated fuse or breaker near the positive terminal |
| Communication and Monitoring |
| Bluetooth |
Yes, Epoch Pro app (iOS and Android) |
| App readings |
State of charge, voltage, current, temperature, status and alerts |
| Firmware updates |
Over the air through the app |
| CAN |
Link in / Link out ports |
| Victron and NMEA 2000 |
Through the Pro Series communications box (sold separately) |
| Indicators |
RUN/ALM light; 4 SOC lights (25% each) |
| Controls |
Power switch (ships OFF); config button |
| Optional display |
Pro Series 5 in touchscreen display |
| Size and Weight |
| Dimensions (L x W x H) |
19.7 in x 10.5 in x 9.75 in (500 x 267 x 248 mm) |
| Footprint |
BCI Group 8D |
| Weight |
81 lb (36.7 kg) |
| Terminals |
M8 |
| Terminal torque |
8–10 Nm (71–89 in-lb) |
| Mounting orientation |
Upright (face up); never on its side or upside down |
| Mounting |
Bracket; M6 stainless screws recommended |
| Case |
Sealed, with heat-sink fins and pressure-relief valve |
| Enclosure |
IP67 (IEC 60529) |
| Water and dust |
Dust-tight; temporary immersion to 1 m for 30 min |
| Not rated for |
Water jets, pressure washing or being left submerged |
| Certifications |
| Battery |
UL 1973 (certificate of compliance available) |
| Compliance marks |
CE, RoHS |
| Transport |
UN 38.3 |
| Warranty |
| Warranty |
11-year limited warranty |
| Years 1–3 |
Free replacement |
| Years 4–11 |
40% off MSRP on a replacement battery |
| Registration |
Within 90 days of purchase for full coverage |
