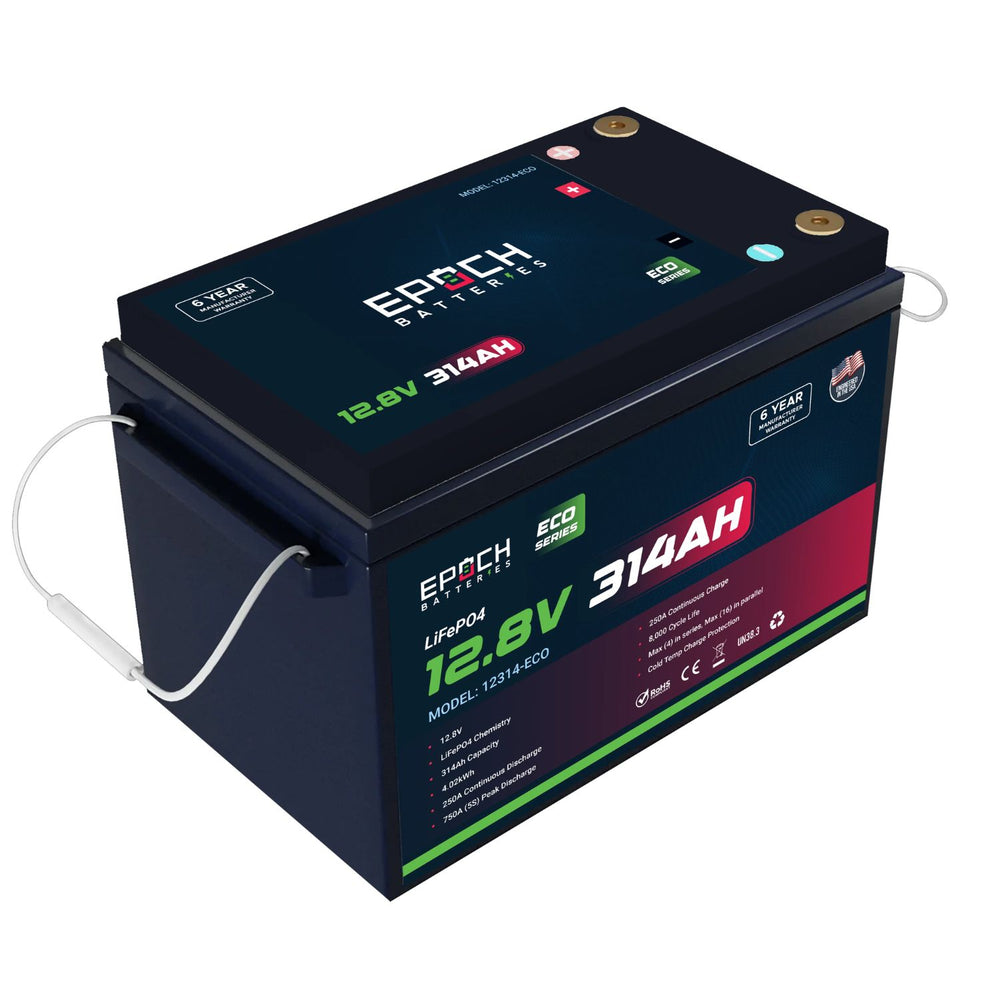

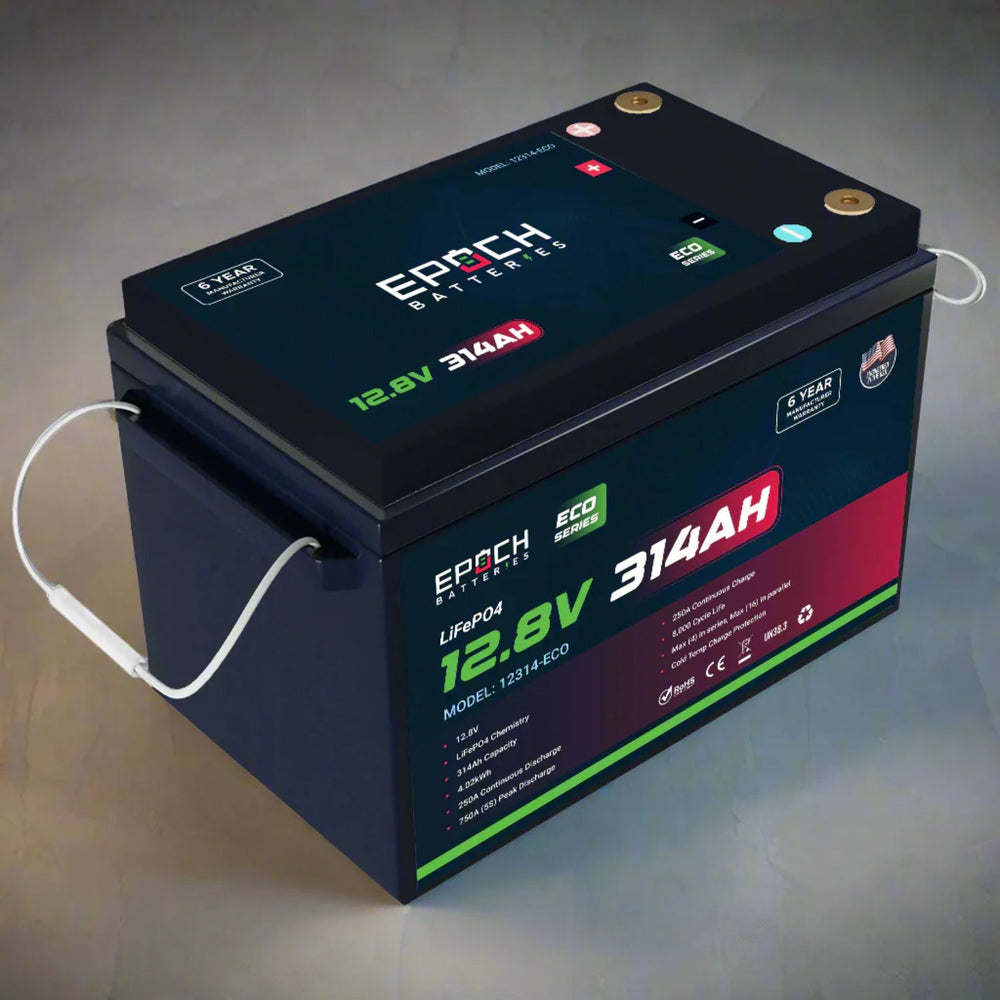

The Epoch Batteries 12V 314Ah (4.02kWh) LiFePO4 Battery Stores 4.02kWh and Delivers 250A From One Group 31 Case
The Epoch 12314-ECO is an Eco Series lithium iron phosphate battery rated at 12.8V nominal and 314Ah, for 4.02kWh (4,019Wh) of stored energy in a BCI Group 31 case. Its 250A smart BMS supports properly designed 3,000W inverter-class systems, with 750A for up to 5 seconds for surge loads, low-temperature charge protection and an IP54 enclosure. It has no Bluetooth and no internal heater.
It's made for high-capacity 12V house power: RV solar banks, camper and van conversions, off-grid cabins, tiny homes and sheds, marine house power and backup systems. It is a deep-cycle battery, not cranking-rated, so it is not for engine starting.
Epoch Batteries 12V 314Ah (4.02kWh) LiFePO4 Battery Features
250A Continuous for 3,000W Inverter-Class Systems
Epoch rates it for 250A maximum continuous discharge, about 3,200W of inverter DC input at 12.8V, so usable AC output is lower. That supports a properly designed 3,000W inverter-class system when the inverter, cables, fusing and low-voltage settings are sized correctly.
750A for Short Surge Loads
The 750A rating covers surges of up to 5 seconds only, such as a microwave, induction cooktop or compressor starting. Any load that lasts longer than 5 seconds must stay at or below 250A.
4.02kWh in a Group 31 Footprint
The case measures 13.75 x 7.63 x 10 in (349 x 194 x 254 mm) on a BCI Group 31 footprint, 15.5 in (394 mm) long at the rope handles and 10.5 in (267 mm) high to the top of the terminal bolts. It weighs 57 lb (25.85 kg). Epoch sells a matching tray for the 12300A-H, 12334A-H and 12314-ECO.
Low-Temperature Charge Protection
There is no internal heater. The BMS checks cell temperature before it allows charge current and blocks charging below 0°C (32°F) to protect the cells. Charging resumes once the battery is back in its 0 to 55°C (32 to 131°F) charge range, and it can still discharge down to -20°C (-4°F).
Smart BMS With 20+ Safety Features
The BMS protects against overcharge, over-discharge, over-current, short circuit and high or low temperature, with a high-temperature reconnect at 50°C (122°F). Epoch lists UL 1642 and UL 9540A for the cells (not the complete battery), IEC 62619:2022 for the battery, and CE and RoHS marks. It does not replace a DC-rated fuse or breaker near the positive terminal.
IP54 Case, 4,500+ Cycles and a 6-Year Limited Warranty
IP54 under IEC 60529 means dust-protected and protected against splashing water from any direction. It is not waterproof or submersible, so don't submerge or pressure-wash it, or install it where standing water can collect. Epoch rates it for 4,500+ cycles with no watering or acid service, backed by a 6-year limited warranty: free replacement in Years 1–3, then 40% off MSRP on a replacement battery in Years 4–6.
Real-World Applications
RV solar and house power. Pair it with a 12V inverter/charger, MPPT solar controller and DC-to-DC charger, all programmed for LiFePO4, to run lights, fans, pumps, refrigeration and inverter loads in a camper, travel trailer or motorhome.
Off-grid cabins and sheds. Start with one 4.02kWh battery and grow to 16 in parallel for 5,024Ah and 64.31kWh at 12V, or wire up to 4 in series for a 24V, 36V or 48V-class system.
Marine house power. Power electronics, lighting, pumps, refrigeration and accessories within the current limits, mounted in a dry compartment away from bilge water.
Backup power. Keep communications, lighting, refrigeration and other critical 12V loads running. Epoch's planning estimates use 80% of nominal energy (about 3,215Wh) for DC loads at 25°C on a new, fully charged battery: about 32.2 hours at 100W, 6.4 hours at 500W, 3.2 hours at 1,000W and 1.6 hours at 2,000W.
How It Compares to Common Alternatives
Versus Epoch Essential and Pro Series batteries. The Eco Series leaves out Bluetooth and internal heating. Epoch's Essential and Pro models add features such as Bluetooth, active heating or higher IP ratings, depending on the model. Choose the Eco if the battery will charge above freezing and an external battery monitor meets your monitoring needs.
Versus a lead-acid or AGM house bank. This battery needs no watering or acid service. It needs a LiFePO4 charge profile, lead-acid equalization, desulfation and repair modes must not be used, and it must never share a bank with lead-acid batteries.
Versus a cranking battery. This is a dedicated deep-cycle battery. Use a cranking-rated battery for engine starting, since repeated engine starting on this model is excluded from warranty coverage.
Is This 12V Battery the Right Fit
-
Series and parallel. Up to 4 in series and 16 in parallel, using matched 12314-ECO batteries of the same age, condition and state of charge, each fully charged before it joins the bank. The largest bank is 4S16P: 64 batteries, 51.2V nominal, 5,024Ah and 257.23kWh.
-
Charger settings. A 12V LiFePO4 profile at 14.2–14.4V bulk/absorption, ending at C/20 (about 15.7A) or after 15 minutes, float off (preferred) or 13.3–13.6V, 13.2V re-bulk, with equalization and temperature compensation disabled. Charge at up to 157A, never more than 250A from all sources combined.
-
Cold charging. With no heater, charge only between 0°C and 55°C (32°F and 131°F). If it's too cold, move the battery somewhere warmer and let it stabilize. Never bypass the protection.
-
Fit and weight. Allow for 15.5 in at the handles and clearance above the 10.5 in terminal-bolt height. At 57 lb, use proper lifting technique, mount it upright and secure it with a tray, strap or bracket, never by its cables.
-
Wiring. Torque the M8 female terminals to 8–12 Nm (71–106 in-lb) and install a DC-rated fuse or breaker as close as practical to the positive terminal. Large inverters may need a pre-charge circuit.
This may be a good fit if
- You're building a large 12V house or solar bank
- You run an inverter up to the 3,000W class
- Your battery will charge above freezing
- You'll use a shunt-based battery monitor
Common Questions
How Do I Track State of Charge Without Bluetooth?
Use a properly configured shunt-based battery monitor, which counts the amp-hours in and out. For app visibility, Epoch suggests a monitor such as the Victron SmartShunt 500A/50mV. A full charge to the 14.6V SOC recalibration voltage is a good point to reset the monitor to 100%.
Can I Use a Smaller Charger?
Yes. A charger below the recommended 157A, such as the Epoch 12V 15A Lithium Battery Charger, is suitable; it simply takes longer. In Epoch's example, replacing 251Ah takes about 1.6 hours at 157A, plus absorption time.
How Should I Store It?
Charge it to about 50% or higher, disconnect loads and chargers, and store it dry at 0 to 35°C (32 to 95°F). Check it at least every 3 months, since a battery left uncharged for more than 3 months is excluded from warranty coverage.
Do I Need to Register the Warranty?
Register within 90 days of purchase for full coverage. If you don't, the warranty period starts from the battery's manufacturing date. Coverage is for the original purchaser and needs proof of ownership.
What's Included
- 1 x Epoch 12V 314Ah Eco Series LiFePO4 Battery (12314-ECO)
High-Capacity 12V Storage in One Battery
The Epoch Batteries 12V 314Ah (4.02kWh) LiFePO4 Battery puts 4.02kWh and a 250A smart BMS in one Group 31 case for RV, off-grid, marine and backup systems. If you have questions about inverter sizing, charger settings or building a bank, the Outbound Power team is happy to help.
Epoch 12314-ECO Specifications
|
| Electrical |
| Model |
12314-ECO |
| Series |
Eco Series |
| Battery type |
Deep-cycle (not cranking-rated) |
| Chemistry |
LiFePO4 (lithium iron phosphate) |
| Cell type |
Prismatic LiFePO4 |
| Cell configuration |
4S1P |
| Nominal voltage |
12.8V |
| Nominal capacity |
314Ah |
| Stored energy |
4,019Wh (4.02kWh) |
| Runtime planning energy |
About 3,215Wh (80% of nominal) |
| Operating voltage range |
10.0–14.6V |
| Maximum charge voltage |
14.6V |
| Cycle life |
4,500+ cycles |
| Charge and Discharge |
| Maximum continuous discharge |
250A |
| Peak discharge |
750A for up to 5 s (surge loads only) |
| Inverter sizing |
DC input within 250A (about 3,200W at 12.8V) |
| Inverter class |
Properly designed 3,000W inverter-class systems |
| Maximum continuous charge |
250A, all charging sources combined |
| Recommended charge current |
Up to 157A (0.5C) |
| Series connection |
Up to 4 (24V, 36V or 48V system class) |
| Parallel connection |
Up to 16 |
| Maximum 12V parallel bank |
5,024Ah / 64.31kWh |
| Maximum configuration |
4S16P (64 batteries) |
| 4S16P bank |
51.2V nominal, 5,024Ah, 257.23kWh |
| Recommended Charge Settings |
| Charger type |
12V LiFePO4 profile |
| Bulk / absorption voltage |
14.2–14.4V |
| Absorption end |
At C/20 (about 15.7A) or after 15 min, whichever comes first |
| Float voltage |
Disabled (preferred) or 13.3–13.6V |
| Re-bulk voltage |
13.2V |
| Equalization |
Disabled |
| Temperature compensation |
0 mV/°C (disabled) |
| Charge current, one battery |
Up to 157A recommended |
| Charge current, banks |
Up to 50% of bank capacity |
| BMS high-voltage cutoff |
14.6V |
| SOC recalibration |
14.6V |
| Alternator charging |
DC-to-DC charger programmed for LiFePO4 |
| Compatible charger |
Epoch 12V 15A Lithium Battery Charger |
| Temperature |
| Charge |
0 to 55°C (32 to 131°F) |
| Low-temperature charge protection |
Charging blocked below 0°C (32°F) |
| Self-heating |
No |
| Discharge |
−20 to 60°C (−4 to 140°F) |
| Storage (recommended) |
0 to 35°C (32 to 95°F) |
| High-temperature reconnect |
50°C (122°F) |
| BMS and Protection |
| Smart BMS |
Built in, 20+ safety features |
| Voltage and current protection |
Overcharge, over-discharge, over-current, short circuit |
| Temperature protection |
High- and low-temperature disconnects |
| External protection |
DC-rated fuse or breaker near the positive terminal |
| Communication and Monitoring |
| Bluetooth |
No |
| Monitoring |
External shunt-based battery monitor |
| App monitoring option |
Shunt monitor such as Victron SmartShunt 500A/50mV |
| Size and Weight |
| Dimensions (L x W x H) |
13.75 in x 7.63 in x 10 in (349 x 194 x 254 mm) |
| Length at handles |
15.5 in (394 mm) |
| Height with terminal bolts |
10.5 in (267 mm) |
| Footprint |
BCI Group 31 |
| Weight |
57 lb (25.85 kg) |
| Handles |
Rope handles |
| Terminals |
M8 female |
| Terminal torque |
8–12 Nm (71–106 in-lb) |
| Mounting orientation |
Upright |
| Case material |
ABS and PC blend, UL94-V0 |
| Enclosure |
IP54 (IEC 60529) |
| Water and dust |
Dust-protected, splash-resistant |
| Not rated for |
Submersion, pressure washing or standing water |
| Matching tray |
Epoch tray for 12300A-H, 12334A-H and 12314-ECO, sold separately |
| Certifications |
| Cells |
UL 1642, UL 9540A (cells only) |
| Battery |
IEC 62619:2022 |
| Compliance marks |
CE, RoHS |
| Transport |
UN 38.3, Class 9 |
| Warranty |
| Warranty |
6-year limited warranty |
| Years 1–3 |
Free replacement |
| Years 4–6 |
40% off MSRP on a replacement battery |
| Registration |
Within 90 days of purchase for full coverage |
Epoch 12314-ECO User Manual
Epoch 12314-ECO Spec Sheet
Epoch 12314-ECO Data Sheet
