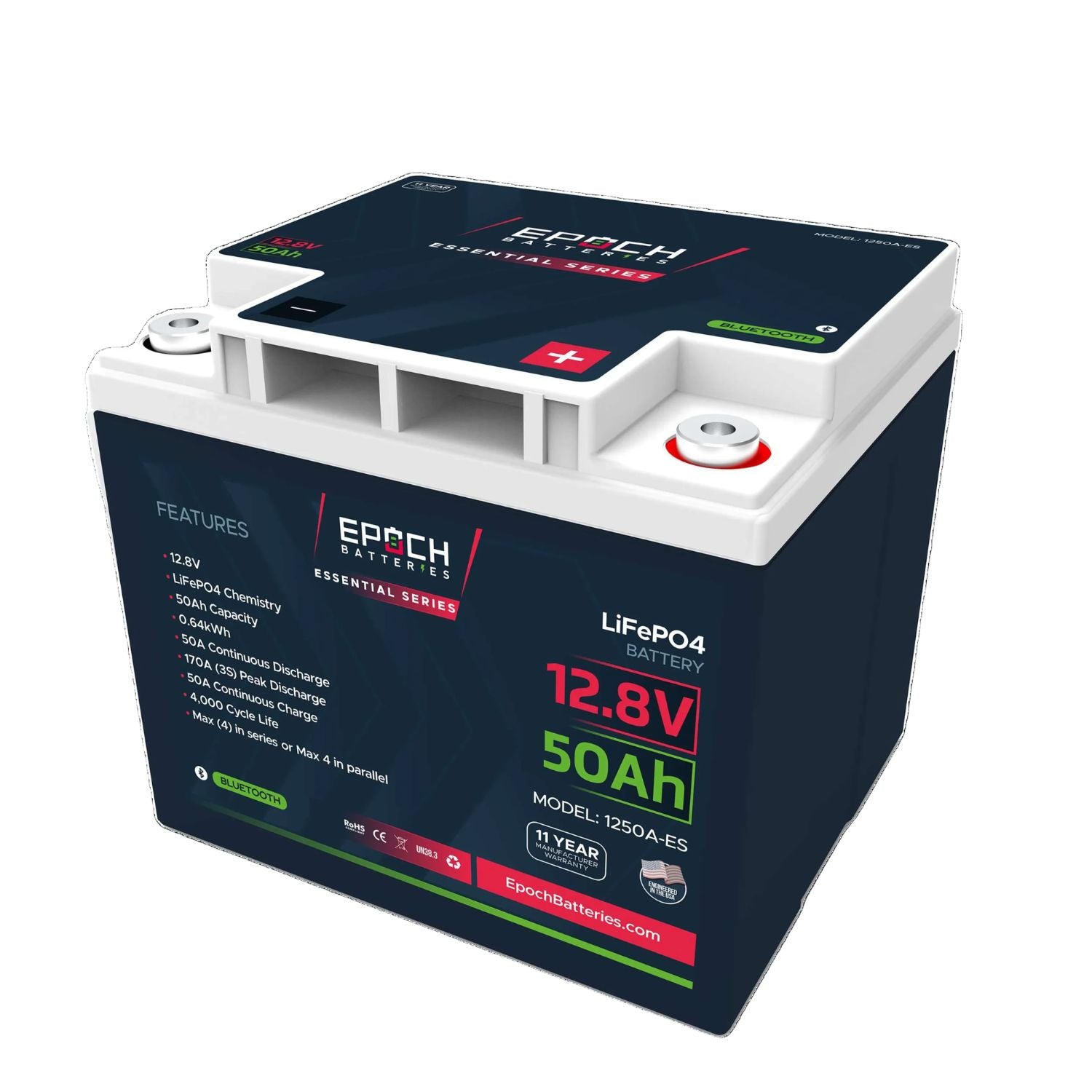

The Epoch Batteries 12V 50Ah (0.64kWh) LiFePO4 Battery Brings Bluetooth Monitoring to Kayaks and Compact 12V Systems at 14.3 lb
The Epoch 1250A-ES is an Essential Series lithium iron phosphate battery rated at 12.8V nominal and 50Ah, for 640Wh (0.64kWh) of stored energy in a 9 x 6 x 8.5 in case that weighs 14.3 lb. It has a built-in smart BMS, Bluetooth monitoring in the free Epoch Pro app and an IP54 dust-protected, splash-resistant enclosure.
It's made for kayak and small-boat trolling motors, fish finders and other marine electronics, small RV and van auxiliary systems, portable solar storage and power boxes. It is a deep-cycle battery with no internal heater, so it is not for engine starting or for charging below freezing.
Epoch Batteries 12V 50Ah (0.64kWh) LiFePO4 Battery Features
Compact Case at 14.3 lb
The battery measures 9 x 6 x 8.5 in (229 x 152 x 216 mm) overall with the terminals included and weighs 14.3 lb (6.5 kg), so it is easy to carry, load and secure in small watercraft and portable power boxes.
50A Continuous Output With a 170A Start-Up Surge
Epoch rates it for 50A maximum continuous discharge, about 640W at 12.8V, and 170A for up to 3 seconds for start-up surges only. For a trolling motor, size from the motor maker's maximum current draw, not its average. For an inverter, keep its DC input current within 50A; usable AC output is lower.

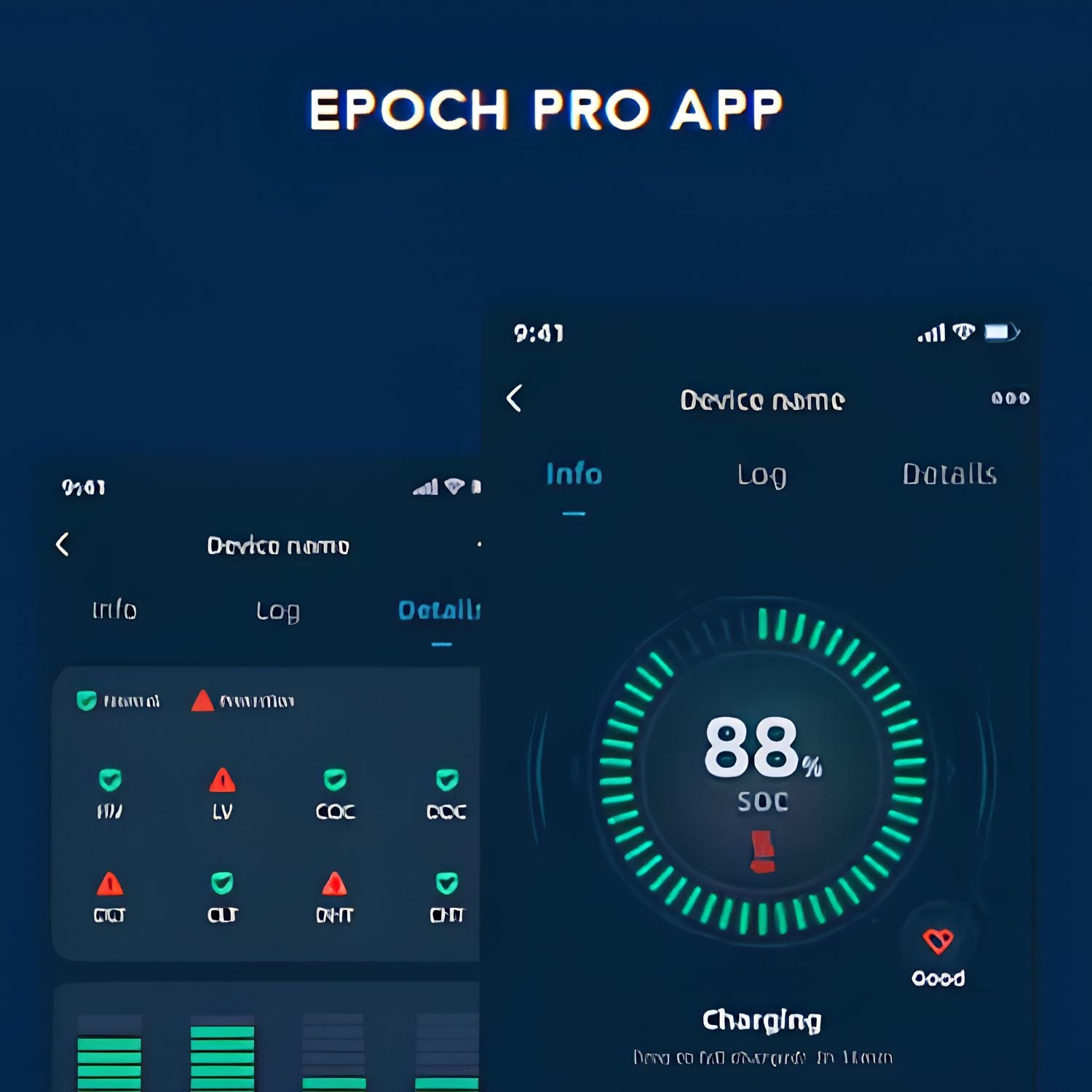

Bluetooth Monitoring in the Epoch Pro App
The free Epoch Pro app for iOS and Android shows state of charge, voltage, current, temperature and BMS status or protection alerts, with no separate gauge to cut into a kayak dashboard. One phone can monitor a multi-battery system, such as a three-battery 36V trolling setup, from a single screen.
IP54 Dust-Protected, Splash-Resistant Enclosure
The IP54 enclosure is dust protected and splash resistant for everyday marine, mobile and outdoor use. It is not waterproof or submersible, so do not submerge or pressure-wash it, and keep it out of bilge water and anywhere standing water can collect.
Smart BMS Protection
The built-in BMS protects against overcharge, over-discharge, over-current, short circuit, and high and low temperature by disconnecting the battery, and it blocks charging below 0°C (32°F). Install a properly sized fuse or DC-rated breaker as close as practical to the positive terminal.
Series and Parallel Expansion
Connect up to 4 matched 1250A-ES batteries in series for 24V, 36V or 48V system classes, or up to 4 in parallel for 200Ah and 2.56kWh at 12V. The largest bank is 4S4P: 16 batteries, 51.2V, 200Ah and 10.24kWh. The continuous and peak current limits apply to each battery.
Long Cycle Life and an 11-Year Limited Warranty
Epoch rates it for 4,000+ cycles, with no watering, acid service or routine lead-acid maintenance. It's backed by an 11-year limited warranty: 3 years of free replacement, then 40% off MSRP on a replacement battery through Year 11.
Real-World Applications
Kayak and small-boat trolling motors. Use it with 12V trolling motors whose maximum current draw is at or below 50A continuous. Epoch's planning estimate for a steady 10A draw is about 4 hours, and boat weight, speed setting, wind, current and time at full throttle all change real runtime.
Fish finders and marine electronics. Power sonar, GPS units, chartplotters, lighting and pumps. Epoch plans runtime on about 512Wh, 80% of nominal energy, for DC loads at 25°C with a new, fully charged battery: about 10.2 hours at 50W and 5.1 hours at 100W.
Small RV, van and overland systems. Run auxiliary 12V loads in campers, teardrops, vans and overland rigs from a converter, solar controller or DC-to-DC charger programmed for LiFePO4.
Portable solar and power boxes. Store solar energy for camping, cabins, trailers and docks, or build a backup or ham radio power box. Epoch estimates about 2.0 hours at 250W and 1.0 hour at 500W.
How It Compares to Common Alternatives
Versus a lead-acid trolling or house battery. The battery contains no liquid acid and needs no watering or acid service, and the app shows its state of charge on your phone. Confirm tray fit, terminal clearance, cable size, overcurrent protection and the charger profile before you replace a lead-acid battery, and never use lead-acid equalization, desulfation or repair modes on it.
Versus a cranking battery. This is a deep-cycle battery for sustained auxiliary loads such as trolling motors, electronics, lights and pumps. It is not cranking-rated, so use a cranking-rated battery for engine starting.
Versus a self-heating lithium battery. This model has no internal heater. It suits systems that charge above freezing; below 0°C (32°F), move it somewhere warmer and let it return to its 0°C to 55°C (32°F to 131°F) charging range before charging.
Is This 12V Battery the Right Fit
-
Load limits. Keep continuous loads at or below 50A per battery. The 170A rating is a 3-second peak for start-up surges only.
-
Charger settings. 12V LiFePO4 profile, 14.2–14.6V bulk/absorption, 30 minutes of absorption per 200Ah of bank capacity, float off (preferred) or 13.4–13.8V, re-bulk 13.2V if programmable, equalization and temperature compensation disabled. Charge at the recommended 25A and never above 50A from all sources combined. For alternator charging, use a DC-to-DC charger programmed for LiFePO4.
-
Cold charging. There is no internal heater. The BMS blocks charging below 0°C (32°F), and the battery can still discharge down to -20°C (-4°F).
-
Fit and mounting. 9 x 6 x 8.5 in (229 x 152 x 216 mm) with terminals and 14.3 lb (6.5 kg). Mount it upright and secure it so it cannot slide or tip, leave clearance above the terminals for cables and covers, and tighten the bolt terminals with the supplied hardware to the torque on the product labeling.
-
Banks. Use only matched 1250A-ES batteries of the same age, capacity and state of charge, fully charge each one before connecting it, and use cables, fuses, bus bars and chargers rated for the full bank.
This may be a good fit if
- Your trolling motor draws 50A or less at full throttle
- You want to check charge on your phone, not a mounted gauge
- You need a light 12V battery for a power box or small solar setup
- You charge above freezing
Common Questions
Is This Battery Waterproof?
No. It is rated IP54, which means dust protected and splash resistant. Do not submerge it, pressure-wash it or install it where standing water can collect around the case.
Can I Mount It on Its Side in a Kayak Hull?
The manual calls for an upright installation unless Epoch documentation for this model allows another orientation. Secure it so it cannot slide or tip, protect the terminals from spray and keep it out of bilge water.
What Charger Should I Use?
Any 12V LiFePO4 charger, converter, inverter charger, solar charge controller or DC-to-DC charger that can be set to Epoch's settings, such as the Epoch 12V 15A Lithium Battery Charger. A charger below 25A is suitable; it simply takes longer.
How Should I Store It?
Leave it at about 50% state of charge or higher with the loads disconnected, store it at 0°C to 35°C (32°F to 95°F) for up to 12 months, and check and recharge it at least every 3 months.
What's Included
- 1 x Epoch 12V 50Ah Essential Series LiFePO4 Battery (1250A-ES)
Light 12V Lithium Power for Kayaks, Boats and Power Boxes
The Epoch Batteries 12V 50Ah (0.64kWh) LiFePO4 Battery puts 640Wh, Bluetooth monitoring and an IP54 case into a 14.3 lb package for trolling motors, marine electronics and compact 12V systems. If you have questions about motor current, charger settings or wiring a series bank, the Outbound Power team is happy to help.
Epoch 1250A-ES Specifications
|
| Electrical |
| Model |
1250A-ES |
| Series |
Essential Series |
| Battery type |
Bluetooth deep-cycle (not a cranking battery) |
| Chemistry |
LiFePO4 (lithium iron phosphate) |
| Cell configuration |
4S |
| Nominal voltage |
12.8V |
| Nominal capacity |
50Ah |
| Stored energy |
640Wh (0.64kWh) nominal |
| Runtime planning energy |
About 512Wh (80% of nominal) |
| Operating voltage range |
10.0–14.6V |
| Maximum charge voltage |
14.6V |
| Cycle life |
4,000+ cycles |
| Internal heating |
No |
| Charge and Discharge |
| Maximum continuous discharge |
50A (about 640W at 12.8V) |
| Peak discharge |
170A for up to 3 s |
| Peak use |
Start-up surges only |
| Maximum continuous charge |
50A, all charging sources combined |
| Recommended charge current |
25A (0.5C) for one battery |
| Recommended charge, banks |
50% of bank capacity |
| Inverter sizing |
DC input current within 50A; AC output is lower |
| Series connection |
Up to 4 (24V, 36V or 48V system classes) |
| Parallel connection |
Up to 4 (200Ah, 2.56kWh at 12V) |
| Maximum bank |
4S4P, 16 batteries: 51.2V, 200Ah, 10.24kWh |
| Bank batteries |
Matched 1250A-ES, same age, capacity and state of charge |
| Recommended Charge Settings |
| Charger type |
12V LiFePO4 charger, converter, inverter charger, solar controller or DC-to-DC charger |
| Compatible charger |
Epoch 12V 15A Lithium Battery Charger (sold separately) |
| Bulk / absorption voltage |
14.2–14.6V |
| Absorption time |
30 min per 200Ah of bank capacity |
| Float voltage |
Disabled (preferred) or 13.4–13.8V |
| Re-bulk voltage |
13.2V (if programmable) |
| Equalization |
Disabled |
| Temperature compensation |
0 mV/°C (off) |
| BMS high-voltage cutoff |
14.6V |
| SoC recalibration voltage |
14.6V |
| Alternator charging |
DC-to-DC charger programmed for LiFePO4 |
| Temperature |
| Charge |
0 to 55°C (32 to 131°F) |
| Below 0°C (32°F) |
BMS blocks charging (no internal heater) |
| Discharge |
−20 to 60°C (−4 to 140°F) |
| Storage |
0 to 35°C (32 to 95°F), up to 12 months |
| Long-term storage |
About 50% state of charge or higher, loads disconnected |
| Storage check |
Check and recharge at least every 3 months |
| BMS and Protection |
| Battery management |
Built-in smart BMS |
| Protection |
Overcharge, over-discharge, over-current, short circuit |
| Temperature protection |
High- and low-temperature disconnects |
| External protection |
Fuse or DC-rated breaker close to the positive terminal |
| Communication and Monitoring |
| Bluetooth |
Built in |
| App |
Epoch Pro (iOS and Android) |
| App readings |
State of charge, voltage, current, temperature, BMS status |
| Multi-battery view |
One phone can monitor a multi-battery system |
| Bluetooth PIN |
On the battery label or in the product documentation |
| Size and Weight |
| Dimensions (L x W x H) |
9 in x 6 in x 8.5 in (229 x 152 x 216 mm) |
| Height note |
Overall, terminals included |
| Weight |
14.3 lb (6.5 kg) |
| Terminals |
Bolt terminals with supplied hardware |
| Terminal torque |
As shown on the product labeling |
| Mounting orientation |
Upright |
| Enclosure |
IP54 (IEC 60529) |
| Water and dust |
Dust protected, splash resistant |
| Not rated for |
Submersion, pressure washing or standing water |
| Certifications |
| Compliance marks |
CE, RoHS |
| Transport |
UN 38.3 |
| Warranty |
| Warranty |
11-year limited warranty |
| Years 1–3 |
Free replacement |
| Years 4–11 |
40% off MSRP on a replacement battery |
| Registration |
Within 90 days of purchase, or keep your proof of purchase |
