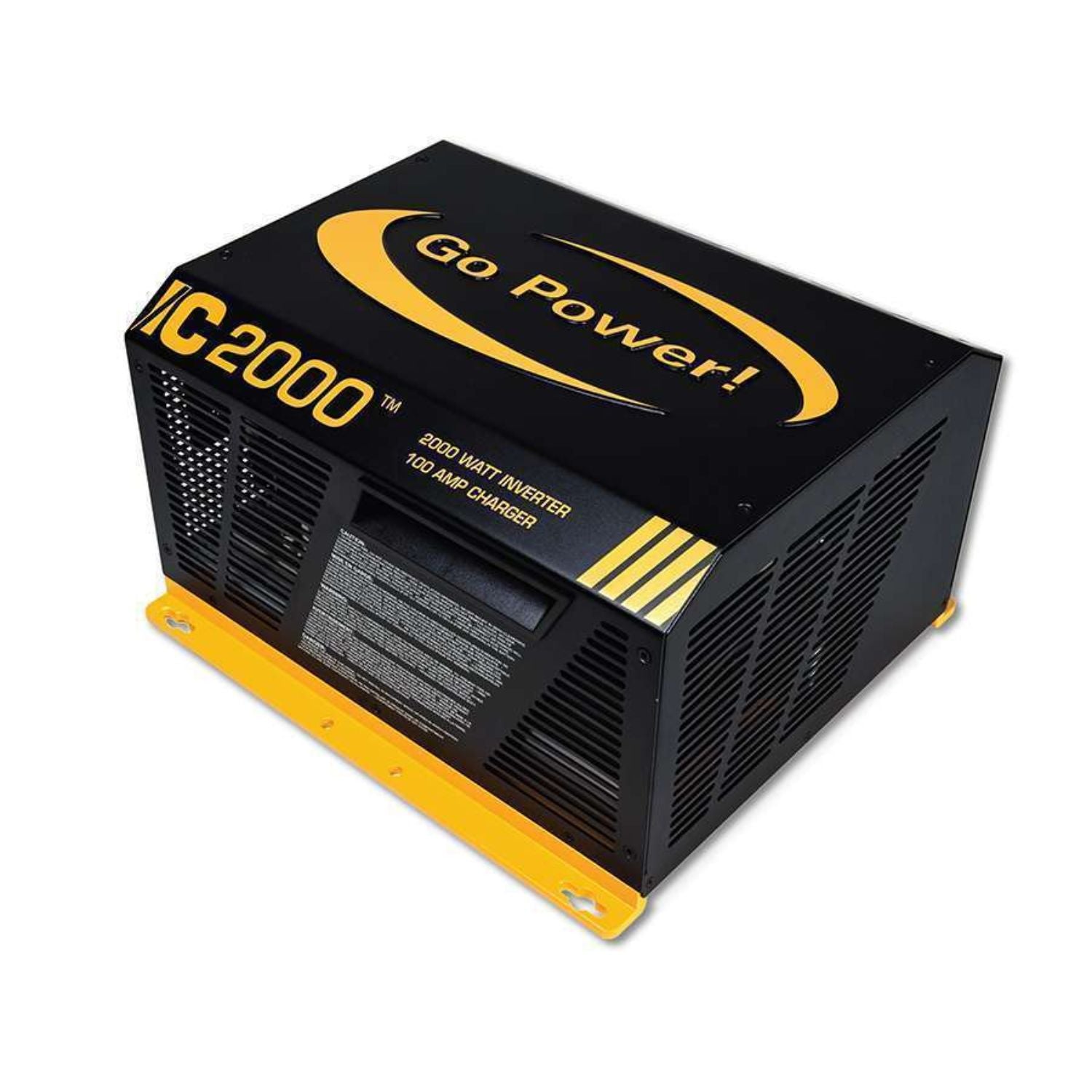

The Go Power! IC Series 2000 Watt Inverter Charger Combines a Pure Sine Inverter, a 100 Amp Charger and Two 50 Amp Pass-Through Legs in One Unit
The Go Power! GP-IC-2000-12 is a 12 volt inverter charger that does three jobs: it inverts battery power into 120 volt pure sine wave AC, charges your batteries with a multi-stage charger of up to 100 amps, and transfers your loads automatically between shore or generator power and the inverter. Go Power designed the IC Series for mobile and home power applications, so it suits RVs, boats, work trucks and cabin systems.
Its pass-through relay is rated at 50 amps on each of two legs, so it handles 50 amp, 120/240 volt split-phase service as well as 30 amp service. A battery temperature sensor comes in the box, and the optional GP-ICR-50 remote unlocks the full set of charger and inverter settings.
Current Model. Go Power! now offers the Go Power! 2000 Watt Single-Leg Advanced Inverter Charger as the current version of this inverter charger.
Go Power! IC Series 2000 Watt Inverter Charger Features
2000 Watts of Pure Sine Power With a 4000 Watt Surge
The inverter delivers 2000 watts continuously from -20°C to 40°C at 120 volts and 60 Hz, with total harmonic distortion under 5%. For motor starts it's rated at 4000 watts for 200 milliseconds, 3400 watts for 5 seconds and 2900 watts for 5 minutes. Maximum efficiency is above 90%.
Two 50 Amp Legs for Up to 12,000 Watts of Pass-Through
On 50 amp split-phase service wired with 6 AWG, the manual rates pass-through at up to 12,000 watts (50 amps at 120 volts on each leg). On 30 amp service wired with 10 AWG, pass-through reaches 3600 watts. Two 50 amp input breakers protect the internal charger wiring and transfer relay and reset with a push. The unit also switches the neutral-to-ground bond automatically when it moves between inverting and pass-through.
100 Amp Multi-Stage Charger With Temperature Compensation
The power factor corrected charger runs bulk, absorb and float stages, plus equalize from the remote. Profiles cover gel, flooded, AGM 1 and AGM 2 batteries, and a custom profile accepts absorb and float settings from 12 to 16 volts. The included battery temperature sensor adjusts charge voltages by 25 mV per °C, and battery temperature protection shuts down charging at 122°F or -4°F.
Power Sharing and Generator Support
Set the shore power maximum from 5 to 50 amps (30 amps by default) to match your pedestal or generator breaker. As your AC loads approach that limit, the unit trims charging current first so your appliances keep running. When the loads need more than the source can supply, the inverter adds battery power to make up the difference. Power sharing works on the OUT 1 leg.
Search Mode and Built-In Protection
Search mode saves battery power by waiting for an AC load of at least 5 watts before the inverter starts, and it can be adjusted to 50 watts or switched off. The unit shuts down to protect itself and your batteries on low battery (10.5 volts by default), high battery, over-temperature, overload and short circuit, and status LEDs and beep codes tell you why.
Real-World Applications
50 amp RVs. Pass both 50 amp legs through to the panel at the pedestal and switch to battery power automatically when you unplug.
30 amp RVs. Wire it single in, single out on 10 AWG with a 30 amp breaker and remove or unplug the old converter, since the IC Series takes over battery charging.
Boats. The IC Series is marine UL listed. Marine installs need a drip shield above the unit, and the manual covers bonding the AC and DC grounds to boat ground.
Cabins and home backup. Feed a sub panel from the inverter and recharge the bank from utility or generator power.
Practical Comparison
IC Series 2000 Versus a 30 Amp Single-Leg Inverter Charger
Go Power points out that many inverter chargers carry a 30 amp transfer switch. The IC Series 2000 passes two 50 amp legs, so a 50 amp coach keeps its full shore capacity, while it still works on 30 amp service.
IC Series 2000 Versus Separate Components
Combining the inverter, charger and transfer switch saves space and installation time, with fewer devices and cables than separate units. All previous converter or charger wiring must be disconnected from the panel, because the IC Series becomes the battery charger.
Buyer Guidance
Battery Bank and DC Wiring
The IC Series works only with a 12 volt battery bank. Go Power recommends a 200Ah bank for light to moderate loads under 1000 watts and 400Ah for heavier loads. Use 2/0 AWG DC cables with a combined positive and negative length under 10 feet, a 300 amp Class T fuse or breaker ideally within 18 inches of the battery, and a 6 AWG DC ground. The manual names Go Power's DC kit #4 (GP-DC-KIT4) for this model. The unit isn't reverse polarity protected, so mark your cables. The manual's safety instructions say to charge only lead-acid type batteries.
AC Wiring and Mounting
The six-pole AC terminal block accepts #14 to #6 AWG copper wire. The unit has no output breakers, so install 20 amp branch-rated breakers in the panel it feeds, and protect the output branch circuits with GFCIs of the types the manual lists. Mount it on a noncombustible surface, horizontally (base down or up) or on a wall with the DC terminals to the right, with 6 inches of clearance around the vents. Keep it near the batteries but never in the same compartment or directly above them.
This May Be A Good Fit If
- Your RV has 50 amp, two-leg shore power
- You charge a 12 volt lead-acid battery bank
- Your battery-powered loads stay within 2000 watts
- You want inverter, charger and transfer switch in one unit
Common Questions
Will It Work on 30 Amp Shore Power?
Yes. Wire it single in, single out with 10 AWG wire and a 30 amp breaker. Pass-through is then up to 3600 watts at 120 volts.
Do I Need the GP-ICR-50 Remote?
The unit runs on factory defaults without it: 30 amp shore input, 10.5 volt low battery cut-out, AGM 1 battery type, 80% charge rate and a 2-hour absorb time. Those settings, along with equalize charging, can only be changed with the GP-ICR-50 remote (sold separately), which also shows live operating data.
Does the On/Off Switch Turn Everything Off?
No. The switch controls the inverter only. Shore power still passes through to the AC output, and the batteries stay connected, so disconnect all power sources before any service work.
What Size Battery Bank Do I Need?
Go Power recommends 200Ah for loads under 1000 watts and 400Ah for heavier loads. At 2000 watts the manual estimates about 186 amps of DC draw.
What's Included
- 1 x IC Series 2000 Watt Inverter Charger

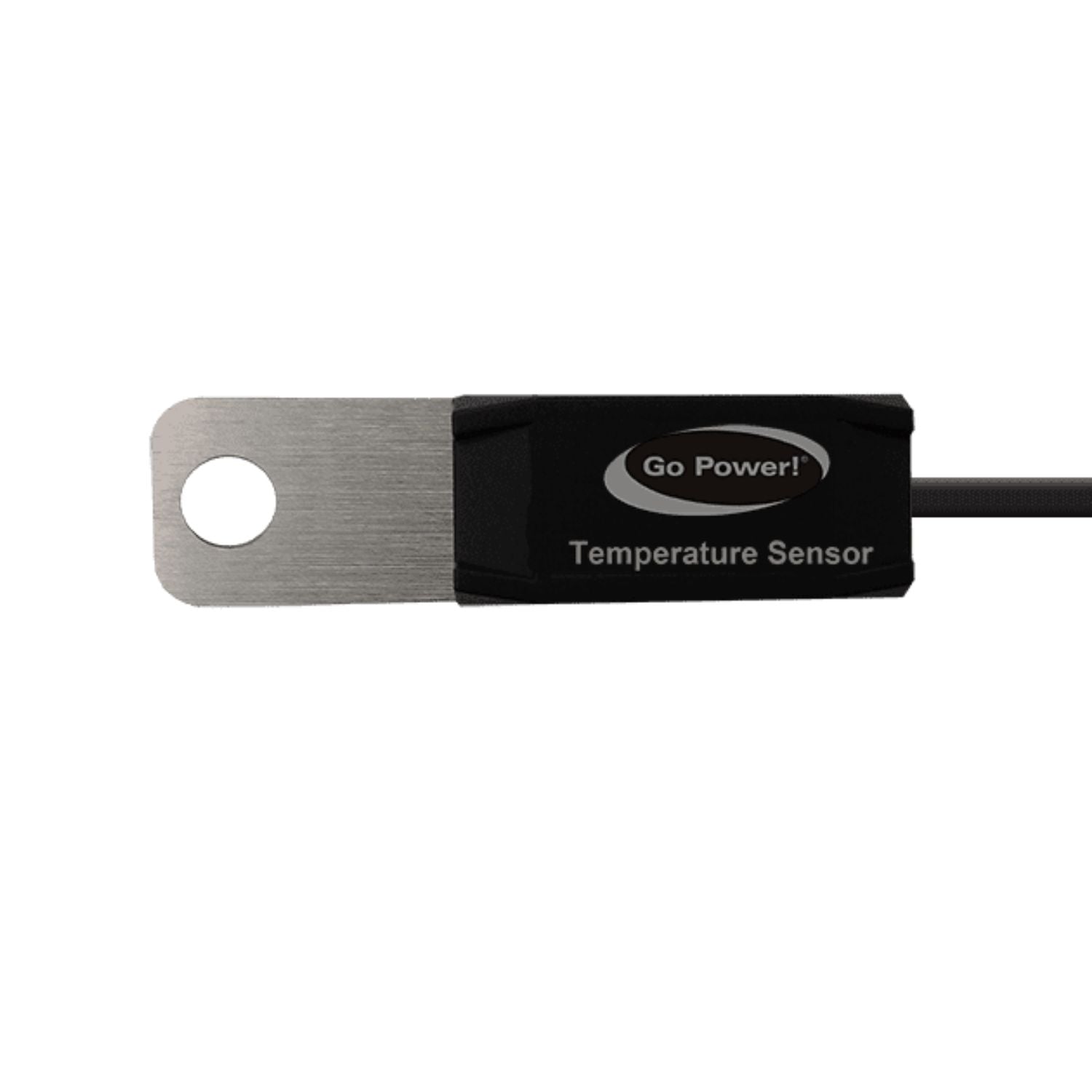

- 1 x Battery Temperature Sensor With 25 Foot Cable
- 2 x DC Terminal Covers (Black and Red)
- 8 x Phillips Screws
- 2 x M8 Nut, Split Washer and Flat Washer Sets (Installed on DC Terminals)
- 2 x 3/8 Inch Ring Lugs
- 1 x Spanish Warning Label
Full 50 Amp Pass-Through With Battery Backup
The Go Power! IC Series 2000 Watt Inverter Charger gives a 12 volt system 2000 watts of pure sine power, a 100 amp charger and two 50 amp pass-through legs in a single unit. If you'd like help with wiring, battery sizing or the remote, the Outbound Power team is happy to help.

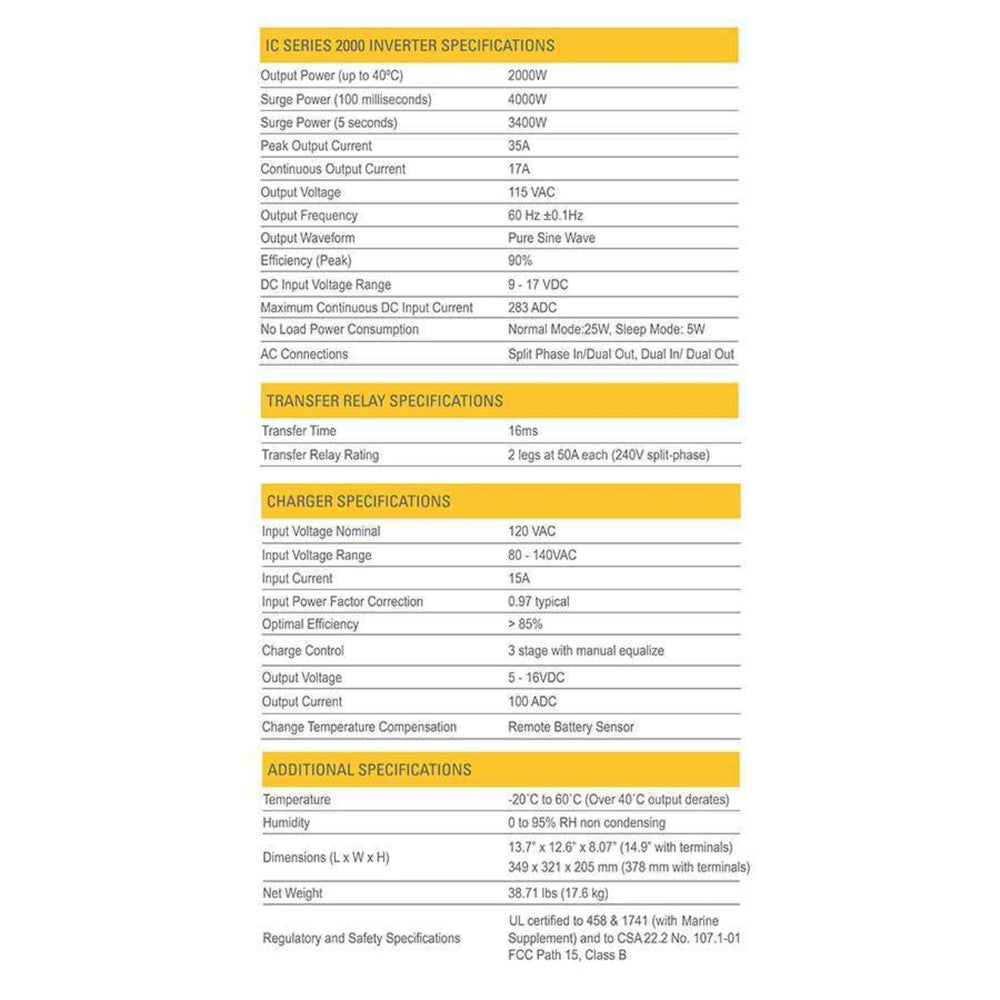

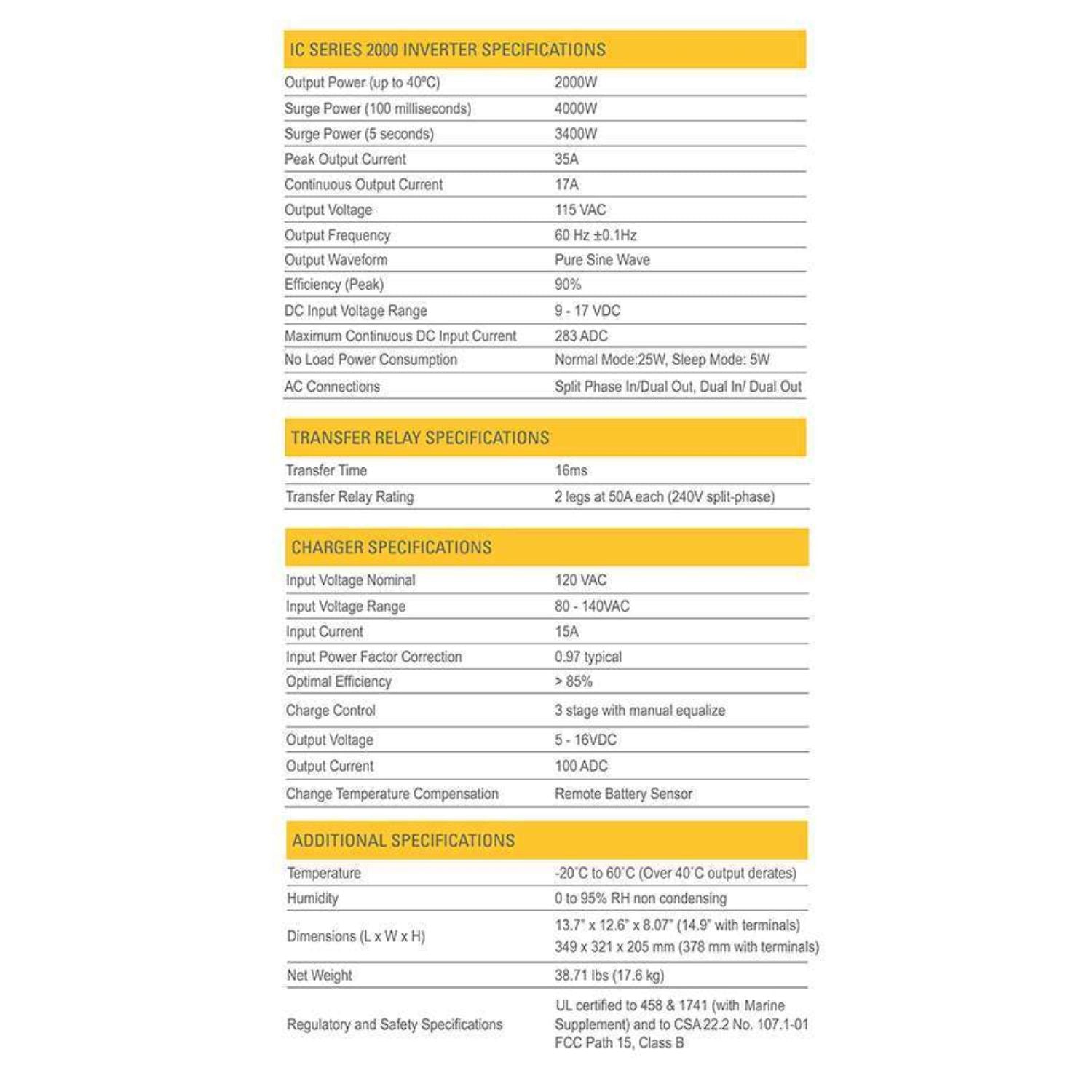

Go Power! IC Series 2000 Watt Inverter Charger Specifications
|
| Model |
GP-IC-2000-12 |
| Output |
| Continuous Output Power |
2000 W (full load from -20°C to 40°C) |
| Surge Power (200 ms) |
4000 W |
| Surge Power (5 s) |
3400 W |
| Surge Power (5 min) |
2900 W |
| Output Voltage |
120 VAC +/-5% |
| Output Frequency |
60 Hz |
| Output Waveform |
Pure sine wave |
| Total Harmonic Distortion |
< 5% at 12.5 VDC |
| Max Efficiency |
> 90% |
| No-Load Power Consumption |
25 W |
| Standby Power Consumption |
< 5 W |
| Search Mode |
5 W default, adjustable 5 to 50 W or off (with remote) |
| DC Input |
| Nominal Voltage |
12 VDC |
| Input Voltage Range |
9 to 17 VDC |
| Max DC Input Current |
267 A |
| Absolute Max DC Input |
25 VDC |
| Low Battery Cut-Out |
10.5 VDC default (9.0 to 12.2 VDC with remote) |
| Low Battery Cut-In |
12.5 VDC |
| High Battery Cut-Out / Cut-In |
17 / 14.5 VDC |
| Recommended DC Cable |
2/0 AWG, combined positive and negative length under 10 ft (3 m) |
| Recommended DC Fuse or Breaker |
300 A Class T |
| DC Ground Cable |
6 AWG |
| Charger |
| Charging Current |
0 to 100 A |
| Default Charge Rate |
80% |
| Default Absorb Time |
2 hours (0.5 to 24 hours with remote) |
| Charging Stages |
Bulk, Absorb, Final (Float), Equalize |
| Battery Types |
Gel, Flooded, AGM 1, AGM 2, Custom |
| Gel Absorb / Float |
14.1 / 13.6 VDC |
| Flooded Absorb / Float |
14.6 / 13.4 VDC |
| AGM 1 Absorb / Float |
14.3 / 13.1 VDC |
| AGM 2 Absorb / Float |
14.5 / 13.5 VDC |
| Custom Range |
12 to 16 VDC |
| Equalize Voltage (Flooded, AGM 1) |
15.5 VDC |
| Battery Temperature Compensation |
25 mV per °C |
| Battery Temperature Sensor Cable |
25 ft |
| Battery Over-Temperature Shutdown / Recovery |
122°F (50°C) / 95°F (35°C) |
| Battery Under-Temperature Shutdown / Recovery |
-4°F (-20°C) / 1.4°F (-17°C) |
| AC Input Voltage Range |
80 to 140 VAC |
| AC Input Frequency Range |
50 to 70 Hz |
| AC Nominal Current |
15 A |
| Charger Peak Efficiency |
85% |
| Power Factor Correction |
> 0.97 (50% load) |
| Transfer Switch |
| Pass-Through Relay |
50 A AC per leg (two legs) |
| Max Pass-Through, 50 A Split-Phase Service |
12,000 W (50 A at 120 VAC per leg) |
| Max Pass-Through, 30 A Service |
3600 W (30 A at 120 VAC) |
| Shore Power Max Setting |
5 to 50 A (30 A default, with remote) |
| AC Input Breakers |
Two 50 A, push to reset (not branch-rated) |
| Power Sharing |
Yes (OUT 1 leg) |
| Neutral-to-Ground Switching |
Automatic (can be disabled) |
| Outlets and Connections |

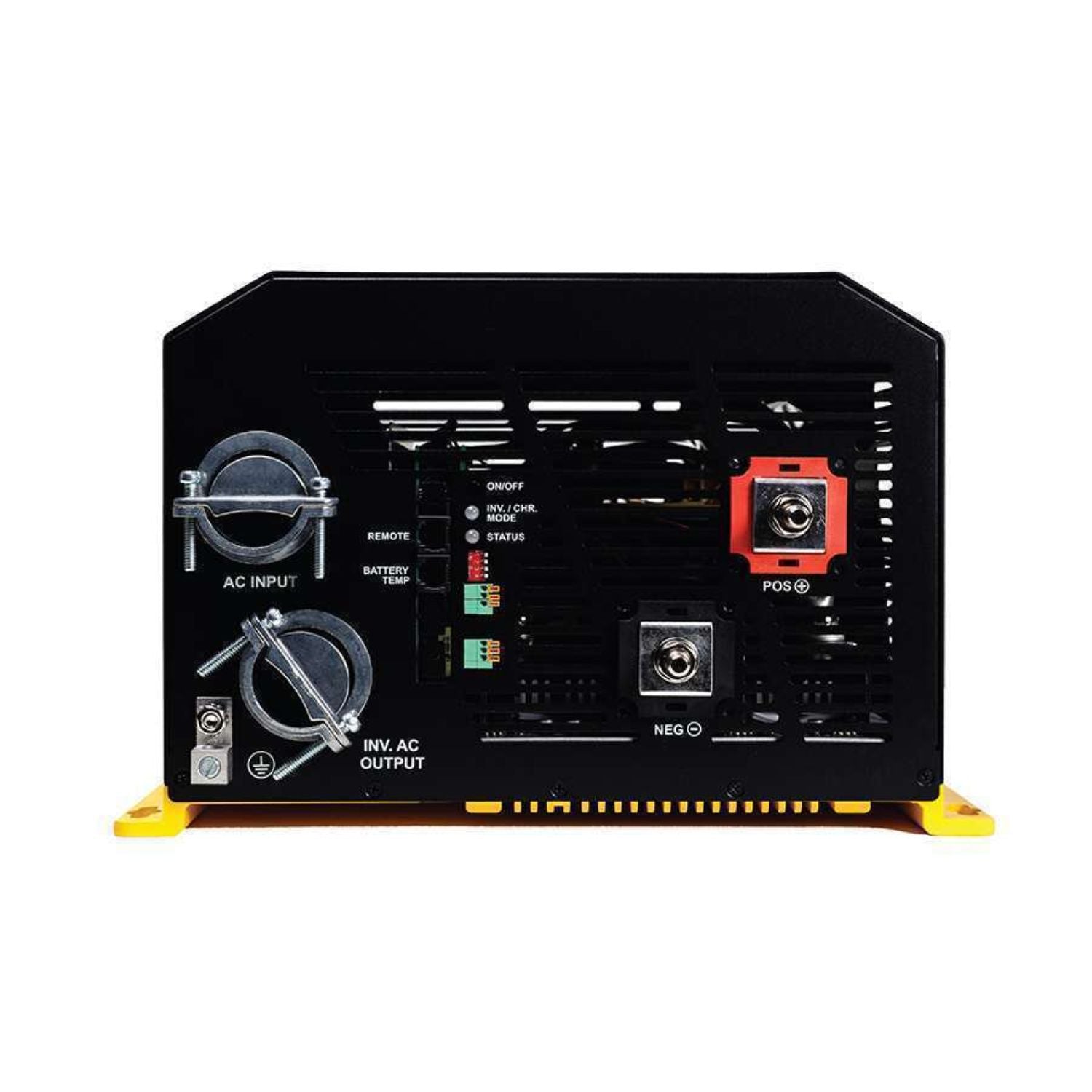

| AC Connections |
Six-pole hardwire terminal block plus two AC ground terminals |
| AC Terminal Wire Size |
#14 to #6 AWG copper |
| AC Cable Entry |
Two 1-3/8 in knockouts for up to 1-1/4 in 50 A RV cable |
| DC Ground Terminal |
#14 to #2 AWG |
| Ports |
Remote control port, battery temperature sensor port |
| Recommended AC Wiring, 50 A Service |
6 AWG |
| Recommended AC Wiring, 30 A Service |
10 AWG on a 30 A breaker |
| Output Breakers |
Not included (20 A branch-rated breakers required) |
| Protection |
| Protection |
Low battery, high battery, over-temperature, overload, short circuit, internal fault |
| Reverse Polarity Protection |
No |
| Indicators |
Status LED, inverter/charger mode LED, beep codes |
| Physical |
| Dimensions (W x H x D) |

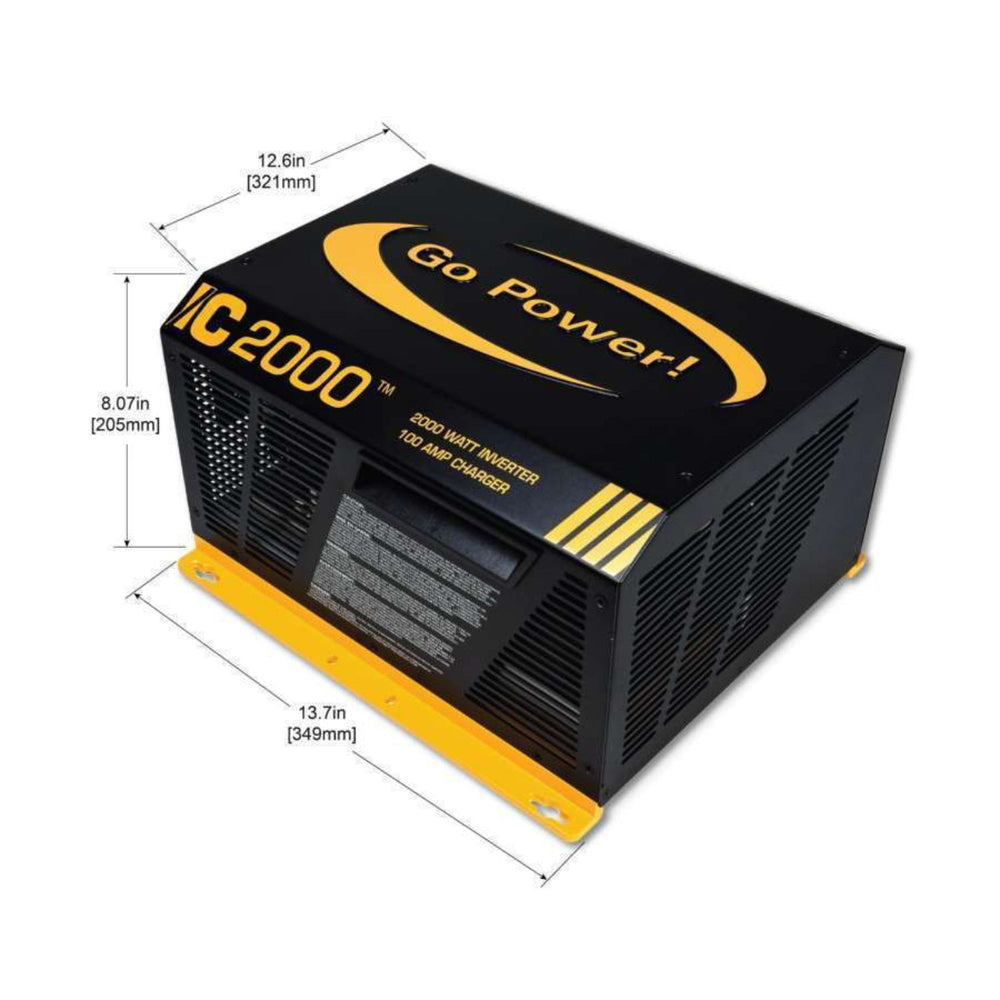

12.6 x 8.07 x 13.7 in (321 x 205 x 349 mm) |
| Net Weight |
38.7 lb (17.6 kg) |
| Mounting |
Horizontal (base down or up) or wall with DC terminals right |
| Clearance Around Vents |
6 in minimum |
| Power Derating |
60 W per °C from 41°C to 60°C |
| Storage Temperature |
-30°C to 70°C |
| Operating Humidity |
0% to 95% non-condensing |
| Certifications |
| Safety Standards |
UL 458 and Supplement SA, UL 1741, CSA C22.2 No. 107.1-01 |
| EMC Standard |
FCC Class B |
| Marine |
Marine UL listed (drip shield required for marine installs) |
