The Go Power! Overlander 200 Watt Solar Expansion Kit Adds Another 200W Panel to Your Go Power! RV Solar System Through Simple Parallel Connectors
The Go Power! Overlander 200 Watt Solar Expansion Kit (OVERLANDER-E) adds a 200-watt solar panel to an existing Go Power! RV solar system, such as the Overlander kit. It includes the panel, four mounting feet with their hardware, and two SC expansion connectors that join it to your existing panel in parallel. There's no solar controller in the kit, because it works with the one you already have.
Go Power's RV solar kit manual shows the Overlander and Overlander-E together, with both panels feeding the kit's PWM 30 amp controller through the same 25 foot cables to the battery bank. The manual covers installation on RVs, campers, trailers, fifth wheels and motor homes.
Go Power! Overlander 200 Watt Solar Expansion Kit Features
200 More Watts on Your Roof

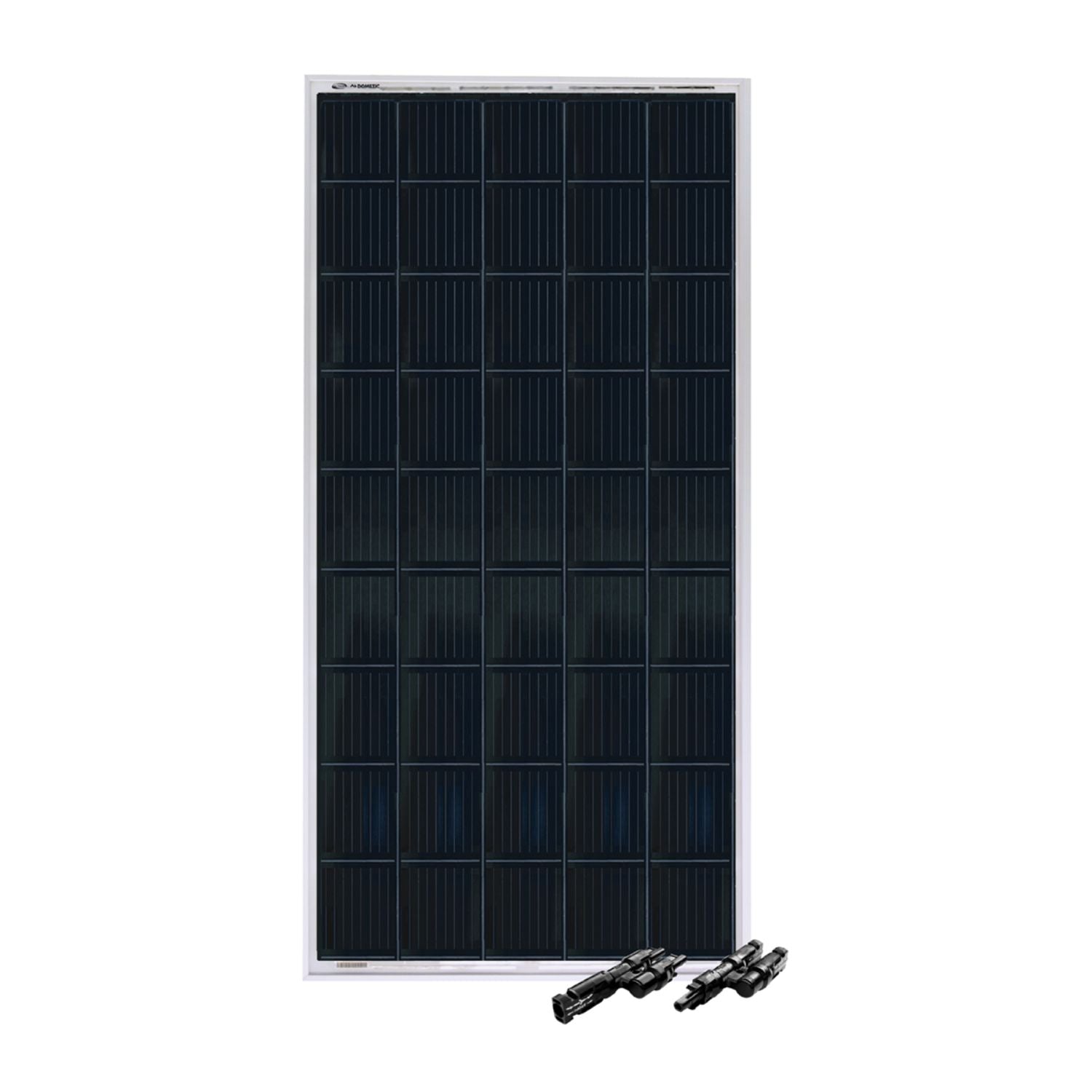

The kit's 200-watt panel has a silver frame, as the photos show, and 3.3 feet of cable coming from its junction box. The junction box manufacturer rates the box IP67. Go Power recommends orienting the junction box at the panel's uppermost position and never mounting it in a depression, so water can't collect around it.
Expansion Connectors for Parallel Wiring

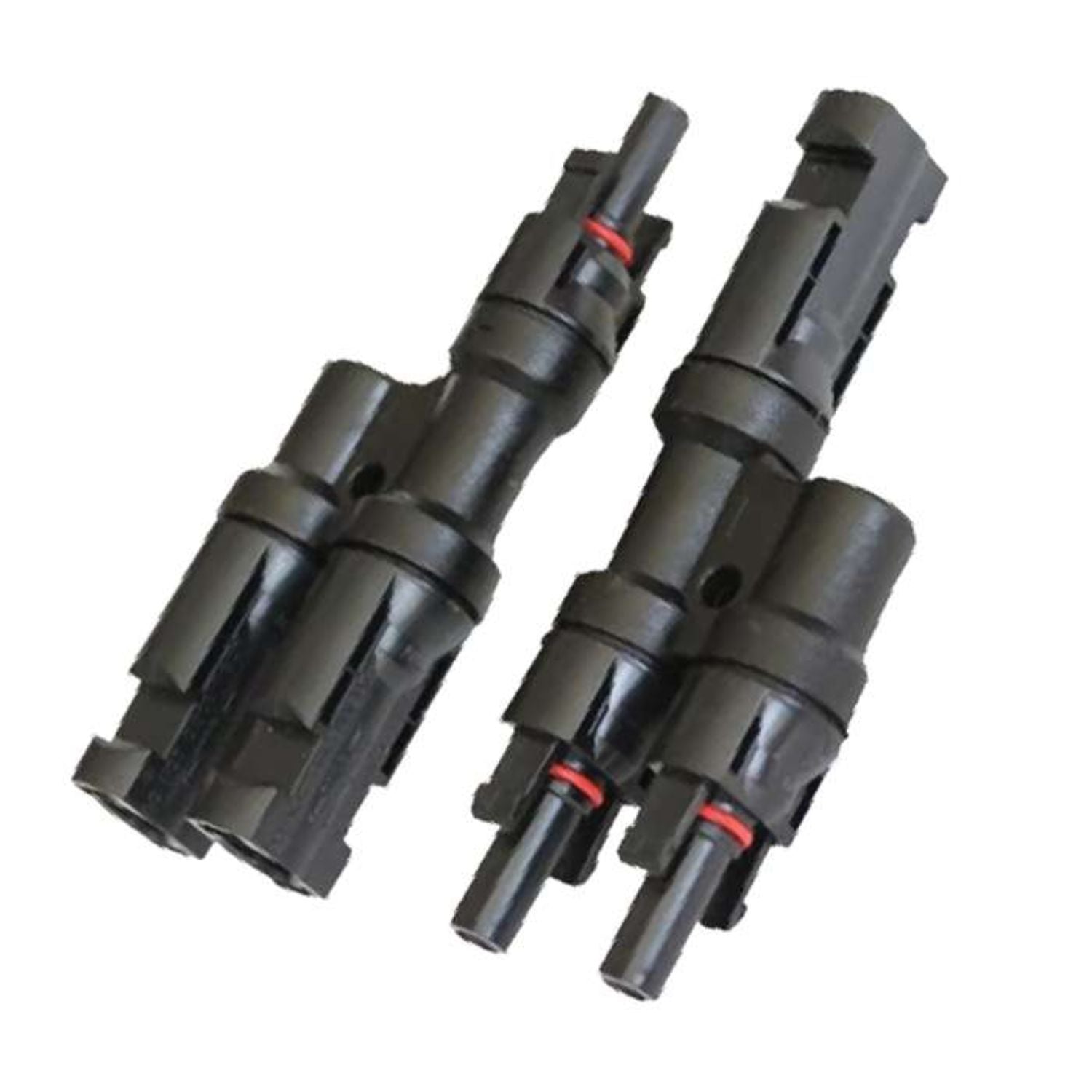

Two SC expansion connectors come in the kit, one with 1 male and 2 female ends and one with 2 male and 1 female end. They join the new panel's positive and negative leads to your existing panel's leads in parallel. Go Power's manual warns that multiple panels must be connected in parallel, because other wiring produces large currents the system's DC fuse isn't designed to handle.
Mounting Feet and Roof Hardware Included
Four mounting feet bolt to the four outer holes in the panel frame with 1/4 inch bolts, lock nuts and washers, tightened with a 7/16 inch wrench. Eight #10-16 x 1 inch screws fasten the feet to the roof, with sealant under and around each foot for a watertight installation.
Works With the Controller You Already Have
Because the panel plugs into your existing wiring, you don't buy another controller or another set of 25 foot cables. Just confirm your controller has room for the added current before you install it.
Real-World Applications
Growing an Overlander kit. Add a second panel to an Overlander kit, as shown in Go Power's Overlander plus Overlander-E wiring diagram.
Longer stays without hookups. More panel area means more charging for your battery bank when your loads have grown, as long as you keep managing them.
Expanding in stages. Start with a complete kit, then add expansion panels as your power needs change.
Practical Comparison
Overlander-E Versus the Complete Overlander Kit
Per the kit manual's parts checklist, the Overlander kit includes the panel, a PWM 30 amp solar charge controller, 25 foot red and black extension cables, a fuse holder with a 30A fuse, and the splices, terminals and clamps to wire it. The Overlander-E includes the panel, its mounting hardware and the two expansion connectors. Choose the Overlander-E when the controller and wiring are already in place.
Expansion Kit Versus a Controller Upgrade
An expansion kit works on the controller you already own, as long as the combined panel current stays within its rating. If adding panels would push your system past that rating, Go Power's manual says you'll need a suitable controller alternative.
Buyer Guidance
Check Your Controller's Ratings
Go Power's kit manual has you add up the short circuit current of all panels in parallel, multiply by 1.25, and keep the result within the controller's amperage rating. On its PWM 30 amp kits, the combined maximum power current of the panels must also stay at or below 30A. The Outbound Power team can help you check the numbers for your system.
Plan the Placement
Place the new panel as close to your existing panel as possible, since longer runs may need solar extension cables. Mount it at least 3 feet back from the front of the RV, on a surface at least 1/2 inch thick, where air conditioners and other fixed obstacles won't shade it. Leave room to reach the panels for inspection and maintenance, and avoid internal wiring when you drill. Go Power recommends installation by an RV technician or professional electrician.
This May Be A Good Fit If
You already have a Go Power! Overlander kit
Your controller has room for more current
Your roof has space for another 200W panel
You'd rather expand than replace your system
Common Questions
Does It Include a Charge Controller?
No. The Overlander-E connects to the controller in your existing Go Power! kit.
How Does It Connect to My Existing Panel?
The two included SC expansion connectors join it to your existing panel in parallel, and the combined output runs through your existing cables to the controller.
What Should I Do Before Making Connections?
Cover both panels completely with an opaque material, such as their shipping boxes, to stop them producing electricity. Go Power warns that panel terminals can cause burns, sparks and shock whether the panel is connected or not.
How Do I Care for the Panels?
Clean them monthly with water and a soft sponge or cloth, and skip the pressure washer. Check your connections one week after installation, and have the system inspected once a year.
What's Included
1 x 200W Solar Panel
4 x Solar Panel Mounting Feet
4 x 1/4 In Bolts
4 x 1/4 In Lock Nuts
8 x 1/4 In Washers
8 x #10-16 x 1 In Screws
1 x SC Expansion Connector, 1 Male and 2 Female
1 x SC Expansion Connector, 2 Male and 1 Female
More Solar Without Starting Over
The Go Power! Overlander 200 Watt Solar Expansion Kit adds a 200W panel, mounting hardware and parallel expansion connectors to the Go Power! system already on your RV. If you'd like help checking your controller's capacity or planning the panel layout, the Outbound Power team is happy to help.

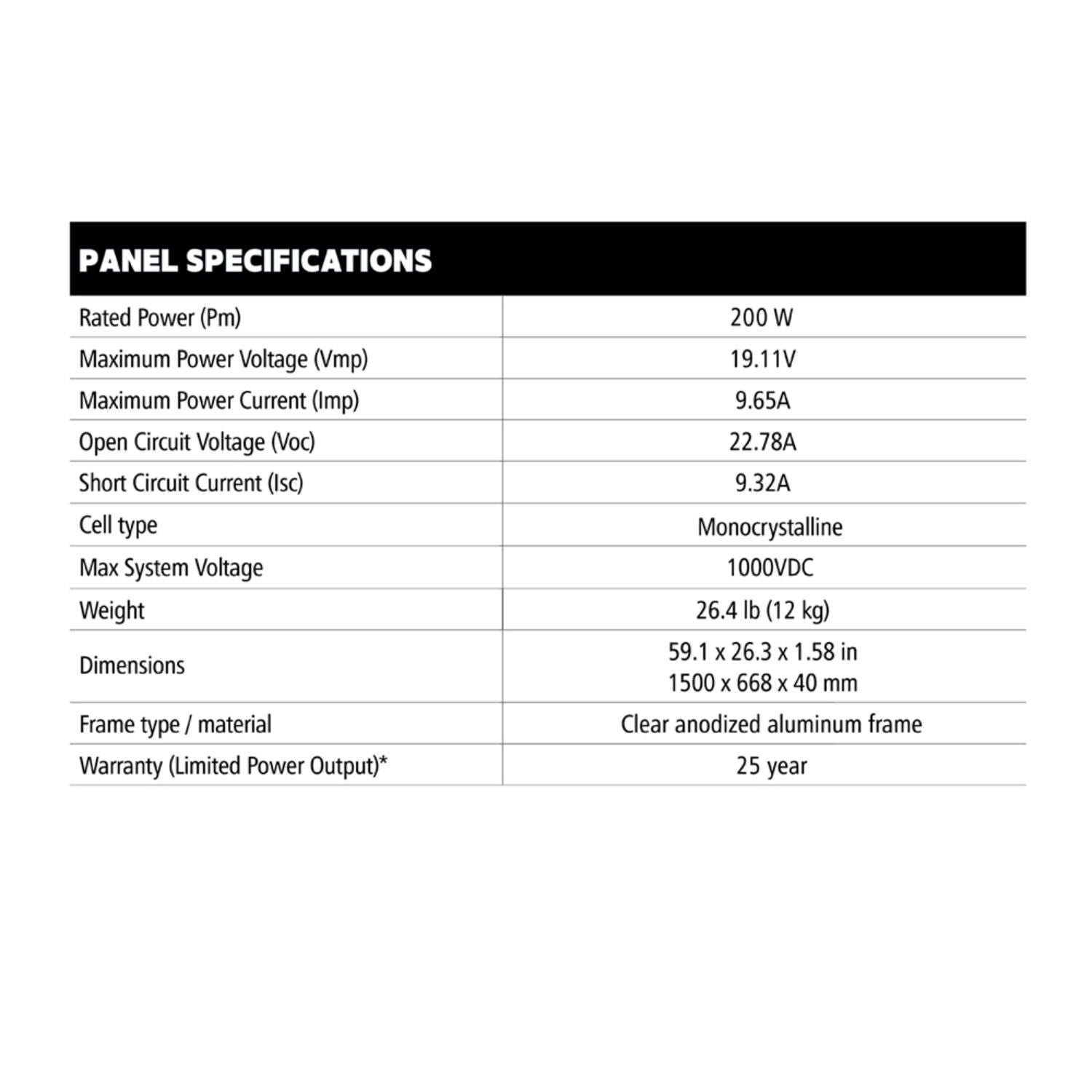

Go Power! Overlander 200 Watt Solar Expansion Kit Specifications
Model
OVERLANDER-E
Kit Contents
Solar Panel
1 x 200 W
Expansion Connectors
1 x 1 male/2 female, 1 x 2 male/1 female, SC
Mounting Hardware
4 mounting feet, 4 x 1/4 in bolts, 4 x 1/4 in lock nuts, 8 x 1/4 in washers, 8 x #10-16 x 1 in screws
Charge Controller
Not included
Roof-to-Controller Cables
Not included
Solar Panel
Rated Power
200 W
Frame Color
Silver
Panel Lead Length
3.3 ft from junction box
Junction Box Rating
IP67 (junction box manufacturer)
Wiring
Parallel with existing panels
Installation
Pairs With
Overlander kit (PWM 30 amp controller)
Combined Panel Imp
30 A maximum on PWM 30 amp kits
Mounting Surface
At least 1/2 in thick
Panel Placement
At least 3 ft from the front of the RV
Foot Nut Wrench
7/16 in
Go Power! Overlander 200 Watt Solar Expansion Kit Manual
