The Go Power! PowerTrak 1200 Watt Solar Charging System Gives Large RV Battery Banks 1200W of Solar, Three MPPT Controllers and a 3000W Inverter Charger You Can Monitor on One Touchscreen
The Go Power! PowerTrak 1200 is the six-panel version of Go Power's PowerTrak RV power system. It includes six 200W solar panels, three 30A MPPT solar controllers, an IC 3000 pure sine inverter charger with a built-in 125A battery charger and 50A transfer switch, a PowerTrak display remote with a 3.2-inch touchscreen, and the RV-C harnesses that connect them.
Go Power designed the PowerTrak systems to charge your batteries from both solar and shore power, with smart components and mobile app support that help you understand your system. Go Power suggests a lithium bank of 900Ah or more, which you supply, and the system can grow to 3000W of solar with stackable MPPT controllers.
Current Model. Go Power! now offers the Go Power! PowerTrak 1200 Watt Solar and 3000 Watt Inverter Charger System as the current version of this system.
Go Power! PowerTrak 1200 Watt Solar Charging System Features

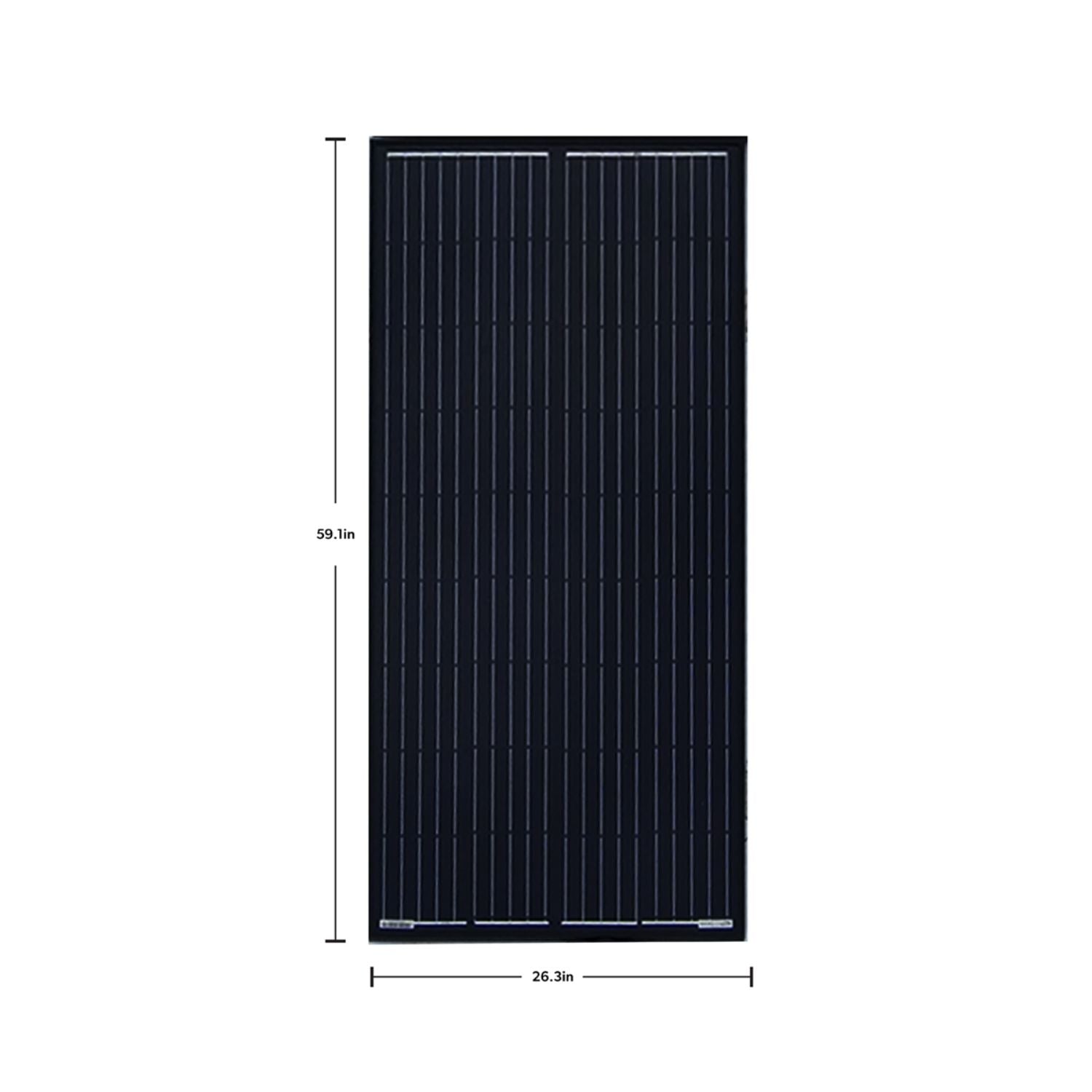

Six 200W Panels in Three Strings
The panels wire as three strings of two in series. Each string runs through its own cable entry plate to its own 30A MPPT solar controller, and each controller connects to the battery bank through a 30A fuse. Each panel has 3.3 ft of cable from its junction box, and the junction box maker rates the box IP67.

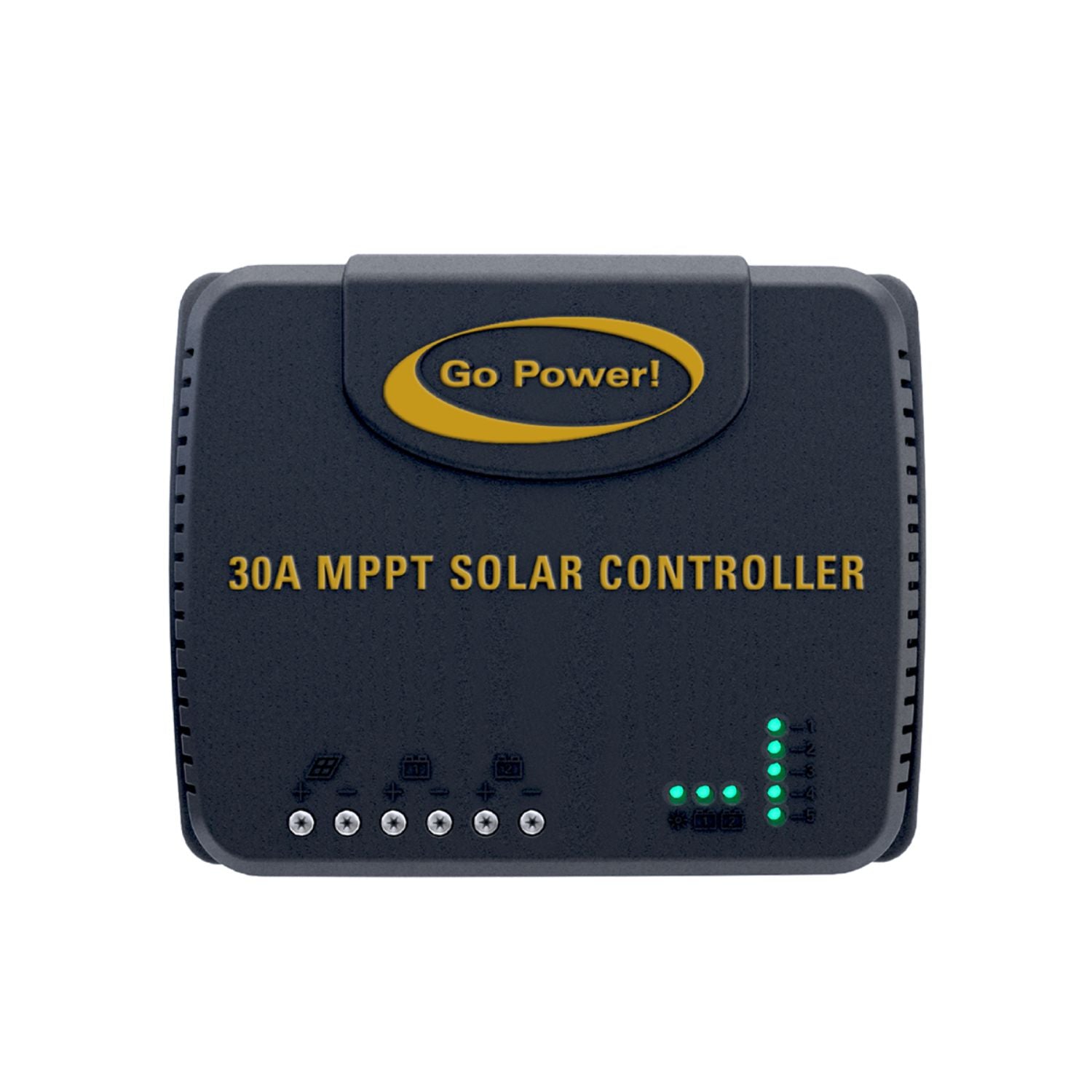

Three Stackable MPPT Controllers
Each 30A MPPT controller handles one string and connects to the rest of the system over RV-C. The PowerTrak design uses stackable controllers, so you can add more controllers and panels later, up to 3000W of solar.

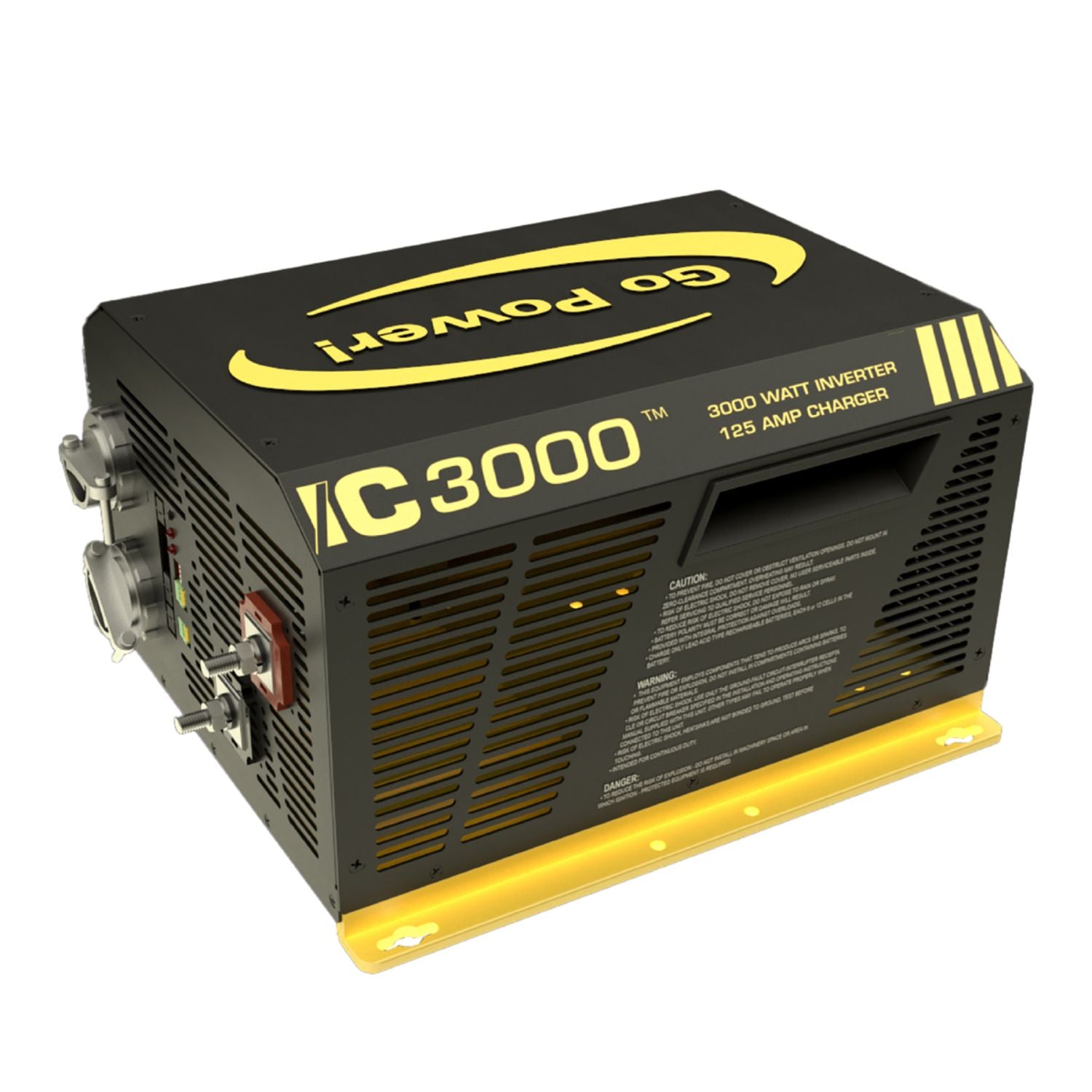

A 3000W Inverter Charger With a 125A Charger
The IC 3000 inverter charger turns battery power into pure sine wave AC for your RV. On shore power or a generator, its built-in charger delivers up to 125A to your batteries, and it includes a 50A transfer switch.
One Touchscreen for the Whole System
The PowerTrak display remote has a 3.2-inch touchscreen and connects over a 25 ft RV-C extension harness. At start-up it lists the batteries or shunt, all three solar controllers and the inverter charger it finds, and you set each one up from the screen. Its default orientation is inverted portrait, and it can also run in portrait, landscape or inverted landscape.
RV-C Communication and App Support
An RV-C adapter mounts next to the inverter charger. Four branch connection harnesses, a terminating resistor harness and an ADV LFP RV-C system harness link the controllers, inverter charger, display and Go Power! Advanced Lithium batteries on one network, and Go Power says the system features mobile app support.
Install Hardware in the Box
The kit includes 24 mounting feet with bolts, lock nuts, washers and screws, three cable entry plates with 25 ft cables, three fuse holders with 30A fuses, a GP-DC-Kit for the inverter charger, solar extension wires and the wiring parts for the controller connections.
Real-World Applications
Full-time RVing on a large bank. Pair the system with 900Ah or more of Go Power! Advanced Lithium batteries, the size Go Power suggests for the PowerTrak 1200, and let six panels recharge the bank during the day.
Campgrounds and generator time. Plug in and the 125A charger refills your batteries while the 50A transfer switch handles the switch-over.
Checking power from the dash. Go Power suggests mounting the display with your other instruments and controls, so battery, solar and inverter status sit within reach.
Growing past 1200W. Add stackable MPPT controllers and panels later, up to 3000W of solar.
Practical Comparison
PowerTrak 1200 Versus PowerTrak 400 and 800
All three systems share the same 3000W inverter charger with a 125A charger and 50A transfer switch and the same PowerTrak display. The PowerTrak 400 has two panels and one 30A MPPT controller, the PowerTrak 800 has four panels and two controllers, and the PowerTrak 1200 has six panels and three controllers. Go Power suggests 200Ah to 300Ah of battery for the 400, 400Ah to 600Ah for the 800 and 900Ah or more for the 1200.
A Matched System Versus Separate Components
Buying panels, controllers, an inverter charger and a monitor separately means matching each part and its wiring yourself. The PowerTrak 1200 ships them together with the RV-C harnesses, fuses and install kit Go Power specifies for the system.
Buyer Guidance
Plan Your Battery Bank
Batteries are sold separately. Go Power recommends pairing the PowerTrak systems with Go Power! Advanced Lithium batteries and suggests 900Ah or more for this system, shown as 300Ah batteries in its configuration table. If you use another brand, Go Power recommends adding the Go Power! Shunt, and it recommends a main DC disconnect switch on all systems.
Plan the Install
Go Power recommends installation by an RV technician or professional electrician. Six panels need roof space at least 3 ft back from the front of the RV, on a surface at least 1/2 inch thick where air conditioners and other fixed obstacles won't shade them. Keep the run from panels to battery compartment to 25 to 30 ft or less. Mount each controller vertically indoors with at least 6 inches of air above and below. Install the inverter charger indoors where the air stays between 0°C and 50°C, with at least 6 inches of clearance around its vents, close to the batteries but not in the same compartment.
This May Be A Good Fit If
- You live in your RV or stay off-grid for long stretches
- You plan a lithium bank of 900Ah or more
- Your roof has room for six panels
- You want to see your whole system on one touchscreen
Common Questions
Are Batteries Included?
No. Batteries are sold separately. Go Power suggests 900Ah or more for the PowerTrak 1200.
Can I Use Batteries From Another Brand?
Yes. Go Power recommends its Go Power! Shunt with other batteries to get the most out of the system. At start-up the display then lists the shunt, solar controllers and inverter charger.
How Are the Six Panels Wired?
As three strings of two panels in series. Each string has its own cable entry plate, 30A MPPT controller and 30A fuse, and each string's maximum power current must stay at or below 30A.
How Do I Store the System for Winter?
In cold climates, Go Power suggests covering the panels with an opaque material such as plywood or a dark tarp, labeling and unhooking the panel wires, and capping the leads with wire nuts. It recommends taking lithium batteries inside and checking them monthly.

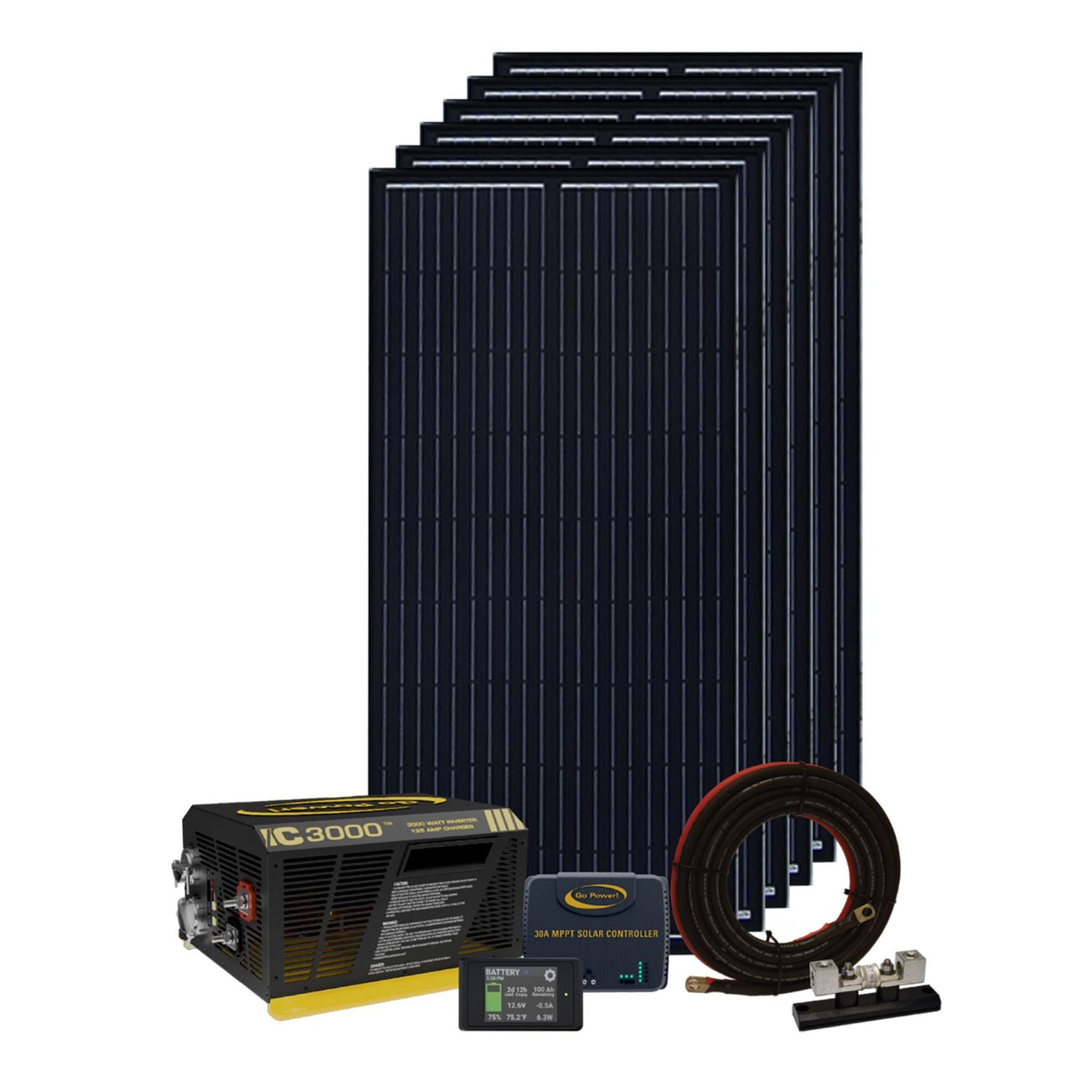

What's Included
- 6 x 200W Solar Panels
- 3 x 30A MPPT Solar Controllers
- 1 x 3000W Pure Sine Inverter Charger with 125A Battery Charger and 50A Transfer Switch
- 1 x PowerTrak Display Remote, 3.2 In Touchscreen, Harness Included
- 1 x GP-DC-Kit Inverter Install Kit
- 3 x Cable Entry Plates with 25 Ft Cables
- 1 x RV-C Adapter
- 1 x RV-C Adapter Harness
- 1 x RV-C Extension Harness, 25 Ft
- 4 x RV-C Branch Connection Harnesses
- 1 x RV-C Terminating Resistor Harness
- 1 x ADV LFP RV-C System Harness
- 2 x Solar Extension Wires, 6 Ft
- 2 x Solar Extension Wires, 10 Ft
- 3 x Fuse Holders with 30A Fuses
- 24 x Solar Panel Mounting Feet with Bolts, Lock Nuts, Washers and Screws
- 1 x Wiring Set (Butt Splices, Heat Shrink, Tie Wraps, Cable Clamps and Ring Terminals)
1200 Watts of Solar on One Network
The Go Power! PowerTrak 1200 Watt Solar Charging System brings six 200W panels, three 30A MPPT controllers, a 3000W inverter charger with a 125A charger and a PowerTrak touchscreen together on one RV-C network. If you'd like help choosing a battery bank or planning the install, the Outbound Power team is happy to help.
Go Power! Powertrak™ 1200 Watt Solar Charging System Specifications
|
| Model |
GP-PT-1200 |
| Kit Contents |
| Solar Panels |
6 x 200W (PV-200), 1200 W total |
| Solar Controllers |
3 x 30A MPPT |
| Inverter Charger |
1 x IC 3000, 3000W pure sine wave, 125A charger, 50A transfer switch |
| Display |
PowerTrak display remote, 3.2 in touchscreen, harness included |
| Inverter Install Kit |
GP-DC-Kit |
| Cable Entry Plates |
3, with 25 ft cables |
| RV-C Parts |
RV-C adapter, RV-C adapter harness, 25 ft RV-C extension harness, 4 branch connection harnesses, terminating resistor harness, ADV LFP RV-C system harness |
| Solar Extension Wires |
2 x 6 ft and 2 x 10 ft (1 male, 1 female) |
| Solar Controller Fusing |
3 fuse holders with 30A fuses |
| Mounting |
24 mounting feet, 24 x 1/4 in bolts, 24 lock nuts, 48 washers, 48 #10-16 x 1 in screws |
| Wiring Parts |
6 butt splices (12-10 AWG), 6 heat shrink, 6 tie wraps, 6 cable clamps, 2 ring terminals, 6 #6 x 3/4 in screws |
| Solar Array |
| Total Solar |
1200 W |
| Panel Wiring |
3 strings of 2 panels in series, one string per controller |
| Panel Lead Length |
3.3 ft from junction box |
| Junction Box Rating |
IP67 (junction box maker's rating) |
| Max Distance, Panels to Battery Compartment |
25-30 ft |
| Charge Controller |
| Type |
MPPT, stackable |
| Rated Current |
30 A each |
| Controllers Included |
3 |
| Max String Current (Imp) |
30 A per controller |
| Mounting |
Vertical, indoors, 6 in air gap above and below |
| Inverter Charger |
| Inverter Output |
3000 W pure sine wave |
| Battery Charger |
125 A |
| Transfer Switch |
50 A |
| Install Location |
Indoors, 0°C to 50°C air temperature, 6 in clearance around vents |
| Monitoring and Communication |
| Display |
PowerTrak display remote, 3.2 in touchscreen |
| Display Orientation |
Inverted portrait (default), portrait, landscape, inverted landscape |
| Network |
RV-C, 25 ft extension harness to display |
| App |
Mobile app support |
| System |
| Solar Expansion |
Up to 3000 W with stackable MPPT controllers |
| Batteries |
Sold separately |
| Suggested Battery Bank |
900 Ah+ Go Power! Advanced Lithium (300 Ah batteries) |
| Third-Party Batteries |
Go Power! Shunt recommended |
| DC Disconnect |
Main DC disconnect switch recommended |
