The Go Power! RIGID Eclipse 200 Watt Solar Kit Pairs a Black-Frame 200W Panel With a 30A MPPT Controller and Remote to Charge One or Two RV Battery Banks

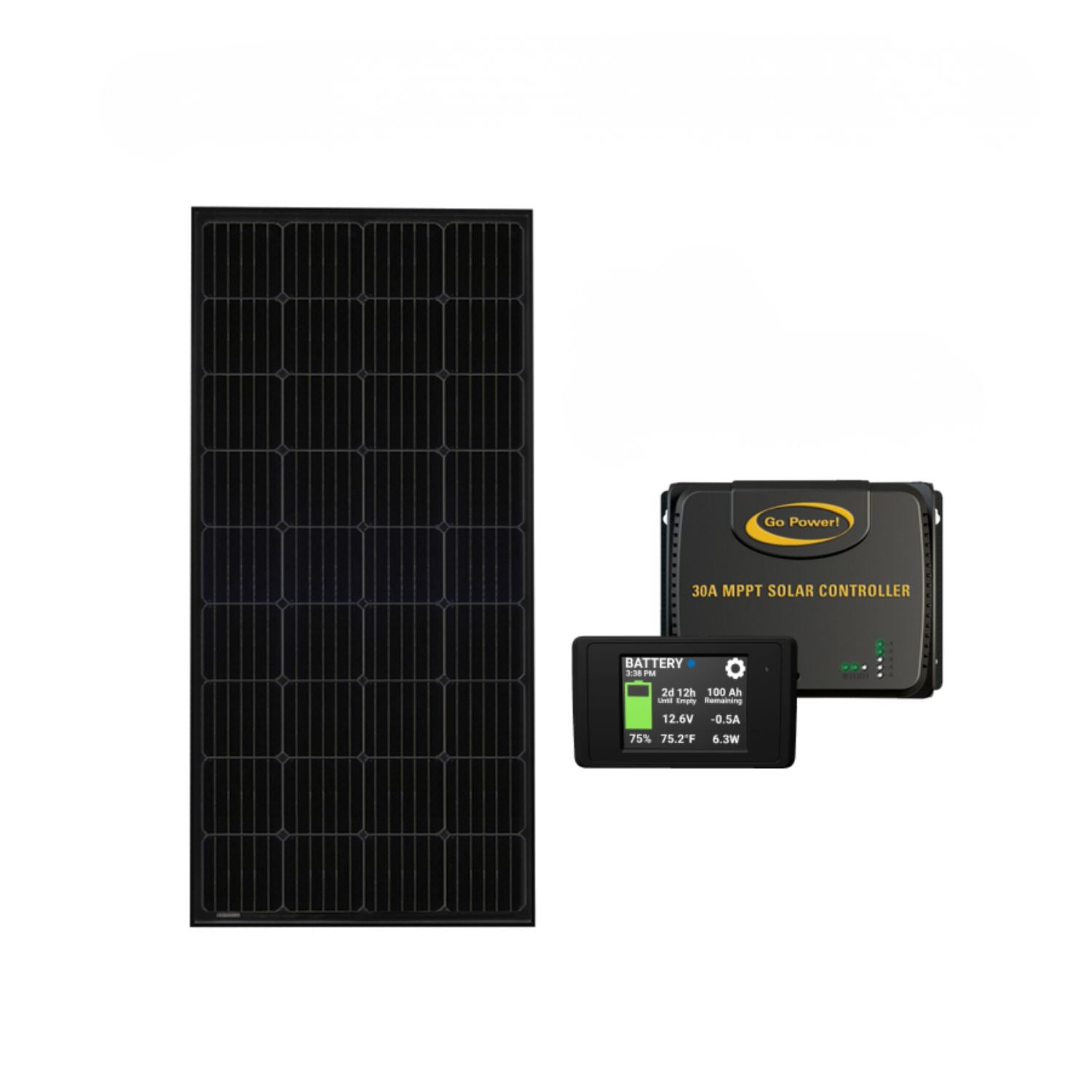

The Go Power! RIGID Eclipse 200 Watt Solar Kit (GP-ECLIPSE-200) is a complete rooftop solar kit with a 200-watt black-frame rigid panel and a GP-RVC-30-MPPT 30 amp MPPT solar charge controller. A GP-RVC-R solar controller remote, 25 foot red and black solar extension cables, a 30A fuse with fuse holder, and the mounting and wiring hardware come in the same box.
Go Power's Eclipse series manual covers installation on RVs, campers, trailers, fifth wheels and motor homes. The panel turns sunlight into DC electricity, the battery stores it, and the controller keeps the panel from overcharging the battery, so you can use stored power for DC devices without a campsite hookup.
Go Power! RIGID Eclipse 200 Watt Solar Kit Features
A 200W Rigid Panel With a Black Frame
The rigid panel has a black frame and 3.3 feet of cable coming from its junction box, which the junction box manufacturer rates IP67. It mounts on four feet bolted to the four outer holes in the frame, then screwed to the roof and sealed.

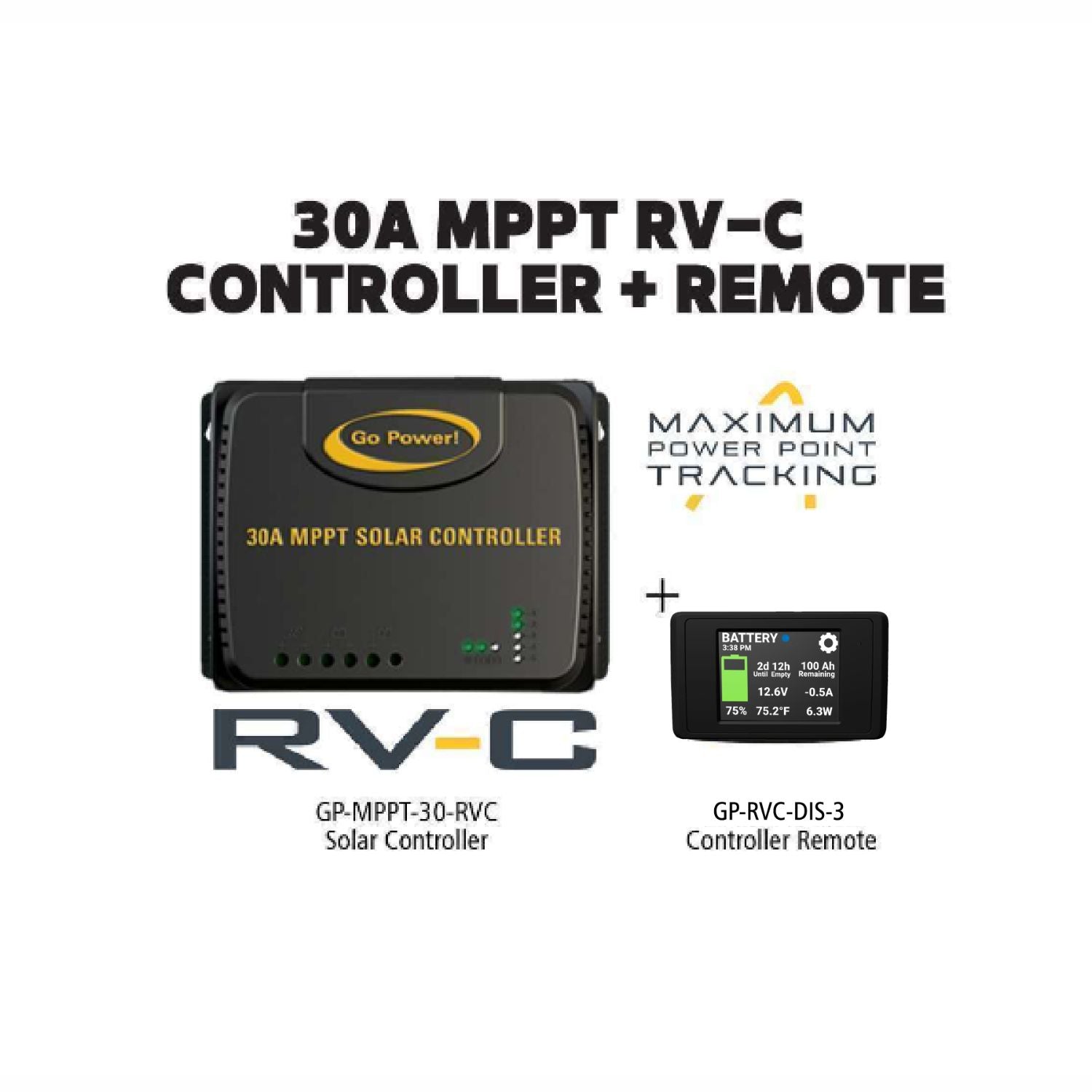

A 30A MPPT Controller for 12V or 24V Systems
The GP-RVC-30-MPPT is rated for 30 amps of charge current and accepts up to 600W of solar on a 12V system or 1200W on a 24V system. Go Power lists its no-load loss at 8 mA. LED indicators show solar status (MPPT charging, absorption or equalize, and float) and battery status for each bank.
Charges Two Battery Banks
The controller has separate BAT1 and BAT2 terminals, and Go Power notes that the GP-RVC-30-MPPT has dual battery bank capability. Battery 1 must be connected with correct polarity for the controller to work.
RV-C, RS485 and a Temperature Sensor Port
Along with the battery and solar terminals, the controller has a CANbus (RV-C) communication port, an RS485 communication port and a port for an external temperature sensor. On an RV-C network you can set the controller to one of five instances with its setup key.
A Remote for Your Living Space
The GP-RVC-R remote mounts inside the RV and connects with an RJ12 connector. Its LCD and four buttons show charge current, charge voltage, and battery voltage and current, with an arrow that tells you which battery you're viewing. Go Power says the remote is required to change battery profiles and other options.
Real-World Applications
RVs with two battery banks. Charge two banks from one 200W panel through the controller's BAT1 and BAT2 terminals.
RV-C equipped coaches. Connect the controller to your RV-C network through its CANbus port and give it its own instance.
Dry camping. Keep your batteries charged away from shore power and a generator, as long as you manage your loads.
Mild-climate storage. Go Power says you can count on the solar system to top up your batteries in mild climates when the panel gets sun. Remove parasitic draws such as a propane detector or clock radio first.
Practical Comparison
Eclipse Kit Versus the Eclipse Expansion Kit
Per the Eclipse manual's parts checklist, the full kit includes the panel, the MPPT 30 amp controller, the remote, both 25 foot cables, the fuse parts and the cable hardware. The expansion kit includes a panel, its mounting hardware and two MC4 expansion connectors to join it in parallel with the first panel. Start with the full kit, then add the expansion kit if you need more solar.
Dual-Bank MPPT Controller Versus a Single-Bank Controller
A single-bank controller charges one battery bank. The GP-RVC-30-MPPT in this kit has separate terminals for two banks, plus RV-C and RS485 ports for system communication.
Buyer Guidance
Plan the Controller and Remote Locations
Mount the controller vertically, close to the batteries, in a battery box or other indoor spot inside a weatherproof enclosure, with at least 6 inches (150 mm) of open space above and below it for heat dissipation. Keep the wiring from the panels to the battery at 25 feet or less. Put the remote inside the RV at eye level, where you can easily see it. The controller starts on the AGM battery setting, so use the remote to choose a different battery type.
Plan the Roof Install and Fuse
Mount the panel at least 3 feet back from the front of the RV, on a fire-resistant roof surface at least 1/2 inch thick, where air conditioners won't shade it. Connect the battery first, then the solar panel. Fit the 30A fuse holder in the positive battery cable, connect directly to the battery when you can, and install the fuse last. If you need more battery cable, Go Power recommends 10 gauge wire rated UL/cUL/USE2. Go Power recommends installation by an RV technician or professional electrician.
This May Be A Good Fit If
You want an MPPT controller in a complete kit
You charge one or two battery banks
Your RV uses an RV-C network
You'd like a black-frame panel on your roof
Common Questions
How Do I Set the Battery Type?
The controller powers up on the AGM setting. Go Power says the remote is required to change battery profiles and other options.
Can I Add Another Panel?
Yes. The Eclipse expansion kit connects a second panel in parallel. Go Power's quick start guide has you add up the panels' short circuit current and multiply by 1.25, keeping the result at or below 37.5A, and the kit manual keeps the combined maximum power current at or below 30A.
Does the Kit Include Batteries?
No. It charges the battery bank you supply. The Eclipse manual shows 12V banks made from 12V batteries in parallel or 6V batteries in series.
How Do I Care for It?
Clean the panel monthly with water and a soft sponge or cloth, without a pressure washer. Retorque the controller's terminal screws 30 days after installation, and have the system inspected once a year.
What's Included
1 x 200W Black-Frame Rigid Solar Panel
1 x GP-RVC-30-MPPT 30A MPPT Solar Charge Controller
1 x GP-RVC-R Solar Controller Remote
1 x MC4 Red Positive Solar Extension Cable, 25 Ft
1 x MC4 Black Negative Solar Extension Cable, 25 Ft
4 x Solar Panel Mounting Feet
4 x 1/4 In Bolts
4 x 1/4 In Lock Nuts
8 x 1/4 In Washers
8 x #10-16 x 1 In Screws
6 x #6 x 3/4 In Screws
2 x Butt Splices, 12-10 AWG
1 x Fuse Holder
1 x 30A Fuse
2 x Heat Shrink
6 x Tie Wraps
6 x Cable Clamps
2 x Ring Terminals
MPPT Solar Charging in a Complete Kit
The Go Power! RIGID Eclipse 200 Watt Solar Kit brings a black-frame 200W panel, a dual-bank 30A MPPT controller, a remote, cables, fuse parts and roof hardware together for your RV. If you'd like help planning the controller location or your battery banks, the Outbound Power team is happy to help.
Go Power! RIGID Eclipse 200 Watt Solar Kit With 30A MPPT Controller Specifications
Model
GP-ECLIPSE-200
Kit Contents
Solar Panel
1 x 200 W rigid, black frame
Charge Controller
1 x GP-RVC-30-MPPT, 30 A MPPT
Controller Remote
1 x GP-RVC-R
Solar Extension Cables
25 ft red (positive) + 25 ft black (negative), MC4
Fuse
1 x 30 A fuse with fuse holder
Mounting Hardware
4 mounting feet, 4 x 1/4 in bolts, 4 x 1/4 in lock nuts, 8 x 1/4 in washers, 8 x #10-16 x 1 in screws
Wiring Parts
2 x 12-10 AWG butt splices, 2 heat shrink, 2 ring terminals
Cable Management
6 cable clamps, 6 x #6 x 3/4 in screws, 6 tie wraps
Solar Panel
Rated Power
200 W
Panel Type
Rigid
Frame Color
Black
Panel Lead Length
3.3 ft from junction box
Junction Box Rating
IP67 (junction box manufacturer)
Multiple Panels
Wired in parallel

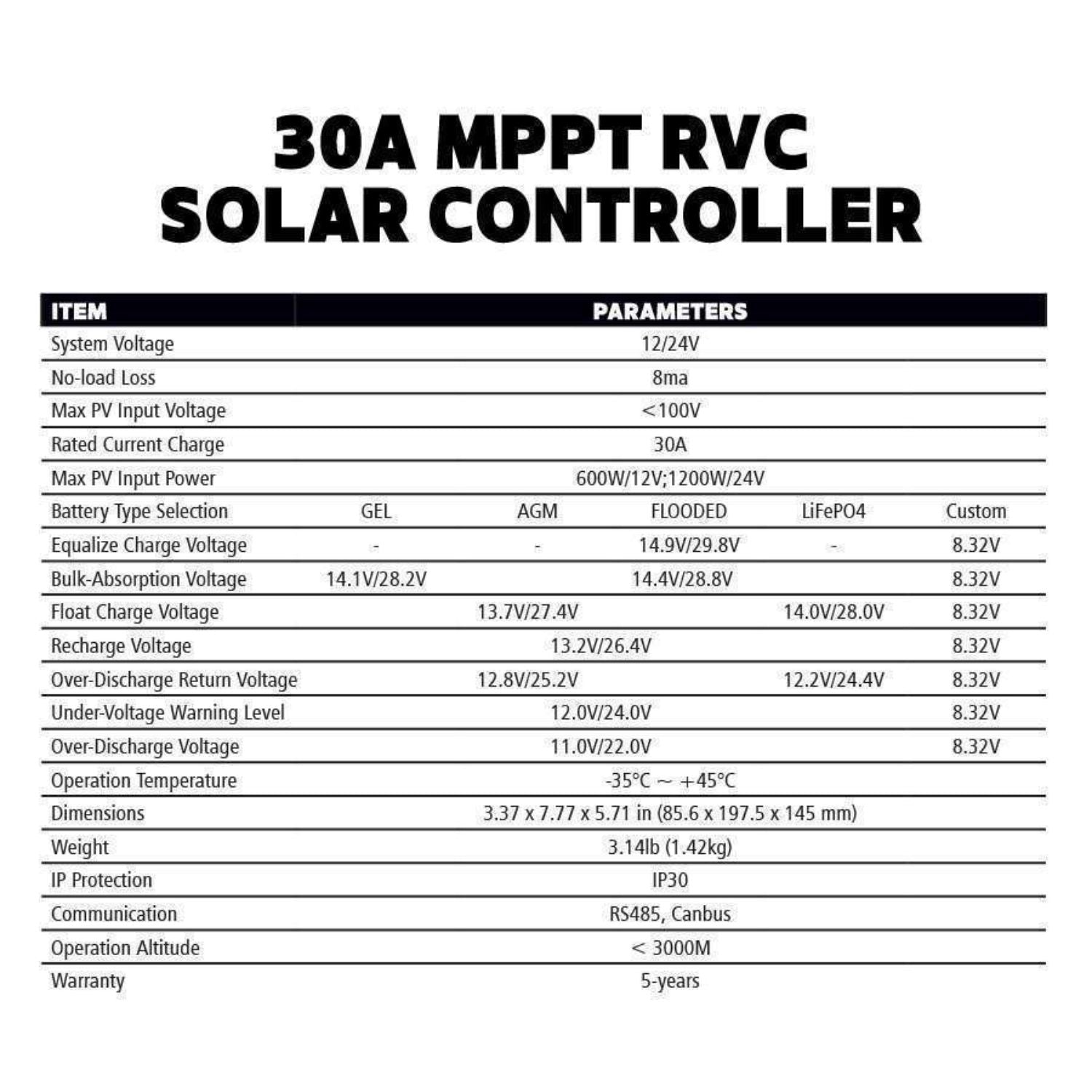

Charge Controller
Controller Model
GP-RVC-30-MPPT
Controller Type
MPPT
System Voltage
12/24 V
Rated Charge Current
30 A
Max PV Input Power
600 W at 12 V, 1200 W at 24 V
No-Load Loss
8 mA
Max System Current (Isc x 1.25)
37.5 A
Max Combined Imp
30 A
Battery Banks
2 (BAT1, BAT2)
Communication Ports
CANbus (RV-C), RS485
Temperature Sensor
External sensor port
RV-C Instances
Up to 5
Indicators
LEDs for PV, BAT1, BAT2 and instance
Default Battery Setting
AGM
Mounting
Vertical, 6 in (150 mm) clearance above and below
Remote
Remote Model
GP-RVC-R
Display
LCD
Buttons
Up, Down, Enter, Back
Connector
RJ12
Readings
Charge current, charge voltage, battery voltage and current
Installation
Battery Fuse
30 A, positive battery cable
Added Battery Cable
10 gauge, rated UL/cUL/USE2
Wire Run
25 ft or less, panels to battery
Mounting Surface
At least 1/2 in thick, fire resistant
Panel Placement
At least 3 ft from the front of the RV
System Battery Voltage
12 V (kit manual battery layouts)
Go Power! RIGID Eclipse 200 Watt Solar Kit With 30A MPPT Controller Manuals and Documents
Go Power! Eclipse Series Solar Kit Manual
Go Power! GP-RVC-30-MPPT Quick Start Guide
Go Power! GP-RVC-R Remote Quick Guide
