The Go Power! Solar Extreme 600 Watt Charging System Gives Full-Time RVers 600W of Solar and a 3000W Inverter Charger With a 125A Charger
The Go Power! Solar Extreme is a complete RV solar and inverter charger system for full-time RVing. It combines three 200W monocrystalline solar panels, a 30A Bluetooth PWM solar controller and the GP-IC-3000-12 inverter charger, which puts a 3000W pure sine wave inverter, a 125A battery charger and an automatic transfer switch in one unit.
Solar charges your 12V battery bank through the controller. Off-grid, the inverter charger turns battery power into AC for your breaker panel. When you plug into shore power or start a generator, it switches over, passes power through to your panel and charges your batteries. The system works with 30A and 50A shore service.
Current Model. Go Power! now offers the Go Power! Solar Extreme AIC 600 Watt Solar and 3000 Watt Inverter Charger System as the current version of this system.
Go Power! Solar Extreme 600 Watt Charging System Features

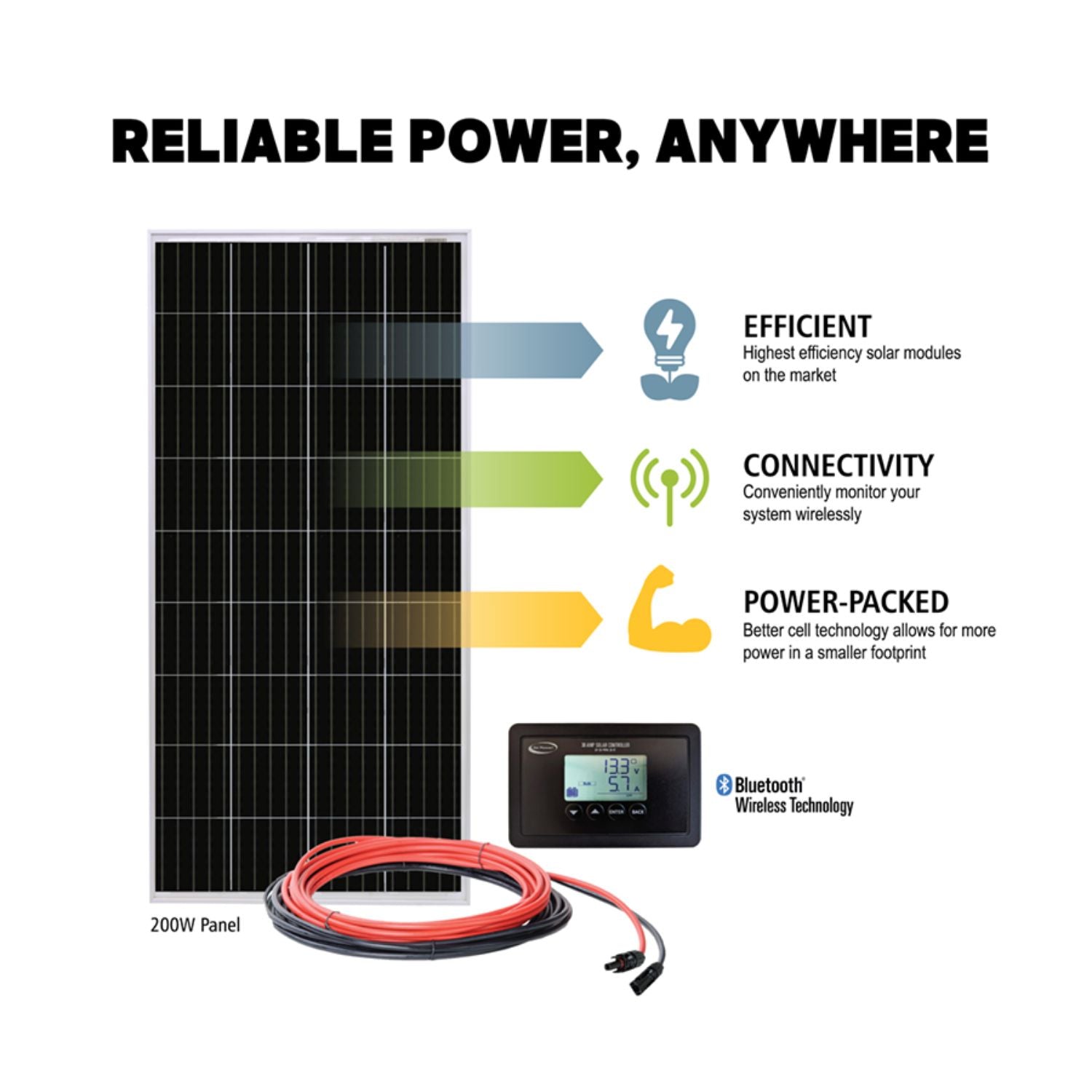

600 Watts of Monocrystalline Solar

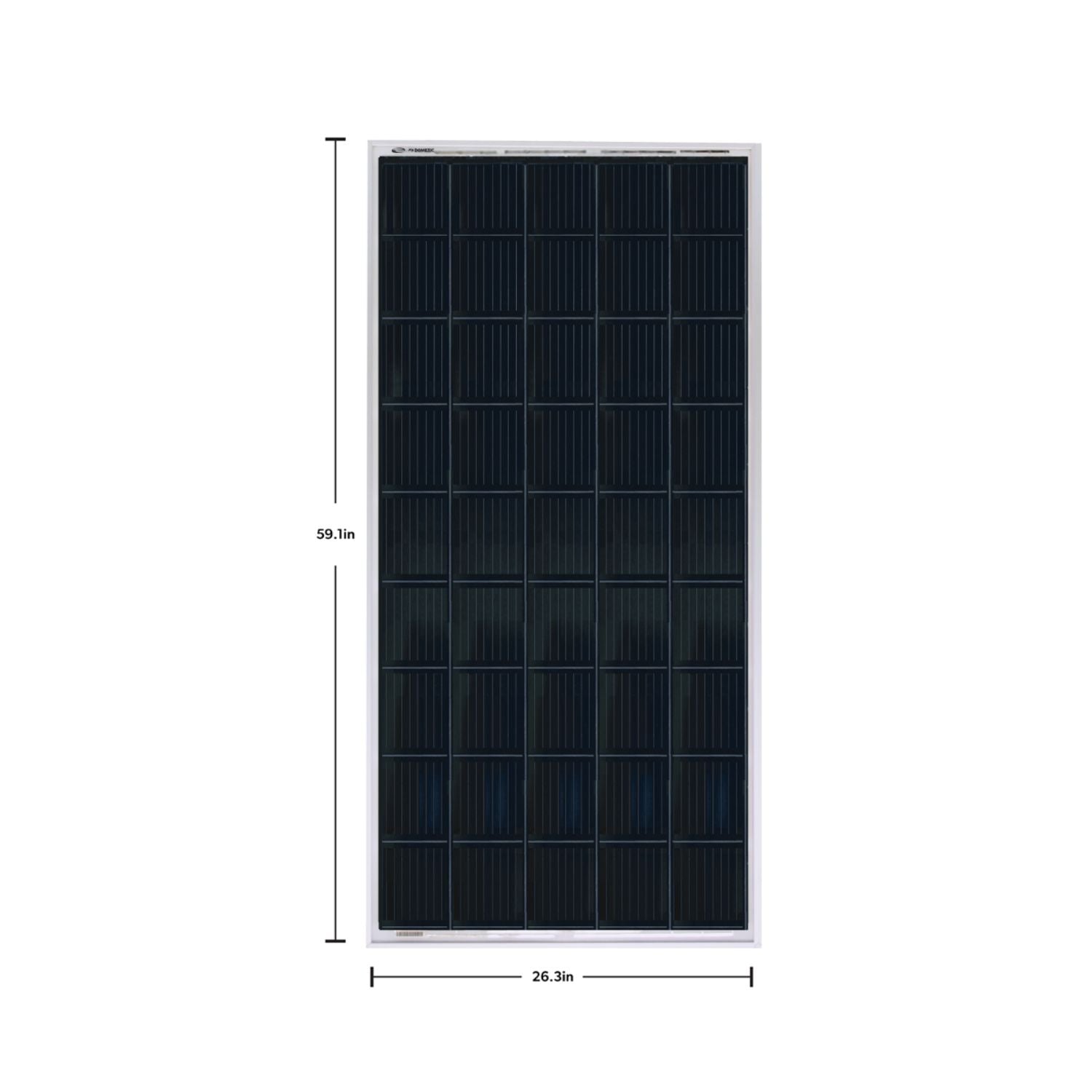

Three GP-PV-200M panels are each rated 200W at 9.62A and 20.8V, for 600W and 28.8A combined. Each panel measures 59.06 x 26.3 x 1.57 inches, weighs 26.4 lb and uses SC solar connectors. Go Power estimates the array puts about 180Ah a day into a 12V battery on a sunny spring or summer day, and about 72Ah a day in fall and winter.
A Bluetooth PWM Controller Sized to the Array

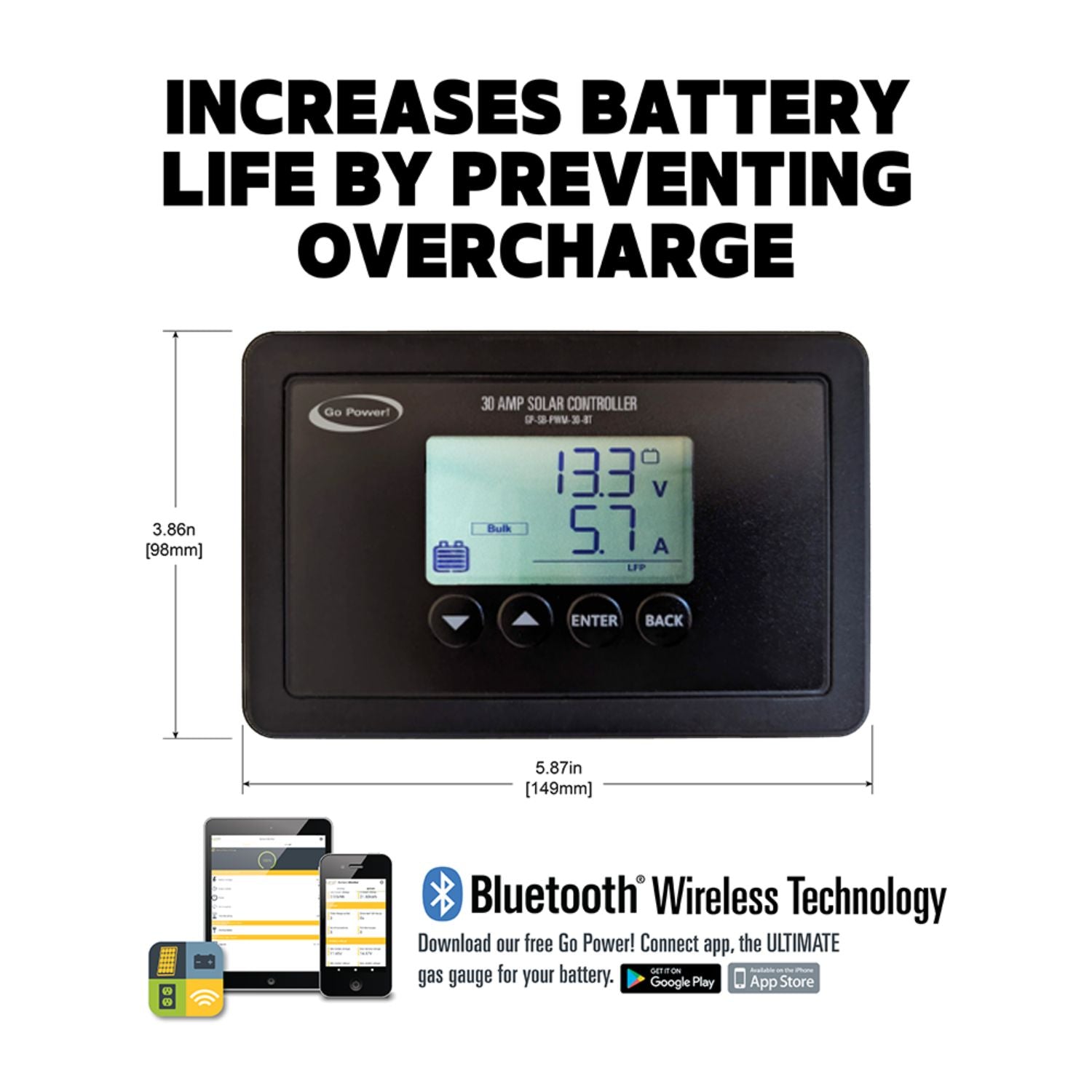

The GP-SB-PWM-30-BT is a 12V flush-mount controller rated for 30A of solar current and up to 600W of 12V solar, so this array uses its full capacity. Its backlit LCD shows charging current, battery voltage and state of charge, and Bluetooth connects it to the Go Power! Connect app. It offers sealed/gel, AGM, flooded and LiFePO4 charging profiles.

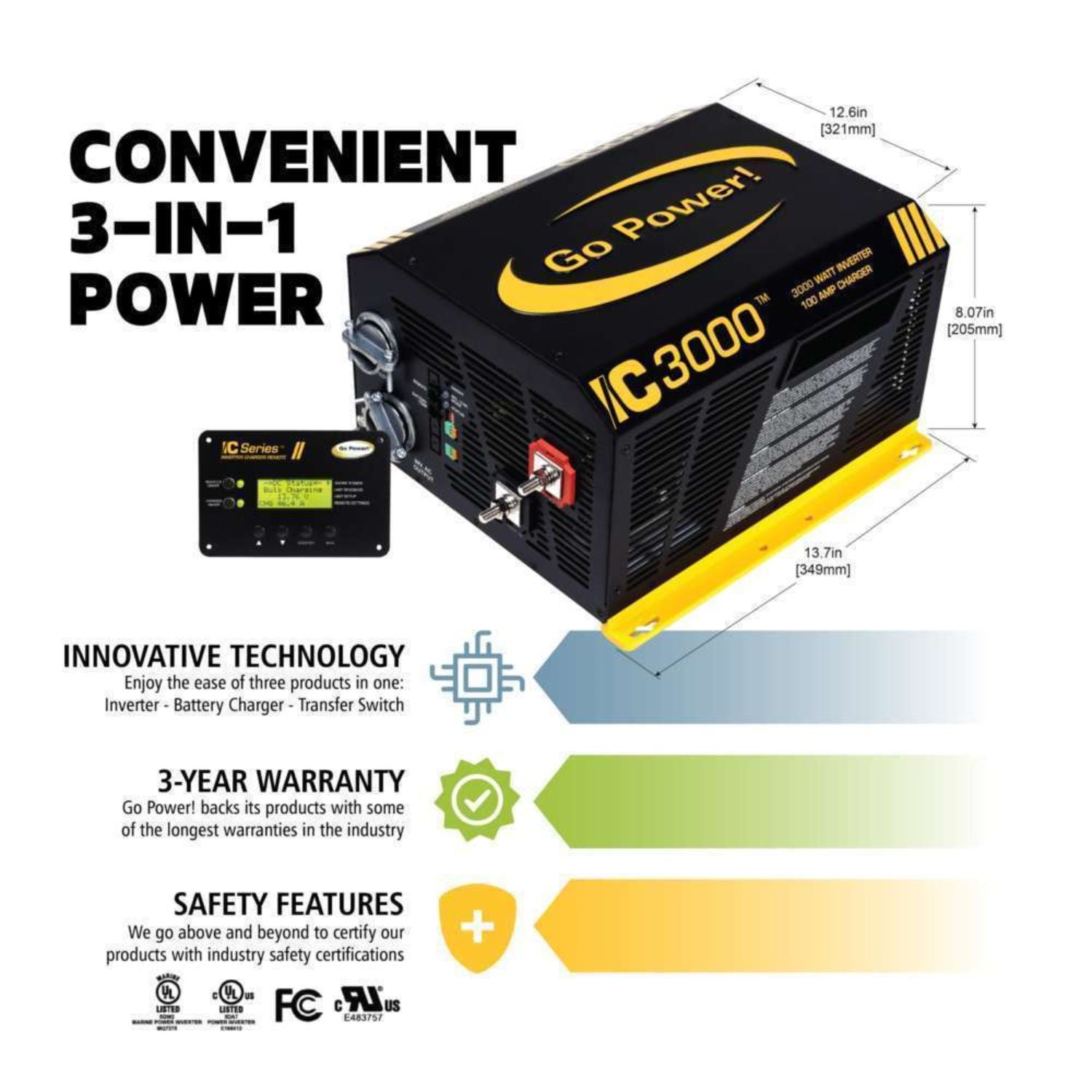

3000 Watts of Pure Sine Wave Power
The GP-IC-3000-12 delivers 3000W of continuous pure sine wave power with 6000W of surge, and peak inverter efficiency is 90%. Go Power lists UL 458 and UL 1741 (with Marine Supplement), CSA 22.2 No. 107.1-01 and FCC Part 15 Class B for this inverter charger.
A 125A Charger for Shore Power and Generator Time
On 120 VAC shore power or a generator, the built-in charger delivers up to 125A to your batteries. It is power factor corrected at 0.97, uses 3-stage charging with manual equalize, and adjusts charge voltage with a remote battery temperature sensor.
A Transfer Switch With Two 50A Legs
The automatic transfer switch has two 50A legs (240V split-phase) and switches in 16 milliseconds. Go Power says this lets you pass through up to 12,000 watts on a 100A, 240V service, and it works with any 30A service as well.
A Remote With a 4-Line Display
The GP-ICR-50 remote has a 4-line digital display and a 50 ft cable. You can change settings and modes, watch battery charging, AC input and inverter status in real time, and check the unit's health and temperature. Battery type and charge settings on the inverter charger are adjustable only with this remote.
Real-World Applications
Fridge camping through the year. Go Power estimates a 12V compressor fridge alone at about 50Ah a day, covered daily and on most winter days. With lights, fan, pump and charging added, it puts the total near 75Ah a day, covered in summer.
Full-comfort boondocking. A fridge, furnace, CPAP and TV through the inverter come to about 140Ah a day by Go Power's estimate, covered daily in summer.
Cooking off-grid. Go Power says the 3000W inverter runs a microwave, coffee maker, induction cooktop, TV and laptops, though not all at once. By its figures, a 1500W appliance uses about 70Ah from a 12V battery per 30 minutes.
Campgrounds and generators. Plug in and the 125A charger refills your bank while the transfer switch passes power to your panel. Roof air conditioning needs shore power or a generator.
Practical Comparison
Solar Extreme Versus Solar Elite
Go Power's model comparison lists the Solar Elite at 400W of solar with a 2000W GP-IC-2000 inverter charger and a 100A charger. The Solar Extreme steps up to 600W of solar, a 3000W GP-IC-3000 inverter charger and a 125A charger. Both use a transfer switch with two 50A legs.
Inverter Charger Versus a Separate Inverter and Converter
A separate inverter and converter need their own wiring and a separate transfer switch. The GP-IC-3000-12 combines the inverter, battery charger and transfer switch in one unit, so there are fewer components and cables to install.
Buyer Guidance
Size Your Battery Bank
Go Power suggests at least 250Ah of lithium or 400Ah of AGM for the Solar Extreme. The inverter charger's manual recommends a 400Ah bank for loads over 1000W. Its charger presets cover gel, flooded and two AGM settings plus a custom setting through the remote, and its safety instructions say to charge only lead-acid type batteries, so talk to the Outbound Power team before you switch to lithium.
Plan the Install

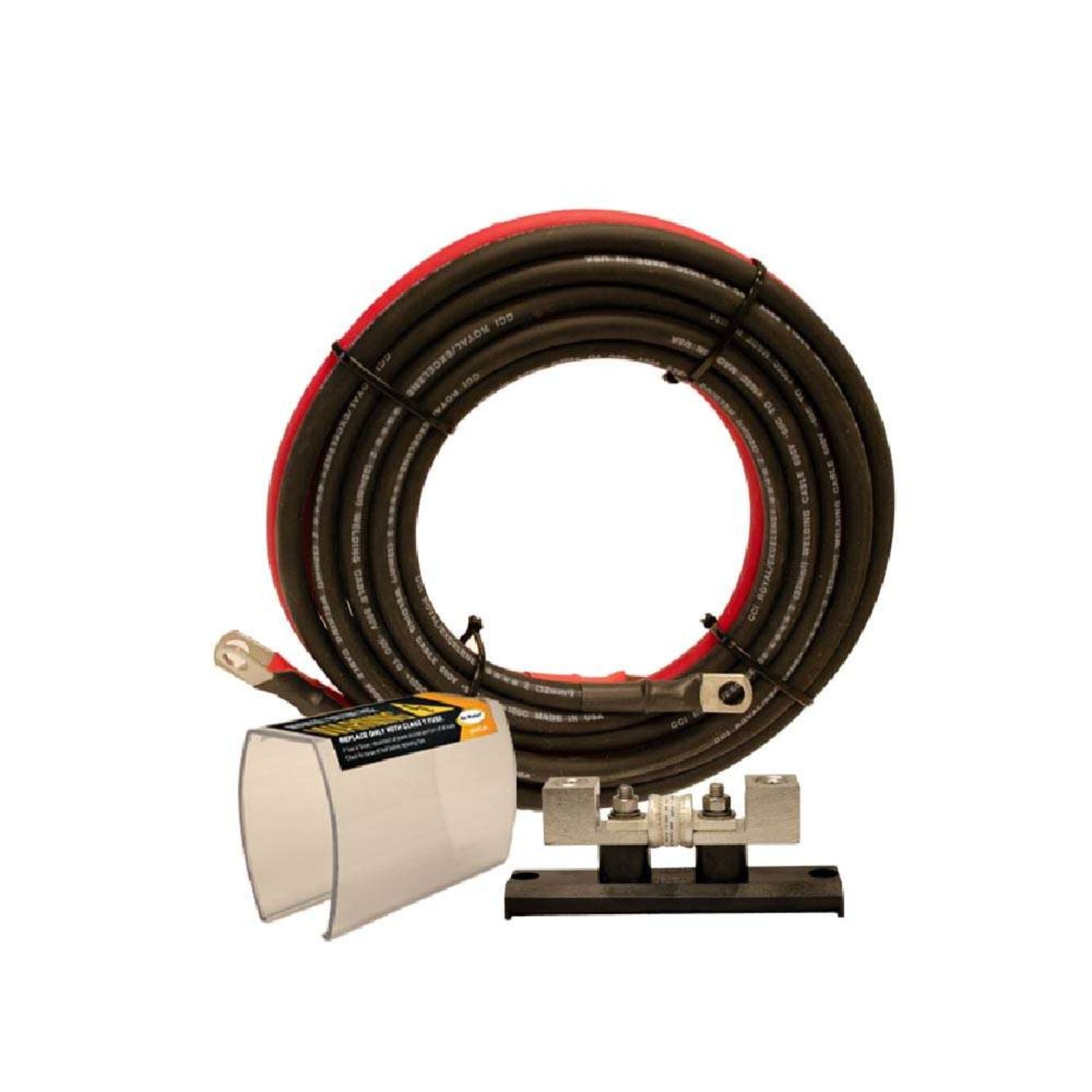

Go Power recommends installation by an RV technician or professional electrician. The GP-DC-KIT5 supplies the 400A Class T fuse and 10 ft 4/0 AWG cables the inverter charger's manual calls for. Mount the inverter charger where the air stays between 0°C and 50°C, with at least 6 inches of clearance around the vents and never directly above the batteries. It is not reverse polarity protected, so mark your positive and negative cables. At 600W the controller is at its limit, so more solar means adding a second controller.
This May Be A Good Fit If
- You live in your RV or camp off-grid for long stretches
- Your RV has 30A or 50A shore service
- You want a 3000W inverter for cooking appliances
- You run 250Ah or more of lithium or 400Ah or more of AGM
Common Questions
Will It Work on a 30A RV?
Yes. The transfer switch has two 50A legs (240V split-phase), so it works with 50A service and with any 30A service.
Can I Add More Solar?
Not on the included controller, since 600W is its limit. More solar means a second controller and its own wiring, so talk to the Outbound Power team before adding panels.
Can It Connect to a PowerTrak Display?
Yes. Go Power lists the GP-IC-RVC-ADAPTER and GP-IC-RVC-HARNESS to connect the IC series inverter charger to an RV-C network so a PowerTrak display can monitor it.
What Fuse Protects the Inverter Charger?
The GP-DC-KIT5 install kit uses a 400A Class T fuse with 4/0 AWG cables.

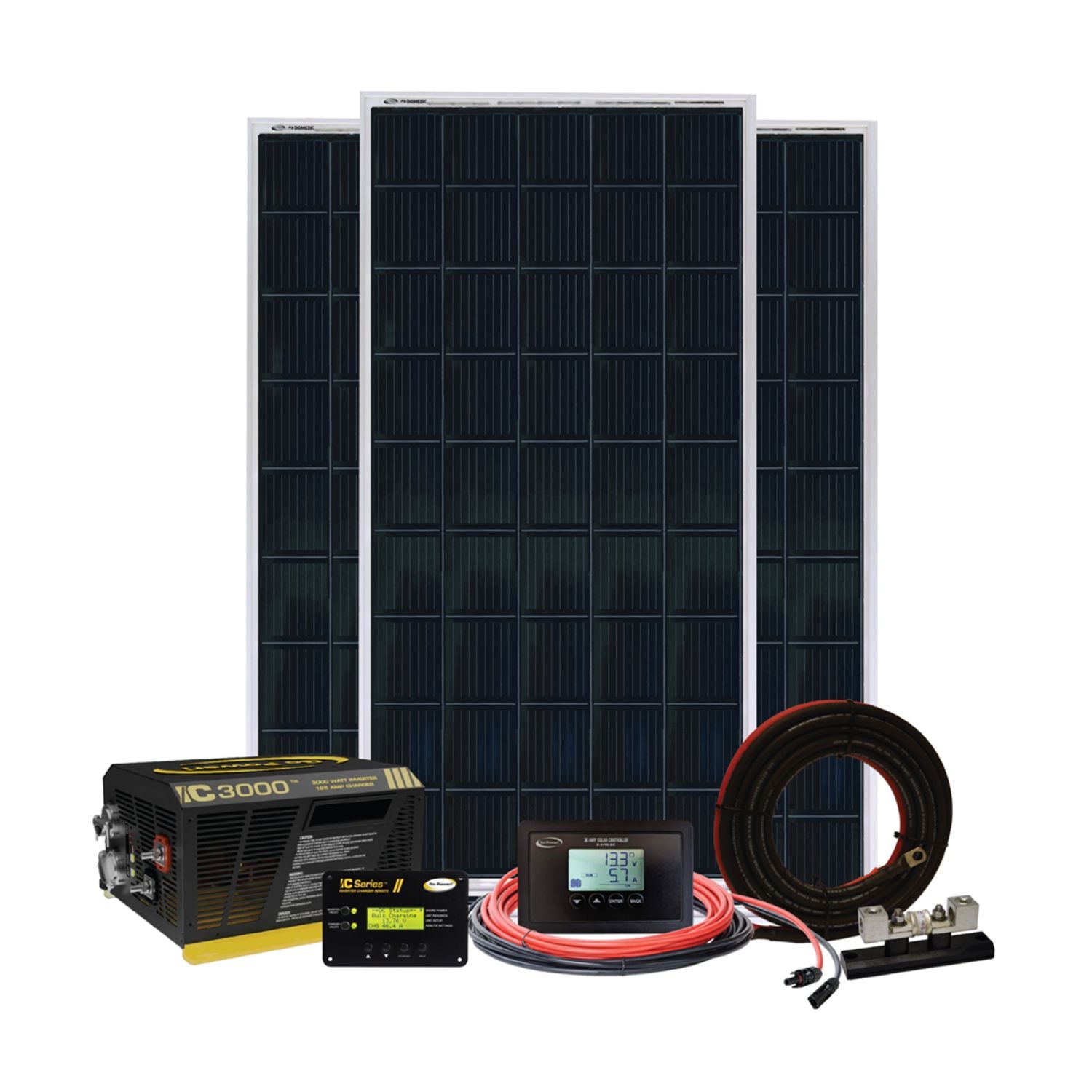

What's Included
- 3 x 200W Monocrystalline Solar Panels (GP-PV-200M)
- 1 x 30A PWM Solar Charge Controller with Bluetooth (GP-SB-PWM-30-BT)
- 1 x 3000W Pure Sine Wave Inverter Charger with 125A Charger and Dual 50A Transfer Switch (GP-IC-3000-12)
- 1 x Inverter Charger Remote with 50 Ft Cable (GP-ICR-50)
- 1 x Inverter Install Kit with 400A Class T Fuse and 4/0 AWG Cables (GP-DC-KIT5)

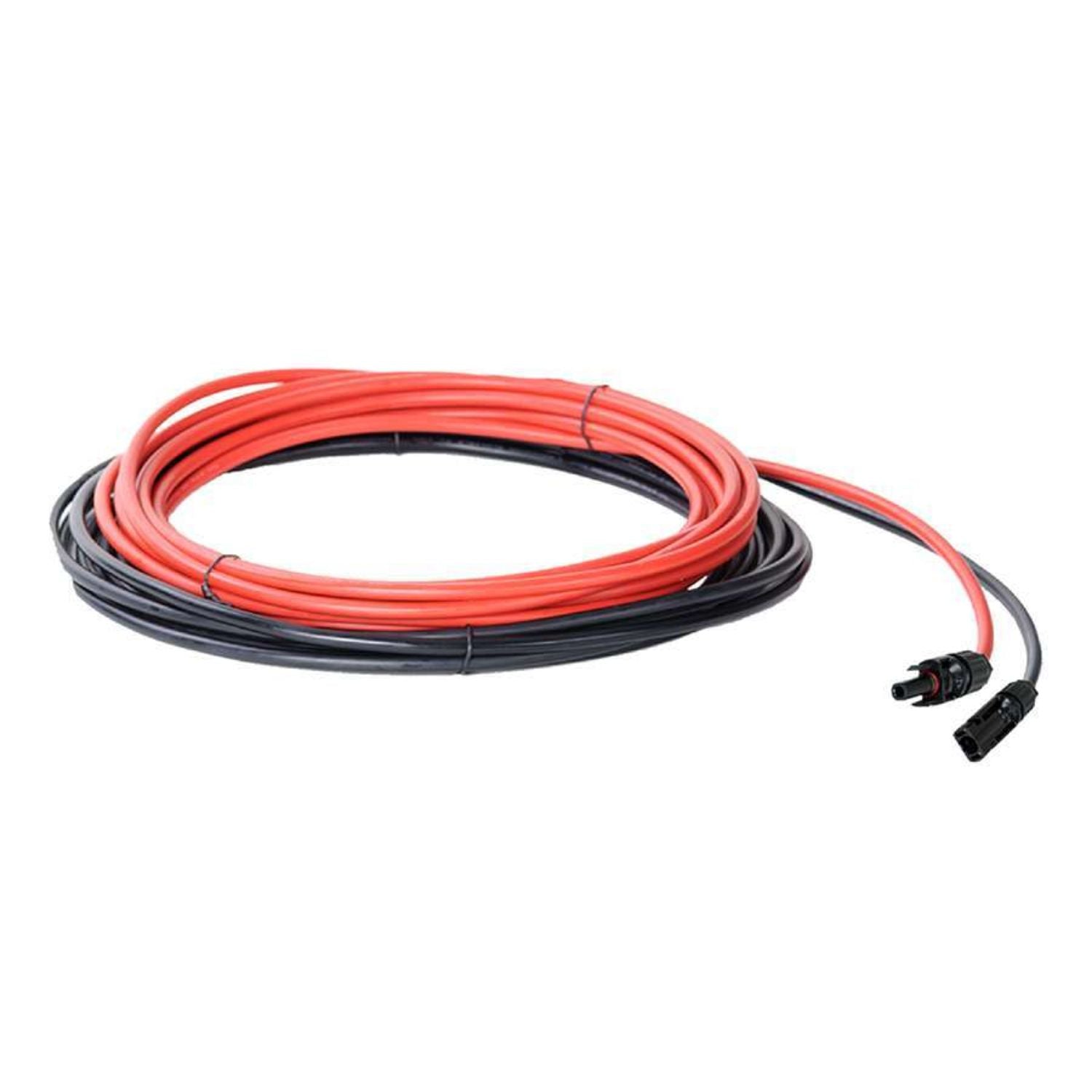

- 1 x 25 Ft Red Positive SC Solar Cable
- 1 x 25 Ft Black Negative SC Solar Cable
- 2 x SC Expansion Connectors (1 Male, 2 Female)
- 2 x SC Expansion Connectors (2 Male, 1 Female)
- 1 x Fuse Holder with 30A Fuse

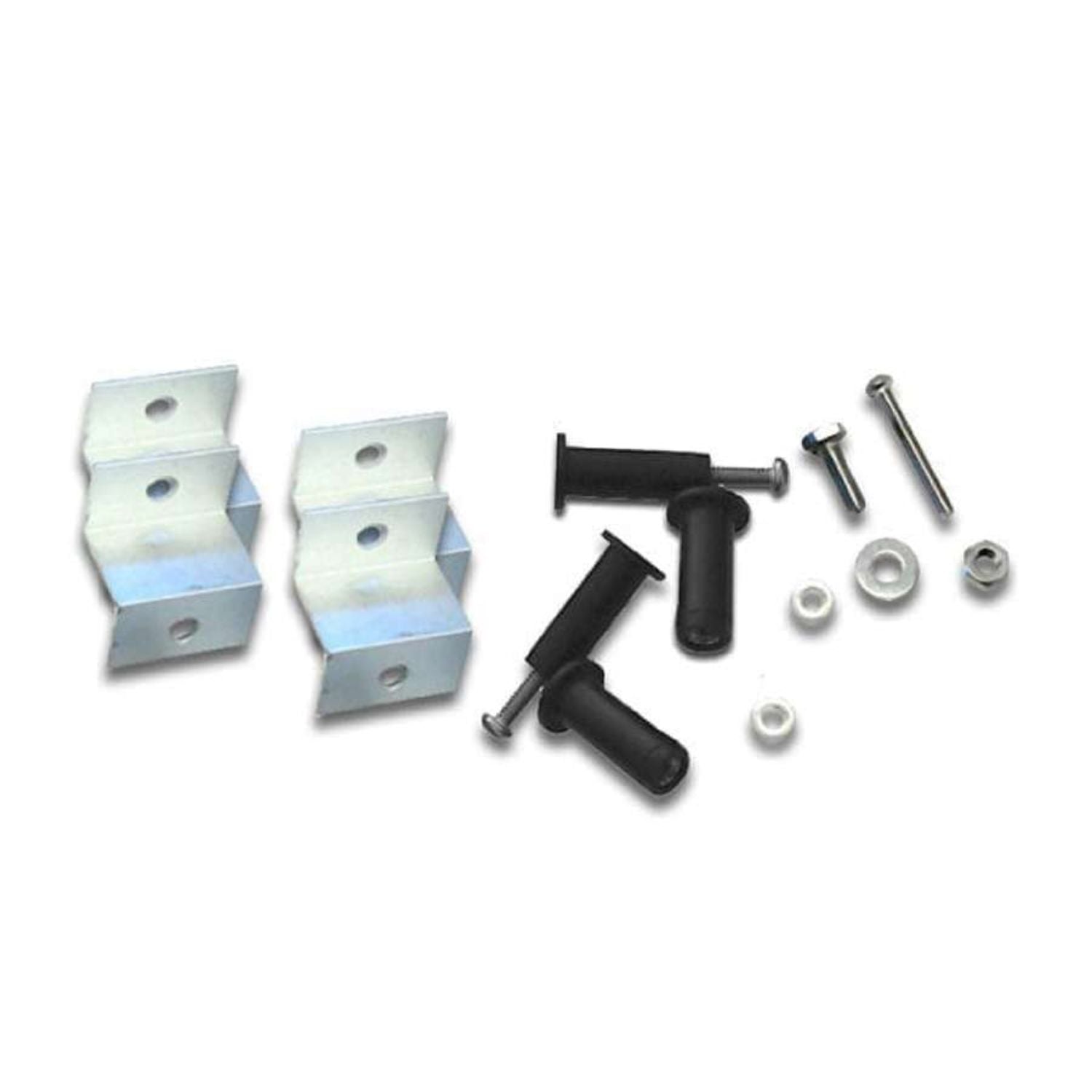

- 12 x Solar Panel Mounting Feet with Bolts, Lock Nuts, Washers and Screws
- 1 x Wiring Set (Butt Splices, Heat Shrink, Tie Wraps, Cable Clamps and Ring Terminals)
Full-Time Solar and Shore Power for Your RV
The Go Power! Solar Extreme 600 Watt Charging System brings 600W of solar, a 30A Bluetooth PWM controller and a 3000W inverter charger with a 125A charger and dual 50A transfer switch together for 12V RVs. If you'd like help sizing your battery bank or planning the install, the Outbound Power team is happy to help.

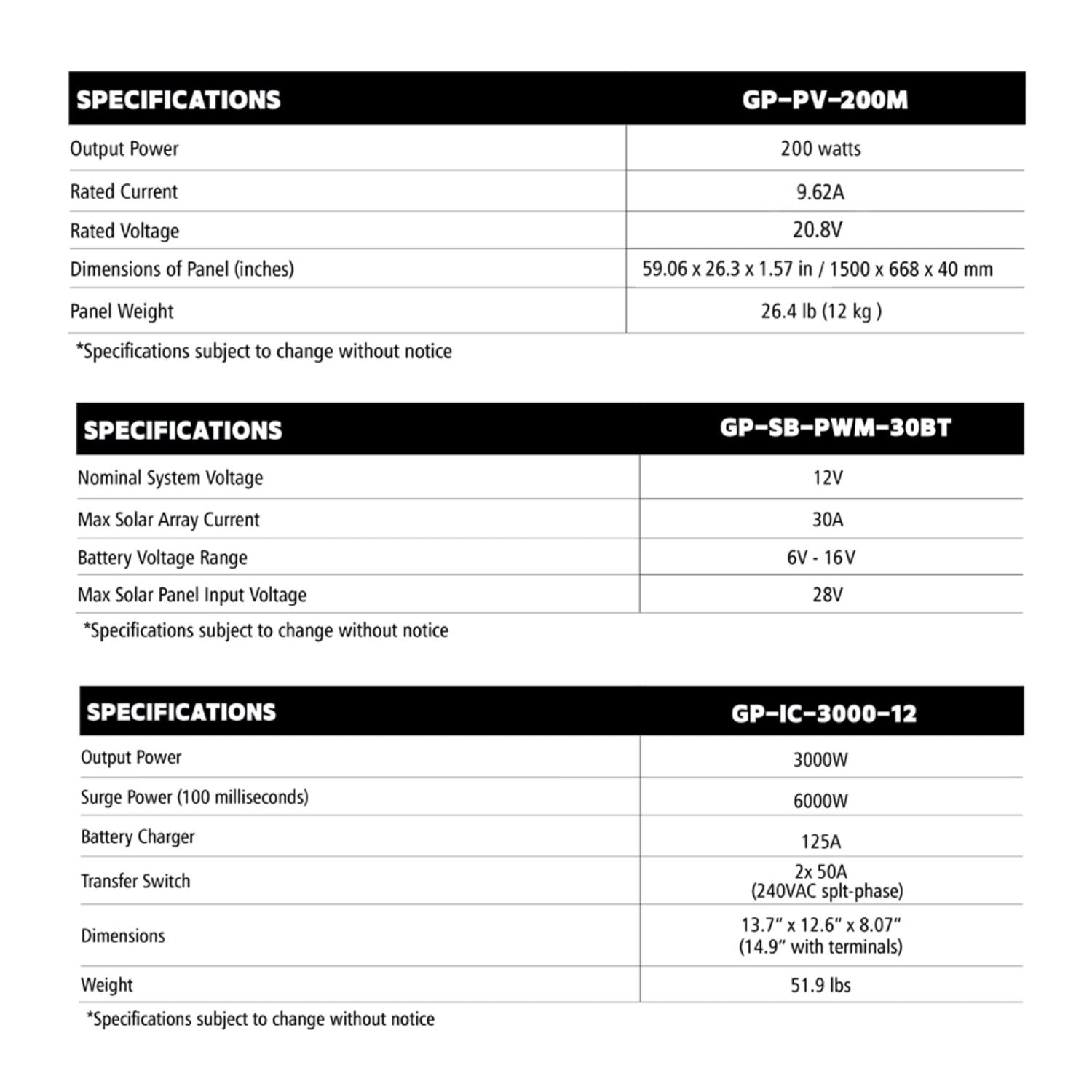

Go Power! Solar Extreme 600 Watt Charging System Specifications
|
| Model |
SOLAR EXTREME |
| Kit Contents |
| Solar Panels |
3 x 200W monocrystalline (GP-PV-200M) |
| Solar Controller |
GP-SB-PWM-30-BT, 30A PWM with Bluetooth |
| Inverter Charger |
GP-IC-3000-12, 3000W pure sine wave, 125A charger, 2 x 50A transfer switch |
| Remote |
GP-ICR-50, 4-line digital display, 50 ft cable |
| Inverter Install Kit |
GP-DC-KIT5, 400A Class T fuse, 10 ft 4/0 AWG cables |
| Solar Cables |
25 ft red and 25 ft black, SC connectors |
| Expansion Connectors |
4 SC branch connectors (2 x 1M/2F, 2 x 2M/1F) |
| Mounting |
12 mounting feet with bolts, lock nuts, washers and screws |
| Solar Panel |
| Total Solar |
600 W, 28.8 A |
| Rated Power (each) |
200 W |
| Cell Type |
Monocrystalline |
| Rated Current (each) |
9.62 A |
| Rated Voltage (each) |
20.8 V |
| Connectors |
SC (solar connector) |
| Dimensions (each) |
59.06 x 26.3 x 1.57 in (1500 x 668 x 40 mm) |
| Weight (each) |
26.4 lb (12 kg) |
| Charge Controller |
| Type |
PWM, 12 V, single bank, flush mount |
| Rated Solar Current |
30 A |
| Max Solar Input |
600 W @ 12 V (system is at maximum) |
| Max PV Input Voltage |
35 V |
| Battery Profiles |
Sealed/gel, AGM, flooded, LiFePO4 |
| Display |
Backlit LCD (charging current, battery voltage, state of charge) |
| Connectivity |
Bluetooth, Go Power! Connect app |
| Inverter |
| Continuous Output |
3000 W (up to 104°F / 40°C) |
| Surge |
6000 W |
| Waveform |
Pure sine wave |
| Peak Efficiency |
90% |
| DC Input Range |
9-17 VDC |
| Max DC Input Current |
400 A |
| No-Load Power |
25 W normal, under 5 W sleep |
| Reverse Polarity Protection |
None (mark cables) |
| Charger |
| Output Current |
125 A |
| AC Input |
120 VAC nominal (80-140 VAC) |
| Power Factor Correction |
0.97 typical |
| Charge Control |
3-stage with manual equalize |
| Temperature Compensation |
Remote battery sensor |
| Battery Presets |
Gel, flooded, AGM 1, AGM 2, custom (custom via GP-ICR-50) |
| Battery Type (Safety Instructions) |
Charge only lead-acid type rechargeable batteries |
| Transfer Switch |
| Rating |
2 legs at 50 A each (240 V split-phase) |
| Transfer Time |
16 ms |
| Pass-Through |
Up to 12,000 W on 100 A, 240 V shore service |
| Shore Service |
30 A or 50 A |
| Physical |
| Inverter Charger Dimensions |
13.7 x 12.6 x 8.07 in (14.9 in with terminals) |
| Install Location |
0°C to 50°C air temperature, 6 in clearance around vents |
| System |
| System Voltage |
12 V |
| Suggested Battery Bank |
400 Ah+ AGM or 250 Ah+ lithium |
| Inverter Charger Battery Guidance |
400 Ah for loads over 1000 W |
| Daily Solar Harvest (Go Power estimate) |
About 180 Ah spring/summer, 72 Ah fall/winter, 12 V battery |
| Recommended DC Cable and Fuse |
4/0 AWG, 400A Class T, 10 ft combined max |
| Certifications and Warranty |
| Inverter Charger Certifications |
UL 458, UL 1741 (with Marine Supplement), CSA 22.2 No. 107.1-01, FCC Part 15 Class B |
| Solar Panels |
25 years limited power output |
| Solar Controller |
5 years |
| Remote (GP-ICR-50) |
3 years |
