The Mango Power 400W Ultra-Light Portable Solar Panel Delivers 400W From a Single Folding Panel With an IP67 Rating

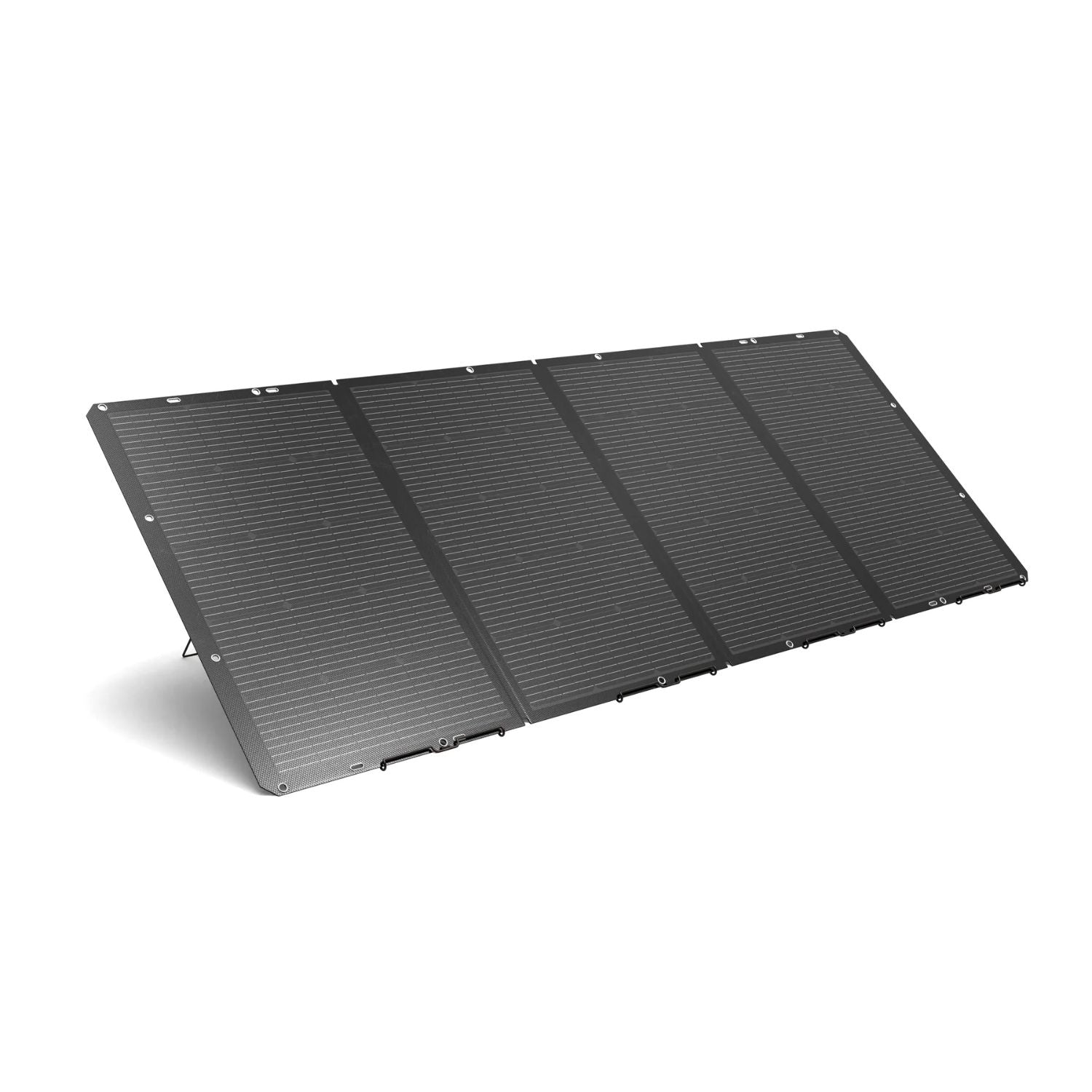

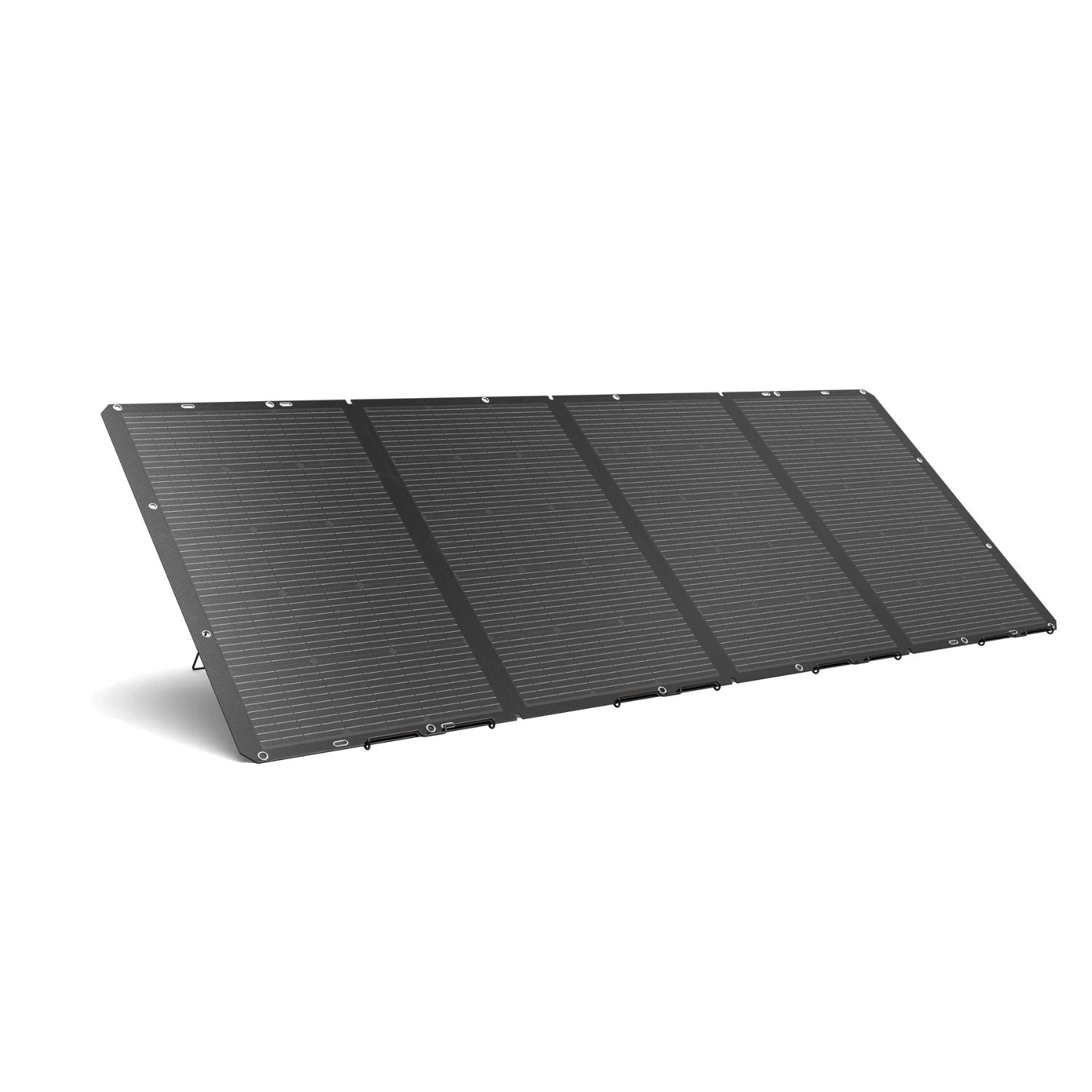

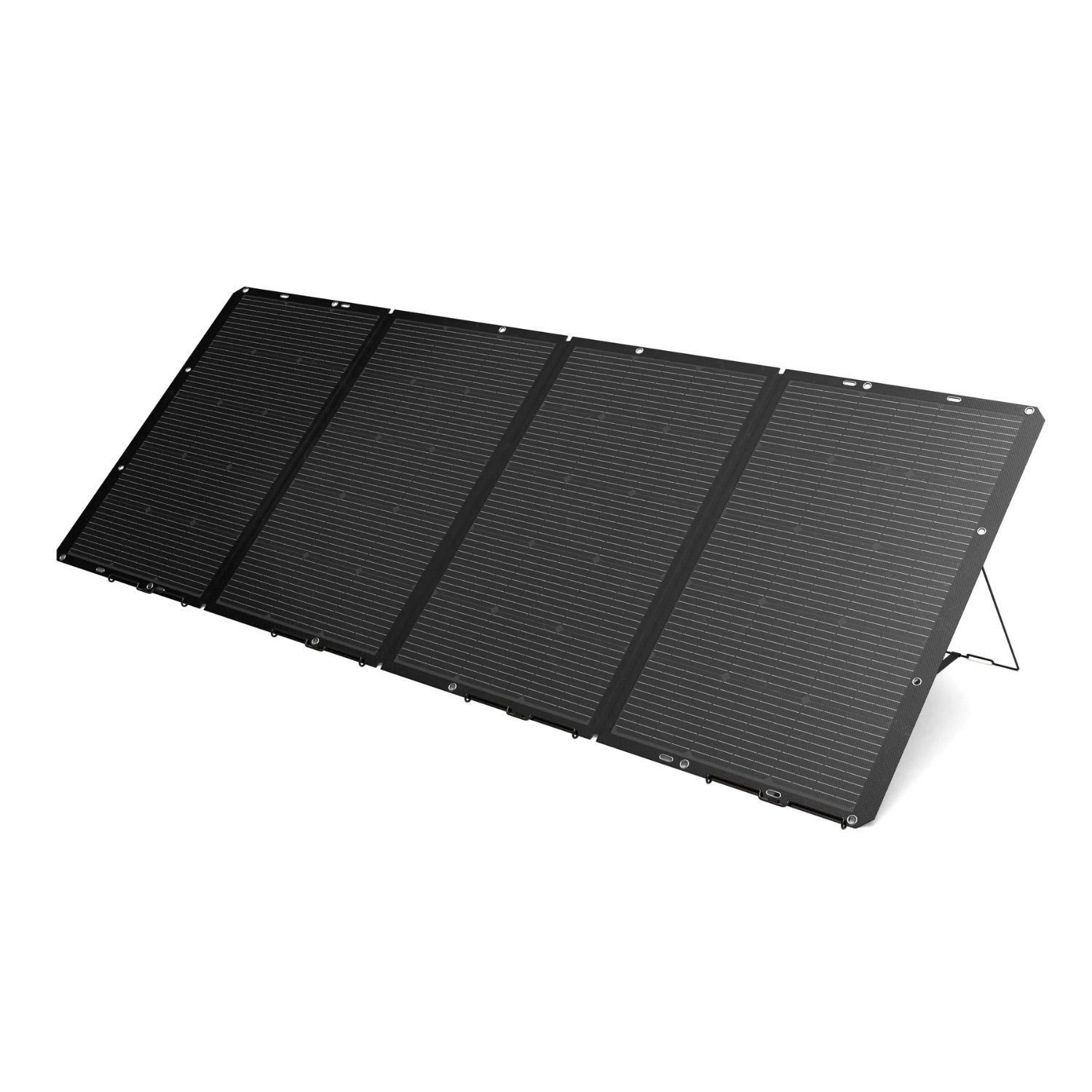

The Mango Power 400W Ultra-Light Portable Solar Panel, model S400, is a four-section folding panel rated at 400W maximum power. It uses monocrystalline silicon cells with a 23% conversion efficiency and an MC4 output. Unfolded it measures 2365 x 1058mm (93.11 x 41.65in), it folds to 1058 x 620 x 42mm (41.65 x 24.41 x 1.65in), and its net weight is 10kg (22.05lbs).
It is built for Mango Power E owners who want 400W of solar from each panel they set out, and for anyone who charges at camp, at an RV site or in the backyard during an outage. Mango gives it an IP67 waterproof rating and lists drop, bend, impact and heavy-pressure testing.
Mango Power 400W Ultra-Light Portable Solar Panel Features
400W Rating With 23% Conversion Efficiency
Mango rates the panel at 400W maximum power from monocrystalline silicon cells with 23% conversion efficiency. At its maximum power point it delivers 41.5V at 9.6A. The open-circuit voltage is 49V and the short-circuit current is 11A.
Carbon Fiber Materials for Durability
Mango builds carbon fiber materials into its solar panels for durability and flexibility. It says this panel resists bending, impact and drops, and it lists drop, bend, impact and heavy-pressure tests for the design.
IP67 Rating and a Wide Temperature Range
Mango gives the panel an IP67 waterproof rating and says it works stably from -20°C to 60°C (-4°F to 140°F).
Folds Into Four for Transport

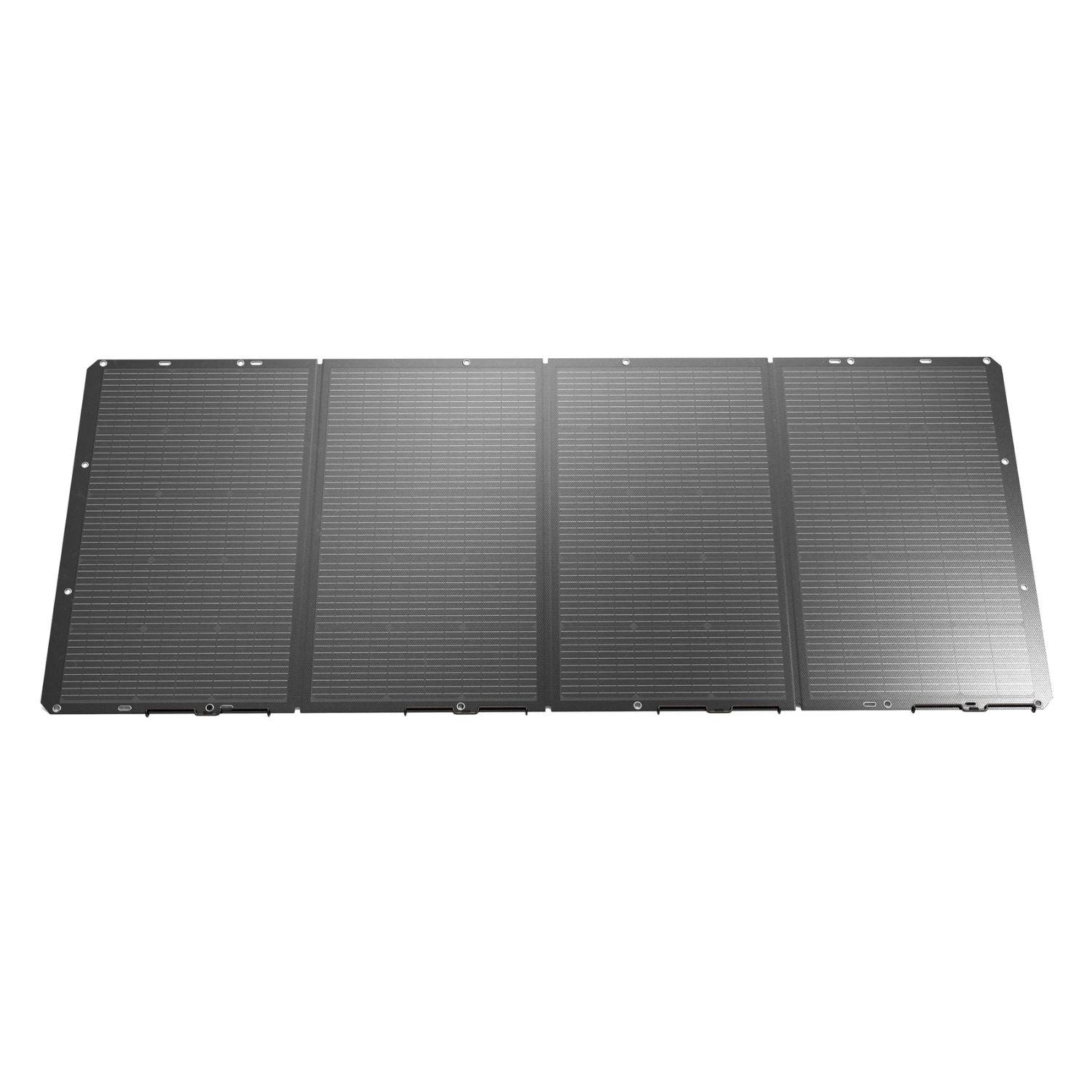

The panel has four cell sections that fold together. Folded, it is 1058 x 620 x 42mm (41.65 x 24.41 x 1.65in), so a 400W panel travels as one flat package.

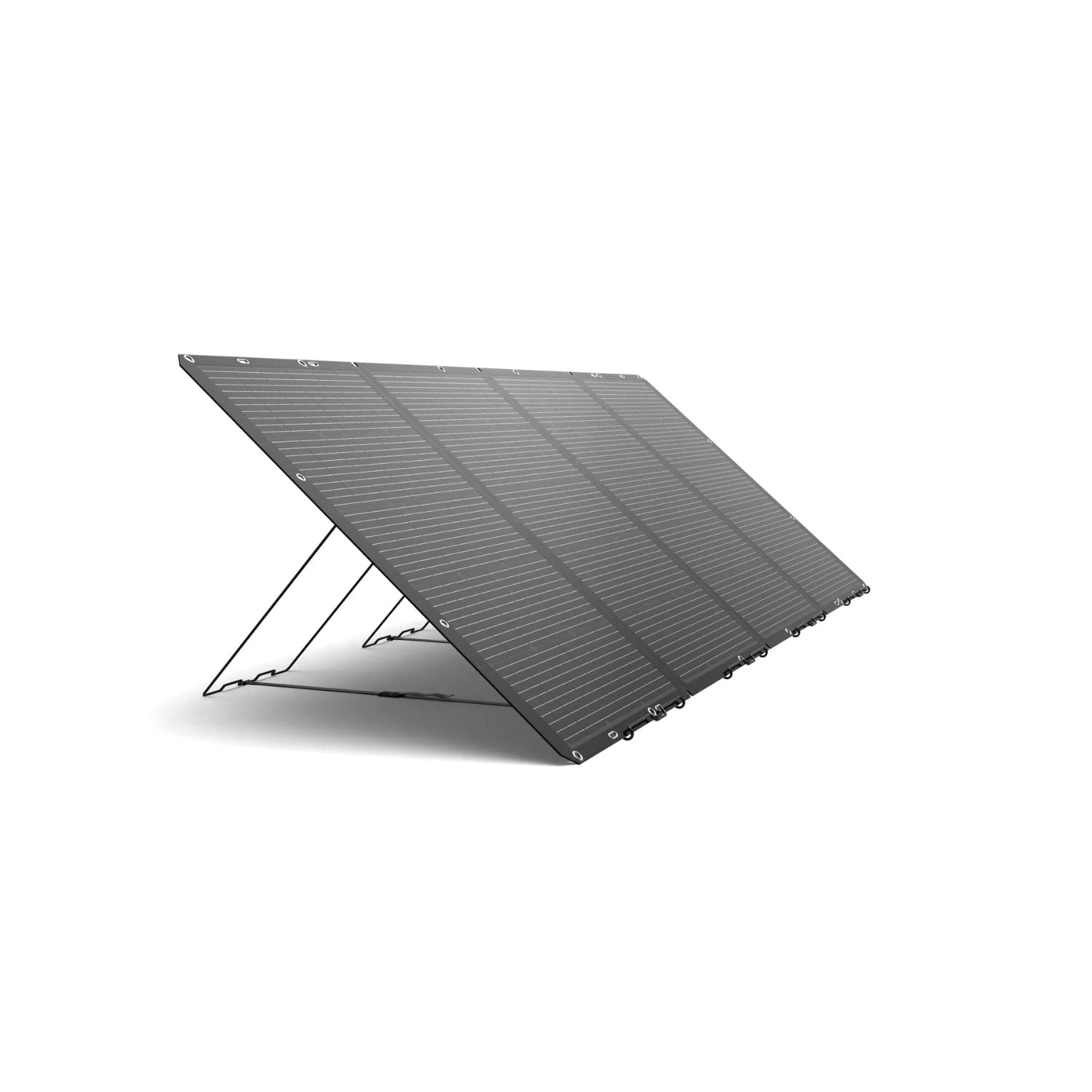

Three Fold-Out Stands

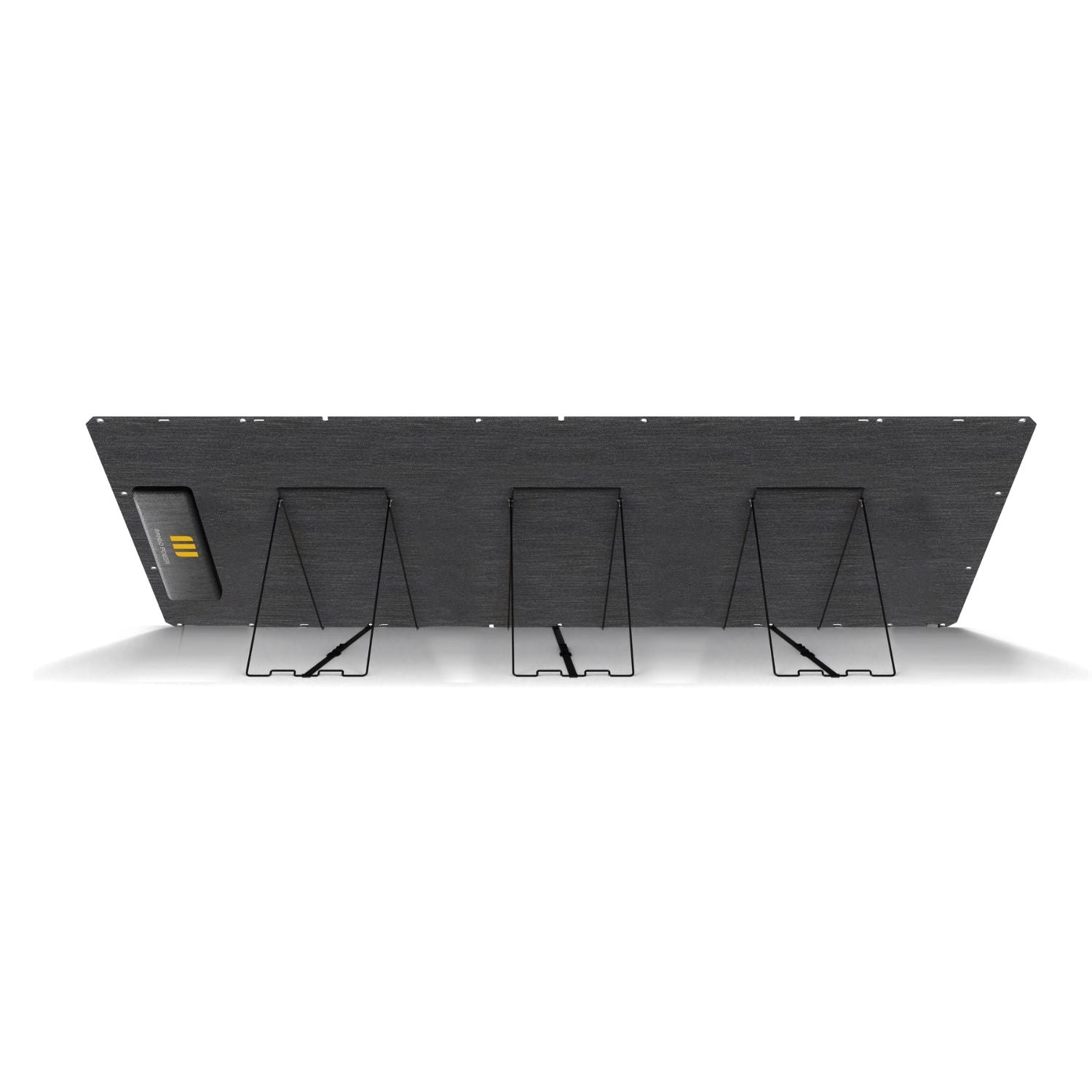

Three wire stands fold out from the back of the panel to hold it up at an angle. You set it facing the sun, and fold the stands flat again when you pack up.
MC4 Output for Series Wiring

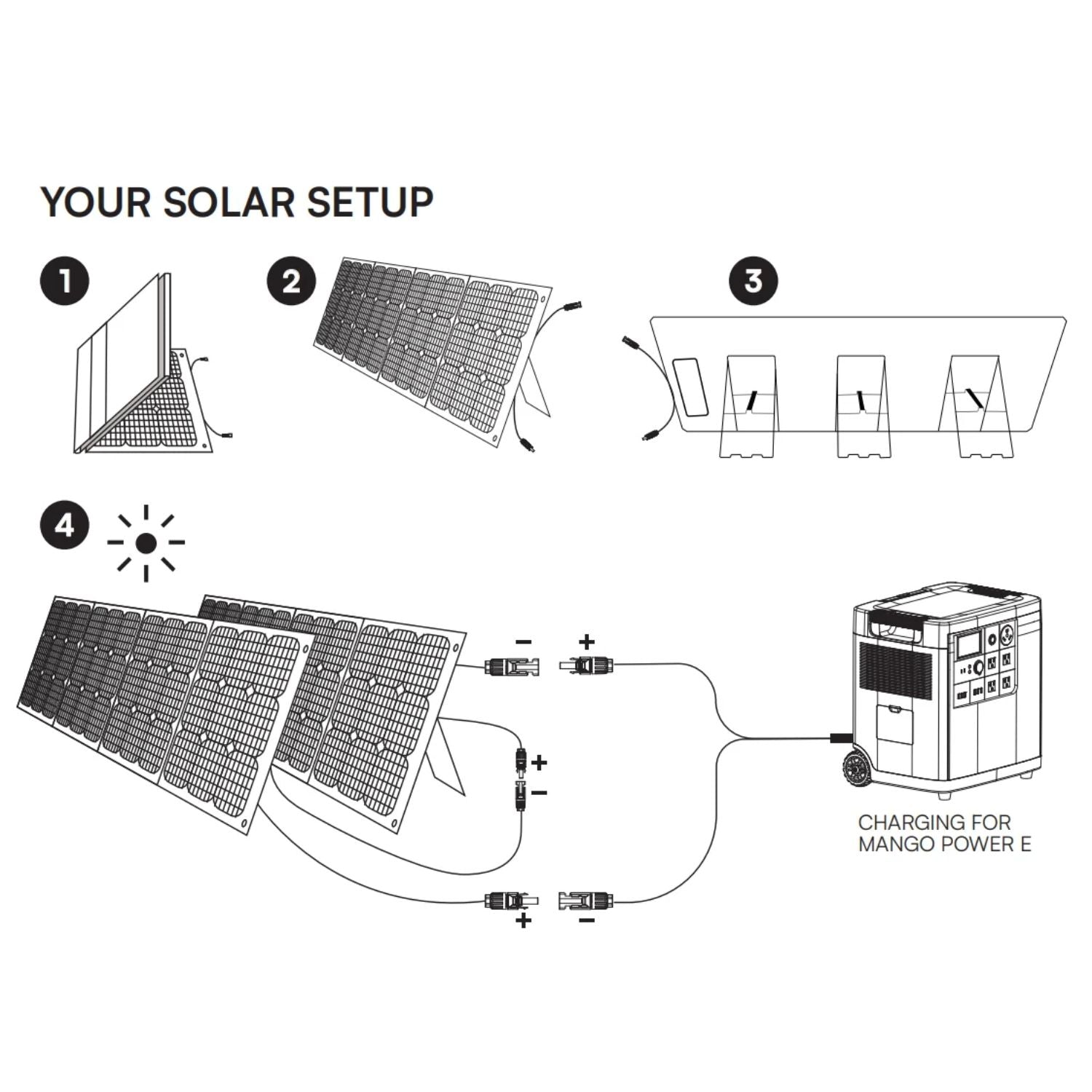

The output interface is MC4. With MC4 leads you can wire two panels in series and run them to the solar input on a Mango Power E.
Real-World Applications
Home Backup. Set two panels out in series during an outage and keep a Mango Power E charging through the daylight hours.
Off-Grid Camping. Fold the panels into flat packages for the drive, then stand them up at camp. The IP67 rating suits damp mornings and changing weather.
RV Travel. Unfold the panels next to the RV and run the MC4 leads to your power station instead of running a generator.
Practical Comparison
400W Ultra-Light Panel Versus a Rigid Roof Panel
A rigid roof panel stays where it is mounted. The 400W Ultra-Light Panel folds into four, sets up on its own stands, and comes back inside after use, so your solar goes where you go.
400W Ultra-Light Panel Versus Smaller Portable Panels
Each 400W panel carries the rated output of two 200W panels, so you set out and connect fewer panels for the same rated wattage. The tradeoff is a larger single panel with a net weight of 10kg (22.05lbs).
400W Ultra-Light Panel Versus a Gas Generator
A gas generator runs on fuel you have to store and refill. This panel charges your power station from sunlight with no fuel to buy, though output depends on sun, panel angle and weather.
Buyer Guidance
Connecting to a Mango Power E
The Mango Power E accepts solar input from 60V to 150V, up to 2,000W. Mango asks you to connect a minimum of two solar panels in series. The E manual says to keep the panels' output voltage within 150V to avoid damaging the station. Each panel's open-circuit voltage is 49V, so two in series stay well inside that limit. Before you add more panels, check the connection method in the Mango Power E user manual.
Using It With Another Power Station
Compare your power station's solar input voltage range with this panel's 49V open-circuit voltage and 41.5V voltage at maximum power before you connect it. Our team can check the numbers with you.
This May Be A Good Fit If
- You own a Mango Power E and want portable solar input
- You want 400W from each panel you set out
- You need an IP67 rated panel for outdoor use
- You want a panel that folds into one flat package
Common Questions
Is the 400W Ultra-Light Panel Waterproof?
Mango gives the panel an IP67 waterproof rating and says it works stably from -20°C to 60°C (-4°F to 140°F).
How Many Panels Do I Need for a Mango Power E?
Mango asks for a minimum of two solar panels in series on the Mango Power E and says to keep the array's output voltage within 150V. The E's solar input range is 60V to 150V, up to 2,000W.
What Are the Panel's Electrical Ratings?
Mango lists 400W maximum power, 49V open-circuit voltage, 11A short-circuit current, 41.5V maximum load voltage and 9.6A maximum load current.
What Warranty Comes With the Panel?
Mango covers the 400W solar panel with an 18-month warranty.
What's Included
- 1 x Mango Power 400W Ultra-Light Portable Solar Panel

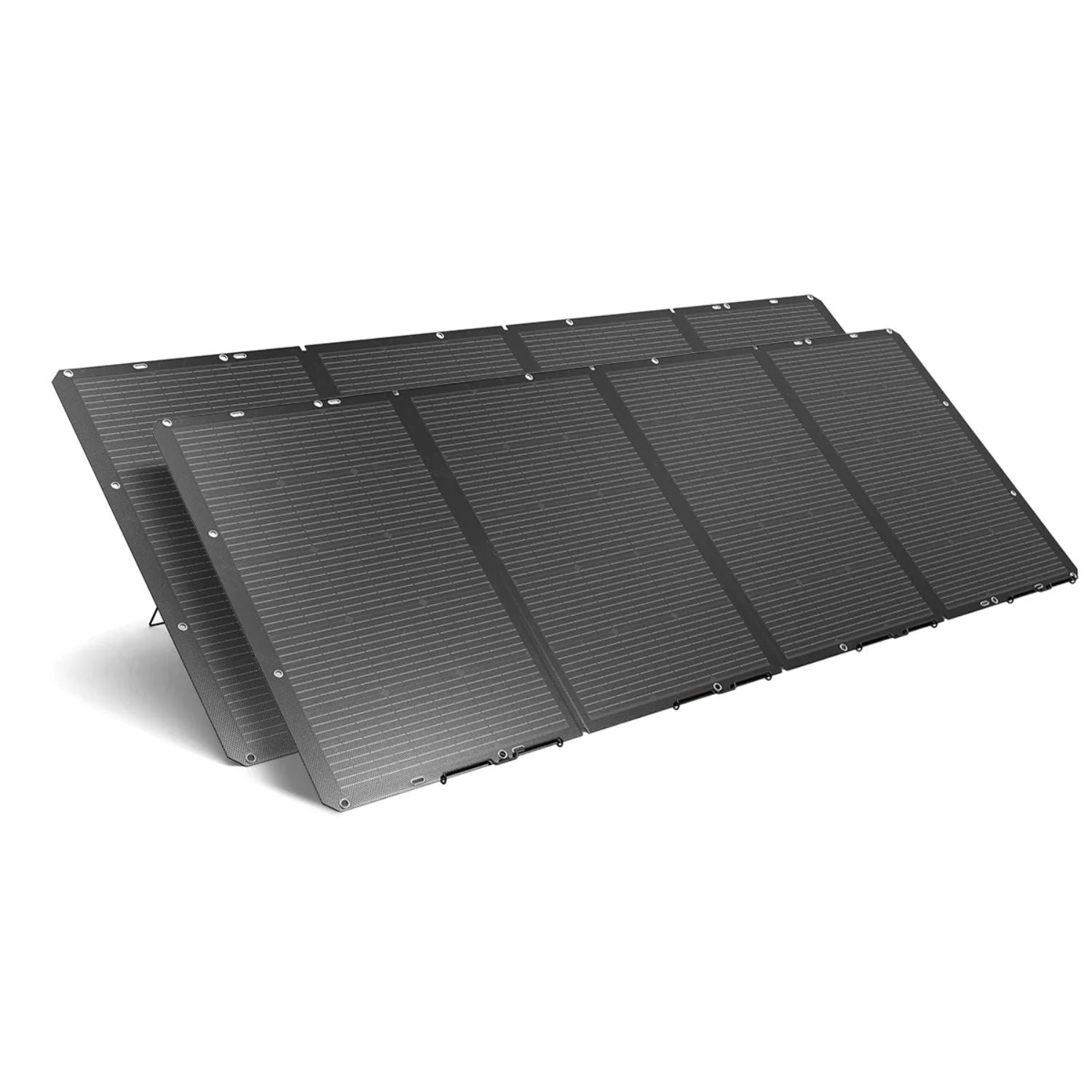

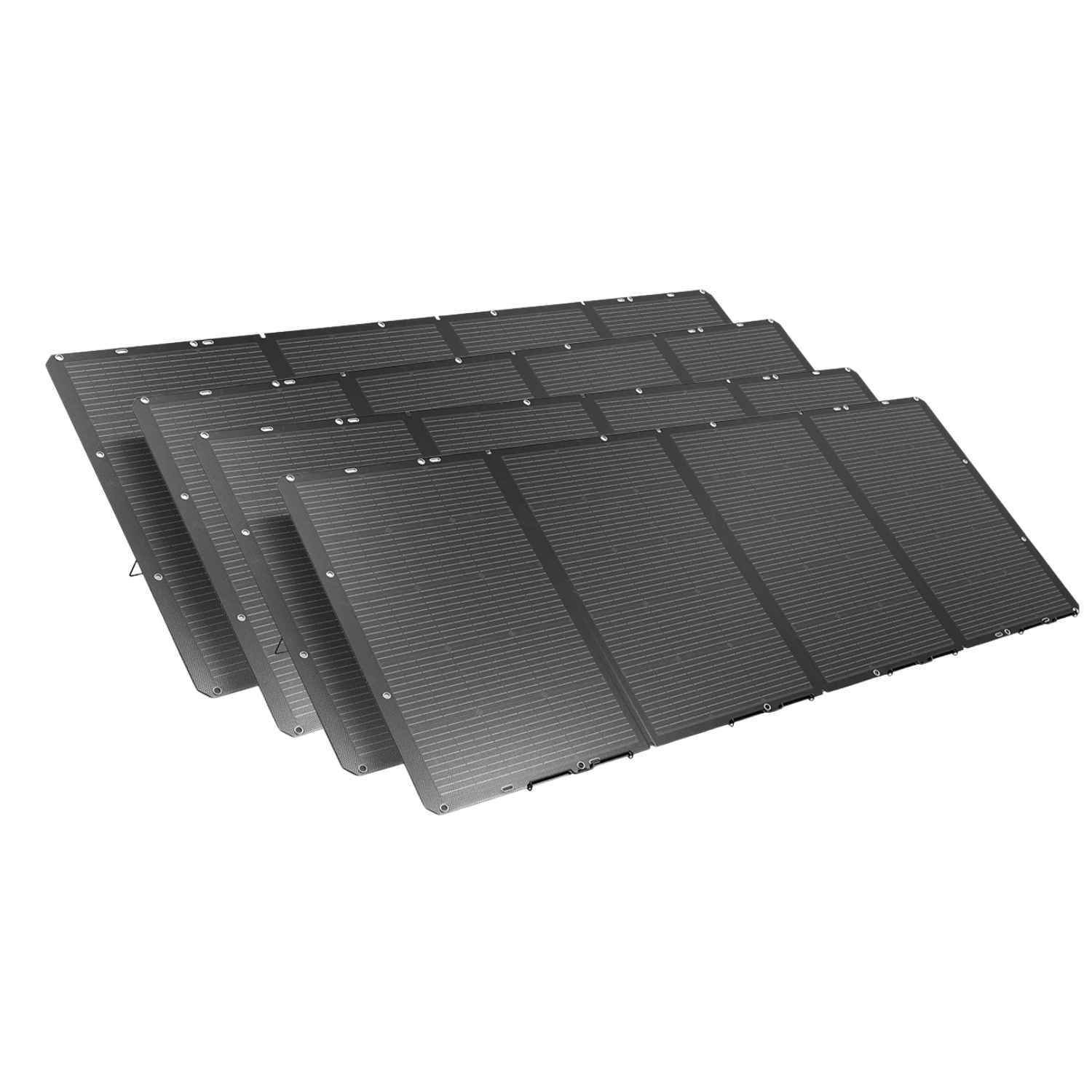

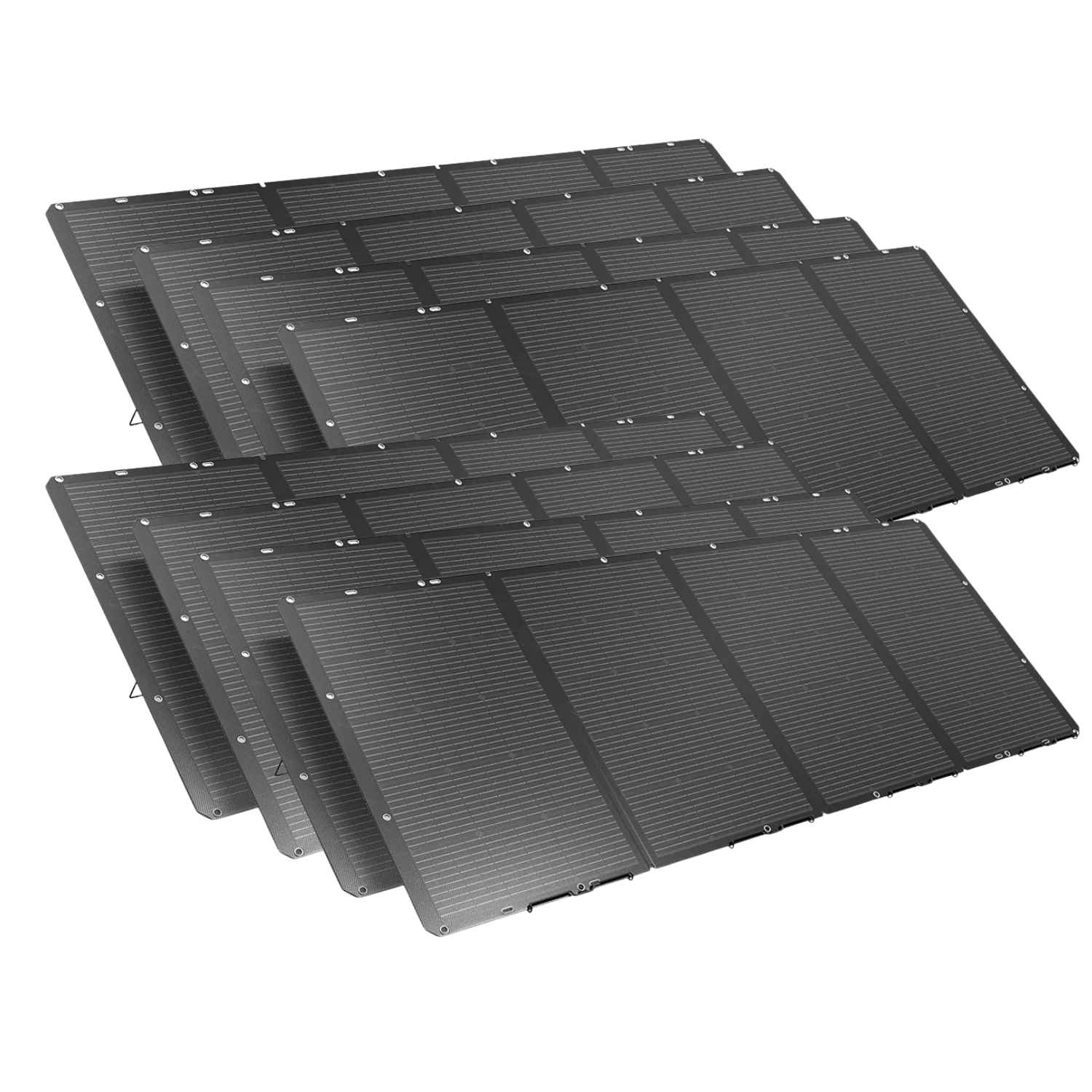

The 2-, 4- and 8-panel options include two, four and eight panels.
400W of Solar That Folds Away
The Mango Power 400W Ultra-Light Portable Solar Panel puts 400W of monocrystalline solar into one folding panel with an IP67 rating and MC4 output. Pair two in series for a Mango Power E, then fold them away when the job is done. If you have questions about panel counts or wiring, the Outbound Power team is happy to help.
Mango Power 400W Ultra-Light Portable Solar Panel Specifications
|
| Electrical |
| Model |
S400 |
| Max Power (Pmax) |
400W |
| Open-Circuit Voltage (Voc) |
49V |
| Short-Circuit Current (Isc) |
11A |
| Max Load Voltage (Vmp) |
41.5V |
| Max Load Current (Imp) |
9.6A |
| Conversion Efficiency |
23% |
| Cell Type |
Monocrystalline silicon cell |
| Physical |
| Unfolded Size |
2365 x 1058mm (93.11 x 41.65in), ±5% |
| Folded Size |
1058 x 620 x 42mm (41.65 x 24.41 x 1.65in), ±5% |
| Net Weight |
10kg (22.05lbs), ±5% |
| Folding Sections |
4 |
| Stands |
3 fold-out wire stands |
| Output Interface |
MC4 |
| Water Rating |
IP67 |
| Operating Temperature |
-20°C to 60°C (-4°F to 140°F) |
| Materials |
Carbon fiber materials |
| Testing |
Drop, bend, impact and heavy-pressure tests |
| Compatibility |
| Mango Power E Solar Input |
60-150V, 2,000W max |
| Series Connection for Mango Power E |
Minimum 2 panels in series; keep array output within 150V |
| Warranty |
| Warranty |
18 months |
Mango Power 400W Ultra-Light Portable Solar Panel Data Sheet
