The Renogy Starter Kit N-Type 100W 12V Solar Kit Is a Simple, Complete First Step Into Solar
The Renogy Starter Kit N-Type 100W 12V Solar Kit includes everything except the battery to start charging a 12V battery from the sun. It pairs a Renogy 16BB N-type 100W solar panel with a Wanderer Li 30A PWM charge controller, a 20-foot solar adaptor kit, an 8-foot battery tray cable and Z-bracket mounts. Setup is straightforward, which makes the kit a natural choice for first-time solar users.

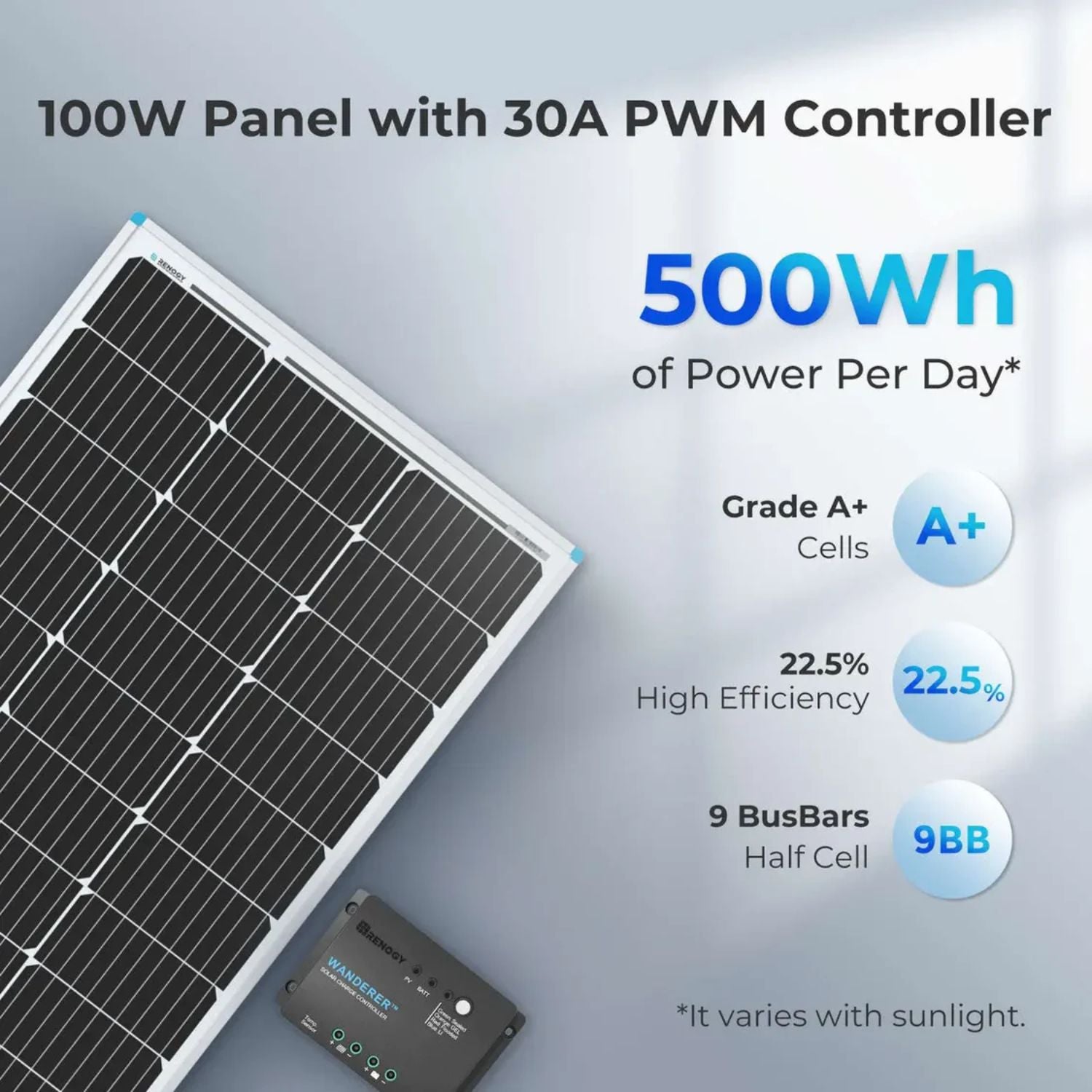

In good sun the 100W panel can produce roughly 300 to 500 watt-hours per day, enough to keep an RV, boat or trailer battery topped up, run LED lights and a fan in a shed, or charge phones and small devices off-grid. The 30A controller has room to grow, so you can add more panels later up to 400W at 12V.
Renogy 100W N-Type Starter Kit Features
16BB N-Type Solar Panel
The 100W panel uses N-type cells with 16 busbars for high efficiency and better performance in heat and low light. It measures 34.1 x 22.8 x 1.2 inches and weighs 13 lbs.
Wanderer Li 30A PWM Controller
The Wanderer Li regulates charging for 12V batteries, including lithium, and protects the system against common faults. Its 30A rating supports up to 400W of panels at 12V.
Wiring Included
A 20-foot 10 AWG adaptor kit runs from the panel to the controller, and an 8-foot 10 AWG tray cable connects the controller to the battery.
Mounting Hardware
Z brackets secure the panel to an RV roof, shed or flat surface.
Expandable
Start with 100W and add up to three more matching panels later without replacing the controller.
Real-World Applications
RV and camper battery charging. Keep house batteries topped up while parked or in storage.
Boats. Maintain starting and house batteries at the dock or mooring.
Sheds and cabins. Run LED lights, a fan or a radio with a small battery.
Gates, pumps and fences. Power small remote loads away from the grid.
How It Compares to Common Alternatives

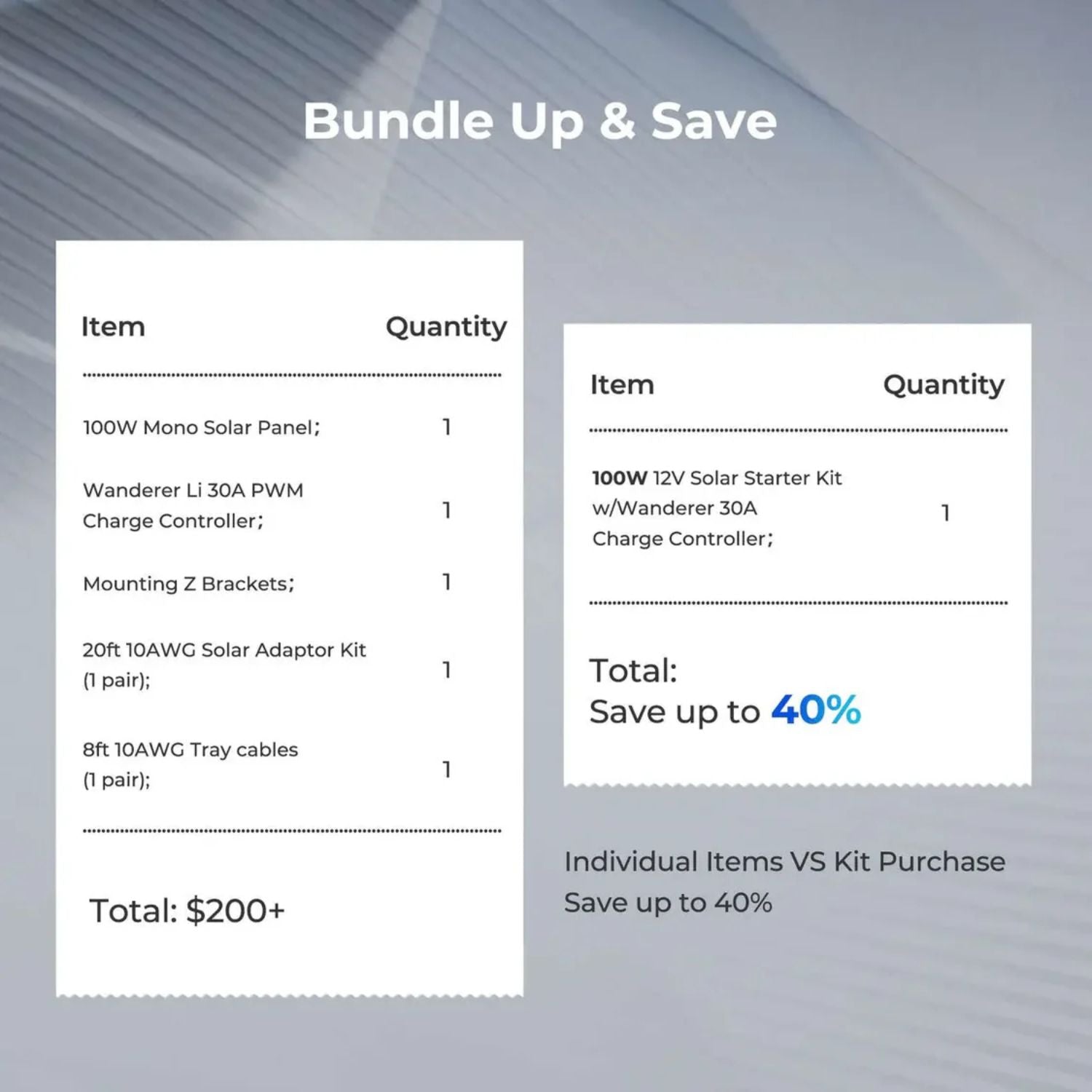

Versus buying parts separately. The kit bundles a matched panel, controller, cables and mounts, so you do not have to research compatibility.
Versus MPPT kits. MPPT controllers harvest more energy, especially in cold weather or with higher-voltage panels, but cost more. PWM is a cost-effective match for a single 12V panel.
Versus the 200W starter kit. The 200W kit doubles daily energy. The 100W kit is the lowest-cost way to start and is easy to expand.
Is This Kit the Right Fit
-
Battery. You will need a 12V battery. The kit does not include one.
-
System voltage. The Wanderer is a 12V controller with a 25V maximum PV input, so add panels in parallel rather than in series.
-
Daily needs. Best for small loads and battery maintenance. Larger loads need more panels and battery capacity.
This may be a good fit if
- You are new to solar and want a complete starter kit
- You need to keep a 12V battery charged
- You want to power small loads off-grid
- You may expand your system later
Common Questions
What Else Do I Need?
A 12V deep-cycle battery. Add an inverter if you want to run AC devices.

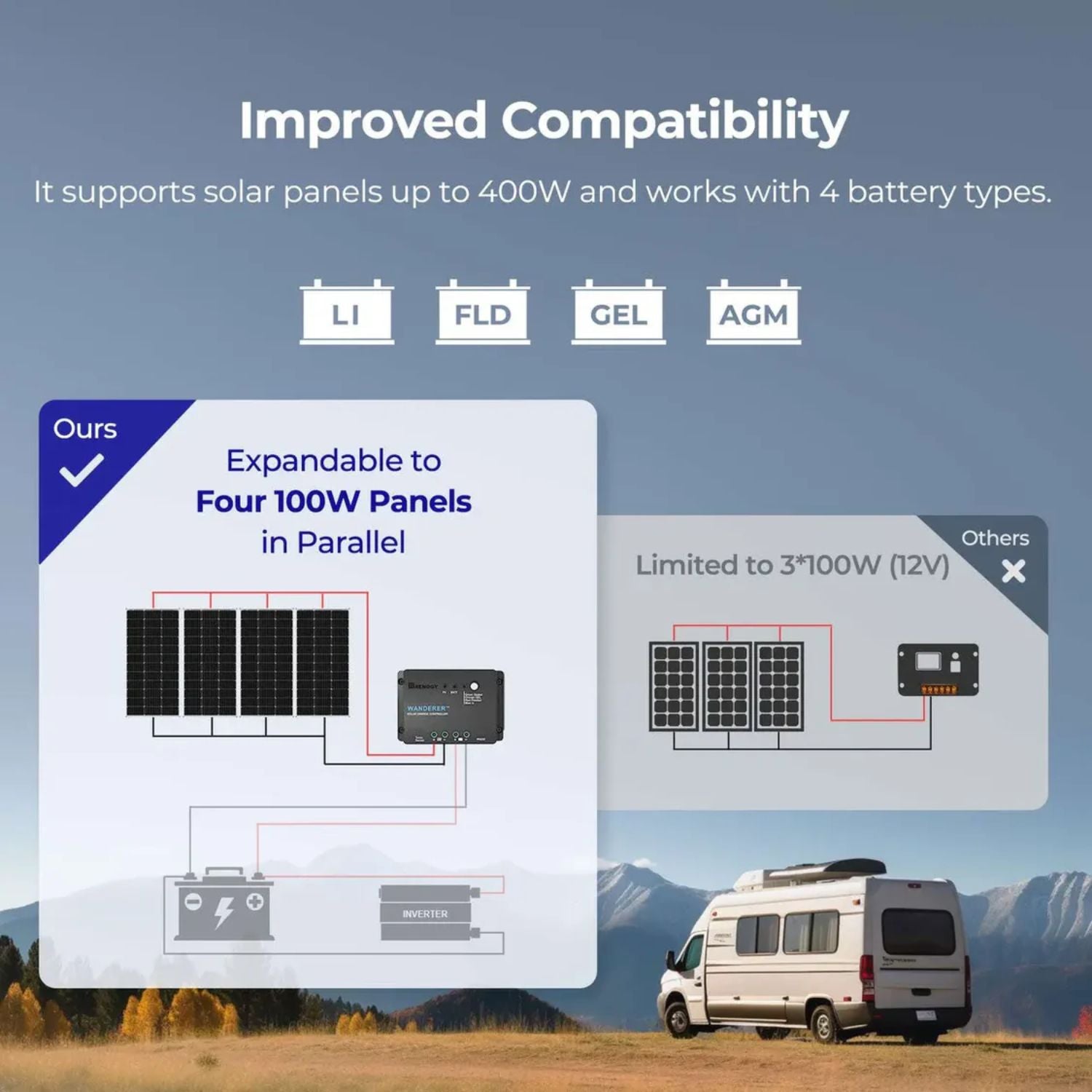

Can I Add More Panels?
Yes. The Wanderer Li 30A handles up to 400W at 12V. Wire matching panels in parallel to stay under its 25V input limit.
Why Is My Panel Producing Less Than 100W?
Indirect sunlight, heat, clouds and dirt all reduce output. Mount the panel in full sun and keep it clean.

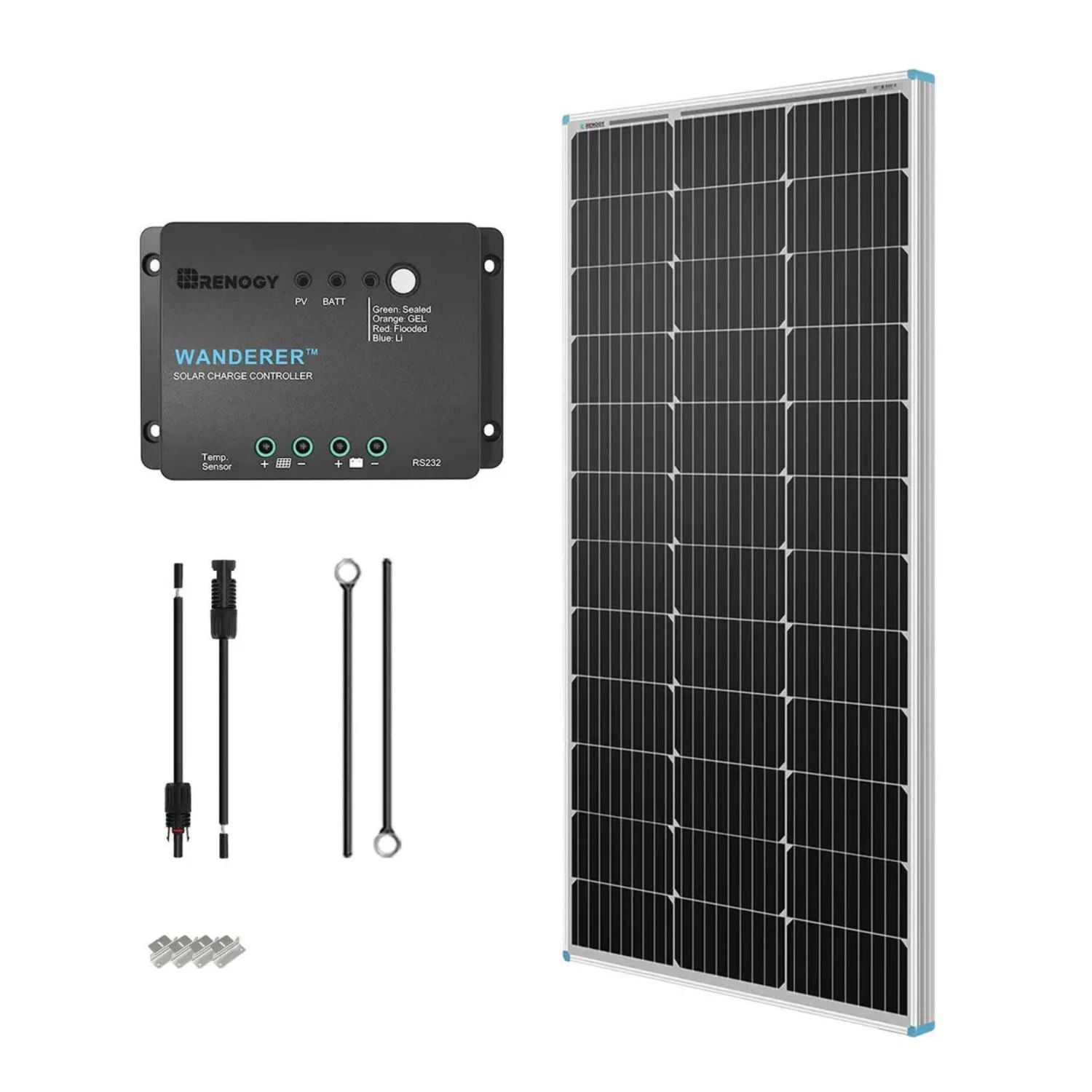

What's Included
- 1 x Renogy 16BB N-Type 100W Solar Panel (RSP100DC)
- 1 x Renogy Wanderer Li 30A PWM Charge Controller
- 1 x 20ft 10 AWG Solar Adaptor Kit
- 1 x 8ft 10 AWG Battery Tray Cable
- 1 x Set of Z Mounting Brackets
Your First Solar System, Ready to Install
The Renogy Starter Kit N-Type 100W 12V Solar Kit gives you a matched panel, controller, wiring and mounts to start charging a 12V battery from the sun. At Outbound Power, we help customers choose batteries and expansion panels for their kits. If you have questions, our team is happy to help.
Renogy Starter Kit N-Type 100W 12V Solar Kit Specifications
|
| Kit Model |
RNG-KIT-STARTER100D-WND30 |
| 16BB N-Type 100W Solar Panel |
| Max Power at STC |
100W |
| Open Circuit Voltage (Voc) |
22.79V |
| Short Circuit Current (Isc) |
5.31A |
| Optimum Operating Voltage (Vmp) |
19.97V |
| Optimum Operating Current (Imp) |
5.01A |
| Operating Temperature |
-40°F to 185°F (-40°C to 85°C) |
| Dimensions |
34.1 x 22.8 x 1.2 in (865 x 578 x 30 mm) |
| Weight |
13.0 lbs (5.9 kg) |
| Wanderer Li 30A PWM Charge Controller |
| Nominal Voltage |
12V |
| Rated Charging Current |
30A |
| Max PV Input Voltage |
25VDC |
| Max PV Input Power |
400W at 12V |
| Max Wire Size |
8 AWG |
| Operating Temperature |
-40°F to 185°F |
| Dimensions |
6.45 x 4.31 x 1.76 in |
| Weight |
0.65 lbs |
| Cables |
| Battery Tray Cable |
10 AWG, 8 ft, 600/1000V rated |
| Solar Adaptor Kit |
10 AWG, 20 ft, 600/1000V rated |
| Cable Operating Temperature |
-40°F to 185°F |
