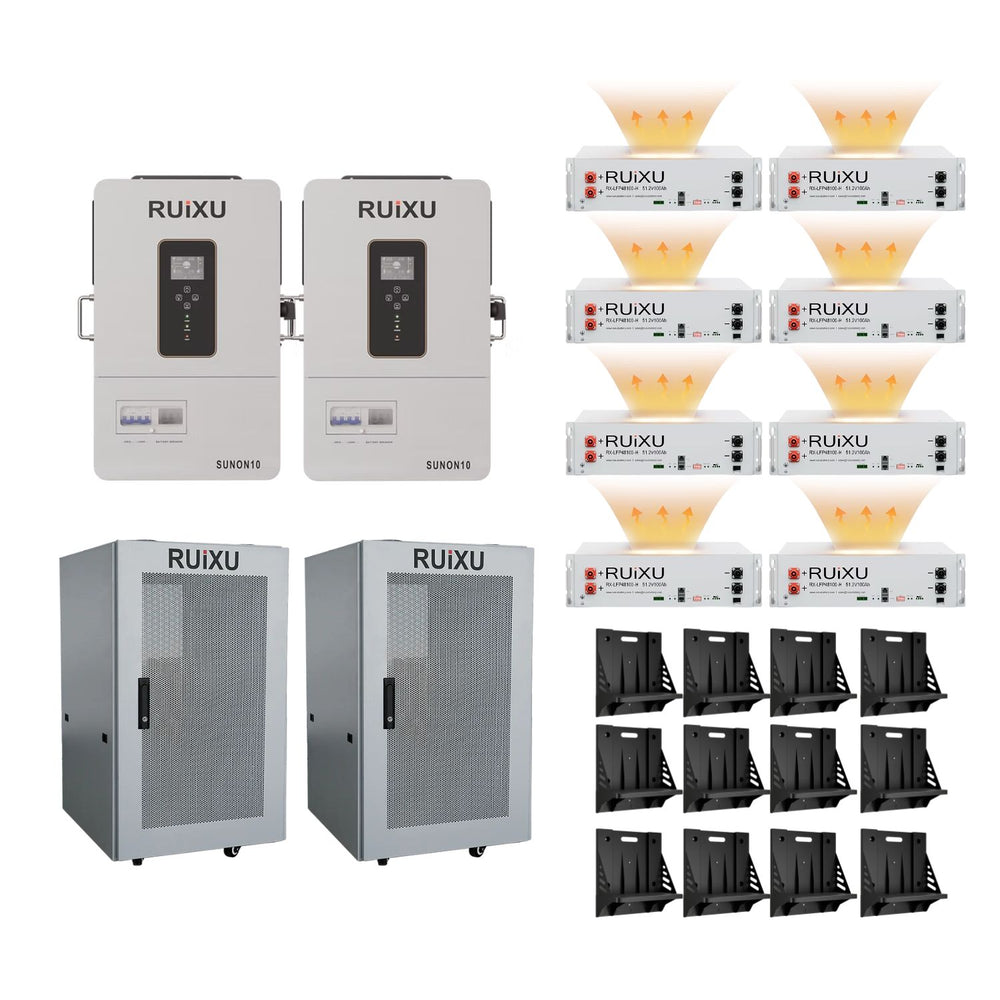

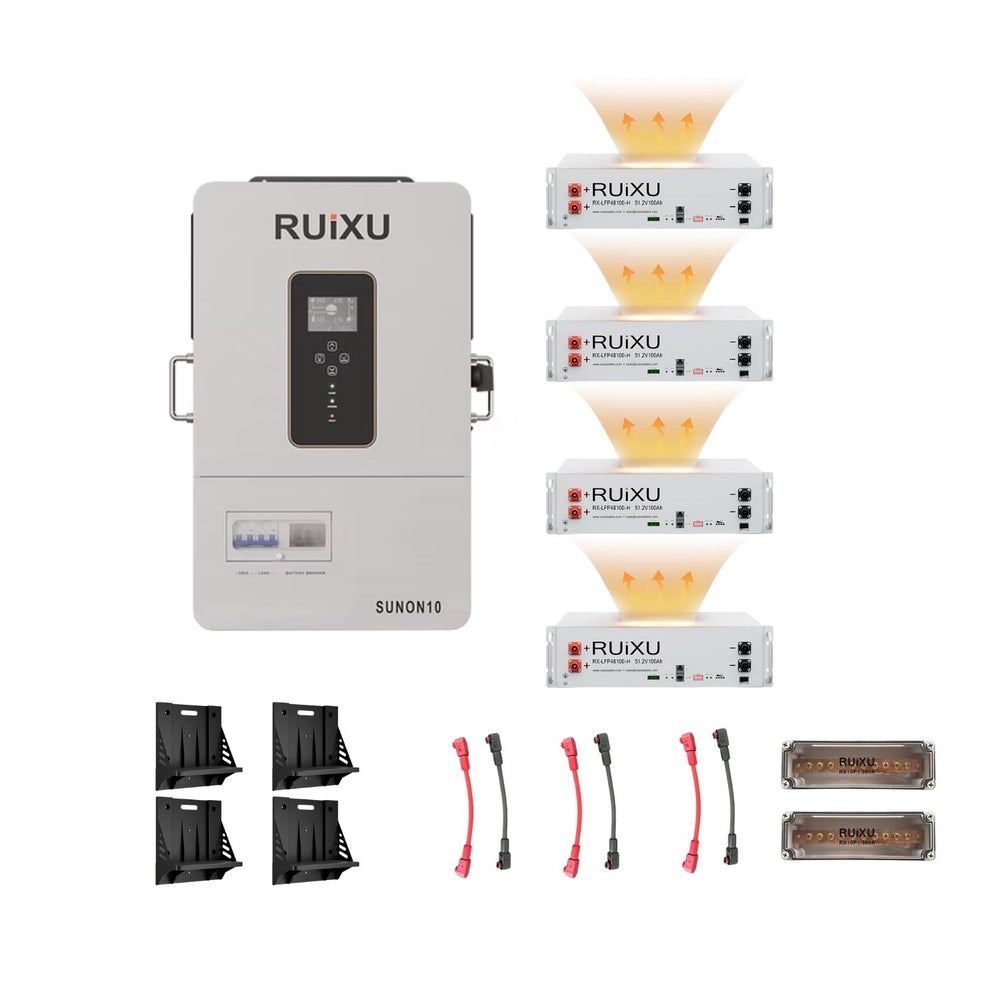

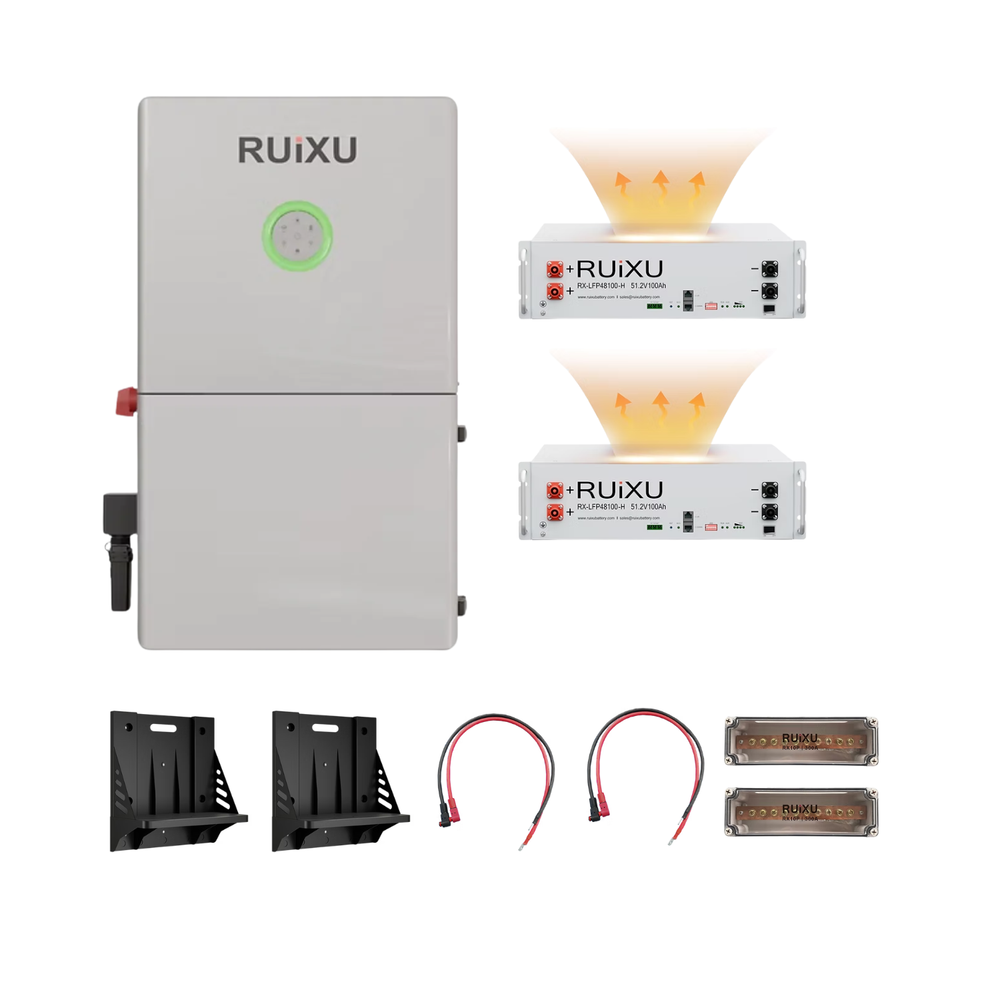

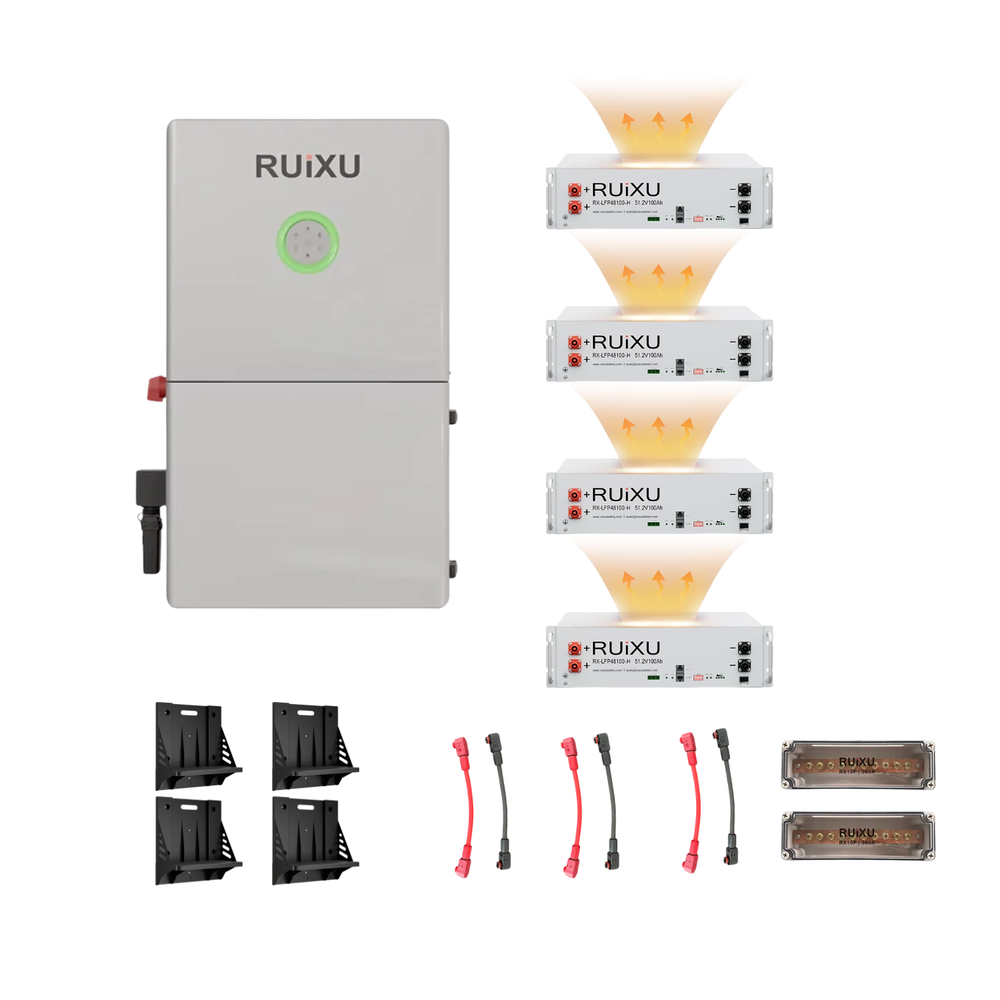

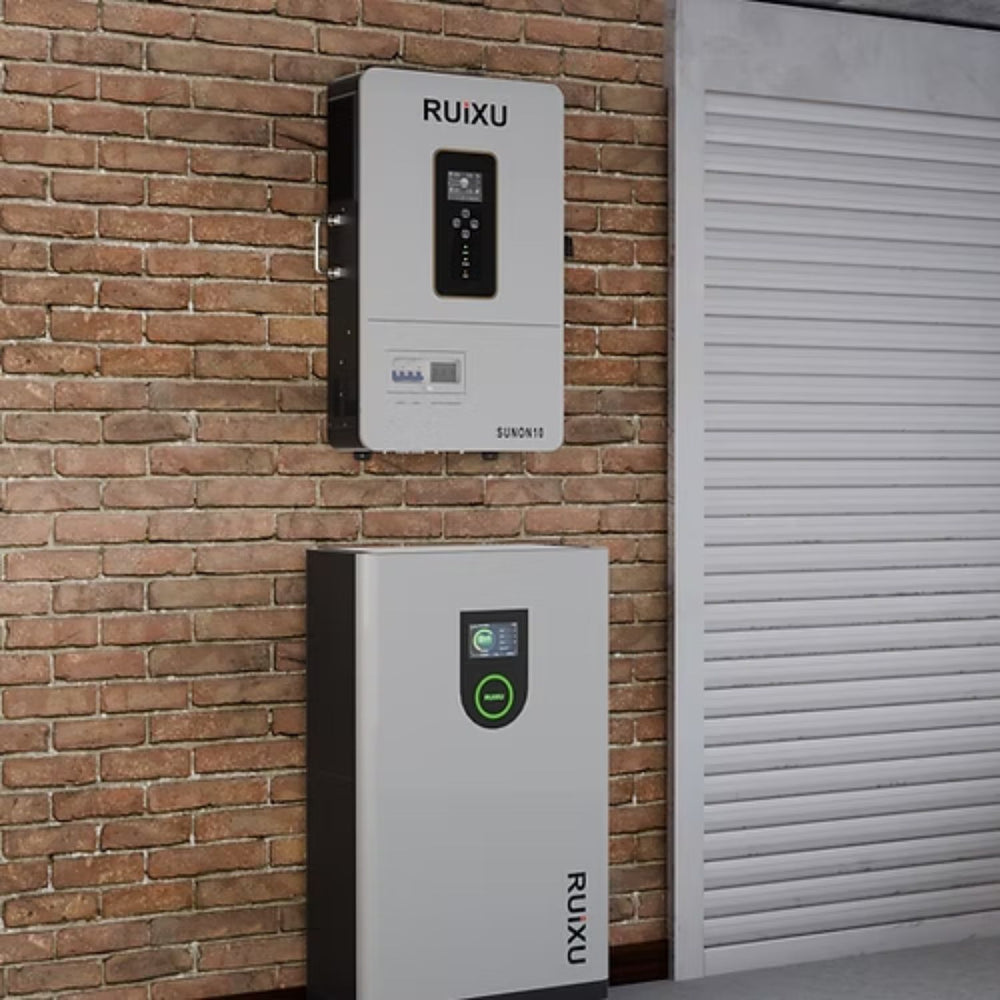

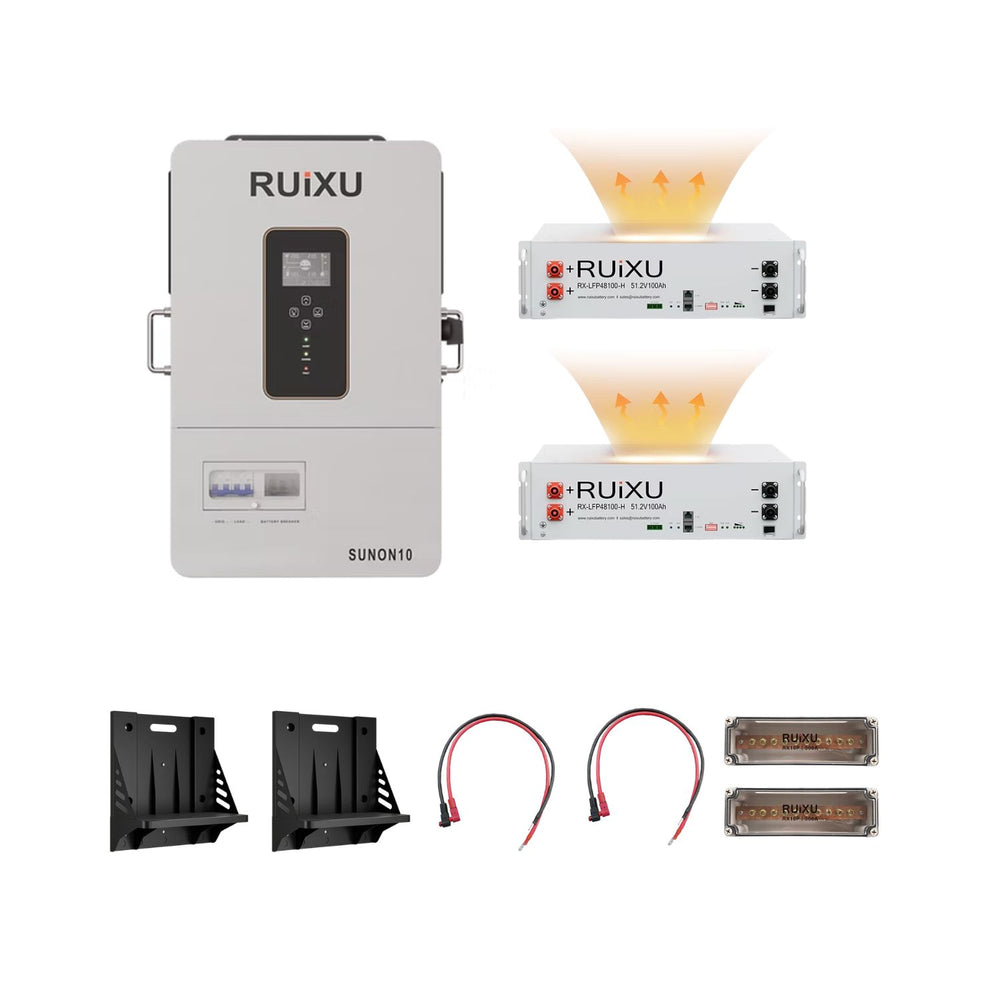

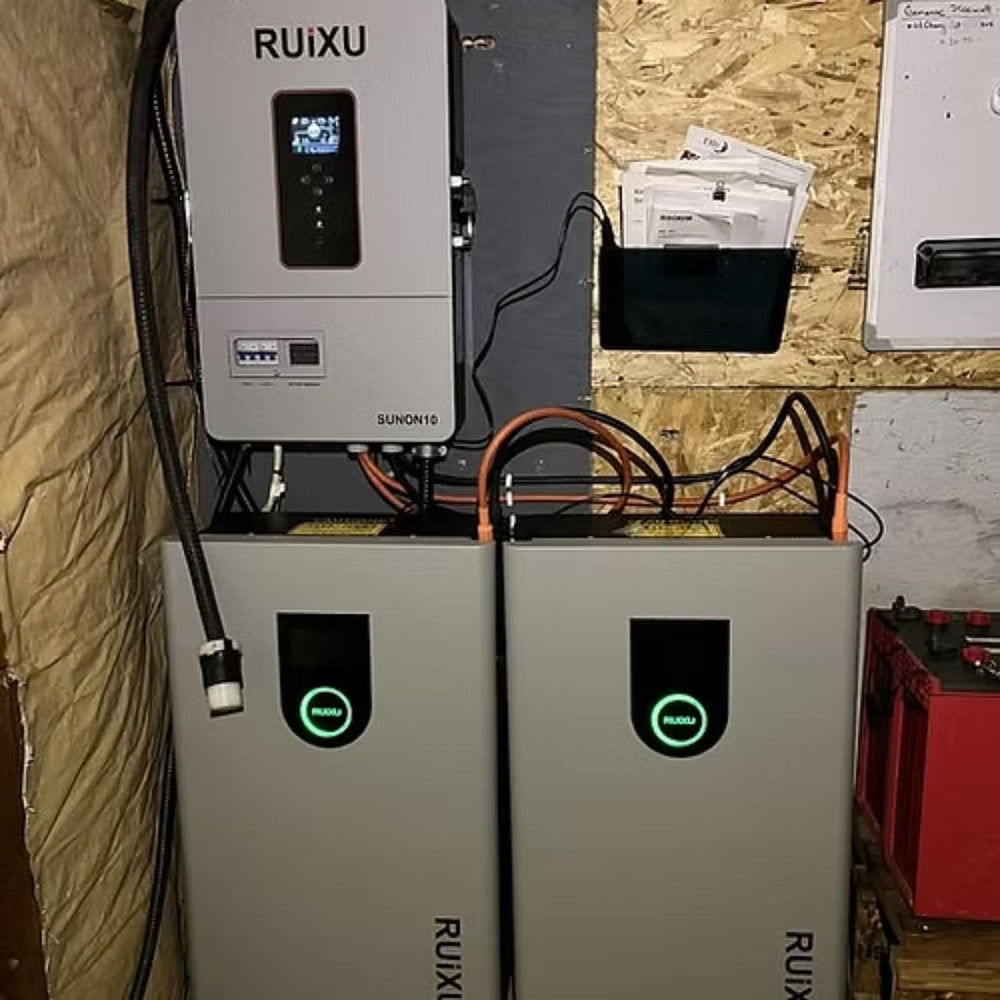

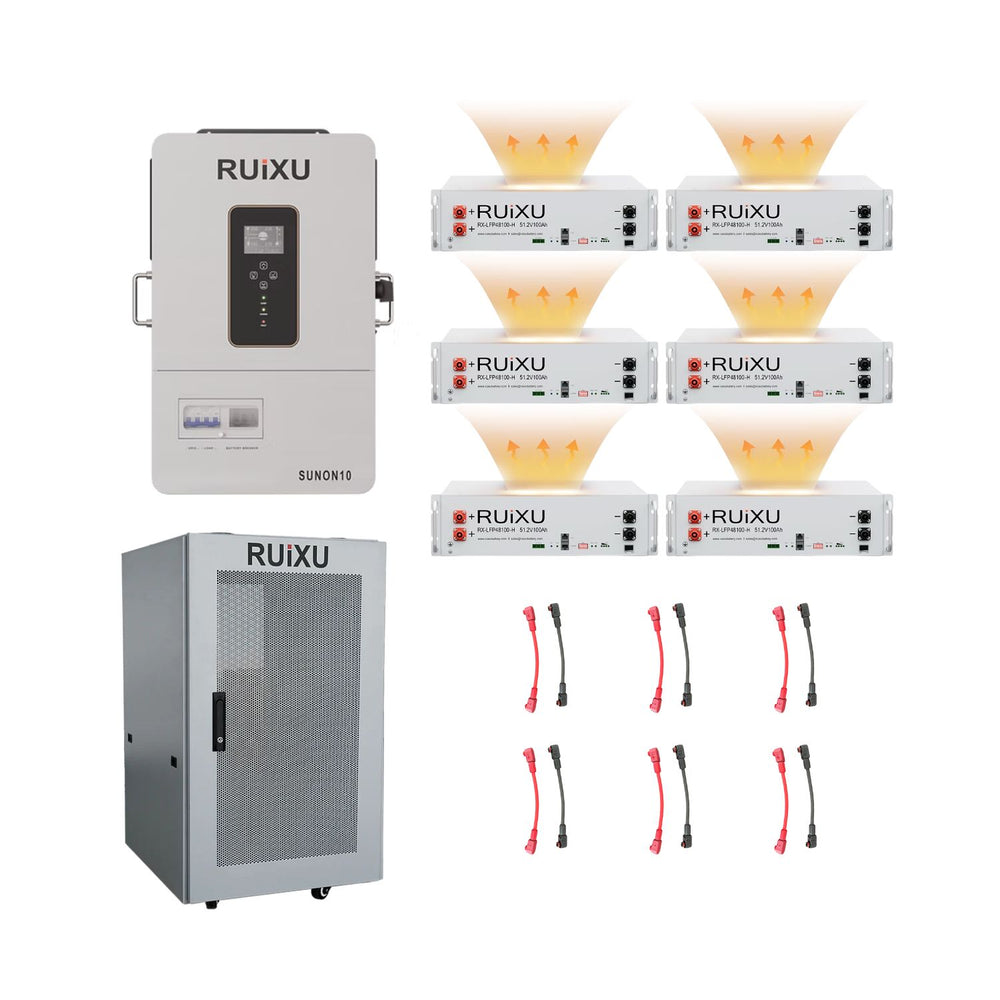

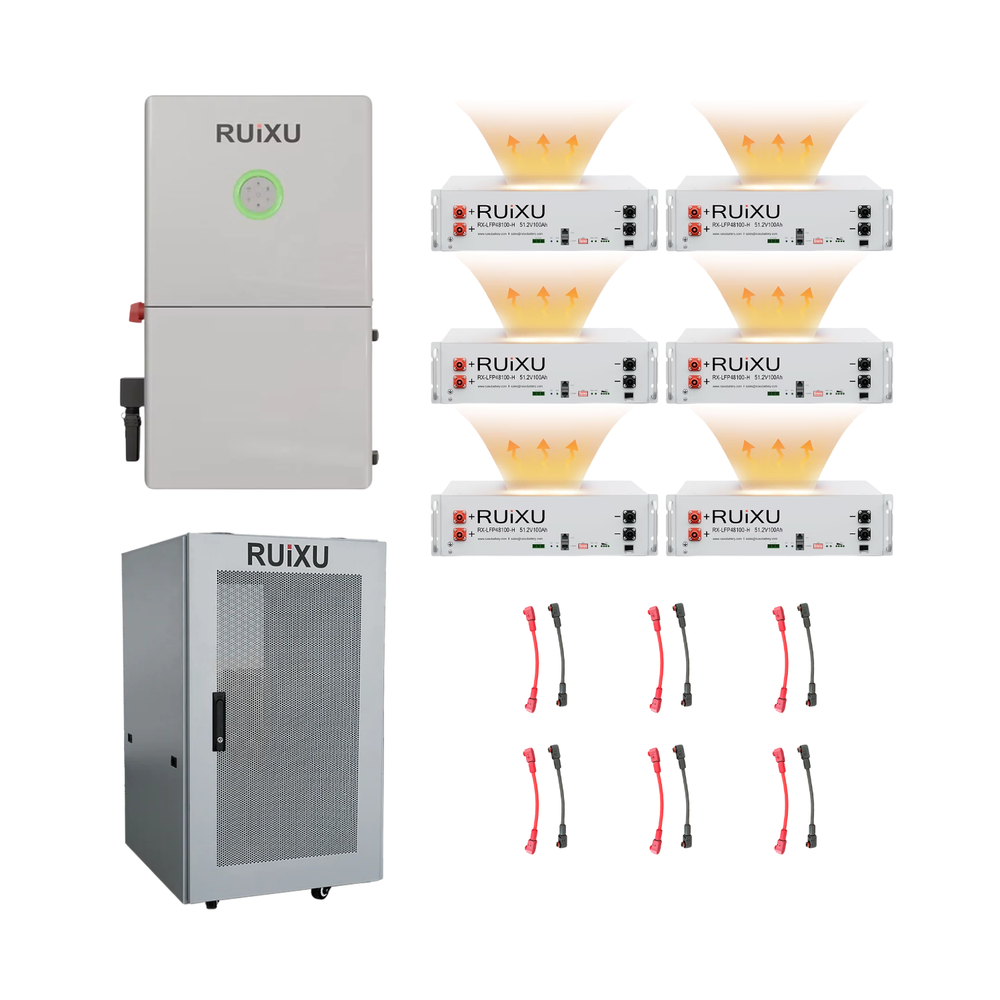

Build a powerful, scalable energy system with the RUiXU Home & Commercial Battery Storage Kits. Choose from pre-configured bundles ranging from 10kWh to 61kWh of dependable LiFePO₄ storage. Each kit includes premium RUiXU batteries, racks or cabinets, all required cables, and the RUiXU RX-12K hybrid inverter for reliable split-phase power.
Whether you're powering a home, expanding an off-grid cabin, or outfitting a commercial site, these turnkey systems deliver dependable, high-efficiency energy storage designed for solar integration, backup power, and full off-grid independence. Built with scalable rack batteries and professional-grade components, these kits provide a clean, expandable foundation for modern energy resilience.

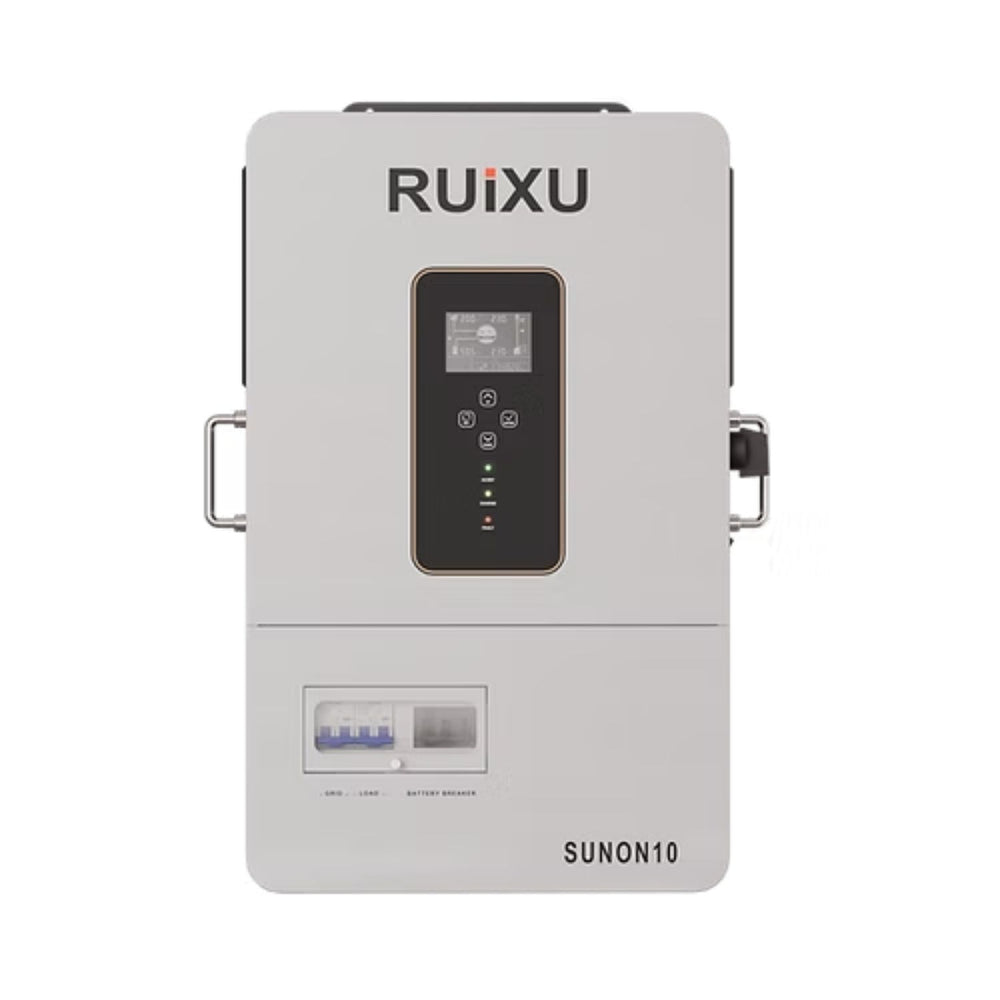

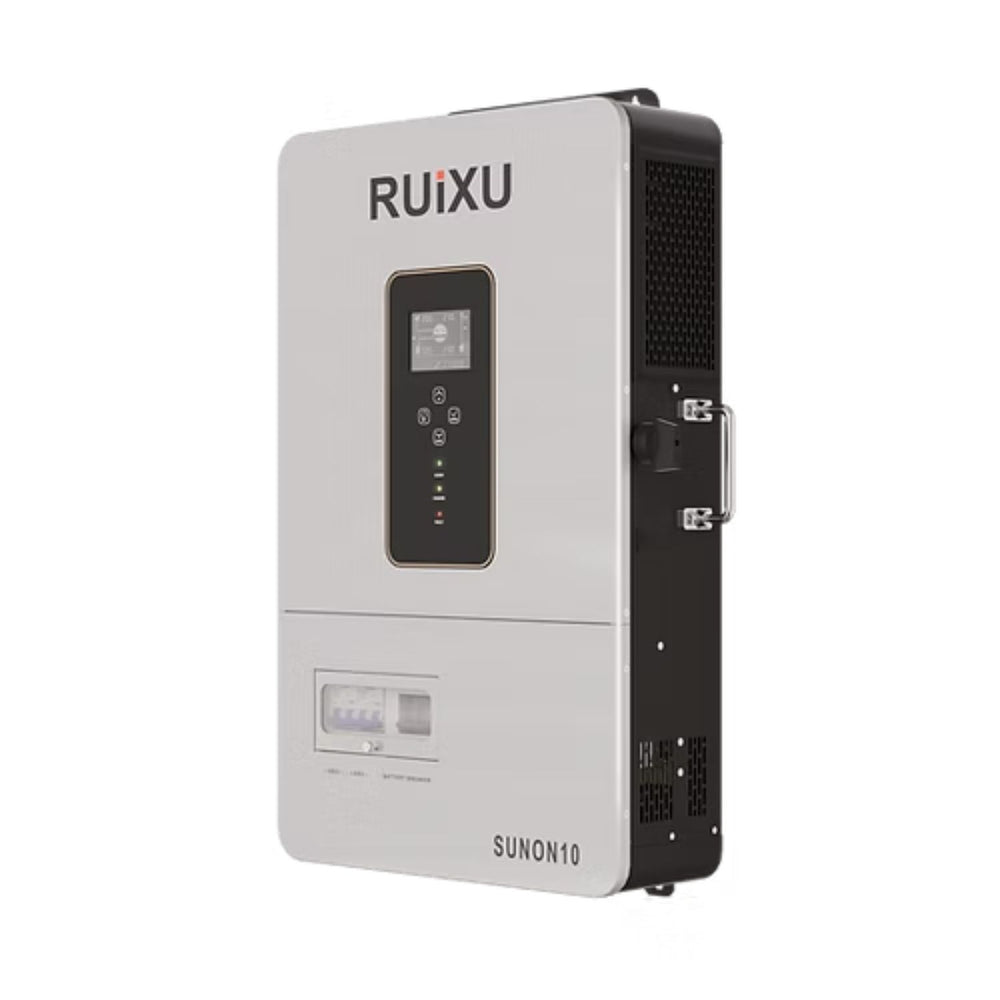

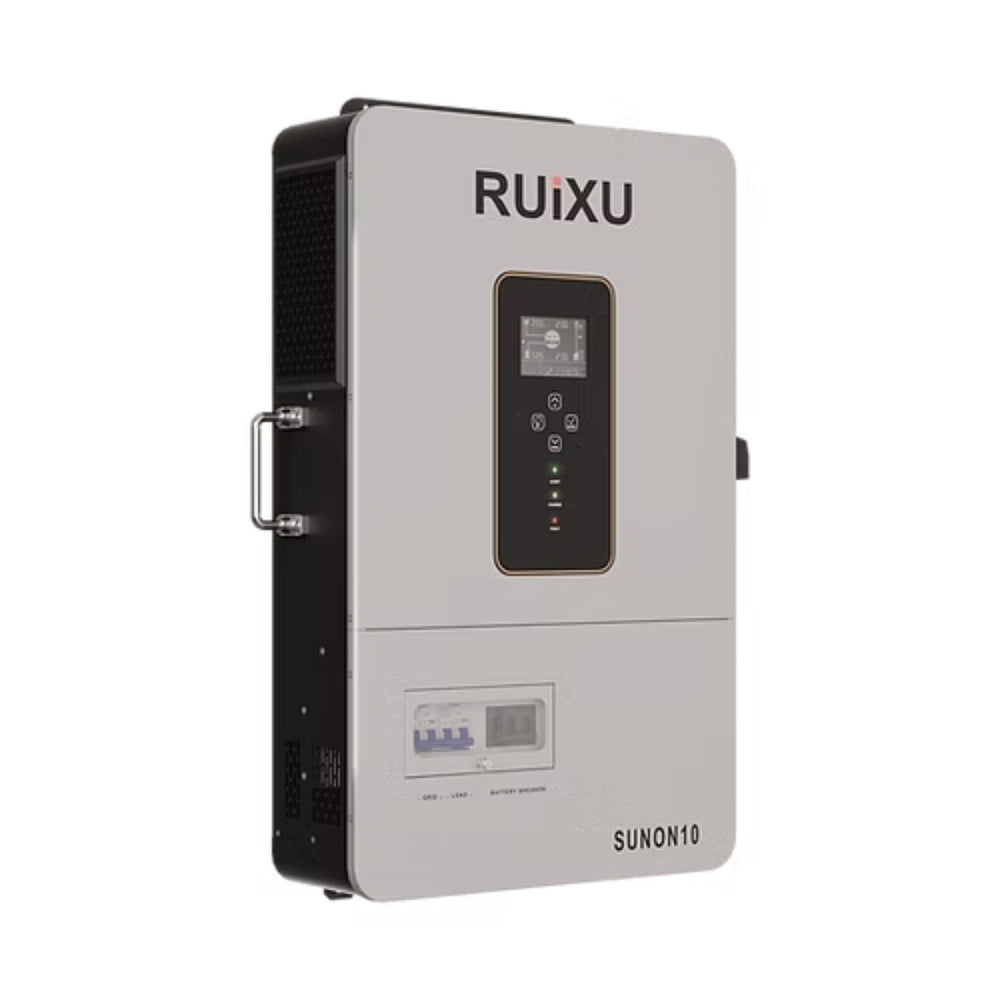

RUiXU RX-12K 11.4kW Inverter Specifications |
|
|---|---|
| Max PV Array Power | 17,100 W |
| Max DC Voltage | 600 V |
| MPPT Voltage Range | 90–550 V |
| Nominal DC Voltage | 380 V |
| Start Voltage / Min Input Voltage | 100 V |
| Max Input Current | 16 / 16 / 16 / 16 A |
| Strings per MPPT | 1 / 1 / 1 / 1 |
| Number of MPPT | 4 |
| Battery Type | Lead-acid or LiFePO₄ |
| Battery Voltage Range | 40–60 V |
| Max Charging / Discharging Current | 240 A |
| Rated AC Power @208Vac | 9,880 W |
| Rated AC Power @240Vac | 11,400 W |
| Max Apparent Power | 12,540 VA |
| Rated AC Current @208Vac | 47.5 A |
| Max AC Current @240Vac | 52.3 A |
| Rated AC Voltage Range | L1/L2/N/PE, 208/240V; 183–229V / 211–264V |
| Rated Output Frequency | 60 Hz (55–65 Hz) |
| Power Factor | 0.8 leading – 0.8 lagging |
| THD (On-Grid) | <3% |
| Rated Output Power (Back-Up) | 11,400 W |
| Overload Capacity (1s, 10s) | 17,100 W |
| Rated Output Voltage (Back-Up) | 120/240 V |
| Rated Output Frequency (Back-Up) | 60 Hz |
| THD (Back-Up) | <3% |
| Max Efficiency | 97.6% |
| CEC Efficiency | 97% |
| Battery-AC Max Efficiency | 93% |
| Display | LED + APP (Bluetooth) |
| Communication Ports | RS232 + RS485 (RJ45) + DRM (RJ45) |
| Communication | Wi-Fi / Ethernet / 4G |
| Load Monitor | 24 hours |
| Isolation Type | HF |
| Standby Power Consumption | <10 W |
| Operating Temperature | -40°C to +60°C (derate >45°C) |
| Cooling Method | Smart Fan Cooling |
| Ambient Humidity | 0–100% non-condensing |
| Altitude | 4000 m (3000 m with derating) |
| Noise Level | <40 dB |
| Ingress Protection | NEMA 4X (IP45) |
| Mounting | Wall Mount |
| Dimensions (H×W×D) | 30.7 × 18.5 × 10.2 in |
| Weight | 50 kg (110 lb) |
| Warranty | 10 years |
| Safety / EMC | UL 1741 CRD, IEEE 1547, UL 1699B, UL 1998, UL 9540, CAN/CSA C22.2 NO. 107.1-1, FCC Part 15 Class B, SRD-UL1741 |
RUiXU RX-LFP48100 51.2V Server Rack Batteries Specifications |
|
|---|---|
| Model | RX-LFP48100 |
| Rated Voltage | 51.2V |
| Voltage Range | 44.8V ~ 57.6V (Shipping Voltage > 51.2V) |
| Charge Voltage | 56.0V |
| Float Charge Voltage | 54.6V |
| Low Voltage Cut-Off | 44.8V |
| Nominal Energy | 5.12kWh |
| Usable Energy | 5.12kWh |
| Nominal Capacity | 100Ah |
| Dimensions (L × W × H) | 482 × 133.5 × 460 mm (18.9 × 5.2 × 18.1 in) |
| Weight | ~50 kg (110 lb) |
| Standard Charge Current | ≤50A |
| Maximum Charge Current | 70A |
| Standard Discharge Current | ≤50A |
| Maximum Discharge Current | 100A (Initial Temp. ≤35°C) |
| Peak Discharge Current | 101–119A @ 5 min / 120–150A @ 5 sec |
| Communication Protocols | RS485 / CAN |
| Maximum Parallel Units | 32 pcs |
| Operating Temperature | Charge: 0°C ~ 50°C (–25°C ~ 50°C for RX-LFP48100-H) Discharge: –20°C ~ 50°C |
| Storage Temperature | 0°C < T < 30°C (≤6 months) –10°C < T < 45°C (≤3 months) |
| Recommended Environment | 15°C ~ 35°C, 5% ~ 75% RH |
| Version | V1.5 |
